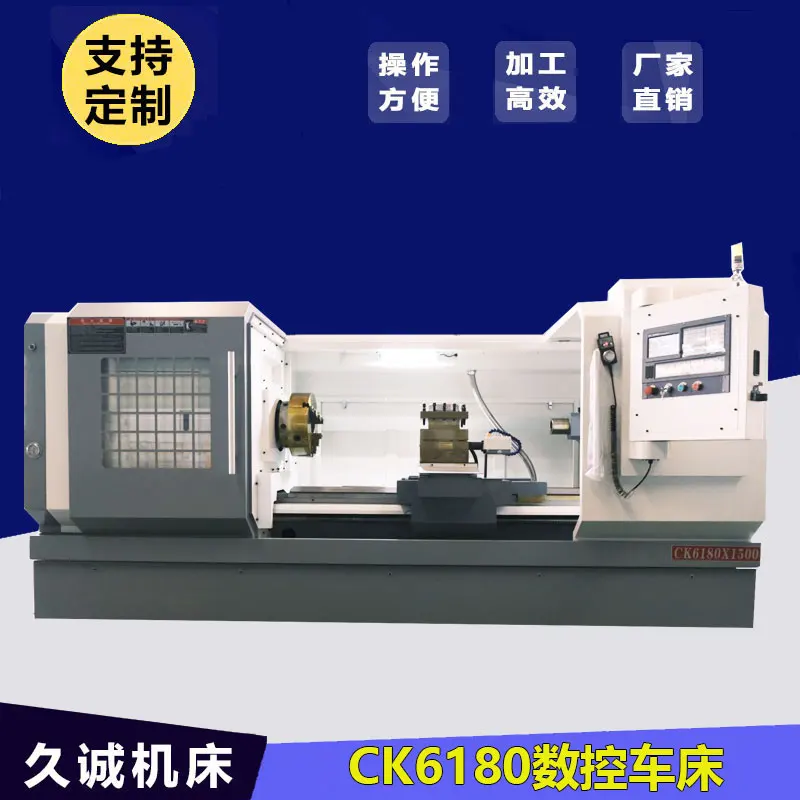

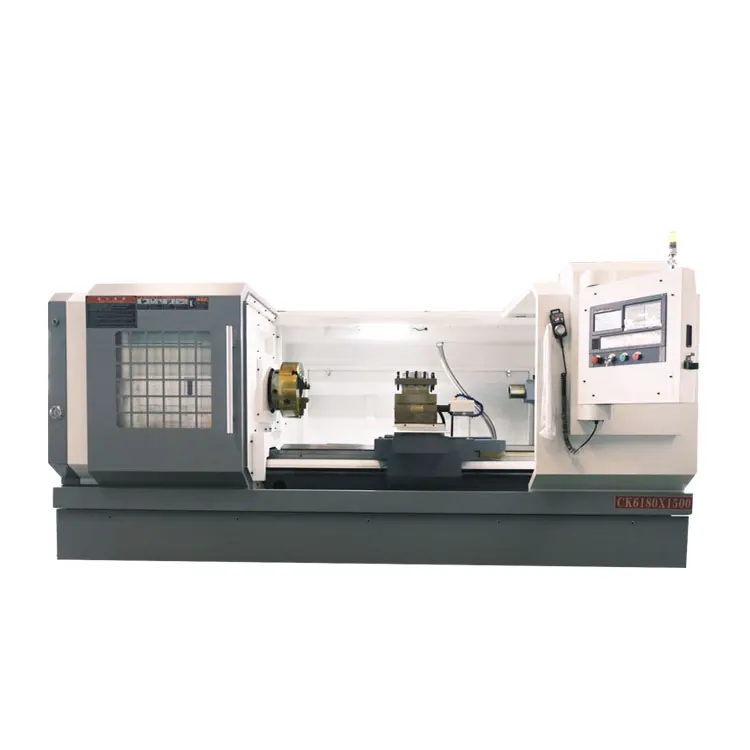

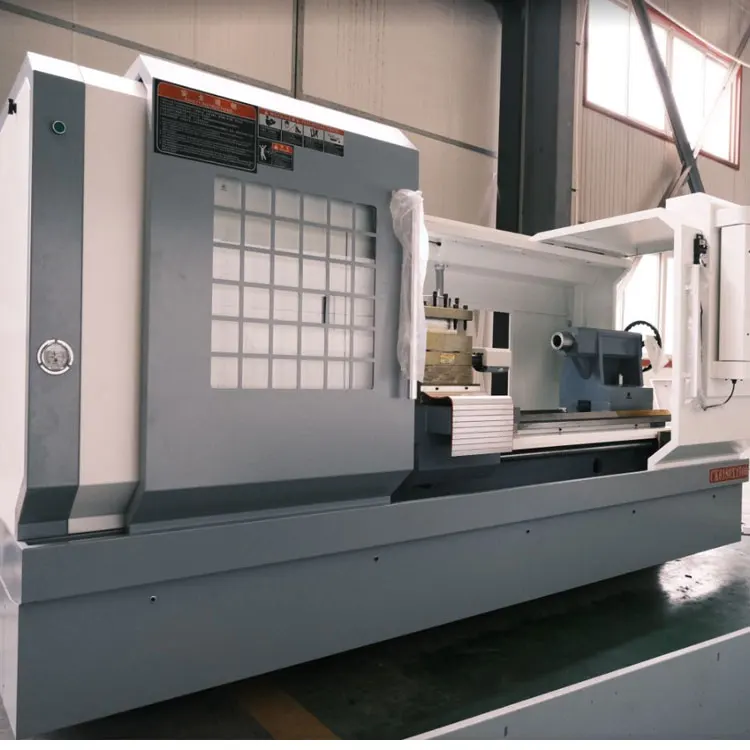

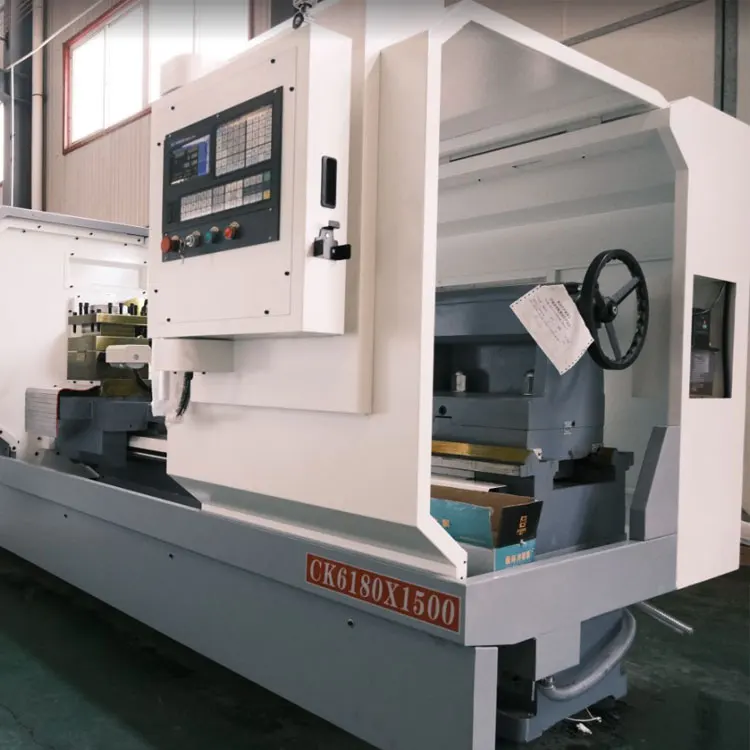

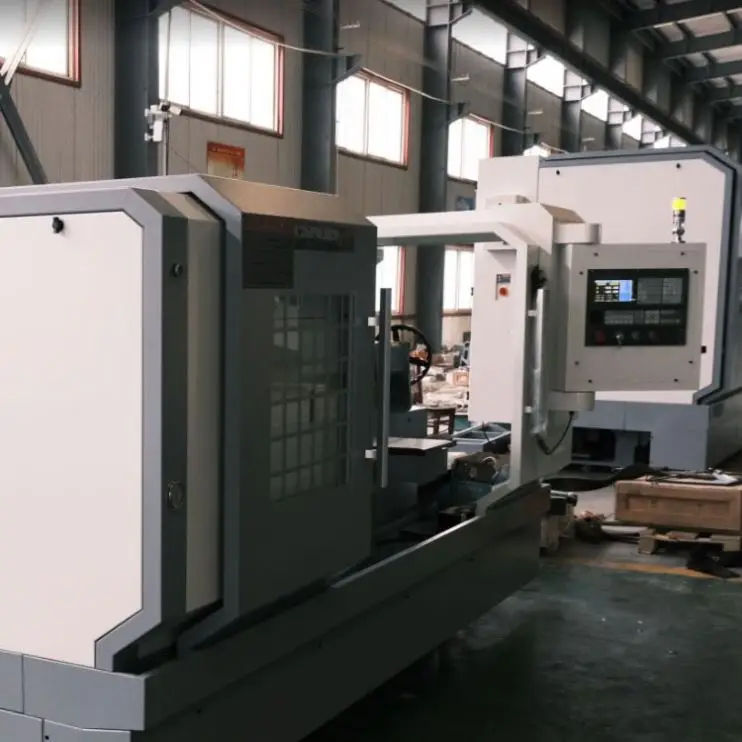

CK6180 China hot sale universal hydraulic chuck automatic cnc lathe
- Category: >>>
- Supplier: Shandong Jiucheng Machine Tool Co. Ltd.
Share on (1600777967744):
Product Overview
Description

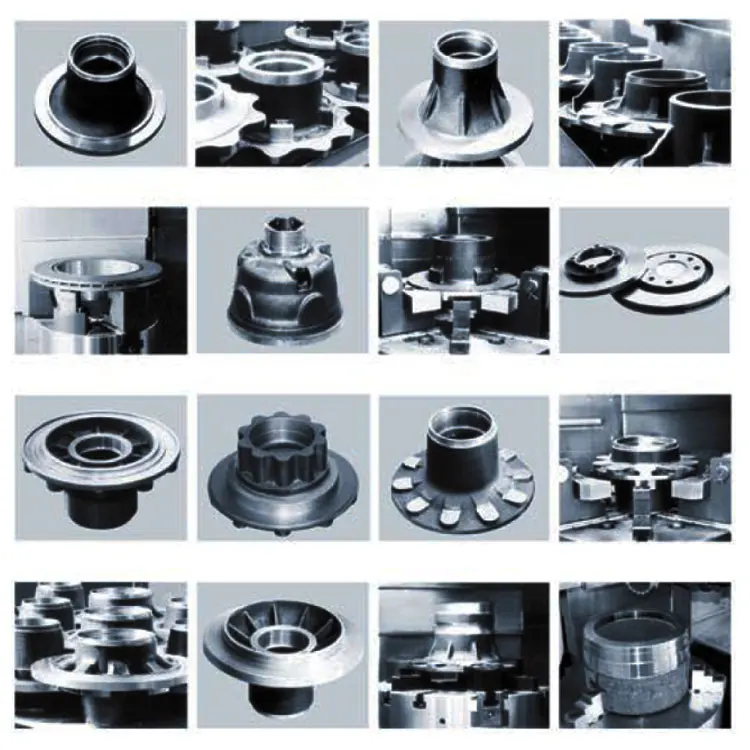

The machine is suitable to process the middle and large size work piece in steel , cast iron ,non-ferrous metal material . With the feature of big power and high rigidity , this machine is applied to heavy-cut the inner circle ,ex-circle , end surface and thread in both metric and English system , and could drill and bore the holes .

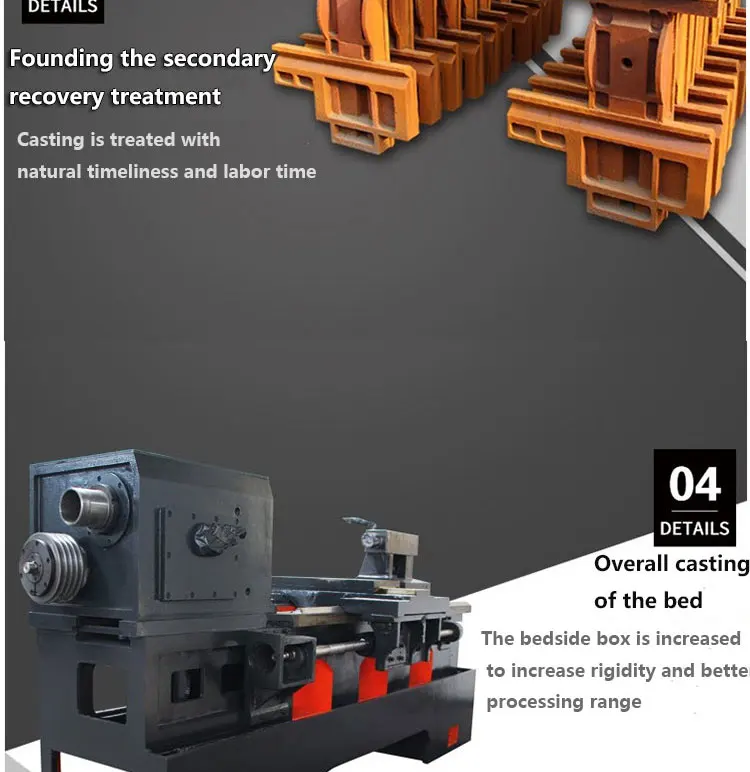

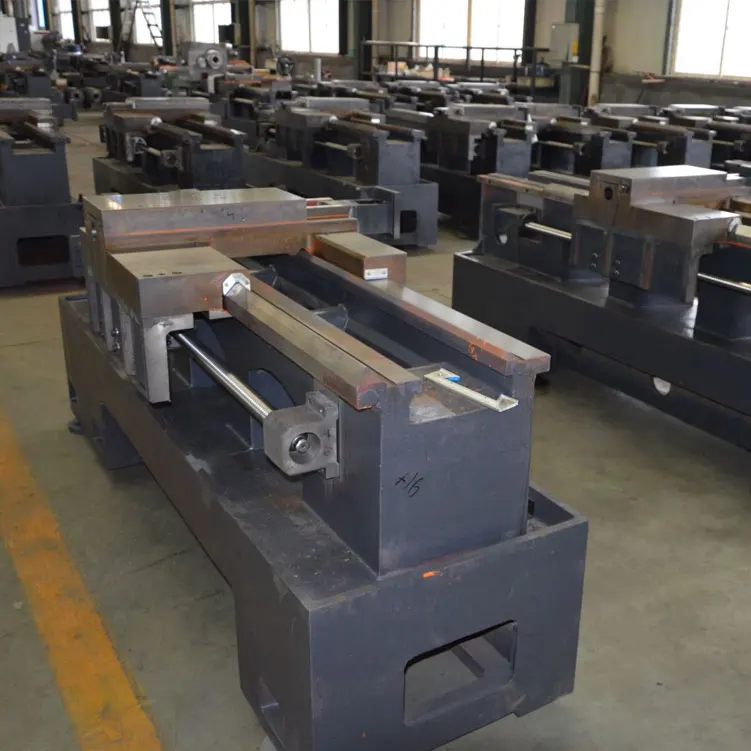

* Higher stability one-piece machine bed
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
| Item | CWK6180 | CWK61100Q | |
|---|---|---|---|
| The max swing diameter over bed | mm | 800 | 1100 |

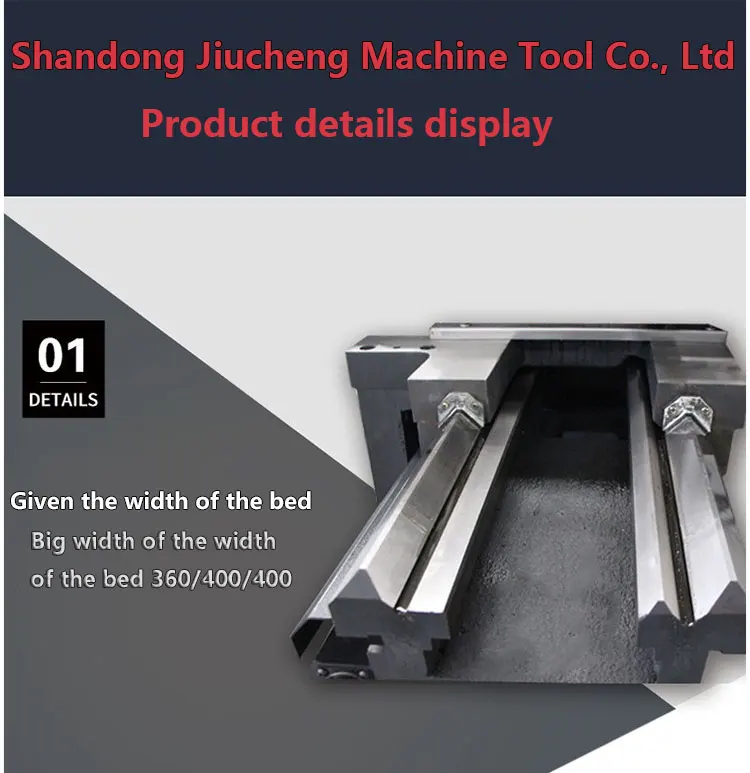

| Guideway width | mm | 600 | 600 |
| The max processing length | mm | 1500/2000/3000/4000/5000/6000 | 1500/2000/3000/4000/5000/6000 |
| The max swing diameter over slide | mm | 480 | 800 |
| The spindle nose | C11/A11 | C11/A11 | |

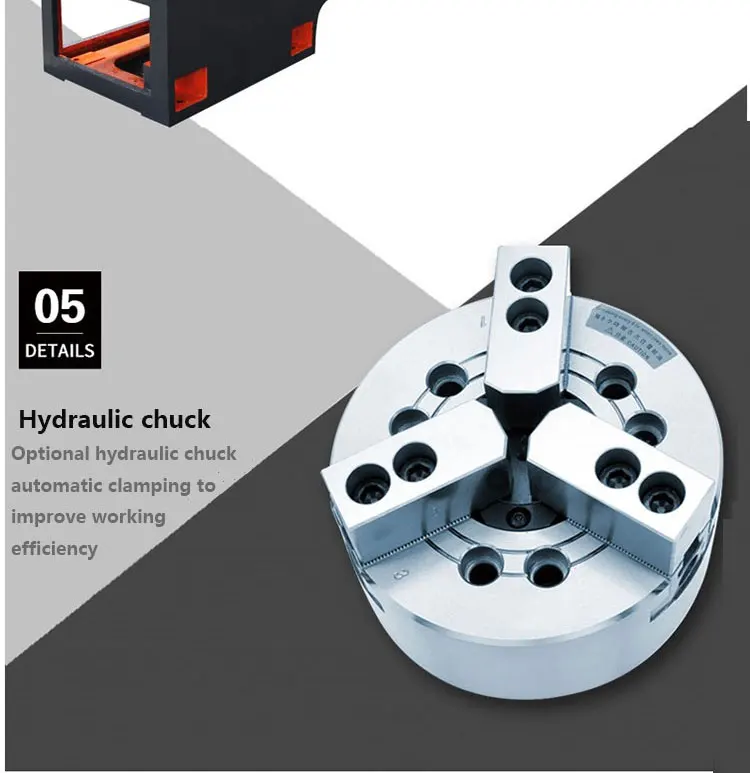

| Chuck size | mm | φ315 | φ400 |
| The spindle taper | 1:20/120 | 1:20/120 | |
| The spindle hole | mm | 104 | 104/130 |
| The spindle speed | r/min | 30~90;70~200;130~380;350~1000/20~1000 | 30~90;70~200;130~380;350~1000/20~1000 |
| speed changing steps | Manual 4 setps ,stepless speed changing (Standard)/Hydraulic automatic speed changing (Optional) | Manual 4 setps ,stepless speed changing (Standard)/Hydraulic automatic speed changing (Optional) | |
| Center height | mm | 400 | 560 |
| X axis rapid speed | m/min | 4 | 4 |
| Z axis rapid speed | m/min | 8 | 8 |
| X axis precision | mm | 0.001mm | 0.001mm |
| Z axis precision | mm | 0.001mm | 0.001mm |
| X axis travel | mm | 450 | 560 |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 | 1350/1850/2850/3850/4850/5850 |

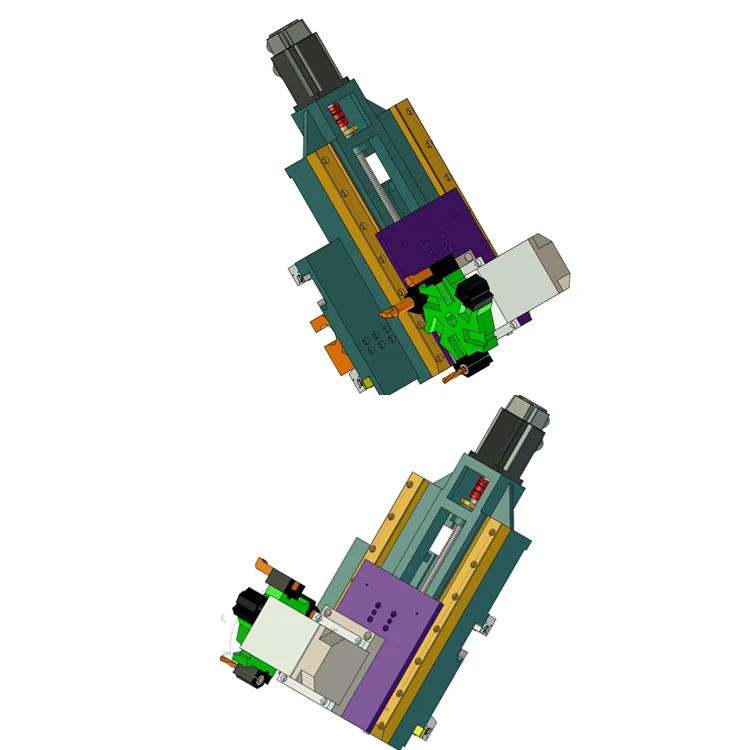

| Turret type | Four station (optional 6T or 8T) | Four station (optional 6T or 8T) | |
| Z axis motor | N.m | 22 | 22 |
| X axis motor | N.m | 15 | 15 |
| The main motor | N.m | 70 /11KW | 70 /11KW |
| The turert size | mm | 250*250 | 250*250 |
| The max cutting length | N.m | 5 | 5 |
| The index time | N.m | 3.6s/90° | 3.6s/90° |
| mm | 100 | 125 | |
| mm | 250 | 250 | |
| MT6 | MT6 | ||
| mm | 32X32 | 32X32 | |
| mm | 32 | 32 | |
| Half protection (Optional full protection) | Half protection (Optional full protection) |
