Product Overview
Description

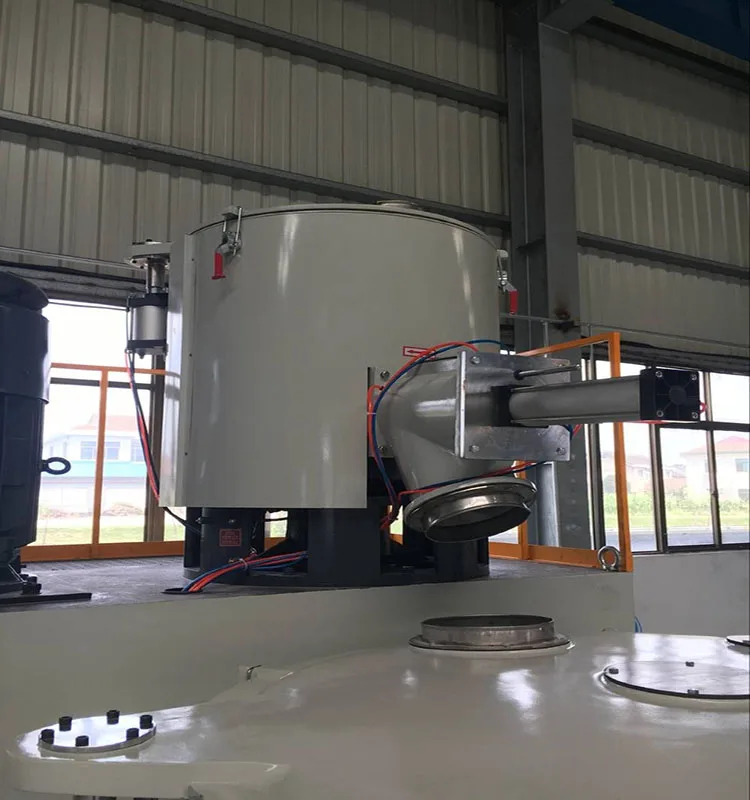

SRL series high speed mixer/plastic mixing machine
Application
1. used for the processes of mixing, drying and dying in the industries of plastic, rubber, chenical and the place o lab as well.
2. The mixer lid is double sealed
3. with the heating ways of self-friction and electric, etc.
4. with discharging ways of temperature automatic control and manual control.

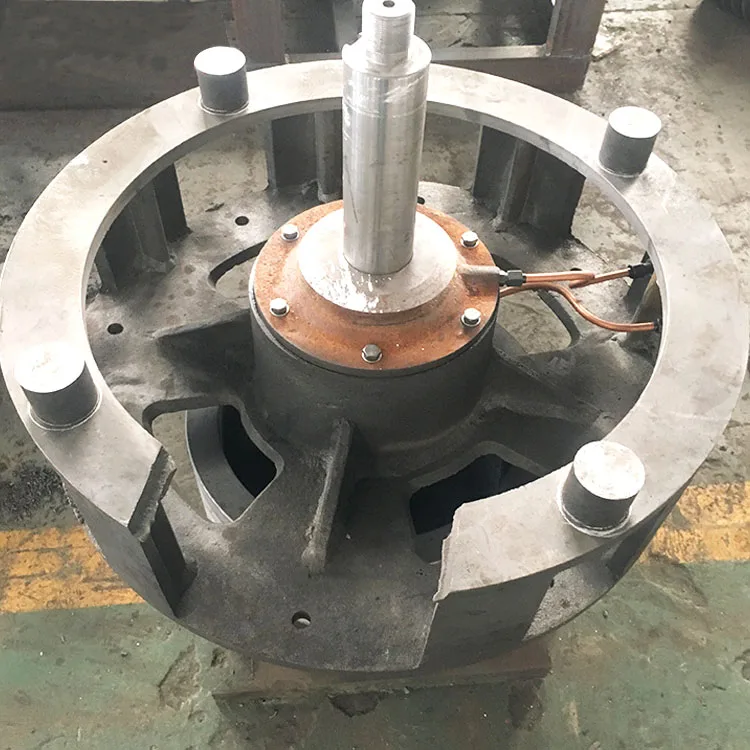

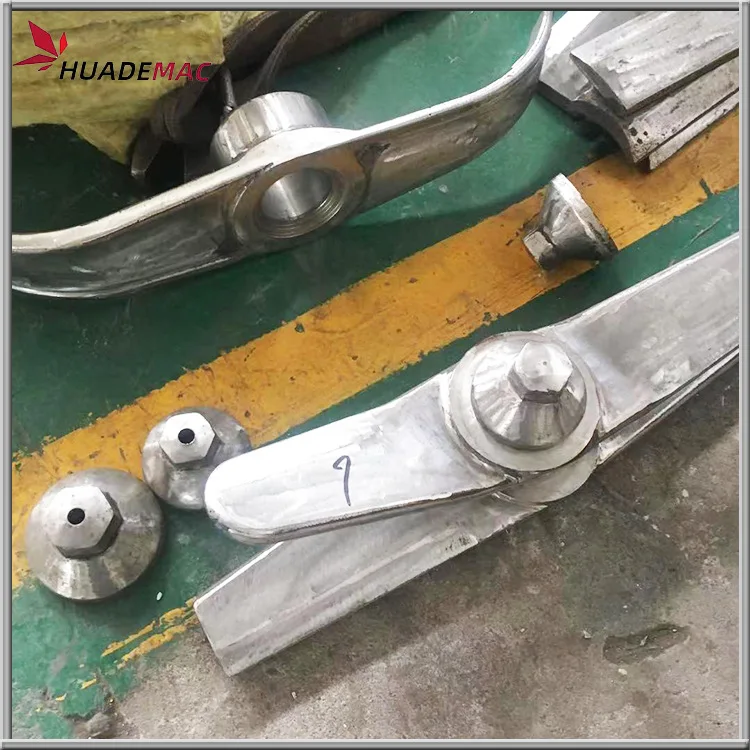

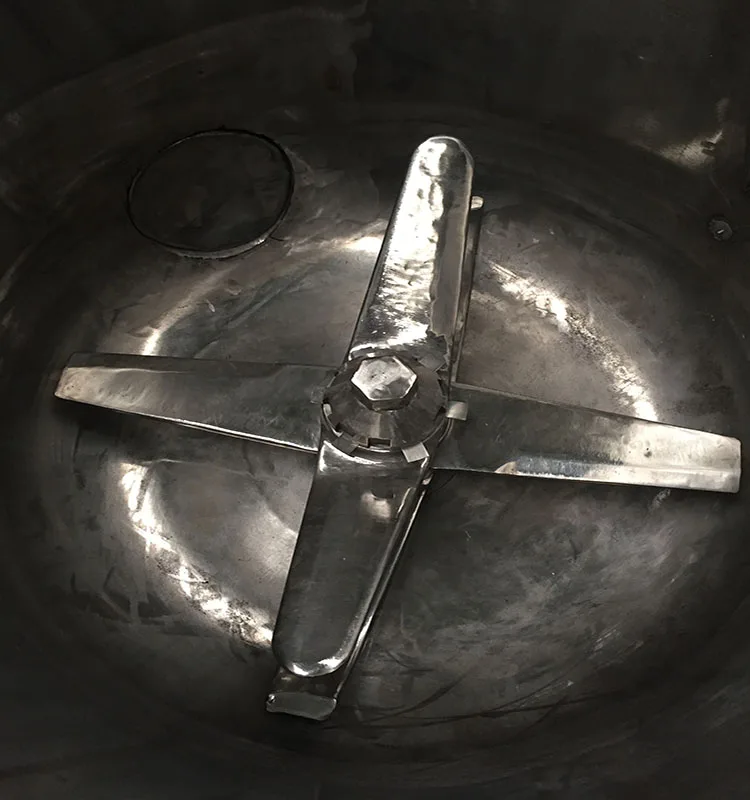

5. Paddles are entirely made of stainless steel and through dynamic and static balance test.

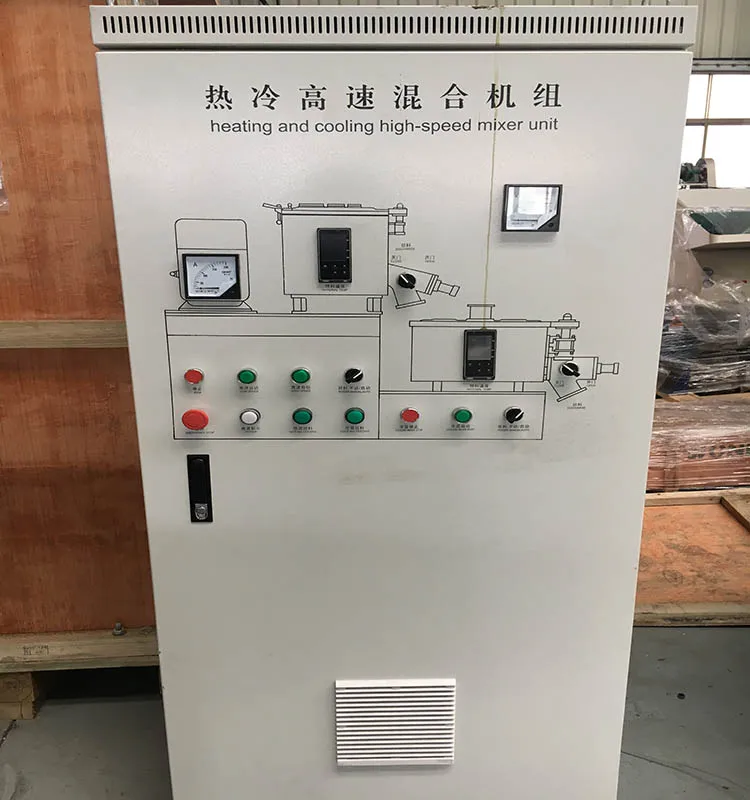

6. The electric control system adopts the components of famous brand.
Main Technical Parameter

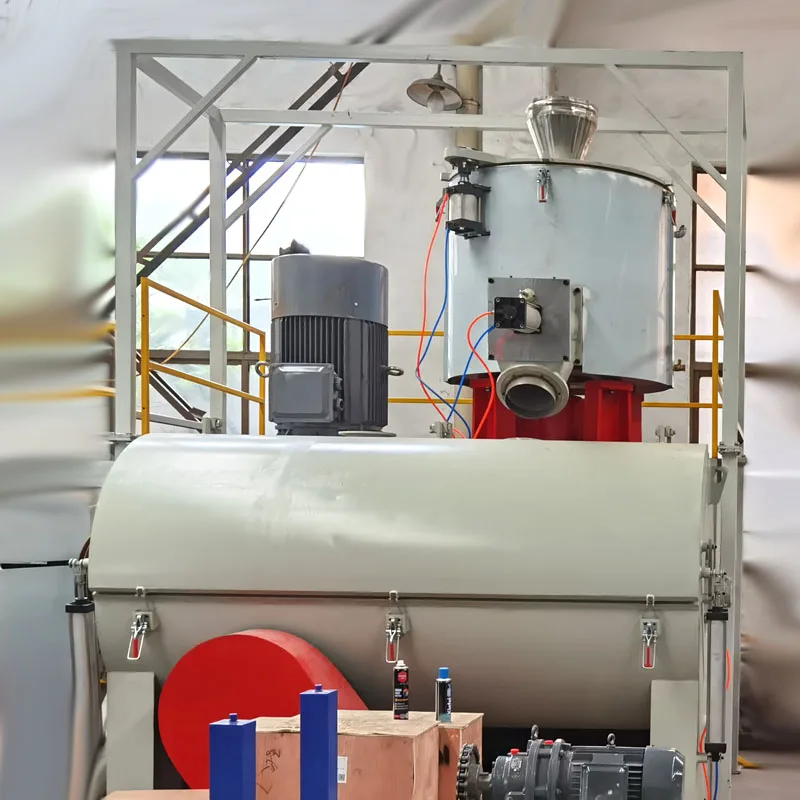

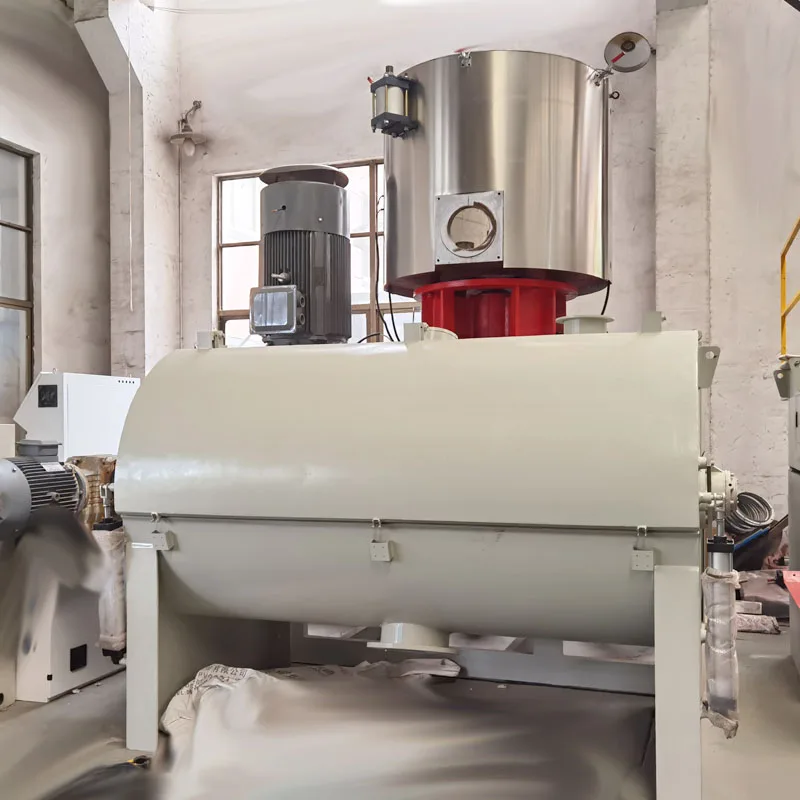

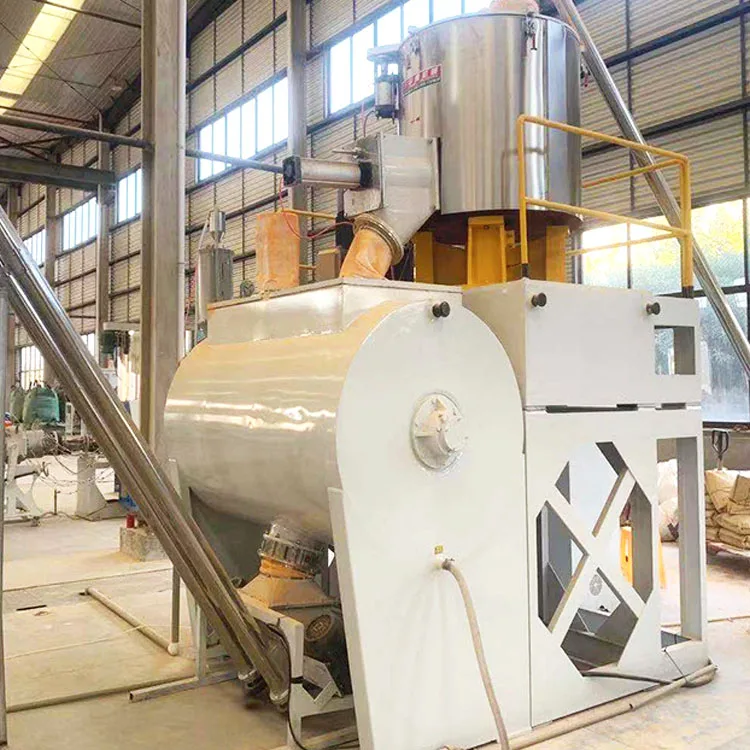

SRL-Z series Hot-Cool Plastic PVC mixer machine technical paramaters:
| Model | SRL-Z50/100 | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 |
| Capacity (L) | 50/100 | 100/200 | 200/500 | 300/600 | 500/1000 |
| Effective Capacity (L) | 37/70 | 100/200 | 150/320 | 225/390 | 375/640 |
| Motor power(kw) | 7/11/7.5 | 14/22/11 | 30/42/11 | 40/50/11 | 55/75/18.5 |
| Paddle (rpm) | 510/1020/118 | 650/1300/130 | 450/960/110 | 480/960/100 | 440/880/70 |
Heating/cooling Method
|
Electric heat and self-friction /Water-cooling
| ||||
| Weight(kg) | 2100 | 3000 | 3500 | 3800 | 5200 |
SHR series high speed mixer:
Model | Capacity (L) | Effective Capacity(L) | Motor (KW) | Main shaft speed(rpm) | Heating Method | Discharge Method |
SHR-5A | 5 | 3 | 2.2 | 600-3000 | Self-friction | Manual |
SHR-10A | 10 | 7 | 3 | 600-3000 | ||
SHR-50A | 50 | 35 | 7 | 750/1500 | Electricity | Air-operated |
SHR-100A | 100 | 75 | 7/11 | 650/1300 | ||
SHR-200A | 200 | 150 | 14/22 | 475/950 | ||
SHR-300A | 300 | 225 | 30/42 | 475/950 | ||
SHR-500A | 500 | 375 | 47/67 | 430/860 | ||
SHR-800A | 800 | 600 | 60/90 | 370/740 | ||
SHR-1000A | 1000 | 750 | 110/160 | 325/650 |
