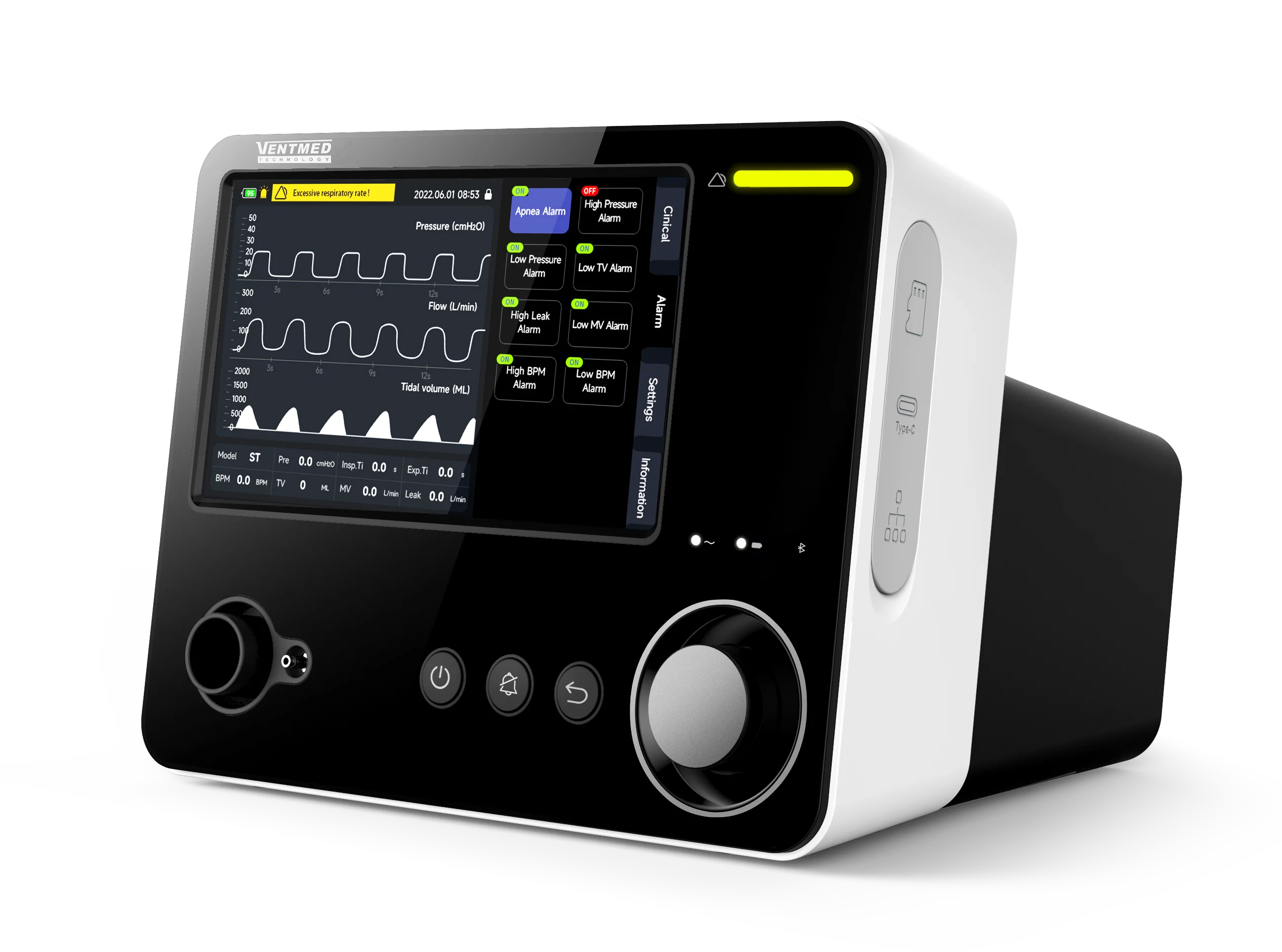

New type cpap machine RX breathing machine for sleep apnea
- Category: >>>
- Supplier: Hunan Ventmed Medical Technology Co. Ltd.
Share on (1600778090845):
Product Overview
Description
Product Description
Use scope and characteristics：
Applicable to hospitals and medical institutions
RX non-invasive ventilator has intelligent advantages, Parameter adjustment can be completed in ten seconds, let doctors and nurses get started easily and quickly.
It is applicable to the family and hospital therapy of adult patients with chronic obstructive pulmonary disease(COPD), obesity hypoventilation syndrome(OHS), respiratory insufficiency and mild to moderate respiratory failure.
Intelligent, safe, accurate and professional therapy
4-40 cmH2O
Inspiratory pressure range can be adjusted
Don't worry about breathing obstruction
Don't worry about excessive air pressure
50ms
Millisecond response of pressure rise and drop
Free and smooth breathing
80L/min
High flow output reduces CO2 retention
Improve ventilation and stabilize oxygenation
120L/min
Air leakage compensation
Real time monitoring and automatic pressure compensation
Improve user's comfort
Nine therapeutic working modes, one machine for multiple purposes
CPAP Mode | S Mode | T Mode | S/T Mode | APCV Mode |
Continuous Postive Airway Pressure | Spontaneous breathing mode | Time control mode | Spontaneouss breathing and Time control mode | auxiliary pressure control |
TVV-ST Mode | TVV-APCV Mode | HF Mode | IPVS Mode | |
Tidal volume control ST mode | Tidal volume control - APCV mode | High flow mode | Intelligent tidal volume control mode |
IPVS mode is an original precise therapy mode of our RX non-invasive positive pressure ventilator.
After entering the patient's height and weight, IPVS will automatically calculate the target tidal volume for patient, and automatically adjust the pressure for patient’s breathing to maintain this target tidal.
After entering the patient's height and weight, IPVS will automatically calculate the target tidal volume for patient, and automatically adjust the pressure for patient’s breathing to maintain this target tidal.

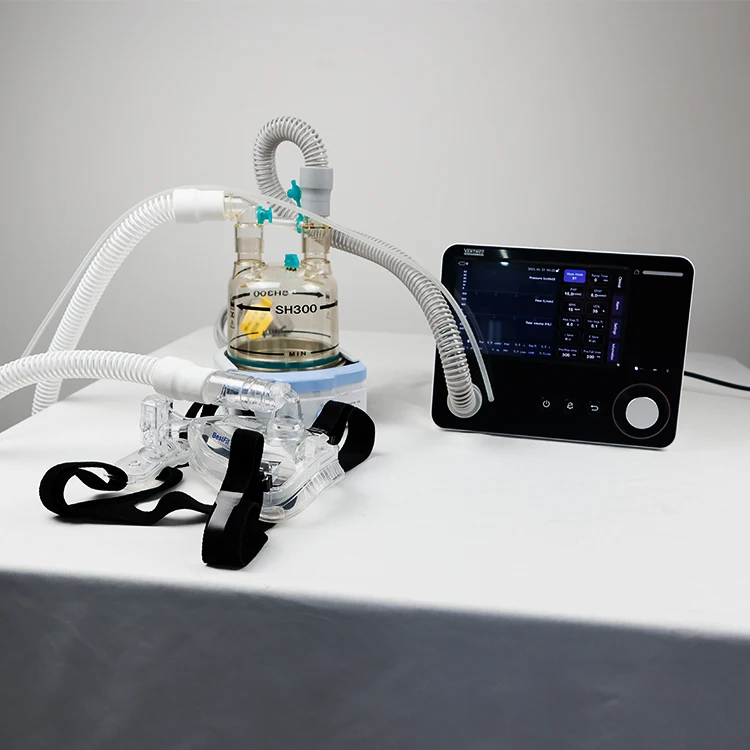

HF high flow mode, simple adjustment, humidified
oxygen therapy
oxygen therapy
The medical humidifier was assembled to output air and oxygen mixed airflow with temperature and humidity control
Help the patient to receive stable oxygen and provide high flow output of 80L/min
Flush the dead cavity of nasopharynx, reduce repeated inhalation of CO2, and combine oxygen therapy with assisted respiration
Help the patient to receive stable oxygen and provide high flow output of 80L/min
Flush the dead cavity of nasopharynx, reduce repeated inhalation of CO2, and combine oxygen therapy with assisted respiration
Air leakage compensation function
When the mask moves or the altitude changes, the air leakage compensation function will automatically compensate air pressure to ensure synchronization and comfort of breathing.
Provides comfort and synchronization of pressure support for patients
In order to reach the target value of tidal
volume, IPVS will respond quickly within 4-5 breaths. Through control of tidal volume of patients, improve alveolar ventilation,and assist patient with more oxygen inhalation

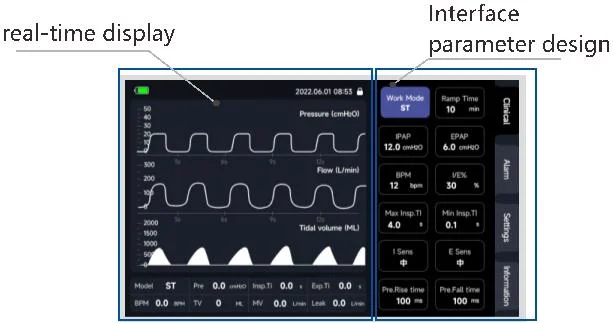

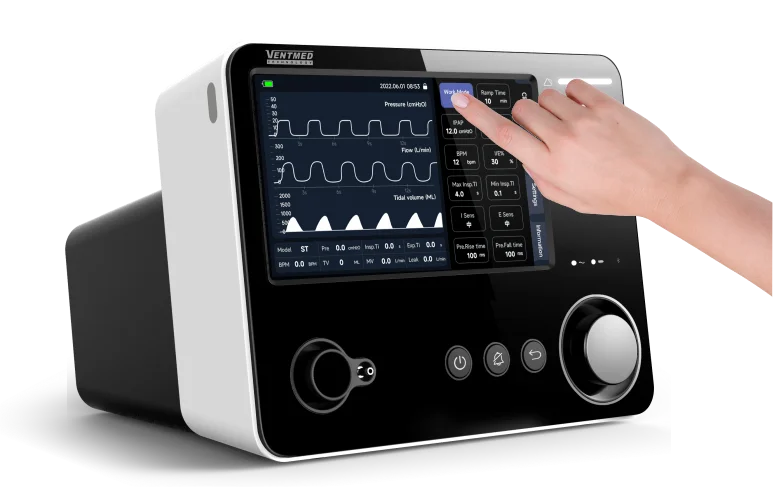

Real time monitoring interface
waveform display of key data
Parameters are clearly visible and therapy management is more efficient
Parameters are clearly visible and therapy management is more efficient
There is no need to switch the interface frequently setting interface and monitoring interface separately layout, the real-time monitoring of data waveforms will be showed on the same screen and the treatment parameters are clear to view

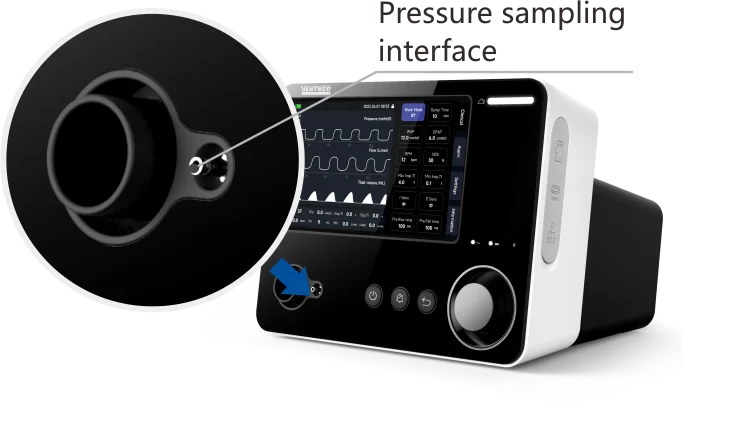

Machine with inside pressure sampling + pressure sampling from mask-end
The increased mask-end pressure sampling is more sensitive, more accurate, and better for patient-ventilator synchrony
Pressure sampling interface

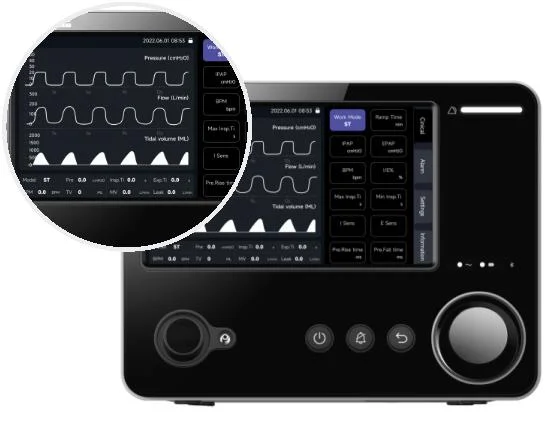

Seven-inch touch color screen + rotary button operation, convenient and quick
No interface switching is required for adjusting parameters and viewing working data

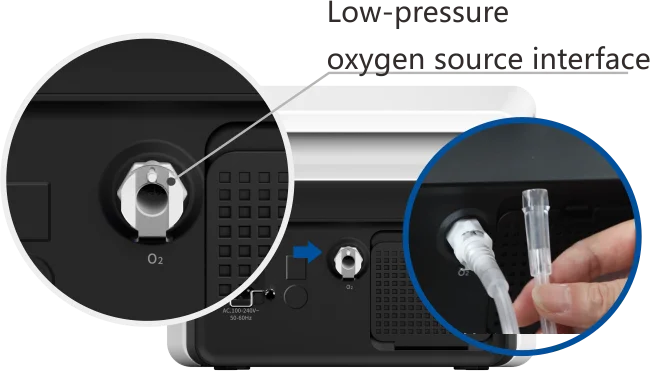

Connecting the oxygen tube, can connect the oxygen source(wall oxygen, oxygen cylinder, oxygen concentrator, etc) quickly
Or with buoy oxygen inhaler to connect high-pressure oxygen

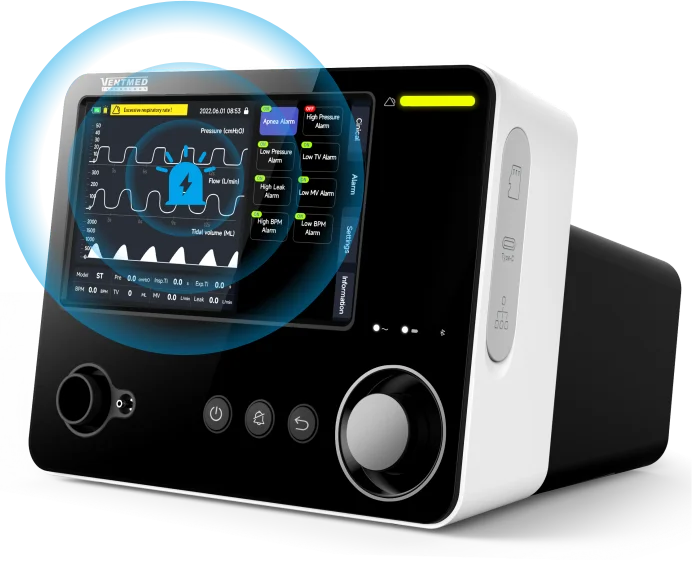

15 alarm functions for patient safety
Light, sound and remote alarms alert 15 kinds of unexpected dangers
The frequency classification was judged in adcance
Reassuring doctors and keeping patients safe

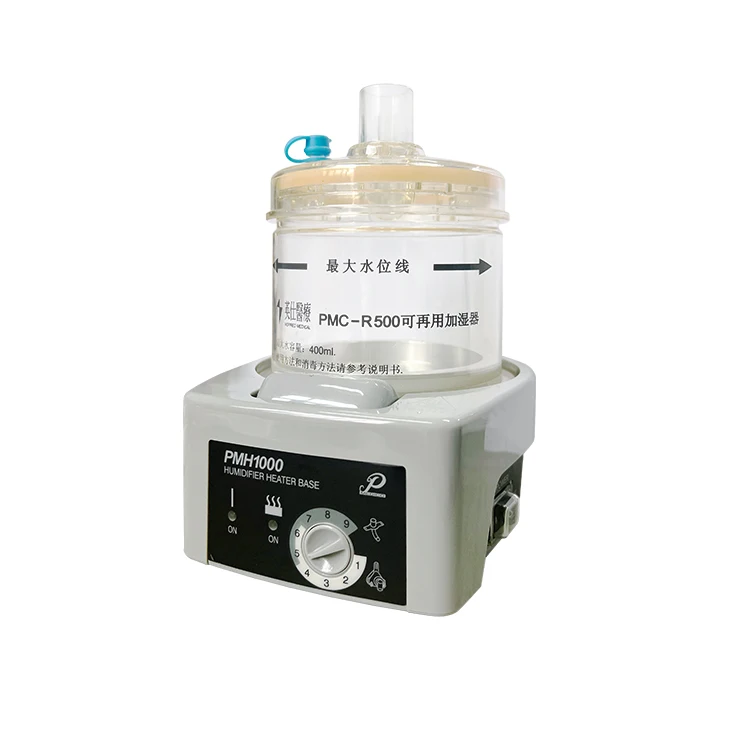

Equipped with medical heating and humidifier
Stable delivery of mild and moist air flow for patients
Exhaling and inhaling are more comfortable
Built in battery can provide 8-hour operation
Built in battery can supporting operation time ≥ 8 hours
It is applicable to the situation of going out/transferring to another hospital, continuous monitoring, and not afraid of power failure

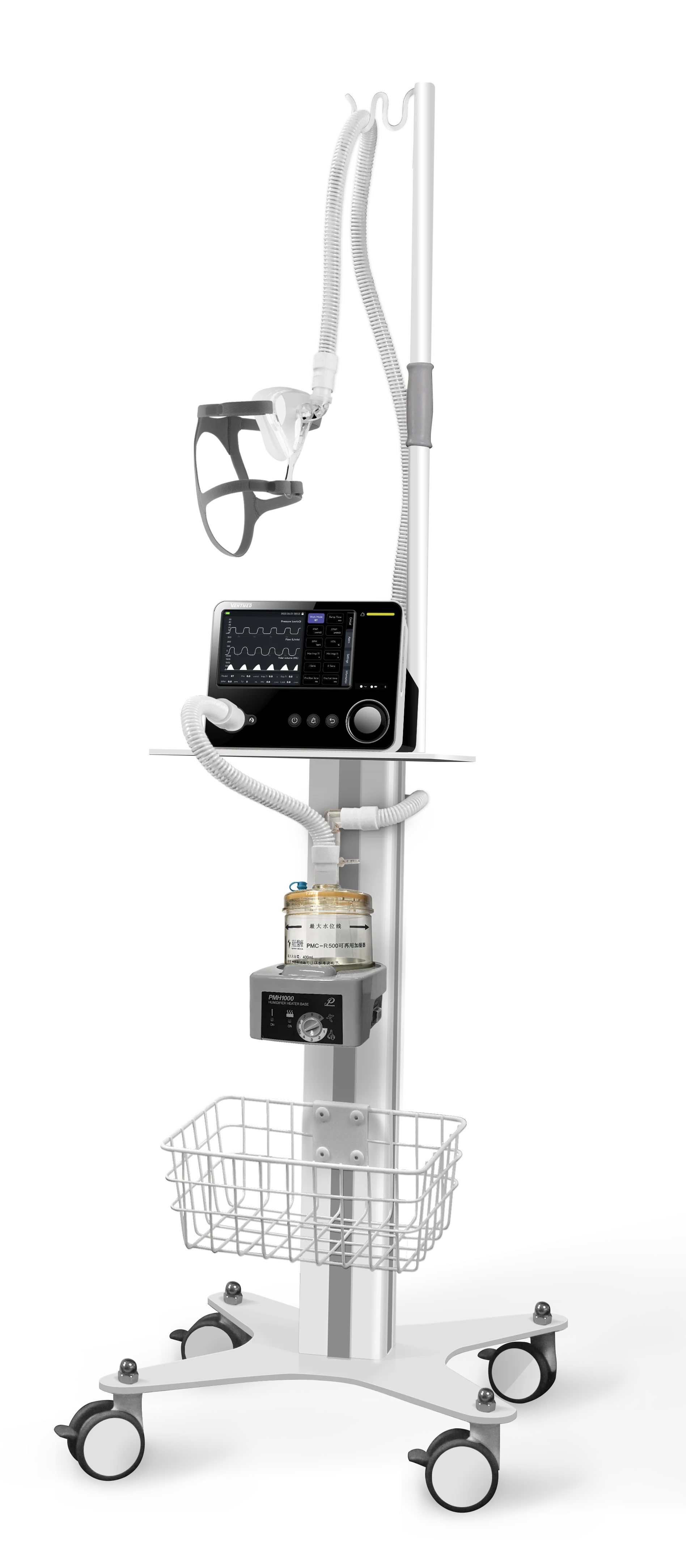

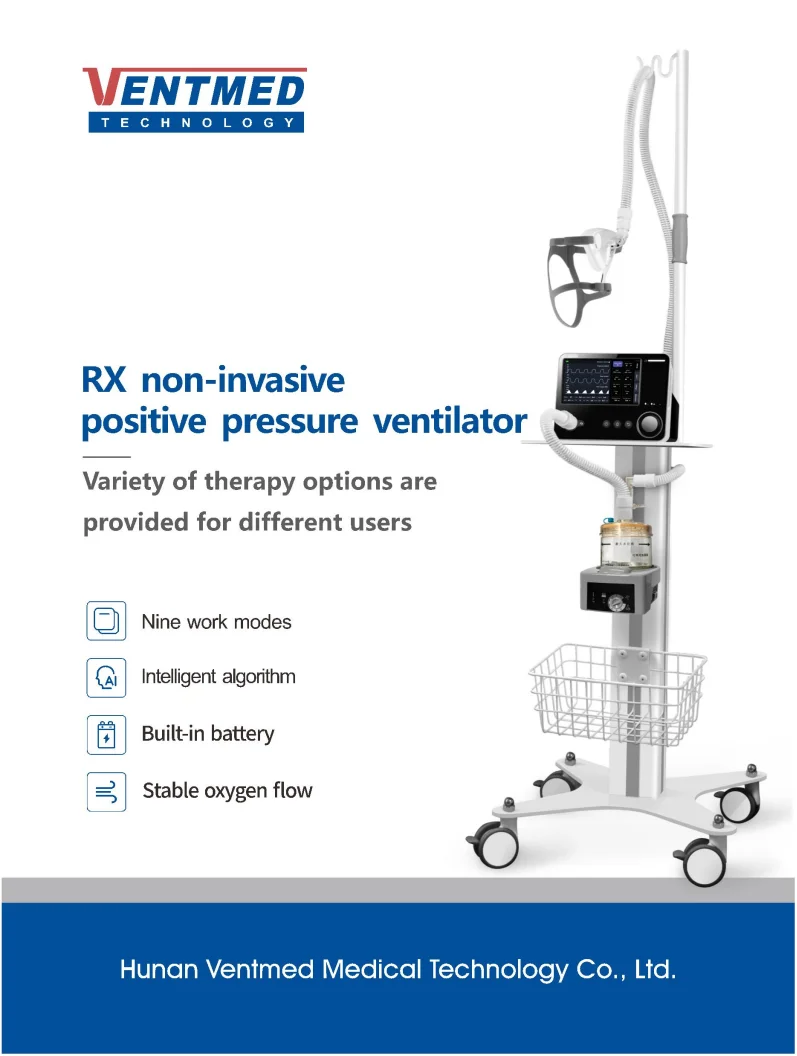

Integrated trolley + boom
Rapid machine installation; Easy to move
Simple installation and convenient movement
The machine occupies a small area, and hanging parts of the boom can be easily taken

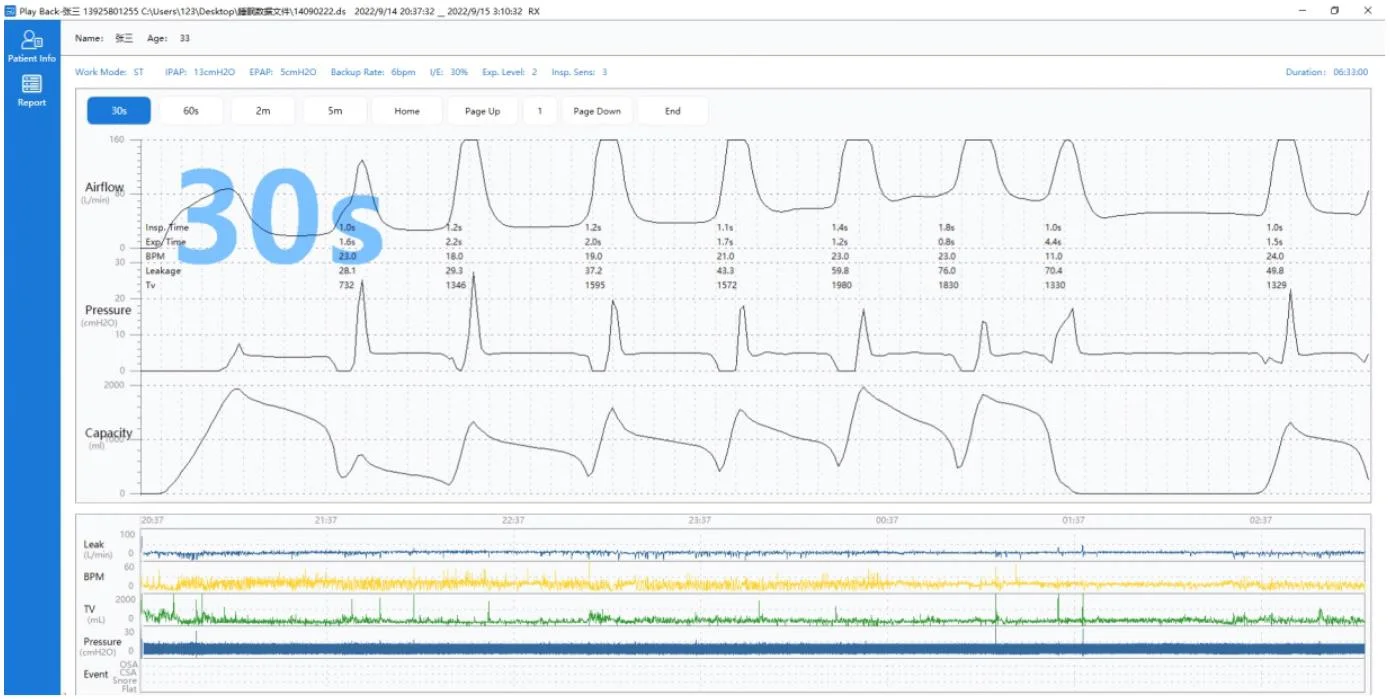

Unified data control helps clinical decision-making
Making it easy for doctors to view the data and make accurate clinical decisions
Product model parameter table | ||||||||||||||
Model Number | Work mode | Built in battery backup | Maximum pressure | Backup rate | Pressure rise/drop time | Target tidal volume | Technical functions | |||||||
RX-30 | CPAP, S, T, ST, APCV, TVV-ST, TVV-APCV | NO | 4-30cmH2O | 5bpm—60bpm STEP 1bpm | Rise: 100ms-900ms Fall: 100ms-400ms | 200-1200ml, STEP 10ml | Proximal pressure sampling function with external oxygen concentration detection interface, can be connected to high pressure/low pressure oxygen source | |||||||
RX-35 | 4-35cmH2O | |||||||||||||
RX-40 | 4-40cmH2O | |||||||||||||
RX-30B | YES operation time ≥ 8 hours | 4-30cmH2O | ||||||||||||
RX-35B | 4-35cmH2O | |||||||||||||
RX-40B | 4-40cmH2O | |||||||||||||
RX-30P | CPAP, S, T, ST, APCV, TVV-ST, TVV-APCV, IPVS, HF | NO | 4-30cmH2O | |||||||||||
RX-35P | 4-35cmH2O | |||||||||||||
RX-40P | 4-40cmH2O | |||||||||||||
RX-30BP | YES operation time ≥ 8 hours | 4-30cmH2O | ||||||||||||
RX-35BP | 4-35cmH2O | |||||||||||||
RX-40BP | 4-40cmH2O | |||||||||||||
Product Paramenters
Dimension | 226x196x175mm | DS-8(ST30) | |
Weight | 2.0 kg without battery 2.4 kg with battery | CPAP, Auto, S, T, ST, APCV | |
Environment temperature | Working environment: +5℃ to + 40℃ Transportation and storage: -20℃ to +55℃ | Grey | |
Humidity range | Working environment: 10% ~ 95% Transportation and storage: ≤ 93% | 28L x 14W x 9.5H | |
Atmospheric pressure range | 60kPa - 110kPa | 38L x 36W x 16H | |
Anti-electric shock type | Class II device | 1.6KG for host, 3.9KG included all accessories and packing carton | |
Degree of Anti-electric shock | BF type application part | Input 100-240V, 50-60Hz, 2-1A, Output +24V, 2.5A | |
Degree of protection against harmful liquid inlet | IPX1 | 2.8 inch TFT, 320 x 240 | |
Operating noise | ≤30dB(CPAP 10 + 4mm standard plug) | Auto sleep in 15 minutes, press any button to highlight screen | |
Operating mode | continuous operation | Motor will stop work automatically and buzzle will ring 4 times when temperature is over | |
Normal working rated power | 80W | Yes | |
Extenal power supply | AC 100-240V, 50-60HZ, 2A | SD Card | |
Built-in battery specifications | 18V, 6000mAh, 108Wh | 24VDC | |
Built-in battery model | HK-sam30q-5s2p15a | 2.0A maximum | |
Running time* | 8 hours when the built-in battery is fully charged *CPAP mode, 10cmH2O pressure, running time is greater than orequal to 8 hours | <28db | |
Work Mode* | CPAP, S, T, ST, APCV, TVV-ST, TVV-APCV, IPVS, HF *IPVS and HF modes are model P device modes | 4-30 cmH2O | |
Inspiratory pressure (IPAP) | 4cmH2O~40cmH2O 4-40cmH2O 4cmH2O~35cmH2O 4-35cmH2O 4cmH2O~30cmH2O 4-30cmH2O *Inspiratory pressure Settings for S, T, ST, APCV, TVV-ST, and TVV-APCV modes. The setting value of the maximum inspiratory pressure is different for different models | 4-30 cmH2O | |
Expiratory pressure (EPAP) | 4cmH2O~40cmH2O 4cmH2O~40cmH2O 4cmH2O~40cmH2O *Expiratory pressure Settings for S, T, ST, APCV, TVV-ST, and TVV-APCV modes. The setting value of the maximum inspiratory pressure is different for different models | 4-20 cmH2O | |
Pressure adjustment intercal | 0.2cmH2O | Yes | |
Pressure accuracy | ±0.5cmH2O or 4% set value; Take the large value of both | 5-50min, adjustable | |
Maxinmum inspiratory pressure* (Max IPAP) | 4cmH2O~40cmH2O 4cmH2O~40cmH2O 4cmH2O~40cmH2O *Maximum inspiratory pressure Settings for APCV, TVV-ST, and TVV-APCV modes | 10-80% | |
Minimum inspiratory pressure* (Min IPAP) | 4cmH2O~40cmH2O 4cmH2O~40cmH2O 4cmH2O~40cmH2O *Minimum inspiratory pressure Settings for APCV, TVV-ST, and TVV-APCV modes, which are less than or equal to the maximum inspiratory pressure | 0-60min adjustable 1min/Step | |
Pressure rise/drop duration | 100ms-900ms | Yes | |
Backup Rate | 5-60 times/min (T mode) | Yes | |
I/E Rate | 10%-90% (T mode) | 1-5 Level | |
IPAP/Inspiratory Sensitivity | Very high, high, medium, low, very low | 1-5 Level | |
Target tidal volume | 200-1200ml | 1-5 Level | |
Inspiratory time | 0.1-4s | Yes | |
Min/Max inspiratory | 0.1-4s | Yes | |
Ramp time | 0-60min 1min Step length | Yes | |
Max flow rate | 5cmH2O——190L/min 10cmH2O——180L/min 15cmH2O——170L/min 20cmH2O——165L/min 35cmH2O——130Lmin(RX-35 and RX-40 models only) 40cmH2O——30Lmin(RX-40 mode only) | Yes | |
HF high flow mode | Output flow setting range: 10-80L/min Step: 1 L/min Accuracy: ±10% or 2L/min; Take the large value of both Backup respiratory rate: 5bpm-60bpm Step 1 BPM | Yes | |
Max ultimate pressure | RX-30: max ultimate pressure ≤35cmH2O(≈3.5kPa) in a single fault state; RX-35: max ultimate pressure ≤40cmH2O(≈4.0kPa) in a single fault state; RX-40: max ultimate pressure ≤45cmH2O(≈4.5kPa) in a single fault state; If Max ultimate pressure is exceeded for more than 10 seconds, the device will automatically turn off the blower and stop the pressure output. | Yes | |
Technical alarm | High-level alarm audio Main board temperature ≥ 80℃ for 3s Blower temperature ≥ 80℃ for 3s The battery run out, battery power is ≤ 15% for 30s Ultimate pressure is too high, working pressure ≥ 55cmH2O lasting for 4s The Ultimate air leakage is too high, air leakage >110L/min for 15s | When mask is off, will Beep till mask put on or power off. | |
Technical alarm | Intermediate alarm audio Battery power ≤ 30% for 30s | If power is off when the machine is working, will make a warning sound over 30 seconds | |
Physiological alarm | Intermediate alarm audio Suffocation Alarm. It can be triggered if there is no breathing about 10s~60s after three consecutive normal breaths in CPAP and S modes The pressure is too high and higher than the set pressure for 4s The pressure is too low. The pressure is 15s lower than the set preesure Low tidal volume is lower than the set value for 5 consecutive respiratoru cycles High air leakage rate. The air leakage rate is higher than the set value for 5 consecutive respiratory cycles Fast breathing rate, 5 consecutive breathing cycles breathing rate is higher than the set value Slow breathing rate, 5 consecutive breathing cycles breathing rate is higher than the set value Mask off, Non-HF mode, and device start-up time has been more than 10s. The alarm is triggered when the mask falls off about 15s | 220ML max | |

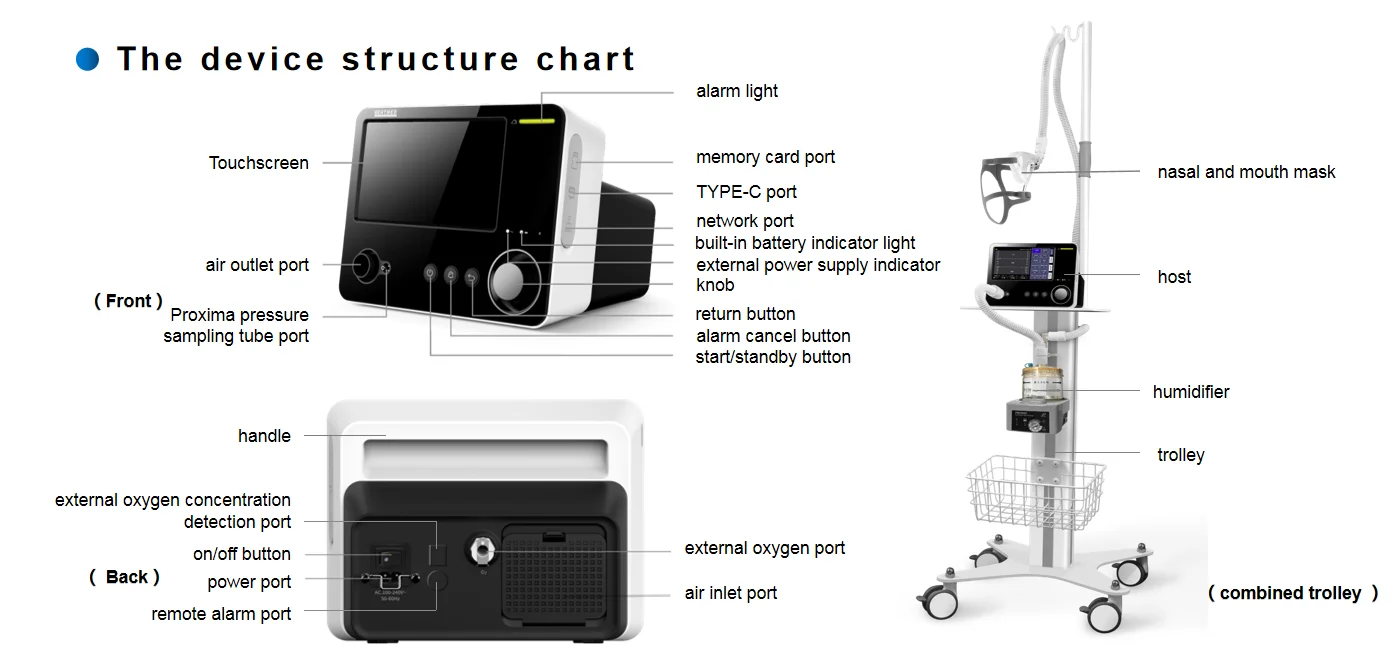

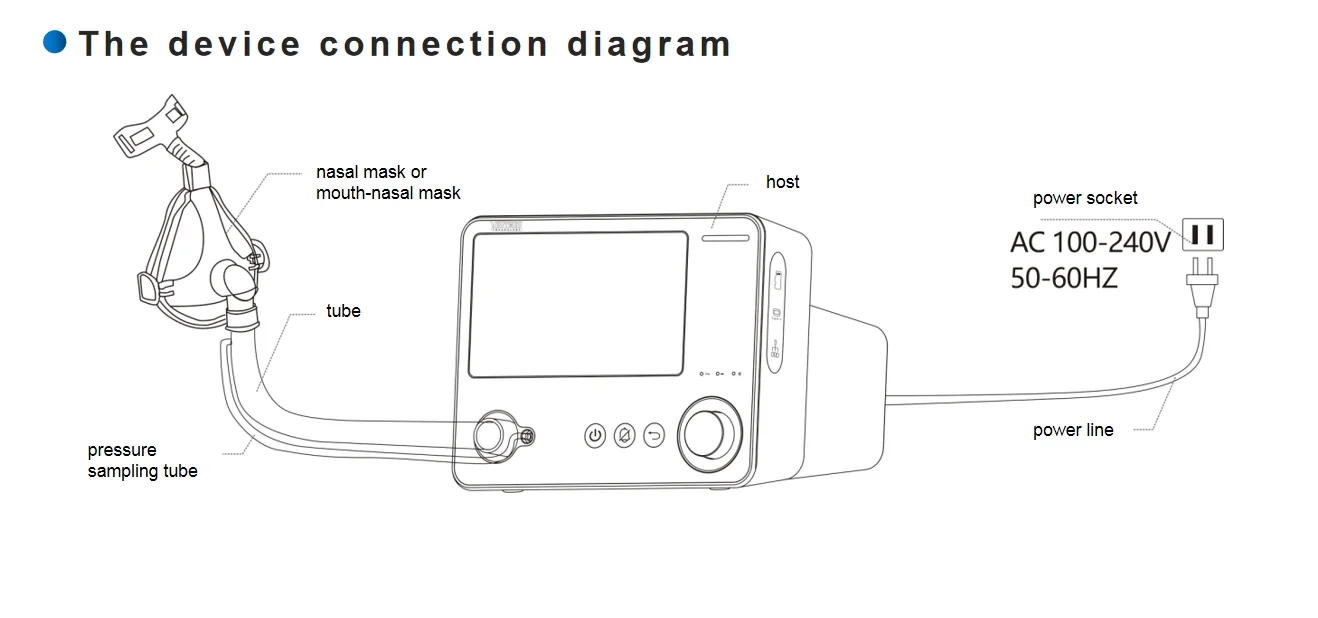

Product Structure

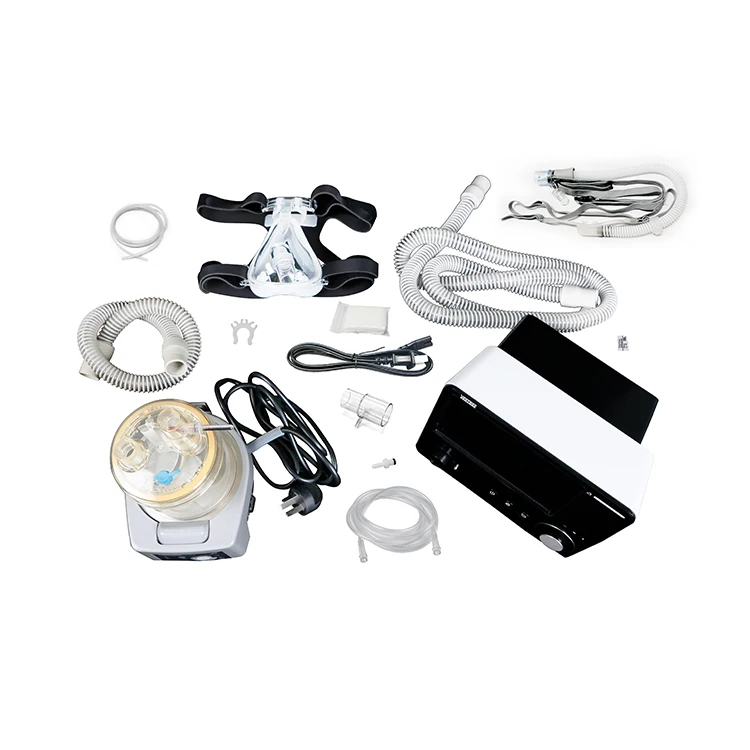

Packing List
Name | Quantity |
Chip | 1 |
Pressure sampling tube | 1 |
T-junction | 1 |
Straight mail connector | 1 |
Oxygen source connection tube | 1 |
Air filter | 5 |
Bag | 1 |
Air tubing(1.8M) | 1 |
Air tubing(M) | 1 |
Power cord | 1 |
Nasal oxygen cannula | 1 |

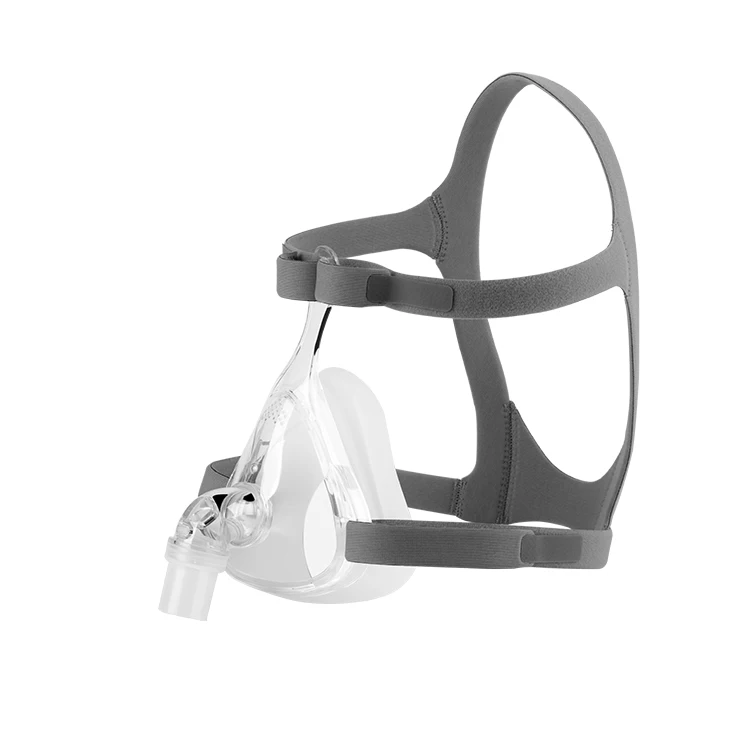

Oral-nasal mask | 1 |
Humidifier | 1 |
TF card | 1 |
Packaging & Shipping
Packing Details : Packed in travel bag with inner colorful carton, outer standard carton.
Delivery Details : 3-30 days after order
Delivery Details : 3-30 days after order
1. Travel bag
2. Suitable carton
3. Shipping way
Why Buy from VentMed
1. Top Quality
Experienced manufacturer of sleeping & breathing products, coming from good materials and technology
2. Excellent Service
We treat clients as friend and aim at building long term business relationships. 7/24 service for you, all the question will be detailed within 24 hours
3. After-Sale
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, online chat (WhatsApp, WeChat, Skype). Please contact us once the machine has any problem. Best service will be offered.
4. Warranty
Two years warranty on the host machine and humidifier is given. 90 days for humidifier water tanks.
5. OEM/ODM Service
We can offer you better OEM and ODM services. We have our own R&D department with many experienced designers and engineers and many production lines, so we have the great capacity to offer you high-quality machines according to your needs, ideas and samples.
