Vertical Automatic Insulating Glass Making Washing And Drying Machine 3660*2440 Mm Glass Working Size From Sand
- Category: >>>
- Supplier: Shandong GHL CNC Machinery Co. Ltd.
Share on (1600778136176):
Product Overview
Description

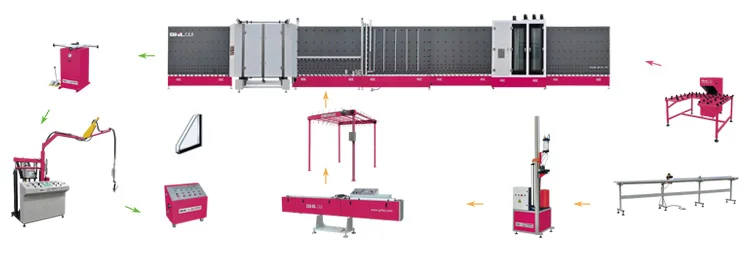

Automatic LBJ2030 / 2025 Insulating Glass Processing line
Product Description
Model | LBJ2025 | LBJ2030 | LBJ2536 |
Input Voltage | 380V 50HZ | 380v 50Hz | 380v 50Hz |
Total Power | 30 KW | 30 KW | 34 kw |
Max. Glass Size | 2000*2500mm | 2000*3000mm | 2500×3500mm |
Min.Glass Size | 300*500mm | 300*500mm | 450×280mm |
Washing glass thickness | 3-12mm | 3-12mm | 3—12mm |
Working speed | 8~45m/min | 8~45m/min | 8—45m/min |
Overall dimension | 19000*1800*3100mm | 22000*1800*3100mm | 26000×1800×3600mm |
Total weight | 5500 kg | 6000 kg | 7000 kg |

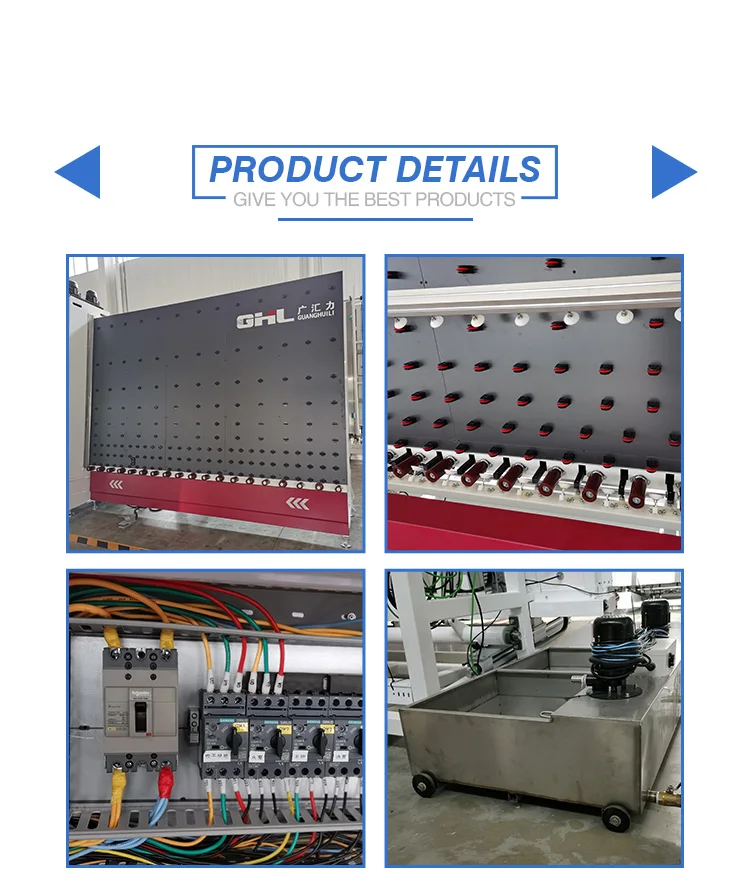

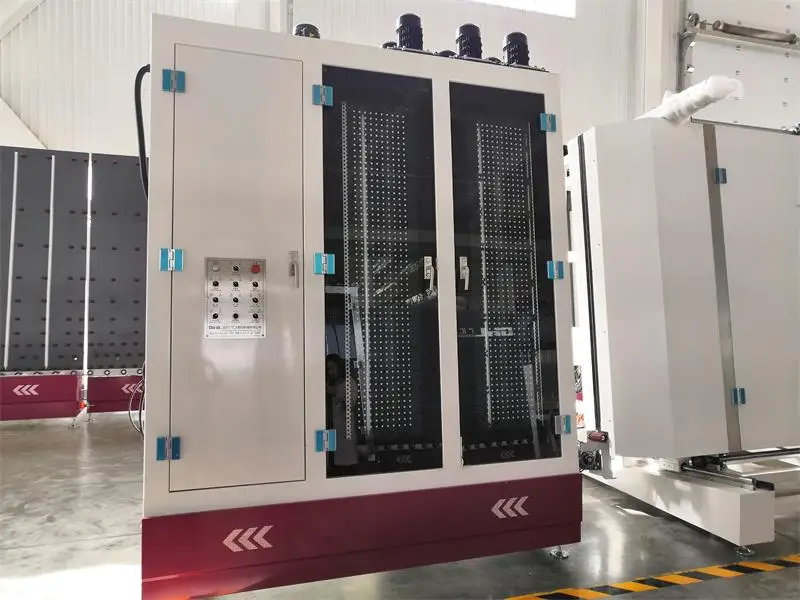

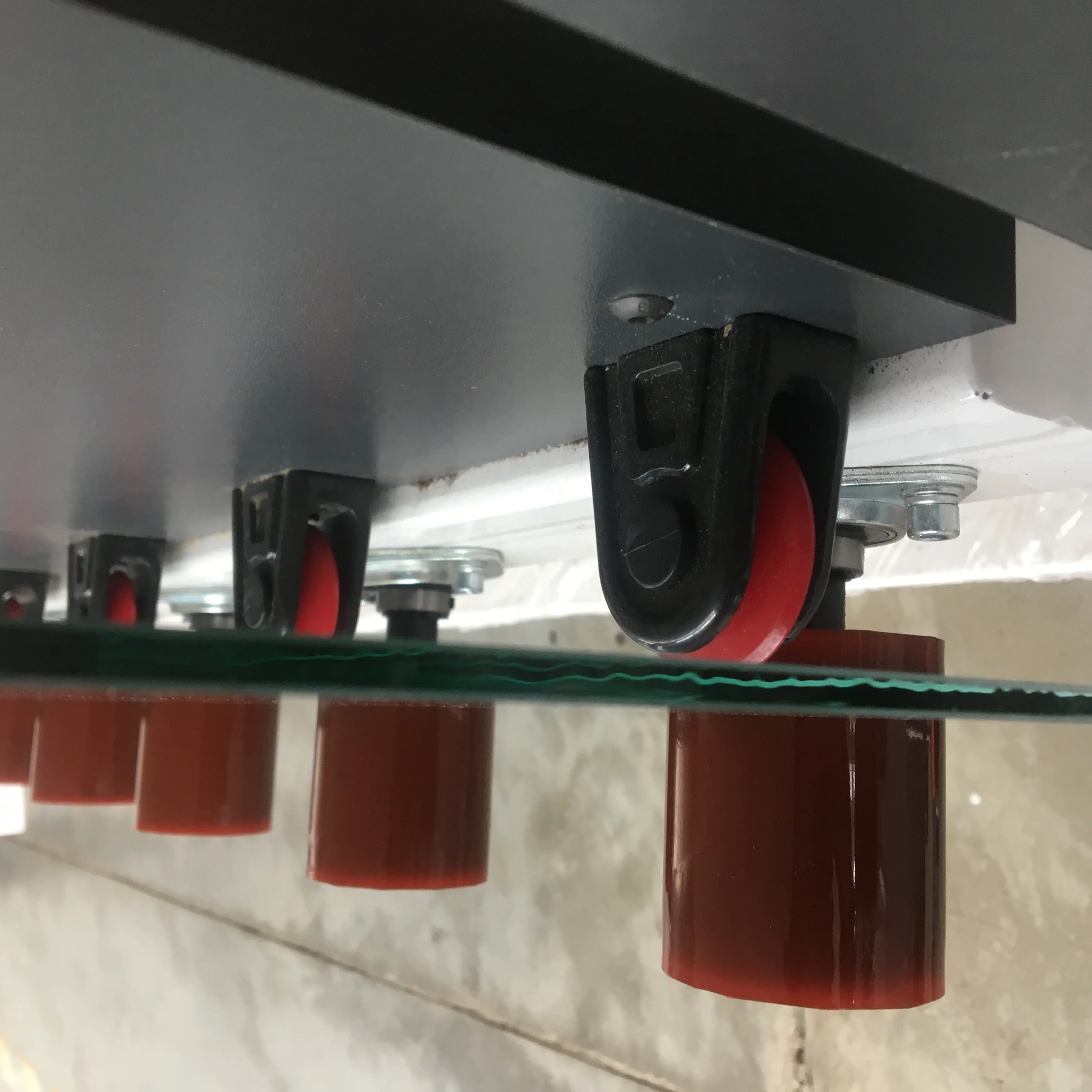

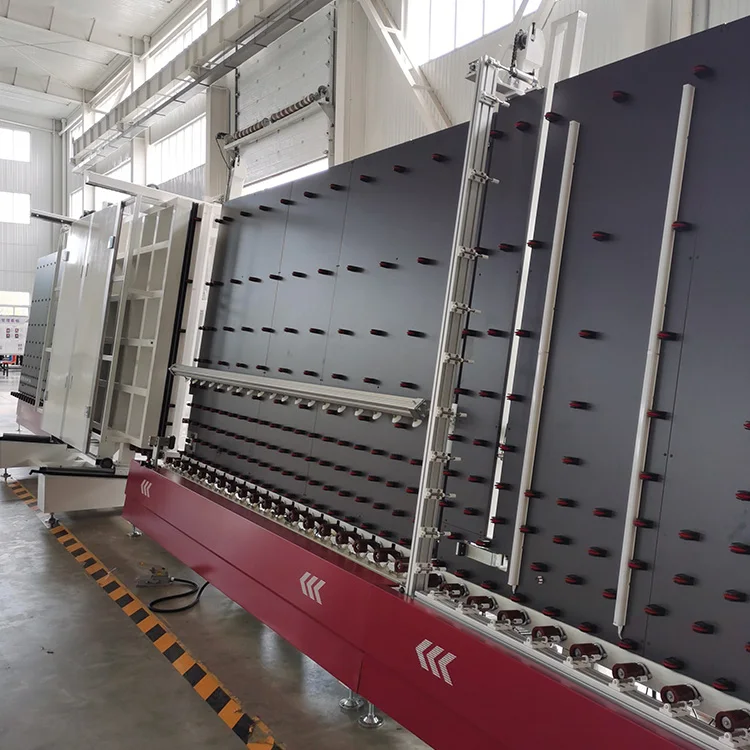

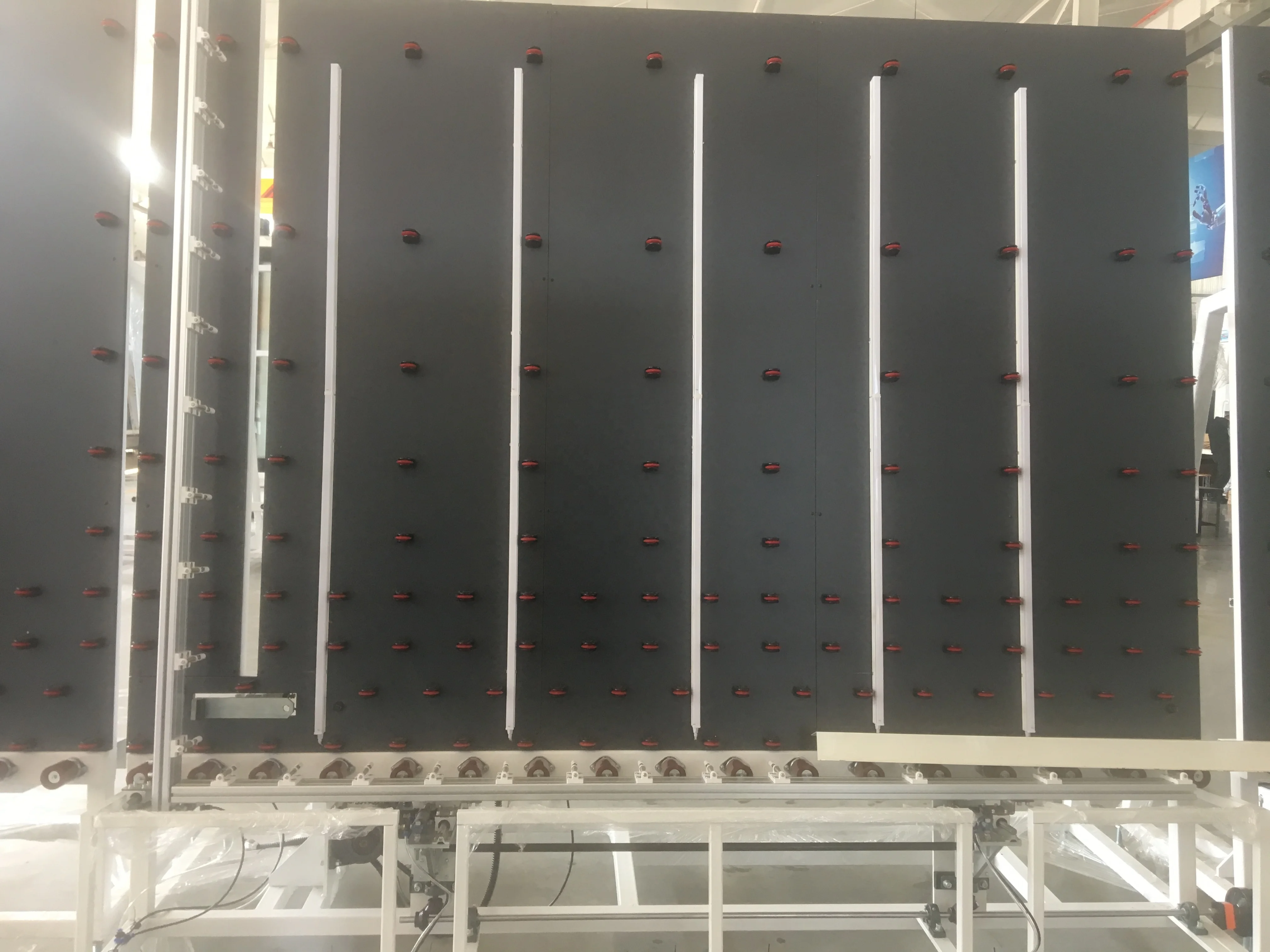

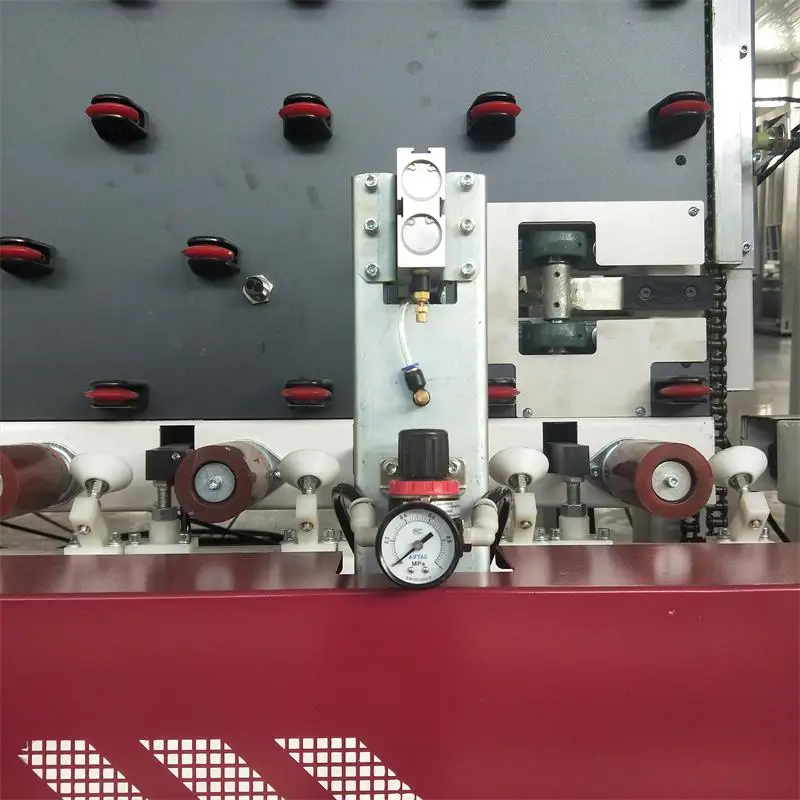

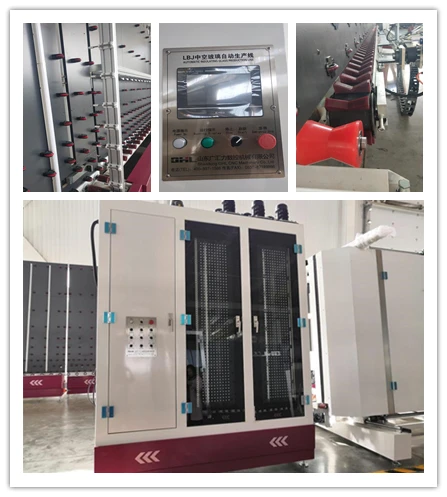

Detail pictures
Product Features
1. Automatic recognition LOW-E glass and coated glass, automatic warning if the glass is reversed.
2. Each brush drived with one electric motor separately, high density brush,wash clean.
3. The bearings equipped with three seals including two oil seals and a Waterproof so that can avoid water and dust into the bearings
4 Special octopus air knife, blowing wind with three sections parallelly, ensure the effect of drying glass. There is a dam-board nearby the air knife, ensure the wind even and powerful. Equipped with stainless steel chain.
5. Mechanical identification glass thickness, keep the best distance between air knife and glass.

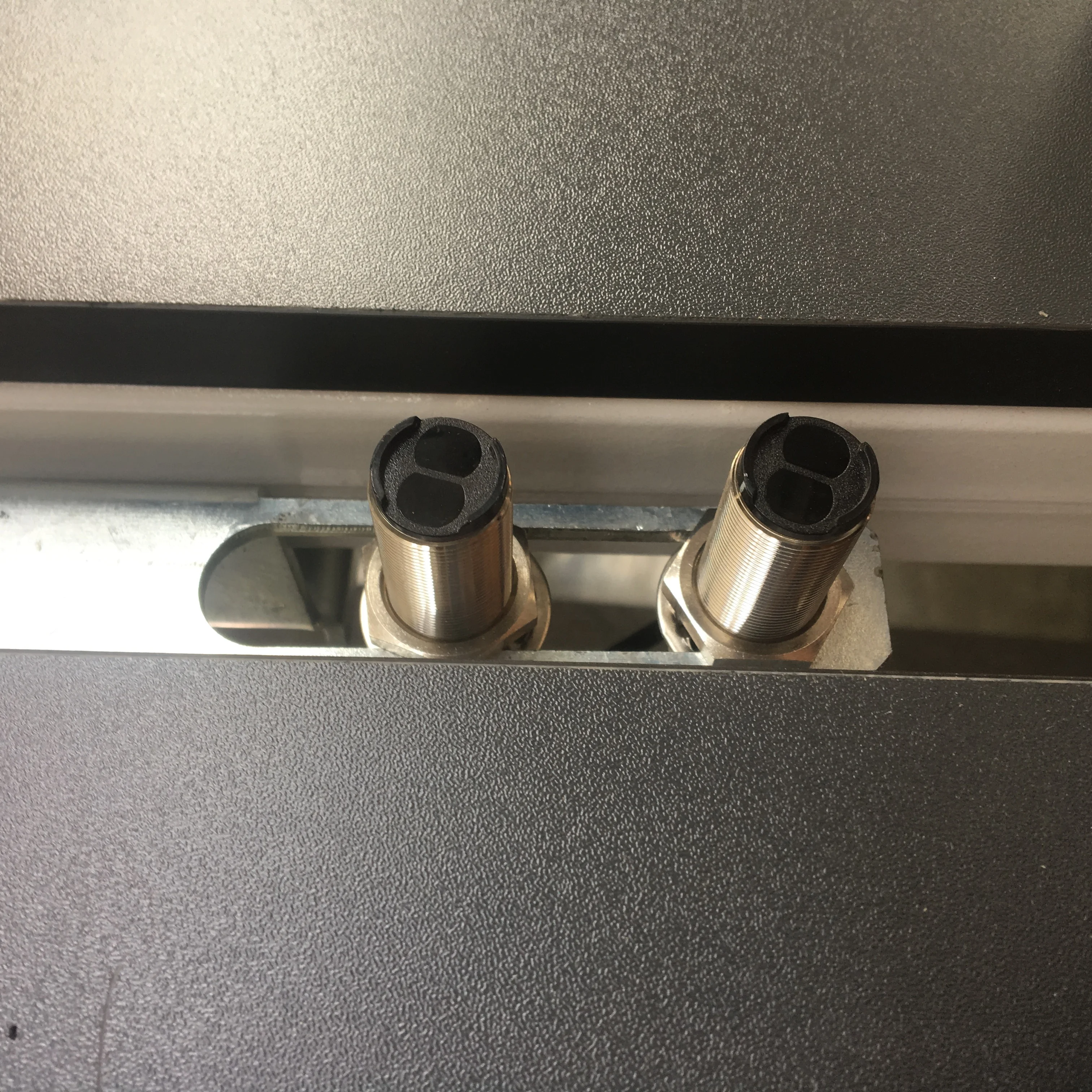

6.Hand-operated positioning, easy to adjust, accurate positioning. The censor can perception the height of glass in advance to make the beam on the fifth section come down ahead, save time, improve efficiency.
3. The bearings equipped with three seals including two oil seals and a Waterproof so that can avoid water and dust into the bearings
4 Special octopus air knife, blowing wind with three sections parallelly, ensure the effect of drying glass. There is a dam-board nearby the air knife, ensure the wind even and powerful. Equipped with stainless steel chain.
5. Mechanical identification glass thickness, keep the best distance between air knife and glass.
6.Hand-operated positioning, easy to adjust, accurate positioning. The censor can perception the height of glass in advance to make the beam on the fifth section come down ahead, save time, improve efficiency.
Company Profile
Related Products
Our team
Exhibition
Certification
Packing & Delivery
FAQ
Q :Are you a factory or trading company?
A:We are a factory.
Q:How does your factory do regarding quality control?
A:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent
out.And we have passed ISO,CE certificate.
Q: When can we arrange shipment?
A:We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 days.
Q;What you can do if my machines have problems?
A:1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines.
Q:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
A:We are a factory.
Q:How does your factory do regarding quality control?
A:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent
out.And we have passed ISO,CE certificate.
Q: When can we arrange shipment?
A:We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 days.
Q;What you can do if my machines have problems?
A:1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines.
Q:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
