FuLing Inverter 7.5KW 220V/380V DB600 Vector frequency driver inverter vfd
- Category: >>>
- Supplier: Suzhou,Penny,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
1 PCS & Fuling 220v/380 7.5kw Vector Frequency Drive VFD/Inverter 0-1000H output
Power: 7.5kw
Input Voltage: 220v/380v (±20%)
Input Phase: 1 or 3 phase
Input Frequency: 50-60Hz (±5Hz)
Output Voltage: 220v/380v
Output Phase: 3 phase
Output Current: 31A/18A
Output Frequency: 0-1000Hz
Control Method: V/F control
Input Voltage: 220v/380v (±20%)
Input Phase: 1 or 3 phase
Input Frequency: 50-60Hz (±5Hz)
Output Voltage: 220v/380v
Output Phase: 3 phase
Output Current: 31A/18A
Output Frequency: 0-1000Hz
Control Method: V/F control
Size | Power | Voltage | Current |

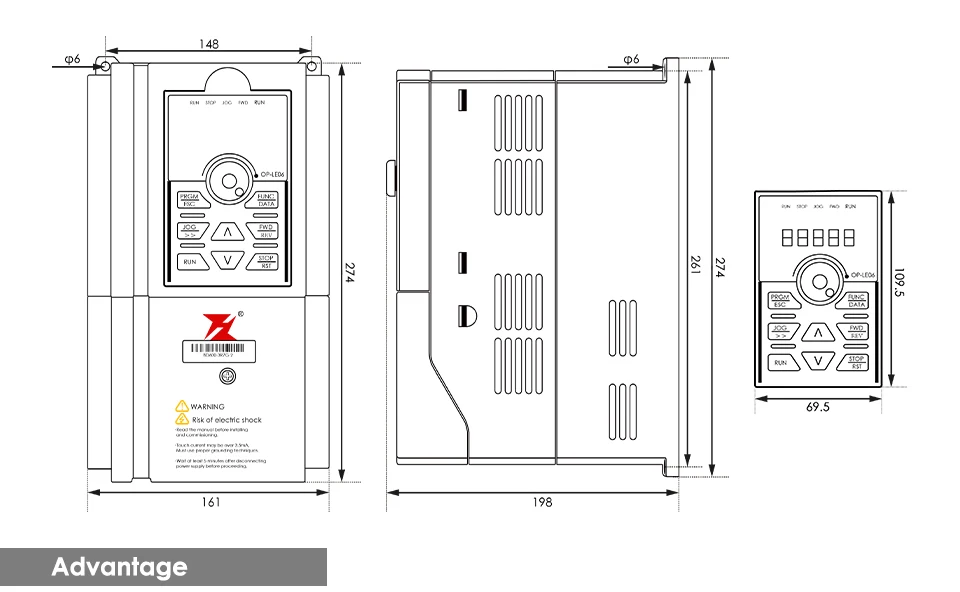

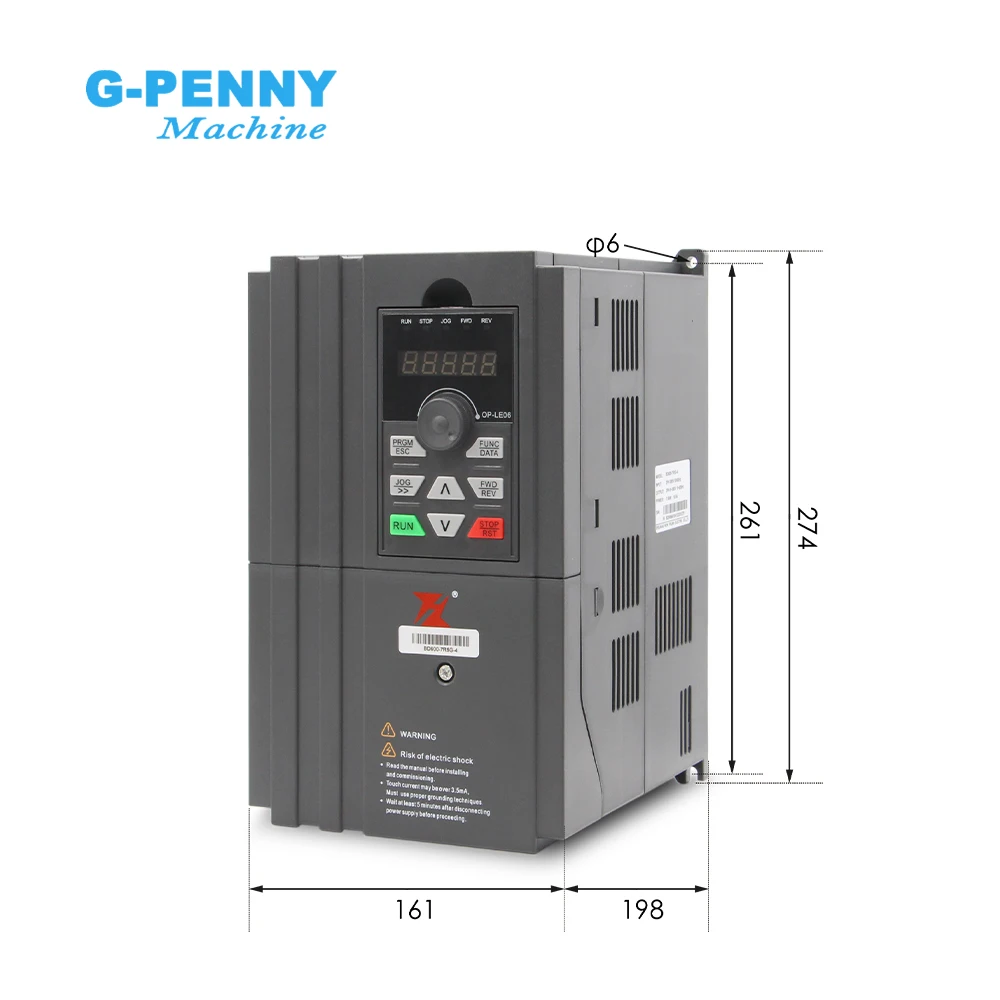

161*198*274mm | 7.5kw | 220v/380v | 31A/18A |
Output Frequency | Input Phase | Input Frequency | Control Method |
0-1000Hz | 1 or 3 phase | 50-60Hz (±5Hz) | V/F control |
· 10 kinds of main and auxiliary frequency sources can flexibly realize auxiliary frequency fine tuning and frequency synthesis.
· Two sets of 4-point input curves are added for analog input to make it more flexible.
· With two sets of motor parameters, it can realize switching control of two motors.
· Various encoder types are available: support differential encoder, UVW encoder, resolver, etc.
· Linear or S-curve acceleration and deceleration mode, four kinds of acceleration and deceleration time, which can be selected through terminal switch.
· Through built-in PLC or control terminal, automatic cycle switching operation of up to 16 sections of speed can be realized, and the holding time, acceleration and deceleration of each section of speed can be adjusted.
· The whole series has built-in speed tracking function, multiple speed tracking modes, and the speed of speed tracking can be adjusted.
· Torque limit and control: the "excavator" feature can automatically limit the torque during operation to prevent frequent overcurrent tripping; Vector mode can realize torque control.
· Two sets of 4-point input curves are added for analog input to make it more flexible.
· With two sets of motor parameters, it can realize switching control of two motors.
· Various encoder types are available: support differential encoder, UVW encoder, resolver, etc.
· Linear or S-curve acceleration and deceleration mode, four kinds of acceleration and deceleration time, which can be selected through terminal switch.
· Through built-in PLC or control terminal, automatic cycle switching operation of up to 16 sections of speed can be realized, and the holding time, acceleration and deceleration of each section of speed can be adjusted.
· The whole series has built-in speed tracking function, multiple speed tracking modes, and the speed of speed tracking can be adjusted.
· Torque limit and control: the "excavator" feature can automatically limit the torque during operation to prevent frequent overcurrent tripping; Vector mode can realize torque control.
Scope of application:
● Metal processing, CNC machine tools, wire drawing machines and other mechanical equipment
● Boiler blower, induced draft fan, coal mine underground exhaust fan
● Municipal engineering, central air-conditioning energy-saving transformation
● For cyclones, centrifugal fans, etc
● Circulating water pump, make-up water pump, oilfield water injection pump, oil delivery pump, music fountain
● Paper equipment, chemical industry, pharmaceutical industry, textile industry, etc
● Metal processing, CNC machine tools, wire drawing machines and other mechanical equipment
● Boiler blower, induced draft fan, coal mine underground exhaust fan
● Municipal engineering, central air-conditioning energy-saving transformation
● For cyclones, centrifugal fans, etc
● Circulating water pump, make-up water pump, oilfield water injection pump, oil delivery pump, music fountain
● Paper equipment, chemical industry, pharmaceutical industry, textile industry, etc
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
This is True Vector Inverter, not fake type, it can improve low-speed torque, also have self-learning function.
If you want to order a stable and good quality inverter, please order this one without hesitation.
Please contact us, we have manuals, videos and pictures to help you.
This is True Vector Inverter, not fake type, it can improve low-speed torque, also have self-learning function.
If you want to order a stable and good quality inverter, please order this one without hesitation.
Technical Features | Description | ||
Input | Input voltage range | 1AC 220V±15%，3AC 220V±15%, 3AC 380V±15%，3AC 660V±10%,3AC 1140V±15% | |
Input frequency range | 47~63Hz | ||
Power factor | ≥95% | ||
Control performance | Control mode | V/F control, non-PG vector control(SVC),PG vector control(FVC) | |
V/F control | Line,multiple point,square V/F curce,V/F separation | ||
Operation command mode | Keypad control, Terminal control, Serial communication control | ||
Frequency Reference Source | Digital, analog,pulse frequency, serial communication, multi-step speed, simple PLC and PID.The combinaton of multi-modes and the different modes can be switched. | ||
Overload capacity | G type:150% rated current 60s, 180% rated current 3s P type:120% rated current 60s, 150% rated current 3s | ||
Start torque | G type: 0.5Hz/150%(SVC), 0Hz/180%(FVC) P type: 0.5Hz/100% | ||
Speed adjusting range | 1：100（SVC) 1：1000（FVC) | ||
Speed control accuracy | ±0.5%（SVC) ±0.02%（FVC) | ||
Carrier frequency | 0.5 to 16.0kHz; automatically adjust carrier frequency according to the load characteristics | ||
Frequency resolution | Digital setting: 0.01Hz. Anolog setting: maximum frequency x 0.025% | ||
Torque boost | Automatic torque hoost; manual torque boost 0.1~30% | ||
Acceleration and deceleration mode | Line or S-curve, 4 types of acceleration/deceleration time with the range of 0.0~6500.0s | ||
DC brake | Supports starting and stopping DC brake | ||
Jogging Control | Jog frequency range: 0.0Hz~50.00Hz; Jog Acc/Dec time: 0~6500.0s | ||
Simple PLC&multistep speed operation | Built-in PLC or control terminal, 16 steps speed can be set | ||
Built-in PID | Built-in PID control to easily realize the close loop control for the process parameters(such as prcssure, temperature, flow, etc.) | ||
Automatic voltage regulation(AVR) | Automatically maintain a constant output voltage when the voltage of electricity gridchanges | ||
Common DC bus | Common DC bus function: multiple inverters can use a common DC bus | ||
Traverse control | Traverse control function: multiple triangular pulse frequency control | ||
Fixed length control | Setting length control | ||
Timing control | Setting time range: 0~6500min | ||

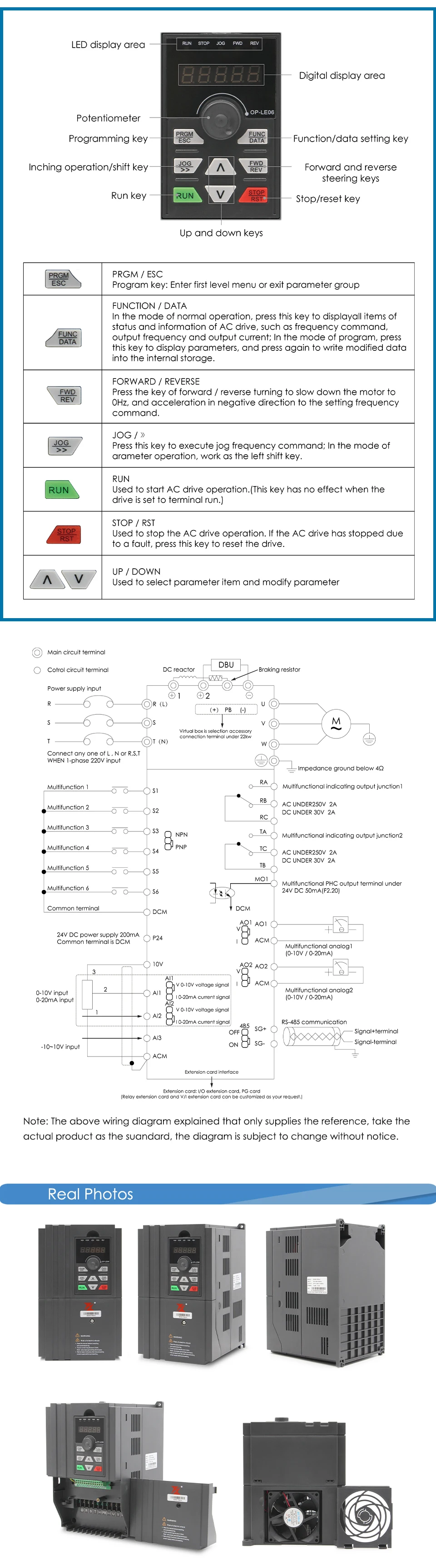

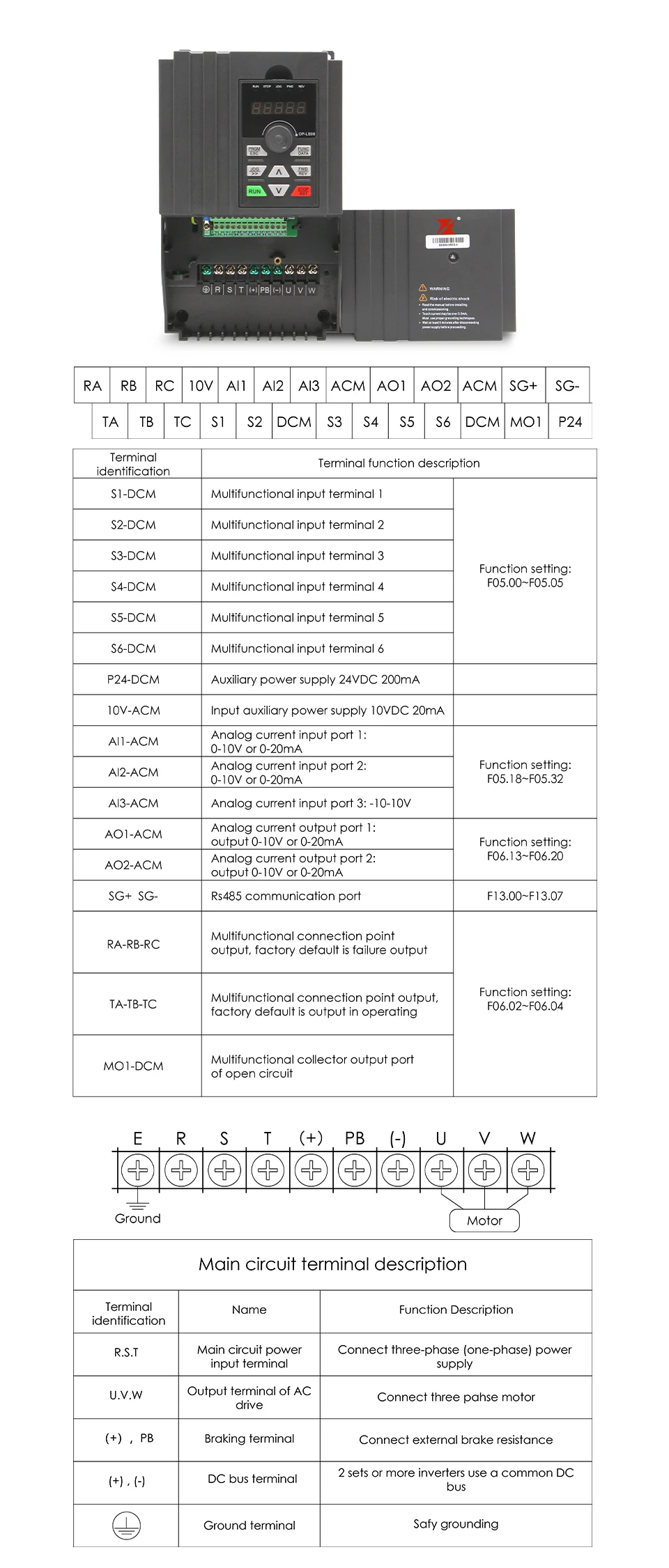

Terminals | Input terminals | · 6 programmable digital inputs, it can be extended to 4 digital inputs, one of which supports high speed pulse input; · 1 analog voltageinput 0~10VDC; · 2 voltage input 0~10VDC or current input 0~20mA | |
Output terminals | · 1 open collector output, it can be extened to 1 high speedpulse output; · 2 relay outputs; · 2 analog output: voltage output 0~10VDC or current output 0~20mA | ||
Human machine interface LED Display | Can display setting frequency, output frequency, output voltage, output current, etc. | ||
Enviorment & Protection class | Protection class | IP20 | |
Humidity & temperature | 90%RH or less (no-condensation), -10℃~+40℃. Inverter will be derated if ambien tempcrature exceeds 40℃ | ||
Vibration | Under 20Hz 9.8m/s(1G), Over 20Hz 5.88m/s(0.6G) | ||
Store environment | ≤1000M，indoor（no corrosive gas and liquid) | ||
Store temperature | -20 ℃~+60 ℃ | ||
Cooling Mode | Forced air-cooling | ||
