30kva 30 kva 30KW 3 phase Super Silent Diesel generator
US $2560-$3150
Производитель дизельных генераторов 20kva 50kva 80kva 100kva 150kva 200kva 250kva 300kva 350kva 400kva цена в пакистане
- Category: Diesel Generators >>>
- Supplier: Taizhou,Yangguang,Generation,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

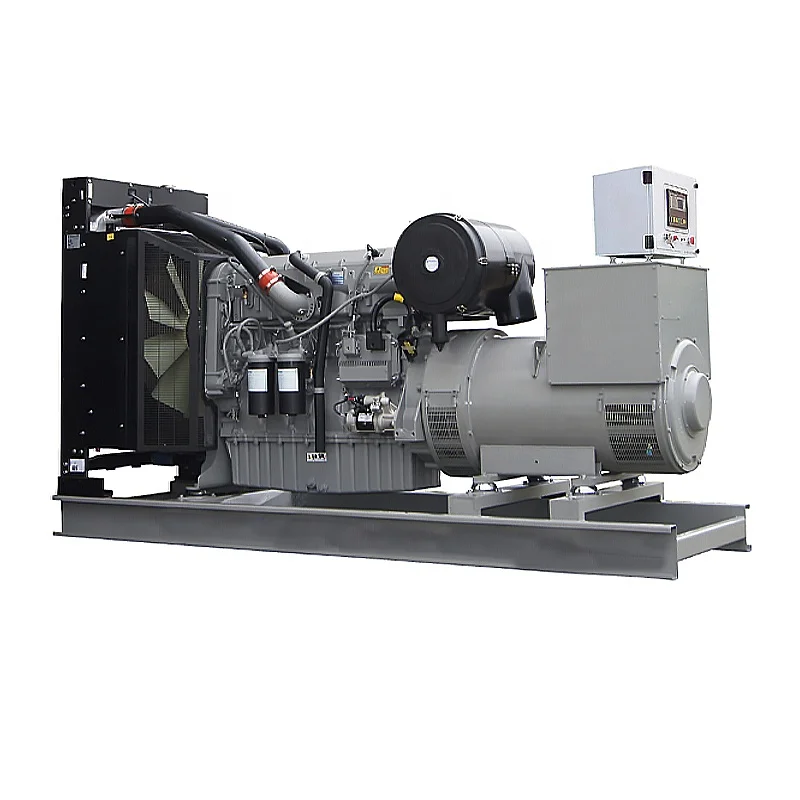

product picture
Product Details
Diesel Generator Technical Parameters | ||
Genset Model：YG-320PGF | Rated Power：320KW | |
Frequency：50HZ | Rated Speed：1500r/min | |
Rated Voltage：380v | Rated Current：576A | |
Phase：3 phase 4 wire | Start method：DC24V electric start | |
Container Type Size(L*W*h):3650*1200*2000mm | Weight:3300KG | |
Engine Technical Parameters | ||
Engine Brand：Perkins | Engine Model：2206C-E13TAG3 | |
Rated Power：349KW | Number Of Cylinders：6 vertical in-line | |
Bore*Stroke：130*157mm | Start Mode：Electric start | |
Displacement：12.5L | Fuel Consumption:≤206g/kW·h | |
Alternator Technical Parameters | ||
Optional Brands：Stamford/Leroy Somer/Mecc Alte/Marathon | ||
Power：320KW | Rated power factor：0.8 | |
Protect Grade：IP23 | Insulation Class：H | |
Controller | ||
Optional brands | Deepsea/ComAp/Smartgen | |
The standard configuration of the generator set is as follows: | ||
1. Industrial water-cooled diesel engine; | ||
2. Single bearing anti-drip generator, IP22 protection, insulation class H; | ||
3. 40°C ambient temperature radiator, double-layer heat dissipation; | ||
4. Electric start; | ||
5. Standard air filter; | ||
6. Outlet switch; | ||
7. The base is equipped with anti-vibration pads; | ||
8. Muffler; | ||
9. Battery; | ||
10. Air switchgear (manual); | ||
11. User manual. | ||
Production Process
ATS dual power switching function | ||
The ATS is mainly used in emergency power supply systems to automatically switch load circuits from one power supply to another (standby) power supply to ensure continuous and reliable operation of critical loads. The ATS is a mechanical structure. | ||
Circuit breaker selection | ||
Circuit breaker can choose Delici, Chint, Schneider With leakage (electric shock), overload, short circuit and other protection functions, but also according to the needs of users to increase the over-voltage and under-voltage protection functions | ||
Deep sea control module | ||
Integrated LCD control screen, with voltage, current, frequency, water temperature, oil pressure display functions and with low oil pressure, high water temperature, overspeed, overcurrent alarm shutdown functions. | ||
More choices | ||
Diesel generator set and cabinet, multiple generator set and machine | ||
Individual fuel tanks are also available for custom fuel tanks | ||
Product type and special order products
Optional-addtional parts | ||||||
Engine | Fuel System | Cooling system | Exhaust system | |||
Coolant Heater | External Tank | 50-60 Radiator, | Heavy Duty air filter | |||
Lube oil heater | Water Separator | Remote radiator | Silencer Enclosures | |||
Electronic governor | Cooling tower | |||||
Engine oil temperature | ||||||
Alternator | Control System | Others | Voltage Connections | |||
Anti Condensation | Remote Control Panel | Rainproof Type | 480/277V | |||
Heater | Auto Transfer Switch | Soundproof Type | 440/254V | |||
Permanent | ATS-Control Panel | Containerized Type | 416/240V | |||
Magnet Generator-PMG | Paralleling System | Trailer Type | 400/230V | |||
Drop CT-for paralleling | Electricity Output Cabinet | Spare Parts | 380/220V | |||
240/139V | ||||||
220/127V | ||||||
208/120V | ||||||
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | ||||||
Company introduction
TAIZHOU YANGGUANG GENERATION EQUIPMENT CO.,LTD mainly manufactures and sells diesel generator sets, generator sets power for 3-2000kW, the power of domestic diesel generator set is 3-2500kW, the mobile power station is 24-300kW, the Marine emergency diesel generator set is 24-500kW and all kinds of imported diesel generator sets. Over the years, we always adhere to high standards and strict product quality, according to the price of survival, quality development enterprise principle, heavy contract, keep promise, honest, combined with advanced technology and test method, refinement and good quality, has won many repeat customers, won the trust and support from all walks of life, my company's good reputation, high integrity, sophisticated technology and equipment.
Our Certifications
Packaging & Shipping
FAQ:
Q1.Is it all right to make customer's own brand name?
A1:We can be your OEM manufacture with your authorization of brand.
Q2.Where is your Loading Port?
A1:We can be your OEM manufacture with your authorization of brand.
Q2.Where is your Loading Port?
A2:Shanghai or others
Q3.What are your payment terms?
Q3.What are your payment terms?
A3:30% TT as deposit,70% TT before Shipment.
Q4.What is your company's available production capacity?
Q4.What is your company's available production capacity?
A4:100 Sets per month
Q5.What's the warranty time of diesel generators?
A5:12 Months or 1000 working hours
Q5.What's the warranty time of diesel generators?
A5:12 Months or 1000 working hours
