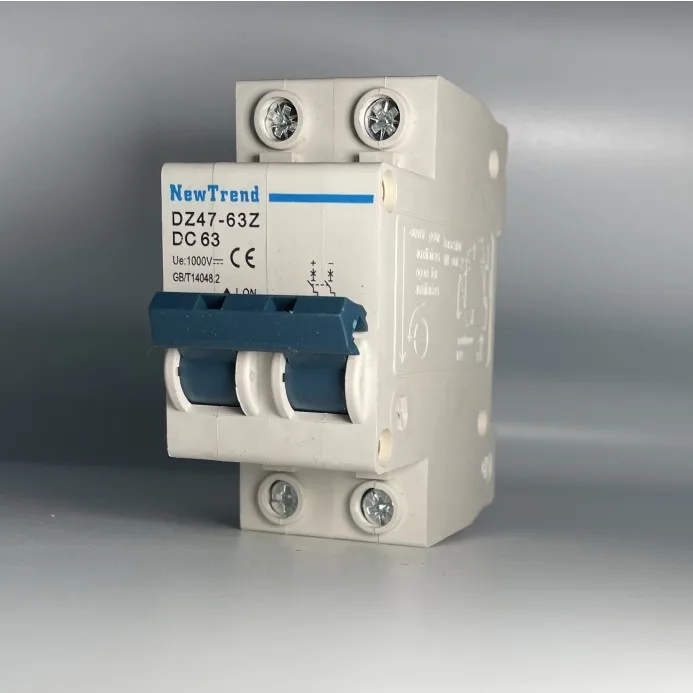

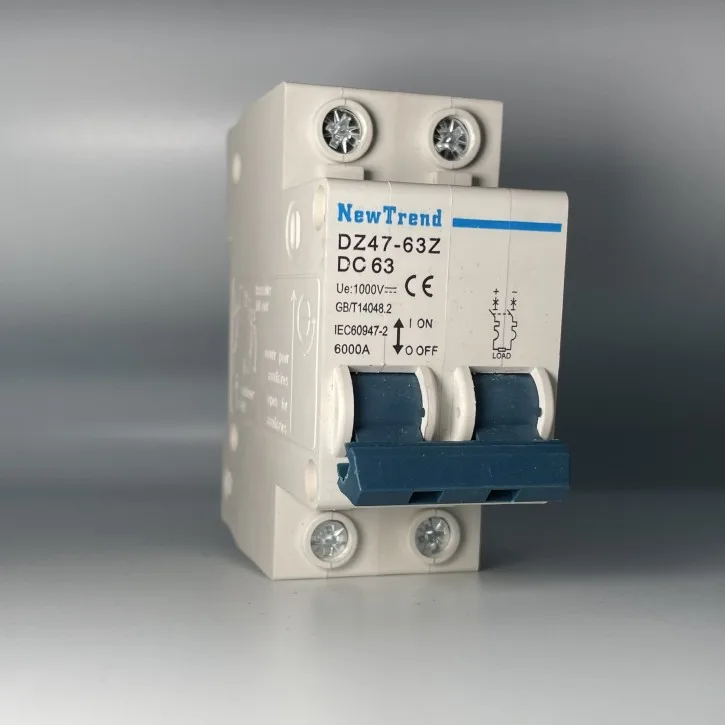

DZ47 63Z 2 Pole 63A 500V 1000V DC MCB 1 2 3 4 6 10 16 20 25 32 40 50 63 Amp 2P Solar DC Circuit Breaker 63A

Electrical Features
- Rated current In :1,2,3,4,6,10,16,20,25,32,40,50,63A
- Poles:1P, 2P, 3P, 4P
- Rated voltage Ue:1P(250VDC), 2P(500VDC), 3P(750VDC), 4P(1000VDC)
- Rated frequency:50/60Hz
- Rated breaking capacity :6000/10000A
- Rated impulse withstand voltage(1.2/50) Uimp:4,000V
- Dielectric test voltage at ind. Freq. for 1 min:2kV
- Pollution degree:2
- Thermo-magnetic release characteristic: C (7~10)In

Mechanical Features
- Electrical life:>1500
- Mechanical life:20,000
- Contact position indicator: Yes
- Protection degree:IP20
- Reference temperature for setting of thermal element:30℃
- Ambient temperature (with daily average≤35℃): -5℃...+40℃

- Storage temperation: -2℃5...+70℃

Installation
- Terminal connection type: Cable/U-type busbar/Pin-type busbar
- Terminal size top/bottom for cable: 25mm2   18-3AWG
- Terminal size top/bottom for busbar: 25mm2    18-3AWG
- Tightening torque 2.0 N*m  22 In-Ibs.
- Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
- Connection: From top and bottom

Combination with accessories
- Auxiliary contact: Yes
- Shunt release: Yes
- Under voltage release: Yes
- Alarm contact: Yes
