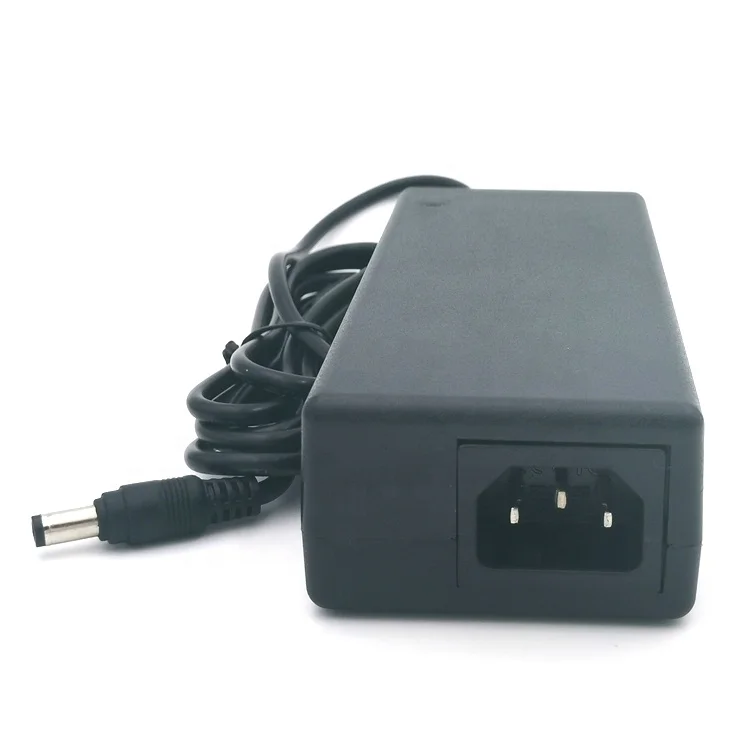

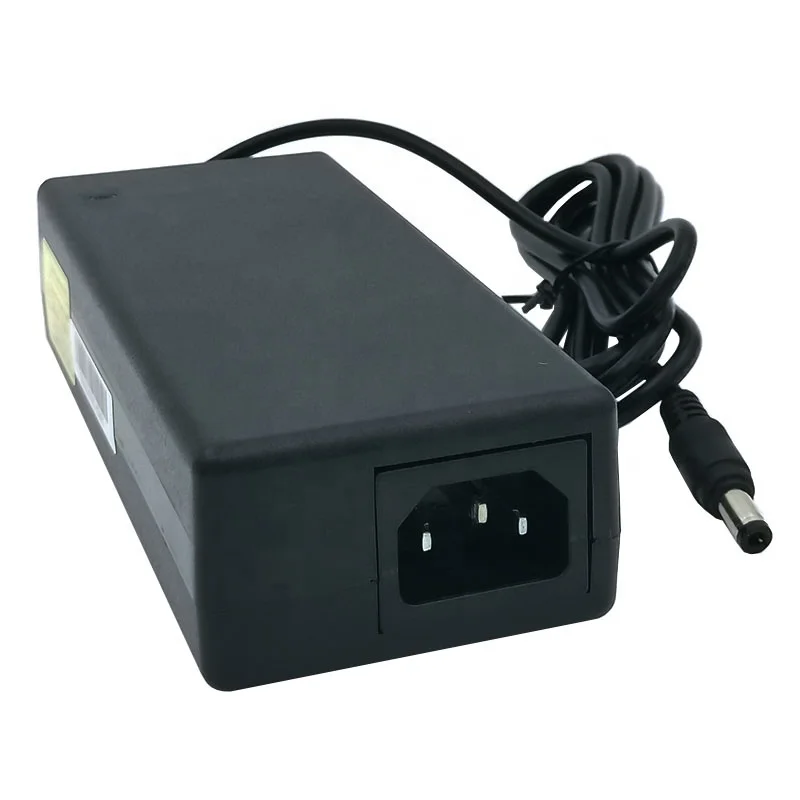

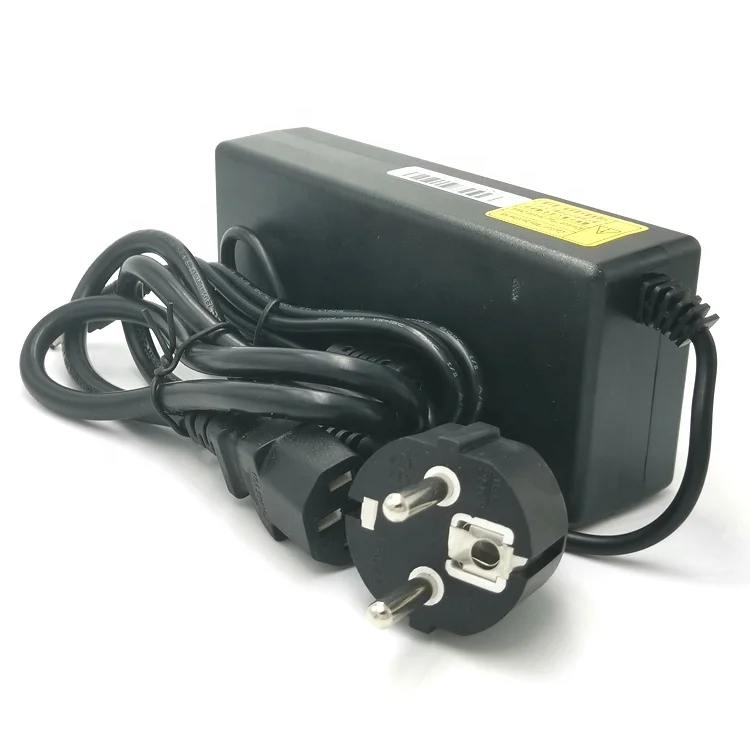

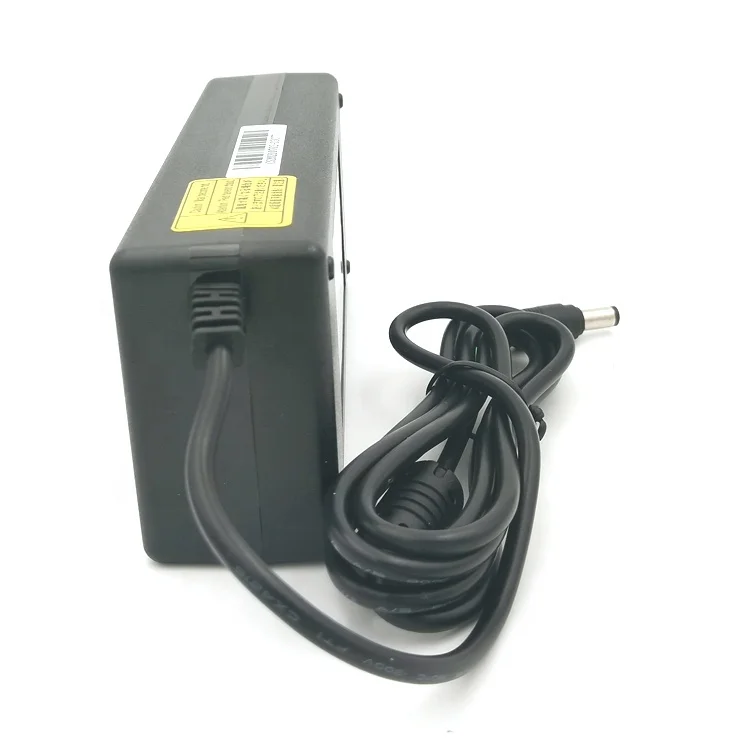

60W led strip light 12V 5V 24V 36VDC Desktop Switching Power Supply 24Vdc 2.5A Poe Gigabit Ethernet switch Power Supply Adapter

Product Overview

Description

Feature:

1.MOQ: 100PCS, sample order is available

2.Production Capacity: 800pcs/day  , 3000pcs/week

3.Payment:T/T, Western Union, Paypal, Escromer ...

4.Lead time: 3-7days for sample, 15-20days for mass production

5.Warranty:2 years warranty

6.Shipping method:DHL,UPS,FEDEX,TNT,EMS,Hongkong/china post, by air,by sea etc

7.Package: OPP bag or poly bag, white box, artistic bag, by customer' requirement.



Specification



Module NO.		ADS-U060S12L		ADS-U060S18L		ADS-U060S24L
OUTPUT	DC VOLTAGE	12V		18V		24V
	RATED CURRENT	5A		3.3A		2.5A
	CURRENT RANGE	0~5A		0~3.3A		0~2.5A
	RATED POWER	60W		60W		60W
	RIPPLE & NOISE (max.	200mVp-p		200mVp-p		200mVp-p
	VOLTAGE TOLERANCE	+/-3.0%		+/-3.0%		+/-3.0%
	LINE REGULATION	+/-1.0%		+/-1.0%		+/-1.0%
	LOAD REGULATION	+/-3.0%		+/-3.0%		+/-3.0%
	SETUP, RISE	1000ms,30ms /230VAC,1000ms,30ms/115VAC((at full load))
	HOLD UP TIME	50ms /230VAC 15ms/115VAC ((at full load))
INPUT	VOLTAGE RANGE	100~240VAC
	FREQUENCY RANGE	47~63Hz
	EFFICIENCY (Typ.)	88%
	AC CURRENT	1.4A/ 115VAC lA/230VAC
	INRUSH CURRENT (max.)	65A/ 230VAC
	LEAKAGE CURRENT (max.)	0.75mA/ 240VAC
PROTECTION	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	RTH2 > 70℃
		Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-10~+50℃
	WORKING HUMIDITY	20~90% RH,non-condensing
	STORAGE TEMP., HUMIDITY	-40~+ 85℃, 10~95% RH
	TEMP. COEFFICIENT	+/-0.03%/℃(0~50℃)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE	I/p-0/P: 1.5KVAC I/p-FG: 1.5KVAC 0/p-FG: 0.5KVAC
	ISOLATION RESISTANCE	I/P-0/P, I/P-FG, 0/P-FG: 100M Ohms/500VDC / 25℃ / 70% RH
	EMC EMISSION	Compliance to EN55022 classB,EN61000-3-2,3,FCCPART 15/C[SPR22 classB,CNSl3438 classB,GB9254 classB,GBl7625,1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	≥ 711 Khrs MIL-H DBK-217F( 25℃ )
	DIMENSION	120×41×32mm (L*W*H)







Our product series include: industrial power supply, power adaptor, LED driver etc., which are widely used in communication, power electronics, automation control, railway, military industry,medical care and a good deal of others.





2.OEM&ODM Services: Our company have professional engineers,so we cancustomize products ccording to your  detailed requirements,your samples or your ideas.









3.High efficiency automatic SMT machine and production process:it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in  module--Pass wave-soldering (Auto solder)--Angle  cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.





















4. Excellent geographical location: Our company locate in good place,the transportation is very convenient.It takes short time to reach our company.



 Certification
