316 Stainless Steel High Quality Gold Cr2032 Lithium Cr 2032 Battery Al Coat Coin Cell Case, Coin Cell Case For Cr2032 2025

Share on (1600778358189):


Price:$0.28 - $0.35

Quantity:


Product Overview

Description



Product Description


11


316 Stainless Steel High Quality Gold Cr2032 Lithium Cr 2032 Battery Al Coat Coin Cell Case, Coin Cell Case For Cr2032 2025





SPECIFICATION








Features
1. We can supply various types.
2. The surface is smooth, without burr.
3. Preferential price.
4. You can choose the material: SS304 or SS316.
The advantage of the 316: 316SS and 304SS on the chemical composition of the main difference is that 316SS contains Mo, and generally accepted, the 316 has better corrosion resistance, more resistant to corrosion under high temperature environment.
It is most suitable for the sealing machine
5. Coin Cell: CR2032, CR2025, CR2016 is optional.

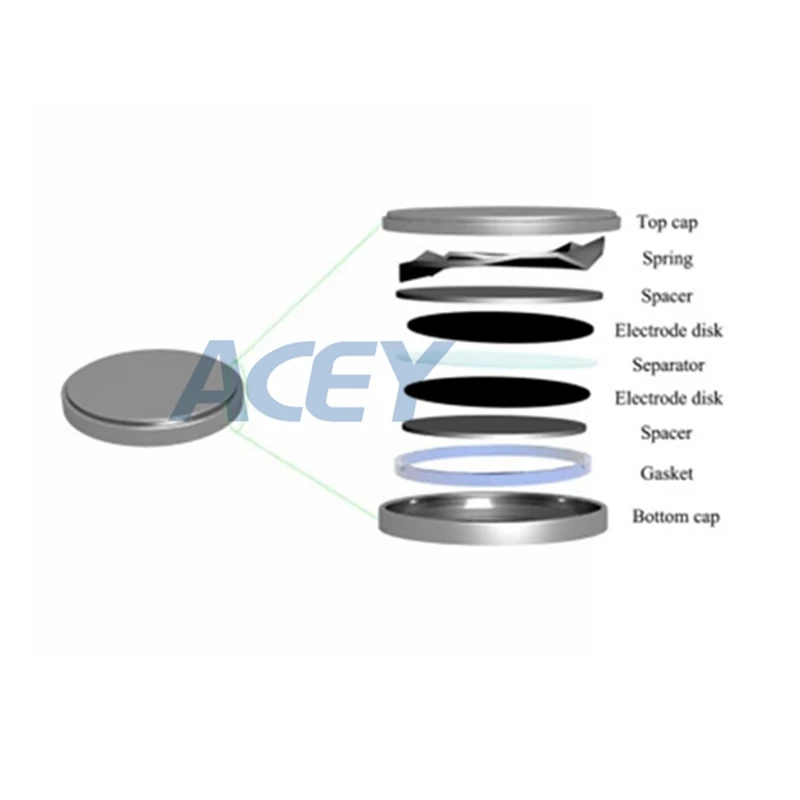

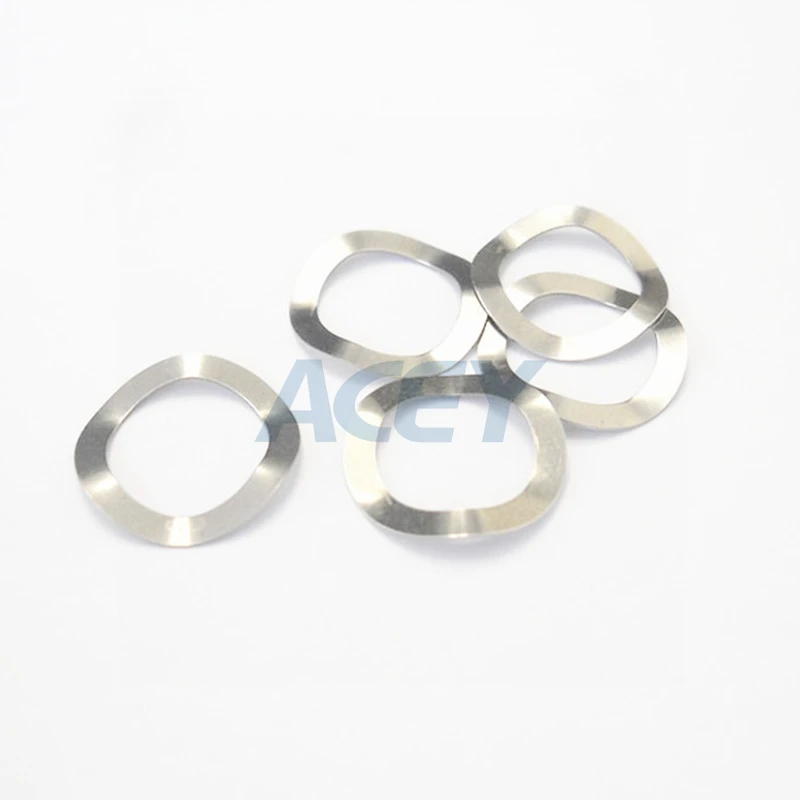

6.We are not only sell the coin cell case seperately, but also can provide a full set of coin cell case(inclduding spacer and
spring).





















































Case Dimensions


20 mm x 3.2t mm, 20 mmx 2.5t mm

Weight


0.1 oz

Material


Sealing Gasket: PP
The thickness of the SS304 for both anode and cathode case is 0.25 mm

Application Note


After perfectly crimping, the External Height should be around 3.0mm.
The diameter of the inner ring of the plastic gasket for the coin cell 2032 is around 16.39mm.
Usually, a case does not need to clean before crimping, but if you do need to clean the case, please put in ethanol for 4-6 hrs,
and use Oven to dry serval hours, (please set the oven to 30C, if it has ORING.)

Model

Diameter / mm

Thickness / mm


2016


20


 1.6


 2025


20


 2.5


2032


20


 3.2







DISPLAY

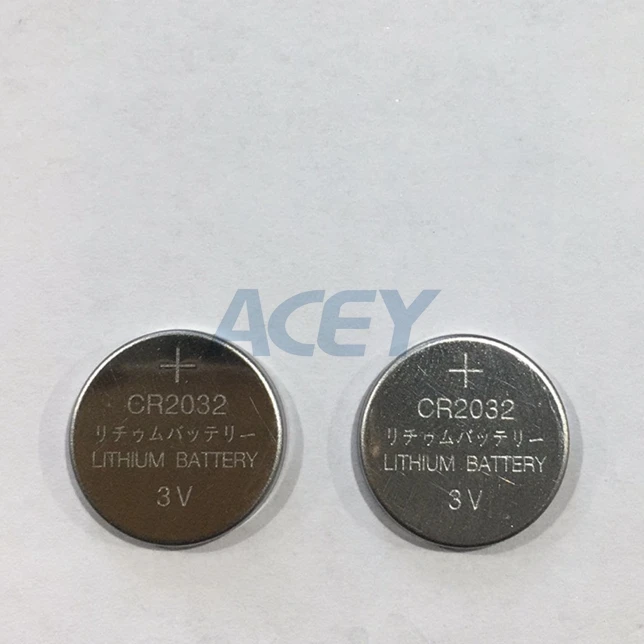

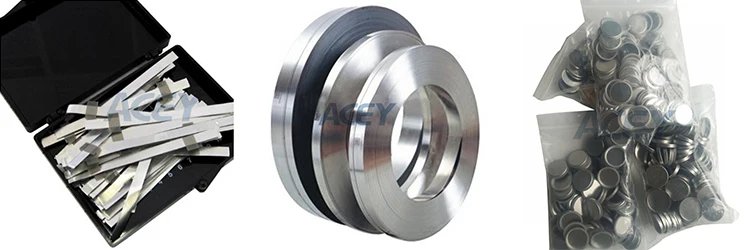

 (1)CR2032 (2)1606287929(1)battery materials(10)

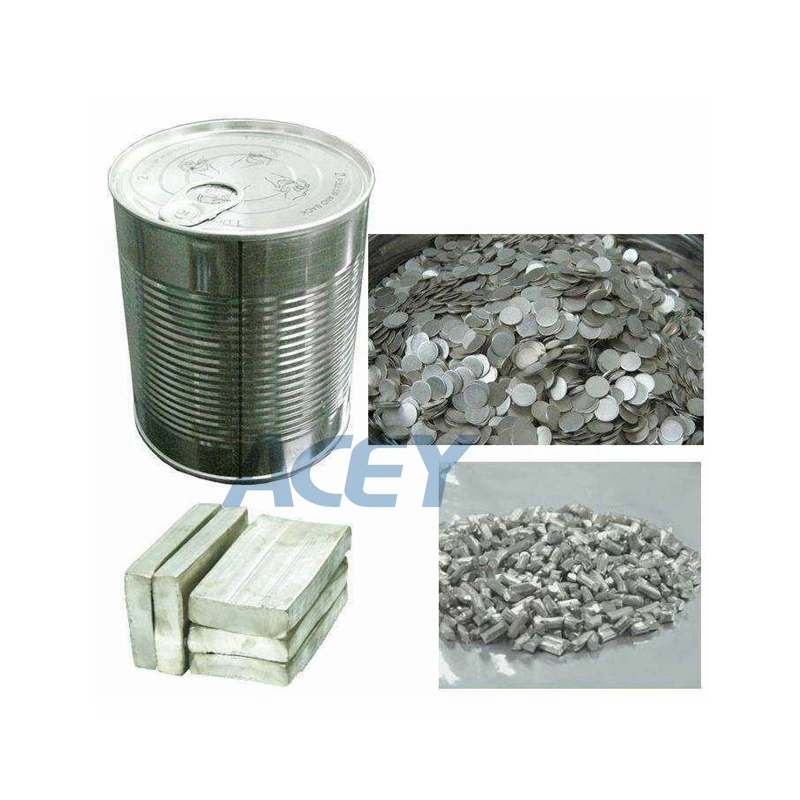

Other Battery Material


Packing Detail


packing details(4)To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
