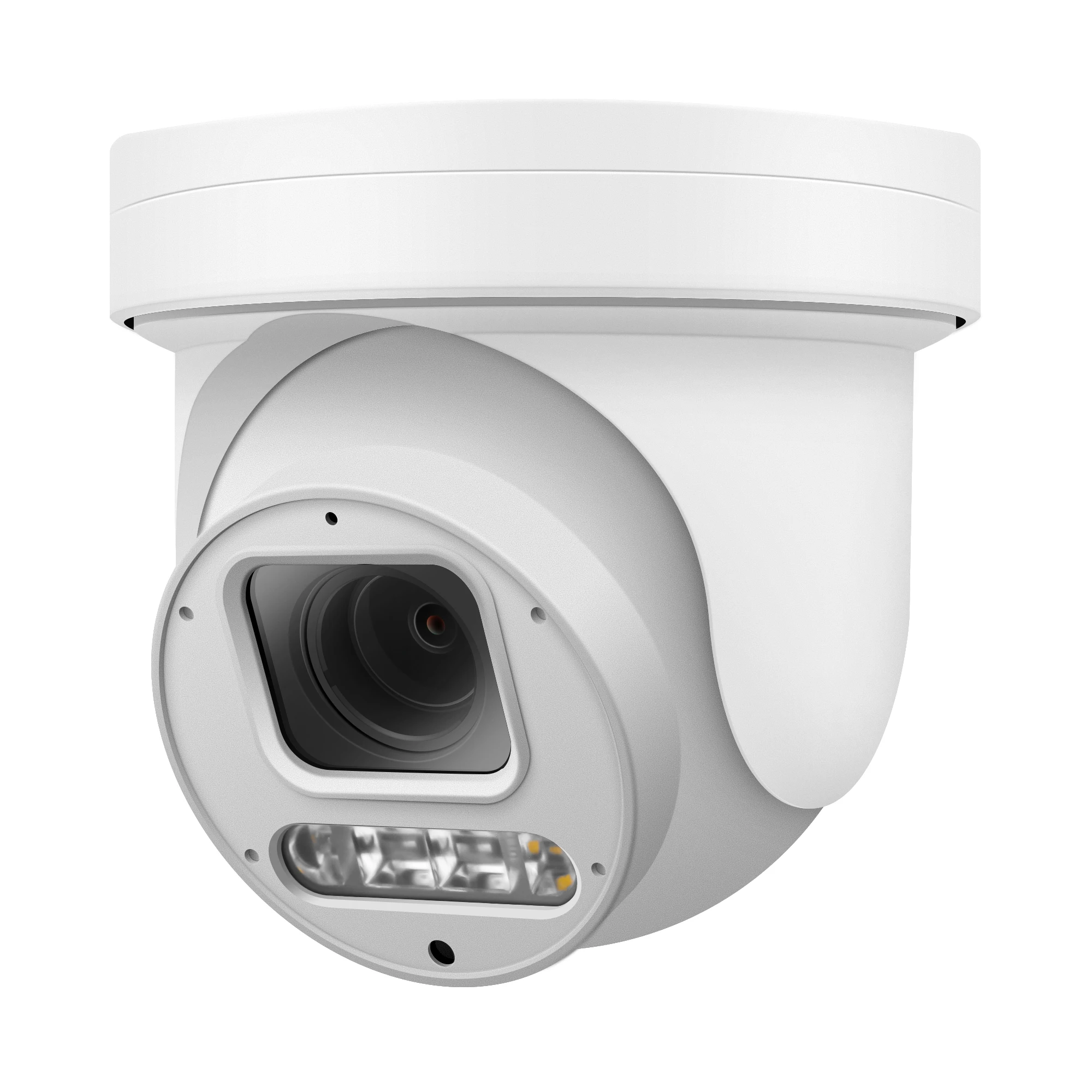

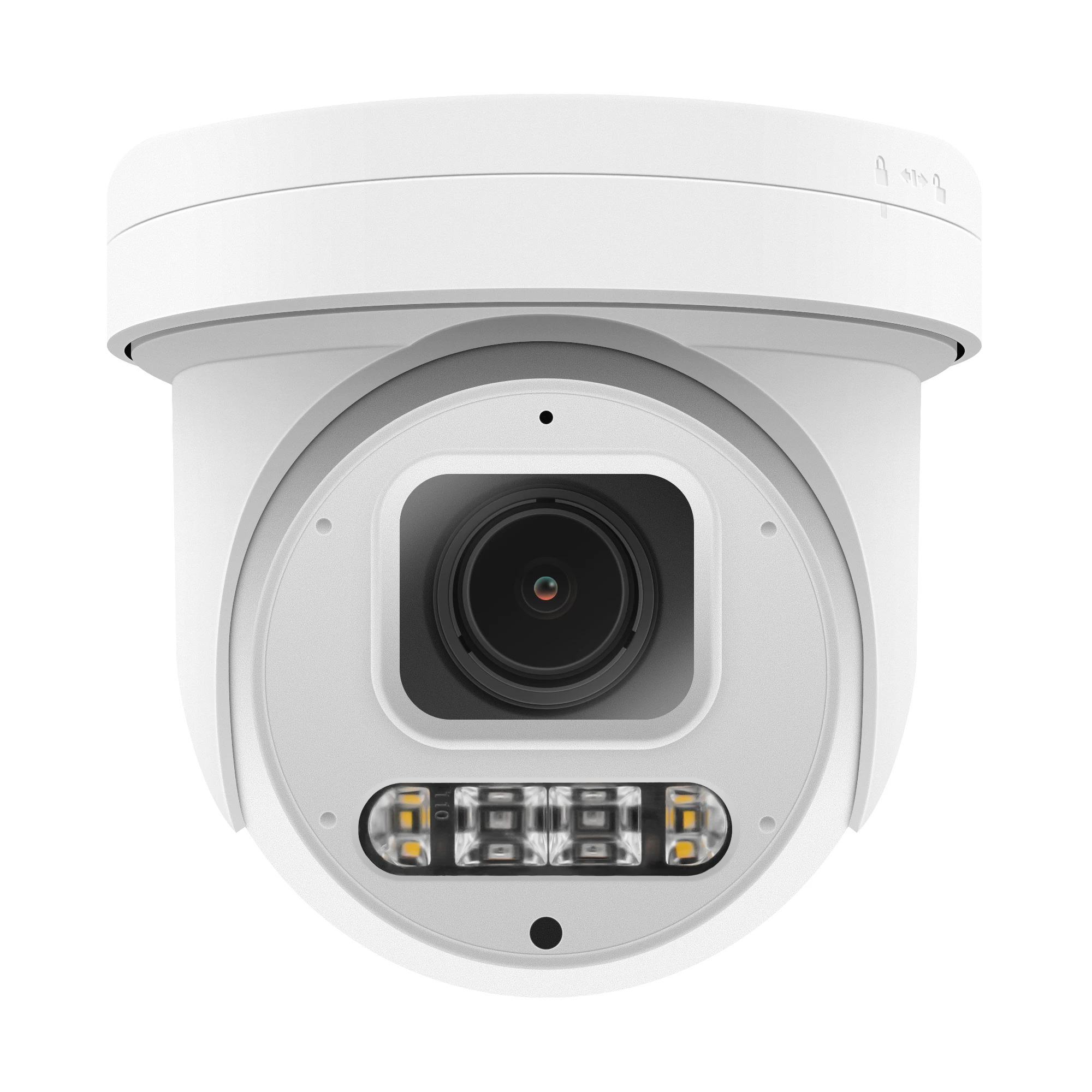

Full Color Active Deterrence 6MP Turret PTZ IP Camera POE 5X Optical Zoom Sound Alarm Build in Mic.&Speaker SD Slot Up to 512GB
- Category: >>>
- Supplier: Shenzhen YCX Electronics Co. Ltd.
Share on (1600778701337):
Product Overview
Description
Product Description
6 MP Dual Light 5X Turret PTZ IP Camera
Key Features:
Ø High quality imaging with 6 MP resolution
Ø Smart Dual Light: 4pcs Warmlight&IR LEDs Ø Up to 40m (IR) / 30M (Warmlight) Range
Ø High quality imaging with 6 MP resolution
Ø Smart Dual Light: 4pcs Warmlight&IR LEDs Ø Up to 40m (IR) / 30M (Warmlight) Range
Ø Color at Night When Human/Vehicle Detection triggered

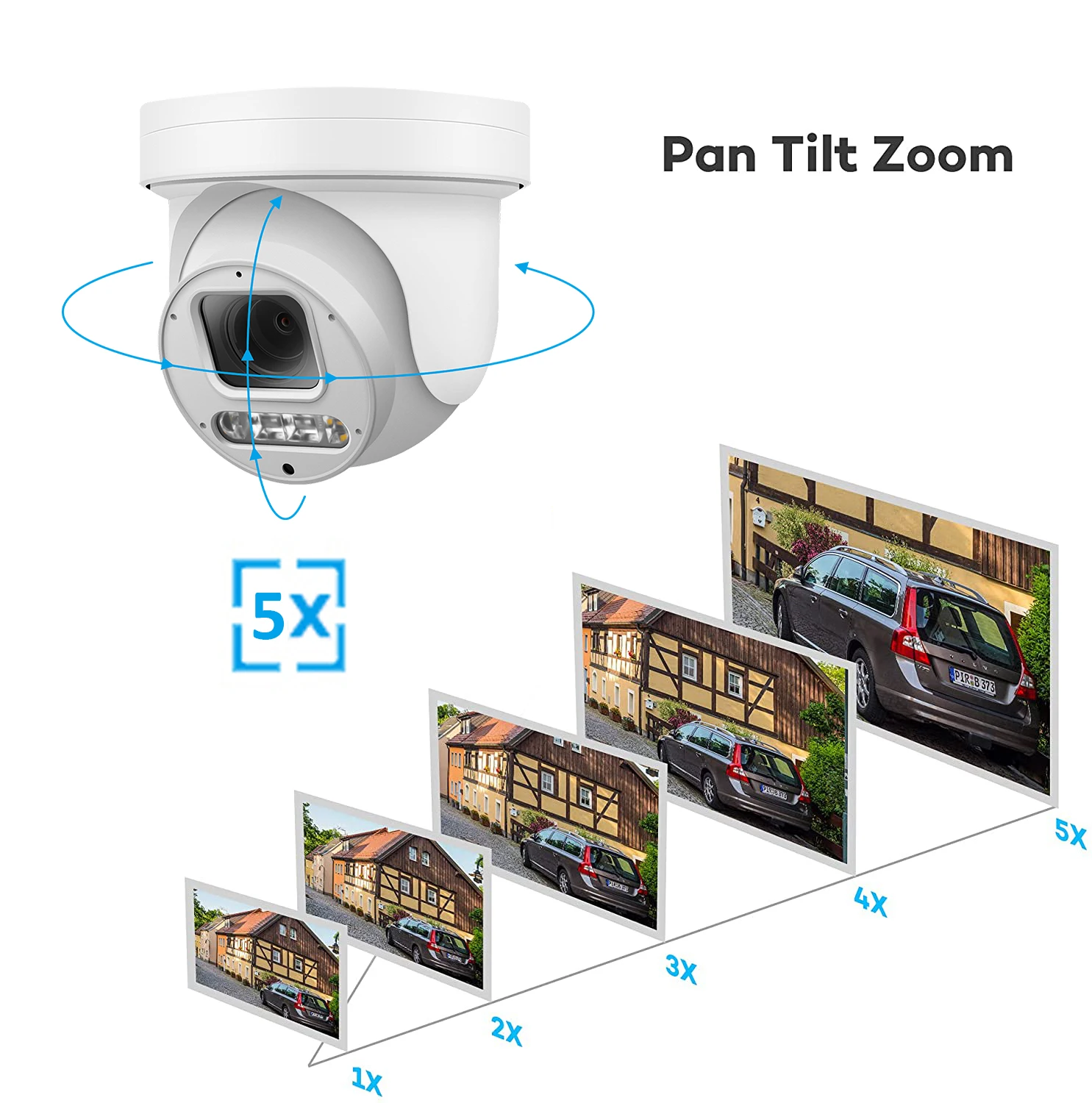

Ø 5x optical zoom allows for closer viewing of
subjects in expansive areas
Ø Pan and tilt ability enables camera to monitor zones of interest

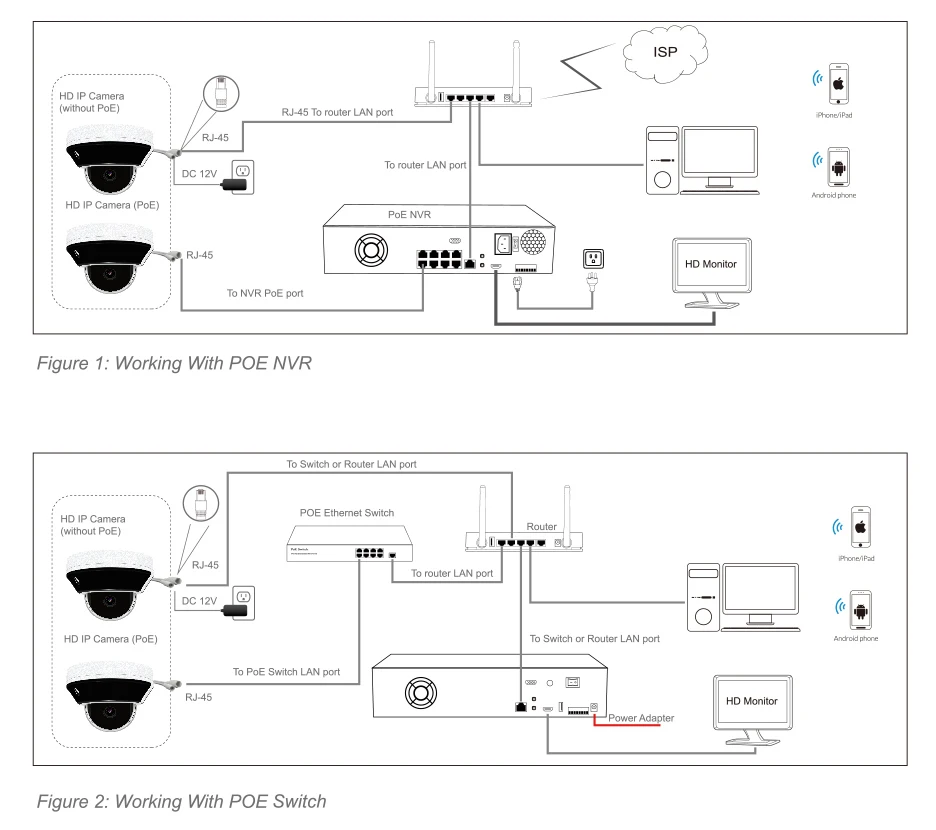

Ø RTSP and Ovif 17.06 compatible with many third-party NVR
Ø Strong water-proof housing IP66
Ø Smart Human & Vehicle Detection
Ø Two-way audio, built-in Mic and loudspeaker

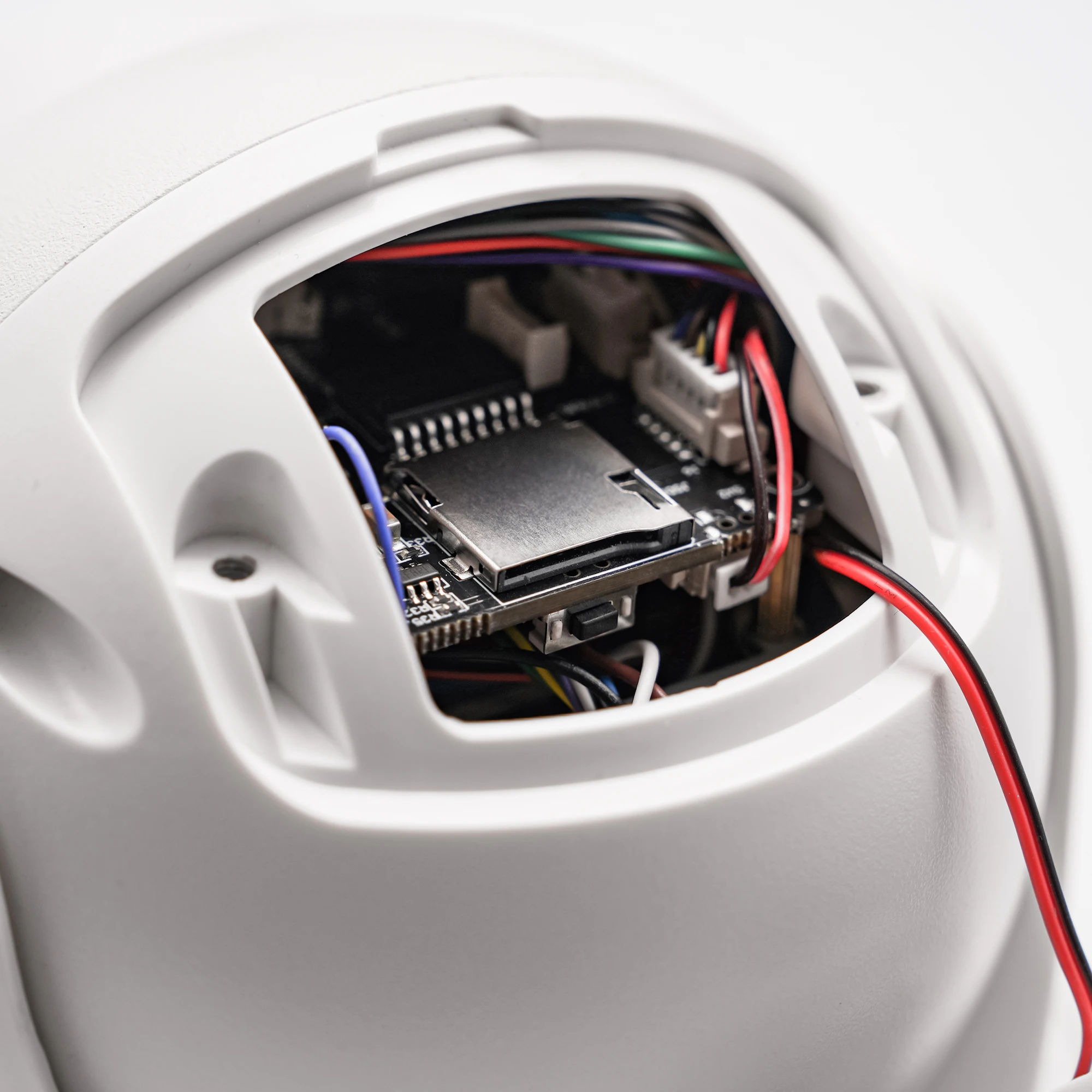

Ø Built-in Micro-SD slot (max 512GB) & Reset
Ø Siren and Voice Warning, Strobe Light
subjects in expansive areas
Ø Pan and tilt ability enables camera to monitor zones of interest
Ø RTSP and Ovif 17.06 compatible with many third-party NVR
Ø Strong water-proof housing IP66
Ø Smart Human & Vehicle Detection
Ø Two-way audio, built-in Mic and loudspeaker
Ø Built-in Micro-SD slot (max 512GB) & Reset
Ø Siren and Voice Warning, Strobe Light
Technical Parameters
Model | YC-W716IRC-5X-HS | |
Camera | ||
Image Sensor | 1/2.8" CMOS | |
Effective Pixels | 3072(H)×2048 (V) | |
Electronic Shutter | AUTO, 1/25s ~ 1/10000s | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Day/Night | Auto/Color/(B/W)/Timing | |
WDR | Digital WDR | |
White Balance | Auto/Manual | |
BLC /HLC | Support | |
DNR | 2D/3D DNR | |
Other | Image adjust , Flip | |
Encode | ||
Video Standard | H.265+/H.265/H.264/MJPEG | |
Video Resolution | Main Stream: 25fps@6MP(3072x2048)/5MP(2592x1944), 30fps@4MP/3MP/1080P/720P Sub stream: 30fps@D1/VGA/360P/CIF, etc. | |
Video Bitrates | 512Kbps - 6Mbps, VBR/CBR | |
Audio Standard | G.711-u/G.711-a/AAC | |
Audio | Two way audio: Built-in Mic. & loudspeaker | |
Smart Detection | Smart Human & Vehicle Detection | |
Dual Illumination | ||
Led | 4pcs IR & Warmlight Leds | |
Distance | 40 m (IR), 30 m (Warm light) | |
Lens | ||
Focal length | 2.7-13.5mm | |
Zoom | 5x optical zoom | |
Function | ||
SD Storage | Build in Micro SD Card Slot, Max 512GB | |
Reset | YES | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 280°; Tilt: 0° ~ 90° | |
Preset Point | 10 | |
Control Speed | Pan: 15° /s; Tilt: 15° /s | |
Guard Position | Support | |
Power-off Recovery | Support | |
Network Services | ||
Protocol | HTTP(s)/RTSP/RTMP/FTP/NFS/SMTP/DHCP/NTP, etc. | |
P2P | Yes | |
Web | IE , Firefox 32bit ESR, etc. | |
Media | CMS, Android, IOS | |
General | ||
Network Port | 1-RJ45, 100Mbps, PoE 48V in | |
Power Supply | 12 VDC ± 10% 2A | |
Power Consumption | < 15 W | |
Operating Temp. | -30℃-(+60)℃, 10%-90%RH | |
Size | Φ120(mm)×110(mm) | |
Weight | 0.68kg | |
Product Details
Recommend Products

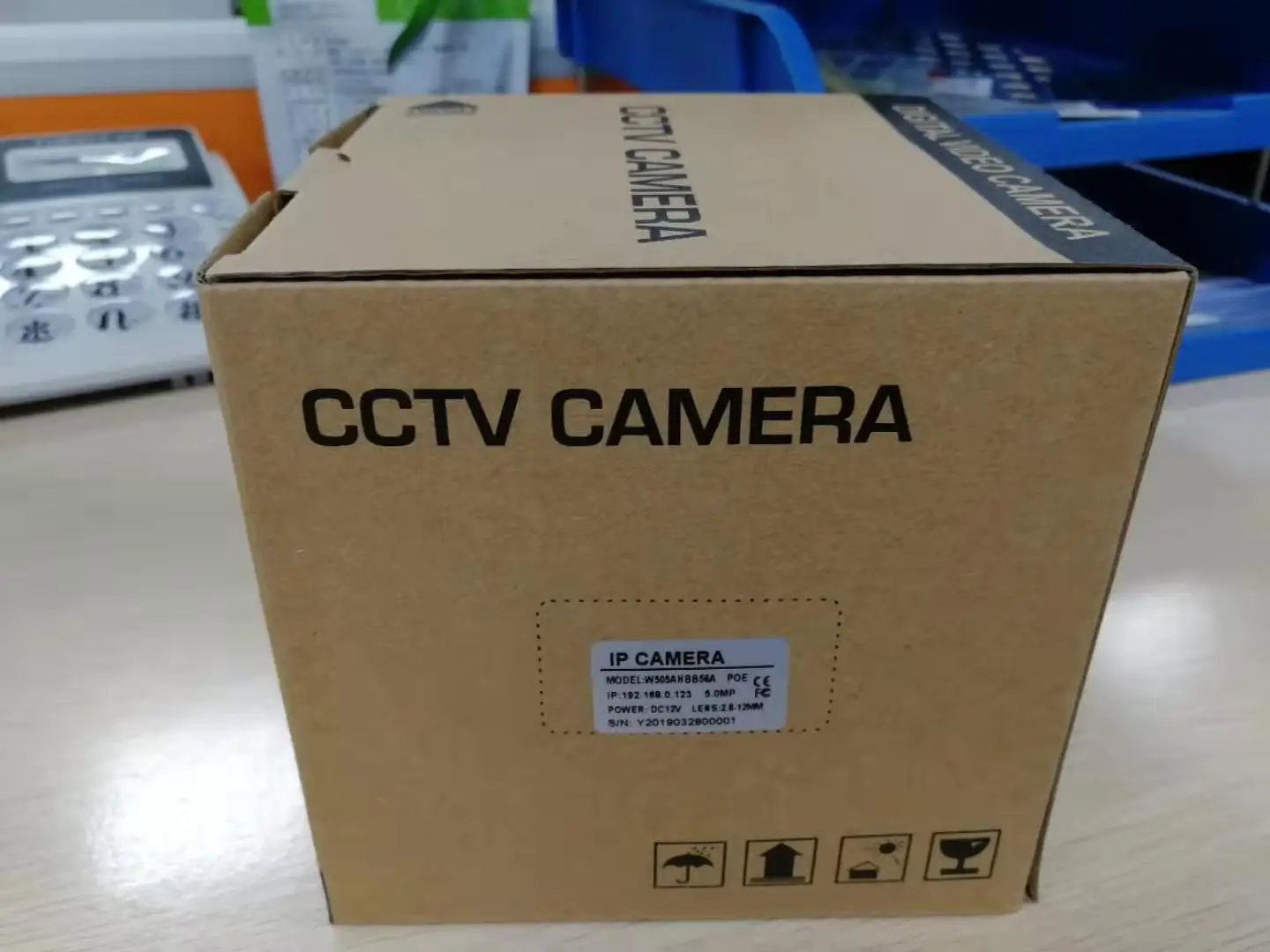

Packing & Delivery
