Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory
Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory
Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory
Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory
Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory
Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory
Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory

Supply of transparent plastic pipes and the high temperature fluoroplastic PFA tubing in the laboratory

Share on (1600778732984):


Price:$54.00 - $57.00

Quantity:


Product Overview

Description

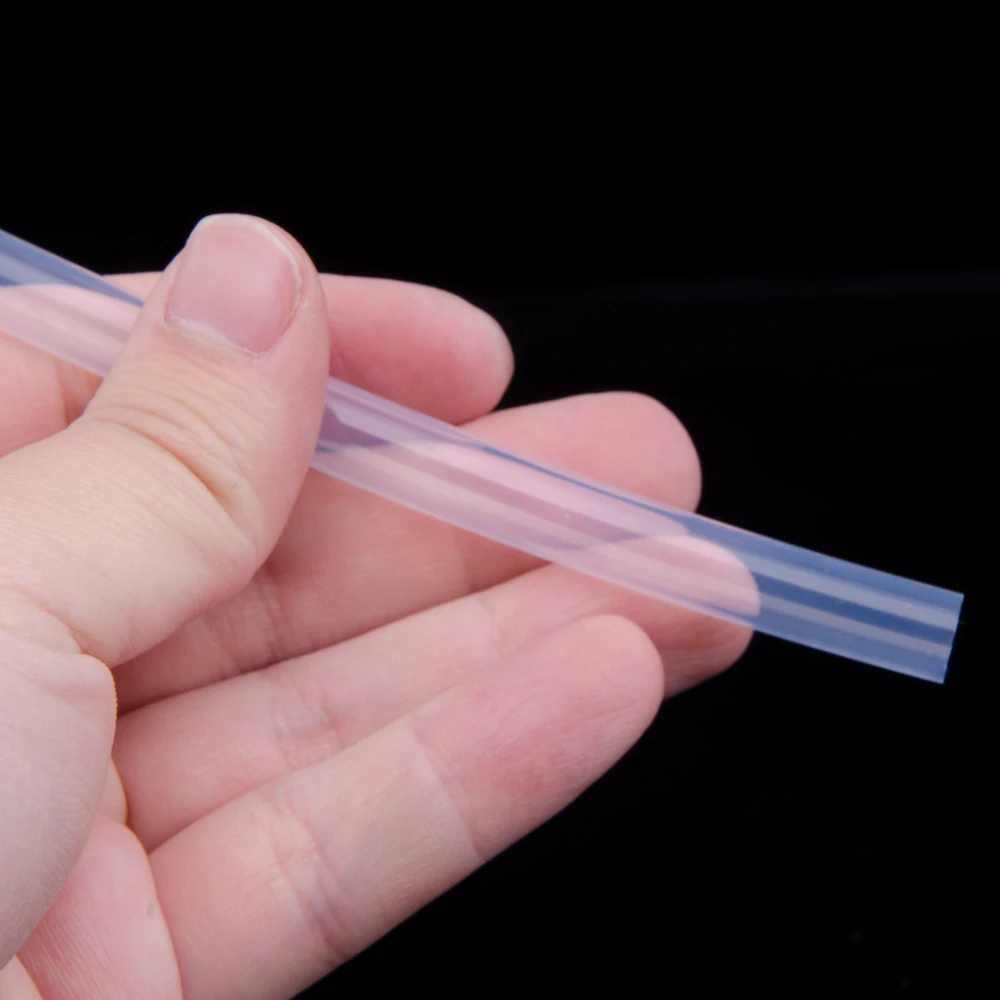

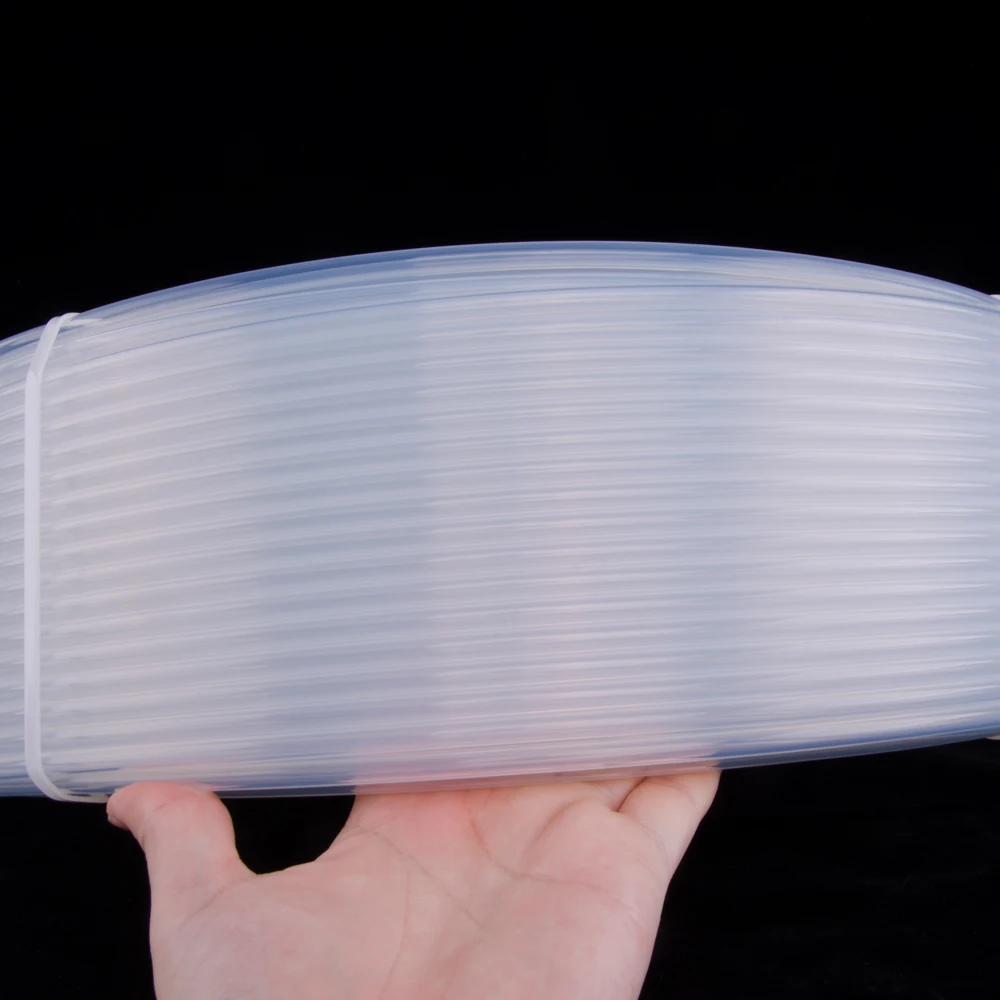

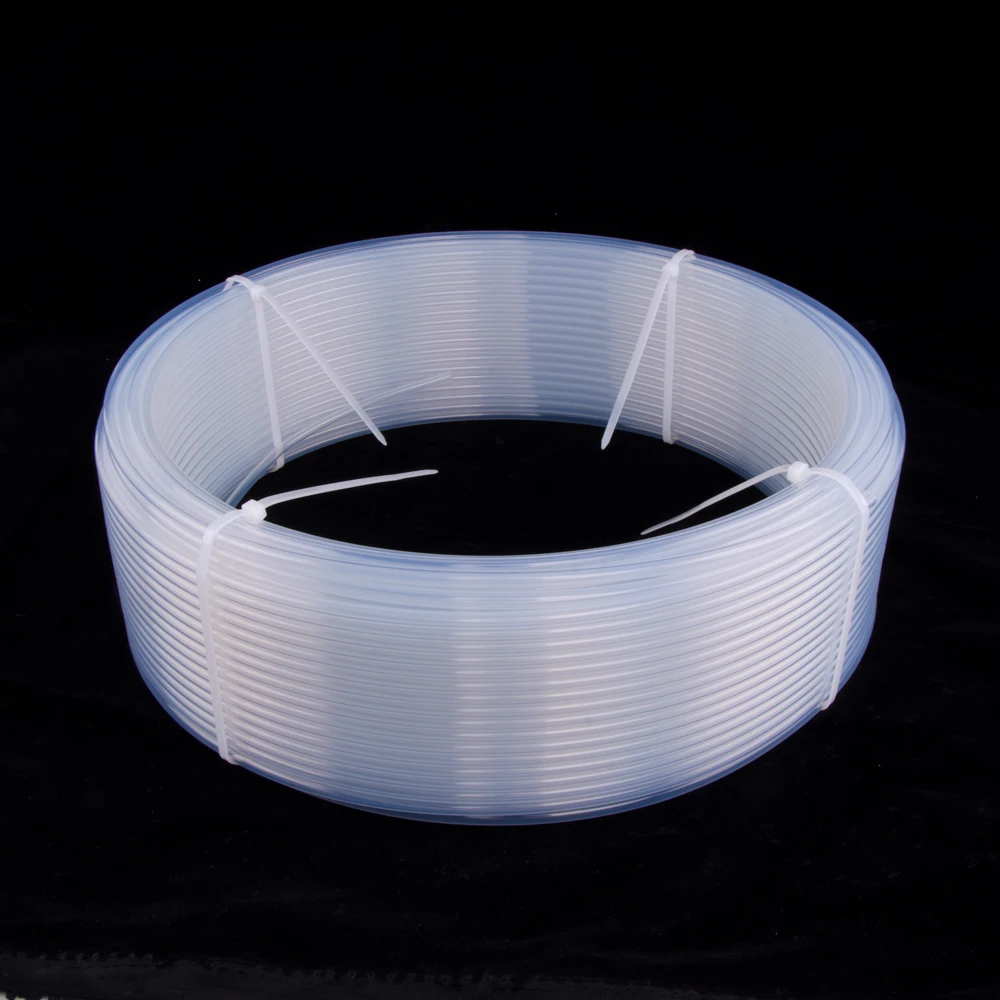

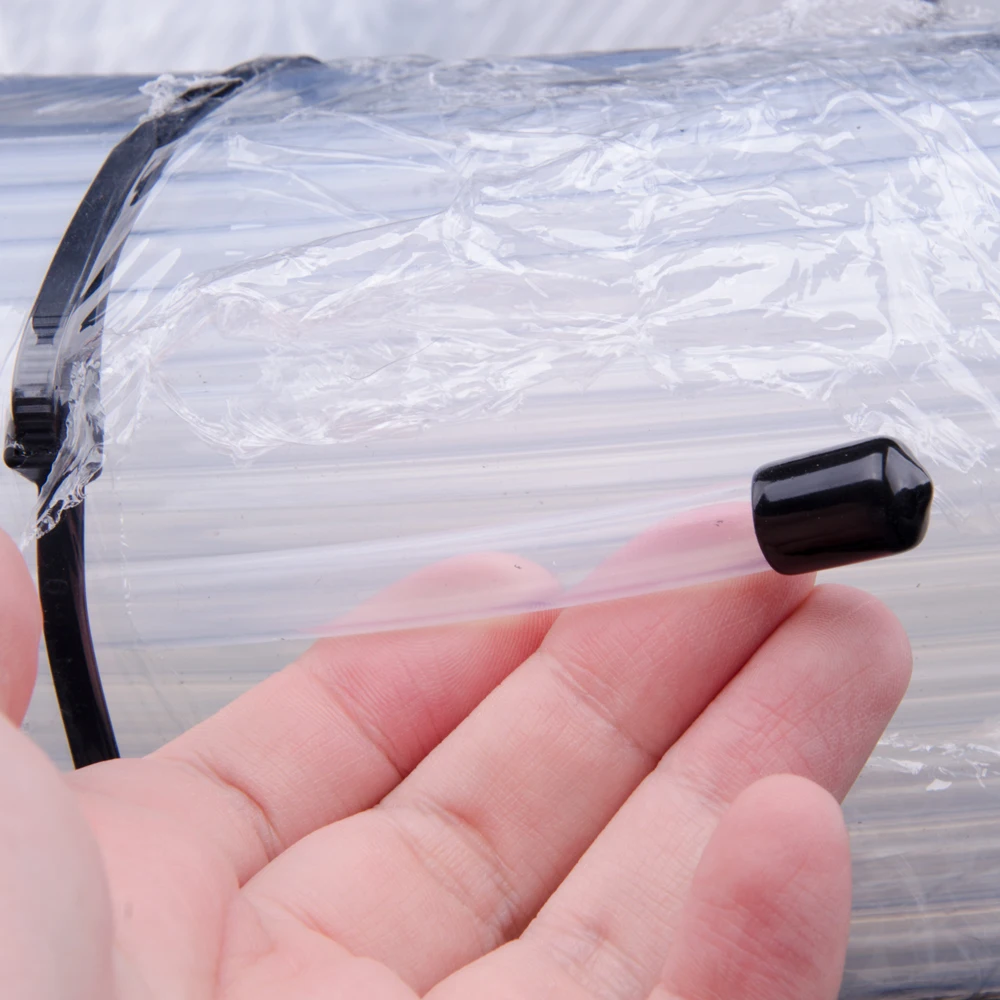

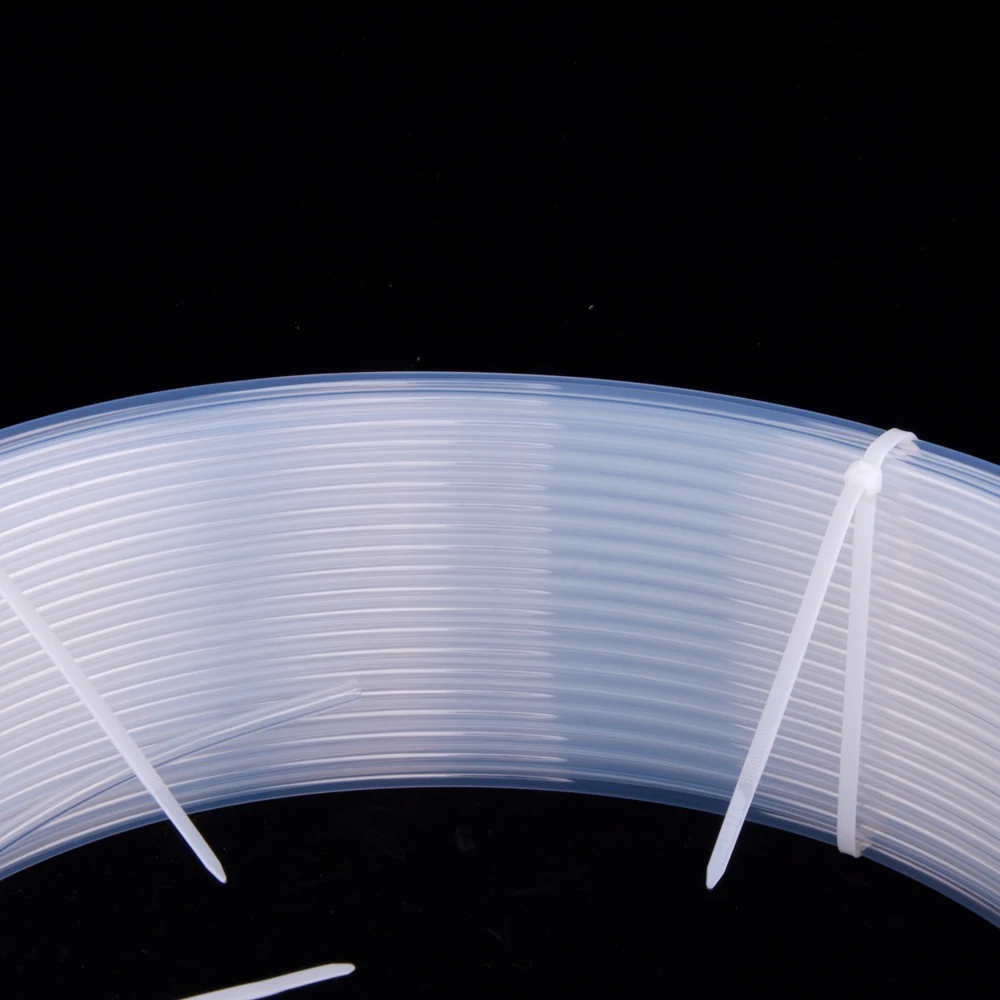

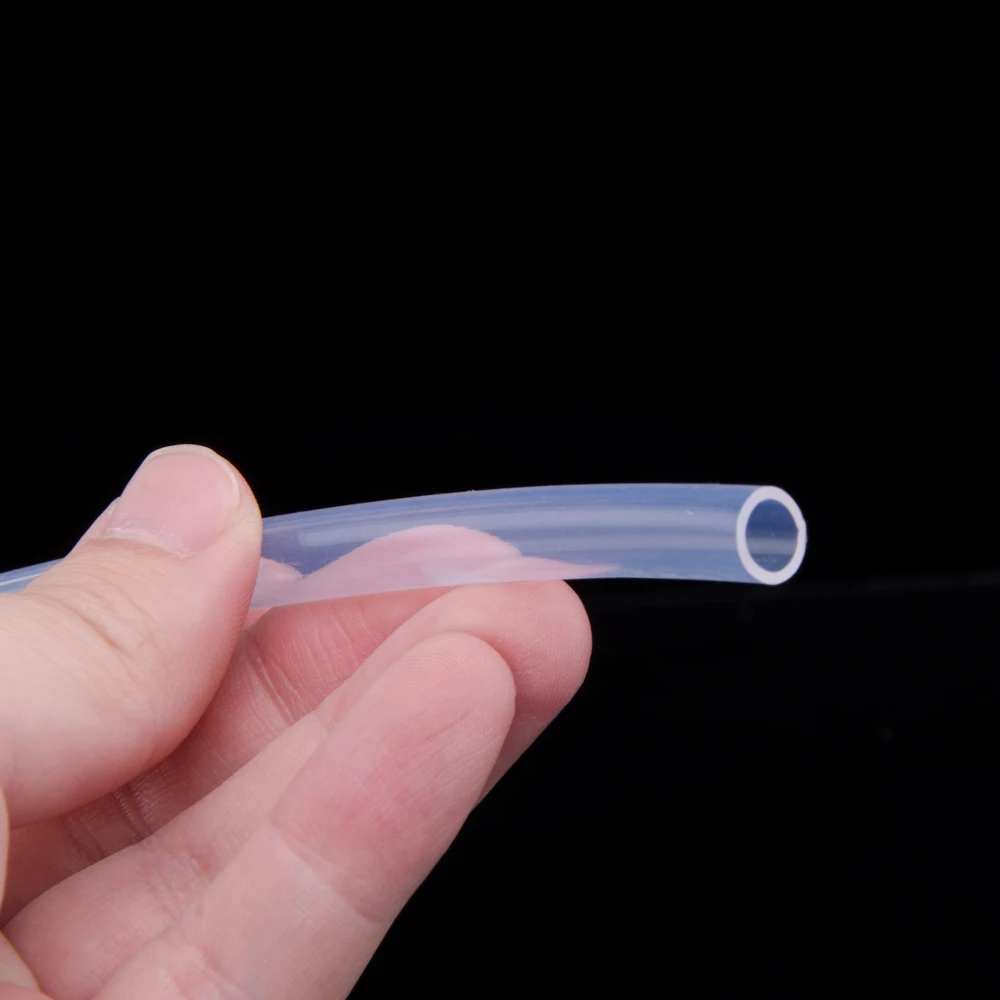

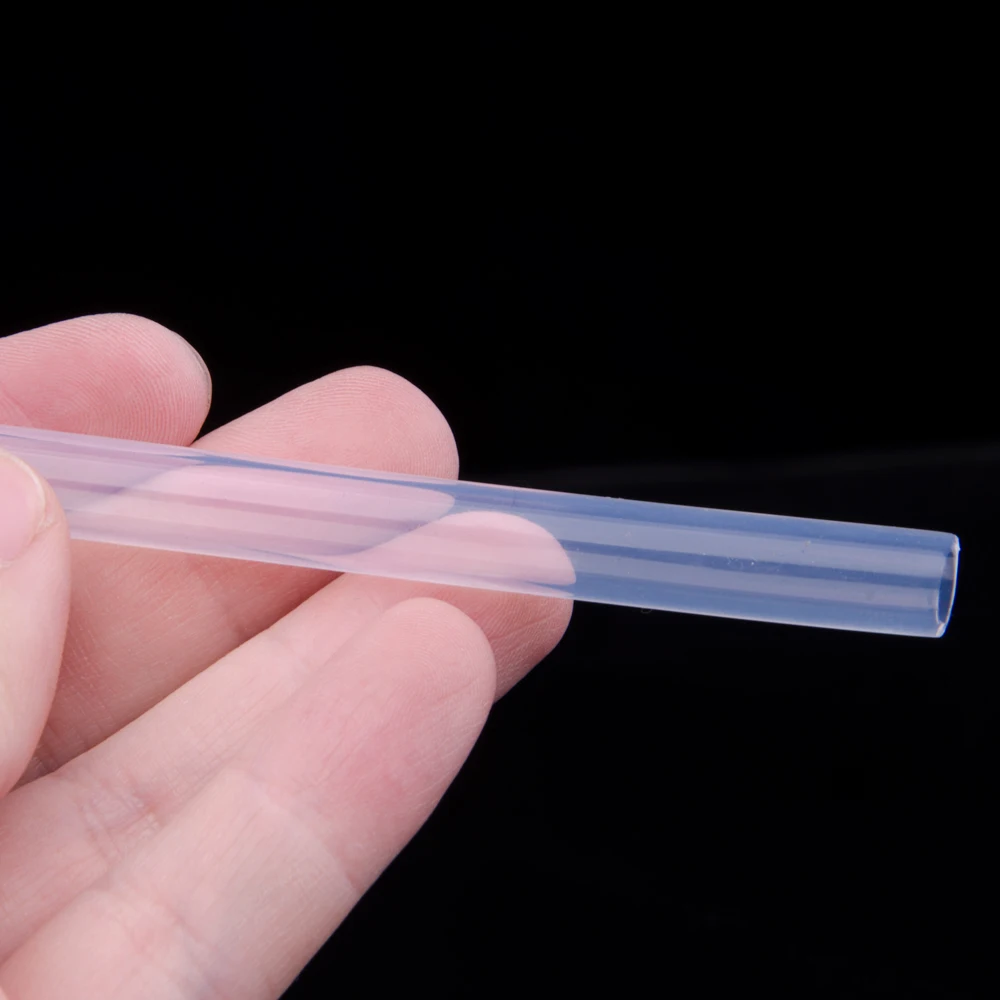

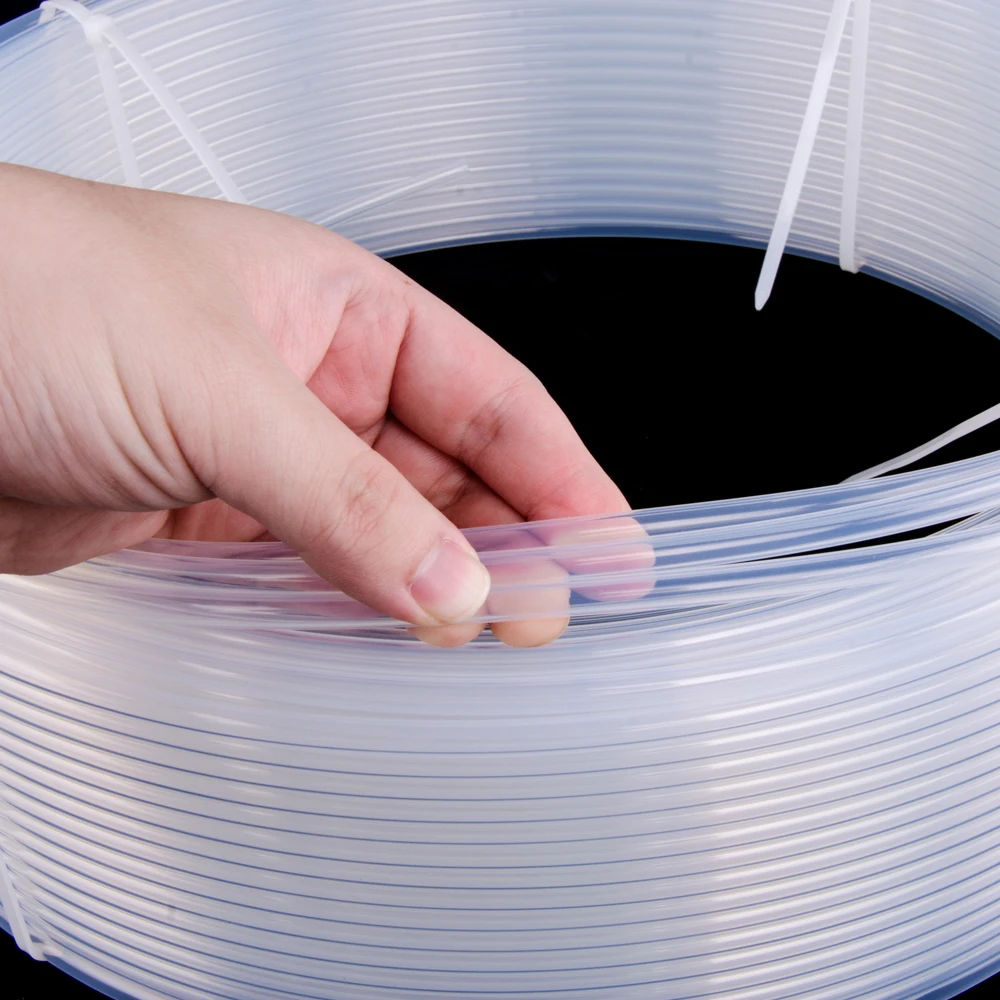

1、Product Name and material: Fluorine plastic PFA Tube (transparent)

2、FEATURES
a. long-term use of temperature -80℃ ~ 260℃, its stress relaxation and reduced compressive strength are better than polytetrafluoroethylene, high tensile strength, elongation can reach 100-300%.
b.Electrical reliability, high insulation, dielectric constant of 2.1, even if the surface is damaged by fire jumping, will not produce conductive track, radiation resistance characteristics of excellent source.

c.The friction coefficient is the lowest in plastic, good anti-viscosity, tube wall is not easy to adhere to the medium.

d.The friction coefficient is the lowest in plastic, good anti-viscosity, tube wall is not easy to adhere to the medium.

e.Excellent stress cracking resistance and bending life, very low metal ion content, and can maintain strong mechanical strength and burst pressure at higher temperatures.

f.High transparency, low refractive index in all plastics7、Non-toxic -- with physiological inertia, as artificial blood vessels and organs implanted in the body for a long time without adverse reaction.

3、Application：Protection and insulation of internal connection lines of electronic transformers, mechanical industry, aerospace vehicles, medical and communication equipment and instruments.


4、specification bill
ID*OD（mm)
Inch
ID*OD(mm)
Inch
2*4
8*10
2.5*4
8*12
4*6
9*12
4.35*6.35
1/4
10*12
5*7
10*13
5*8
12.7*9.6
1/2
6*8
12*14
6.35*9.52
3/8
12*16
6*10
13*16
6.5*10
14*16
7*9
16*18
7*10
15.88*19.05
3/4
7.5*10
22.2*25.4
1


5、Tolerance for diameter and wall thickness: ±0.1mm

6、Typical specifications for maximum operational pressure reference table
Note: The maximum operating pressure will be different if the outside diameter is the same and the inside diameter is different.


Size mm（ID*OD）
Working pressure (kg/cm2）
bursting pressure（kg/cm2）
2*3
12.4
50.1
2*4
19.5
78
3*4
9
36.4
3*5
15.3
61
4*6
12.5
50
5*8
14.3
57
6*8
9.1
36.4
8*10
7
28.5
10*12
5.8
23.4
12*14
4.9
19.8














Customer: Are you trading company or manufacturer?
We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS compliant.

Customer: how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

Customer:what can you buy from us?
PFA tube,FEP tube,PTFE tube,Teflon tube

Customer:What is the payment way accepted?
Credit card,T/T,Alipay,Wechat,Paypal,L/C etc..

Customer:What is delivery way?
By sea,by air,by express etc..
