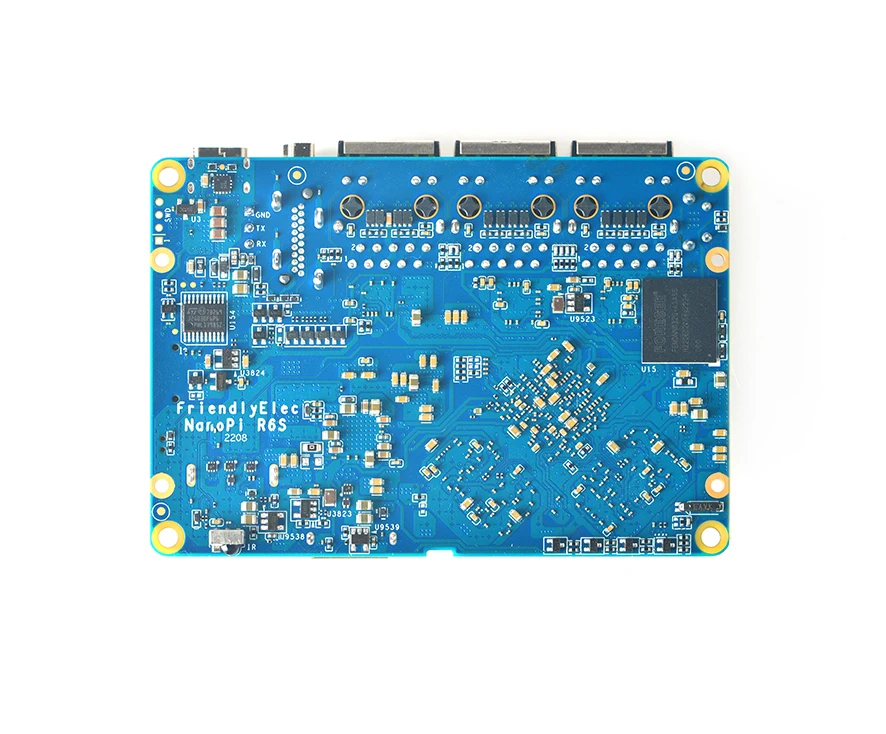

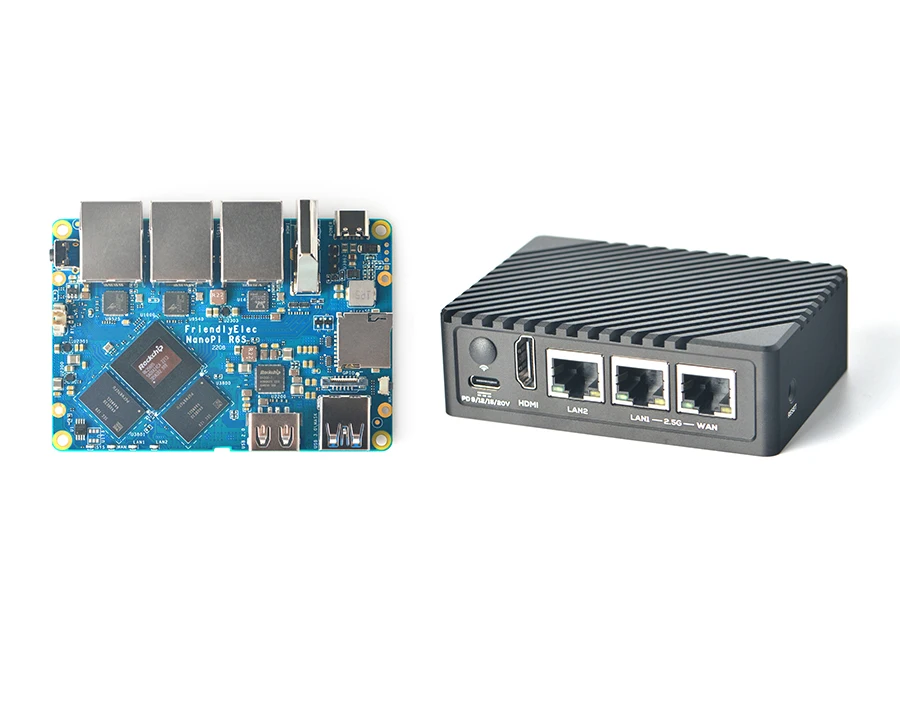

NanoPi R6S 8 32GB eMMC

Product Overview

Description



CPU	Model: Rockchip RK3588S Number of Cores: Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU Frequency: 4 x Cortex-A76 up to 2.4GHz & 4 x Cortex-A55 up to 1.8GHz
GPU	Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2
VPU	8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder
NPU	6TOPs, supports INT4/INT8/INT16/FP16
Memory	RAM: 64-bit 8GB LPDDR4X at 2133MHz
Storage	MicroSD Slot: MicroSD x1, support up to SDR104 mode Flash: 32GB eMMC, at HS400 mode
Connectivity	Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip
Video Output	HDMI: compatible with HDMI2.1, HDMI2.0, and HDMI1.4 operation support up to 7680x4320@60Hz Support RGB/YUV(up to 10bit) format
USB	USB 3.0 Host x1: USB Type A USB 2.0 Host x1: USB Type A USB-C x1: Power input(5V/9V/12V/20V), support PD
Pin-header	GPIO: 12-pin 0.5mm FPC connector with up to 1x SPI, up to 3x UARTs, up to 1x I2Cs, up to 8x GPIOs Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LED	SYS LED(Red) x1 WAN LED(Green) x1 LAN1 LED(Green) x1 LAN2 LED(Green) x1
Button	MASK Button x1 for eMMC update User Button x1
Others	RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low-power RTC IC HYM8563TS IR receiver x1 and the carrier frequency is 38Khz Fan Connector(ZH1.5-2A) x1, 5V Working Temperature: 0℃ to 70℃
Power	DC USB-C, support PD, 5V/9V/12V/20V input
