Product Overview
Description
Products Description
China Top LCD module kits supply MH05A Driver Board

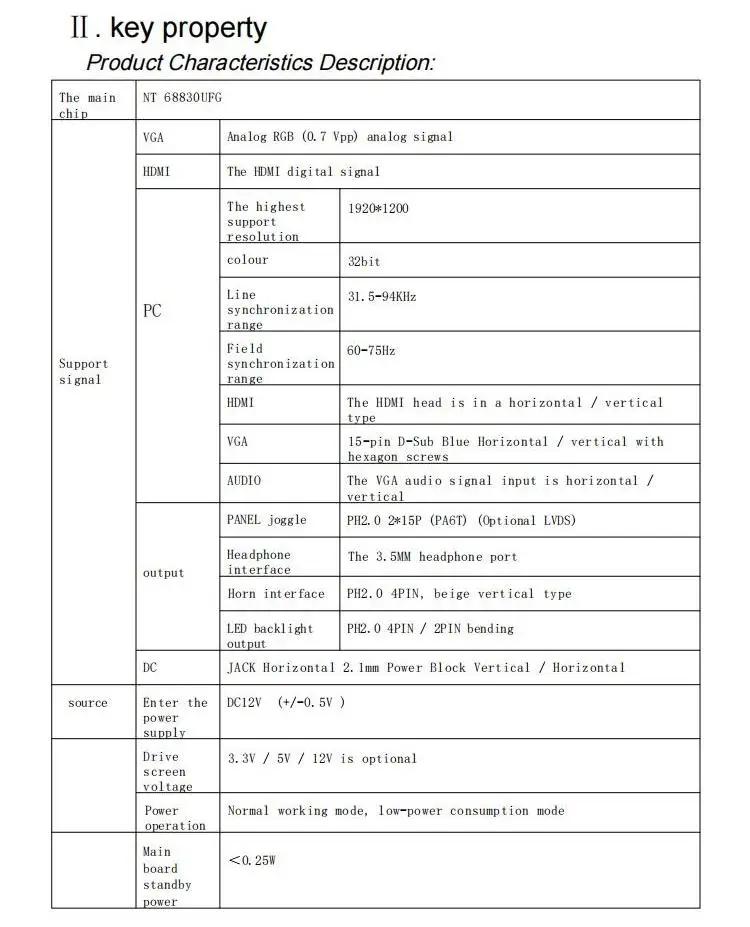

Ⅰ.Functional overview

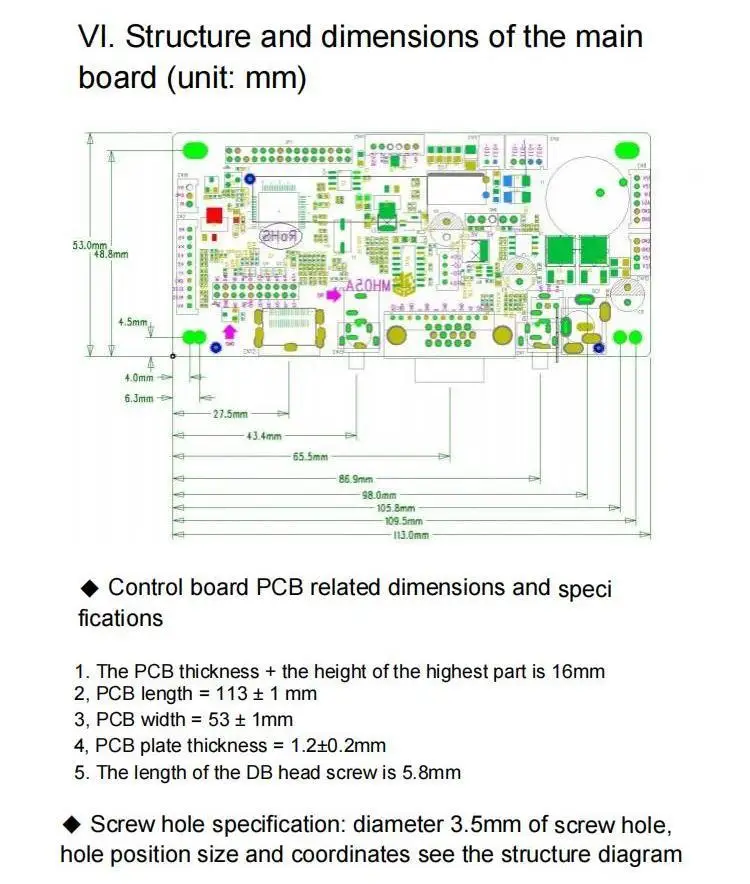

MH05A V1.3 LCD display control motherboard, support LCD Panel with the resolution 1920 * 1200 and below, the main chip with NT 68830UFG. The DB head (VGA) screw length is 5.8MM.
It completes the conversion from the VGA analog signal or the H-DMl digital signal output by the PC to the LVDS signal supported by the LCD module. The design is mainly used for the TFT LCD PANEL connection, realizing the reproduction of analog R, G and B input signals with the highest resolution of WUXGA, and the color reproduction can support up to 24 bit, up to 16.7 megapixel, and the ADC frequency of 165 MHZ. And has DCR (dynamic contrast adjustment), color enhancement, color engine andother special functions, so that the color reproduction is more realistic, brighter and more vivid, while support HDCP function. Can realize synchronous automatic detection. The synchronous detection method requires separated synchronous signal; with exquisite OSD interface style and various alternative OSD languages. At the same time, support LED screen backlight drive, can support LED backlight within 18-60V 520MA(30W).
The software on the motherboard supports online updates, with a maximum output resolution of up to 1920 *1200. Unless otherwise stated, the specifications that the product conforms to are described in this document.
Hot Models
Product packaging
PACKAGE
Standard export carton packing.
DELIVERY TIME
3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Company Profile
XIANHENG TECH is a high-tech enterprise professional in R & D and LCD electronic display production, sales and service as a whole, is the series of indoor and outdoor LCD screen manufacturer. We mainly agent LCD screen distribution AUO, MITSUBISHI, BOE, INNOLUX and other brands and so on.
According to customer needs to provide a variety of LCD products including supporting LCD, LCD driver board, resistance and capacitance touch screen, LCD dedicated wire, the production of small and medium-size industrial monitors, touch screen, etc.
According to customer needs to provide a variety of LCD products including supporting LCD, LCD driver board, resistance and capacitance touch screen, LCD dedicated wire, the production of small and medium-size industrial monitors, touch screen, etc.
