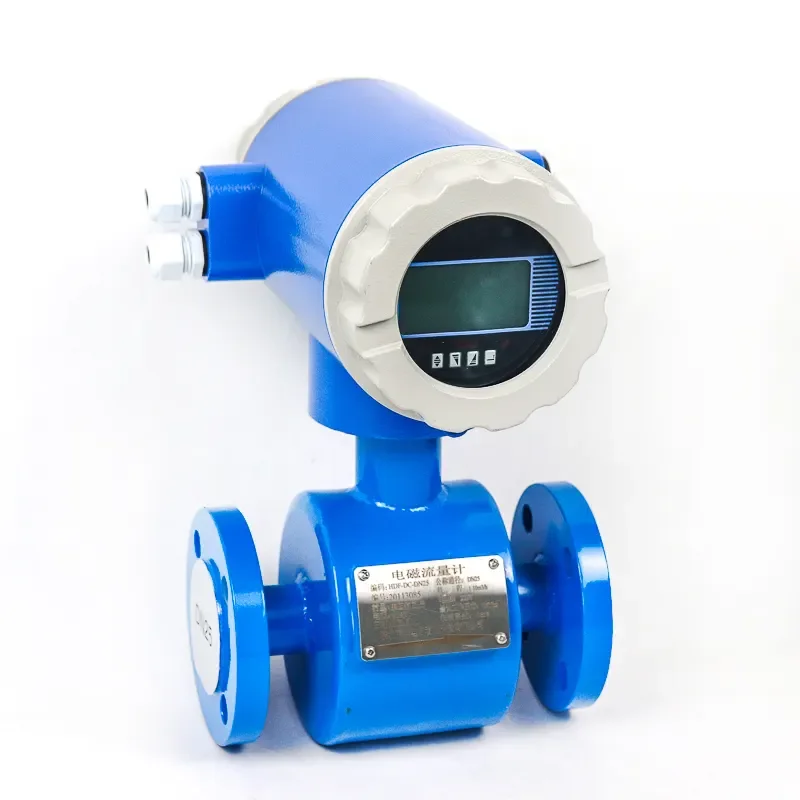

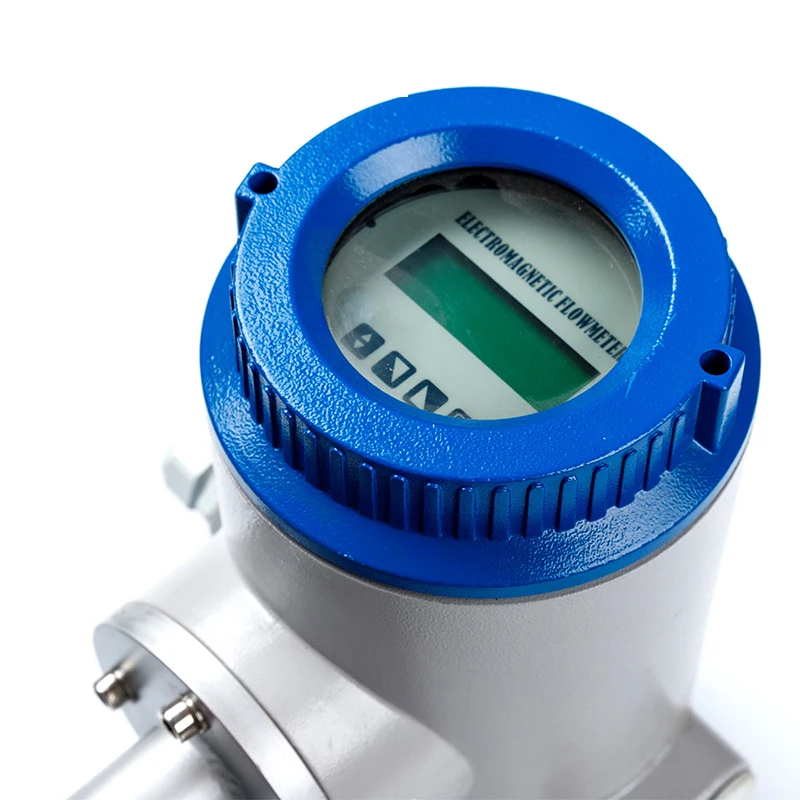

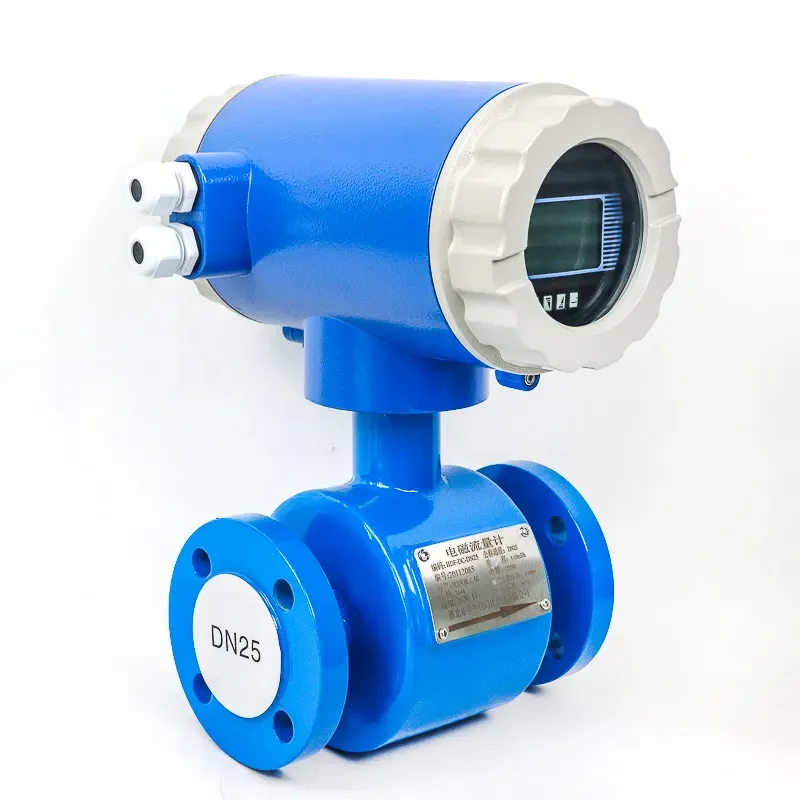

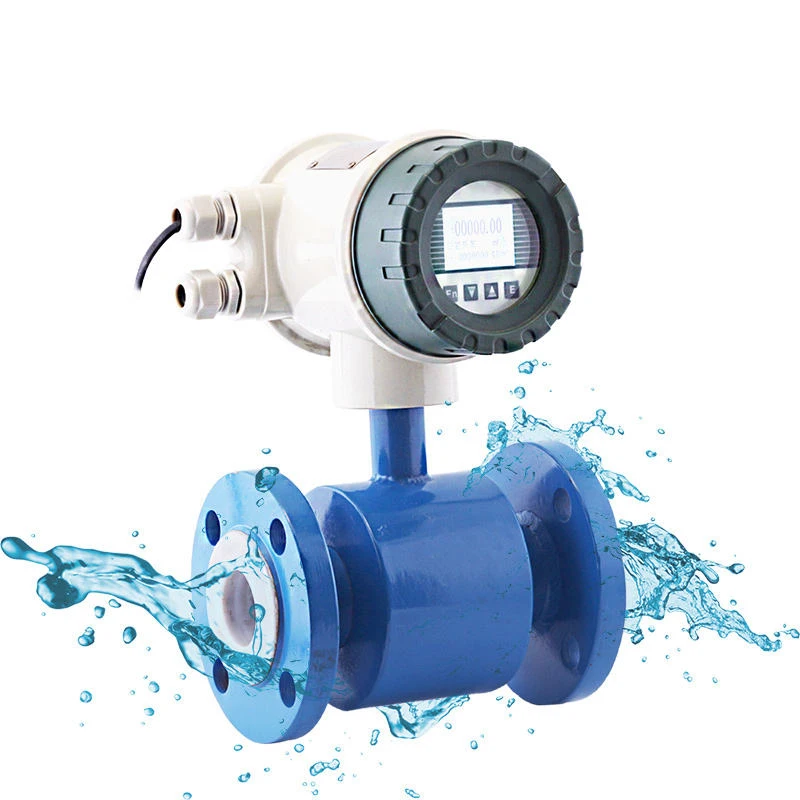

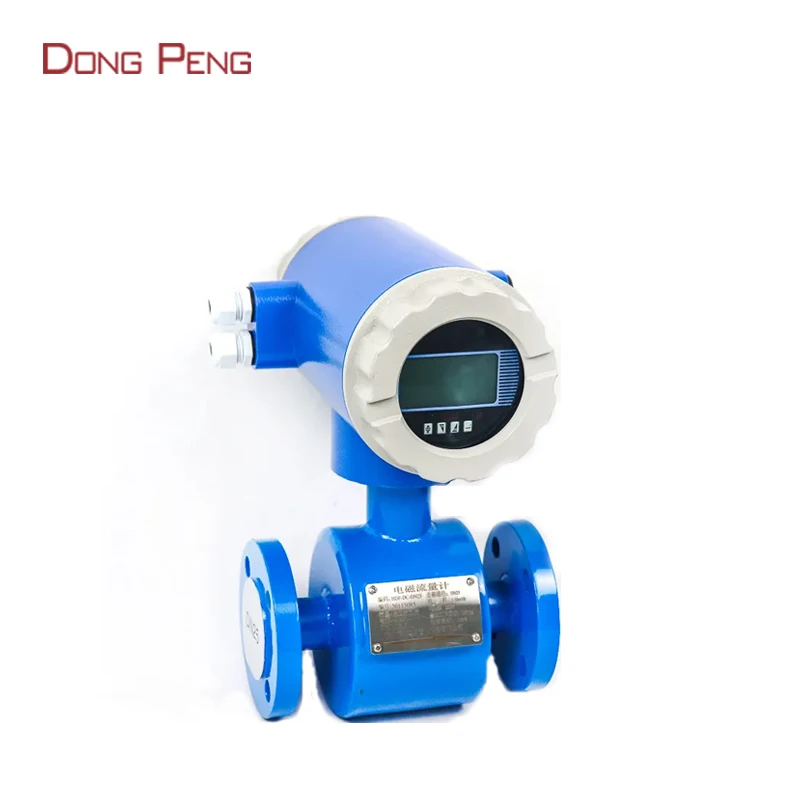

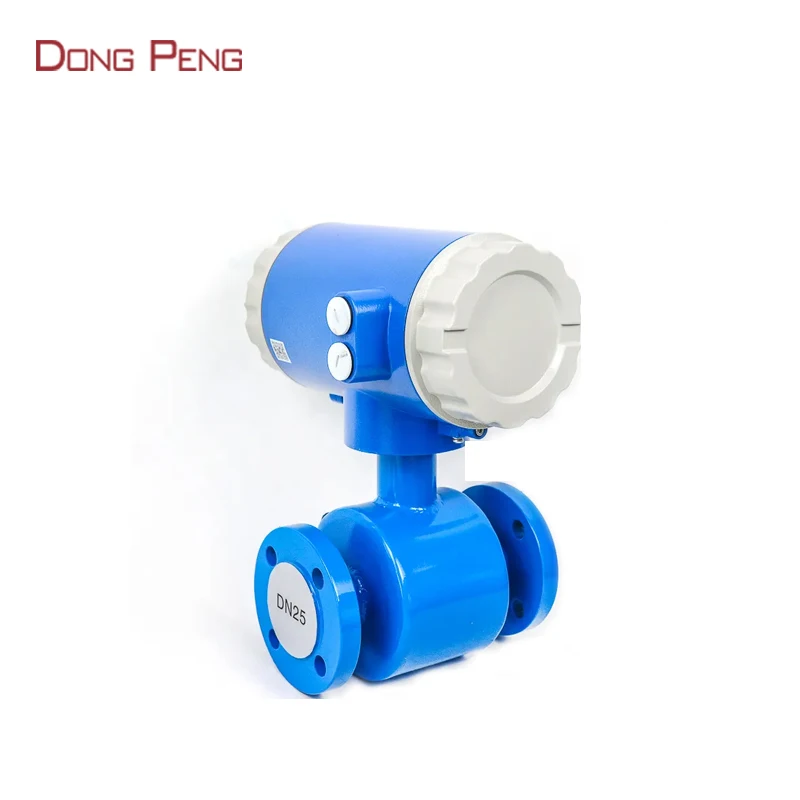

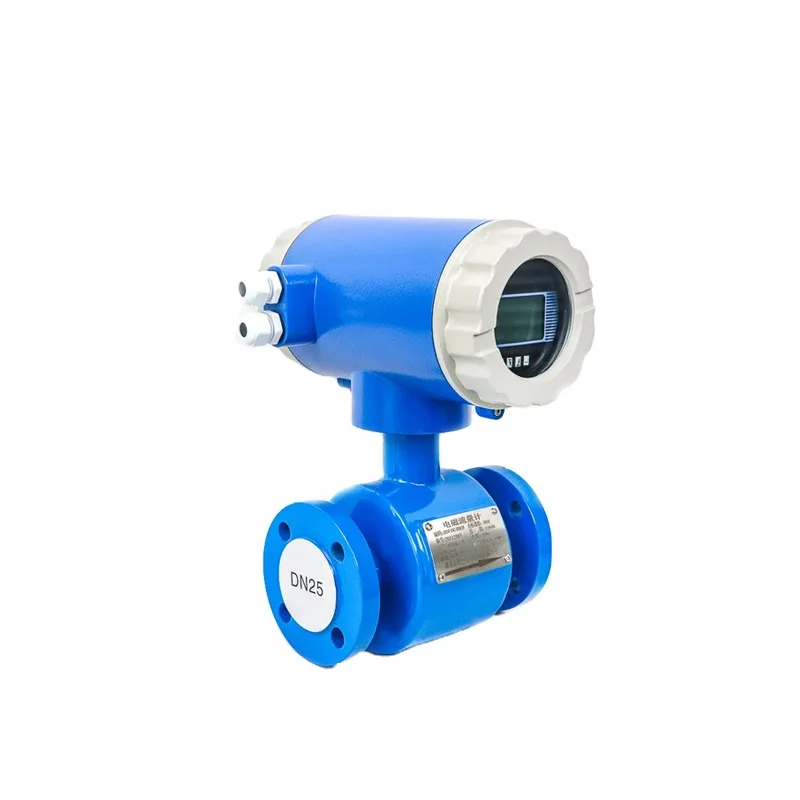

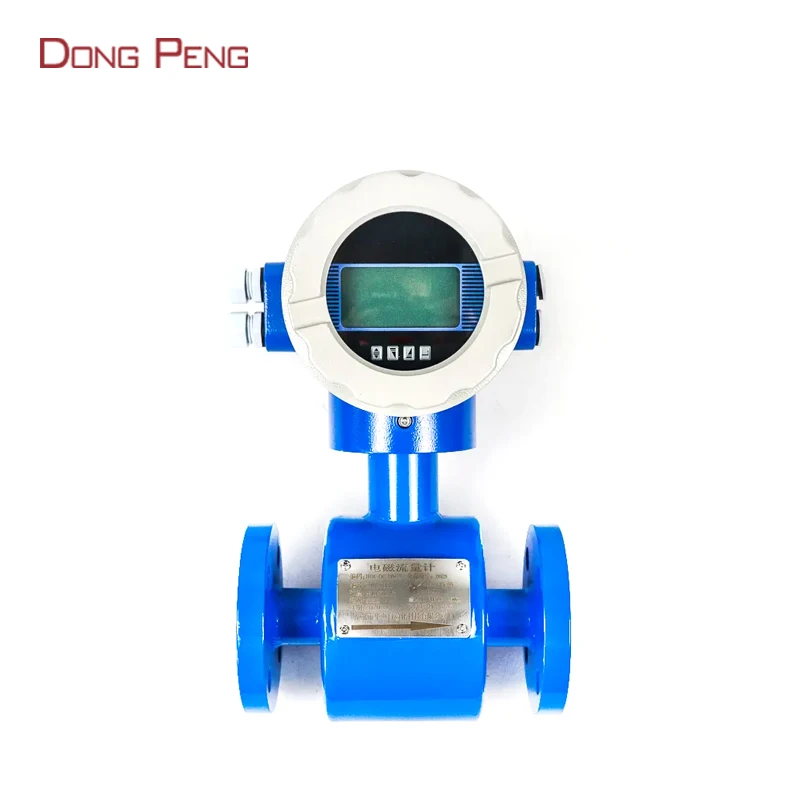

Digital Electromagnetic Flow meters Liquid Water Magnetic Flow Meter
- Category: >>>
- Supplier: Shandong Dongpeng Automatic Control Instrument Co. Ltd.
Share on (1600779498701):
Product Overview
Description
Products Description
Measurement fluid: Conductive liquid
Accuracy level: 0.5
Repeatability: 0.15% , 0.25%
Fluid temperature: -25℃~180℃
Electrode material: 316L stainless steel, hastelloy B, hastelloy C, tantalum, titanium, etc
Installation type: Flange connection, clamping type, thread connection, clamp, insert type, etc
Signal output: Pulse output, 4-20mA output
Structural form: One body type and split body type
Technical Parameters
Production Name | Magnetic electromagnetic flowmeter |
Medium | Water; Wastewater; Mud and varioue kinds of conductivity liquid |
Diameter | DN10~DN2000mm |
Accuracy | +/-0.5% |
Temperature | <80ºC(rubber); <180ºC(PTFE) |
Pressure | 4.0MPa(DN10~80); 1.6MPa(DN100~150); 1.0MPa(DN200~1000); 0.6MPa(DN1200~2000) |
Flow speed | 0.3~10m/s |
Requirement of pipeline | Upstream ≥5DN; Downstream≤3DN |
Electrode | Stainless steel 316L(standard); Titanium; Tantalum; Hastelloy |
Lining | PTFE; Rubber |
Connection | Flange; Thrad; Clamp on |
Body material | Cast steel; Stainless steel |
Power supply | 220V; 24V; Battery |
Output | Pulse; 4~20mA; HART; RS485; MODBUS; GPRS |
Communication | HART; RS485; MODBUS |
Explosion proof | Customized |
Protection | IP65 or IP68 |
Environment | Environment: -20~60ºC |
Power | <20W |
FAQ
1. Q: Where is your company located? Could I visit your factory?
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process.
A: Our company is located in Zhaoyuan, Shandong province, China. Sincerely invite you to visit our factory.
2. Q: How can I get some samples? Is it free?
A: Welcome to contact us by e-mail or Alibaba for your requirements. We can provide sample service.
3. Q: How does your factory do regarding QC?
A: Quality is priority. We always consider quality as the most important thing during the whole production process.
Our factory has gained ISO9001.
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT,
4. Q: What is your after-sale service? How about the warranty?
A: We offer guarantee on our product for 12 months and we have the special after-sales service team.
5.Q: Can you offer OEM or design services?
A: Yes, We design and manufacture our products by ourselves.
We can make OEM according to your requirements, including packing, logo print etc.
6. Q: What about your delivery time? And how do you delivery the goods?
A: Once getting your prepayment, the production will be started immediately.
It is about 5-7 working days since payment and we usually deliver by DHL, UPS, FedEx or TNT,
Airline and sea shipping also optional. For urgent orders, please contact us to inquire about the stock situation.
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective
7. Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.15%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity. For defective
batch products, we will repair them and resend them to you or we can discuss the solution including re-call
according to real situation.
