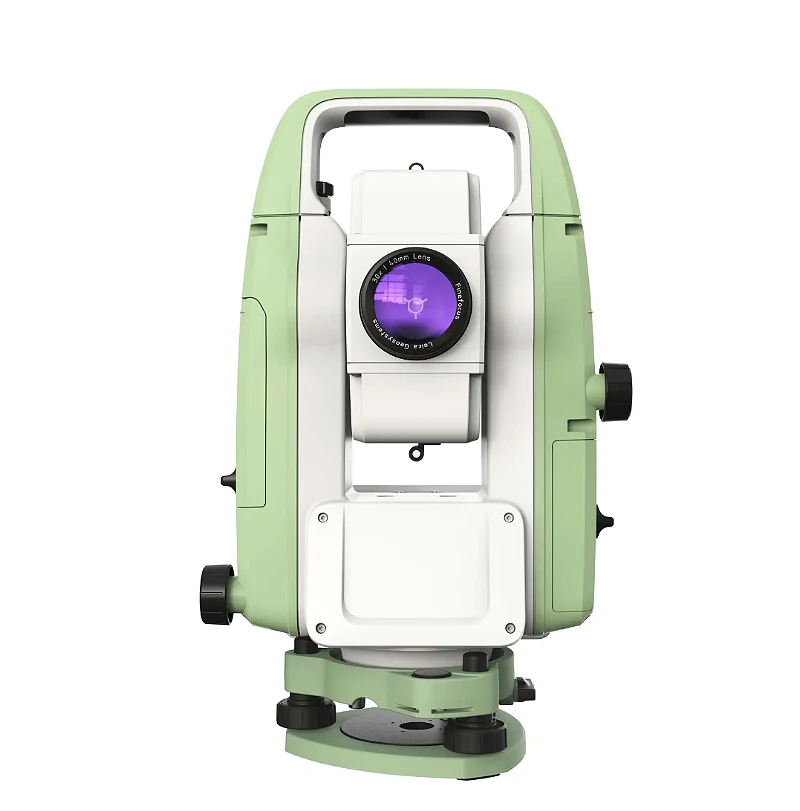

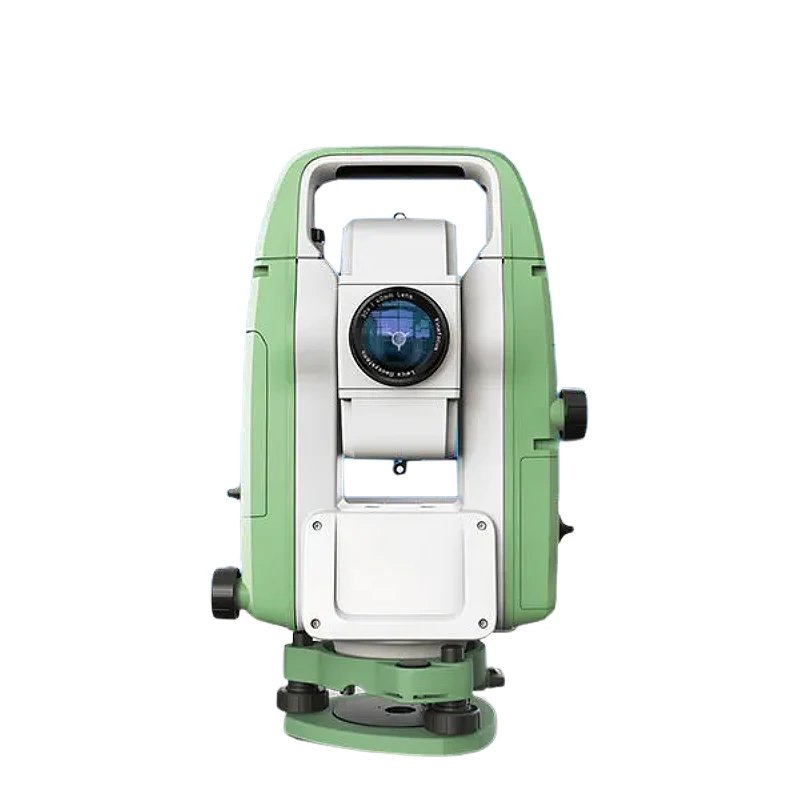

Leica TS03 Accuracy Automatic Measuring Instrument Total Station
- Category: >>>
- Supplier: Shangrao Haodi Imp & Exp Trading Co. Ltd.
Share on (1600779559934):
Product Overview
Description
Company Information
| TS03 specifications | |
| Measurement - Angle | |
| Method | Absolute, diametrical, continuous |
| Resolution Display | 0.1" |
| Compensation | Quadruple Axis |
| Accuracy - Compensator Setting | 0.5" / 0.5" / 1" / 1.5" / 2" |
| Distance Measurement using Reflector | |
| Range - Round prism | |
| Range - Reflective tape | > 500 metres > 1000 metres |
| Range - Prism-Long | > 10000 metres |
| Measurement Time (typical) | 1second |
| Distance Measurement no using Reflector | |
| Range - PinPoint R500 / R1000 | > 500metres / > 1000metres |
| Accuracy | 2mm + 2ppm |
| Laser dot size | At 30metres, approximatley 7 x 10millimetres |
| Data Communication / Storage | |
| Built in memory | 100000 fixpoints, 60000 measurements |
| Interfaces | USB Type A & mini B |
| Guide Light | |
| Range Working | 5metres to 150metres |
| Accuracy Positioning | 5centimetres at 100metres |
| Telescope | |
| Magnification | 30x |
| Resolving power | 3" |
| Field of View | 1° 30" 2.7metres at 100metres |
| Focusing range | 1.7metres to infinity |
| Reticle | Illuminated display and 10 levels of brightness |
| Keyboard & Display | |
| Display and Keyboard | Full Alpha numeric with colour and touch screen, Q-VGA, graphics, 5 brightness levels and display illumination, |
| Laserplummet | |
| Type | Laser point 5 levels of brightness |
| Centering accuracy | 1.5 mm at 1.5metres |
| Battery | |
| Type | Lithium-Ion |
| Operating time | Approximatley 30hrs |
| Weight | |
| Total station | 5.1 kg |
| Environmental | |
| Operating Temperatue | –20° C to +50° C |
| Arctic Type – 35°C to 50°C | |
| Water / Dust | IP55 Rating |
