Tiantai 500l turnkey project brewery equipment for craft beer cost (1600779585112)

Share on:


Price:$22,520.00
Price in USD:Details

Quantity:


Product Overview

Description


Tiantai 500l turnkey project beer brewery equipment for craft



Product Description


Welcome to checked "500l turnkey project brewery equipment for craft" in detail. So, are you interested in turnkey nano brewery system? Hope you will find expected information here. If not, please kindly leave message or email me directly to tell us expected system configuration on 500L micro brewery project. I will reply you within 12 hours. turnkey nano brewery system


500l turnkey project brewery equipment for craft








Specification


                              Main configuration of 500l turnkey brewery system


500l turnkey project brewery equipment for craft

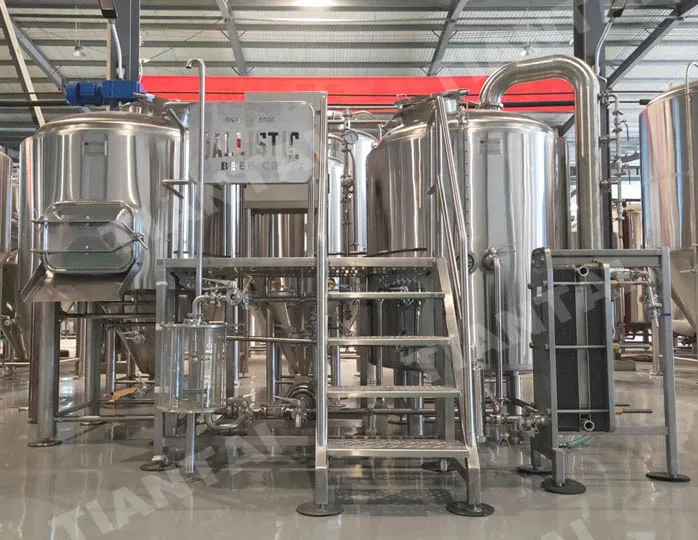

Brewhouse system   500L micro brewery































 Brewhouse structure Mash/Lauter Tun+Kettle/Whirlpool+Hot Liquor Tank
 Heating method Steam heating(electric/direct fire heating is optional)
 Rake motor  VFD is available 500L brewery equipment
 Control type PLC automatic control with pneumatic valve
 Pump VFD is available 500L micro brewery
 Pipeline Included turnkey nano brewery system




500l turnkey project brewery equipment for craft


500l turnkey project brewery equipment for craft


500l turnkey project brewery equipment for craft


500l turnkey project brewery equipment for craft


Motor and hydrator on top of MLT included in Tiantai 500L brewery





500l turnkey project brewery equipment for craft

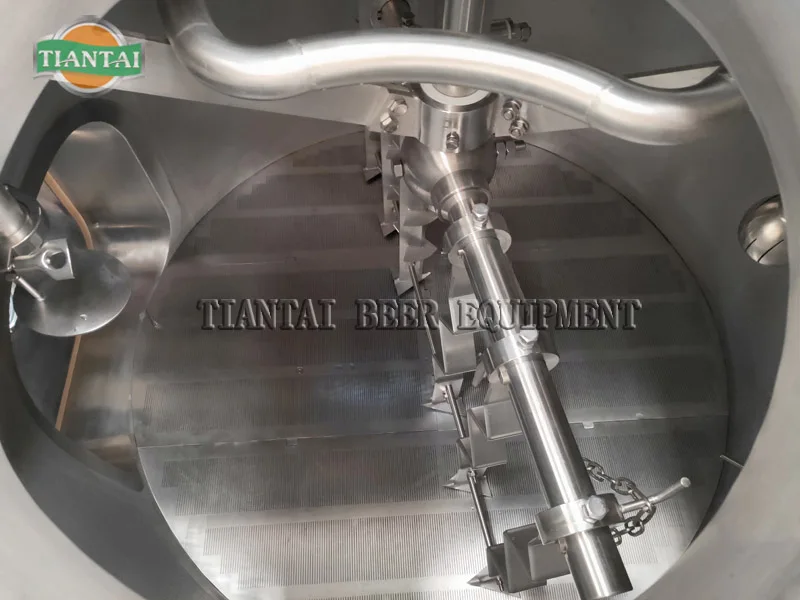

Rake inside MLT included in Tiantai 500L brewery





500l turnkey project brewery equipment for craft


Steam condensor on KWT included in turnkey nano brewery system

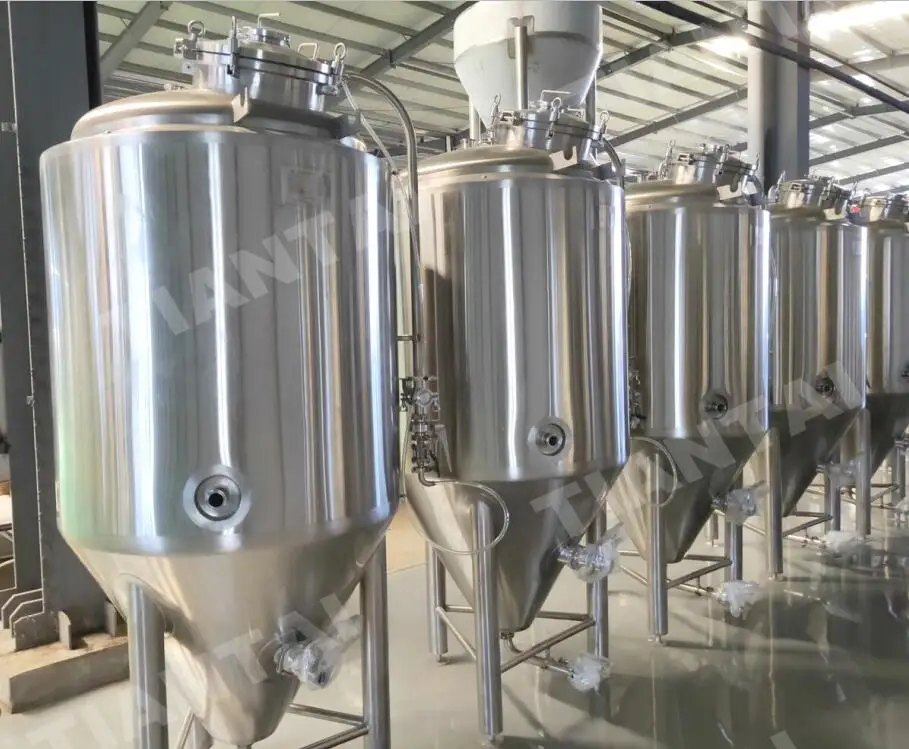

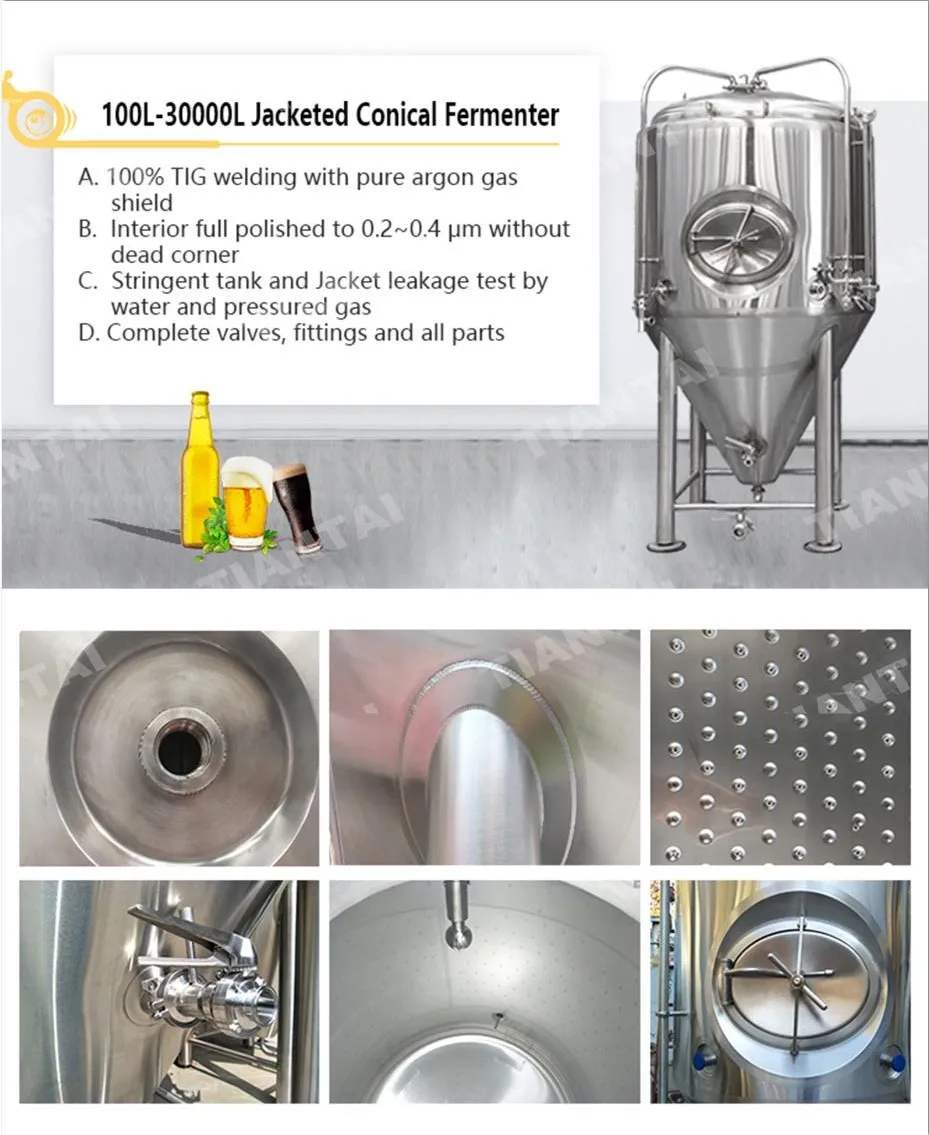

Fermentation tank  micro 500L brewery equipment




























 Tank structure Double wall with jacket and insulation
 Thickness Internal shell=3mm; External shell=2mm
 Cone angle 60 degree/customize
 Cabonation stone Yes Tiantai 500L brewery
 Spunding valve

 Yes






500l turnkey project brewery equipment for craft


500l turnkey project brewery equipment for craft



Manufacture Details

 1. Welding: We abandoned the argon gas cylinder but adopt The Central System of Argon to make sure the TIG welding with pure argon gas shield. We also increase the using amount of gas when welding, so the quality of the welding line is more higher. Tiantai 500L brewery

500L brewery equipment


2.Polishing: We use large-scale polishing equipment to polish the inside of the tanks -- all over the wall to make sure there is no dead corner. You need not worry about there will be some bacterias remained after cleaning.Some other manufacturers may not pay enough attention to the polishing, even some have no polishing machine. Tiantai 500L brewery


500l turnkey project brewery equipment for craft


Micro 500L brewery equipment



Company Information


Established in 2012, we have been 6 years in this beer business. Based on honest business principle and reliable quality, we have been top 2 supplier in Jinan city. turnkey nano brewery system
And we also have We had build lot of breweries in US, Canada, European and Australia, New Zealand and south American countries... turnkey nano brewery system

We sincerely hope to discuss further with you and design a nice brewery together.
b




turnkey nano brewery systemtiantai beer equipment (2)


 micro 500L brewery equipment






Our Services


































Service



   Free



Professional consultation service in any time







Project planning and layout design







3D drawing







Training to operate and debug










Ø 3 years warranty


Ø Aboard installation and training


Ø Design and maintenance for free stainless steel beer manufacturing equipment


Ø High quality and best price turnkey nano brewery system


Ø inner and outer of the tanks have been mirror polish


Ø the material can be stainless steel with low price or red copper with nice-looking


Ø the capacity can be 50L~30,000L


Ø Engineers available to service machinery overseas


micro 500L brewery equipment


500L micro brewery500L micro brewery


Welcome to leave message or email me directly to gain updated quotation of 500L turnkey nano brewery system. tiantai brewery


I will reply to your within 12 hours. microbrewery 500L.
