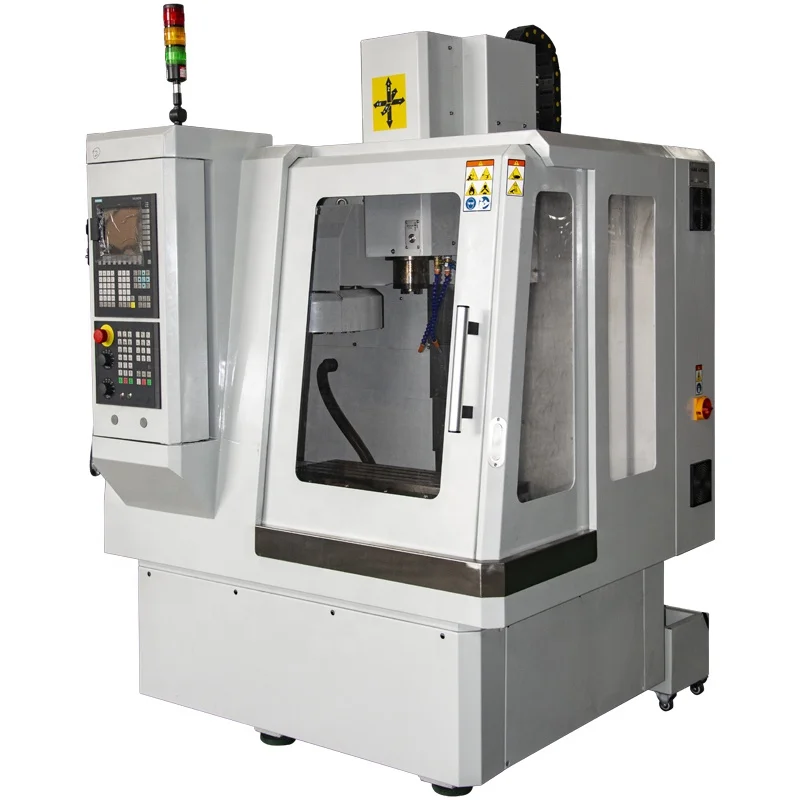

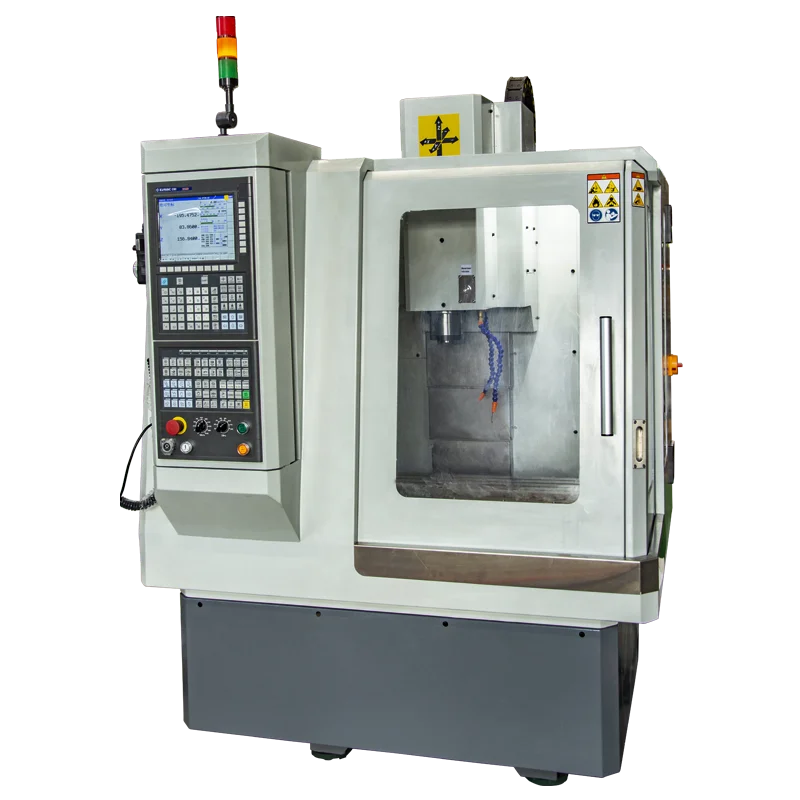

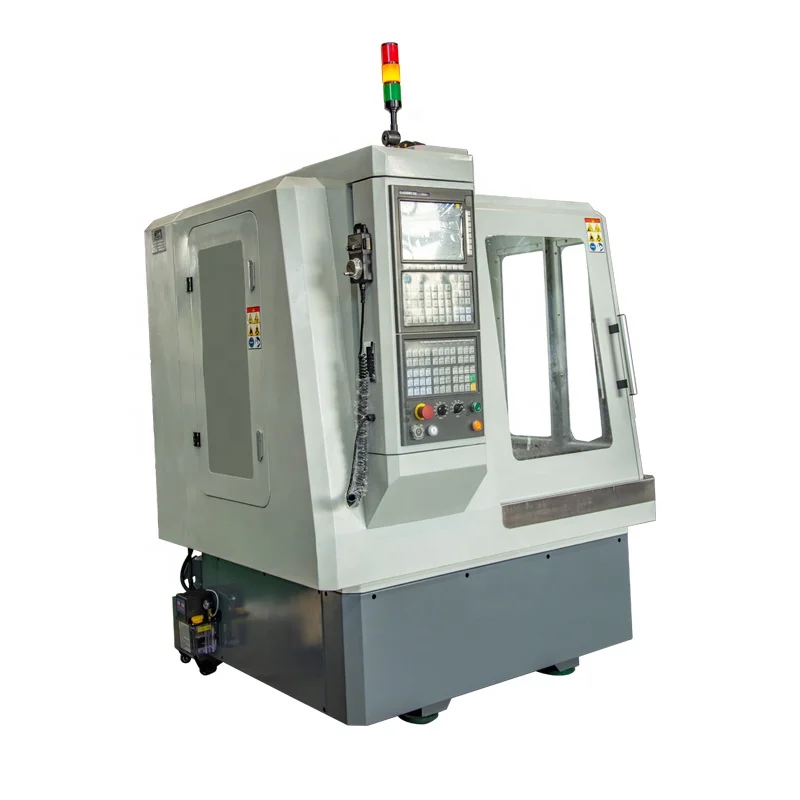

XH7121 cnc vertical machine center
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (1600779737779):
Product Overview
Description
Products Description
Features
● 4 pcs simple tool magazine on worktable with high efficiency, it can realized all the processing as facing, drilling and tapping in one clamping.
● Box-type column with plastic-stuck and stronger anti-ground.
● Various famous CNC controllers supplied with more choice.
● Box-type column with plastic-stuck and stronger anti-ground.
● Various famous CNC controllers supplied with more choice.
Specifications for XH7121 | ||||
Table Size | 700×210mm | 900*240mm | ||
T Slot (width × qty × spaces) | 14*4*63mm | 16*3*60mm | ||
Max. Loading Weight On Worktable | 200kgs | 60kgs | ||
X/Y/Z Axis Travel | 530*280*400 | |||
Distance From Spindle Nose To Table | 70-520mm | 60-460mm | ||
Distance From Spindle Center To Column | 270mm | 297mm | ||
Range Of Spindle Speed | 8000r.p.m | 900-2500r.p.m | ||
Spindle Taper | BT30 | BT30 | ||
Tool Clamping Way | Pneumatically | Peneumatic | ||
Feeding Speed | 0-2000mm/min | 0-2000mm/min | ||
Rapid Feeding Speed (X,Y,Z Axis) | 15000mm | 6m/min | ||
Positioning Accuracy | 0.025 | 0.04 | ||
Repeatability Accuracy | 0.015 | 0.02 | ||
Main motor power | 2.2/3.7kw | 0.01 | ||
Torque of main motor | 14/23.7NM | 1.5(A/C motor) | ||
X/Y/Z axis movement | 12-15m/min | 1kw | ||
Cutting/feeding speeds | 0-4000m/min | 60*175mm | ||
Net Weight | 1300kgs | 900kgs | ||
Packing Size | 1570x1640x2080mm | 1900*1620*2580mm | ||

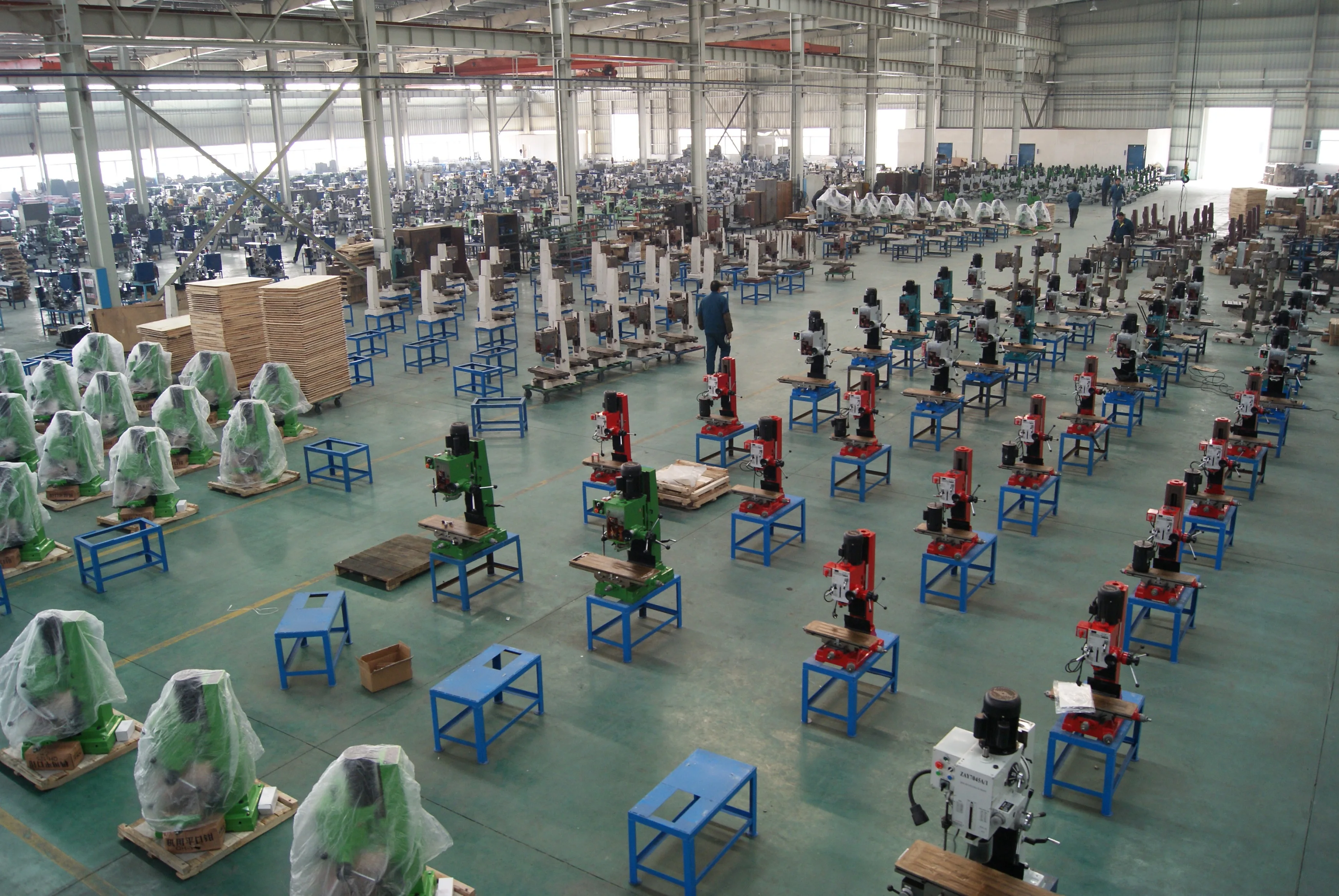

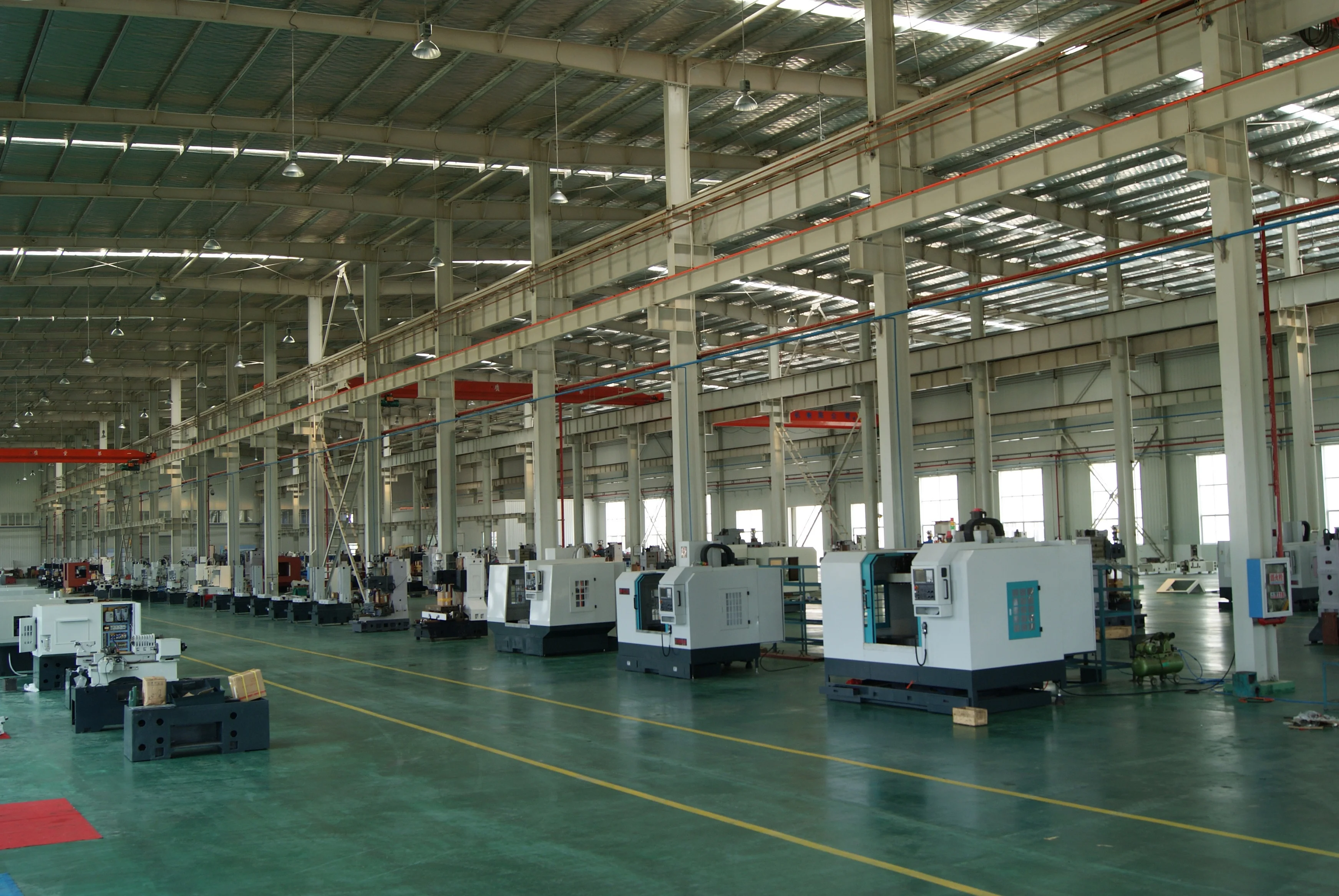

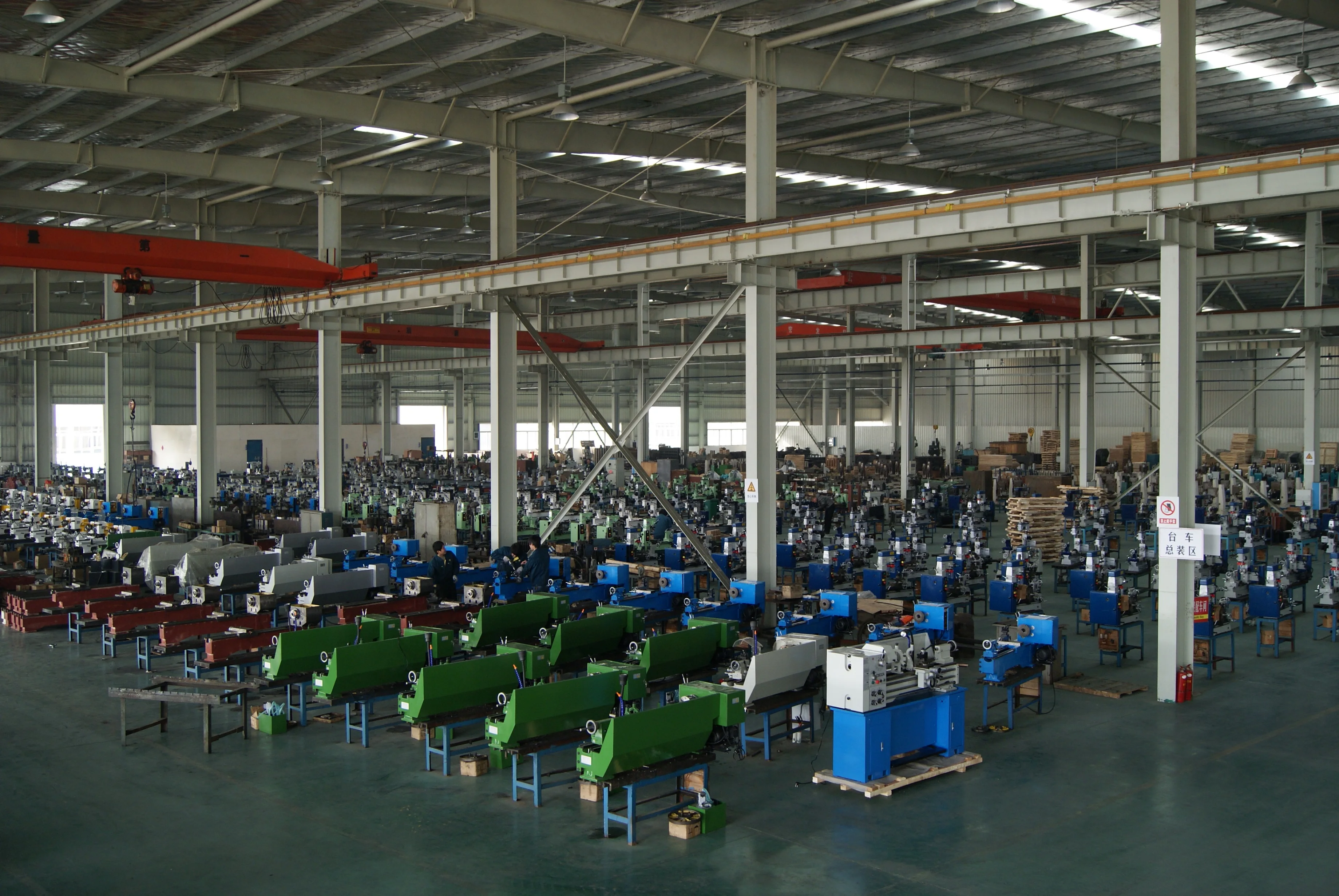

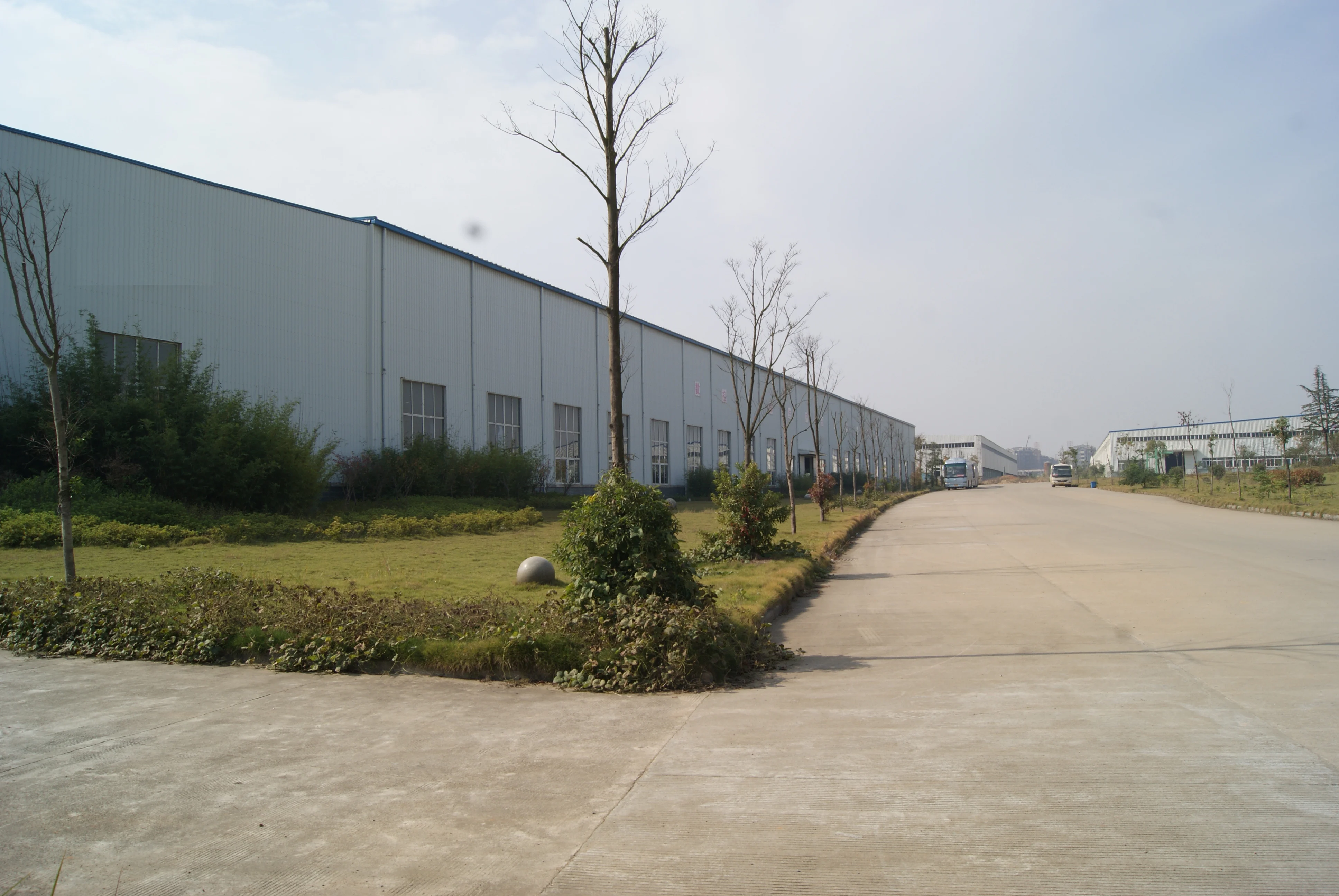

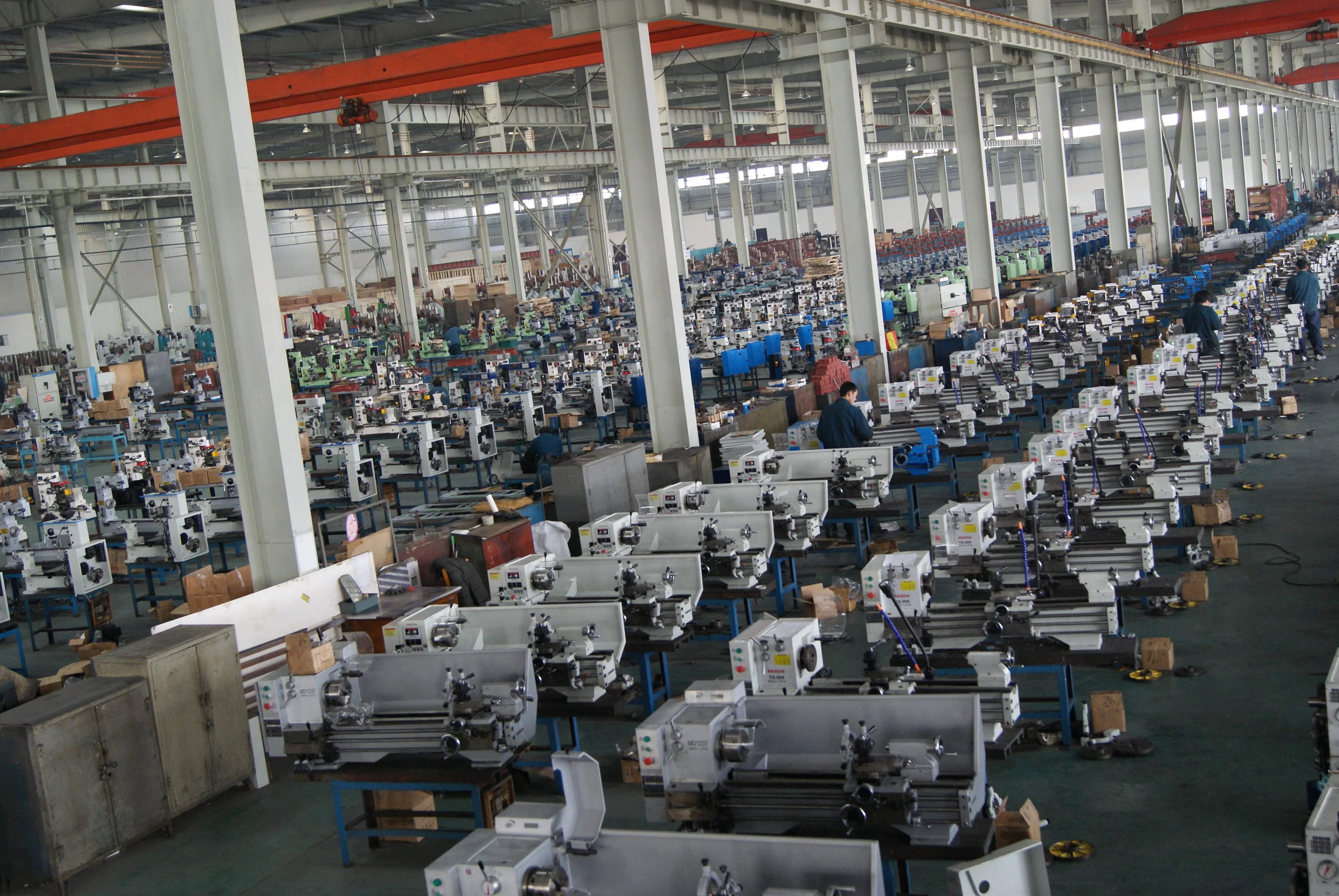

Company Profile
