Factory supply 4.5 mm*100 mm fiberglass duct rodder 100 500m fiber optic equipment
- Category: Fiberglass Products >>>
- Supplier: Cangzhou,Jiujiu,Communication,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Details Images

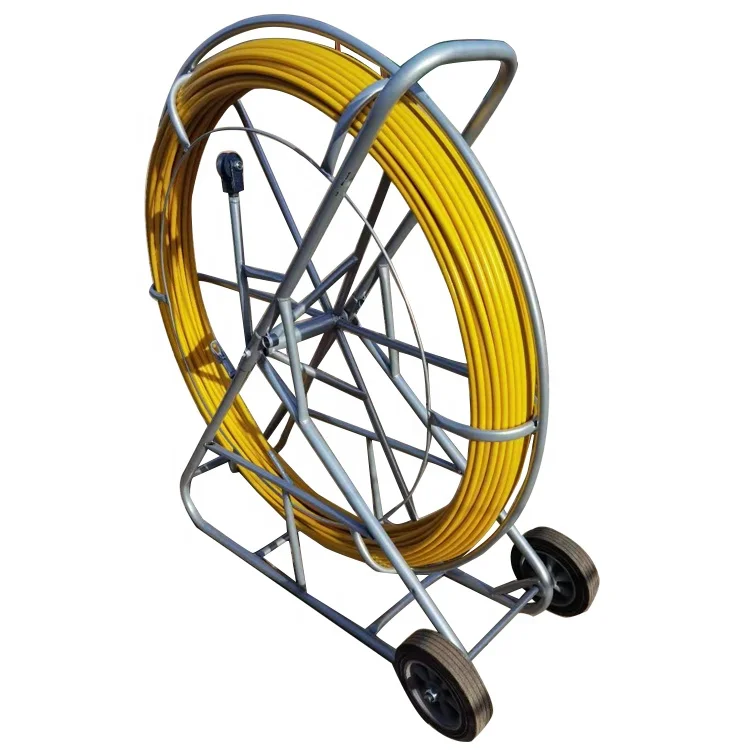

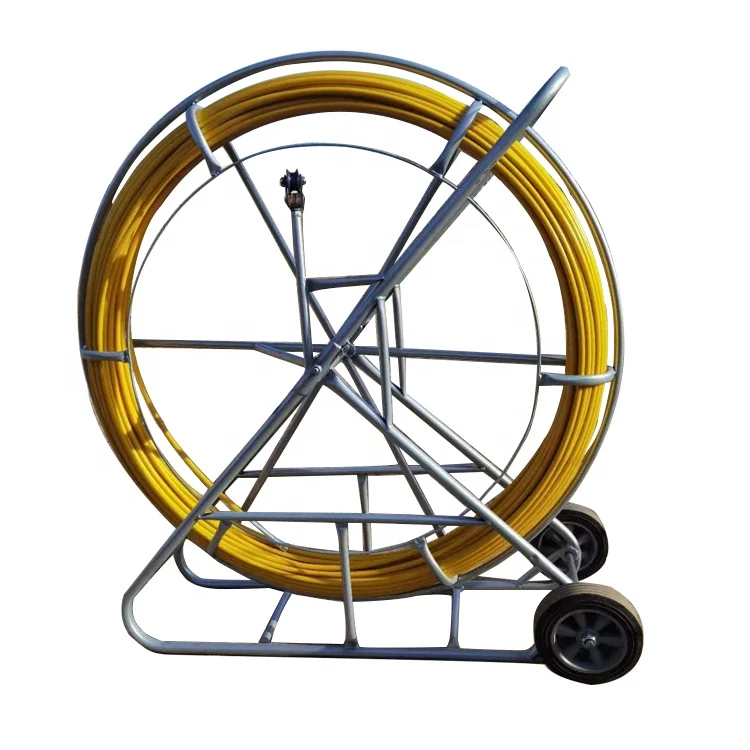

Fiberglass snake rod description
Fiberglass snake rod sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables, wires inside the duct. What's more, it can be used to located the duct block or damage positions. It has high safety aspects to be applied to underground applications because of its non conductivity of electricity, thus sets a
major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
cifications | Rod diameter (mm) | Φ4*50 Φ5*50 Φ5*100 Φ6*50 Φ6*100 Φ8*50 Φ8*100 Φ8*150 Φ9*100 Φ10*100 Φ11*100 Φ12*100 |
Rod length (m) | 30m~500m | |
Frame Spec.(mm) | 1300mm x 450mm x 1330mm 1200mm x 420mm x 1220mm 980mm x 350mm x 1000mm 680mm x 240mm x 700mm 4200mm x 1800mm x 400mm | |
Materials | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
Fiber glass rod outer | High density polyethylene coating | |
Metal frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
Physical properties | Fiber glass content | 75-80% |
Density | >1.9gr/cm3 | |
Working environment | -40°C to +80°C | |
Minimum pulling strength | 4000N +/-5% | |
Consistency of rod | 137gr/m | |
Flexural modulus | >46.500Mpa | |
Elongation at break | 2.5-3% | |
Min bending radius | 388mm |
Company Profile
packaging&shipping
FAQ
Q.Are you factory or trading company?
A. We are factory. We can control the quality from raw material to finished products. Welcome to visit our factory!
Q.Is the M.O.Q negotiable?
Q.Is the M.O.Q negotiable?
A.Yes, we can discuss about the quantity.
Q.Can you provide an integrated supply solution of multiple commodities?
Q.Can you provide an integrated supply solution of multiple commodities?
A. Yes, We can provide services for multiple categories and small quantities.
Q.Which payment can be acceptable?
Q.Which payment can be acceptable?
A.Trade Assurance, TT, L/C and etc are all acceptable. We prefer to Trade Assurance from Alibaba platform, because Trade Assurance payment can protect customer`s rights and benefits and also promote us to improve product quality and service ability.
Q.How can we guaranteed the quality?
Q.How can we guaranteed the quality?
A.1. We have awarded the quality system certification.
2.Also we have passed Alibaba verification.
3. Trial orders are accepted to reduce quality risk.
4.Trade Assurance payment through Alibaba to protect your rights and benefits.
Q.Can I get samples to test?
Q.Can I get samples to test?
A.We are glad to provide free samples for your testing. But the samples freight is not included.
