Coil coating process color coating line manufacturers with aluminum coating machine

Share on:

Price in USD:Details


Product Overview


Product Description

Coil coating process color coating line manufacturers with aluminum coating machine
Color coated steel plate in the construction industry is mainly used in large industrial plants,large warehouses, simple mobile houses, interior decoration boards, airport buildings, rode fence and so on. Common building materials board is used polyester paint as top paint, after one coating one baking or two coating two drying roller coating technology composite.
It has excellent corrosion resistance, mechanical properties and ornamental value.Color plate after pressing, composite and other processes to form a variety of new building materials, used in all kinds of new industrial buildings.

Product Specification

Construction Material, Household Appliance
Roller Coating Process
Coating Color
Multi Color, Customized
Control System
PLC+Touch Screen Control System
High Efficiency Low Cost, Environmental Protective
Coating Material
Cold-rolled Steel Coils, Gi, GL, Aluminum Alloy Coils
After-sale Service
Customer Location
Coating Film
Colorful Film, PCM, PVC, PET, VCM
Energy Type
Natural Gas, Electricity, Water

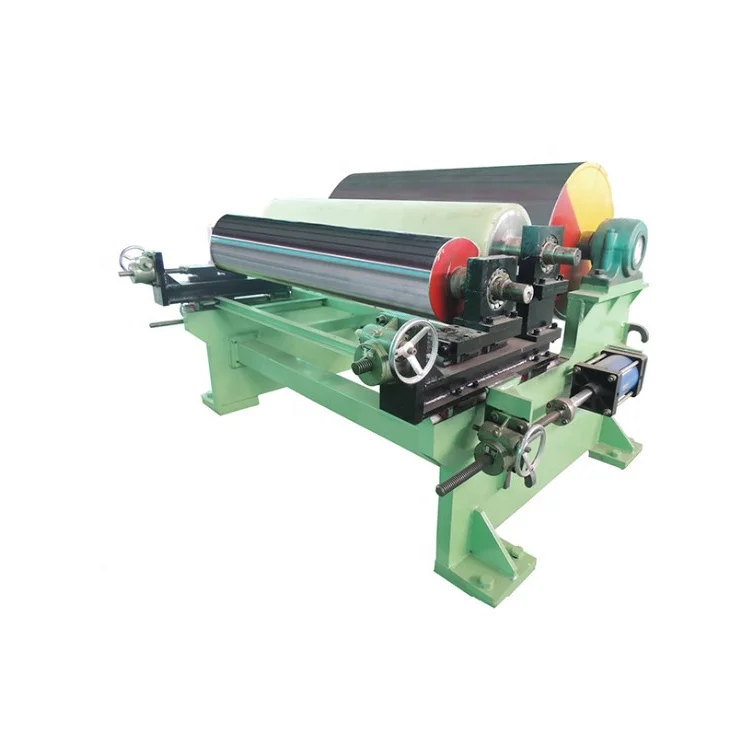

Details Images

Processing Procedure

Color Coating Process:
1#2#Uncoiler → steering pinch roller → steering roller → confluent pinch roller → inlet shear → sewing machine → press burr and pinch roller → 1#tension roller → inlet looper → 2#tension roller→ degreasing → brushing → water washing → drying → chemical roller-coating machine → chemical-coating drying furnace → 1#deviation-correcting machine → 3#tension roller → initial coating unit → initial coating curing furnace → cooling unit → 2#deviation-correcting machine → dryer → 3#deviation-correcting machine → 4#tension roller → printing unit → fine coating unit → fine coating curing furnace → cooling unit → dryer → 4#deviation-correcting machine → 5#tension roller → outlet looper → 6#tension roller → pinch shear → steering roller → EPC deviation-correcting coiler → inspection → package → entering warehouse

Finished Coils:
Bright color coated coils
Finished Coils:
Wood grain printing color coated coils
Finished Coils:
Camouflage printing color coated coils

Packing & Delivery

Standard sea worthy package in container.

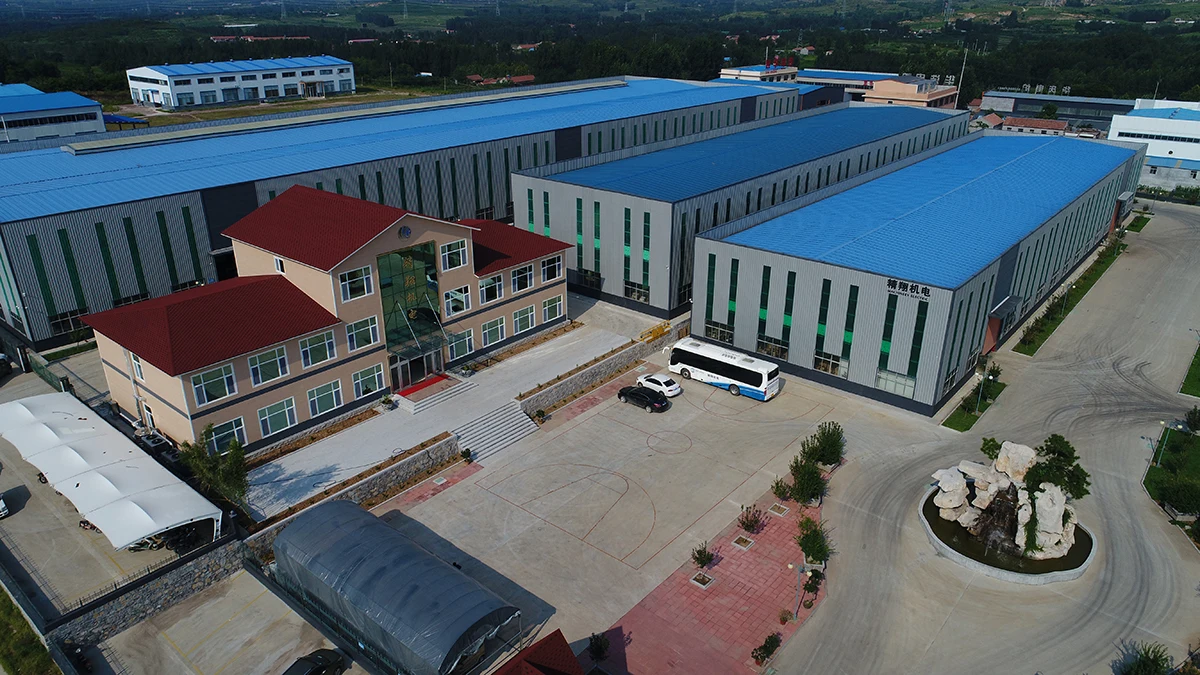

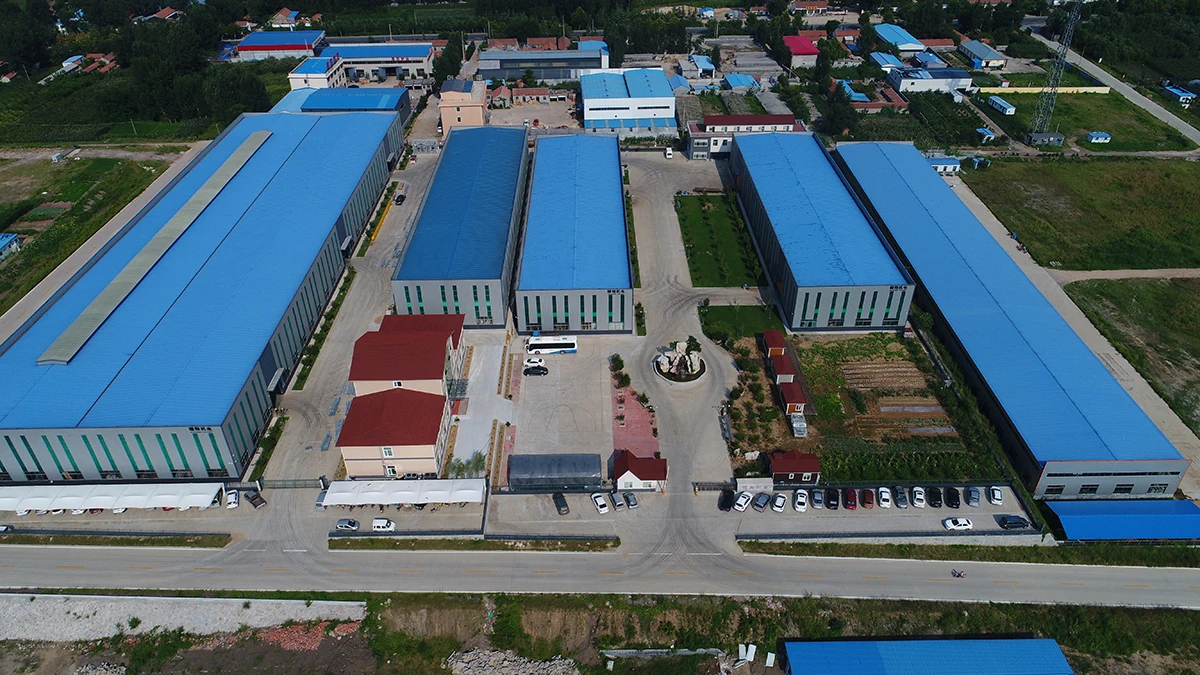

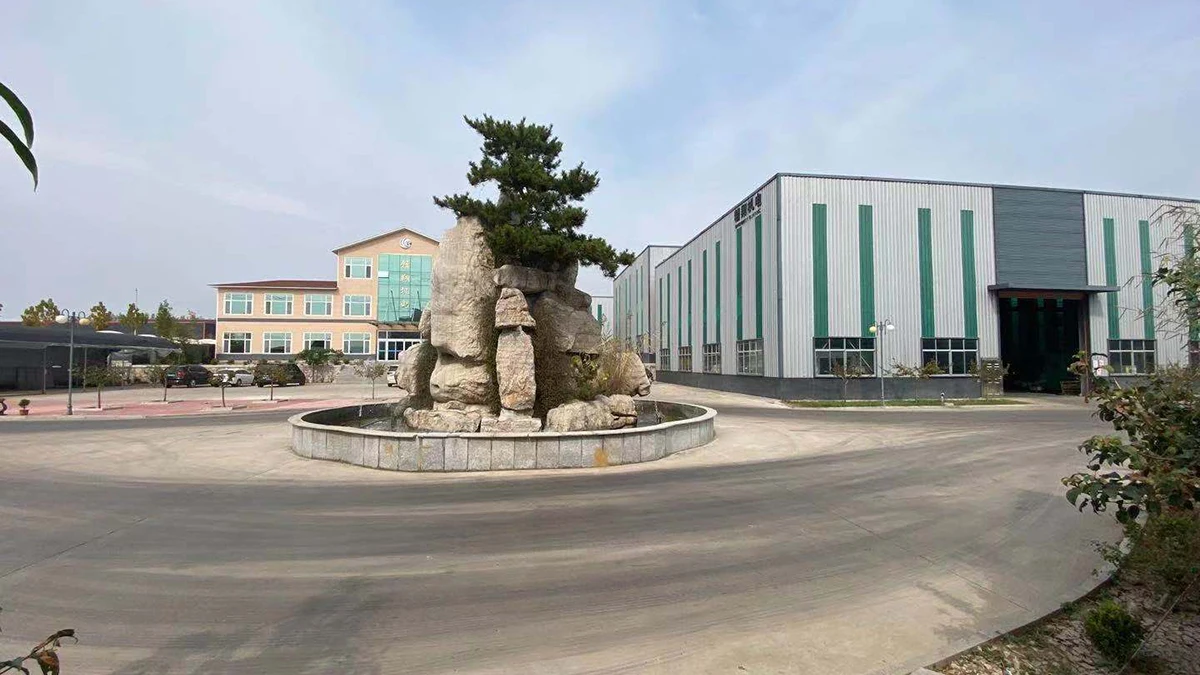

Company Profile

Qingzhou Reachfly Environment Technology Co.,Ltd.
Qingzhou Reachfly Environment Technology Co., Ltd. is a comprehensive enterprise focusing on R&D, production and sales of metal coating machinery and equipment. After research and development and continuous innovation, we now have world-leading production lines for galvanized production lines, color steel/color aluminum coating production lines, slitting line, cut-to-length line, single machines of the production lines and ppgi/ppgl coils.
In addition, Reachfly integrates design and R&D, material production, construction and after-sales service to create a one-stop service platform for customers.
Now, Reachfly products sell well all over the world, especially in Africa, the Middle East, South Asia, South America and other countries and regions and are well received by users.

Successful Projects

Project in Bangladesh
Project in Dubai
Project in Our Factory


1.What can you buy from us?
Steel/aluminum coils color coating line, continuous hot dip galvanizing line, slitting line, cut-to-length line, single machines of production lines and ppgi/ppgl coils.

2. Why should you buy from us not from other suppliers?
Advantage of our production lines:
a.Safety steel frame
b.Simple control
c.Easy maintenance
d.Multi function
f.Multi field application of finished coils

3. What services can we provide?
a.The basic process drawing after you provide the basic parameters(thickness, width, line speed, capacity etc).
b.Technical proposal after technical exchange.
c.On-site installation service can be selected according to requirements.

Welcome to visit our factory!
