Price:$2,500.00 - $3,000.00

Quantity:


Product Overview

Description



Product Description

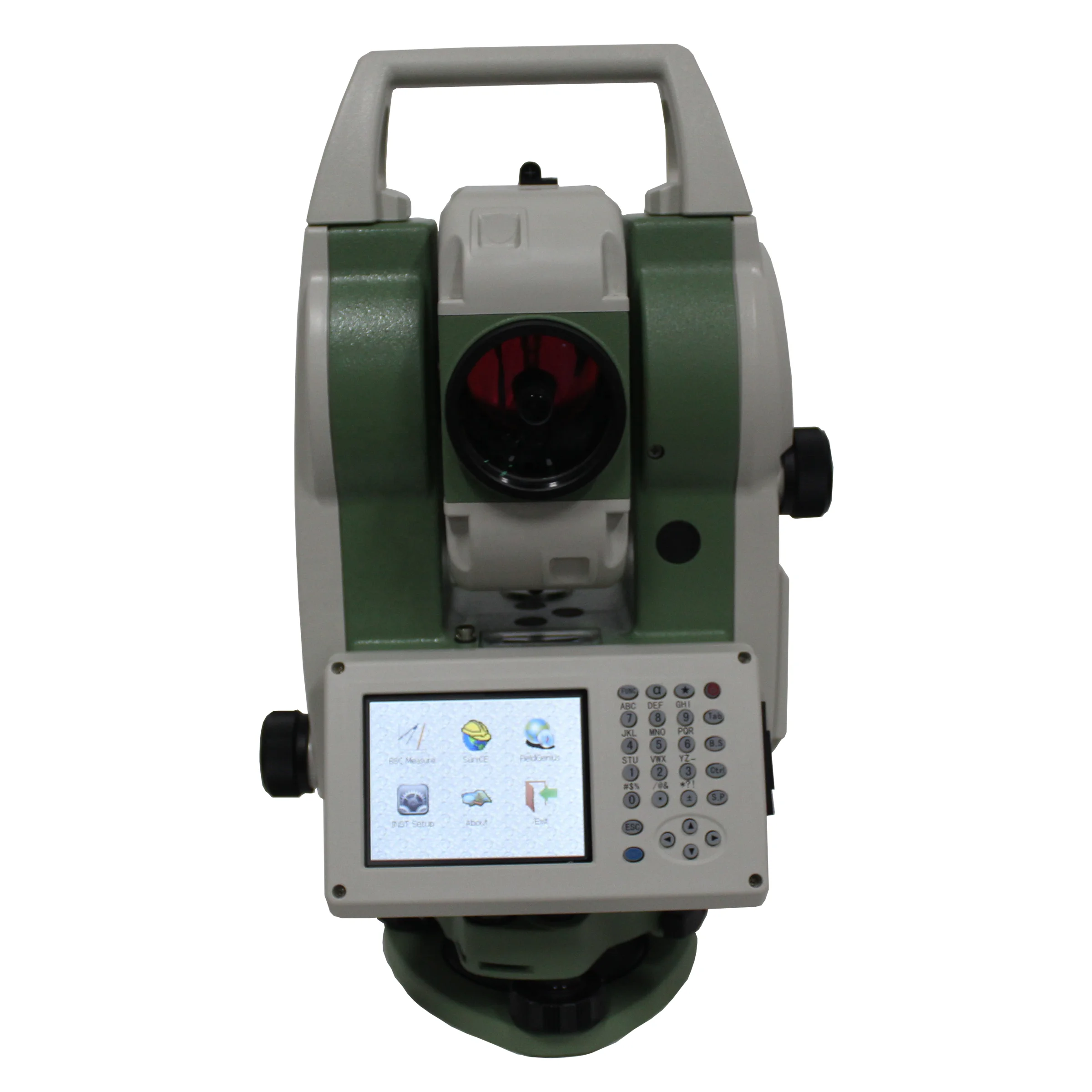

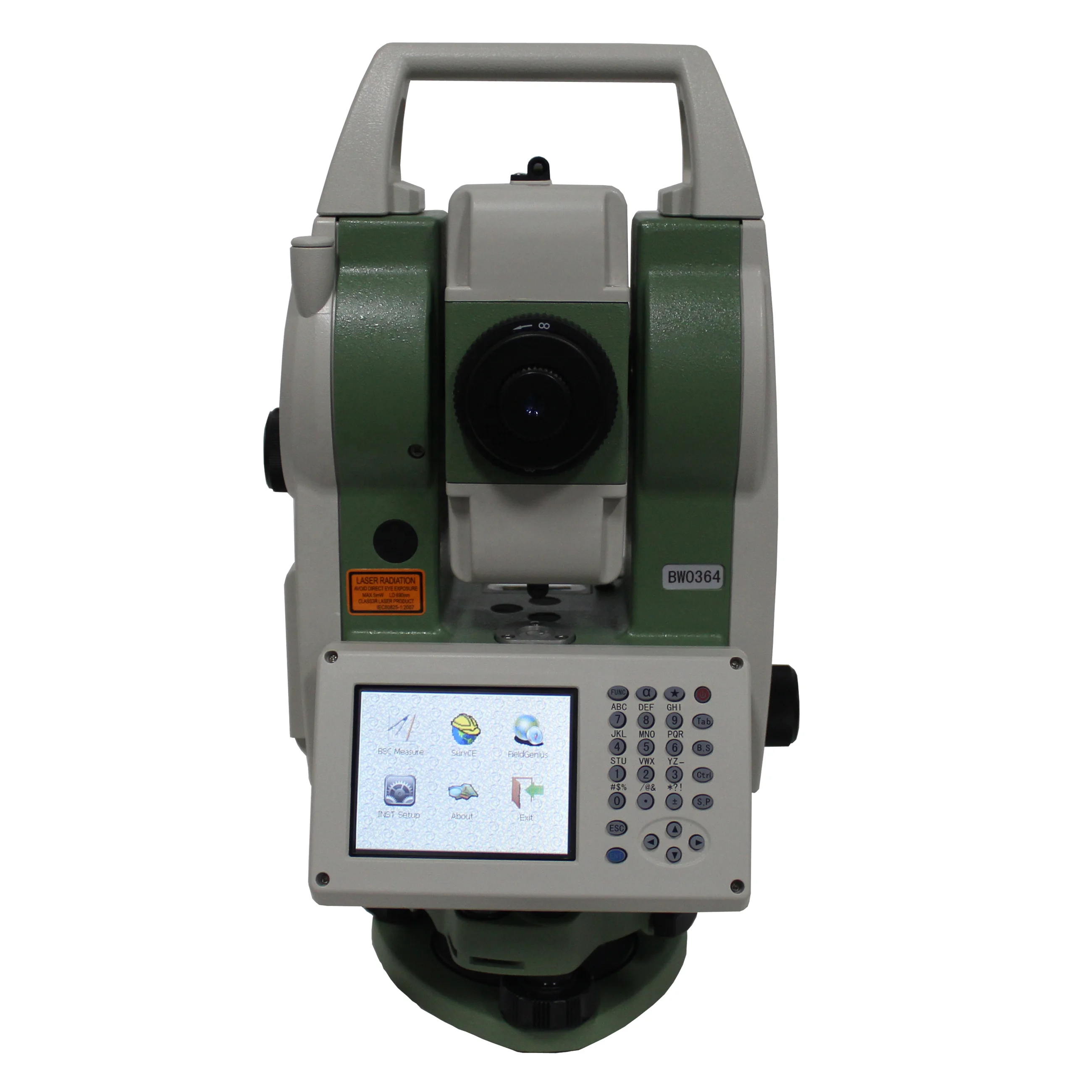

FOIF RTS362 Windows CE Total Station




Product feature of FOIF RTS362 Total Station

Trigger key.

Compact design with Windows CE 5.0 operating system.

Endless drives, collimate target faster with two hands operation
Smart battery managing system, display battery life in real-time.

Professional onboard software: FOIF FieldGenius, Carlson SurvCE or FOIF Survey.

Illuminated keyboard with light sensor, turn on in dark surroundings automatically.

Long reflectorless measuring distance reaches to 500m( R500) or 1000m( R1000).

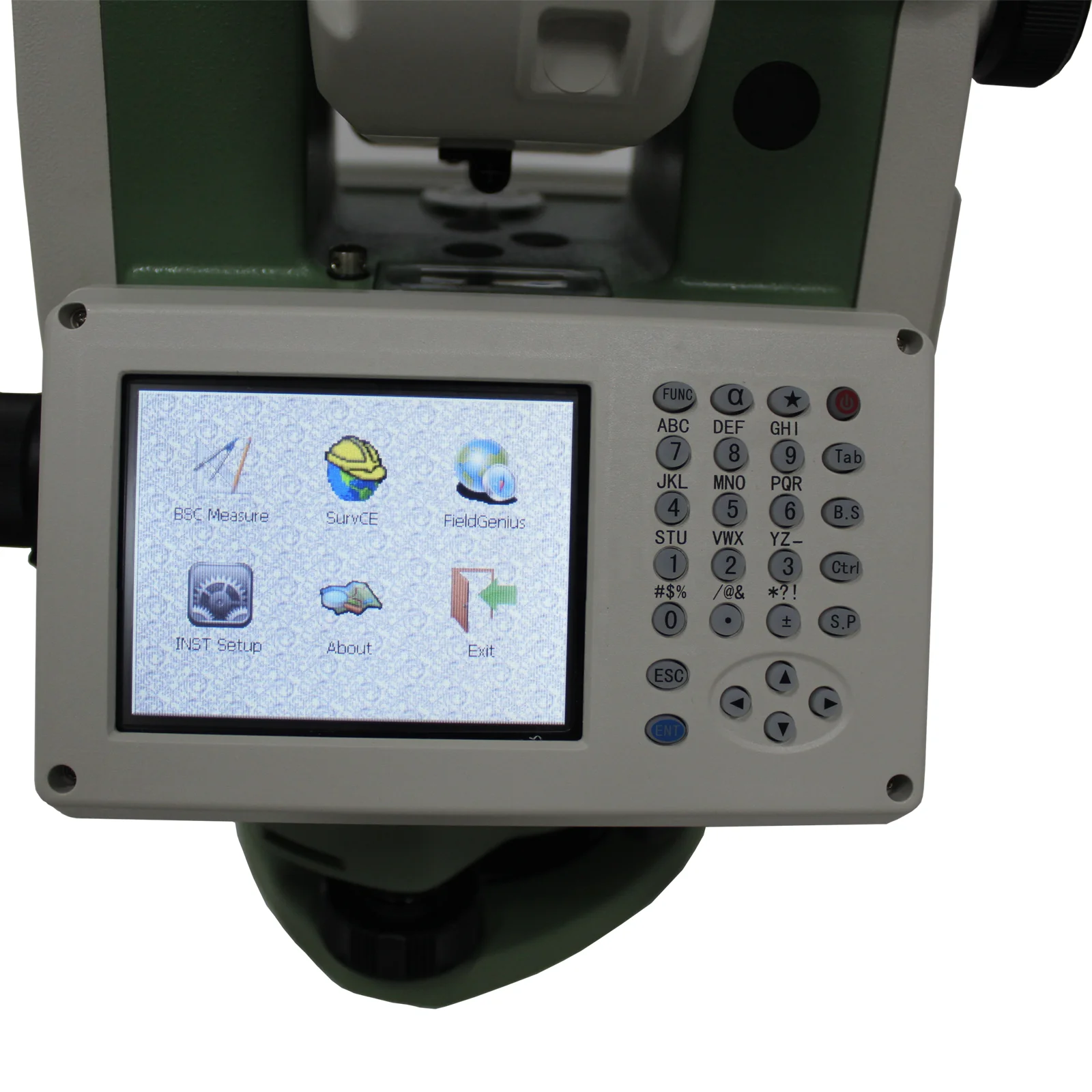

3.5" colour TFT LCD (320 X 240 dots) touch screen, transflective sunlight readable display.

500m-1000m long range Blue tooth cable-free connection offers solution of semi-automatic data collection (optional)

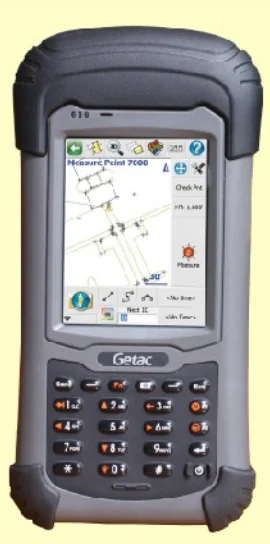

FOIF RTS362 Total Station can connect to data collector

through long distance Blue tooth.




Specification


RTS362
Telescope
Length/lmage
1 56mm/Erect
Objective aperture
Ф45mm
Magnification
30x
Field of view
1° 30'
Shortest focus distance
1.0m
Angle measurement
Reading system
Absolute encoder
Angle unit
360/400gon/6400mil, selectable
Display resolution
0.5" /1" /5" (0.1mgon/0.2mgon/1mgon)
Accuracy
2"
Distance measurement( R500 )
Display resolution (m/inch selectable)
0.1 mm/1 mm
Laser class   Prism
Class 1
                        Reflectorless/Reflective sheet
Class 3R
Measurement range (Good condition )
      Reflectorless
1 to 500m
      Reflective sheet/RP60
1 to 800m
      Single prism
1 to 3000m
Accuracy
      Prism
2mm+2ppm
      Reflective sheet/RP60
3mm+2ppm
      Reflectorless
1-200m:3mm+2ppm/≥ 200m:5mm+3ppm
Measuring time
Initial: 2s
      Prism (Standard mode )
3s
      Reflective sheet/RP60 (Standard mode )
3s
      Reflectorless (Standard mode )
3s
Distance measurement( R1000 )
Laser class
      Prism standard mode/Prism long mode
Class1/Class 2
      Reflective sheet
Class 2
      Reflectorless standard mode
Class 2
      Reflectorless long mode
Class 3R
Measurement range (Good condition )
      Standard mode/Prism
1 to 3500m
      Long mode /Prism
1 to 6000m
      Reflective sheet/RP60
1 to 1200m
      Reflectorless
1 to 1000m
Accuracy/typital measuring time( max.20s )
      Prism standard mode
1mm+1.5ppm/1.0s~5.0s
      Prism long mode
2mm+2.5ppm/0.7s~6s
      Reflective sheet/RP60
2mm+2ppm/1s~5s
      Reflectorless
1- 500m: 2mm+2ppm/0.7s~6s
> 500m: 4mm+2ppm/3s~12s
Level vial sensitivity
Plate level vial
30" /2mm
Circular level vial
8' /2mm
Compensator
Dual-axis compensator
Working range
3'
Setting accuracy
1"
Laser plummet( Standard )
Accuracy
±1mm/1.5m
Laser class
Class 2/IEC60825-1
Laser brightness
Adjustable
Laser wave length
635nm
Display
3.5" colour TFT LCD(320x240 dots ) touch screen
Transflective sunlight readable display
Power
Battery
3400mAh Li-ion Rechargeable
Output voltage
74V DC
Continuous operation time
8 hours
( Single distance measurement every 30 seconds)
Charger
FDJ6-LI(100V /240V )
Charging time(at +20°C )
Approx. 4 hours
Application programs
Data collection/Stake out/Resection/REM/MLM/Point to line
AREA/Z coordinate/OFFset/3D Road/Traverse adjustment
Tape measurement/Section/Axis positioning measurement
Others
CPU
ARM9 Core
Memory
4G internal memory
Sensors
Built-in temperature and pressure sensors
Keyboard
Alphanumerical key board, both sides
Weight(including batteries)
6.0kg
Interface
USB/RS-232C/Blue tooth( Optional)
Water and dust protection
IP54(IEC60529 )

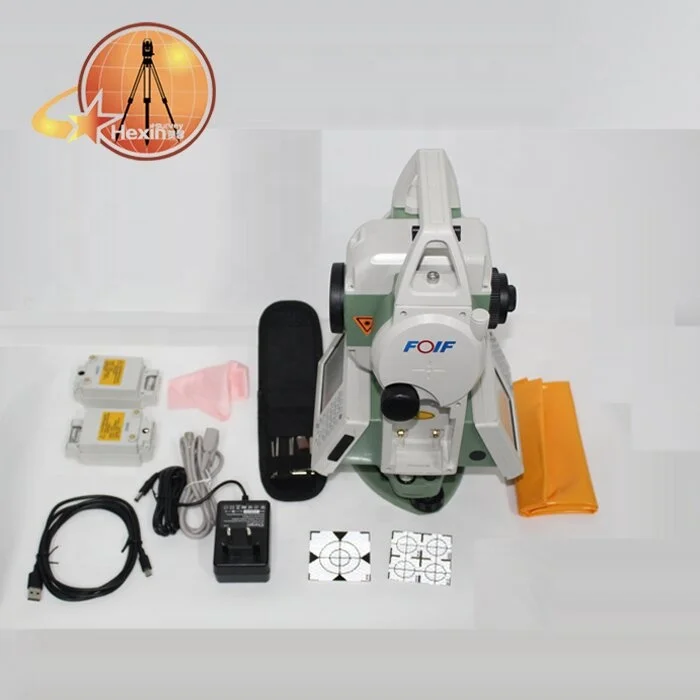

Product Display






Payment & Shipping


Payment:
Generally, we accept Advance T/T , PayPal and West union. If you prefer other payment terms, please let us know.




Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS. You can also choose your own shipping forwarder.

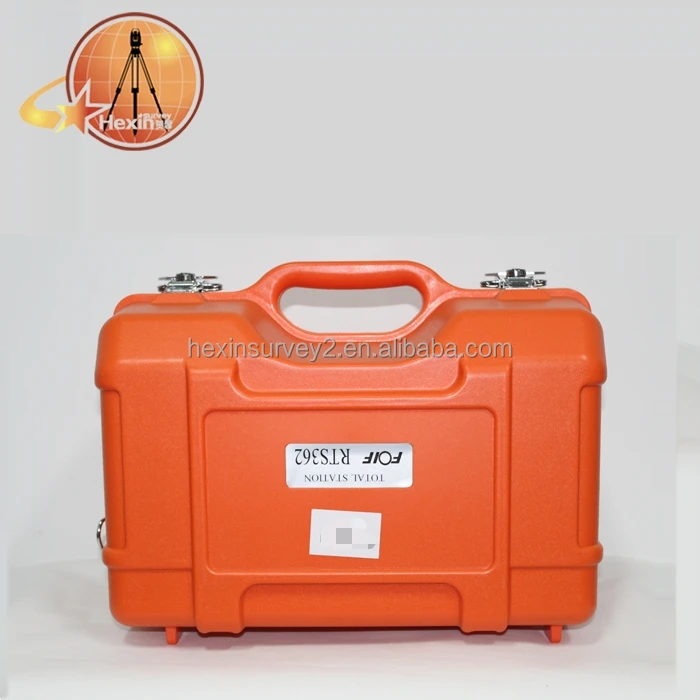

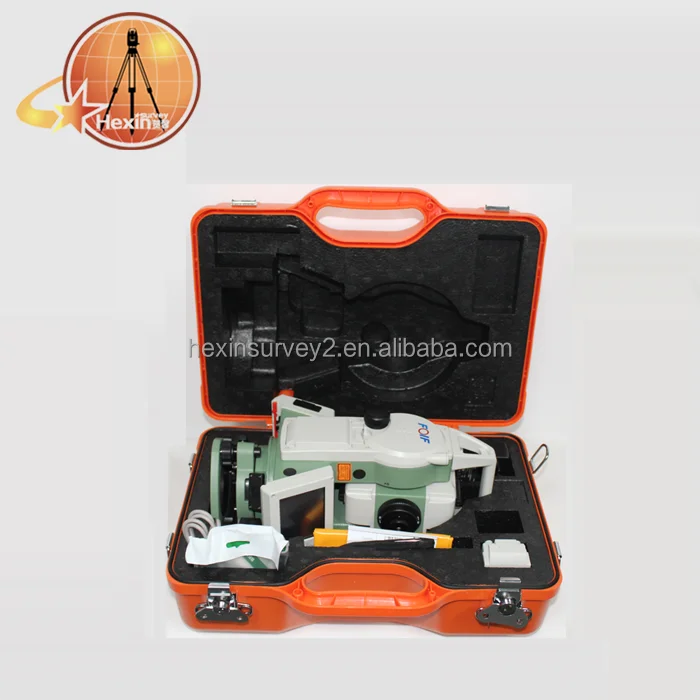

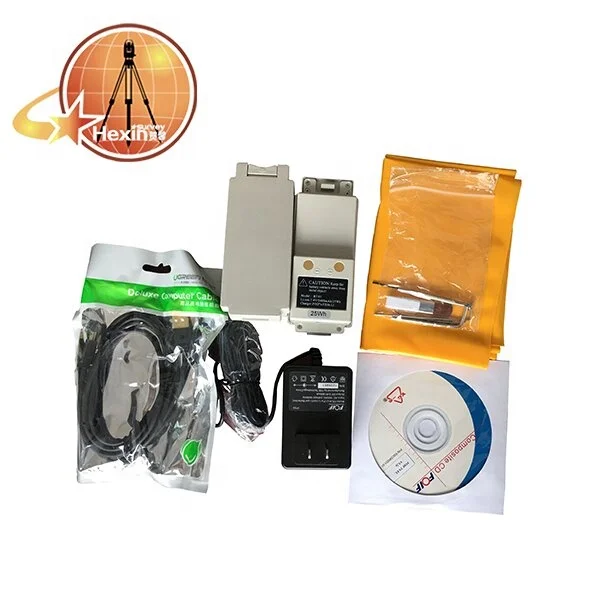

Product packaging






Company Profile




Shanghai Hexin Survey Instrument Co., Ltd. specializes in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.

All of the company's products meet international quality standards and have been widely recognized around the world. We have high quality products and excellent customer service. We look forward to you contacting us.


FAQ & SERVICES


Delivery:
1.Usually, we will send out the products within 3-5 working days after the payment confirmed.
2.Before shipment, please supply the following information to us :
Contact person or company name
Detail address
Telephone number
Zip code
3.The buyer are responsible for the tax and/or duty charged by their country.

Return and warranty:
1.All products are inspected before shipment, if you are not satisfactory with the purchase,you can exchange the items in one week, and you must contact us within 24 hour of receipt of the products.
2.The shipping charges are not refundable and the customer should be responsible for all the charges of return and reshipping.
