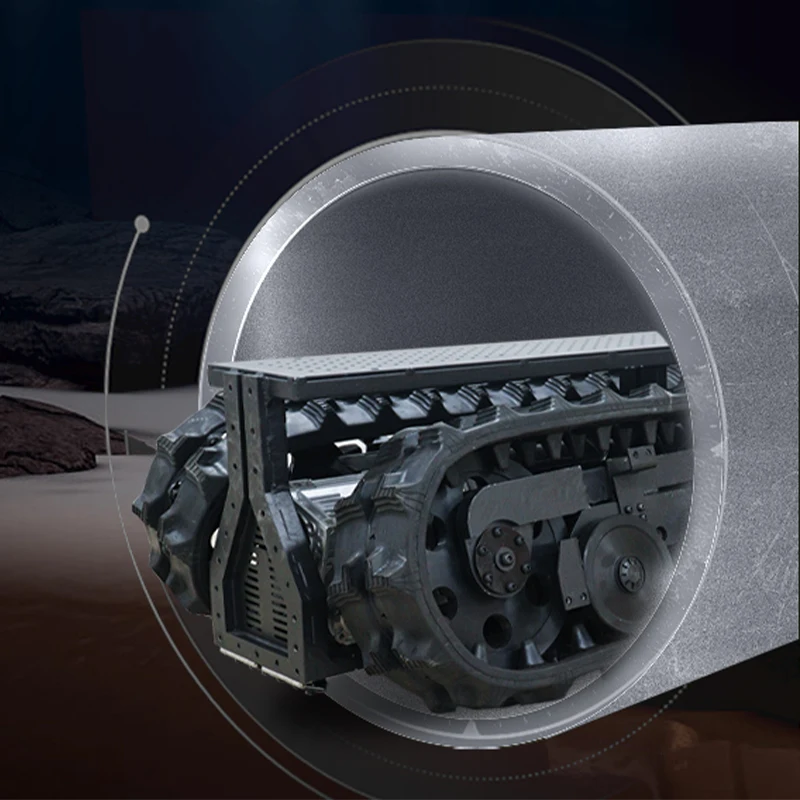

Waterproof IP68 sewer cleaning robot inspection robot chassis AVA P6 pipe unclogging robot machine with 30m underwater depth

Product Overview

Description

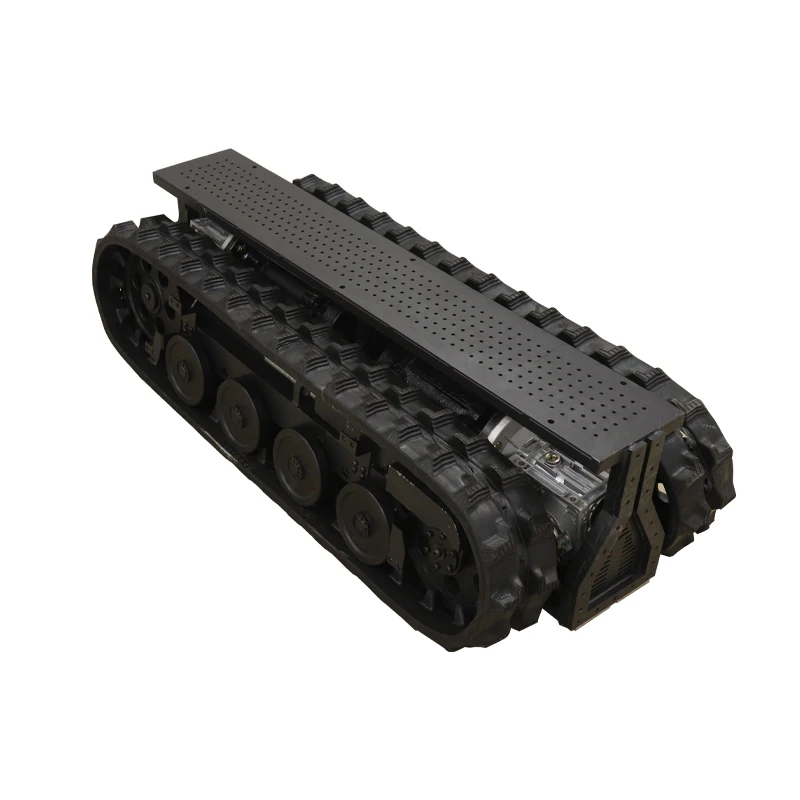

Waterproof IP68 sewer cleaning robot inspection robot chassis AVA-P6 pipe unclogging robot machine with 30m underwater depth

  1. Introduction:

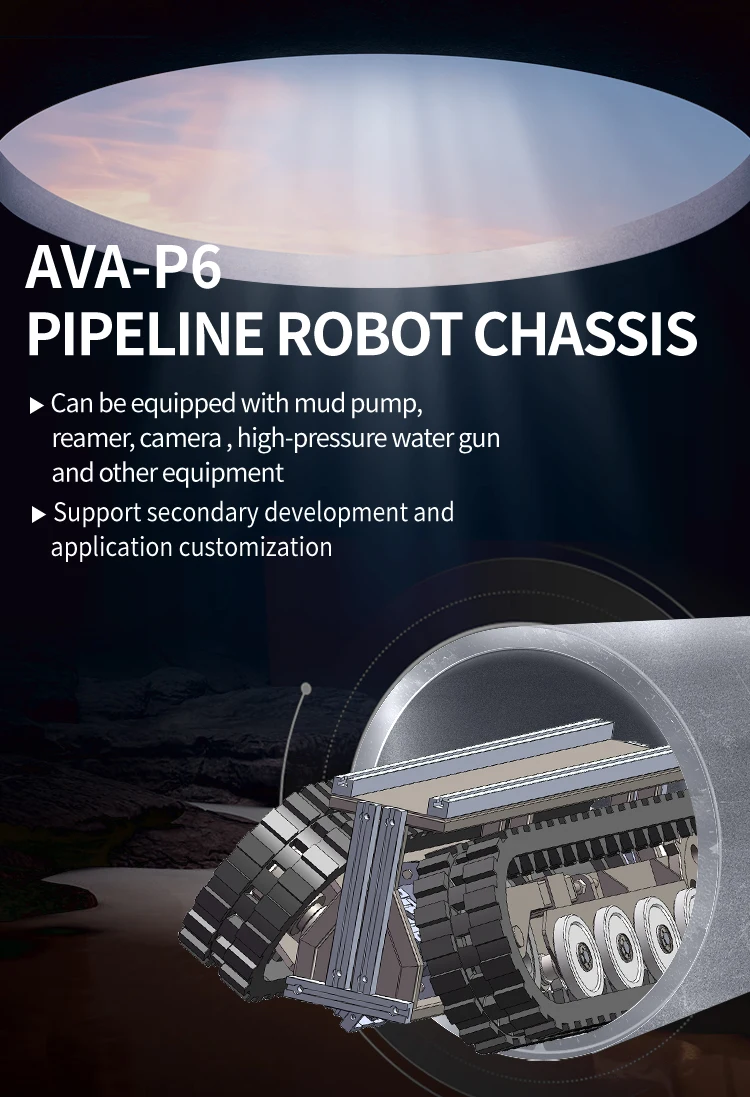

AVA-P6 can be equipped with mud pump, reamer, camera, high-pressure water gun and other equipment. It also support secondary development and application customization.

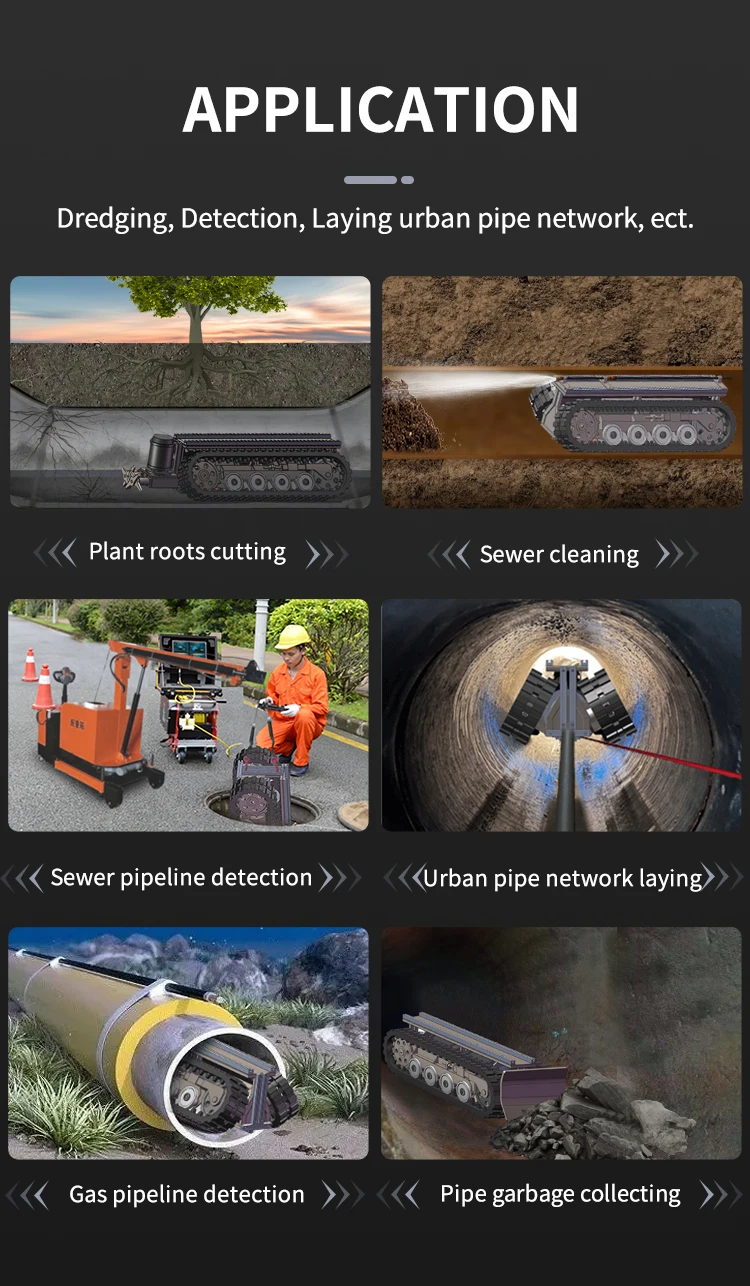

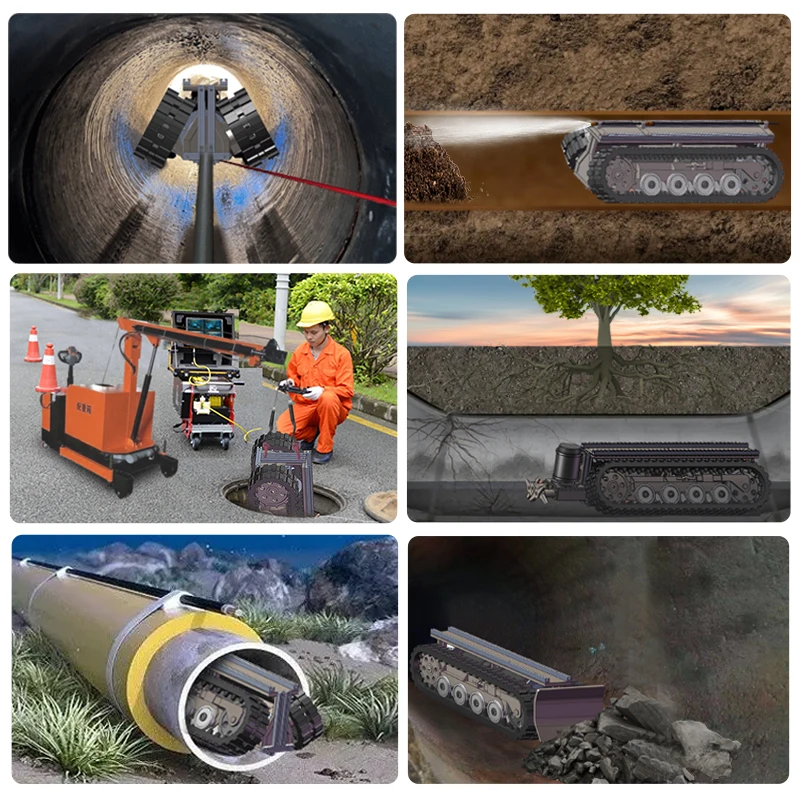

2. Application:

       1. Sludge removal of sewage treatment tank, aquaculture tank, grit chamber, and minimum 900mm diameter urban pipe network, more safe and efficient, to avoid people entering underwater/underground hazardous  areas (urban pipe network contains carbon dioxide, flammable methane, hydrogen sulfide and other toxic gases).

      2. Detection of gas pipeline and oil transportation pipeline.

      3. Delivery of maintenance tools.

      4. Laying urban pipe network, with large tensile force, it can drag cable for long distance.

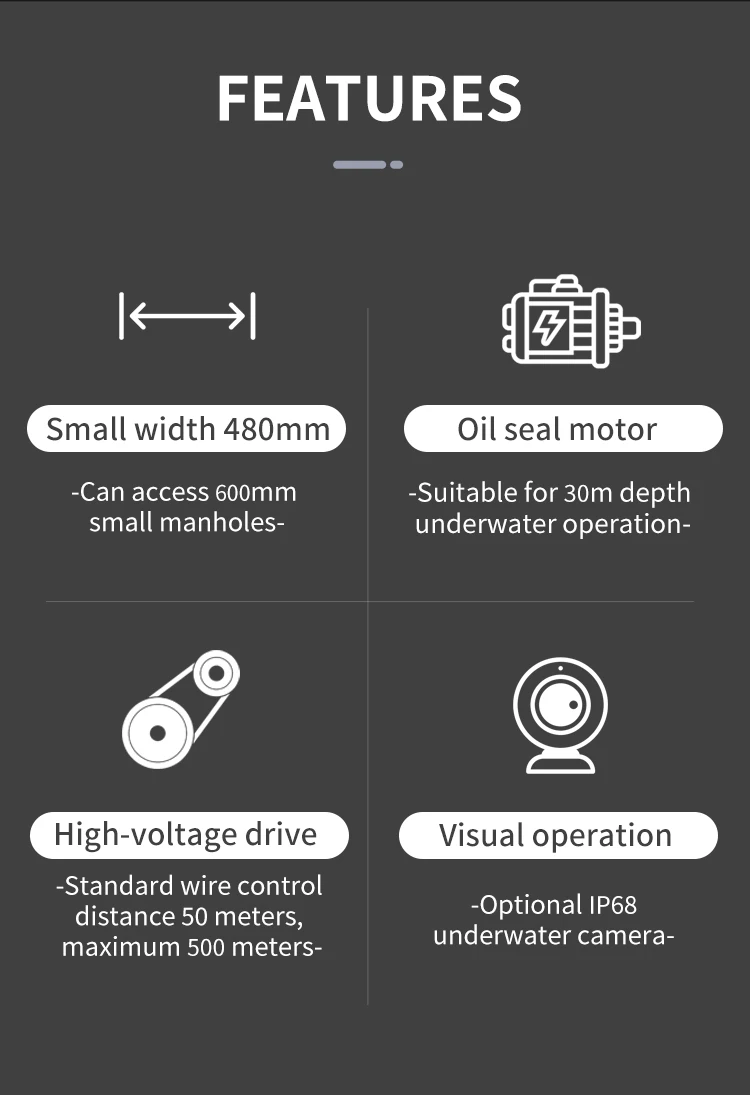

3. Advantage:

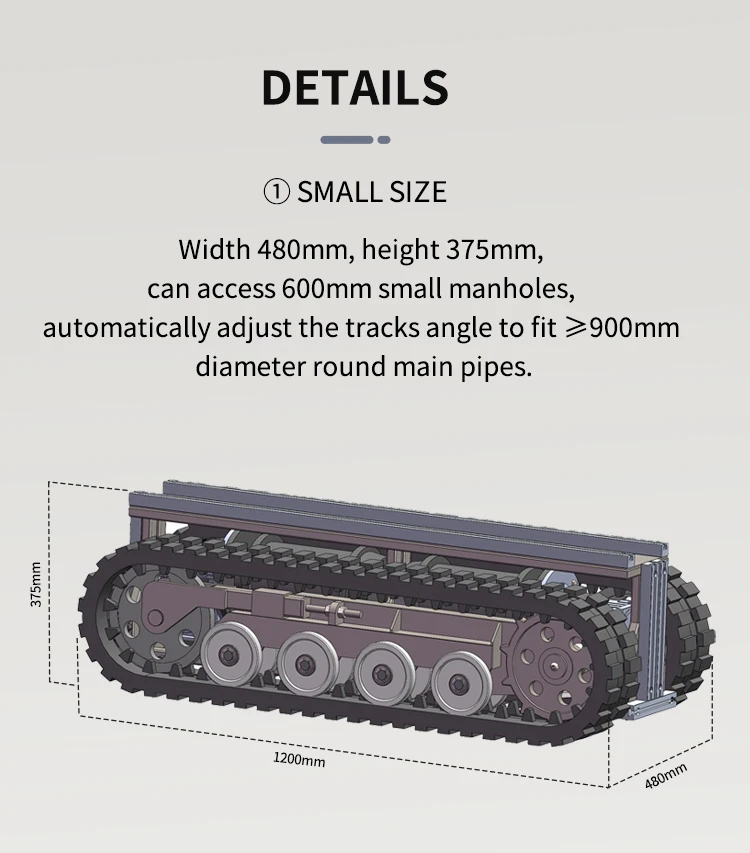

1. Small width 475mm, can access 600mm small manholes.

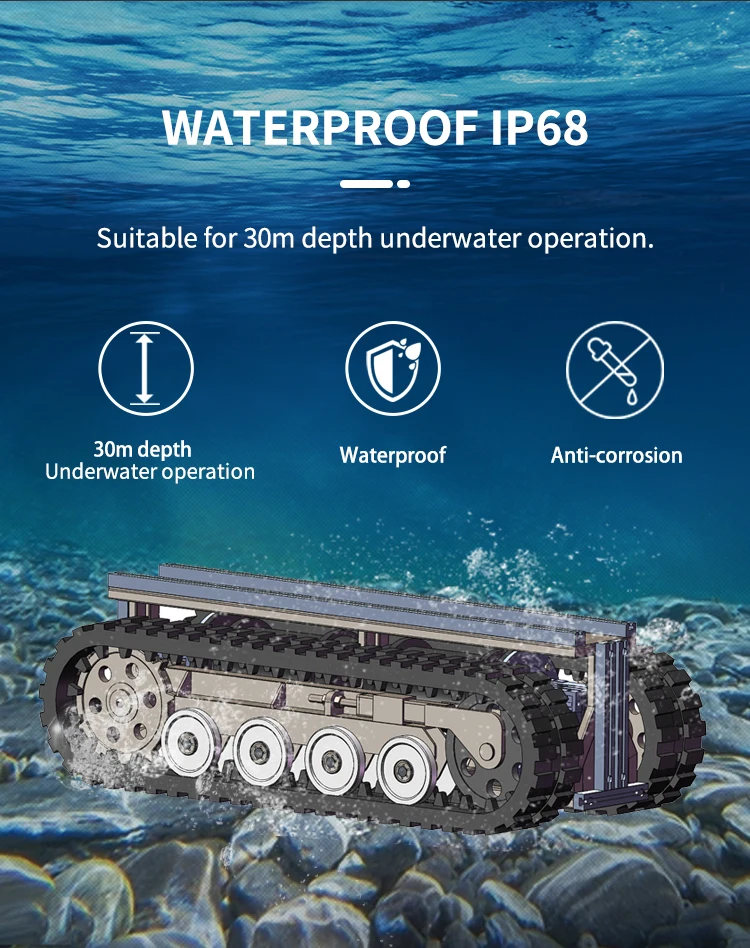

2. Oil seal motor, suitable for 30m depth underwater operation.

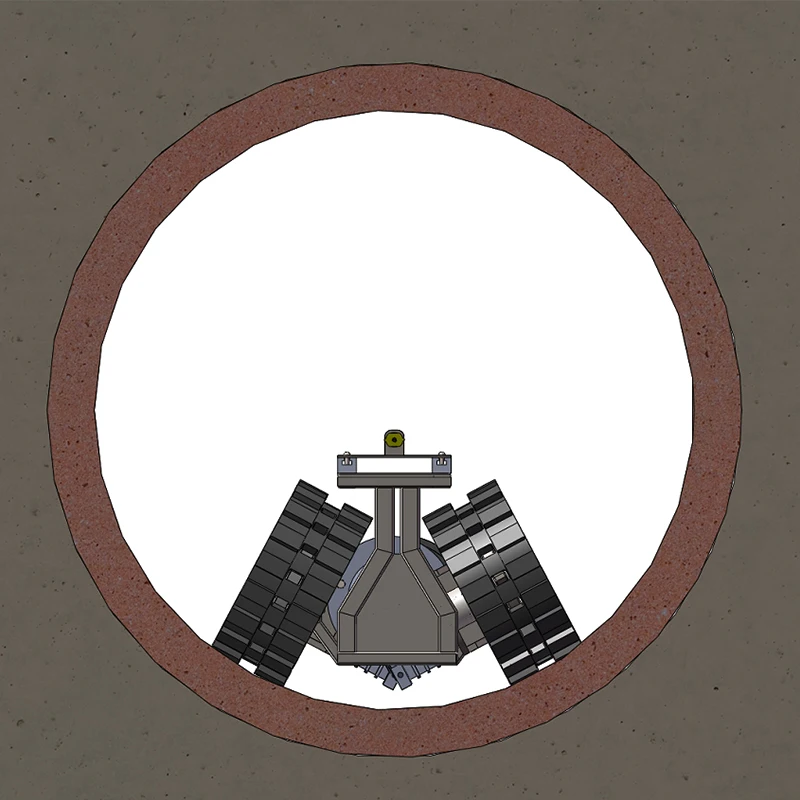

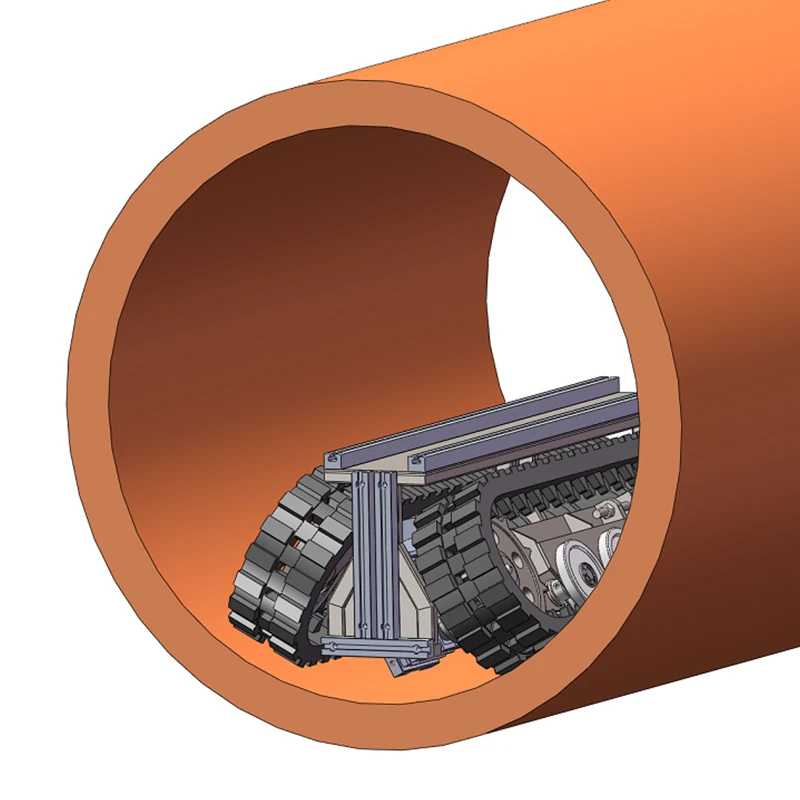

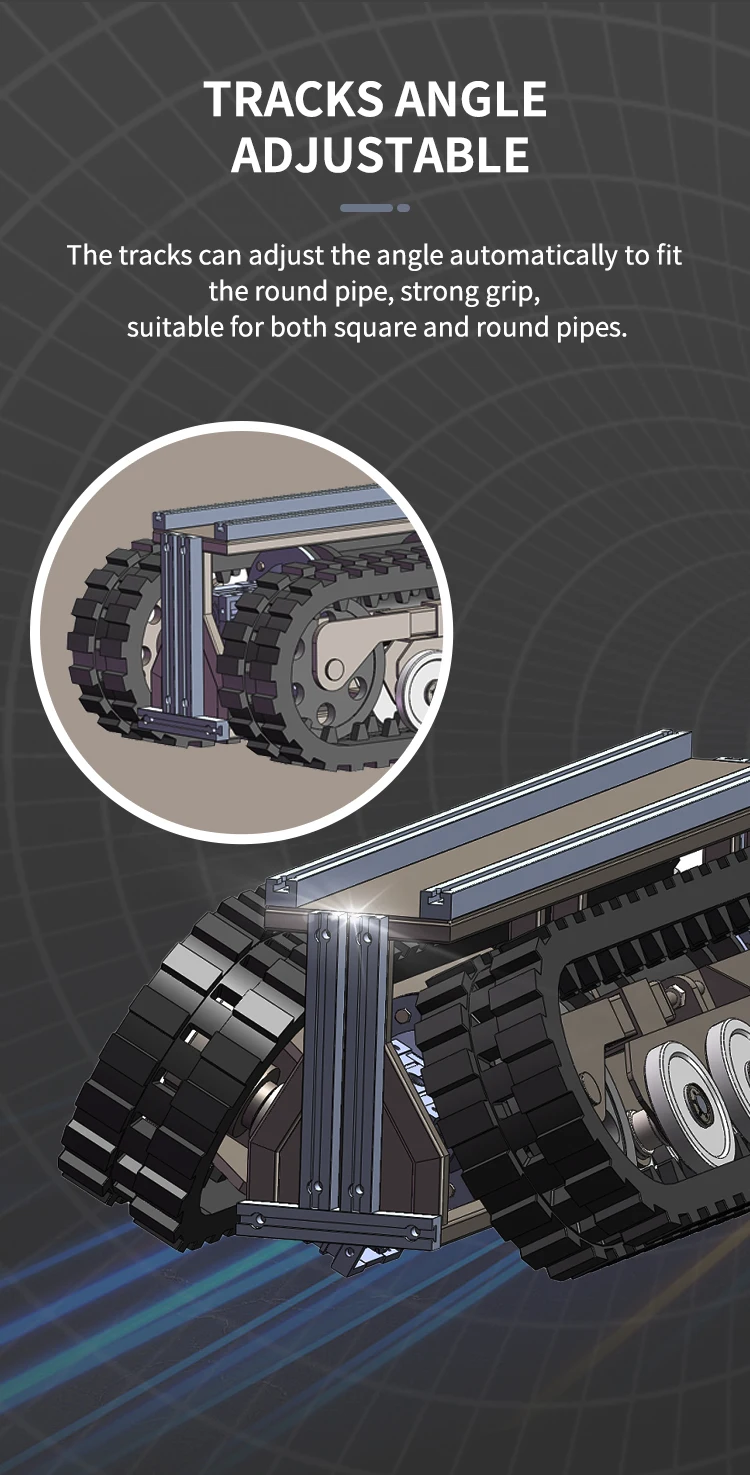

3. The tracks can adjust the angle automatically to fit the round pipe, strong grip, suitable for both square and round pipes.

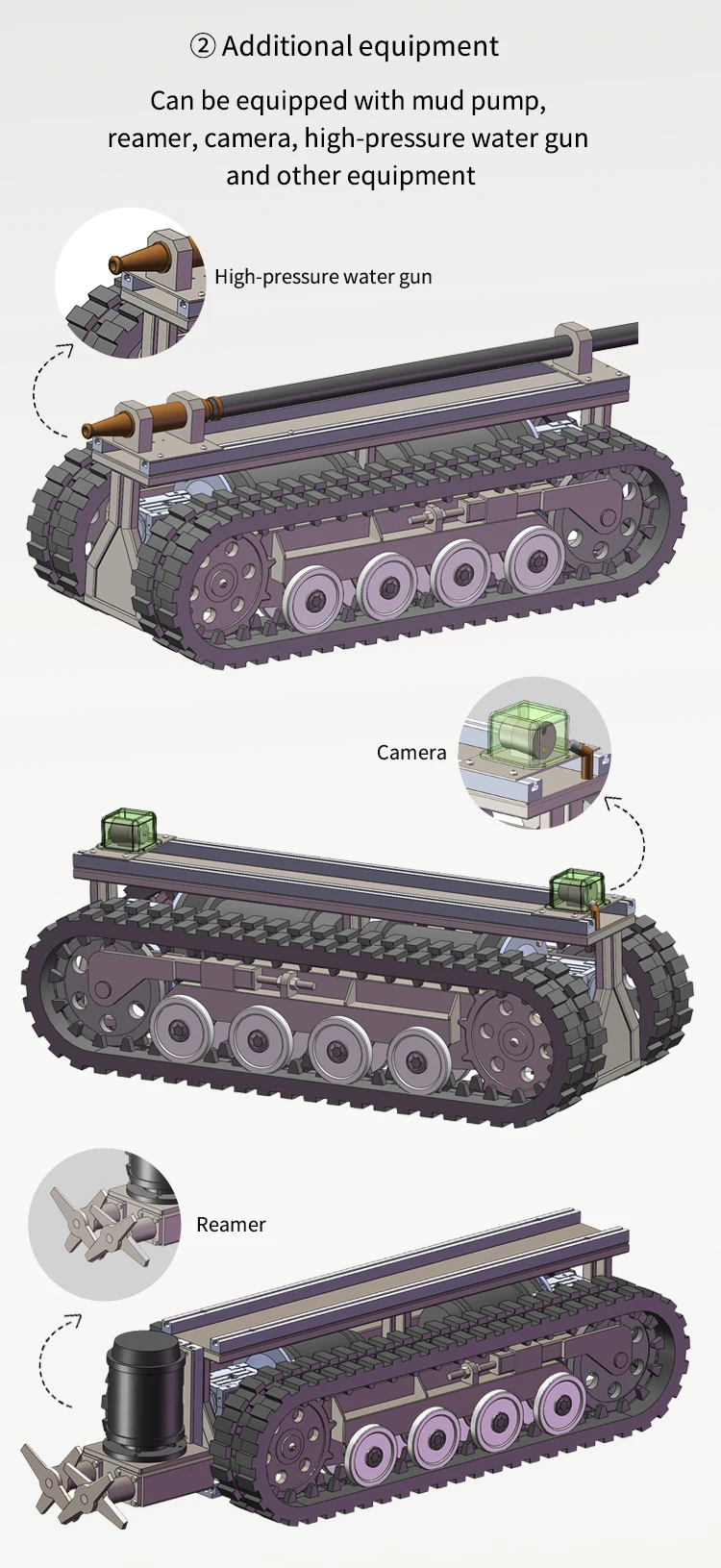

4. The front can be equipped with siphon mud pump, reamer, high-pressure water gun and other cleaning tools to crush and clean reed roots, grass roots, household garbage and other colloidal substances.(cutting the plant roots and other sediments at the pipe junction)

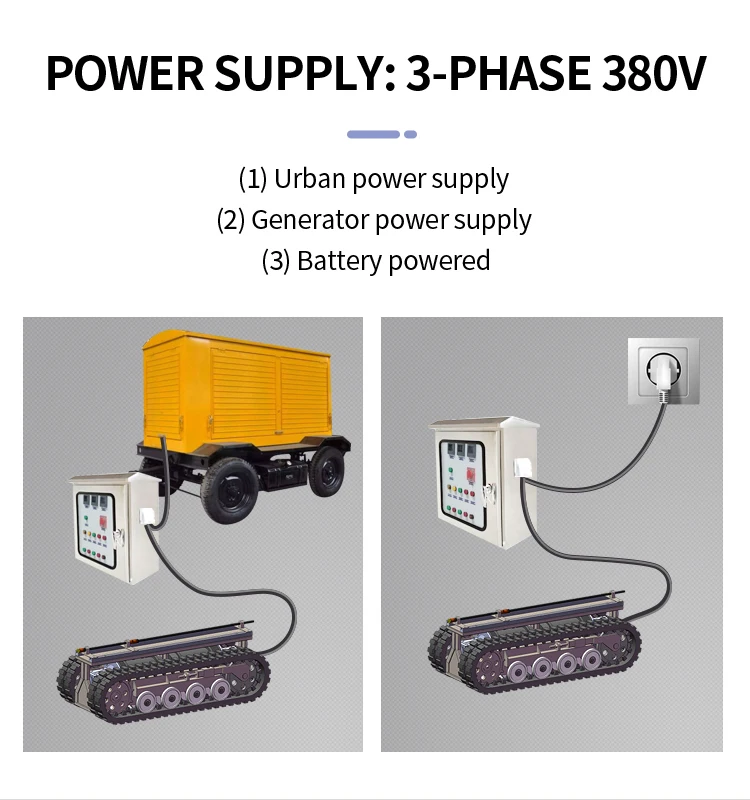

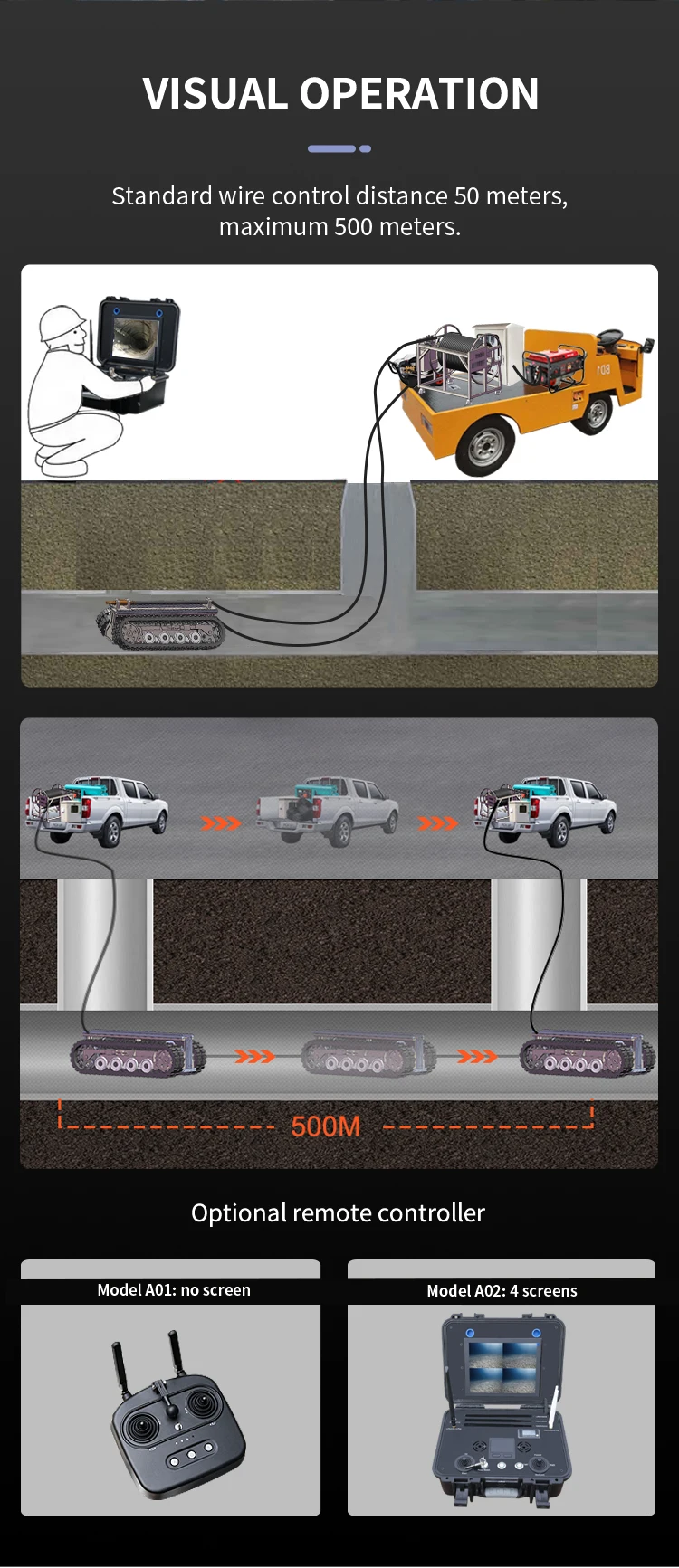

5. High-voltage drive, standard wire control distance 50meters, maximum 500 meters.

6. Optional remote control box.

7. Optional IP68 underwater camera, visual operation.

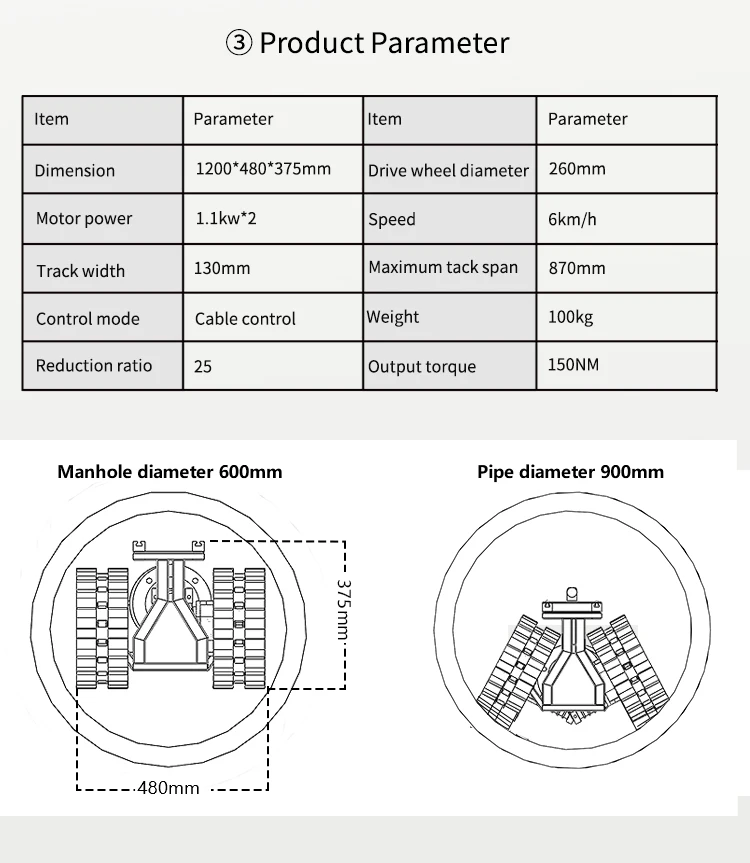

4. Specification:



Item	Parameter	Item	Parameter
Dimension	1200*480*375mm	Drive wheel diameter	260mm
Motor power	1.1Kw*2	Speed	6km/h
Track width	130mm	Maximum track span	870mm
Control mode	Cable control	Weight	100Kg
Reduction ratio	25	Output torque	150NM





5. Picture show:
