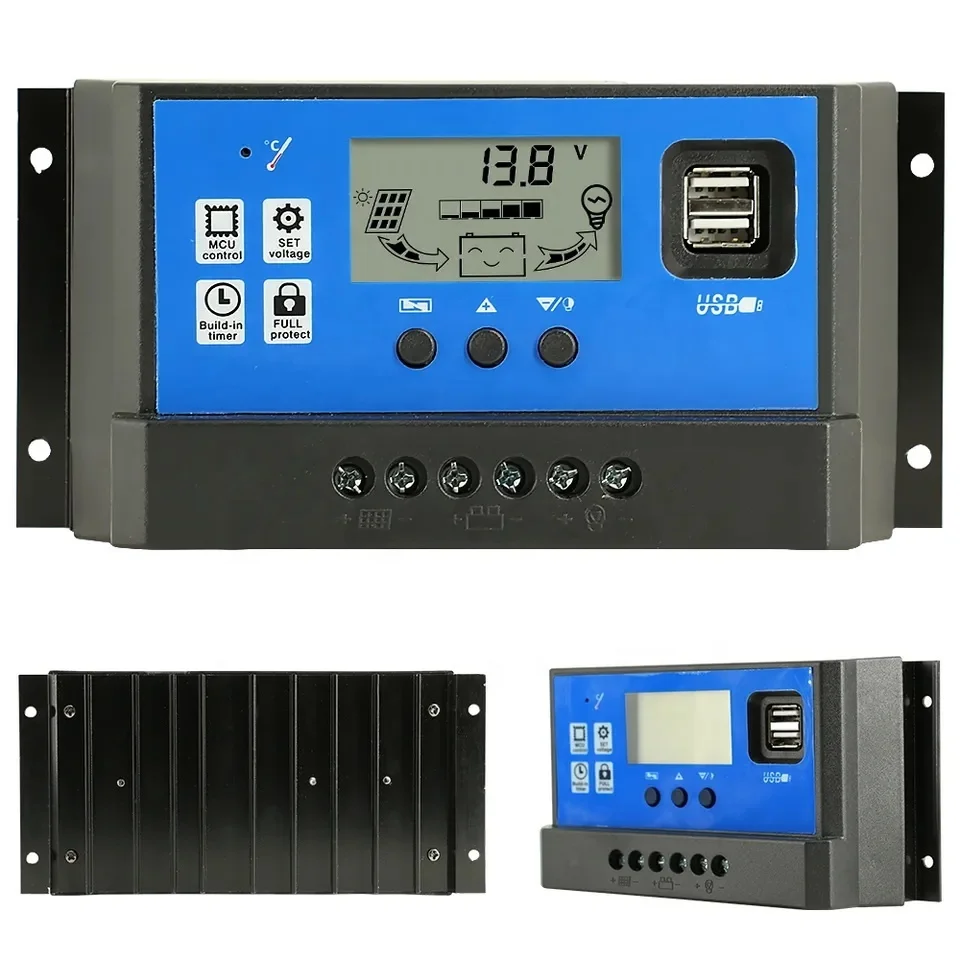

Solar Charge Controller input voltage PWM Auto 12V 24V 10A 20A 30A 40A 50A 60A LCD Dual USB Solar Panel System Regulator
- Category: >>>
- Supplier: Shenzhen CHR Technology Co. Ltd.
Share on (1600780247066):
Product Overview
Description
Products Description
CHR-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V)
CHR-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
CHR-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
CHR-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
CHR-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
CHR-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
Features:
1. Build-in industrial micro controller.

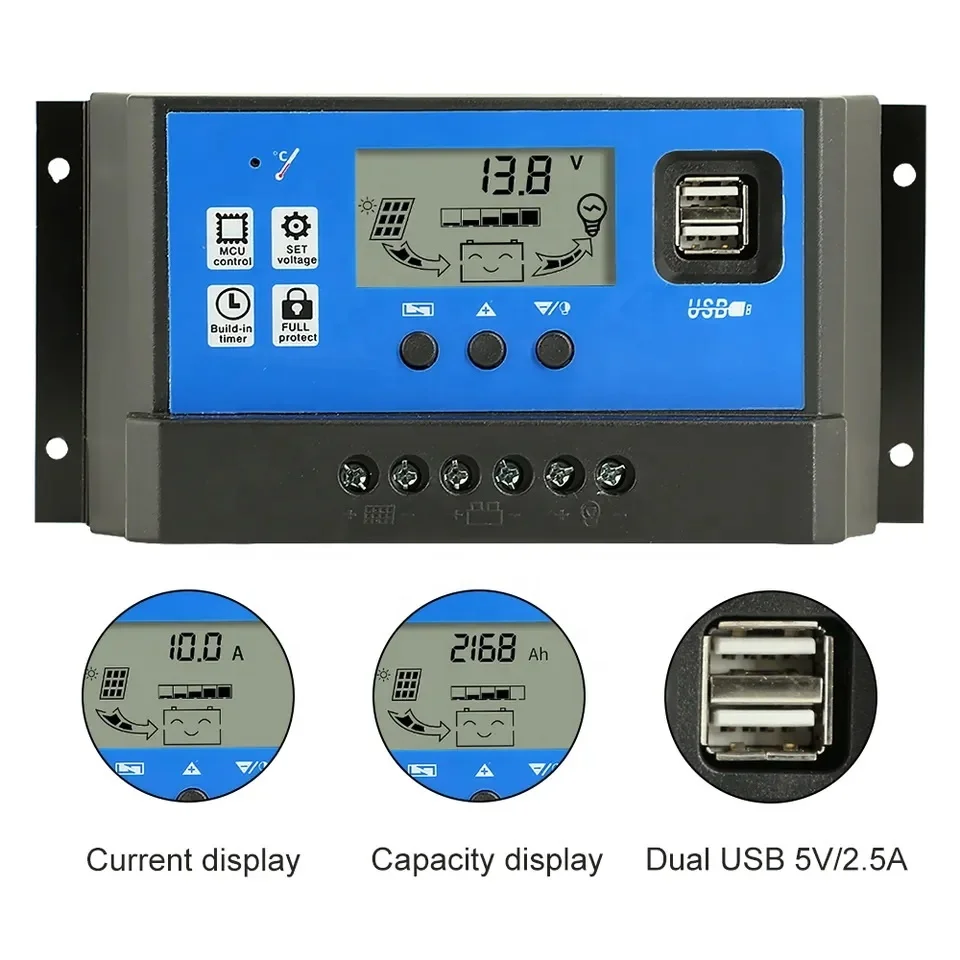

2. Big LCD display, all adjustable parameter.
3. Fully 4-stage PWM charge management.
4. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
5. Dual MOS Reverse current protection, low heat production.

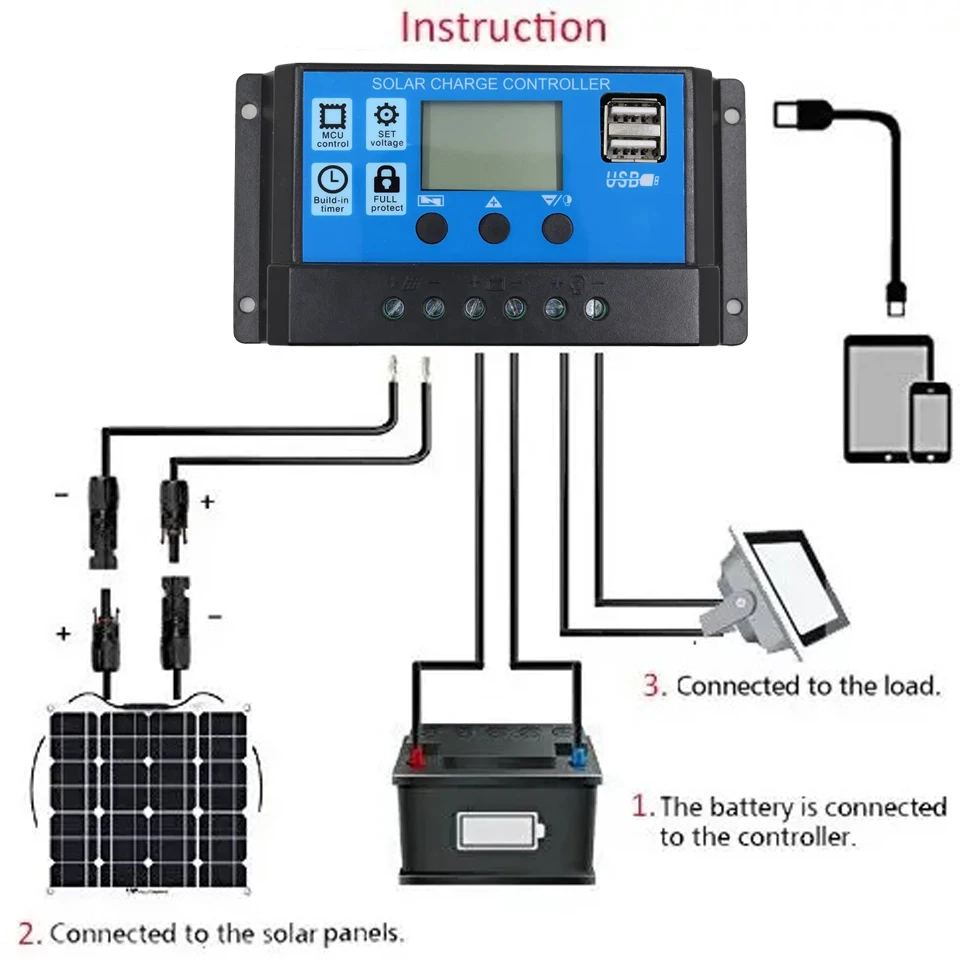

Connection:
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
CHR-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V)
CHR-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V)
CHR-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V)
CHR-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V)
CHR-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V)
Features:
1. Build-in industrial micro controller.
2. Big LCD display, all adjustable parameter.
3. Fully 4-stage PWM charge management.
4. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
5. Dual MOS Reverse current protection, low heat production.
Connection:
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
MODEL | CHR-10A | CHR-20A | CHR-30A | CHR-40A | CHR-50A | CHR-60A | |||||
Battery Voltage | 12V/24V Auto | ||||||||||
Charging /Discharging Current | 10A | 20A | 30A | 40A | 50A | 60A | |||||
Max Solar input | 48V(for 24V battery) 24V(for 12V battery) | ||||||||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | ||||||||||
Float Charge | 13.7V(default,adjustable) | ||||||||||
Discharge Stop | 10.7V(default,adjustable) | ||||||||||
Discharge Reconnect | 12.6V(default,adjustable) | ||||||||||
Charge Reconnect | 13V | ||||||||||
Voltage of Open Light | Solar Panel 8V(Light on delay) | ||||||||||
Voltage of Close Light | Solar Panel 8V(Light off delay) | ||||||||||
USB Output | 5V/3A | ||||||||||
Self-consume | <10mA | ||||||||||
Operating Temperature | -35°C~+60°C | ||||||||||

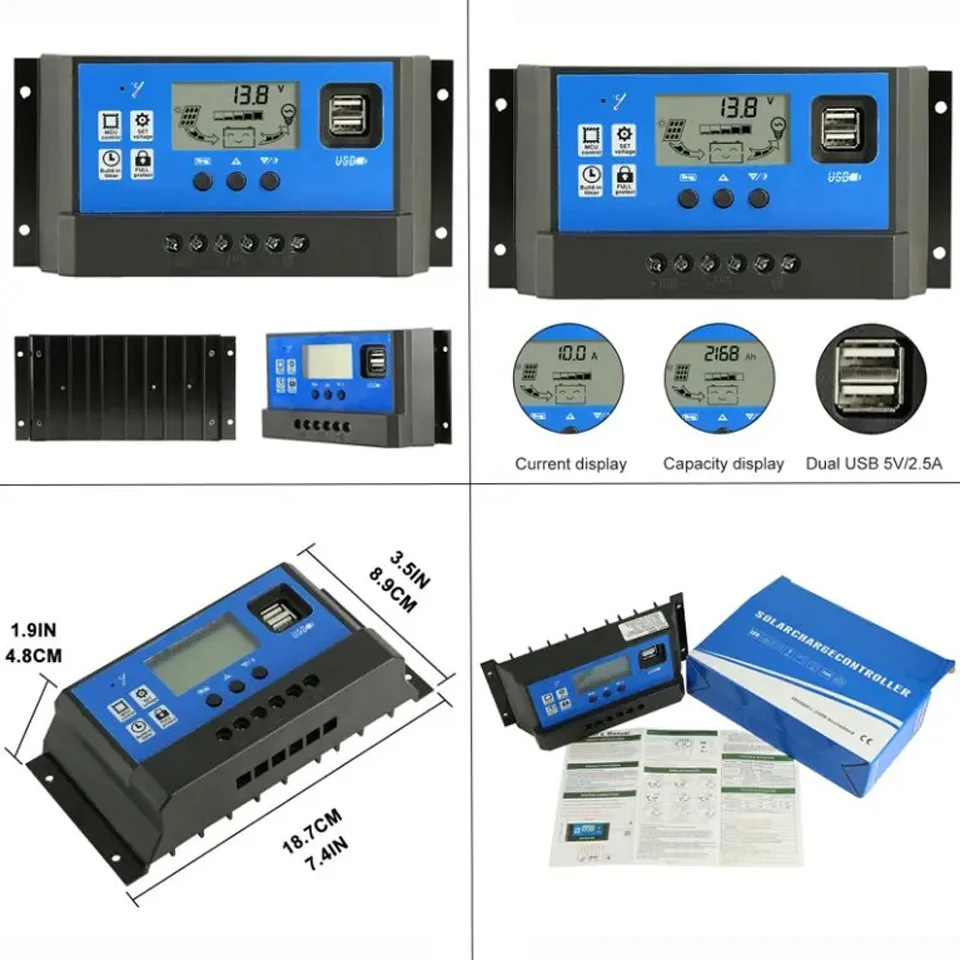

Size | 133.5*70*35MM | 188*90*47MM | |||||||||
