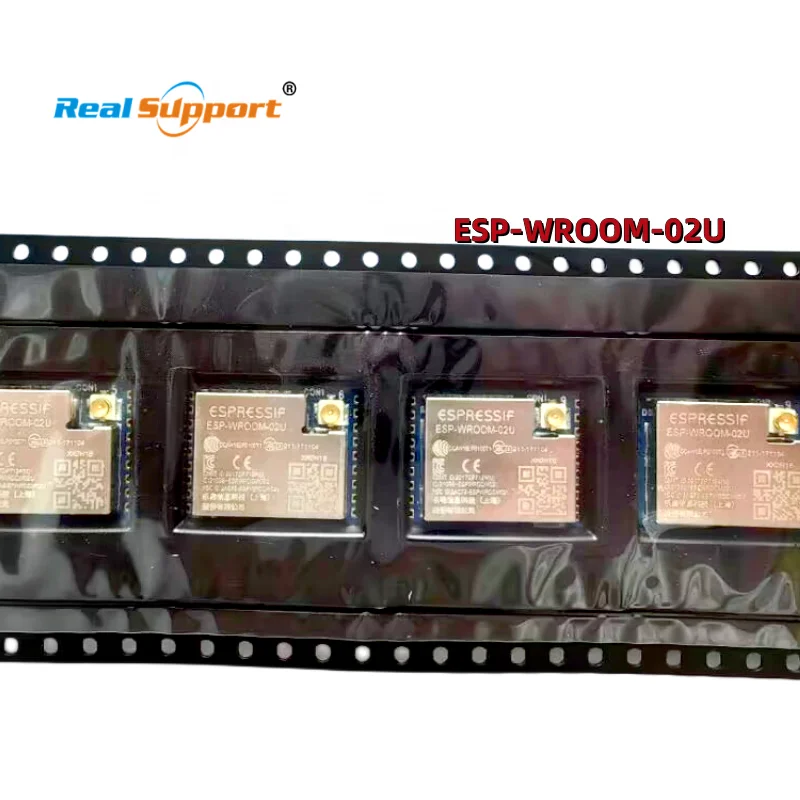

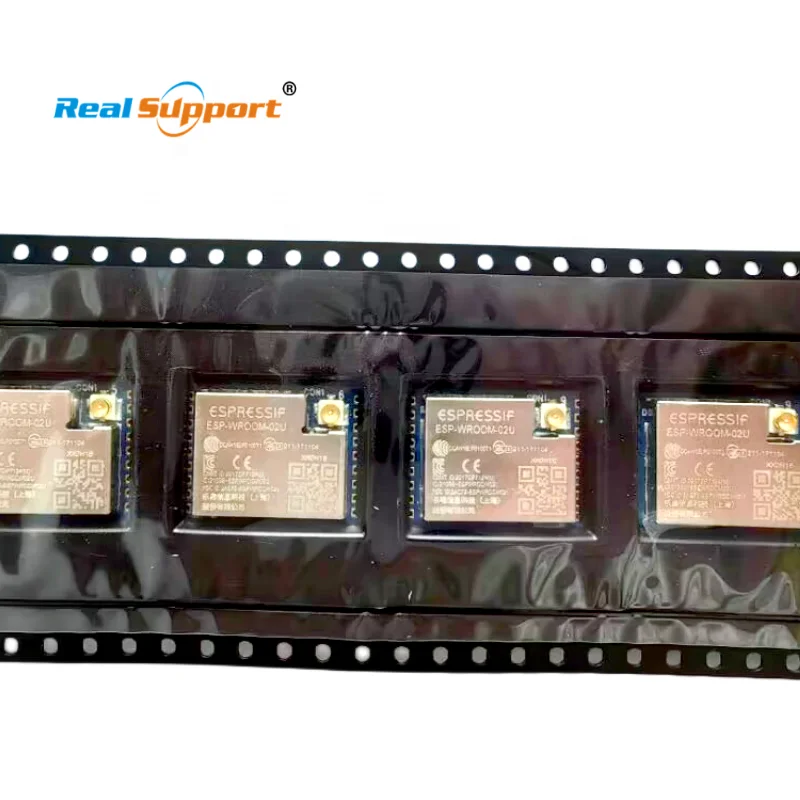

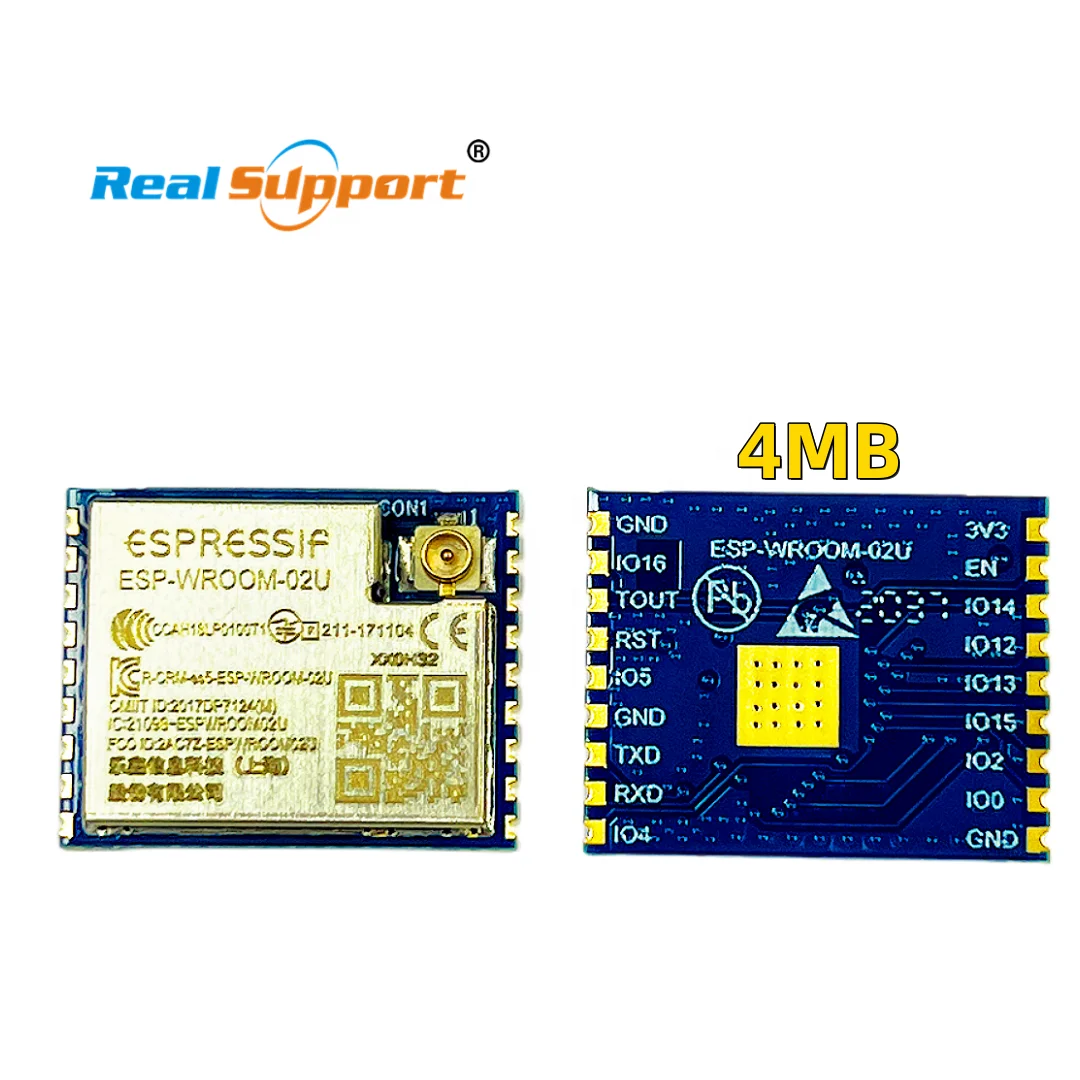

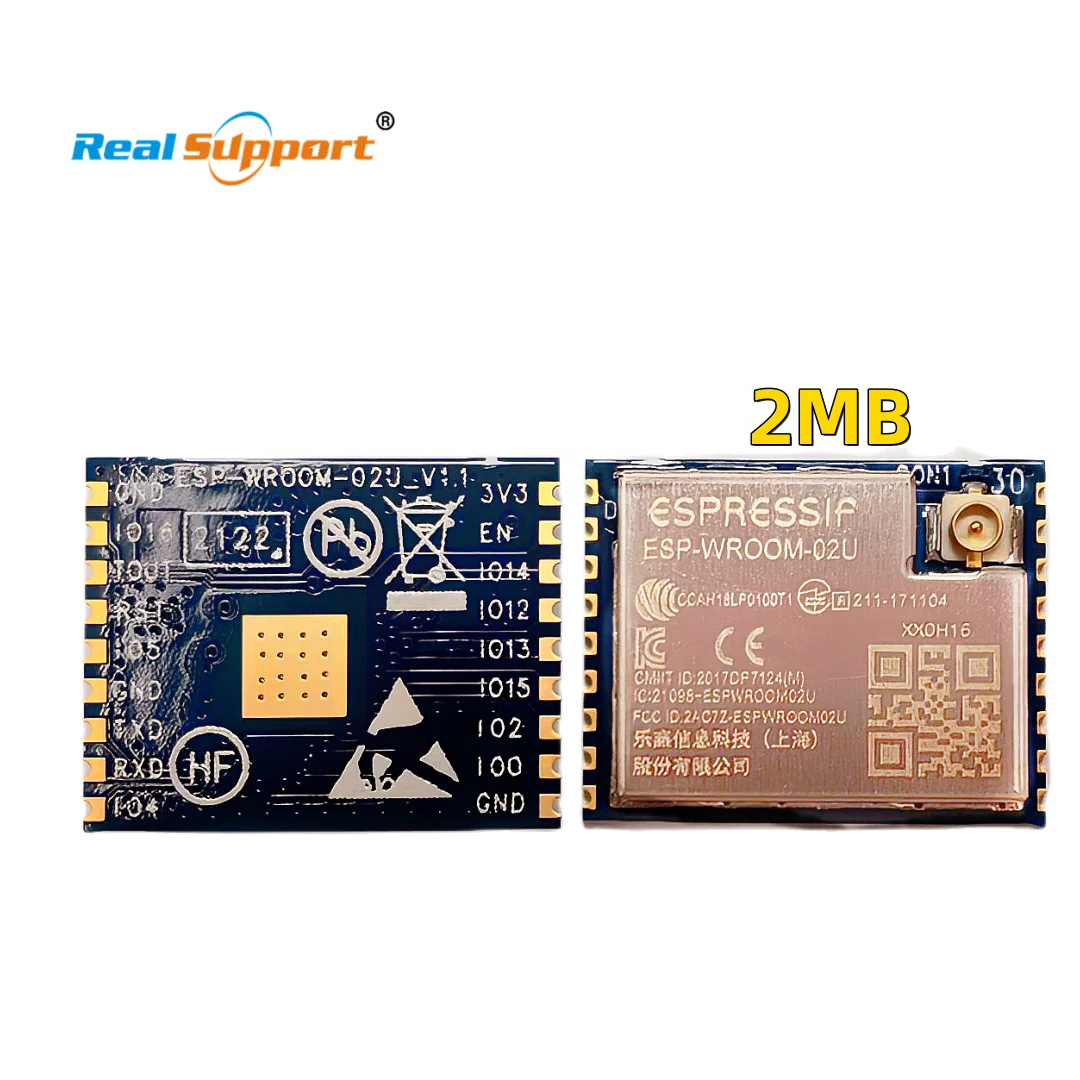

ESPRESSIF ESP WROOM 02 ESP WROOM 02U 4MB ESP WROOM 02U N4 Wifi module 2.4G on ESP8266EX chip IPEX antenna connector
- Category: >>>
- Supplier: Real Support Electronic Co. Ltd.
Share on (1600780258349):
Product Overview
Description
Product Description
Product Name | ESP-WROOM-02U 2MB 4MB |
Material | PVC |
Function | |
Package | 2D SMD |
ESP-WROOM-02D and ESP-WROOM-02U are ESP8266EX-based modules developed by Espressif. Compared to ESP-WROOM-02, the RF performance of ESP-WROOM-02D and ESP-WROOM-02U are optimized. Besides, ESP-WROOM-02U integrates a U.FL connector.
The ESP8266EX integrates a Tensilica L106 32-bit RISC processor, which achieves extralow power consumption and reaches a maximum clock speed of 160 MHz. The Real-Time Operating System (RTOS) and Wi-Fi stack allow 80% of the processing power to be available for user application programming and development. ESP-WROOM-02D and ESP-WROOM-02U currently integrate a 2-MB SPI flash.
Product Usage
Applications:
* Home appliances
* Home automation
* Smart plugs and lights
* Industrial wireless control
* Image Recognition
* Baby monitors
* IP cameras
* Sensor networks
* Wearable electronics
* Wi-Fi location-aware devices
* Security ID tags
* Retail & Catering Applications
* Industrial Automation
* Smart POS Machines
* Home appliances
* Home automation
* Smart plugs and lights
* Industrial wireless control
* Image Recognition
* Baby monitors
* IP cameras
* Sensor networks
* Wearable electronics
* Wi-Fi location-aware devices
* Security ID tags
* Retail & Catering Applications
* Industrial Automation
* Smart POS Machines
Features:
* Core: Xten single-core 32-bit L106 CPU, frequency up to 160MHz
* Memories:
* 160 KB of RAM1 KB of SRAM2, 4 MB of Flash memory
* Working Voltage: 3 V to 3.6 V
* Up to 11 GPIOs
* 3 strapping GPIOs6 GPIOs need for flash/PSRAM
* 1*10-bit ADC (up to 1 channel)
* Communication interfaces
* 1 I2C interface1 I2S interface2 SPI interfaces2 UART interfaces
* Security:
* 128 bit OTP
* Extended temperature range: -40 to 85 °C
* Memories:
* 160 KB of RAM1 KB of SRAM2, 4 MB of Flash memory
* Working Voltage: 3 V to 3.6 V
* Up to 11 GPIOs
* 3 strapping GPIOs6 GPIOs need for flash/PSRAM
* 1*10-bit ADC (up to 1 channel)
* Communication interfaces
* 1 I2C interface1 I2S interface2 SPI interfaces2 UART interfaces
* Security:
* 128 bit OTP
* Extended temperature range: -40 to 85 °C

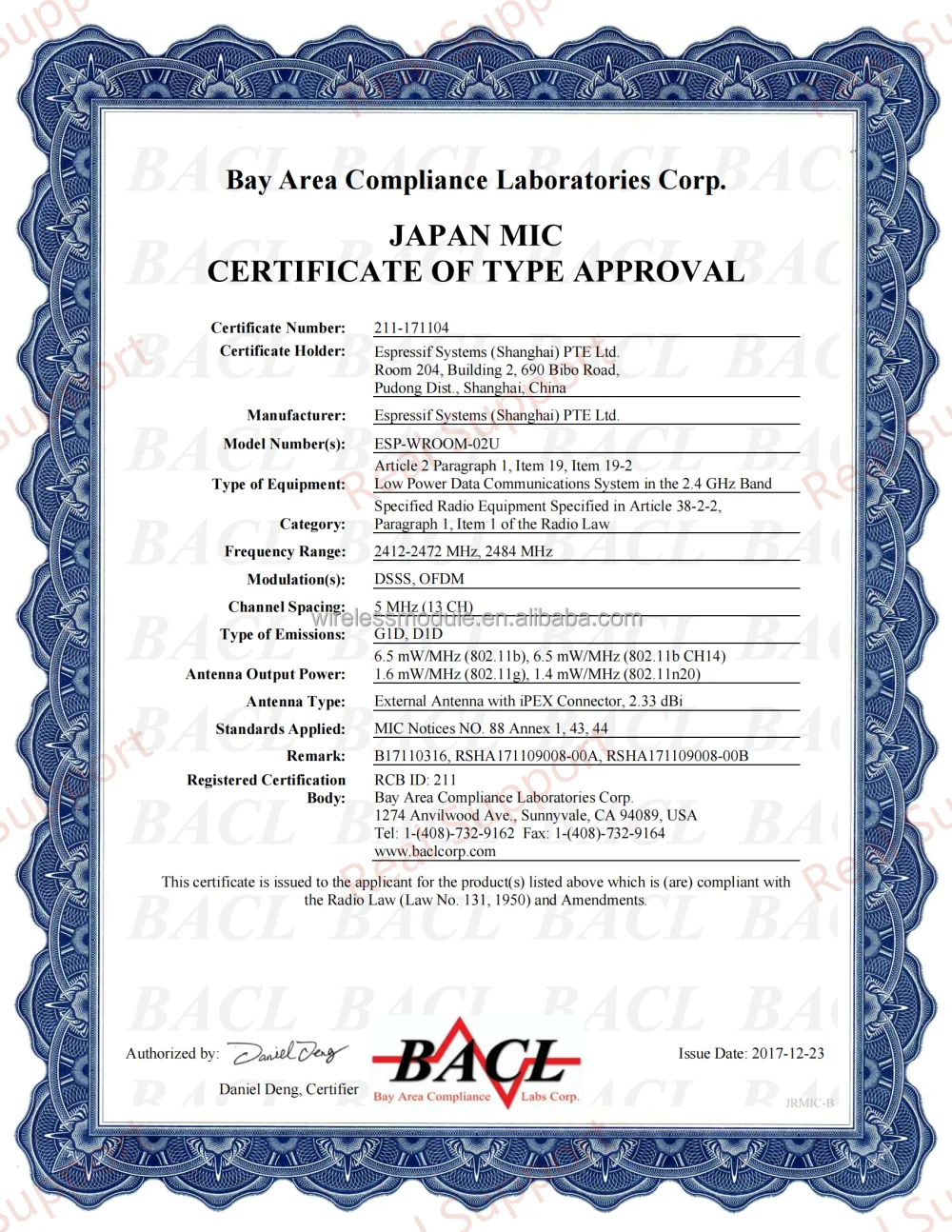

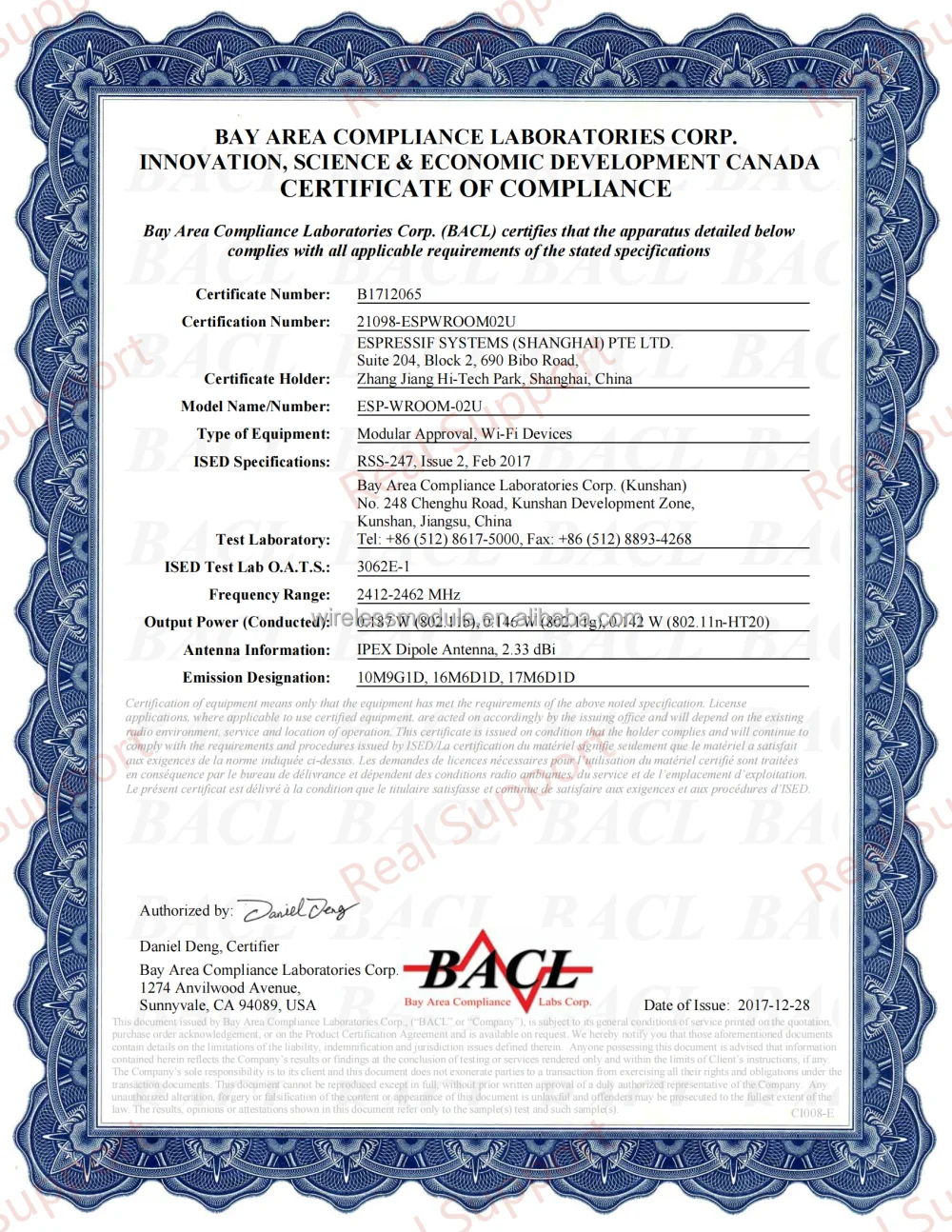

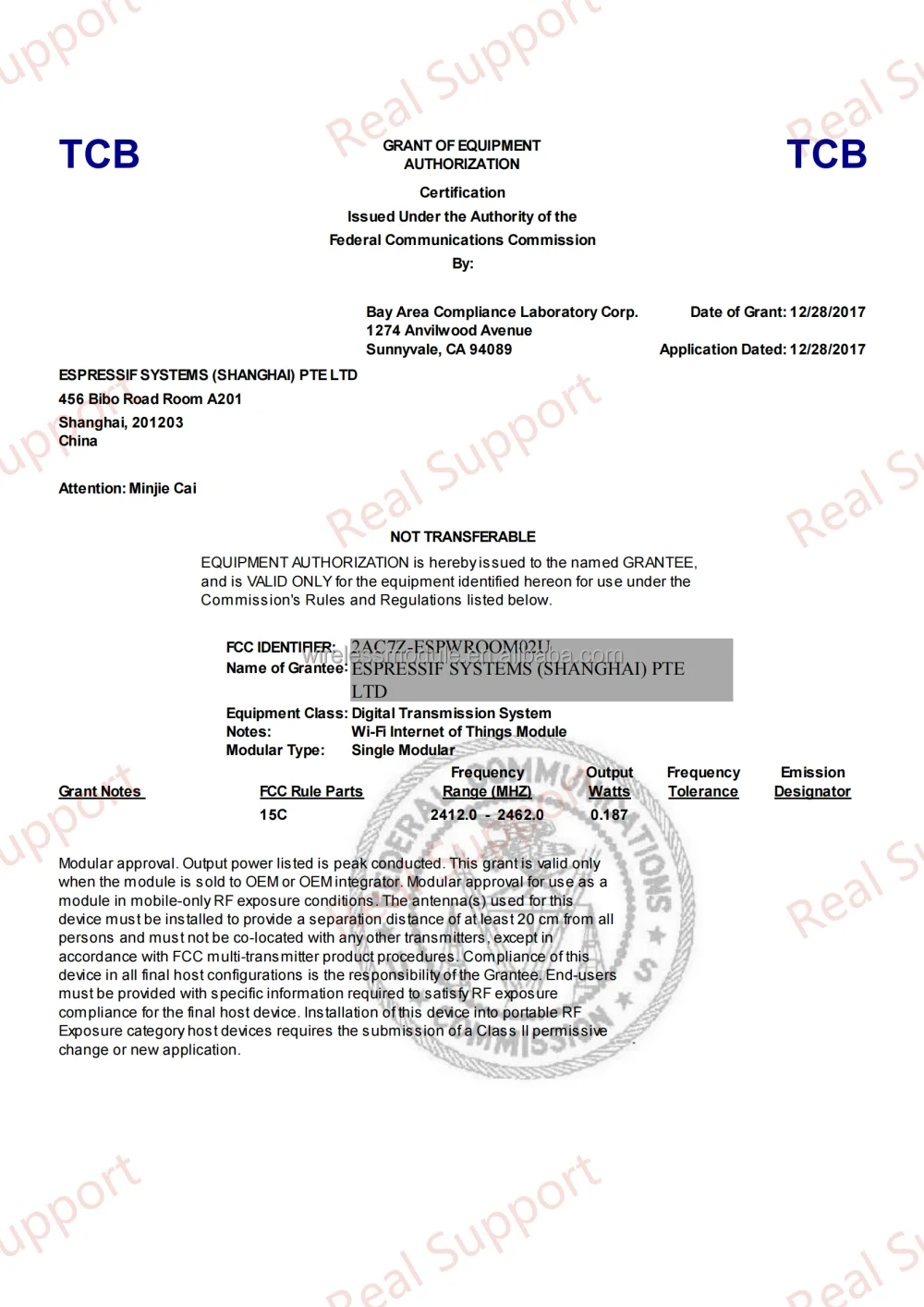

Certifications
