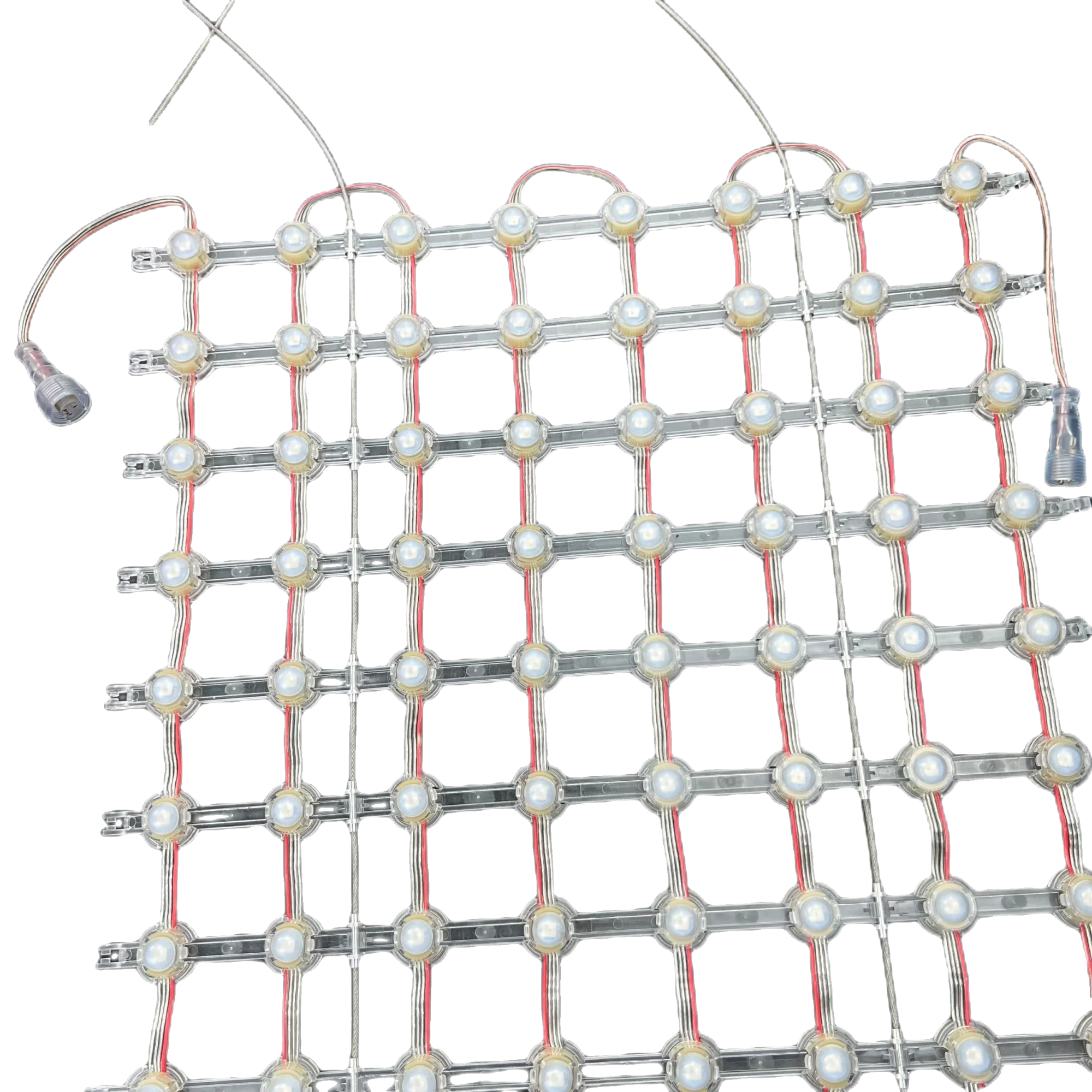

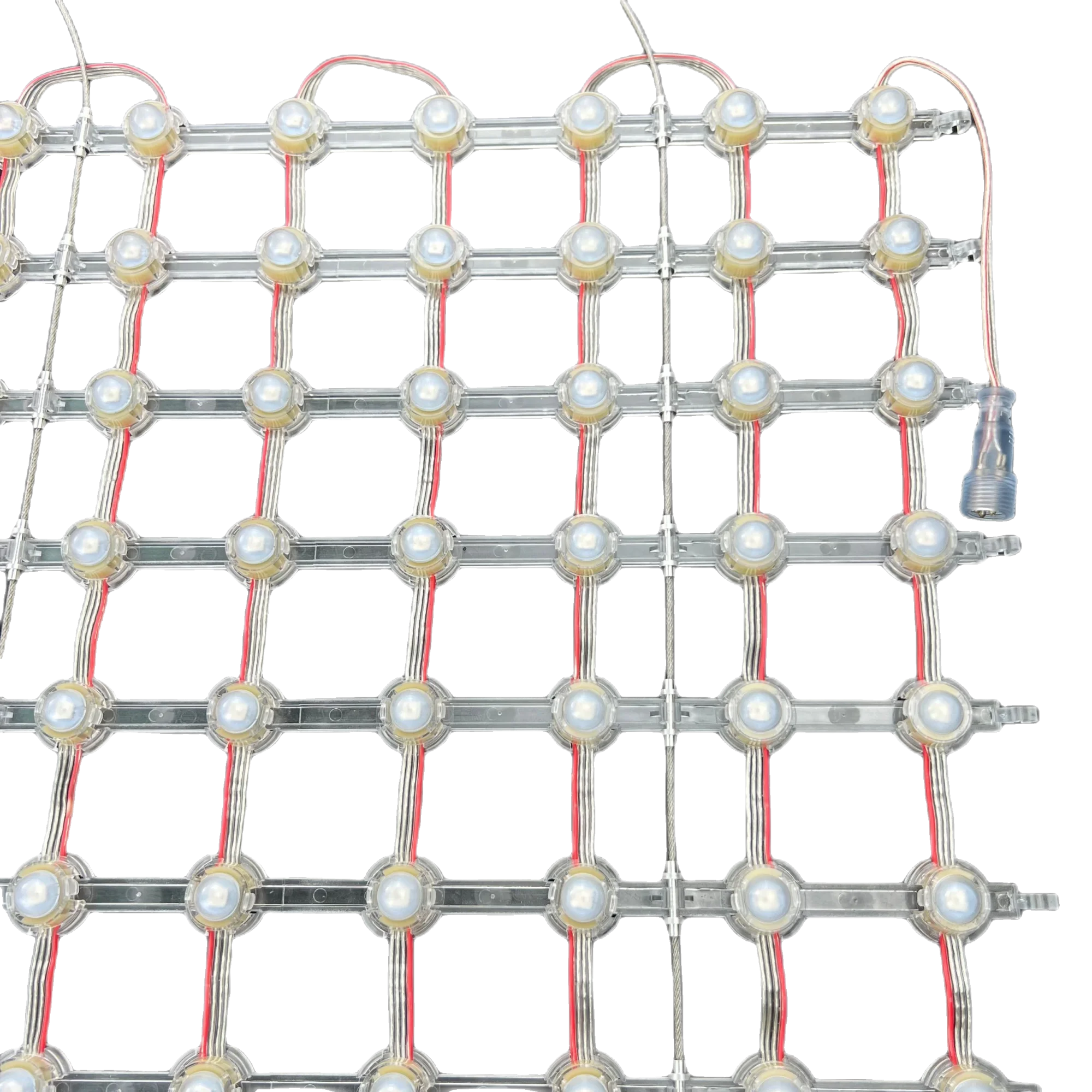

62.5mm pitch DC12V WS2815 IC 5050 20mm diameter led pixel matrix grid screen;IP68 rated;RGB full color;8*8/8*16/8*32pixels 62.5m

Product Overview

Description



Product name:            12V 62.5mm pitch WS2815 IC 5050 addressable RGB matrix panel

Product power:            0.1W per LED

input voltage :              DC12V

Emitting color:             addressable RGB full color

light source/IC:            WS2815 5050 SMD RGB LED

Control protocol:          WS2815(similar as WS2811 but with backup data)

LED pitch:                   62.5mm

LED pixels:                  each led as one pixel

lighting beam angle:    120 degree

IP rating:                           IP68 rated,waterproof by epoxy resin filled

Panel size:                       8pixels * 8 pixel=50cm*50cm;

                                        8pixels * 16 pixel=50cm*100cm;

                                        8pixels * 24 pixel=50cm*150cm;

                                        8pixels * 32 pixel=50cm*200cm
