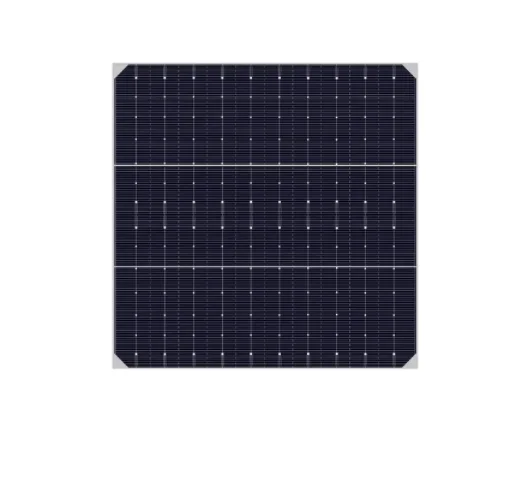

Solar Panel Free Shipping 400W 1000W 550W 560W High Efficiency PV Panel Poly and Mono Solar Panel in Europe warehouse
- Category: >>>
- Supplier: Jinjiang Xingshun Hygiene Material Products Co. Ltd.
Share on (1600780314386):
Product Overview
Description

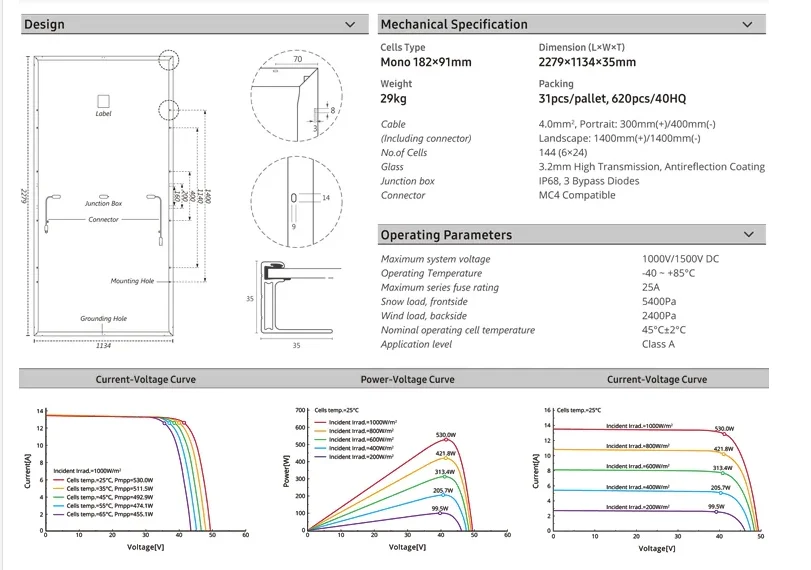

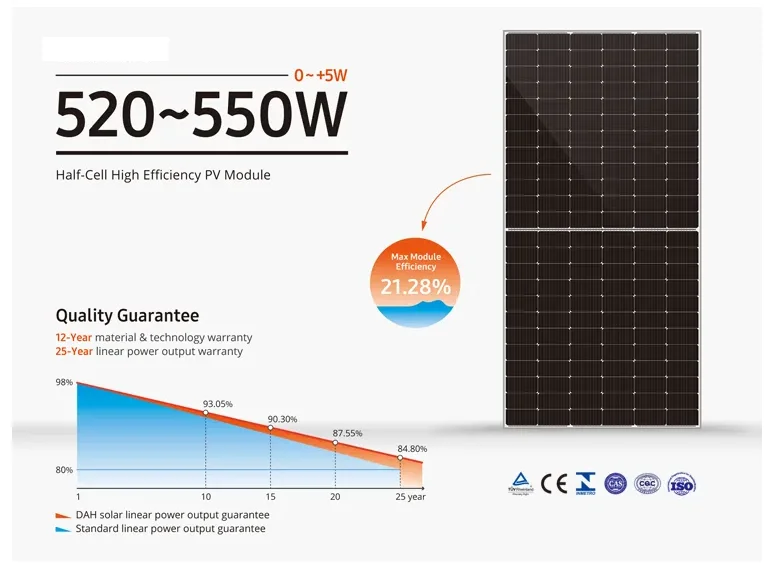

PRODUCT CONFIGURATION
Maximum Power(Pmax) | 520W | 525W | 530W | |||
Open-circuit Voltage (Voc) | 49.0V | 49.2V | 49.4V | |||
Maximum Power Voltage(Vmp) | 41.2V | 41.4V | 41.6V | |||
Short-circuit Current (Isc) | 13.42A | 13.48A | 13.54A | |||
Maximum Power Current (Imp) | 12.62A | 12.68A | 12.74A | |||
Solar Panel Efficiency | 20.12% | 20.31% | 20.51% | |||
Power Tolerance | 0~+5W | |||||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | |||||
Maximum Power(Pmax) | 535W | 540W | 545W | 550W | |||
Open-circuit Voltage (Voc) | 49.6V | 49.8V | 50.0V | 50.2V | |||
Maximum Power Voltage(Vmp) | 41.8V | 42.0V | 42.2V | 42.4V | |||
Short-circuit Current (Isc) | 13.60A | 13.66A | 13.72A | 13.78A | |||
Maximum Power Current (Imp) | 12.80A | 12.86A | 12.91A | 12.97A | |||
Solar Panel Efficiency | 20.70% | 20.89% | 21.09% | 21.28% | |||
Power Tolerance | 0~+5W | ||||||
Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | ||||||

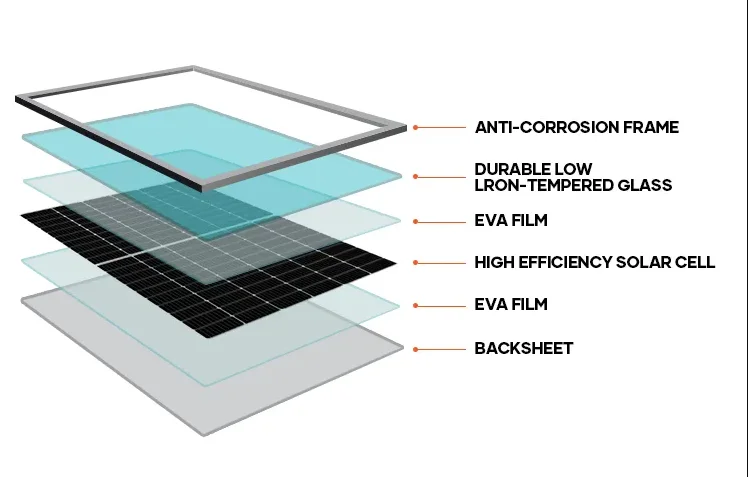

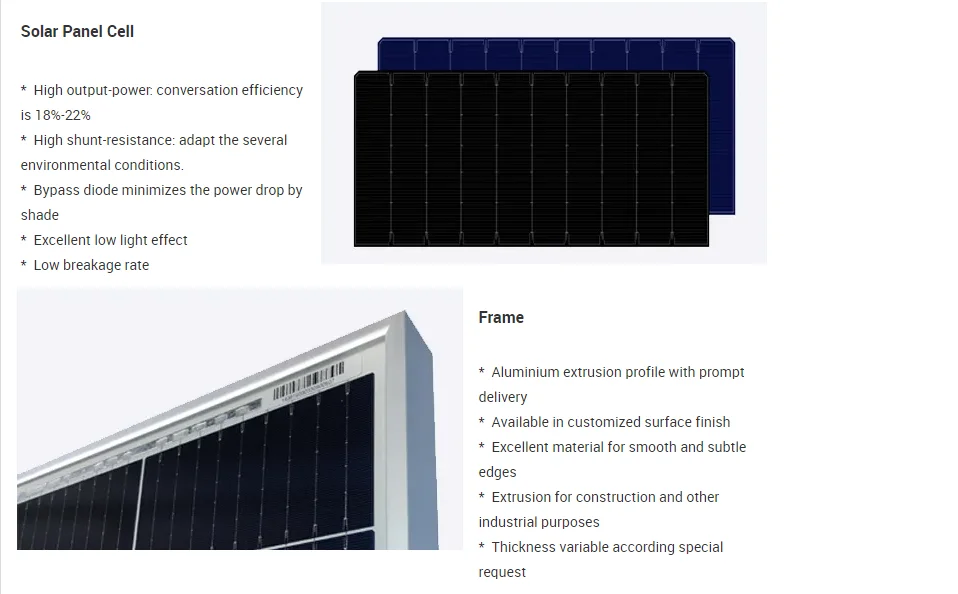

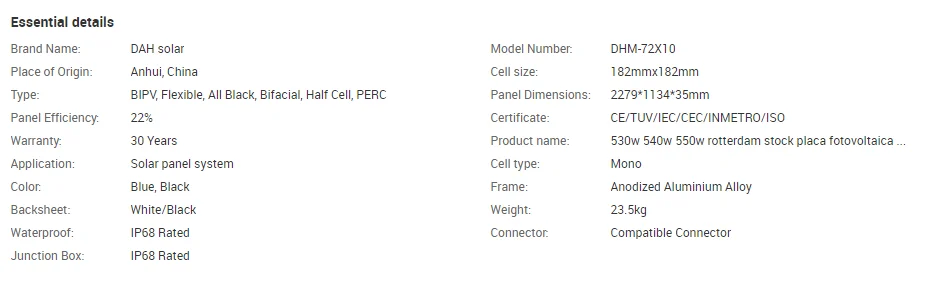

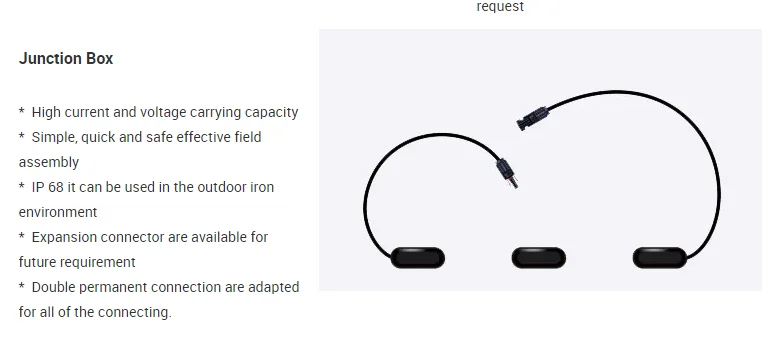

Solar Panel Details

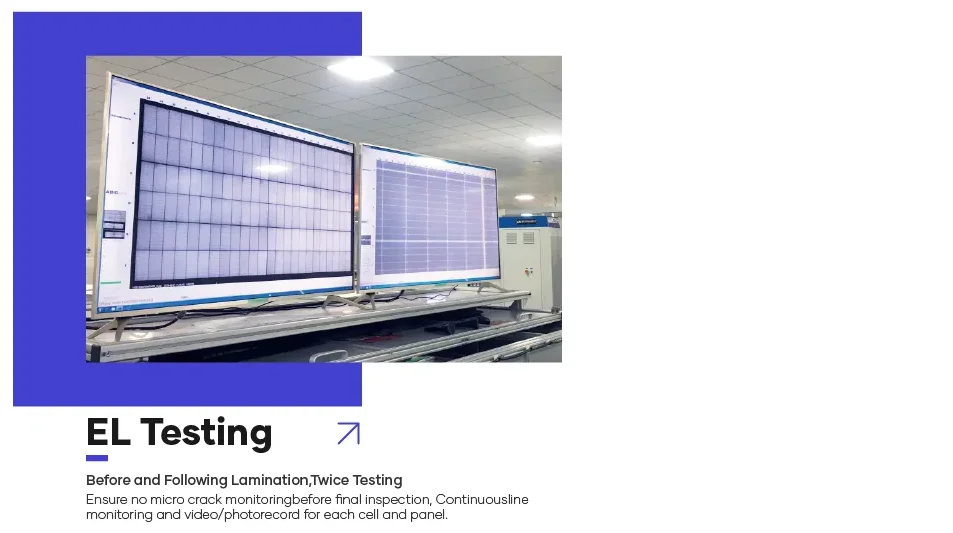

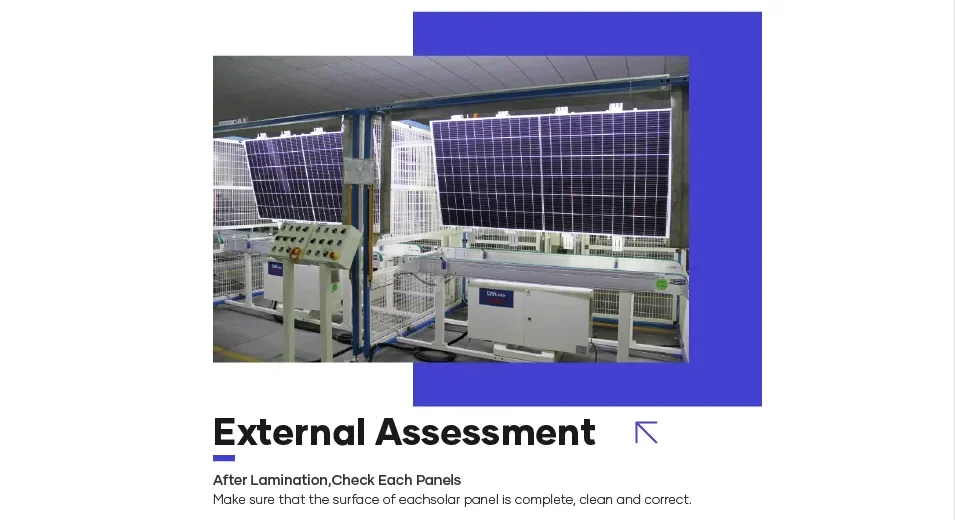

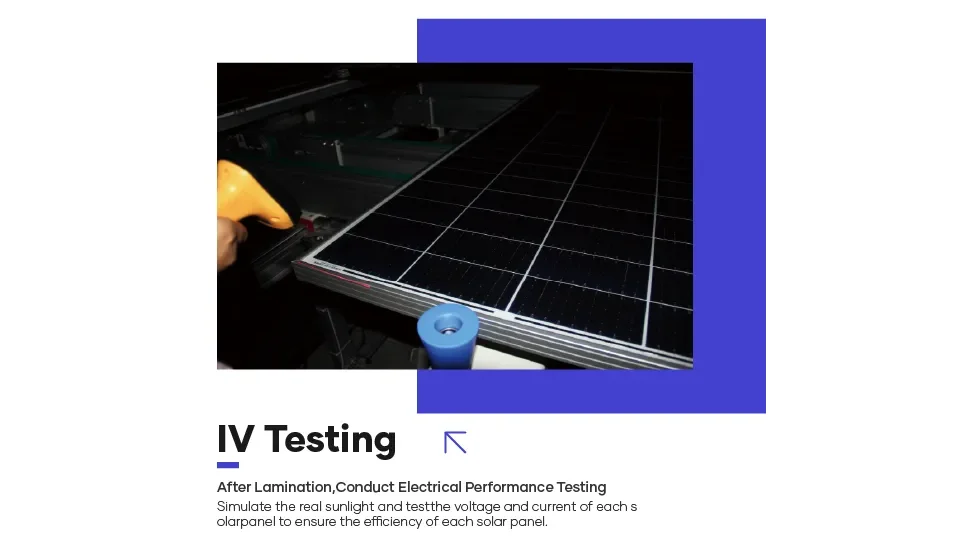

Production & QC

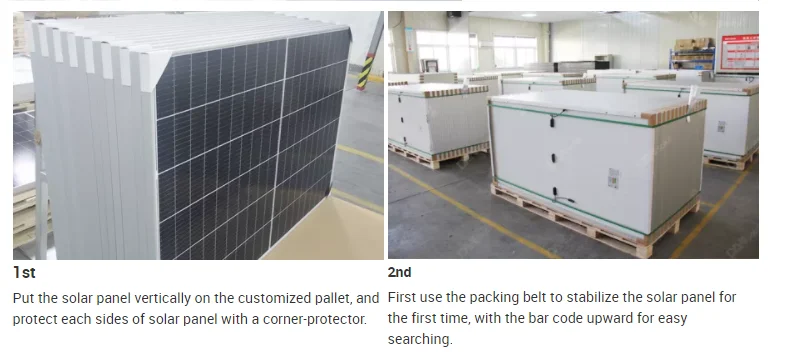

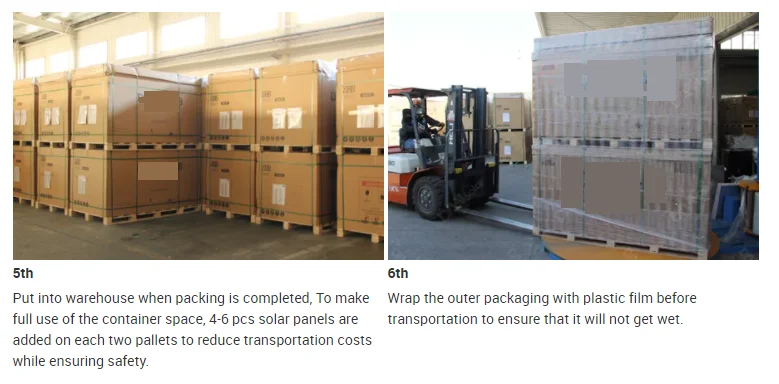

Safe Package
Certifications

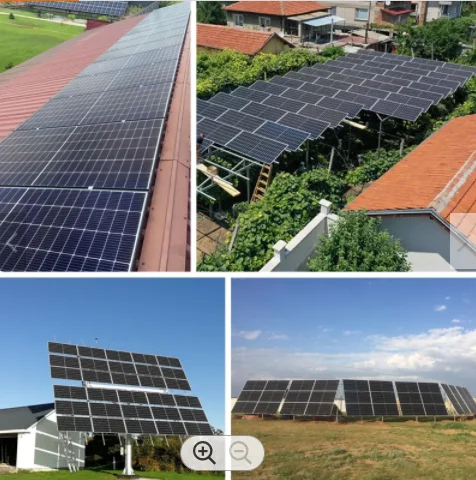

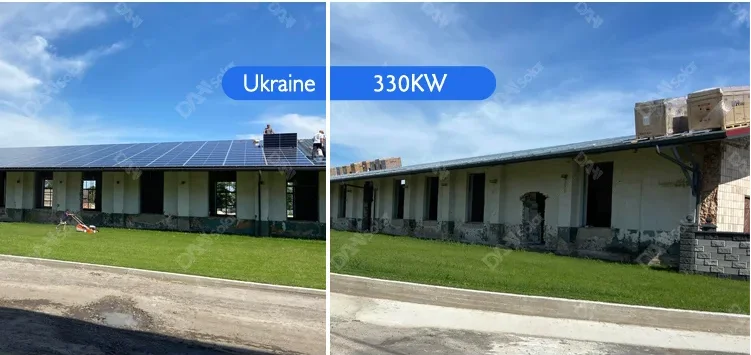

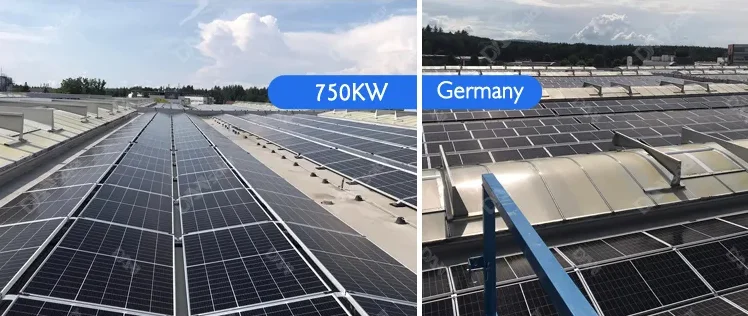

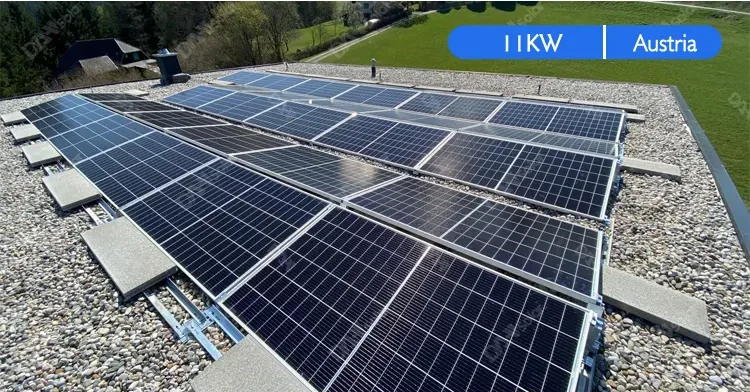

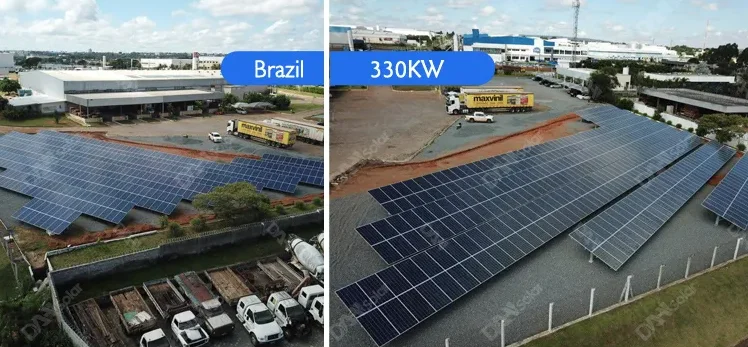

Successful Project
