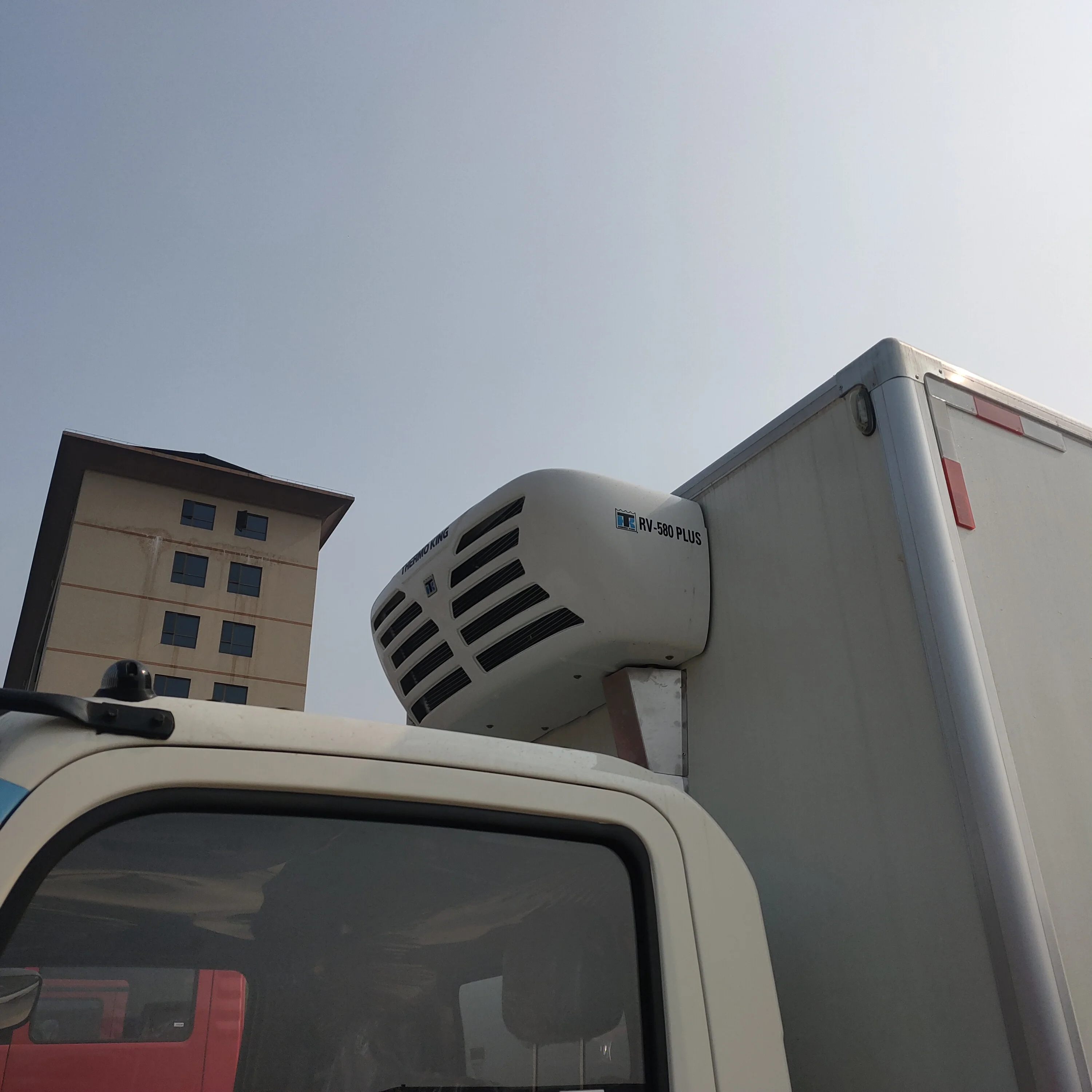

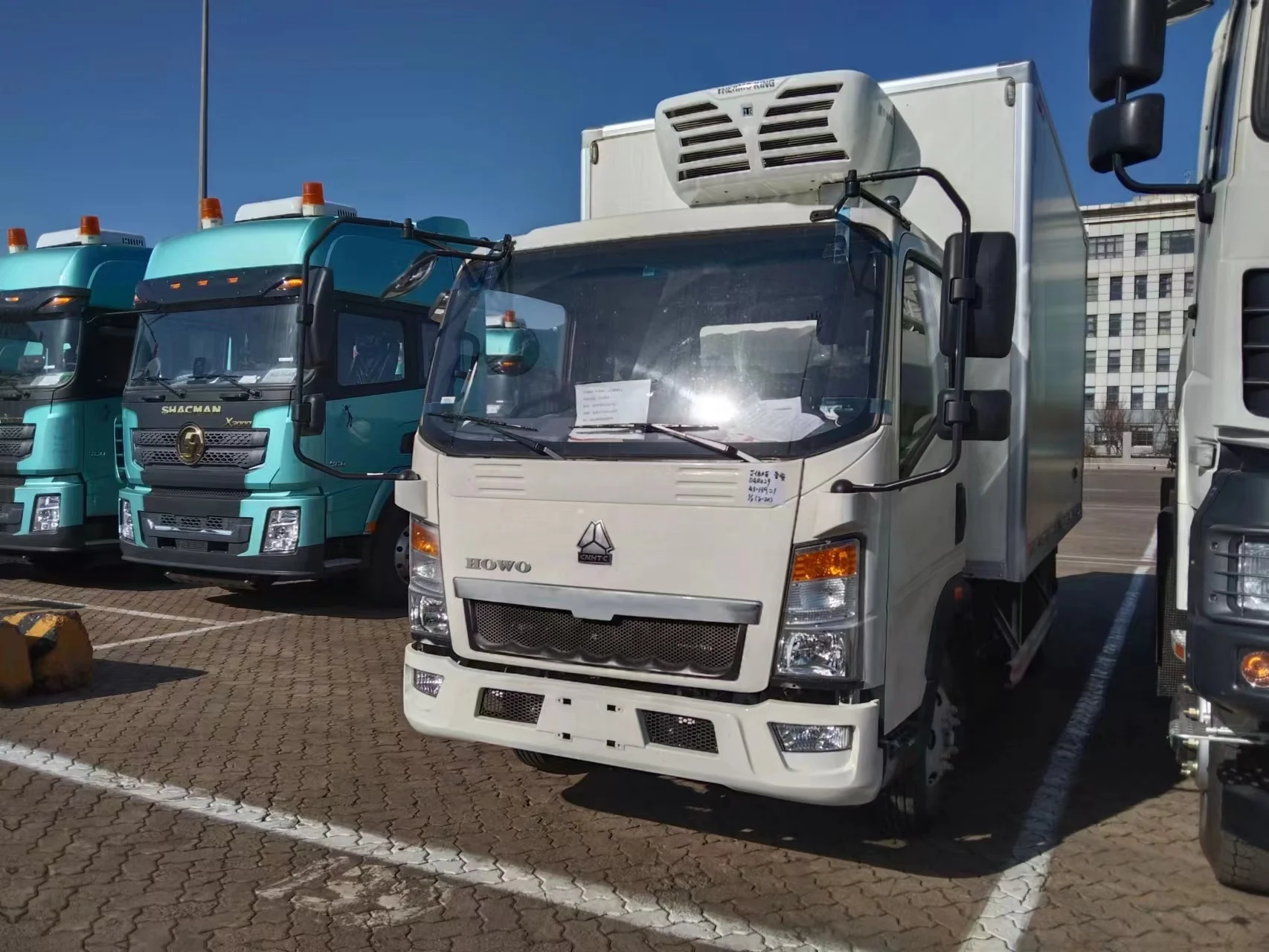

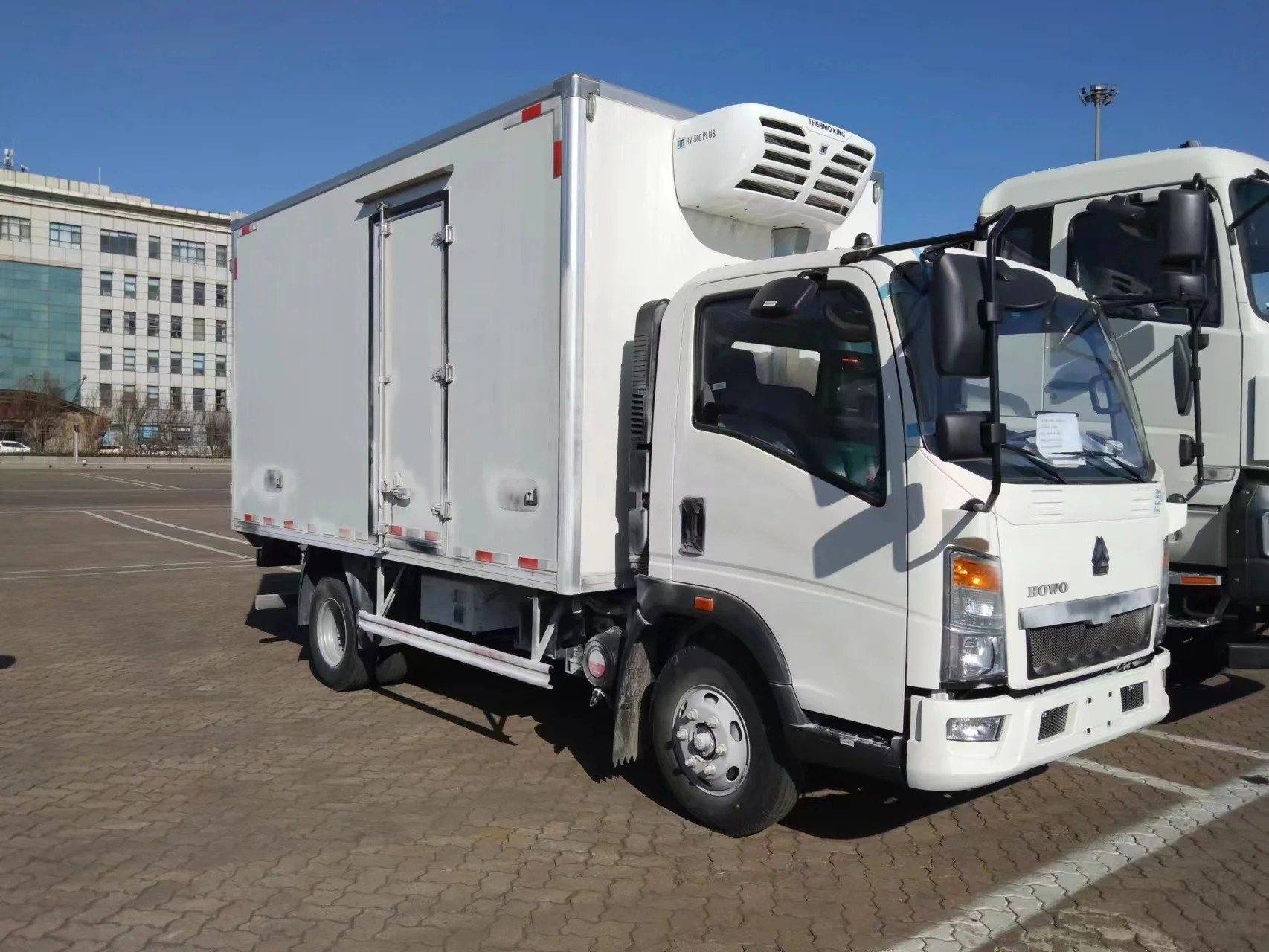

Thermo King refrigeration unit 4x2 HOWO refrigerator cooling truck
- Category: >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (1600780370063):
Product Overview
Description
Product Description
Item | HOWO refrigerated truck | Chassis Model | ZZ1047D3414C145 | ||||
Vehicle parameters | GVW(kg) | 6495 | Overall Dimension (mm) | 5995×2250×2900 | |||
Curb weight (kg) | 3210 | Steering Wheel | LHD | ||||
Wheelbase (mm) | 3360 | Driving Type | 4x2 | ||||
Engine parameters | Engine Brand | YN | |||||
Model | YN4102QBZL | Emission Standard | Euro 3 | ||||
Horse Power(hp) | 116 | Displacement | 3760cc | ||||
4 stroke,4-cylinders in line, water cooling | |||||||
Gear Box | 6 forward and 1 reverse | ||||||
Max Speed (km/h) | 95 | Front Axle LOAD | 2.4T | ||||
Cab Seat | 2 | Rear Axle LOAD | 4.2T | ||||
Leaf Spring | 3/5+3 | Front Suspension | 1180 | ||||
Tire No. | 6+1 | Rear Suspension | 1455 | ||||
Tire Specification | 7.00R16 | Approach Angle | 18 | ||||
Axle No. | 2 | Departure Angle | 16 | ||||
Function parameter | Reefer-Temperature Required | -20 | |||||
Material | 8mm Polyurethane in middle,covered by 2.5mm fiber glass inside and outside | ||||||
