Product Overview
Description
Products Description
Application:
The machine is used to process the inner and outer cylindrical surfaces, conical surfaces, end surfaces, grooving and chamfering of components. The CNC vertical lathe is especially suitable for the processing of disc components such as automobile wheel hubs, brake valleys, flywheel housings, clutch housings, pressure plates, and differential housings.
Vertical Lathe Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.

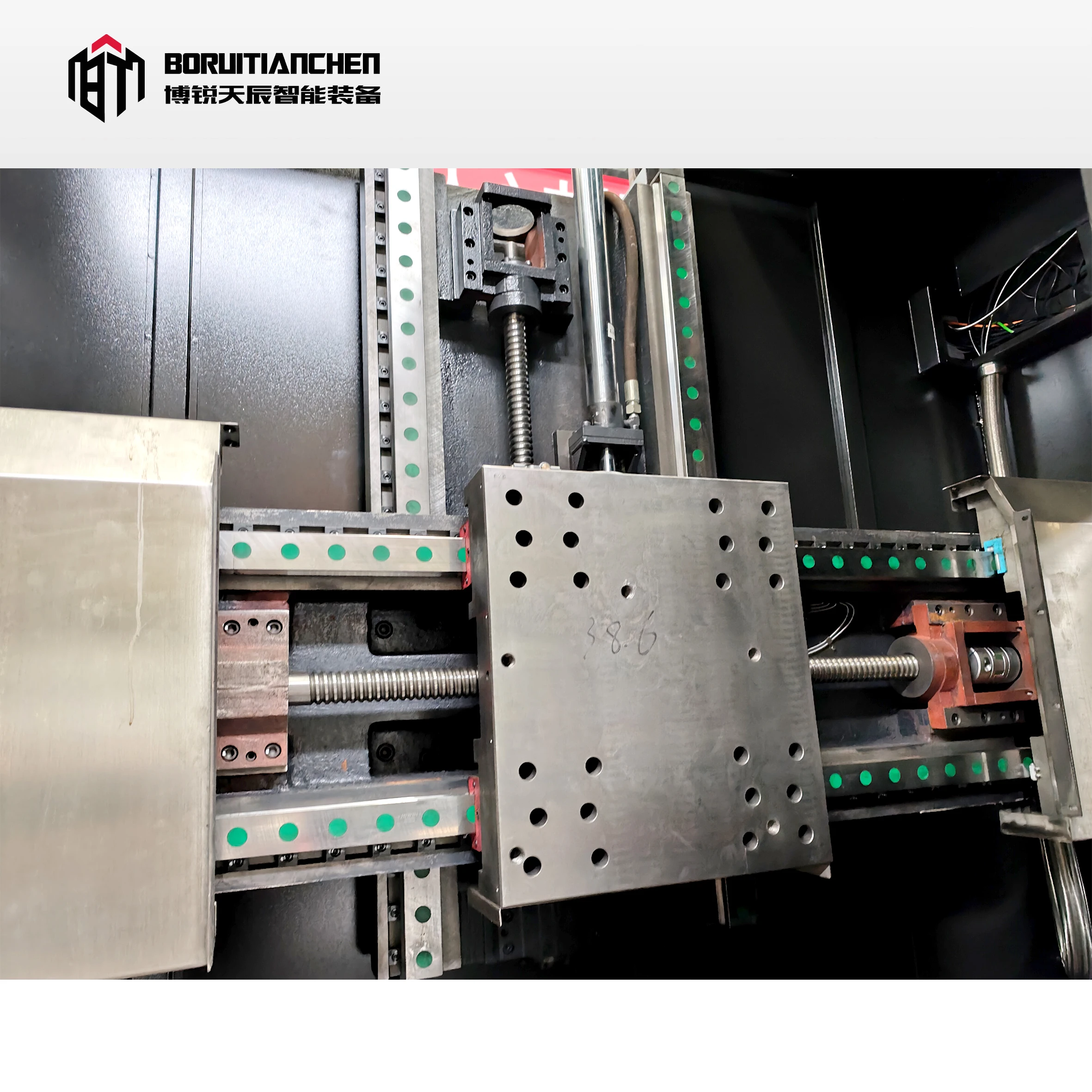

2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.

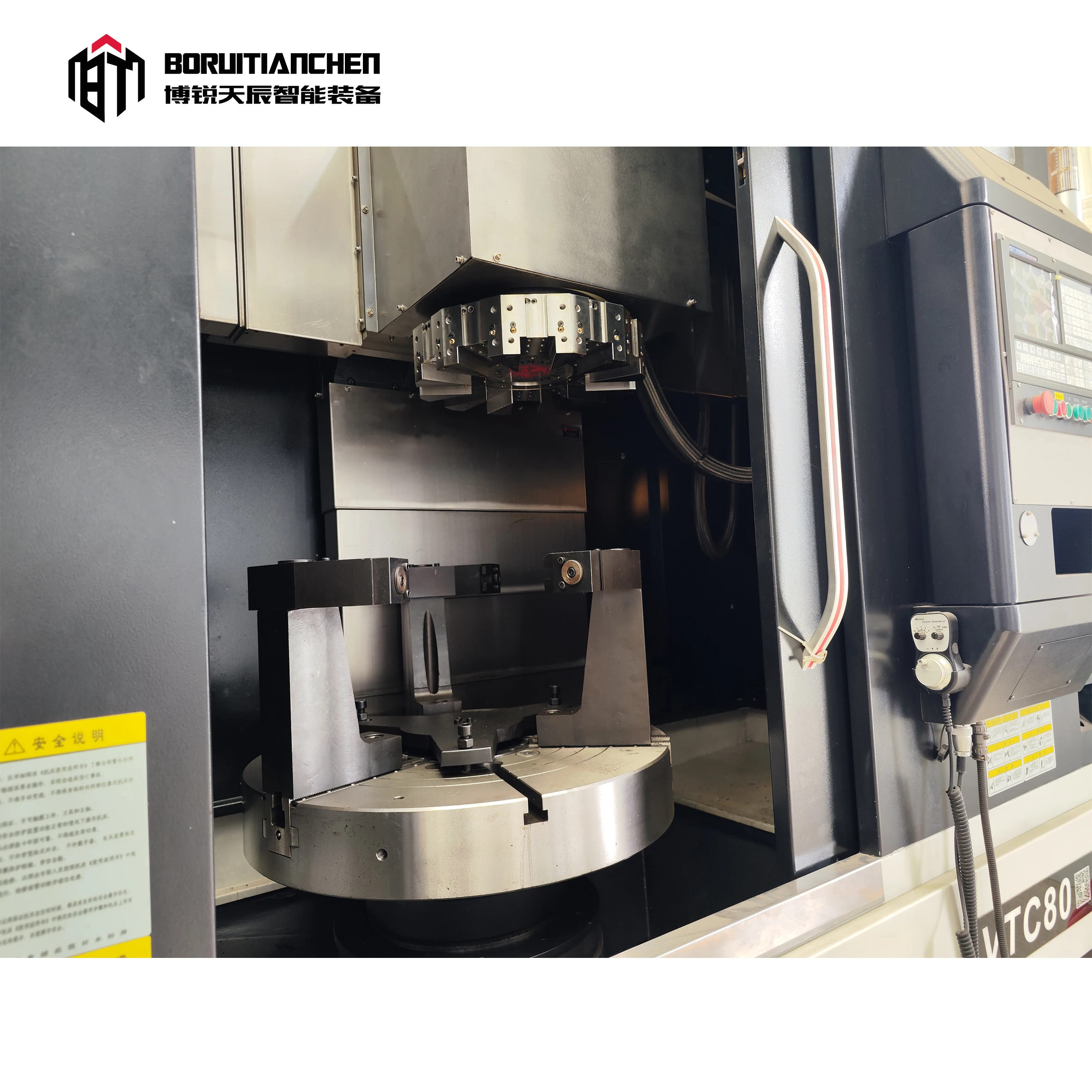

3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,heavy-duty cutting, and high-speed cutting.
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,heavy-duty cutting, and high-speed cutting.
Product Parameters
SPECIFICATIONS | Units | VTC50 | VTC60 | VTC70 | VTC80A | VTC100A | ||||
X axis travel | mm | -50-300 | -50-625 | -50-650 | -50-650 | -50-820 | ||||
Y axis travel | mm | 120-620 | 65-715 | 130-830 | 50-950 | 60-1110 | ||||
Max.swing diameter | mm | 650 | 650 | 800 | 1000 | 1200 | ||||
Max.turning diameter | mm | 500 | 600 | 700 | 800 | 1000 | ||||
Max. cutting height | mm | 500 | 600 | 700 | 900 | 1000 | ||||
Spindle speed range | rpm | 100-1000 | 100-1000 | 100-800 | 100-800 | 100-800 | ||||
Spindle motor | kw | 15 | 18.5 | 22 | 22 | 37 | ||||
Spindle outer diameter | mm | 130 | 160 | 160 | 180 | 200 | ||||
Chuck type and diameter | Inch | Hydraulic chuck 15” | Hydraulic chuck 18” | Hydraulic chuck 21” | Hydraulic chuck 24” | Hydraulic chuck 32” | ||||
Turret type | 4-station,8-station(optional) | |||||||||

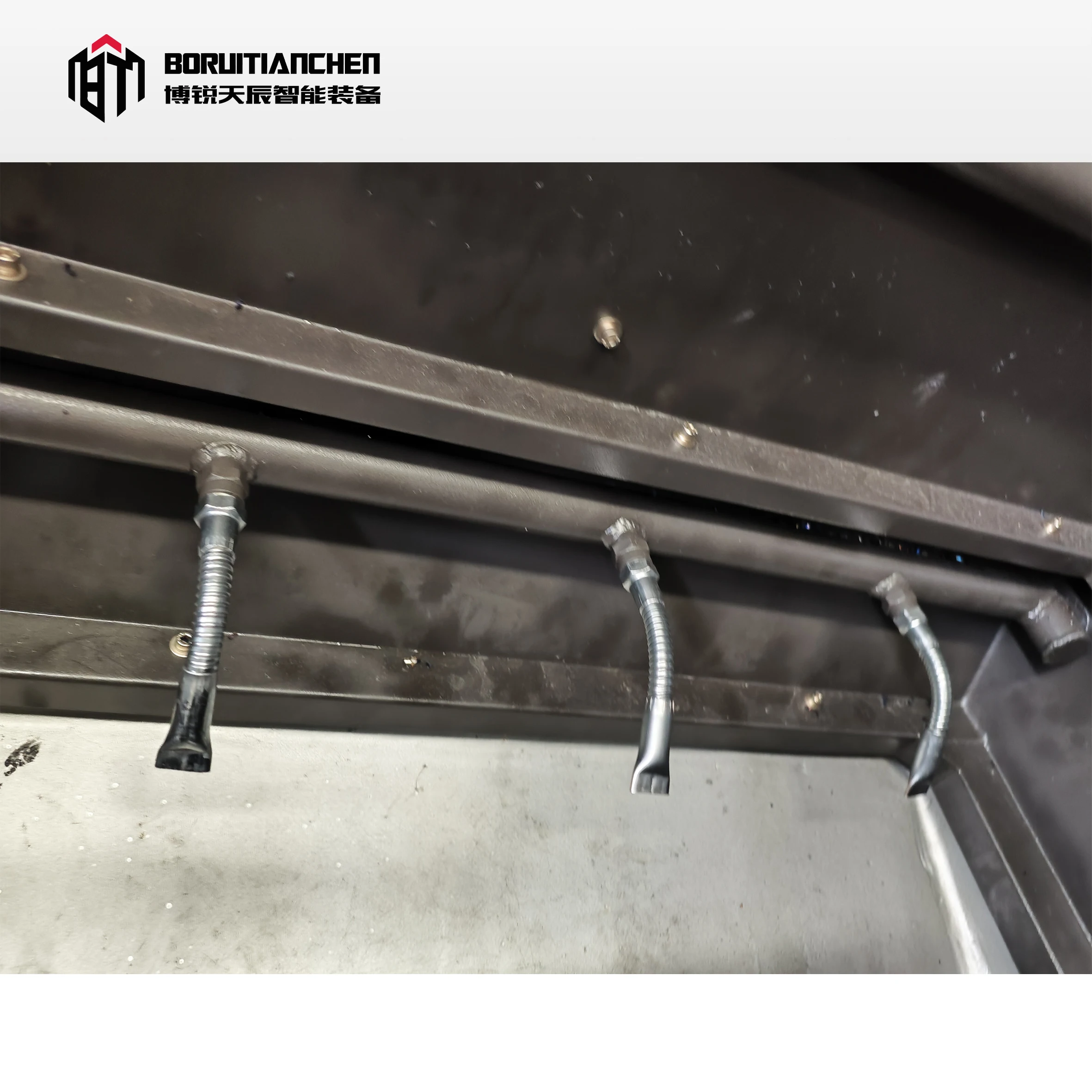

Coolant motor | w | 450+450 | 450+450 | 450+750 | 450+750 | 750+750 | ||||
Pump output | M3/h | 2m³/h | 2m³/h | 4m³/h | 4m³/h | 4m³/h | ||||
Positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.008 | ±0.008 | ||||
Repeat positioning accuracy | mm | ±0.01 | ||||||||
Overall dimensions | mm | 2100x2500x2750 | 1710x2050x2910 | 2400x1800x3200 | 2400x2100x3600 | 2800x2400x3870 | ||||
Machine weight | kgs | 5500 | 7500 | 8000 | 9000 | 11000 | ||||
Product Details
Recommend Products
Company Profile
Product Packaging
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
A: MOQ is one set, and warranty is one year.
2.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
3. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
4.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
5. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
A : FOB, CFR,CIF or others terms are all acceptable.
6. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
