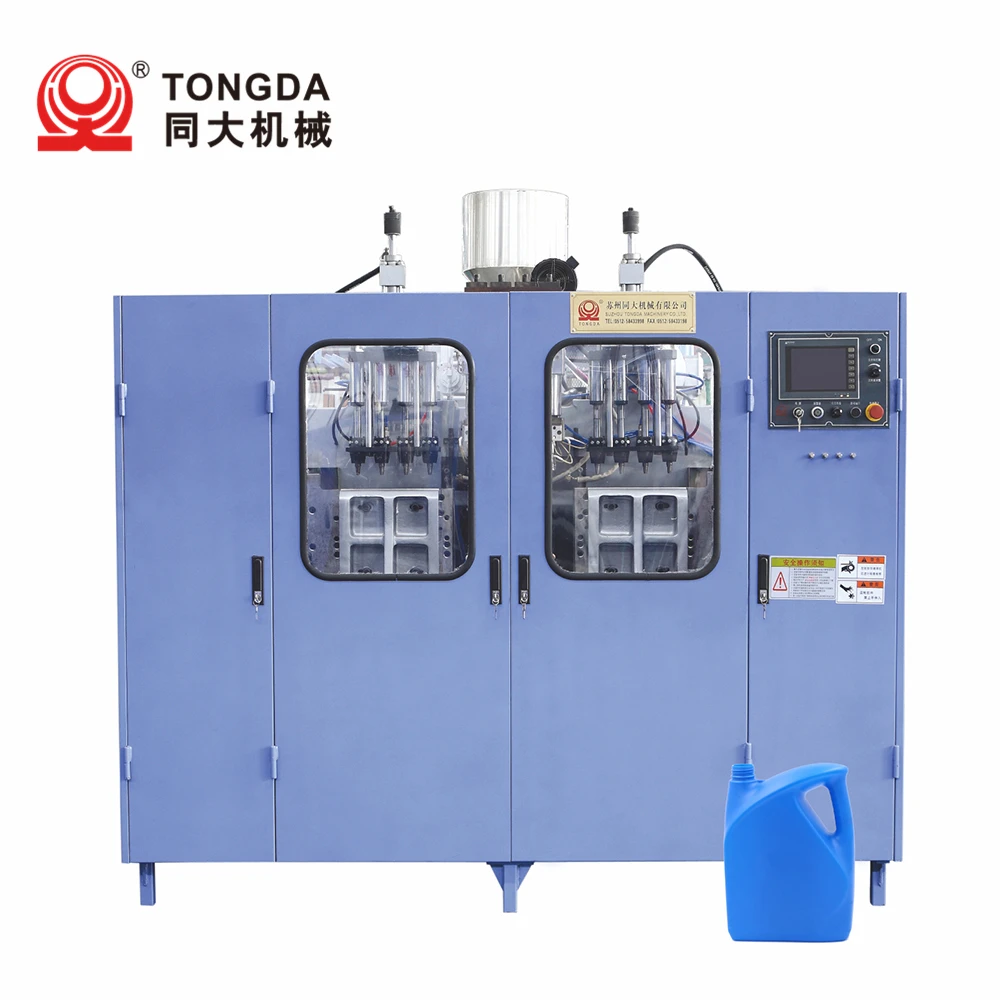

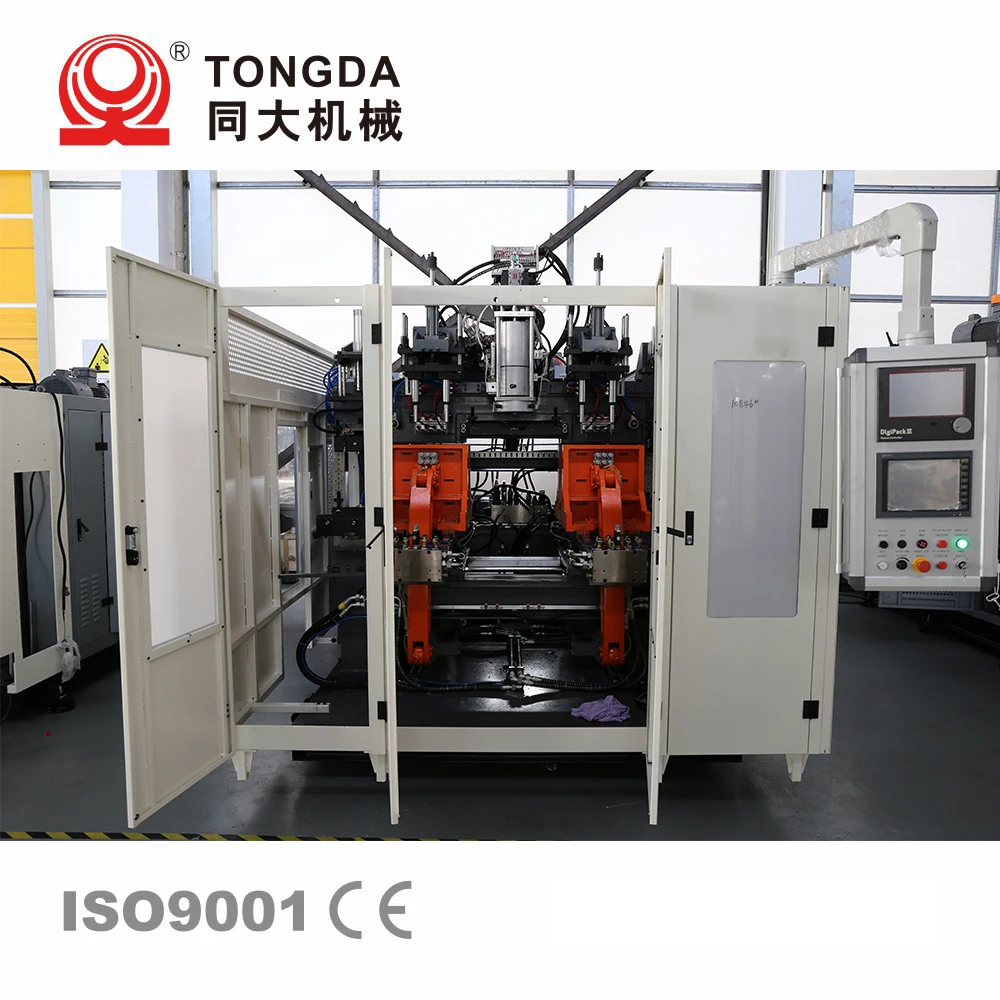

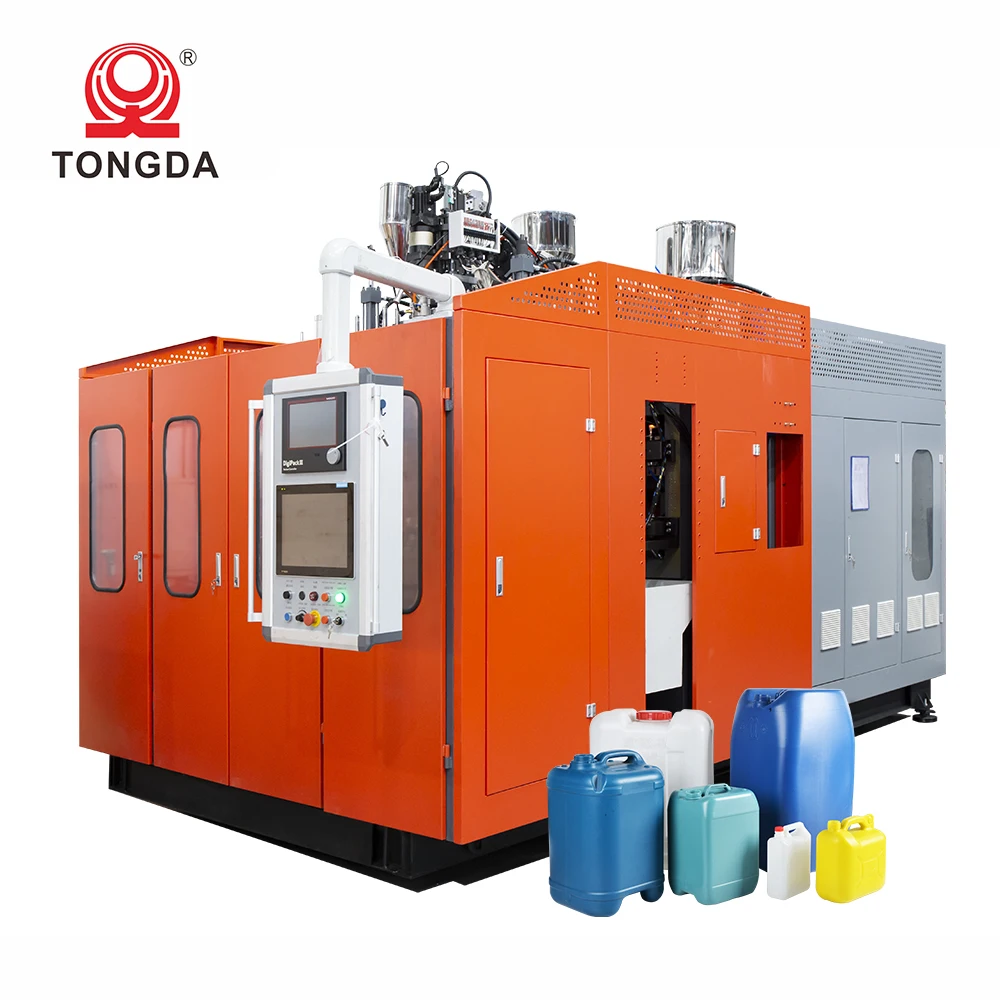

TONGDA HSll5L 5Liter Blow Molding Machine Double Station Blowing Moulding Machinery Price Plastic Blowing Machine
- Category: >>>
- Supplier: Suzhou Tongda Machinery Co. Ltd.
Share on (1600780380693):
Product Overview
Description
Products Description

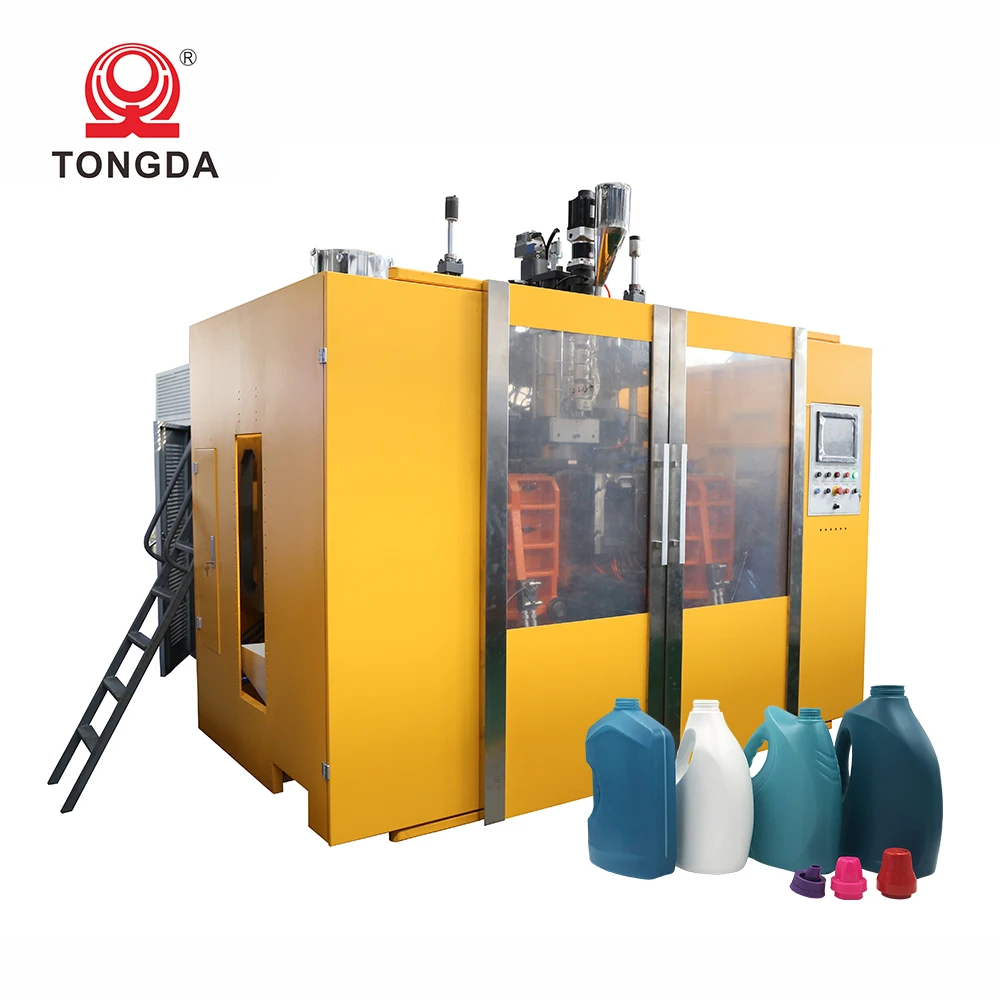

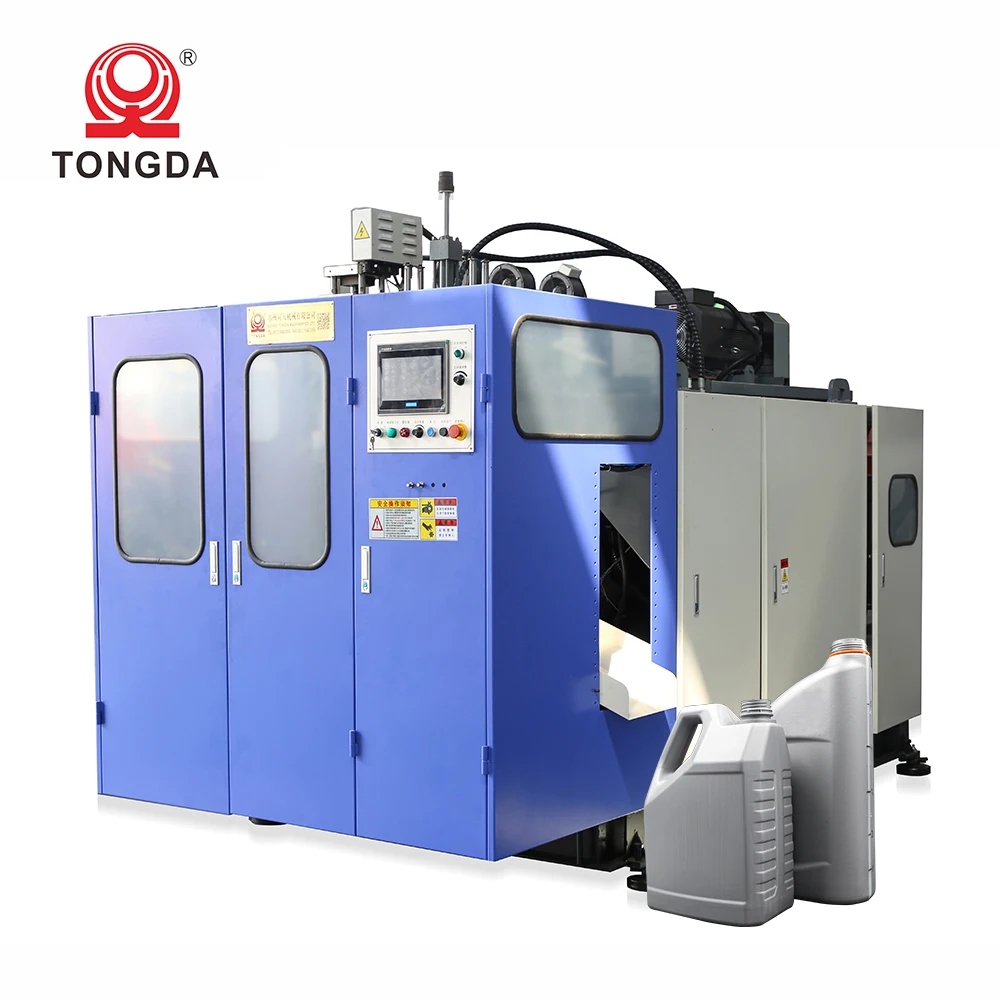

HSll-5L

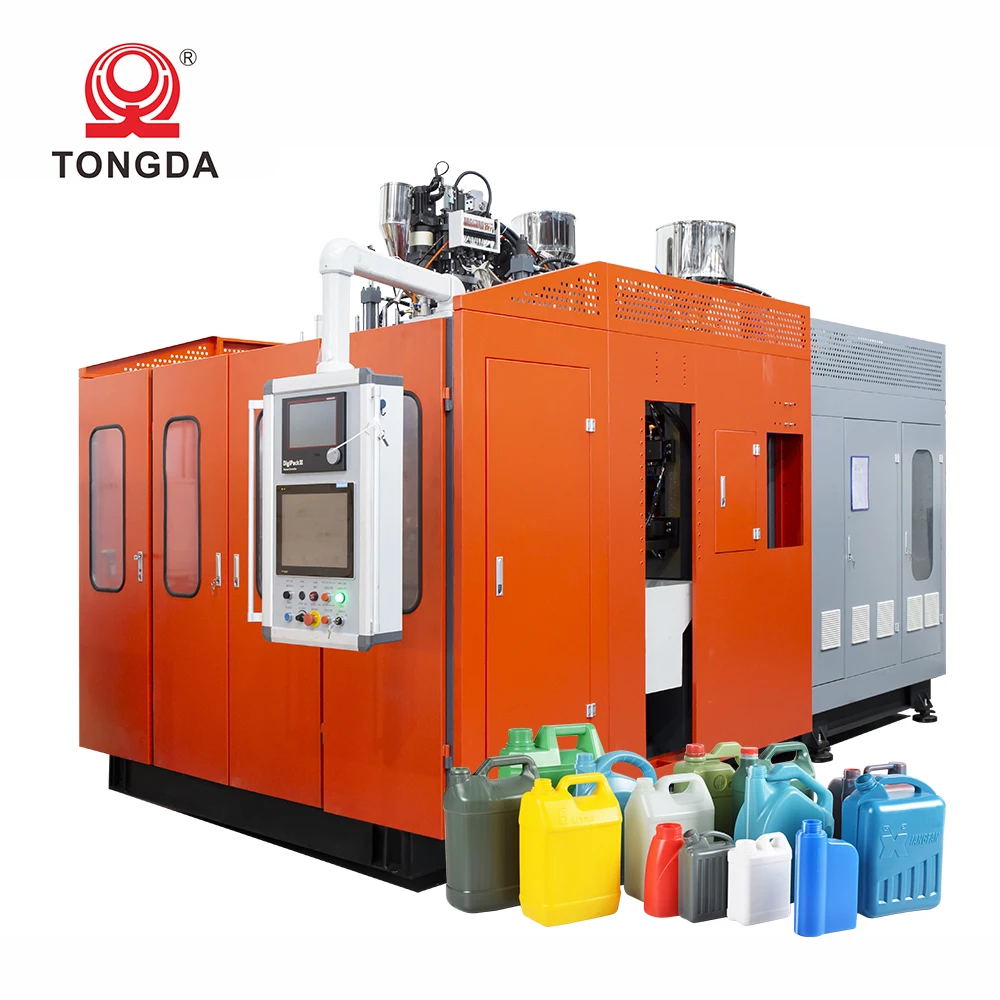

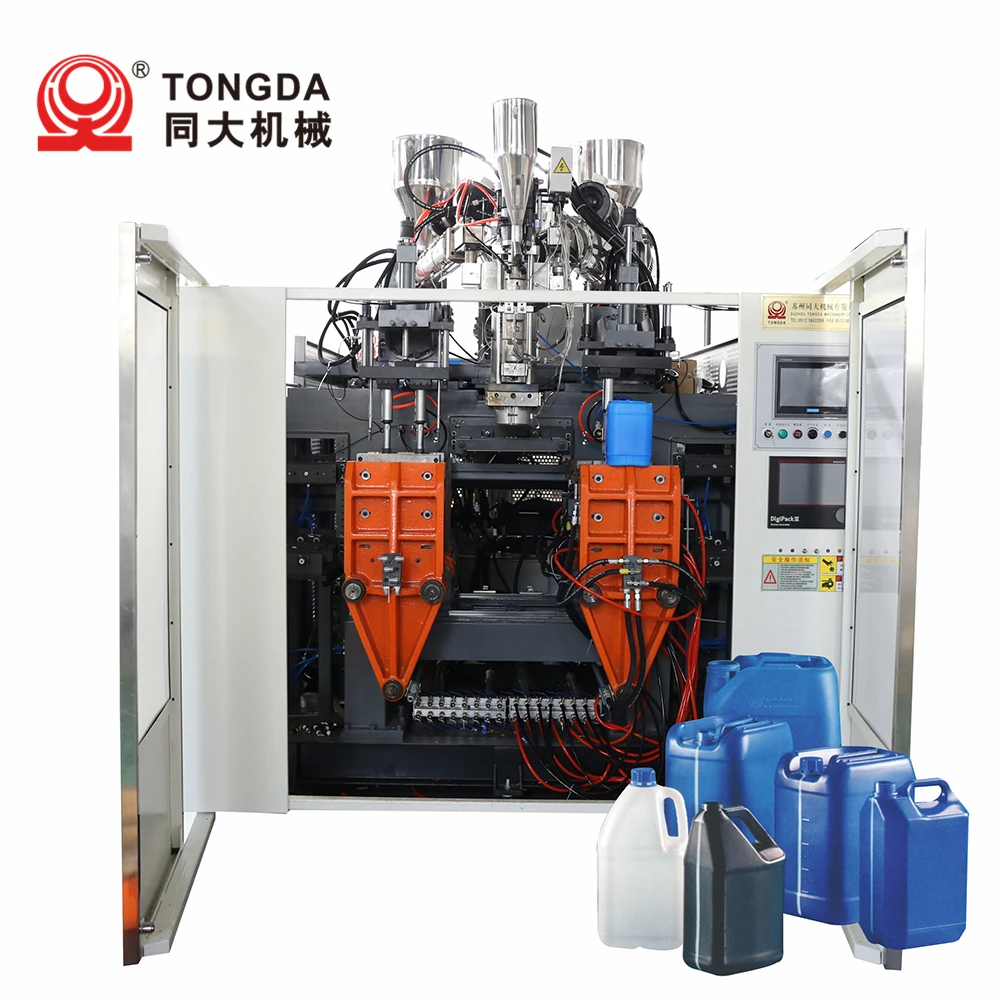

This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for jerry can.It can be also equipped with several die-heads and then to make the small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Specification | ||||||
Station | Double | |||||
Max.product volume | L | 5 | ||||
Dry cycle | pc/h | 900*2 | ||||
Output of HDPE | kg/h | 110 | ||||
Weight of machine | kg | 9000 | ||||
Size of machine(L*W*H) | m | 4.5*2.7*3.1 | ||||
Die head | ||||||
Max.die diameter | mm | 145 | ||||
Die head heating | kw | 10.7 | ||||
Die head heating zone | 5 | |||||
Clamping Unit | ||||||
Platen distance | mm | 220~550 | ||||
Mold moving stroke | mm | 490 | ||||
Clamping force | kn | 110 | ||||
Extruder Unit | ||||||
Screw diametre | mm | 80 | ||||
Screw length/diametre ratio | 25 | |||||
Screw heating power | kw | 19 | ||||
No.of heating zone | 4 | |||||
Power Unit | ||||||
Oil pump motor power | kw | 16.5 | ||||
Screw motor power | kw | 30 | ||||
Total power | kw | 80 | ||||
Remarks | ||||||
Air consumption | m³/min | 0.8 | ||||
Blow pressure | Mpa | 0.6 | ||||
Cooling water pressure | Mpa | 0.3 | ||||
Water consumption | L/min | 60 | ||||
Max size of mold(W*H) | mm | 480*450 | ||||

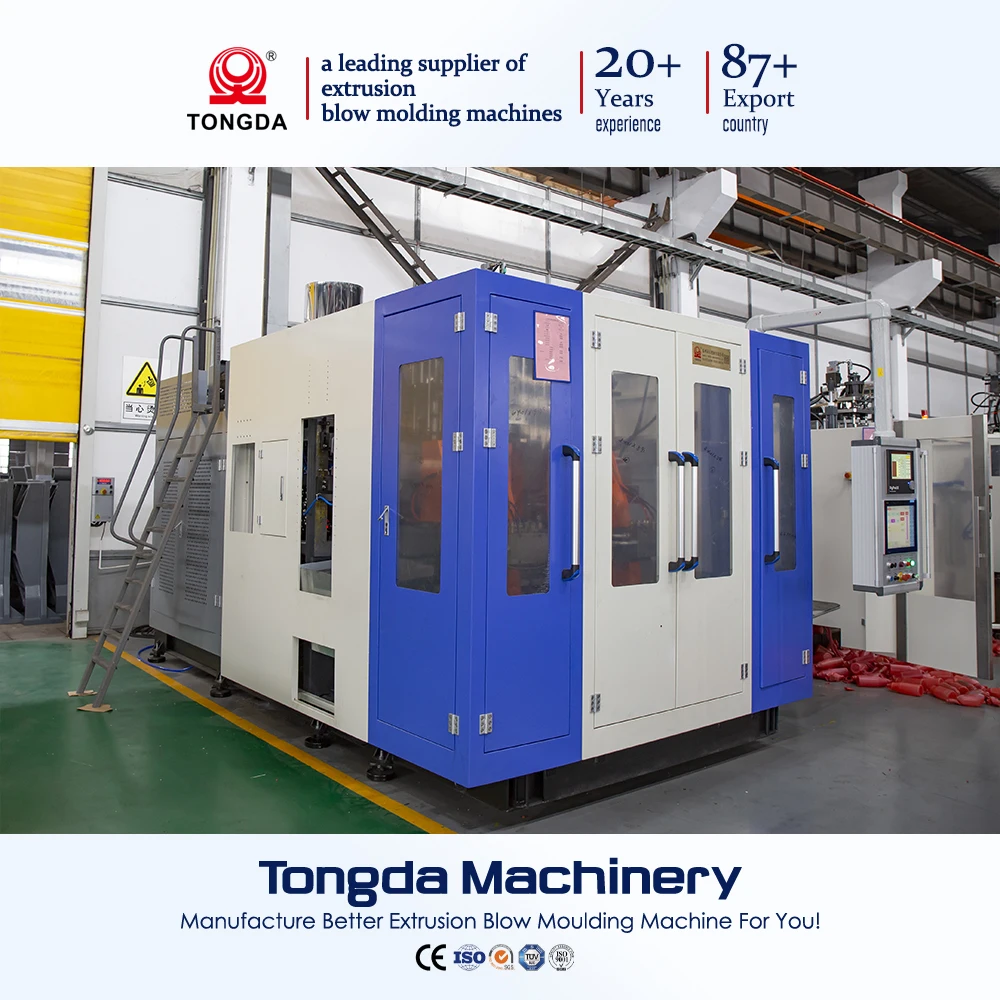

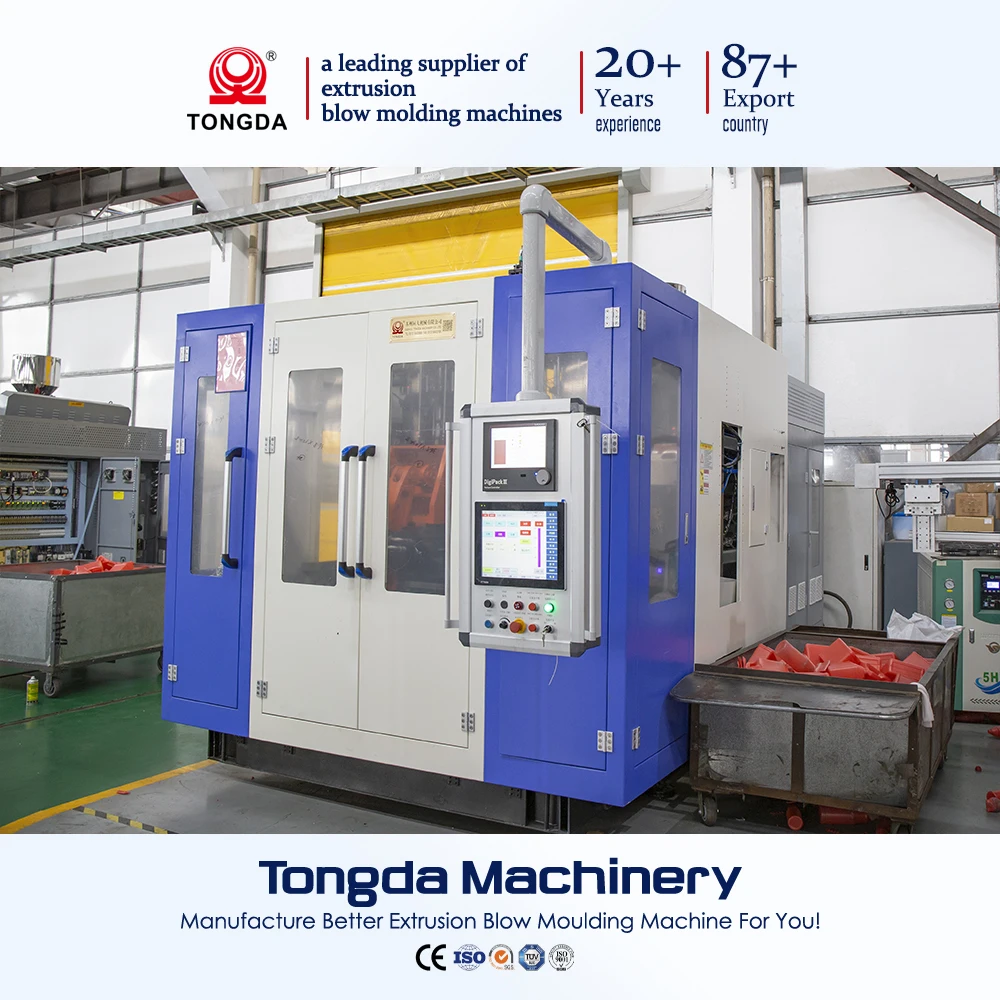

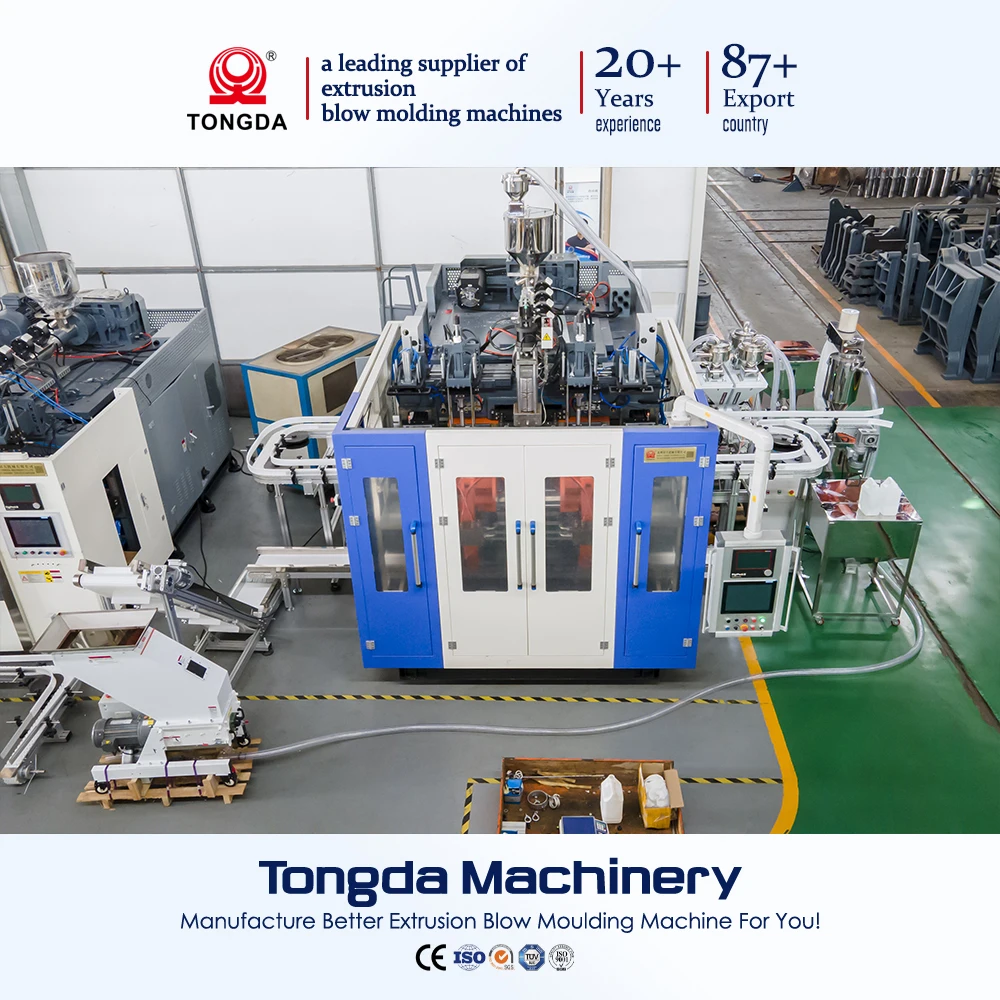

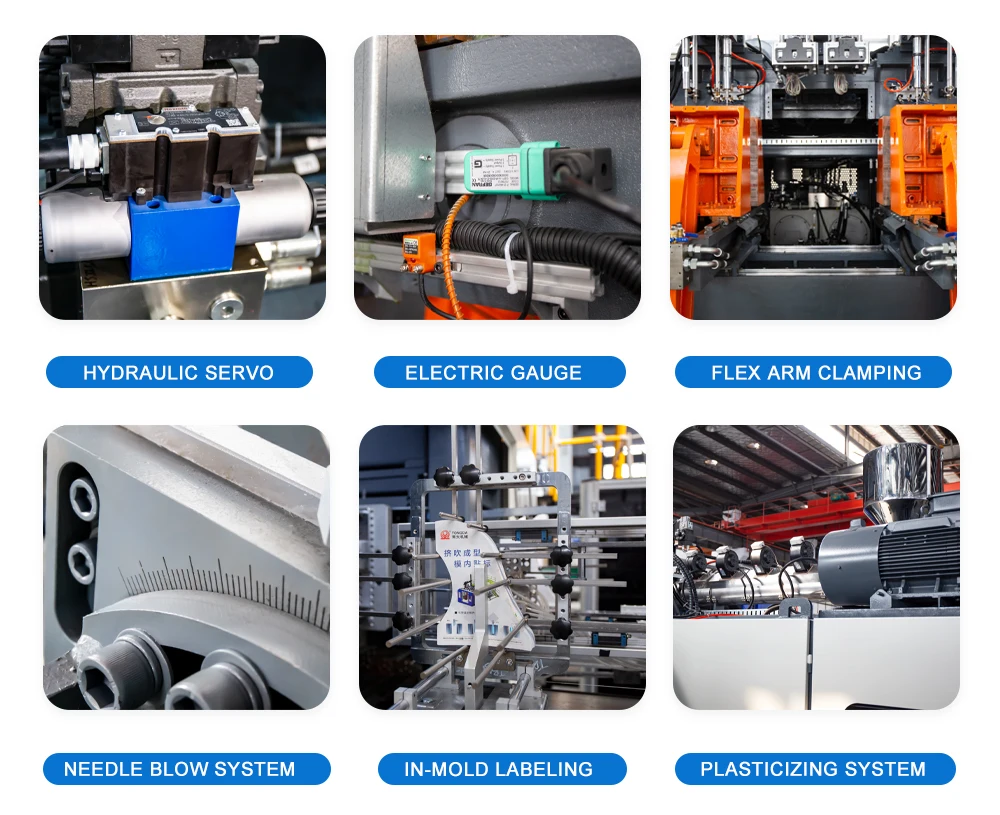

Machine Details
Our Advantages

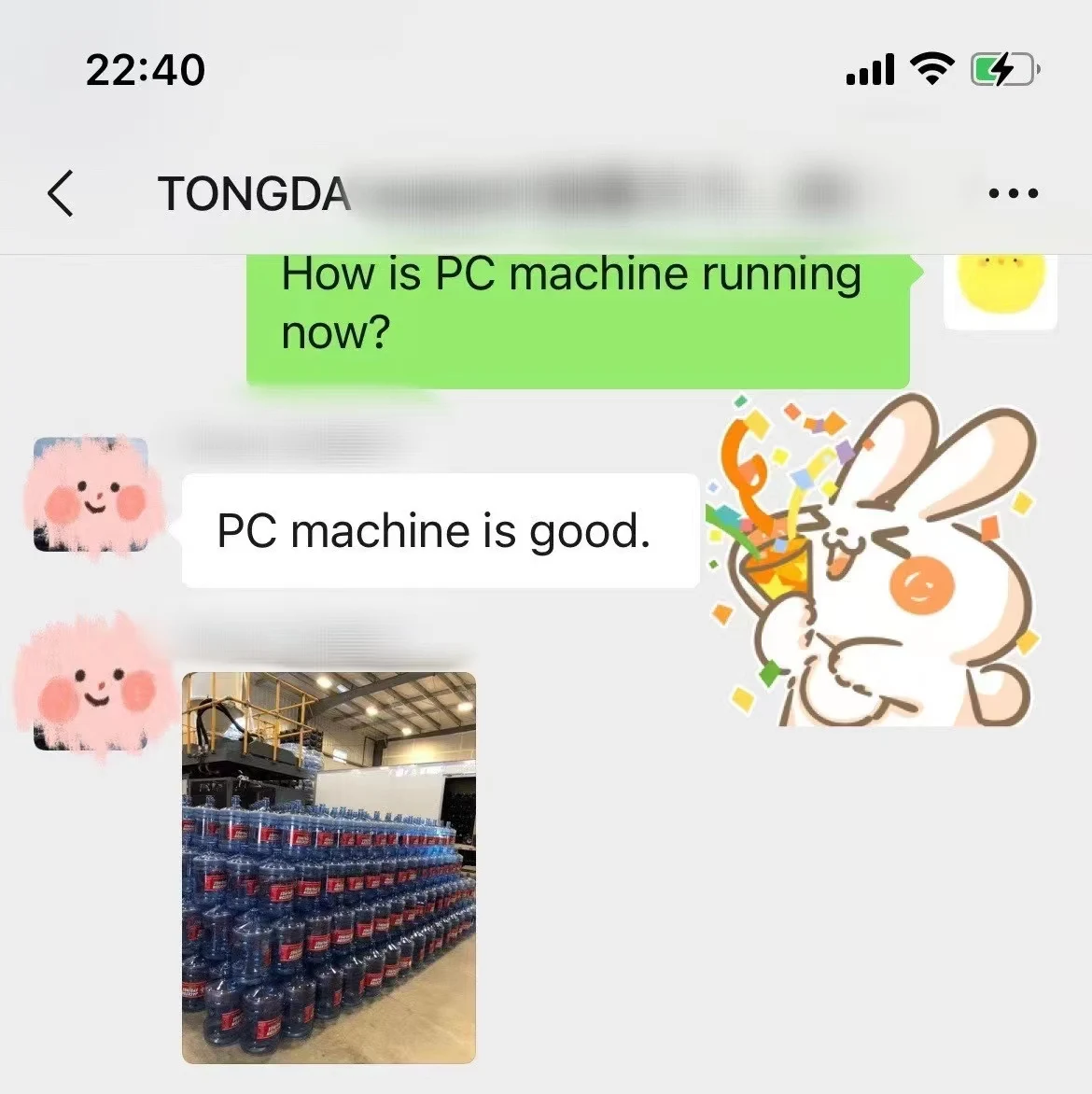

After-sales service
Recommend Products
Company Information

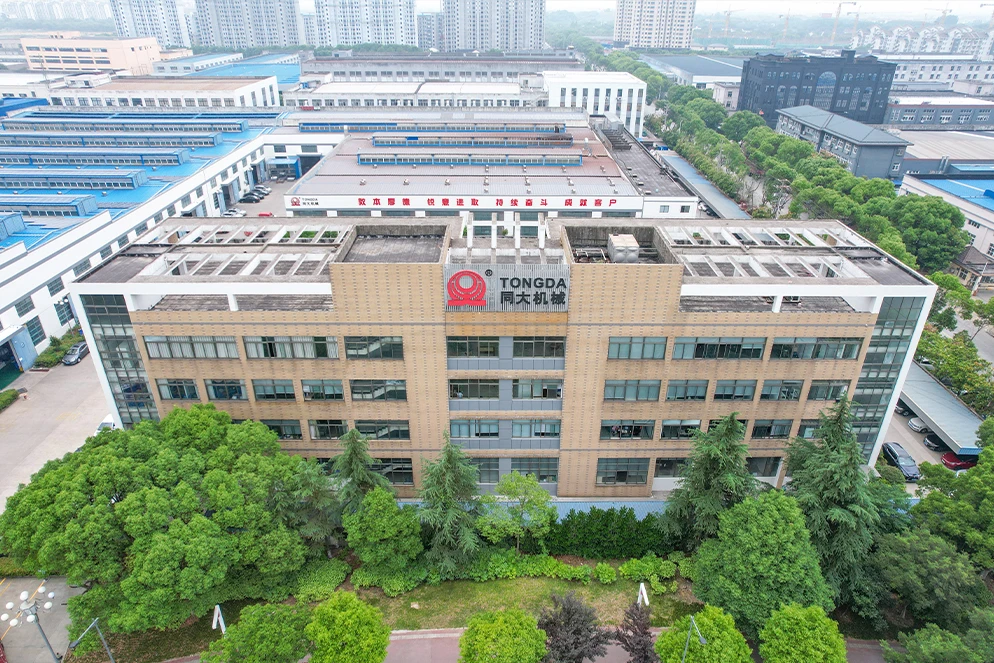

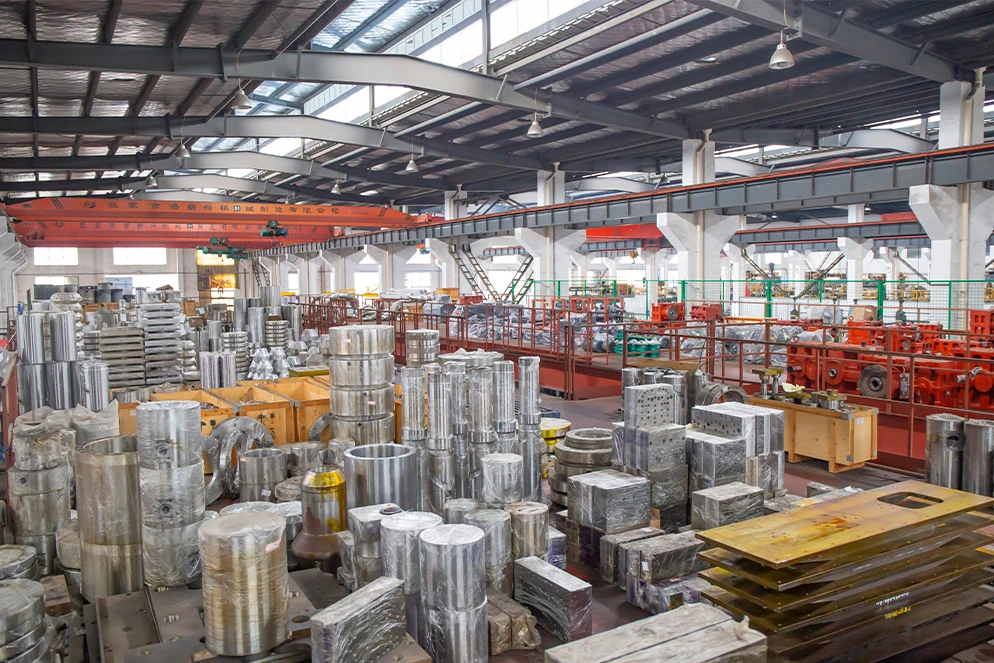

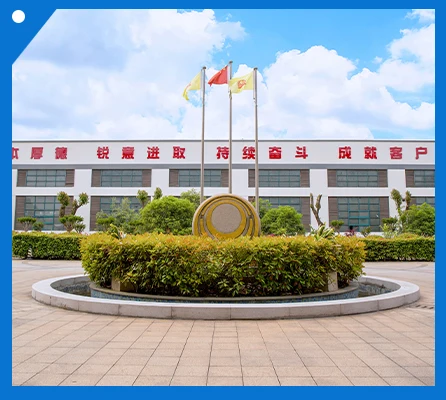

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.

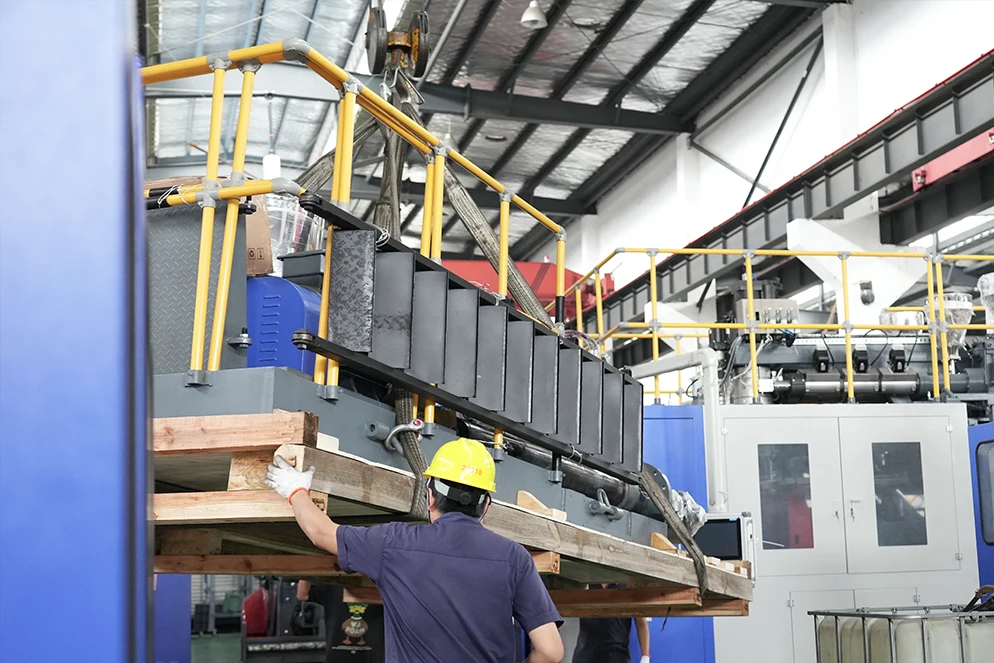

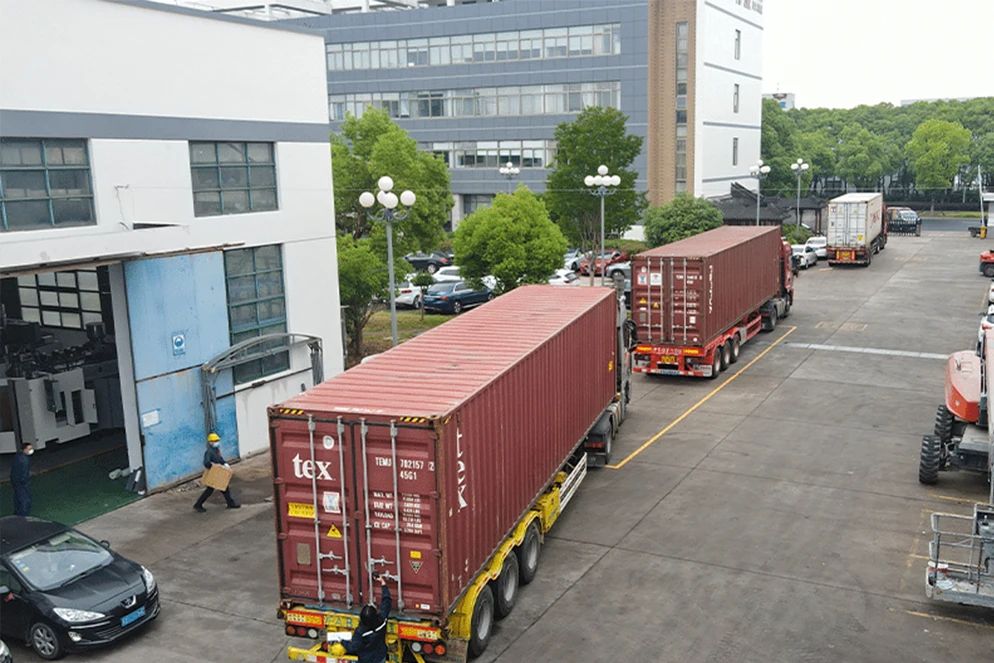

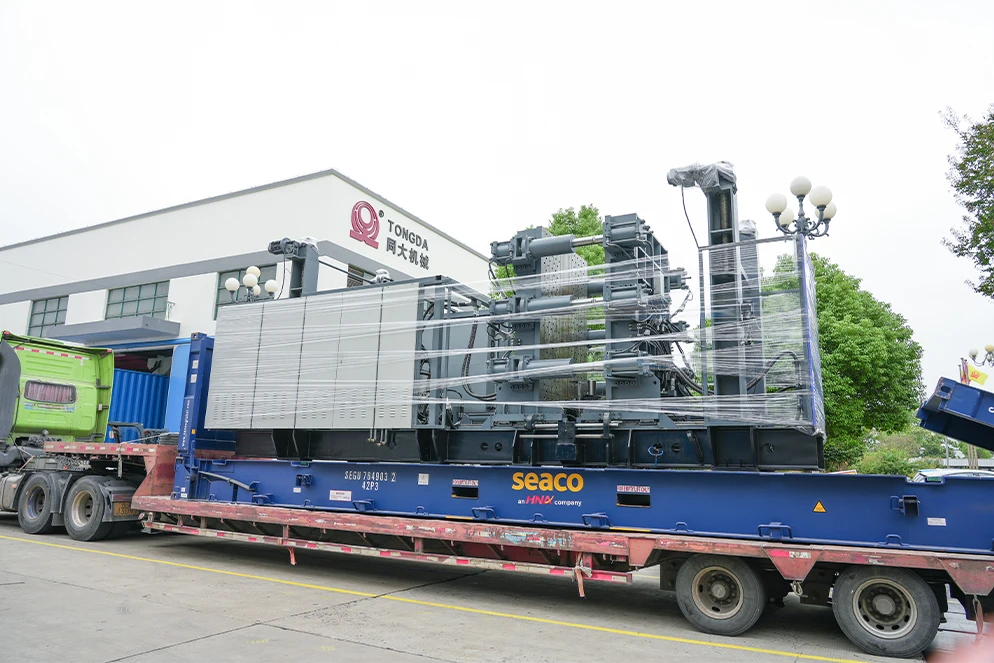

Product packaging

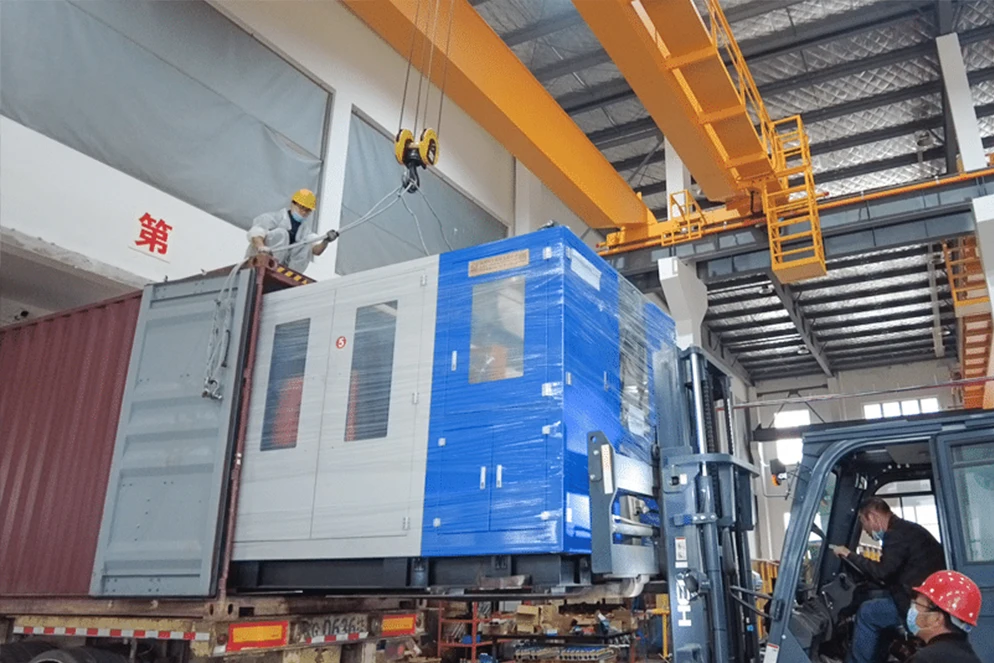

Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional blow molding machinery company we will try our best to satisfy the kinds of demand of customers.
Why Choose Us

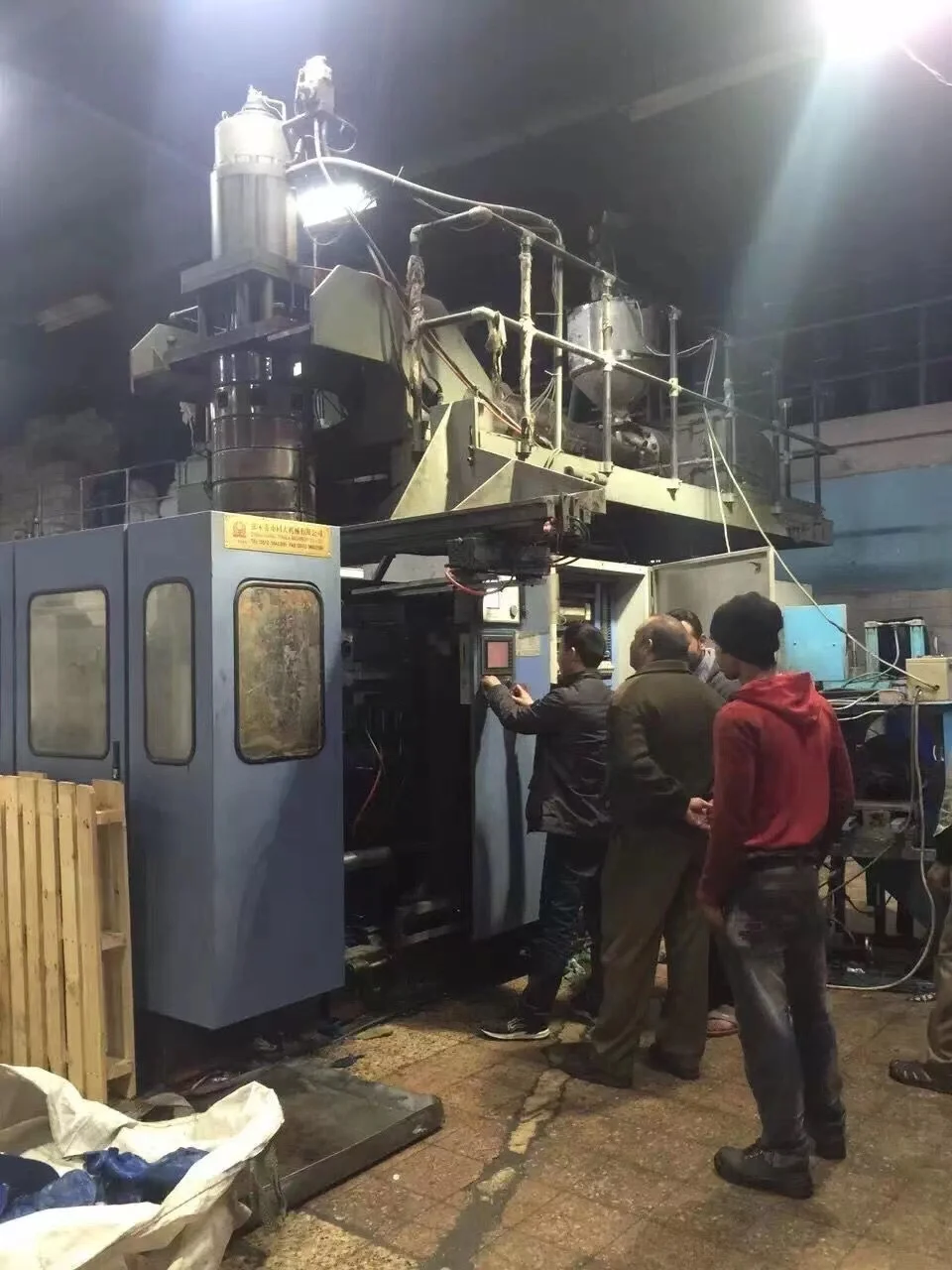

Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia,Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia,Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customerswith high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia,Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customerswith high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
