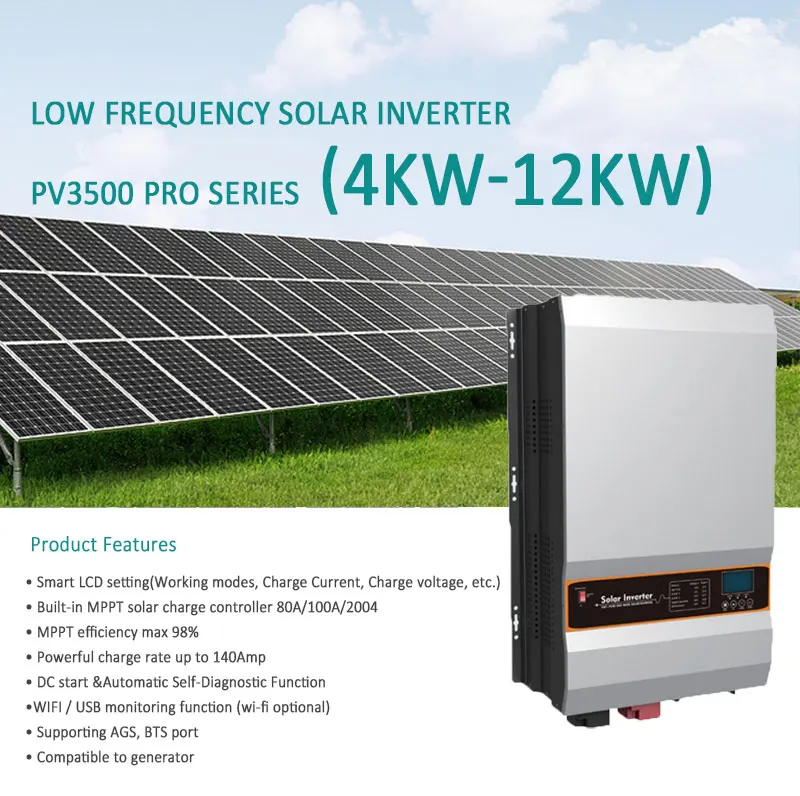

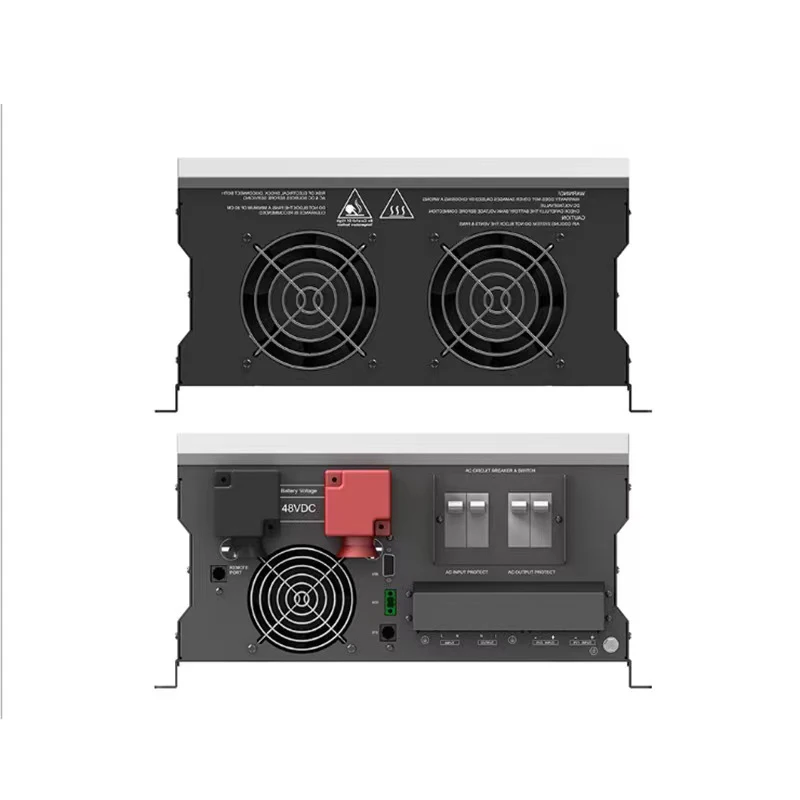

110V to 220V Solar Inverter with Power 10kw Solar Hybrid Inverter Lifepo4 Battery bms Wholesale Price Inverter For Solar Panel
- Category: >>>
- Supplier: Gansu Times Power Technology Development Co. Ltd.
Share on (1600780458668):
Product Overview
Description
Product Description
Product parameters
Model | 4k | 5k | 6k | 8k | 10k | 12k | ||||||||||
Rated battery voltage | 24v | 48v | 24v | 48v | 48v | 48vdc | 48vdc | 48vdc | ||||||||
Inverter Output | Rated Power | 4kw | 5kw | 6kw | 8kw | 10kw | 12kw | |||||||||
Surge rating | 12000VA | 15000VA | 18000VA | 24000VA | 30000VA | 36000VA | ||||||||||
Starter motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||||||||||
Waveform | Pure sine wave / same as input (bypass mode) | |||||||||||||||
Nominal output voltage RMS | 220V/230V/240VAC (earth 10% RMS) | |||||||||||||||
Output frequency | 50Hz/60Hz±0.3Hz | |||||||||||||||
Inverter efficiency (peak) | >85% | >88% | ||||||||||||||
Online mode efficiency | >95% | |||||||||||||||
Power factor | 1.0 | |||||||||||||||
Conversion time | 20ms(max) | |||||||||||||||
AC input | voltage | 230VAC | ||||||||||||||
Optional voltage range | 90-280VAC (APL) | |||||||||||||||
Frequency range | 50Hz/60Hz | |||||||||||||||
Battery | voltage low cut-off | 20-24VDC for 24VDC floor mode (40-48VDC for 48VDC mode) | ||||||||||||||
Low battery voltage recovery | 24VDC mode for 21-25VDC (48VDC mode for 42-50VDC) | |||||||||||||||
Battery high voltage cut-off | 24VDC mode for 30VDC (48VDC mode for 60VDC) | |||||||||||||||
Battery voltage high recovery | 24VDC mode is 28.5VDC (48VDC mode is 57VDC) | |||||||||||||||
Power saving mode | <30W when energy saver is on | <80W when energy saver is on | ||||||||||||||
AC charger | Output voltage | Depends on battery type | ||||||||||||||
charger AC input new circuiter rating | 40A | 40A | 50A | 50A | 80A | 80A | ||||||||||
Overcharge protection S.D | 24VDC 31.4VDC for SD mode (62.8VDC for 48VDC mode) | |||||||||||||||
Maximum charge current | 80A | 60A | 100A | 70A | 80A | 100A | 120A | 140A | ||||||||
Base station | Continuous output powe | is the change of charging voltage and SD call depending on the temperature of standing oil | ||||||||||||||
Bypass protection | Input voltage waveform | Sine wave (grid or generator) | ||||||||||||||
Nominal input frequency | 50Hz or 60Hz | |||||||||||||||
Overload protection (SMPS load) | Circuit breaker | |||||||||||||||
Output short circuit protection | Circuit breaker | |||||||||||||||
Bypass new circuit breaker rating | 40A | 63A | 63A | 63A | ||||||||||||
Maximum bypass current | 40Amp | 80Amp | ||||||||||||||
Solar charger | Maximum PV charging current | 80A | 100A (200A optional) | |||||||||||||
DC voltage | 24V/48V automatic operation | 48V | ||||||||||||||
Max PV array power | 2000W | 4000W | 2000W | 4000W | 4000W | 5000w(10000W for 200A optional) | ||||||||||
MPPT range @ operating voltage(VDC) | 32-145VDC for 24V mode, 64-145V for 48V mode | 64-145VDC | ||||||||||||||
Maximum PV array open circuit voltage | 145VDC | |||||||||||||||
Maximum efficiency | >98% | |||||||||||||||
Standby power consumption | <2W | |||||||||||||||
Mechanical specifications | Mounting method | Wall-mounted | ||||||||||||||
Dimension(W*H*D)(mm) | 620*385*215 | 670*410*215 | ||||||||||||||
Net weight(PV charging)(kg) | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | ||||||||||
Package size(W*HD)(mm | 755*515*455 | 884*618*443 | ||||||||||||||
Gross weight(PV charging)(kg) | 56 | 61 | 64 | 82.5+2.5 | 89+2.5 | 92+2.5 | ||||||||||
Other | Operating temperature range | 0°C to 40°C | ||||||||||||||
Storage temperature | -15°C to 60°C | |||||||||||||||
Noise | Max 60dB | |||||||||||||||
Display | LED+LCD | |||||||||||||||
Loading(20GP/40GP/40HQ) | 140pcs/280pcs/320pcs | |||||||||||||||

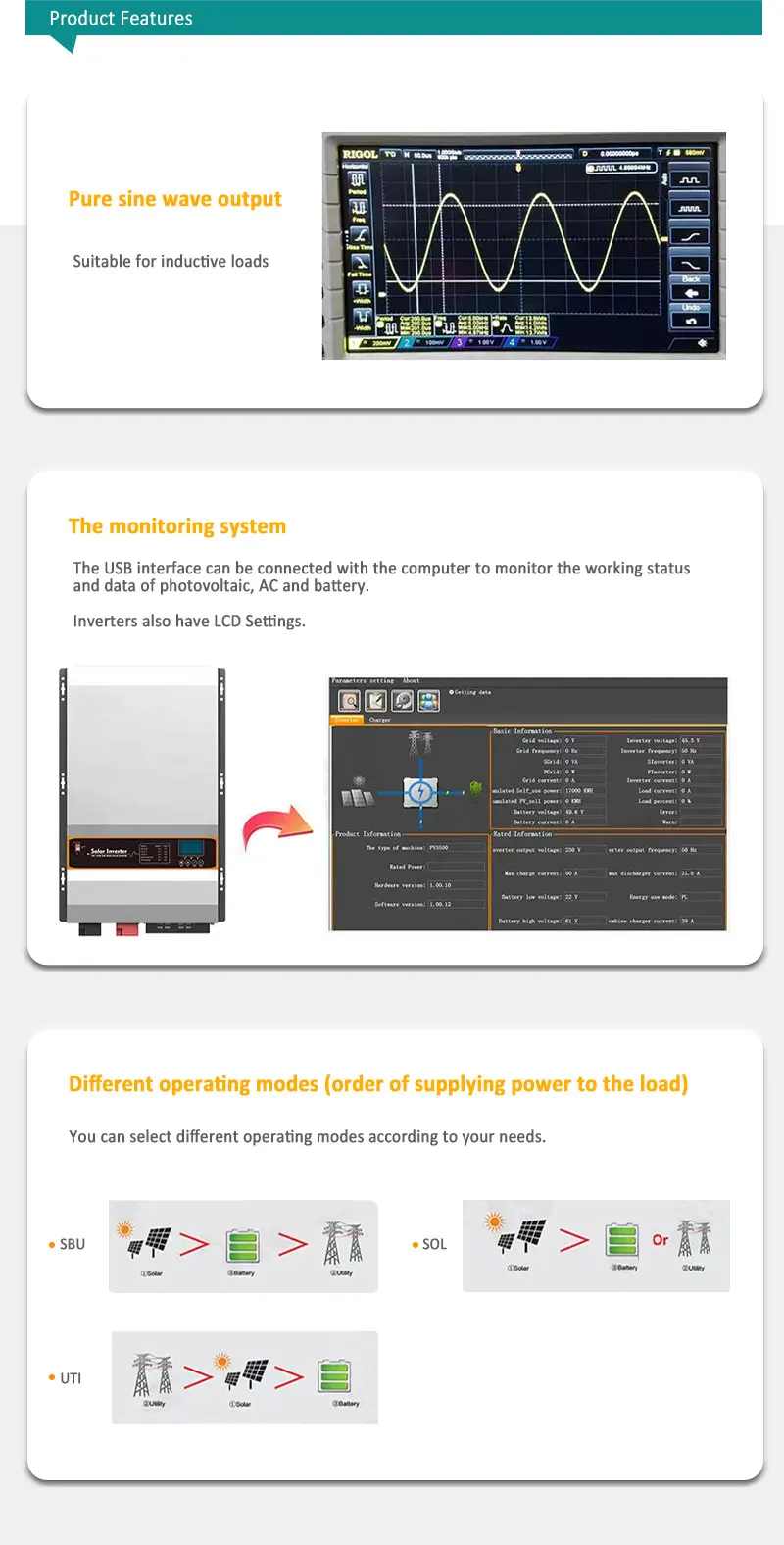

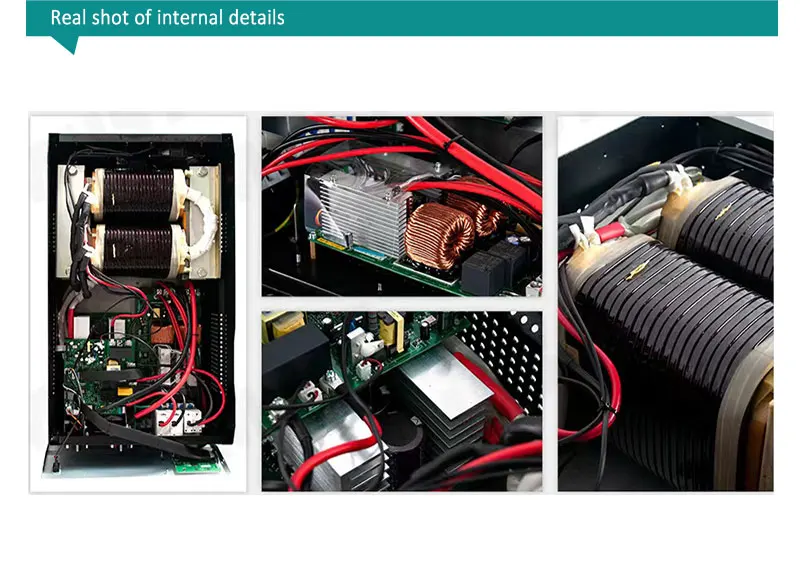

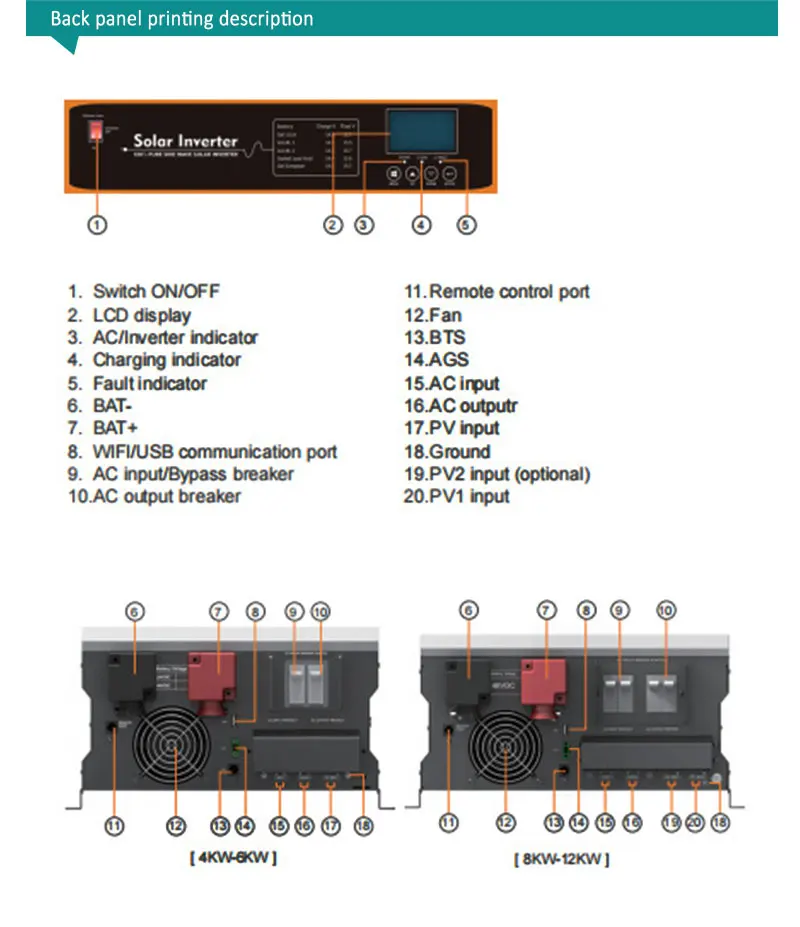

Product Details

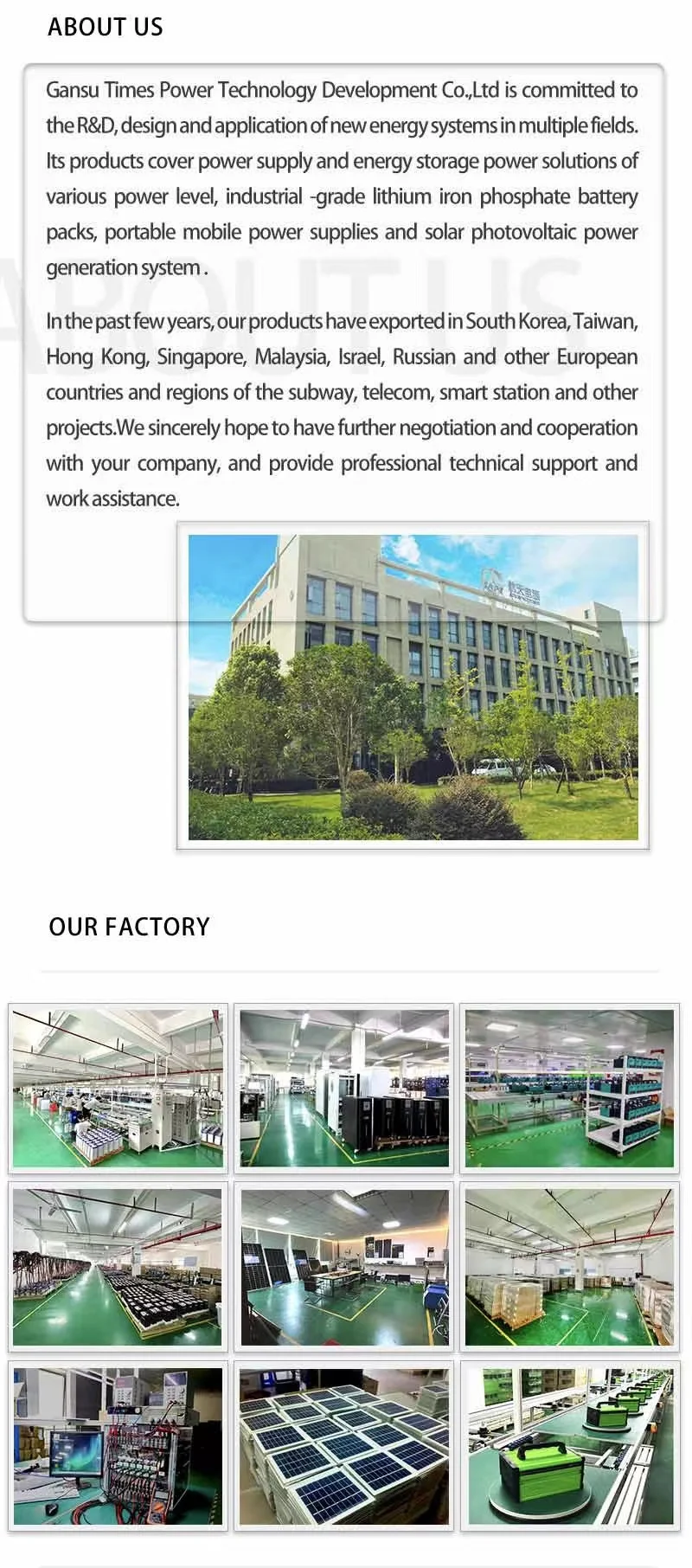

Company Profile
Exhibition
Package & Shipping
Contact us
FAQ
Q: Are you a factory or a trading company?
A: We are factory and trading company, over 6 years experience, welcome to visit.
Q: Is sample order acceptable?
A:Yes, for all batteries or battery packs, sample orders for testing quality is reasonable and acceptable.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from various big brands.And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment.
Q: What is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. The sample needs 5-10 days, mass production time needs 3-5weeks, it depends on order quantity.
Q: Is it OK to print my logo on the product?
A: Sure, please inform us formally before our production and confirm the design firstly based on our sample.
Q:How is your technical support?
A: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q: What should I do, if I don't have export experience or I have no cargo agent?
A: We have reliable forwarder agent and cooperating shipping company which can ship products to you by sea.
A: We are factory and trading company, over 6 years experience, welcome to visit.
Q: Is sample order acceptable?
A:Yes, for all batteries or battery packs, sample orders for testing quality is reasonable and acceptable.
Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from various big brands.And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment.
Q: What is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. The sample needs 5-10 days, mass production time needs 3-5weeks, it depends on order quantity.
Q: Is it OK to print my logo on the product?
A: Sure, please inform us formally before our production and confirm the design firstly based on our sample.
Q:How is your technical support?
A: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary.
Q: What should I do, if I don't have export experience or I have no cargo agent?
A: We have reliable forwarder agent and cooperating shipping company which can ship products to you by sea.
