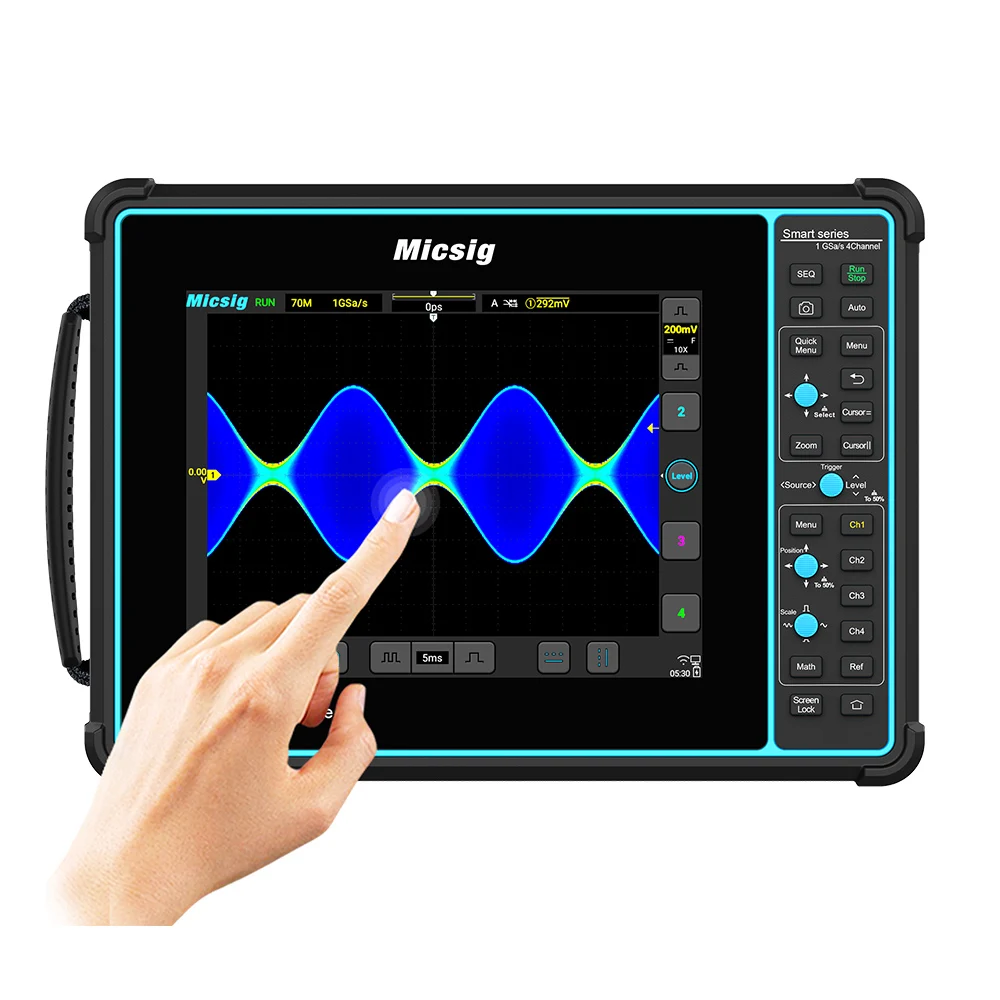

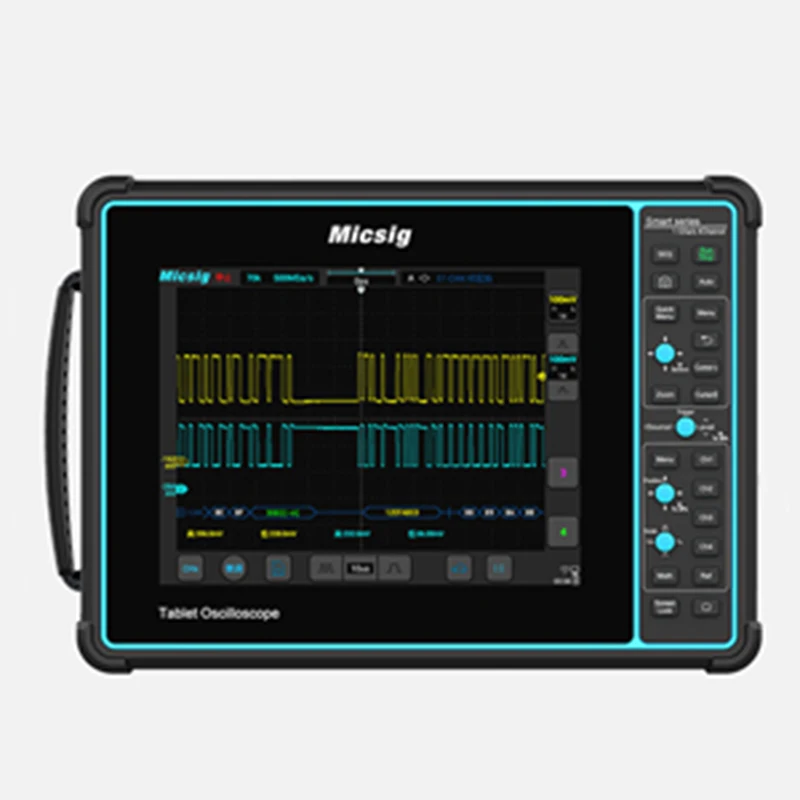

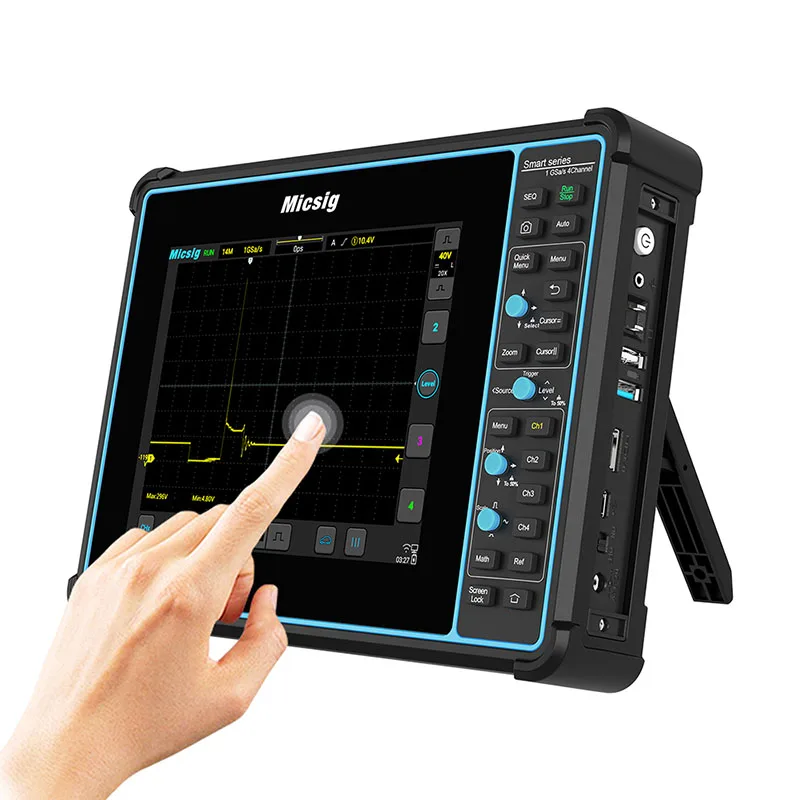

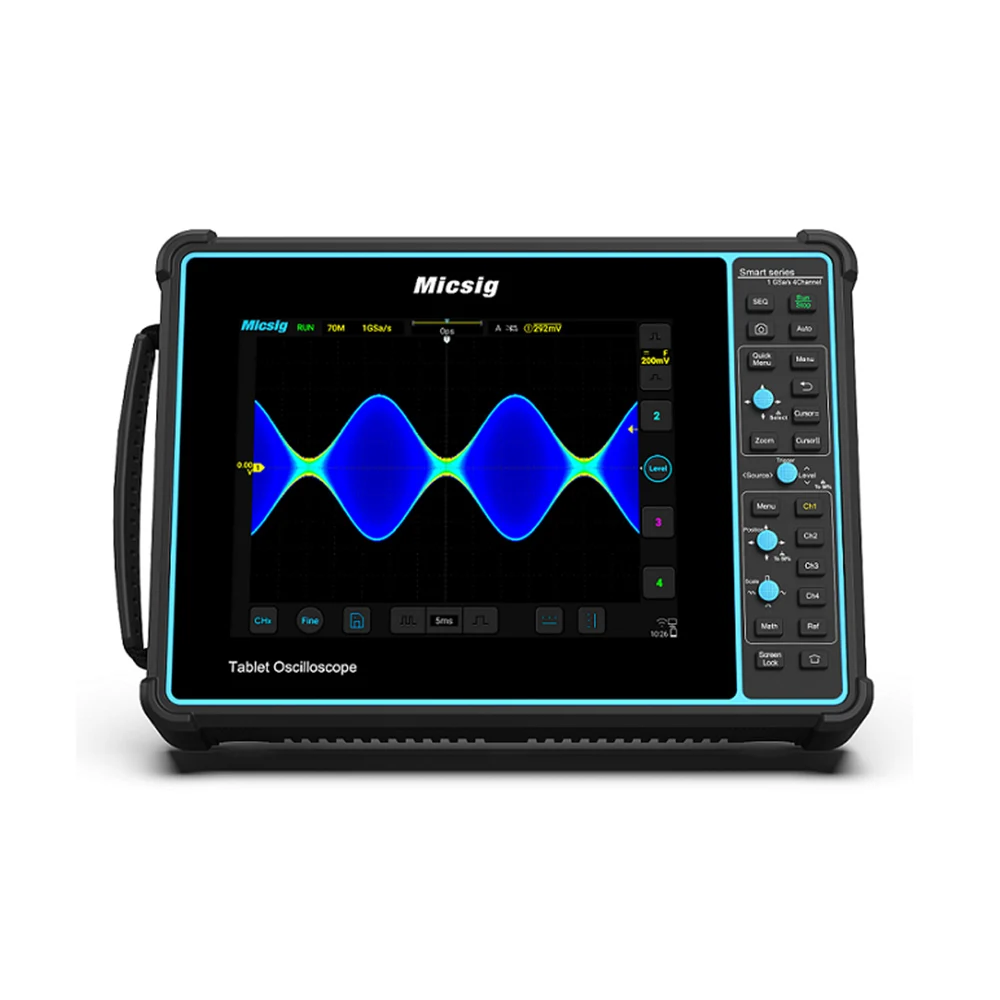

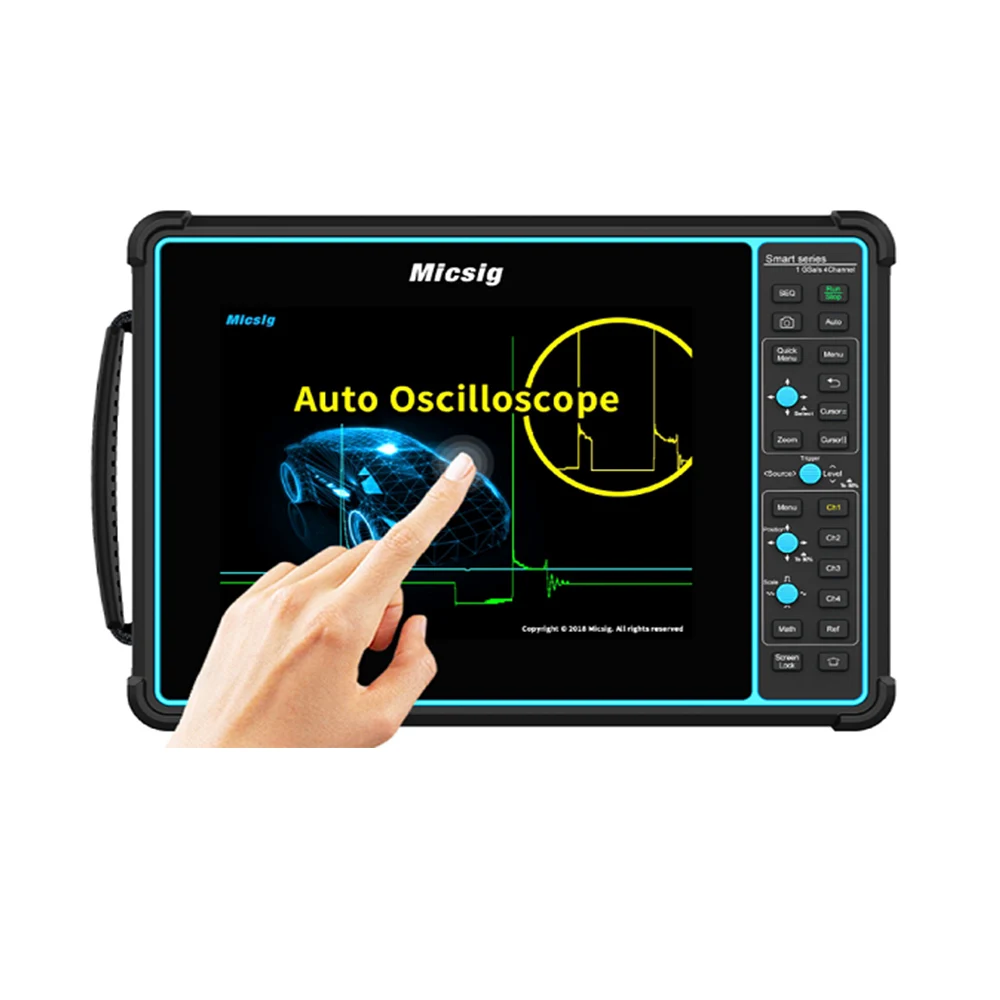

Micsig Digital Automotive Oscilloscope 100MHz 4 Channels Handheld Portable Tablet Osciloscopio With Handbag SATO1004
- Category: >>>
- Supplier: Shenzhen Xeast Technology Co. Ltd.
Share on (1600780461003):
Product Overview
Description
Handheld Portable 100 Mhz 4CH Full Touch Screen Vehicle Upgraded to SATO1004 from ATO1104 Micsig Tablet Automotive Oscilloscope
Product Description

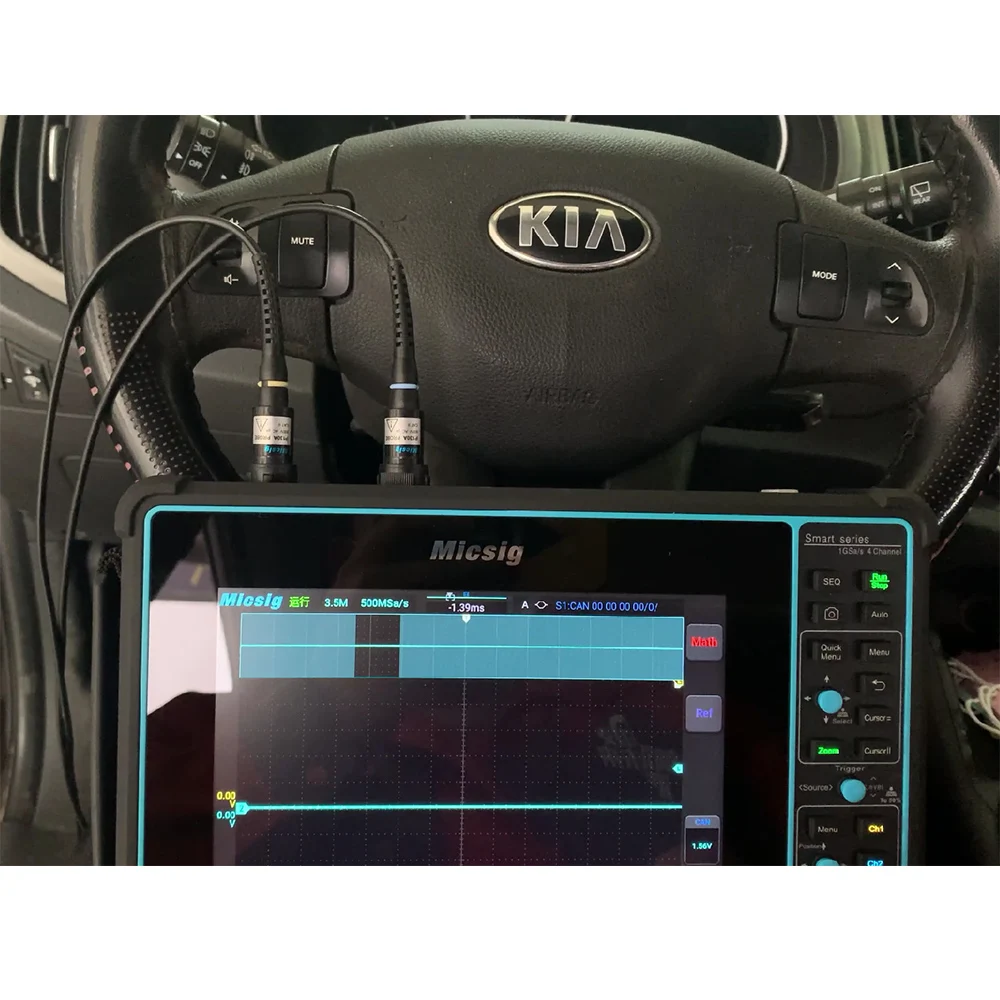

- [Excellent Performance] 100MHz bandwidth, able to test Flexray, CAN FD, LIN buses (low bandwidth scopes can not); 1G Sa/s high sampling rate, truly & clearly display signals; 70Mpts deep memory, Zoom in details off whole waveform.
- [New Upgrade] Micsig tablet oscilloscope used Android operating system, added physical button control panel, optimized automotive diagnostic software, faster CPU, smoother screen touch experience, and maintenance efficiency is greatly improved.
- [Robust Lab Performance] Engine ignition tests, SATO1004 oscilloscope able to conduct ignition system tests like COP independent ignition, single / multi-cylinder ignition, with / without distributor, and pulse ignition.
- [Connect Your Phone] Wirelessly connect smartphone, to observe signals in real time, can remote control oscilloscope without efforts.
- [Upgraded 32GB Internal Storage] SATO1004 digital automotive oscilloscope allow users to store and access mass files, such as Waveforms, Screenshots and Recorded Videos.
- Feature:
-Robust hardware design, intuitive Android operation system.
-32G internal storage to save data/videos/screenshots.
-Excellent connectivity: WiFi, HDMI, USB 3.0/2.0, Type-C.
-Support various protocol decoding: UART, CAN, LIN, SPI, I2C.

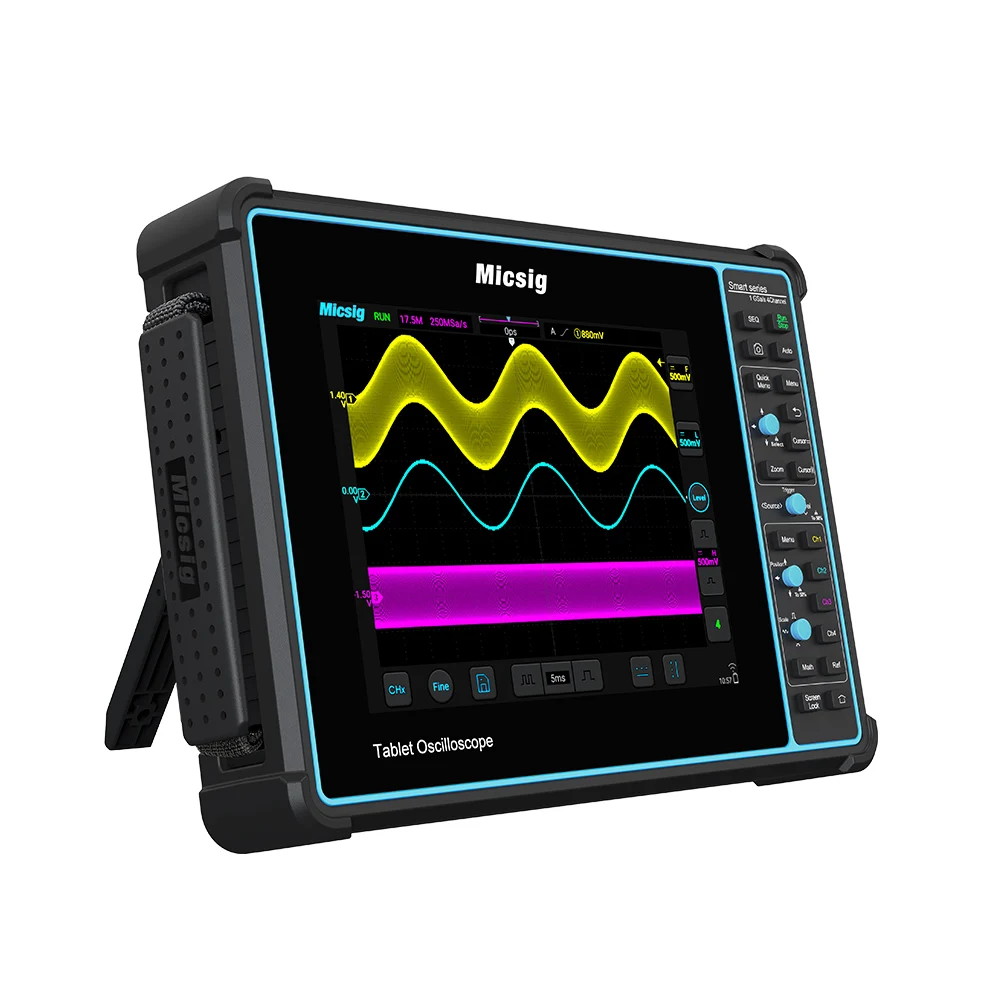

-8" capacitive integrated screen brings premium touch experience.
-Innovative PC & Smartphone App remote control.
-Up to 5H battery life & compact size, perfect for field work.
Specification:
Model: SATO1004
Bandwidth: 100MHz
Channels: 4
Sampling Rate: 1GSa/S (single channel)
Memory Depth: 70Mpts (single channel)
Support Test: Charging & Start circuit, Sensors, Actuators, Ignition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests
Bandwith Filter: Full bandwidth, Low pass

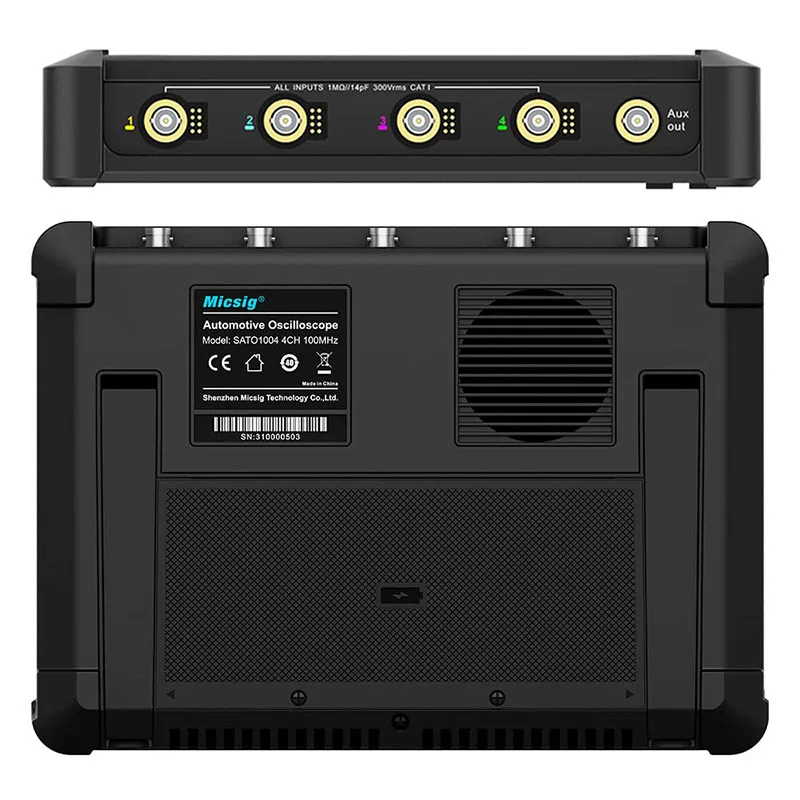

I/O Port: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display: 8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids
Dimension / Net Weight: 265*192*50mm / 1.9kg (with battery)
Battery: 7.4V, 7500mAh, Li-ion battery

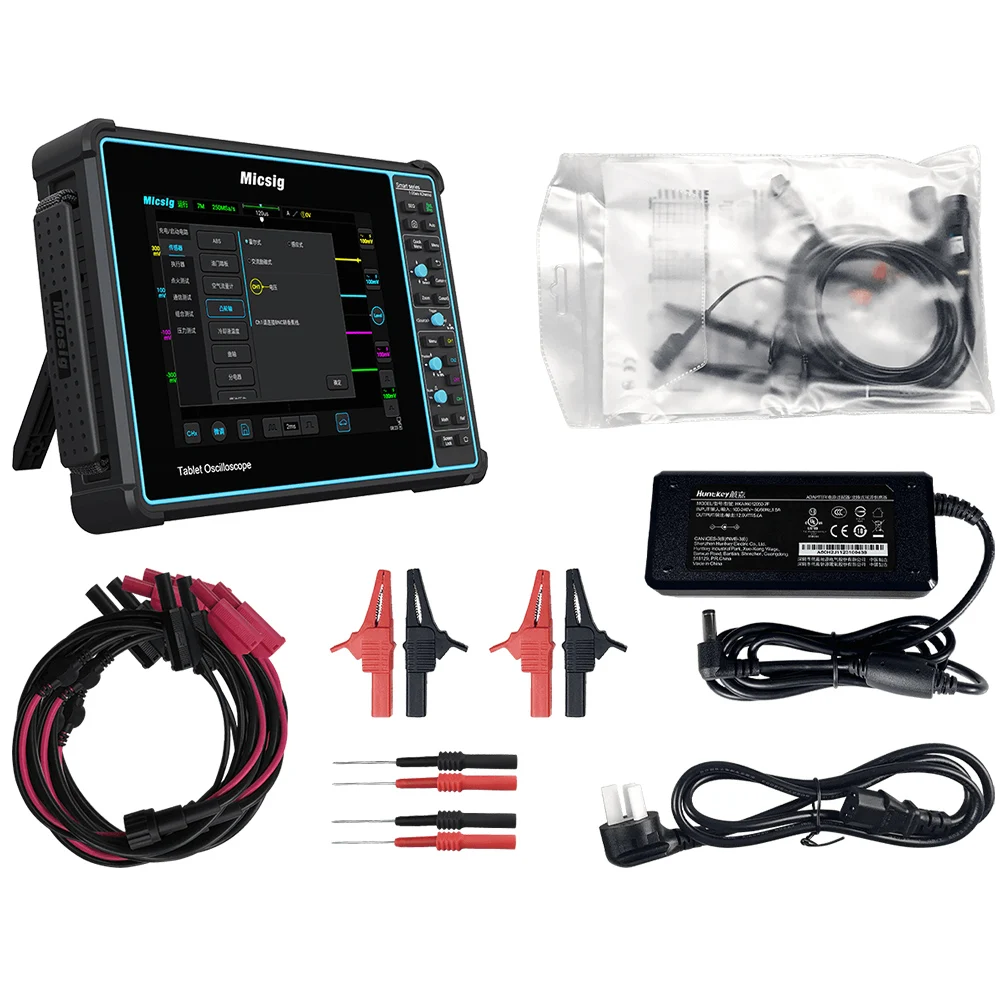

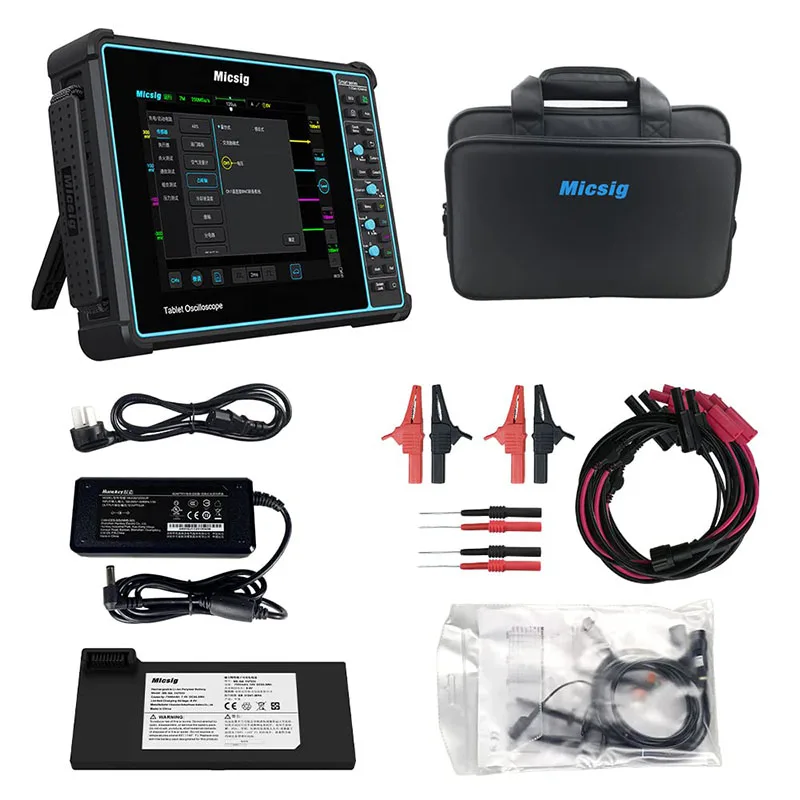

Packing Include:
1 x Automotive oscilloscope

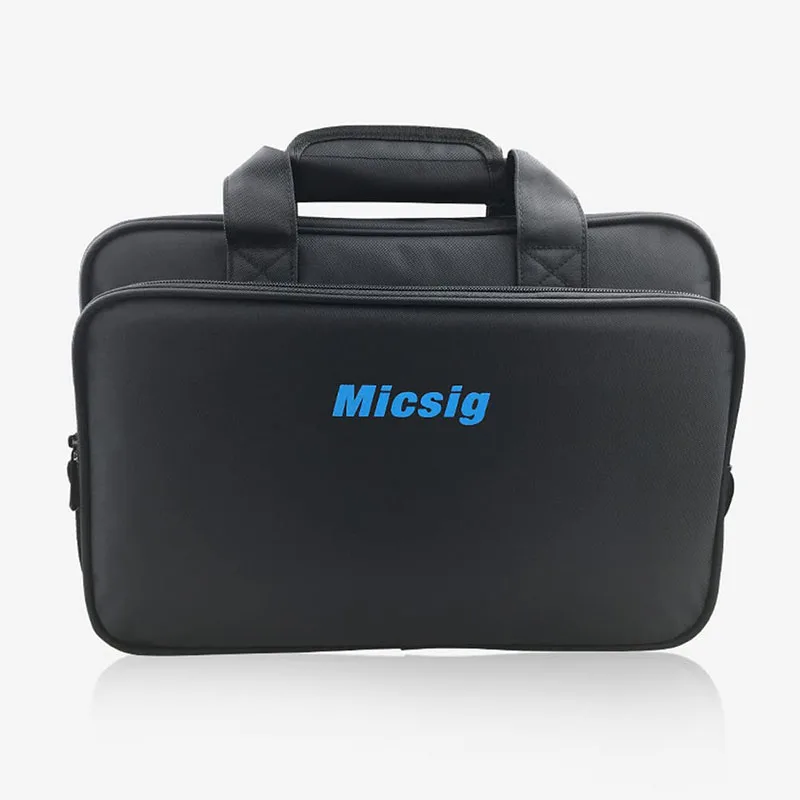

1 x Handbag
1 x Battery (built-in)
1 x Power cable
2 x Test needle
2 x Passive probe
1 x Screen protector
1 x Adapter
2 x Alligator clips
4 x BNC banana lines
Key Specifications
Model | SATO1004 |
Bandwidth | 100MHz |
Channels | 4 |
Sampling Rate | 1GSa/S (single channel) |
Memory Depth | 70Mpts (single channel) |
Support Test | Charging & Start circuit, Sensors, Actuators, Ignition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests |
Bandwidth Filter | Full bandwidth, Low pass |
I/O Port | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out |
Display | 8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids |
Dimension / Net Weight | 265*192*50mm / 1.9kg (with battery) |
