Shunli Custom 6v 9volt 12 volt Stepper Motor Driver Brush Small Electric Mini Micro Dc Toy Motor
- Category: >>>
- Supplier: Shenzhen Shunli Motor Co. Ltd.
Share on (1600780463400):
Product Overview
Description
Product Description
Shunli Custom 6v 9volt 12 volt Stepper Motor Driver Brush Small Electric Mini Micro Dc Toy Motor
Product Details
Motor Customized Specification, Please Contact Us.
Reference Drawing

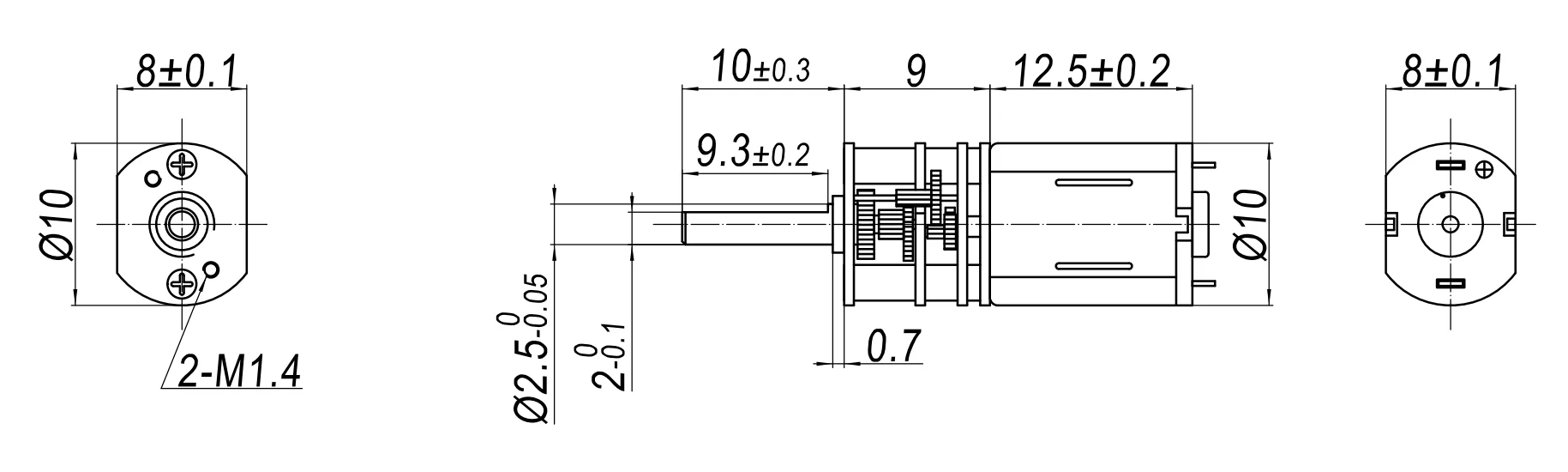

------ GM10AMM10

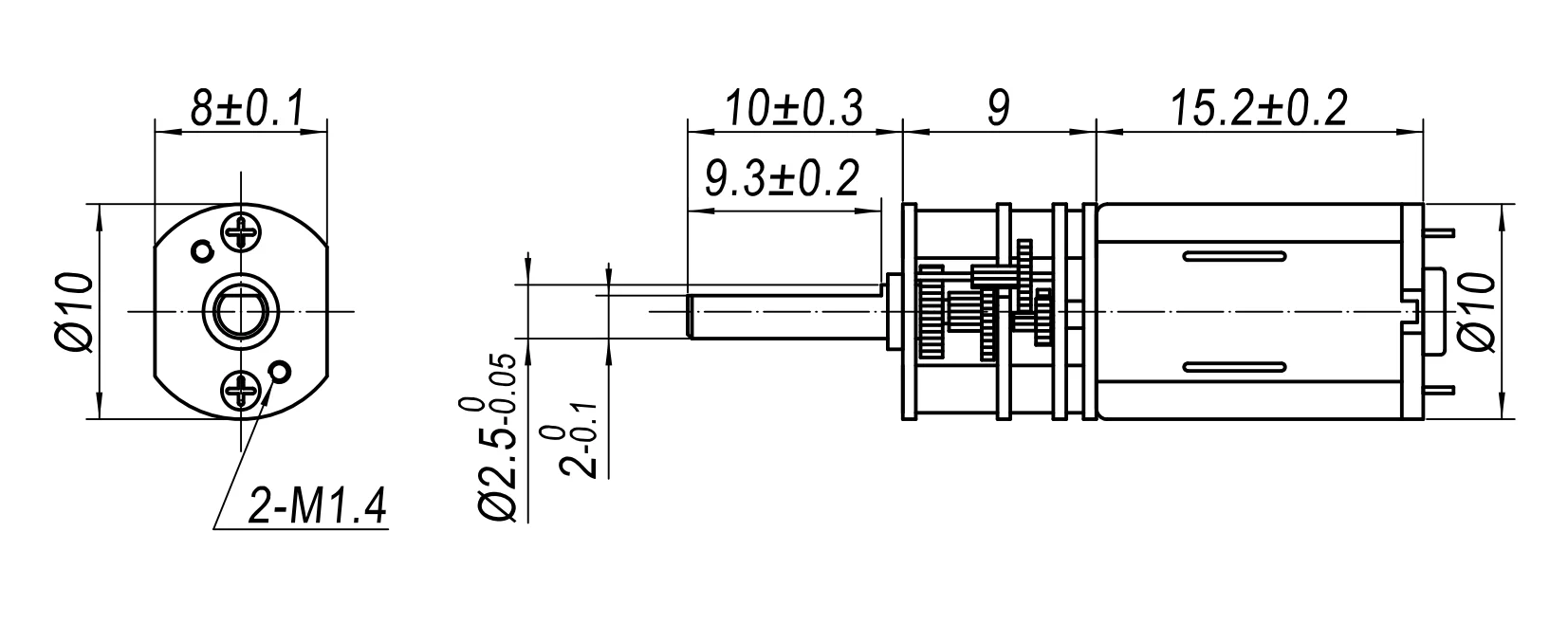

------ GM10AMM20
Reference Datasheet

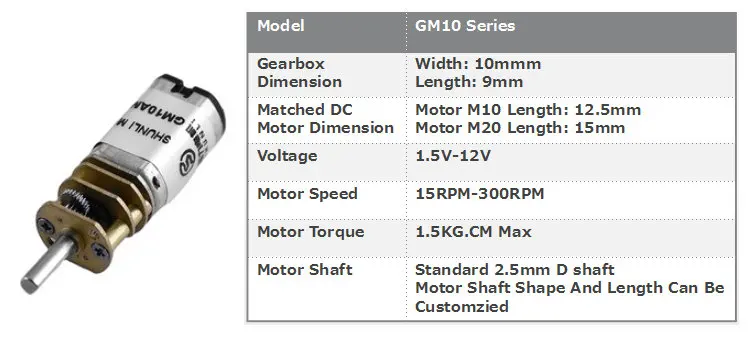

Gearmotor Technical Date
| Ratio | 100K | 250K | |||||||
| Gear motor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM10AMM10-100K | 1 : 100 | 3 VDC | 15.2 | ≤ 45 | 11.6 | ≤ 140 | 8.5 / 85 | ≤ 450 | 38 / 380 |
| GM10AMM20-250K | 1 : 250 | 4.5 VDC | 64 | ≤ 50 | 48 | ≤ 150 | 36 / 360 | ≤ 490 | 135 / 1350 |
PMDC MOTOR Technical Date
| PMDC MOTOR Model | Length “L”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-M10 | 0315200 | 12.5 | 3 VDC | 15200 | ≤ 40 | 11600 | ≤ 130 | 0.15 / 1.5 | ≤ 450 | 0.66 / 6.6 |
| SL-M20 | 04516000 | 15 | 4.5 VDC | 16000 | ≤ 45 | 12000 | ≤ 140 | 0.25 / 2.5 | ≤ 490 | 0.95 / 9.5 |
Application
Customer Evaluation
Certifications
Company Information
Why do you choose us:
1. Our Company
We are a factory specialize in producing motors more than 14 years, and we have three factories, respectfully local in Shenzhen, Huizhou, Dongguan, professional R&D team mature management and experienced engineer salesman will bring you a pleasant shopping experience.
2.Quality control
In order to confirm quality,from we receive material to shipment to be carefully checked every step of the way.Quality is our basis of our development.
3.Our service
We are gold seller and in possession of high credibility
100%on-time delivery rate confirm your product arrives timely.
Samples will be produced within 2 weeks.Customized samples will be prouced within 3 weeks.
Timely reply,your message will be replied within 2 hours.
FAQ
1.Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3.Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
