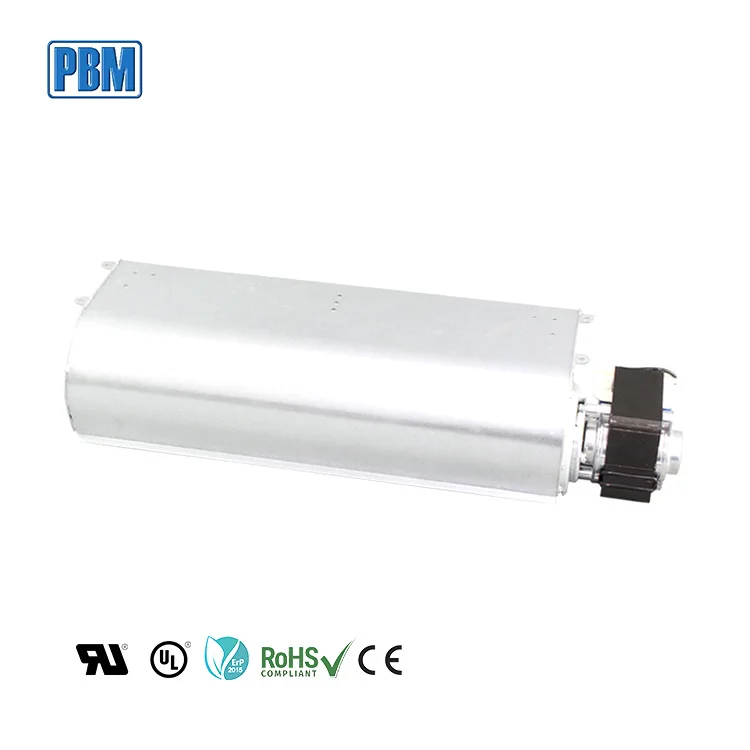

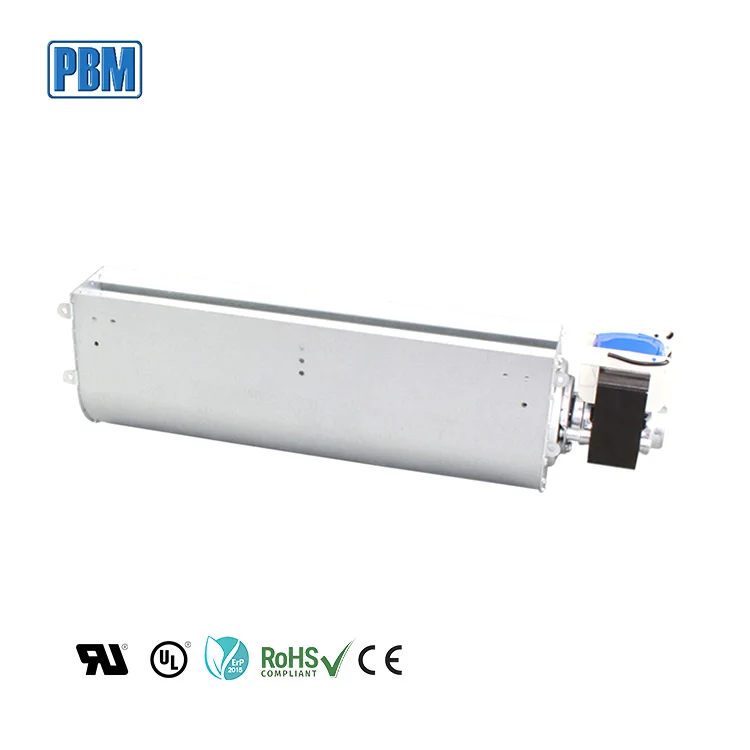

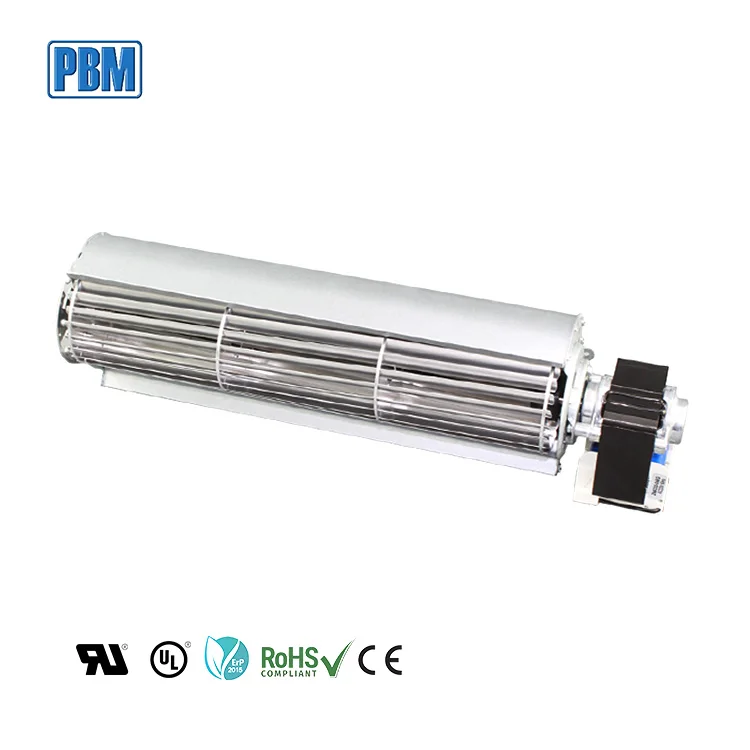

Hot Manufacturer Price Electric Fireplace Blower Machine 14 Inch EC Tangential Fan in Bulk
- Category: >>>
- Supplier: Pbm Motor And Fan(Suzhou) Co. Ltd.
Share on (1600780469738):
Product Overview
Description
Product Overview
Model: PC65B2A190A
Motor: AC 65mm motor
PRODUCT SPECIFICATIONS
1.General Characters
1-1 | Rated Voltage | 230 VAC |
1-2 | Frequency | 50 Hz |
1-3 | Rated Speed | 1900 RPM |
1-4 | Input Current | 0.25 A |
1-5 | Input Power | 35 W |
1-7 | Acoustical Noise | 46 dB(A) |
1-8 | Life Expectance | 30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
1-10 | Direction of Rotation | Clockwise seen on rotor |
1-11 | Dimension | See dimension drawing |
1-12 | Material of Impeller | Aluminum alloy |
1-13 | Air Flow | 149.48 CFM / 254 m³/H |
1-14 | Static Pressure | 3.67 mmH₂O / 36 Pa |
2. Environmental Characters
2-1 | Operating Temperature | -20℃ to 70℃ |
2-2 | Storage Temperature | -40℃ to 80℃ |
2-3 | RoHS | All the material meets RoHS standard. |

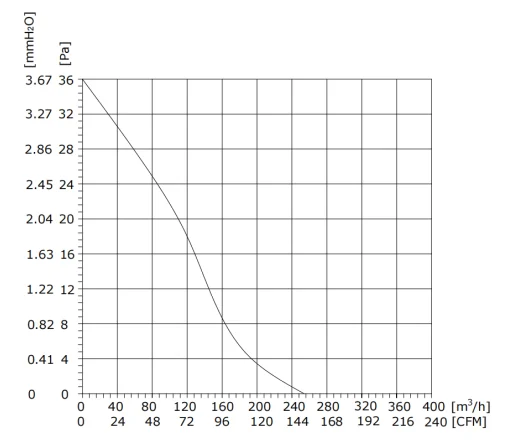

3. Performance Curve

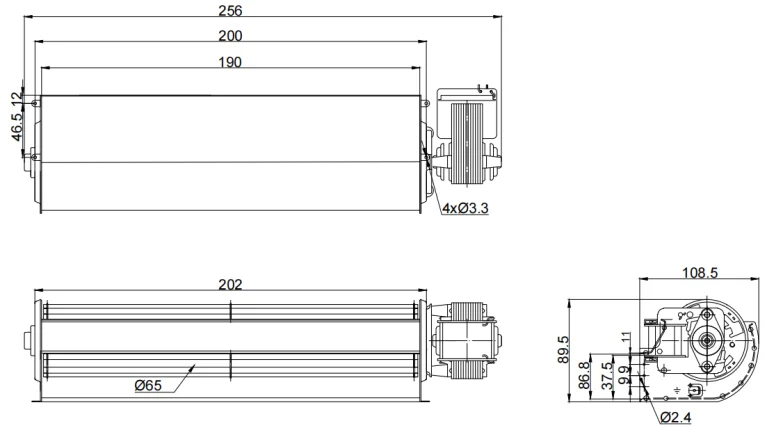

4. Outline Drawing
5. Safety Requirements
1.Make sure that the metal casing of the stator connected to the ground before being powered on.
2.If the fan doesn’t work after been powered on, please check the speed control input voltage, it may not be well connected. To prevent the suddenly start of the fan to hurt hands or other personal injury; do not touch the impellers or rotor when the power is on.
3.Fan needs a few seconds to start after being powered on. To prevent personal injury, do not touch the impellers or rotor when the power is on or in a low speed.
4.Unless they are instructed by the person(s) responsible for their safety, those who are lack of physical, mental or sensory capacities and proper practical experience or expertise cannot use this appliance. Please do not let the children play with this product.
5.If the power cord be damaged, the power cord must be replaced by the manufacturer in order to avoid accident of the proxy service personnel or the equivalent qualification maintenance personnel.
6.As an integral part of the fan, this DC motor cannot be used alone without impeller or load.
7.Please carefully read this technical specification before using the product.
2.If the fan doesn’t work after been powered on, please check the speed control input voltage, it may not be well connected. To prevent the suddenly start of the fan to hurt hands or other personal injury; do not touch the impellers or rotor when the power is on.
3.Fan needs a few seconds to start after being powered on. To prevent personal injury, do not touch the impellers or rotor when the power is on or in a low speed.
4.Unless they are instructed by the person(s) responsible for their safety, those who are lack of physical, mental or sensory capacities and proper practical experience or expertise cannot use this appliance. Please do not let the children play with this product.
5.If the power cord be damaged, the power cord must be replaced by the manufacturer in order to avoid accident of the proxy service personnel or the equivalent qualification maintenance personnel.
6.As an integral part of the fan, this DC motor cannot be used alone without impeller or load.
7.Please carefully read this technical specification before using the product.
Recommend Products
Products of the same series
Model Part No. | Rated Voltage VAC | Air Flow m³/H | Air Pressure Pa | Rated Speed RPM | Sound Level dB(A) | Total Length mm |
230 | 254 | 36 | 1900 | 46 | 256 | |
230 | 262 | 30 | 1500 | 45 | 313 | |
230 | 302 | 27 | 1300 | 42 | 385 | |
230 | 355 | 25 | 1200 | 45 | 447 |
Certifications
Application Scopes

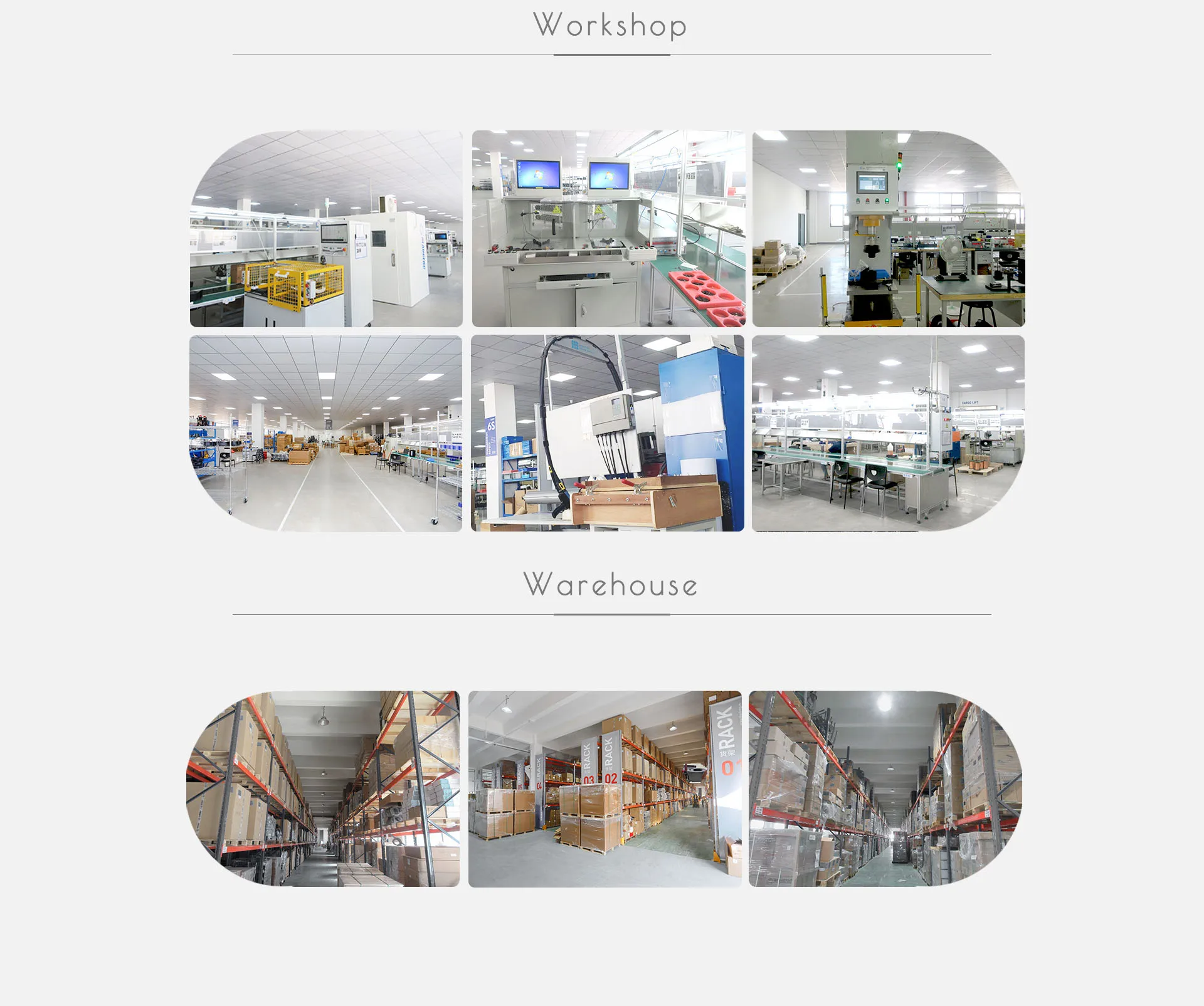

Company Profile

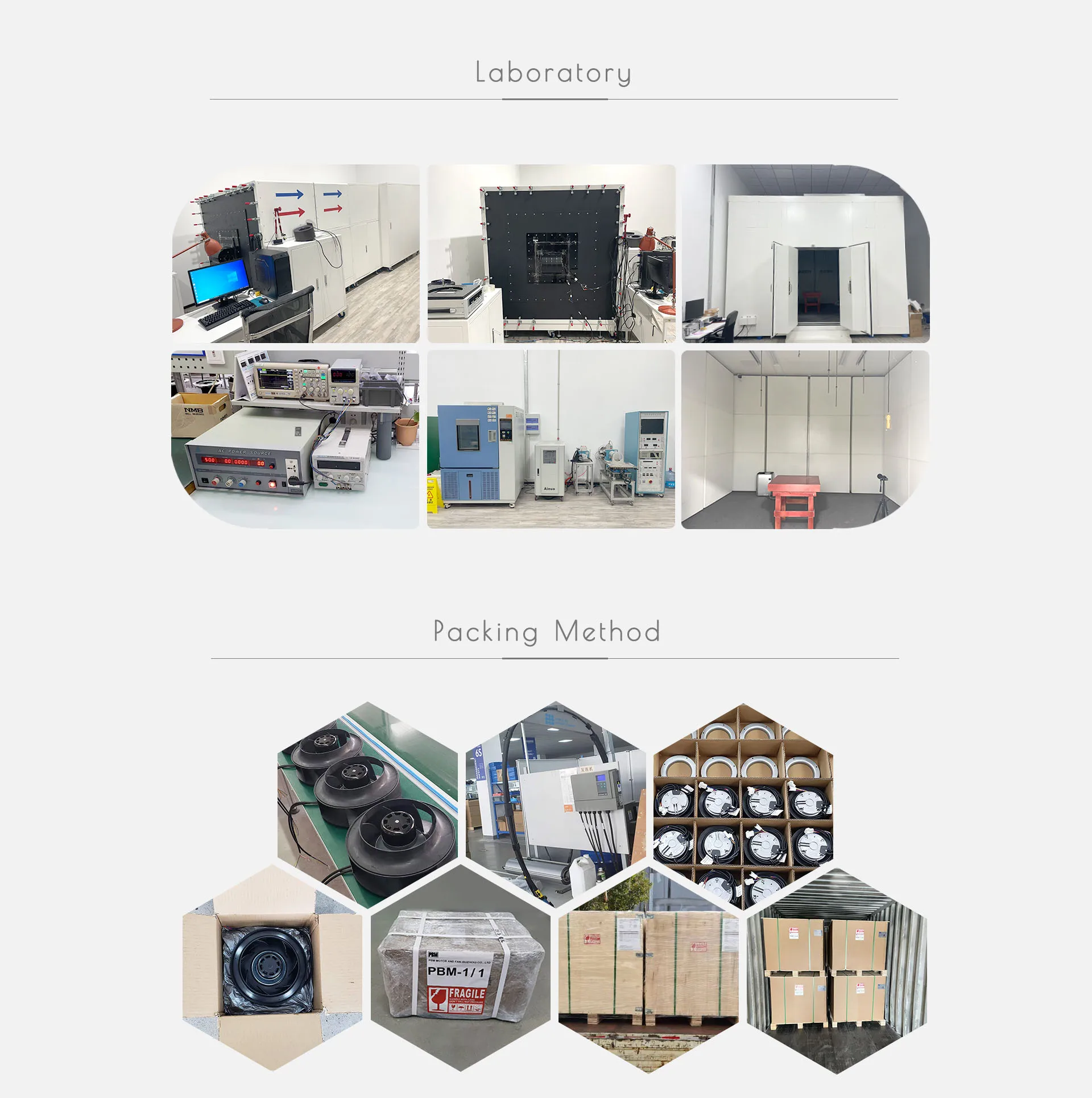

Packing Detail
FAQ
Q：How about the delivery time ?
A：Within 25 days after we receive the order.
Q：What kind of payments do you support?
A：T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
A：Within 25 days after we receive the order.
Q：What kind of payments do you support?
A：T/T & L/C, other types please contact us.
Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.
Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.
