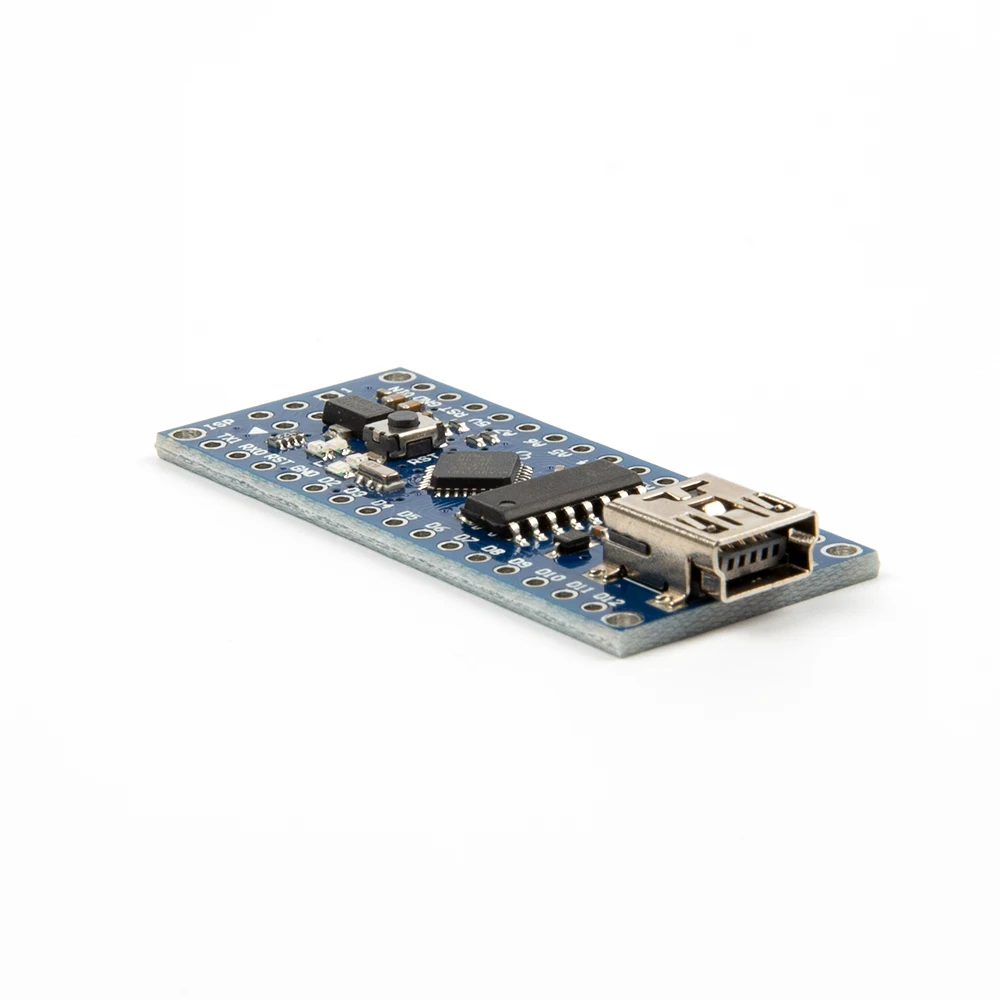

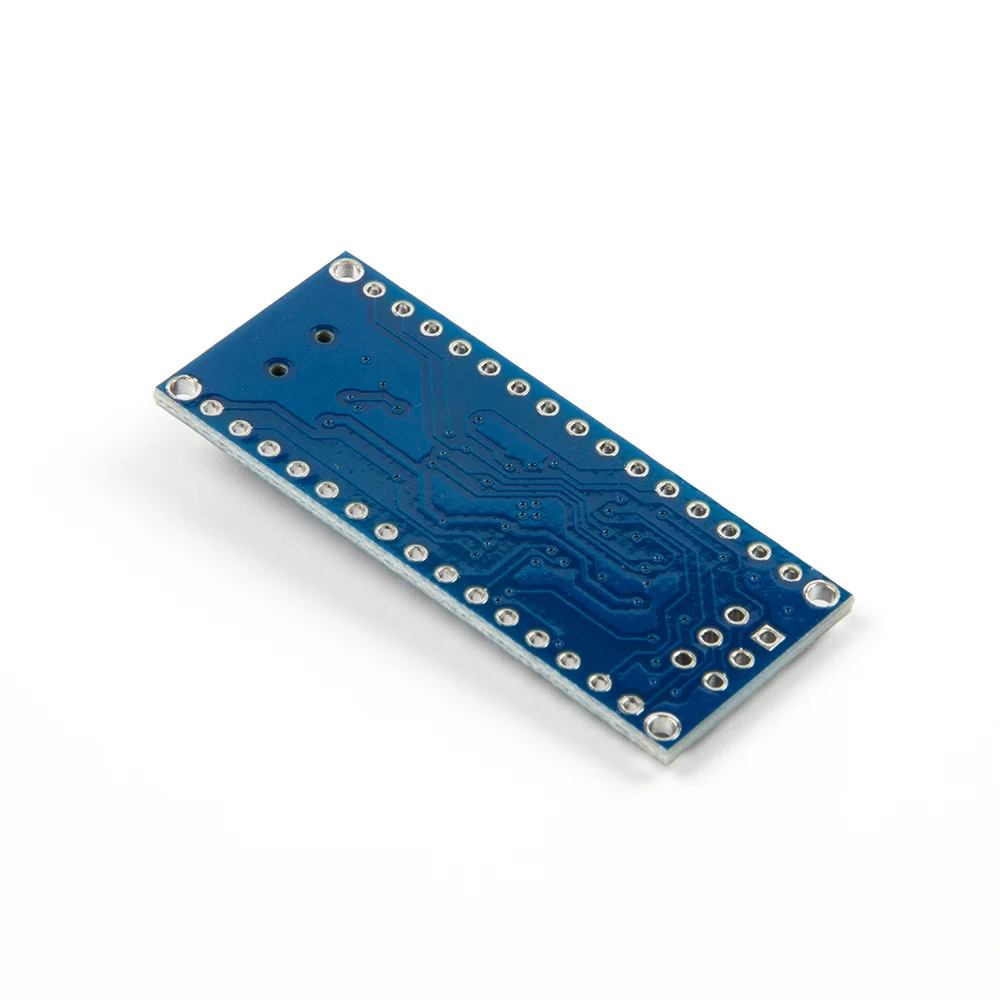

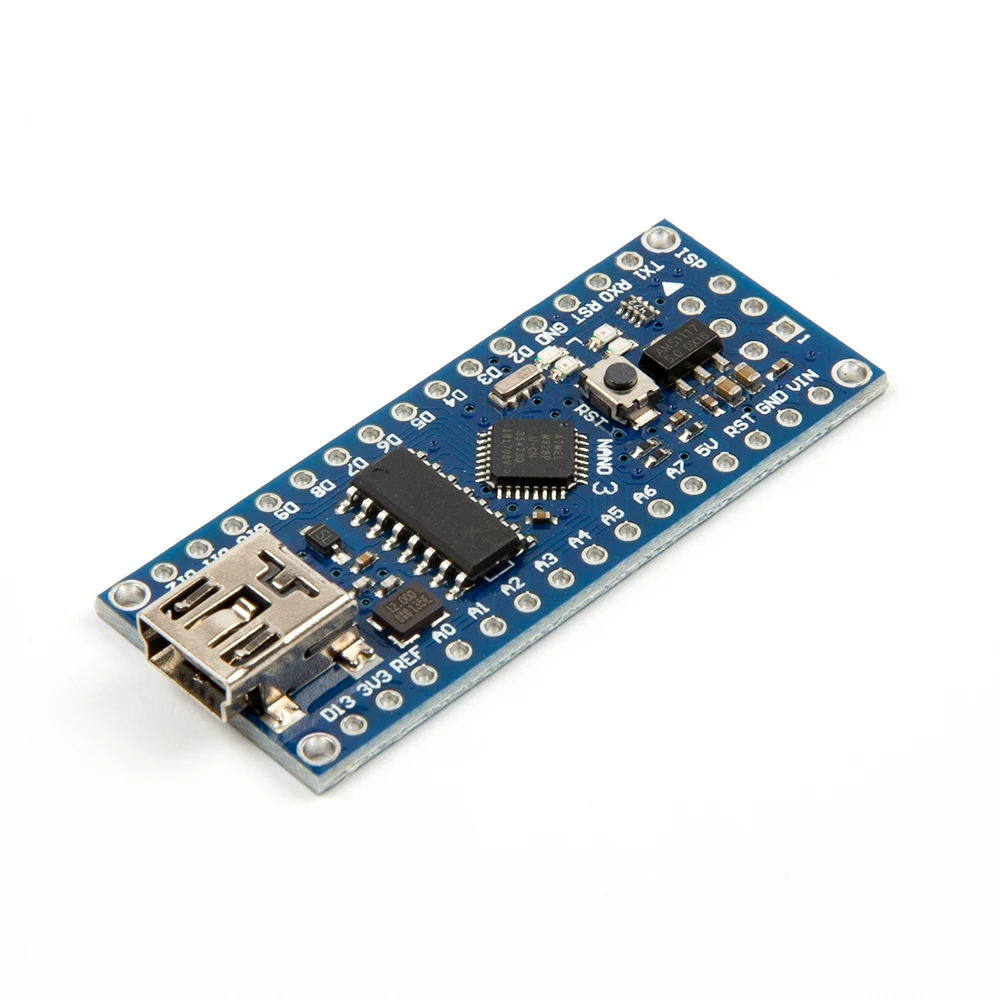

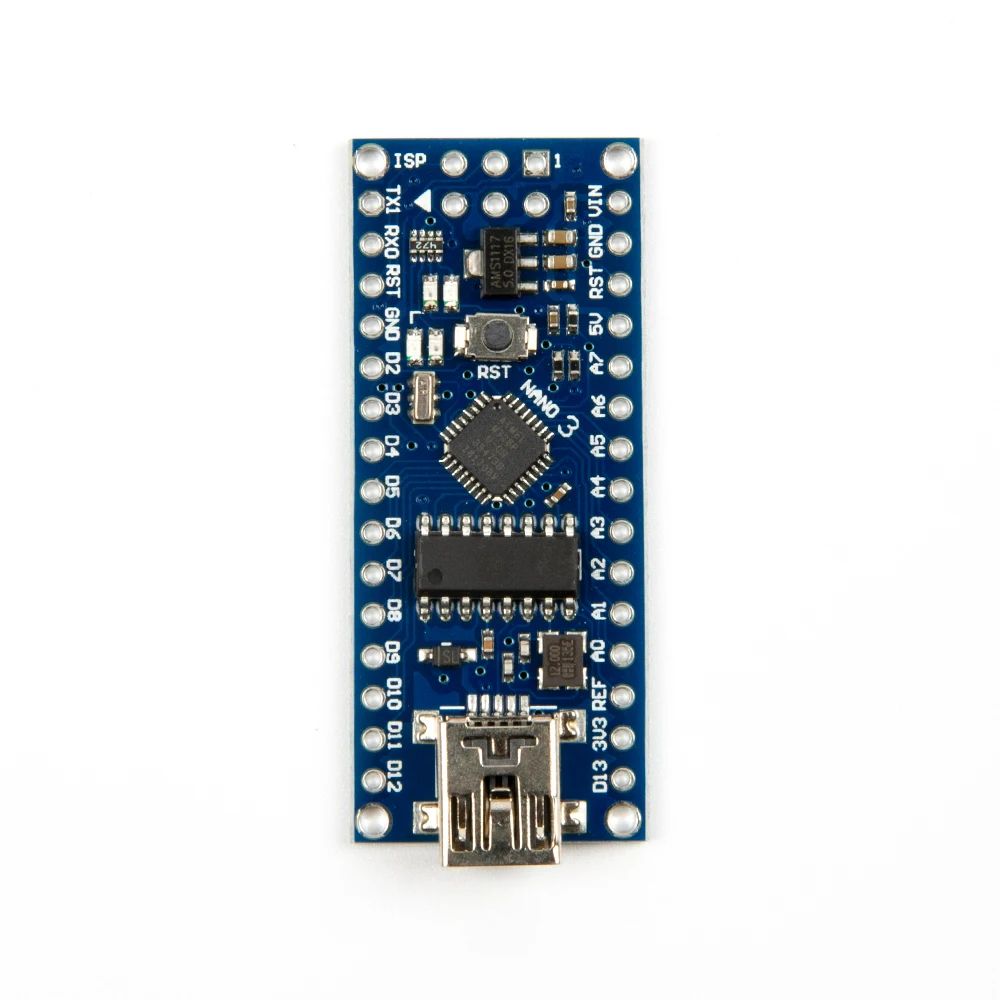

Unsoldered for Nano V3 ATmega328P 5V 16MHz CH340 Chip Board for Arduino Nano V3
- Category: >>>
- Supplier: Shenzhen Shinyo Technology Co. Ltd.
Share on (1600780476759):
Product Overview
Description
Products Description
Unsoldered for Nano V3 ATmega328P 5V 16MHz CH340 Chip Board for Arduino Nano V3
1.328P Improved version with 3pcs pin headers soldered 2pcs 15pin headers +1pcs 6pin headers
2.Is a small, complete, and breadboard-friendly board based on the 328P
3.Can be powered via the Mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply pin 27
4.The power source is automatically selected to the highest voltage source
1.Each of the 14 digital pins on the board can be used as an input or output 2.They operate at 5 volts. Each pin can provide or
receive a maximum of 40 mA and has an internal pull-up resistor disconnected by default of 20-50 kOhms 3.Some pins have
specialized functions 4.Has a number of facilities for communicating with a computer, or other microcontrollers
receive a maximum of 40 mA and has an internal pull-up resistor disconnected by default of 20-50 kOhms 3.Some pins have
specialized functions 4.Has a number of facilities for communicating with a computer, or other microcontrollers
1.Controller: 328P-AU
2.Input Voltage (recommended): 7-12V
3.Digital IO pins: 14 (of which 6 provide PWM output)
4.Analog inputpins: 8
5.DC Current per I/O Pin: 40mA
6.SRAM: 2KB
7.Clock Speed: 16 MHz
8.Operating voltage(logic level): 5V
Your attention please,if you need add another components in the kits,it is also supported,freely tell us the detail need,we'll check and quote according to your request.We have a wide variety of kits for Arduino available to contact us.
FAQ
Are you manufacturer ? | Yes, we are manufacturer. | ||||||
How long is your delivery time? | Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable. | ||||||
If the products can't work after receiving it, what should I do? | We will replace new items for you at once and then we make the judgement for the issue. | ||||||
What is the warranty? | 1-3 months to replace new items for free. 1-2 years repairing free according to different products. | ||||||
Do you accept OEM design? | Yes, we do. We can design according to your requirement, MOQ usually 2-10. | ||||||
Do you accept pay 30% in advance? | Yes, we do. We can start to prepare your goods when receive 30% payment, and send them after get the rest 70% payment. | ||||||
What payment terms you accept? | We accept Alibaba Trade Assuarce, T/T, PayPal, Western Union, Wechat, Alipay, in Cash (RMB or USD). | ||||||
