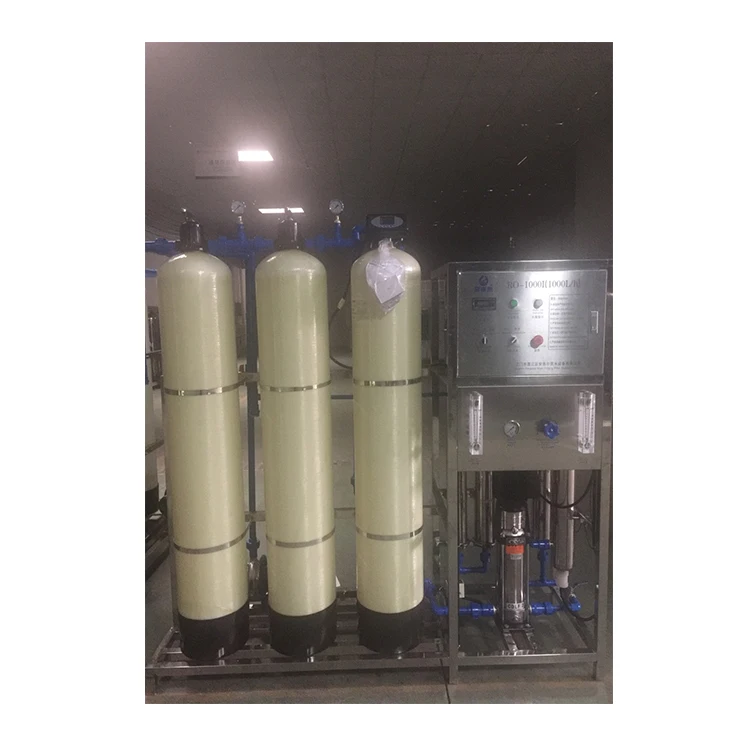

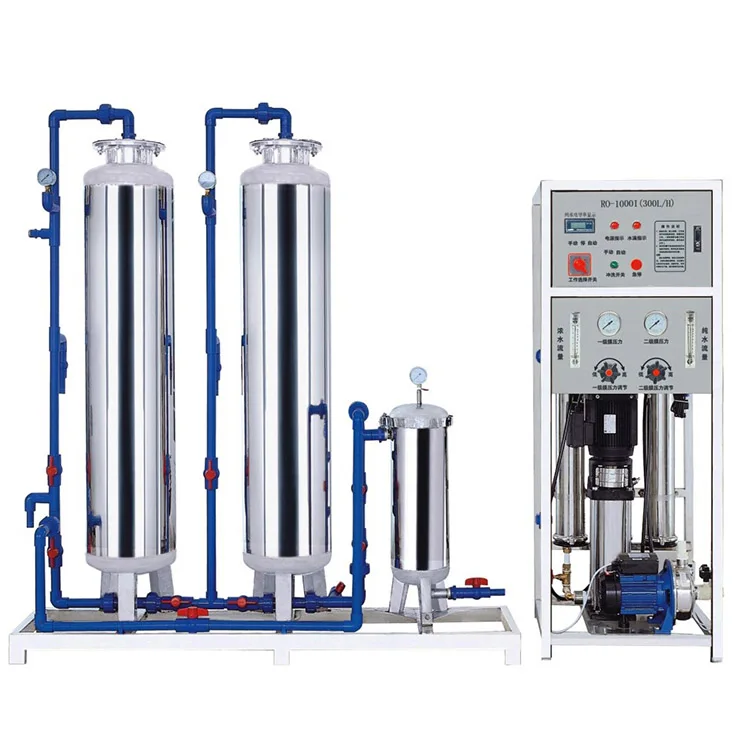

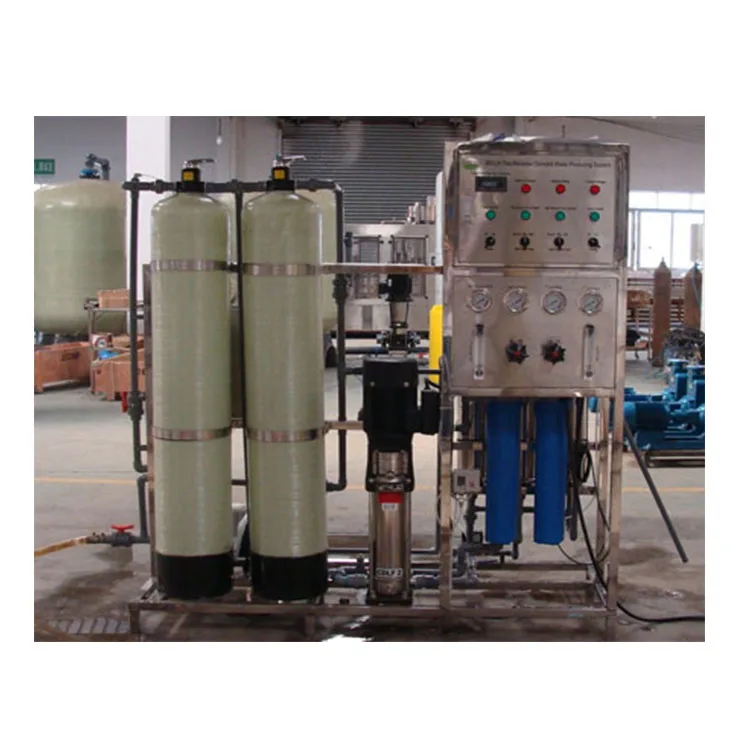

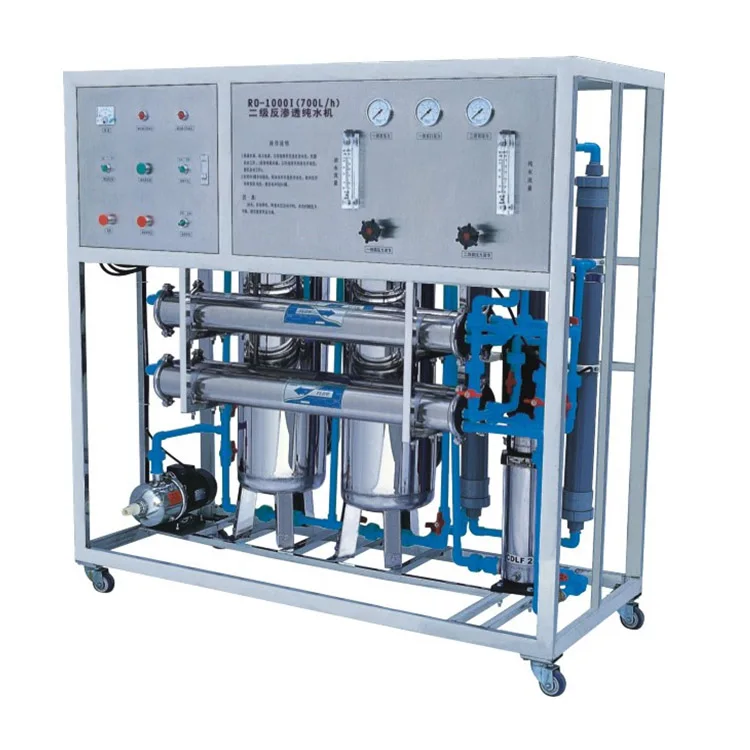

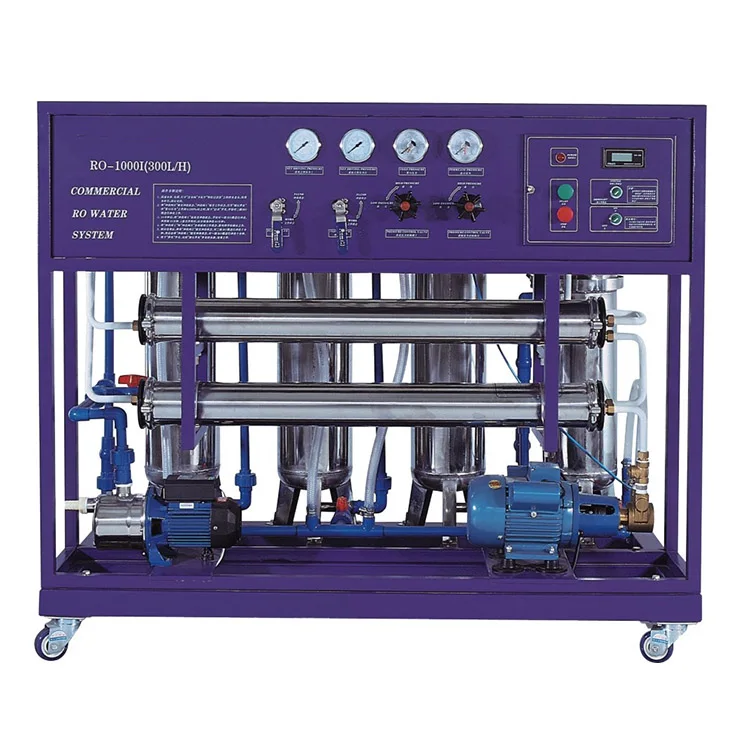

UV water filters system 250L reverse osmosis drinking water treatment plant filtration machine
- Category: >>>
- Supplier: Jiangmen Living Drinking Water Equipment Co. Ltd.
Share on (1600780477591):
Product Overview
Description
Product Description
Reverse osmosis water purification machine to treat fresh water for drinking/mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, borehole, brackish, lake water and etc.
Raw water source: bore whole, river, well, mountain spring, lake, tap water, etc.
Raw water pump/multi pump: Nanfang, Grundfos etc.
Filter media: Quartz sand filter, active carbon filter, Softener, security filter( PP filter)
RO Membrane: Dow, Hydranautics, Toray, Vontron etc.
Raw water source: bore whole, river, well, mountain spring, lake, tap water, etc.
Raw water pump/multi pump: Nanfang, Grundfos etc.
Filter media: Quartz sand filter, active carbon filter, Softener, security filter( PP filter)
RO Membrane: Dow, Hydranautics, Toray, Vontron etc.
Working process:
1. Raw water pump---- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter----get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter----Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener----exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter----prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump----Provide the high pressure to RO membrane.
7. RO system-----main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
2. Quartz sand filter----get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter----Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener----exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter----prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump----Provide the high pressure to RO membrane.
7. RO system-----main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Provide stable water source and pressure to the back-end treatment system.
Media filters
● Sand filter
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped
with automatic control valve, which can discharge the sediment by its automatic back washing function.
● Activated carbon filter
This filter removes the colors and smells of the raw water to improve the water’s flavor.
●Water softener
This device soften the water by oxidizing the calcium ion and magnesium ion in the raw water with cation.
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped
with automatic control valve, which can discharge the sediment by its automatic back washing function.
● Activated carbon filter
This filter removes the colors and smells of the raw water to improve the water’s flavor.
●Water softener
This device soften the water by oxidizing the calcium ion and magnesium ion in the raw water with cation.
●Security filter
It with the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the
front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane
system, so as to decrease power consumption more effectively.
front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane
system, so as to decrease power consumption more effectively.
Gives stable water supply and sufficient pressure to the reverse osmosis membrane system.
Main part of the water plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions. It filters the substances
such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of
standard daily drinking water.
such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of
standard daily drinking water.
Advantages:
Reverse osmosis equipment belongs to physical desalting method, which has many advantages.
1.Non-phase-change physical method was used to desalinate and purify the saline water under normal temperature.
2.Desalting rate of single membrane element is 99.3% and can remove colloid, organics, bacteria, virus and all kinds of heavy metals in water at the same time.
3.With water pressure as the driving force, energy consumption is the lowest among many treatment methods.
4.No need for large amount of chemical treatment, no elimination of chemical waste liquid, no environmental pollution, and the
recovery rate is over 70%.
5.High automation program, automatic stop in case of failure, with automatic protection function.
6.The system is simple, easy to operate, and the water quality is stable.
7.Equipment covers small area, compact structure, reliable operation and high water quality.
1.Non-phase-change physical method was used to desalinate and purify the saline water under normal temperature.
2.Desalting rate of single membrane element is 99.3% and can remove colloid, organics, bacteria, virus and all kinds of heavy metals in water at the same time.
3.With water pressure as the driving force, energy consumption is the lowest among many treatment methods.
4.No need for large amount of chemical treatment, no elimination of chemical waste liquid, no environmental pollution, and the
recovery rate is over 70%.
5.High automation program, automatic stop in case of failure, with automatic protection function.
6.The system is simple, easy to operate, and the water quality is stable.
7.Equipment covers small area, compact structure, reliable operation and high water quality.
Applications:
1. Drinking Water Project: Ultra-pure water, water purification;
2. Beverage Industry: Recipe water, process water, washing with water;
3. Desalination: Island regions, coastal dryland, marine, sea oil and other production and living water;
4. Electric Power Industry: boiler feed water, cooling water;
5.The electronics industry: semiconductor industry ultra-pure water pre-treatment, IC cleaning water, formula with water;
6. Food industry: formula water, process water;
7. The pharmaceutical industry: process water, the formulations with water, washed with water, water for injection, sterile
water was prepared;
8. Chemical industry: process water, wastewater treatment;
9. The petrochemical industry: oil field injection water, petrochemical wastewater treatment;
10. The field of environmental protection: precious metal plating rinse water, water recycling, to achieve zero emissions or
slightly emissions.
2. Beverage Industry: Recipe water, process water, washing with water;
3. Desalination: Island regions, coastal dryland, marine, sea oil and other production and living water;
4. Electric Power Industry: boiler feed water, cooling water;
5.The electronics industry: semiconductor industry ultra-pure water pre-treatment, IC cleaning water, formula with water;
6. Food industry: formula water, process water;
7. The pharmaceutical industry: process water, the formulations with water, washed with water, water for injection, sterile
water was prepared;
8. Chemical industry: process water, wastewater treatment;
9. The petrochemical industry: oil field injection water, petrochemical wastewater treatment;
10. The field of environmental protection: precious metal plating rinse water, water recycling, to achieve zero emissions or
slightly emissions.
Product Paramenters
Model | Capacity of water (M3/H) | General Power (KW) | Electrical Power (50-60Hz) | Membrane (Pic) | Size (L*W*H)mm | Weight (KG) |
RO-300L/H | 0.3 | 2.75 | AC220V 18A / 380V 9A | ESPA4040*2 | 1550*900*1820 | 150 |
RO-500L/H | 0.5 | 2.75 | AC220V 18A / 380V 9A | ESPA4040*3 | 1550*900*1820 | 250 |
RO-700L/H | 0.7 | 4.25 | AC220V 27.5A / 380V 13A | ESPA4040*4 | 1550*900*1820 | 350 |
RO-1000L/H | 1 | 3.75 | AC220V 24A / 380V 12A | ESPA4040*4 | 1980*900*1940 | 500 |
RO-2000L/H | 2 | 4.75 | AC380V 8.8A | ESPA4040*6 | 4800*700*2050 | 700 |
RO-3000L/H | 3 | 5.75 | AC380V 10A | ESPA4040*7 | 6000*800*2200 | 800 |
RO-4000L/H | 4 | 7.5 | AC380V 12A | ESPA4040*8 | 7000*900*2400 | 1000 |
RO-5000L/H | 5 | 12.5 | AC380V 25A | ESPA8040*9 | 8000*1000*2700 | 1500 |
RO-6000L/H | 6 | 15 | AC380V 30A | ESPA4040*10 | 4300*1000*2300 | 1700 |
RO-12000L/H | 12 | 19 | AC380V 35A | ESPA8040*12 | 8500*1600*1920 | 2500 |
RO-15000L/H | 15 | 19 | AC380V 35A | ESPA8040*15 | 10100*1870*3000 | 4000 |
RO-20000L/H | 20 | 22.5 | AC380V 45A | CPA28040*20 | 10000*1700*4200 | 4600 |
RO-30000L/H | 30 | 37.5 | AC380V 68A | CPA28040*25 | 13000*1900*3500 | 6000 |
RO-50000L/H | 50 | 56 | AC380V 120A | CPA28040*54 | 13500*2300*3800 | 9900 |
Recommend Products

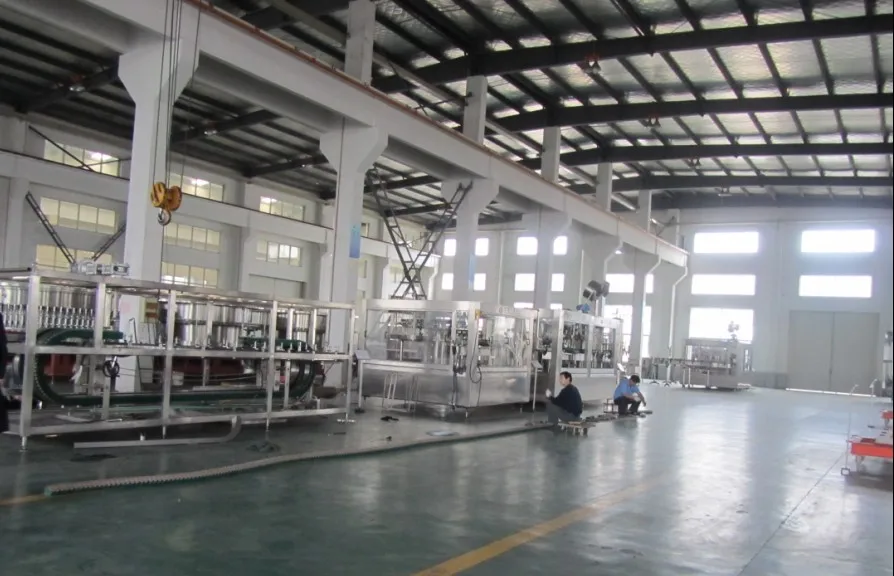

Company Profile
Jiangmen Living Drinking Water Equipment Co., Ltd., hereafter referred to as LIVINGH2O, has had its presence in 2010, and since then, it has been focused upon the manufacturing of varied beverage and water production lines, including bottled drink production line, barrel water production line, bag water production line and cup drink production line.Our techniciansteam has more than 20 years of experience in this field.
LIVINGH2O is located in Jiangmen City，Guangdong Province, China, close to Hong Kong and Macao, and in Jiangmen, seaport are equipped, making international shipping available. Thus, a decreased lead time and cost savings could be realized.
LIVINGH2O's product portfolio include: water treatment equipment, bottle blow molding machine, cup filling sealing machine, sachet bag filling machine, small bottle washing machine, small bottle filling machine, small bottle sealing machine, 5L bottle washing machine, 5L bottle filling machine, 5L bottle sealing machine, 5 Gallon bottle washing machine, 5 Gallon bottle filling machine, 5 Gallon water sealing machine, self adhesive sticker bottle labeling machine, cold glue labeling machine, OPP hot melt glue labeling machine, bottle sleeve labeling machine, bottle shrink labeling machine, auto sealing and shrink wrap machine, shrink warping machine, carton erecting sealing machine, cartoning machine, stretch wrapper, palletizer machine and so on.
They could be used to fill diverse containers, like, plastic bottles, glass bottles, cans, cups, and plastic bags with pure water, mineral water, fruit drink, carbonated drink, functional beverage, protein drink, milky drink, balsamic vinegar, soy sauce, wines (wine, liquor, and beer), oils and etc.
LIVINGH2O is located in Jiangmen City，Guangdong Province, China, close to Hong Kong and Macao, and in Jiangmen, seaport are equipped, making international shipping available. Thus, a decreased lead time and cost savings could be realized.
LIVINGH2O's product portfolio include: water treatment equipment, bottle blow molding machine, cup filling sealing machine, sachet bag filling machine, small bottle washing machine, small bottle filling machine, small bottle sealing machine, 5L bottle washing machine, 5L bottle filling machine, 5L bottle sealing machine, 5 Gallon bottle washing machine, 5 Gallon bottle filling machine, 5 Gallon water sealing machine, self adhesive sticker bottle labeling machine, cold glue labeling machine, OPP hot melt glue labeling machine, bottle sleeve labeling machine, bottle shrink labeling machine, auto sealing and shrink wrap machine, shrink warping machine, carton erecting sealing machine, cartoning machine, stretch wrapper, palletizer machine and so on.
They could be used to fill diverse containers, like, plastic bottles, glass bottles, cans, cups, and plastic bags with pure water, mineral water, fruit drink, carbonated drink, functional beverage, protein drink, milky drink, balsamic vinegar, soy sauce, wines (wine, liquor, and beer), oils and etc.
https://www.livingh2o.com.cn
LIVINGH2O also supplies turnkey projects for customers, covering a wide range of services, like, factory's planning and designing, products' technical consultation, appearance design, mold development, production technique consultation, production equipment's purchasing, factory layout providing, equipment's installation, staff training, as well as long-term, medium-term, and short term engineer support service for customers' production and equipment maintenance service. Besides, both OEM (original equipment manufacturing) and ODM (original design manufacturing) could be supplied in LIVINGH2O. We also sincerely welcome your cooperation as our long-term agency.
Technology is the resource of innovation, and innovation is the drive of development. Our operation concept is “systemization, specialization, standardization, internationalization”. Depending on the sensitive touch to market and generous operative spirit, we provide technical guarantee and all-round supporting for you to produce perfect product.
Technology is the resource of innovation, and innovation is the drive of development. Our operation concept is “systemization, specialization, standardization, internationalization”. Depending on the sensitive touch to market and generous operative spirit, we provide technical guarantee and all-round supporting for you to produce perfect product.
Certifications

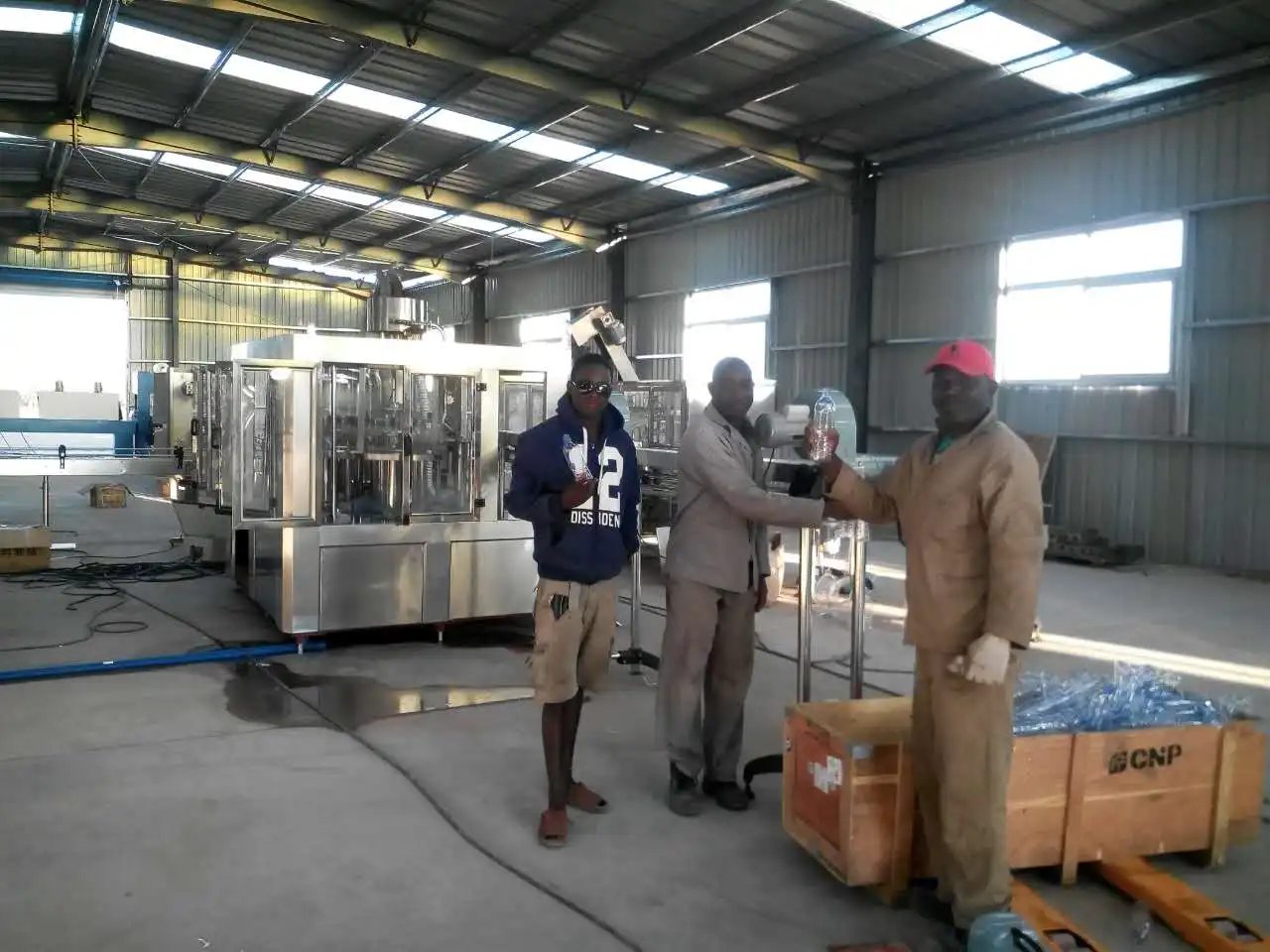

Customer Photos
Packing & Delivery
Conventional packaging
1. The surface is treated with rust prevention,
2. Inner plastic waterproof packaging,
3. Fix the outer layer with thick wood or steel frame, and then pack with synthetic board. Combined container transportation, or separate container transportation.
manual filling machine transport:
1. The standard plywood box has better compressive strength and bearing quality.
2. Small board area, good soil structure, good leakage and waterproof performance.
3. The plywood box has no fumigation when imported, and the operation is simple.
1. The surface is treated with rust prevention,
2. Inner plastic waterproof packaging,
3. Fix the outer layer with thick wood or steel frame, and then pack with synthetic board. Combined container transportation, or separate container transportation.
manual filling machine transport:
1. The standard plywood box has better compressive strength and bearing quality.
2. Small board area, good soil structure, good leakage and waterproof performance.
3. The plywood box has no fumigation when imported, and the operation is simple.
FAQ
1.Any guarantee of the machines?
The guarantee of our machines is 1 year, the consumables (such as, filters, heaters, belts, etc) & man-made damages are outside the scope of warranty; also, we will send some spare parts along with the machines free of charge.
2.Can you offer the installation and training for the machines?
We can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use. we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines.
3.How about the package？
Wooden case, carton, bubble film etc.
4.Delivery time?
15-35 working days.
5.Shipping port?
Jiangmen, Shenzhen, Ningbo, Shanghai, etc.
6.The main transport?
Sea transportation, also air transport, train transport and car transport.
7.What’s the main trade terms?
FOB, CFR, CIF, EXW
8.What’s the payment?
T/T, L/C, Western Union, MoneyGram, Credit Card, Cash etc.
9.What’s the billing currency?
USD, ERU, RMB
10.Whether to accept customize?
Yes
11.Accept OEM or not?
Accept
12.Whether to accept pre-shipment inspection?
Yes
13.Whether to accept a third-party company detected before shipment?
Yes
14.Does the machines have any certificates?
Yes, CE certificate
15.What are your main brand of electrical components?
LivingH2o more than 80% materials of the parts in the products come from world famous manufacturers such as Mitsubishi,Schneider,Omron etc.
16.What’s the minimum order quantity?
1 set.
17.Which country do you export your machines already?
LinvingH2o have exported machines to USA, Japan, Canada, France, UK, Ireland, Russia, Australia, Mexico, Africa, the Middle East area, South America etc.
