New Model Customized Ac220V/380V Automatic Wool Carding Machine For Wool Yarn Spinning Line
- Category: >>>
- Supplier: Qingdao Dongjia Textile Machinery Group Co. Ltd.
Share on (1600780490283):
Product Overview
Description
Product Overview

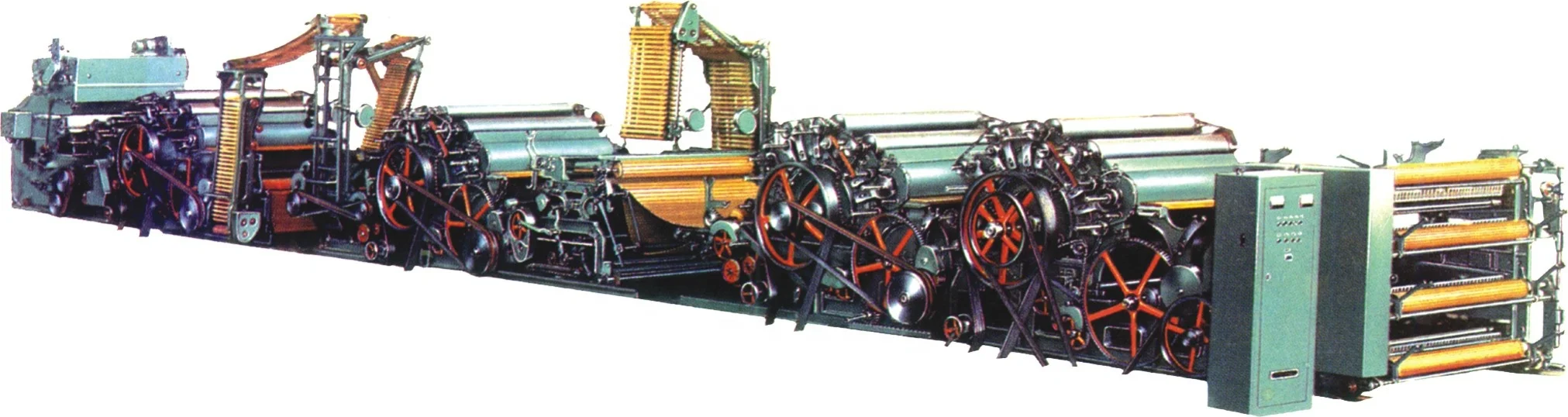

Model BC272 Series Wool Carding Machine
This machine is designed for the opened ,oiled and blended wool to carry out trash-extraction, blending and slivering processes and produce wool tops of given counts.
FEATURES AT A GLANCE

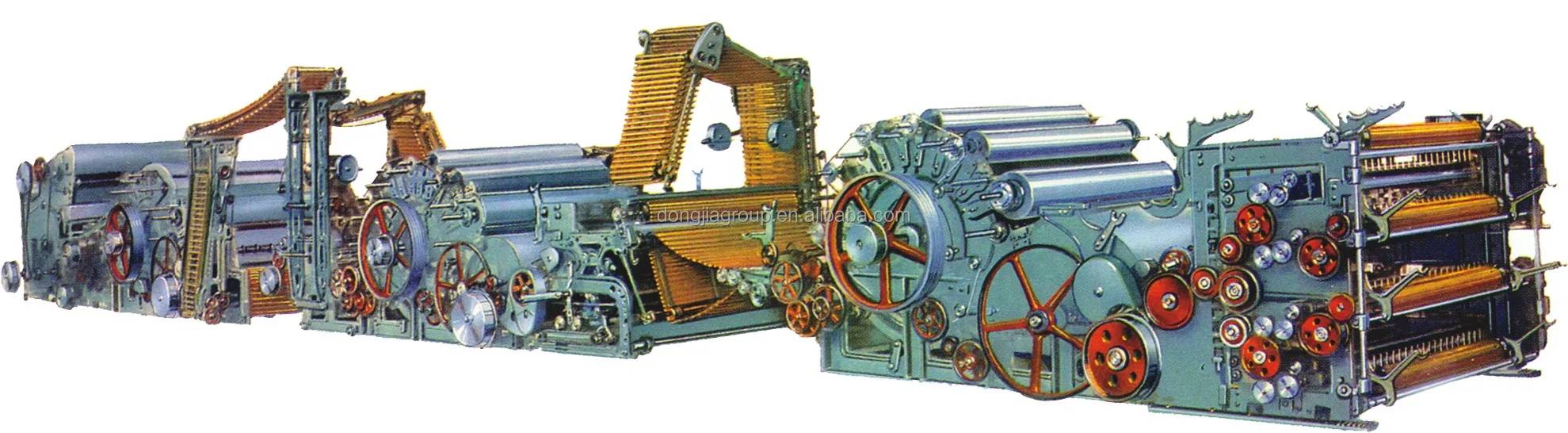

BC272G DUAL-COMPONENT CARDING MACHINE
Yarn count: 1---8Nm（1000tex----125tex）

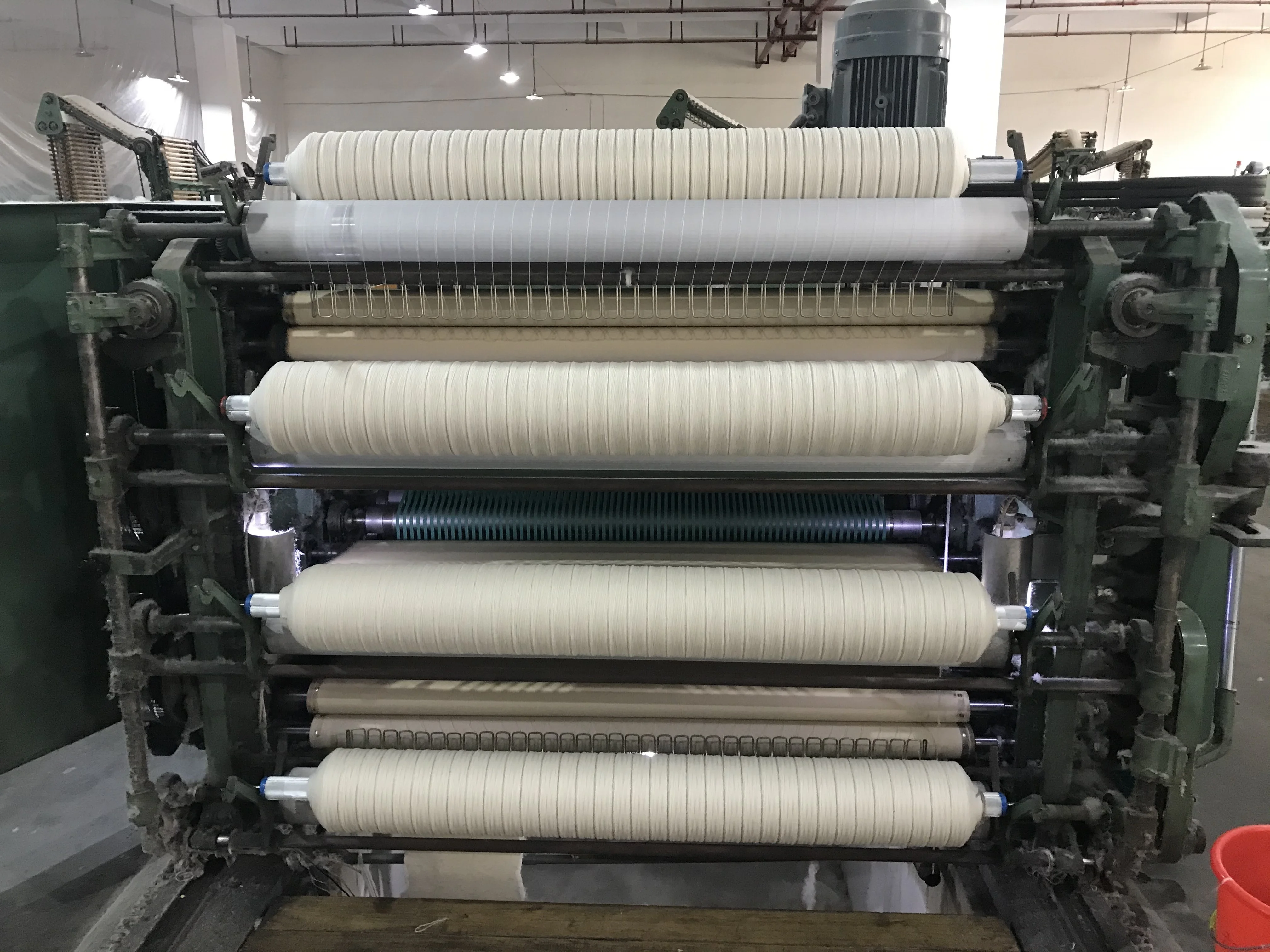

number of wool tops delivered : either 80 or 120pcs;
output: max,delivery speed 30m/min;
motor power: 13.35kw;
overall dimensions: 15492*3300*2700mm;
weight: 25tons
motor power: 13.35kw;
overall dimensions: 15492*3300*2700mm;
weight: 25tons

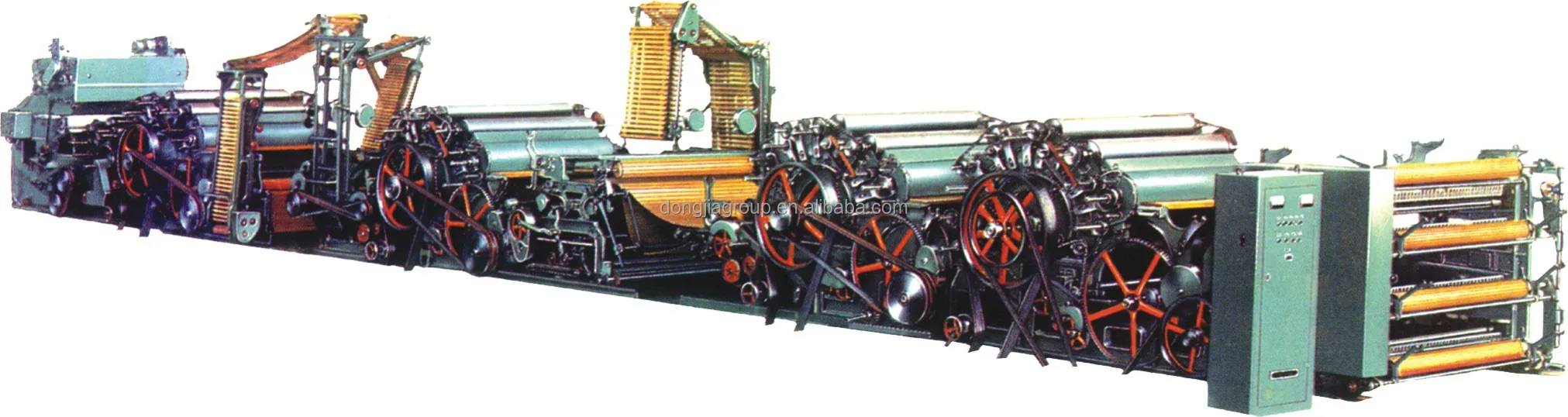

BC272F TRIPLE-COMPONENT CARDING MACHINE
Yarn count: 1---16Nm（1000tex----50tex）
number of wool tops delivered : either 120 or 140pcs;
output: max,delivery speed 30m/min;
motor power: 18.35kw;
overall dimensions: 21000*3300*2700mm;
weight: 28tons
motor power: 18.35kw;
overall dimensions: 21000*3300*2700mm;
weight: 28tons

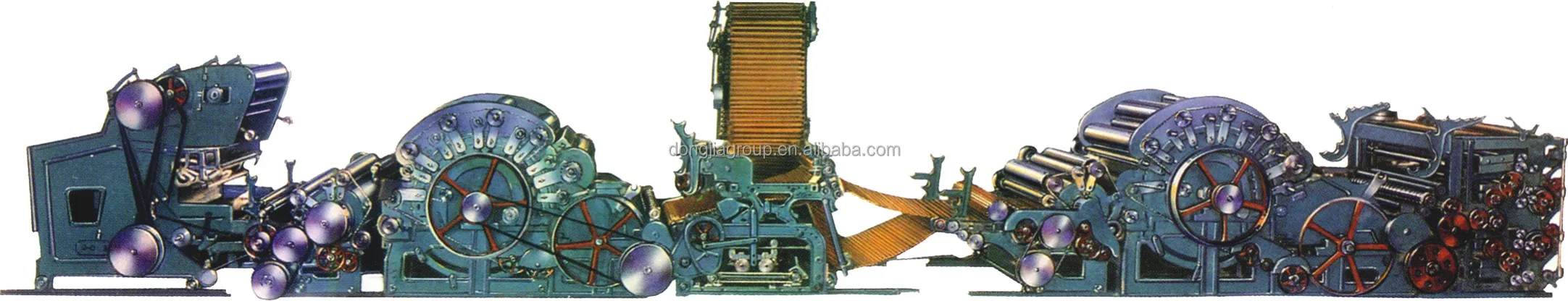

BC272H QUADRI-COMPONENT CARDING MACHINE
Yarn count: 1---20Nm（1000tex----50tex）
number of wool tops delivered : either 120 or 140pcs;
output: max,delivery speed 30m/min;
motor power: 18.35kw;
overall dimensions: 23000*3300*2700mm;
weight: 31tons
motor power: 18.35kw;
overall dimensions: 23000*3300*2700mm;
weight: 31tons

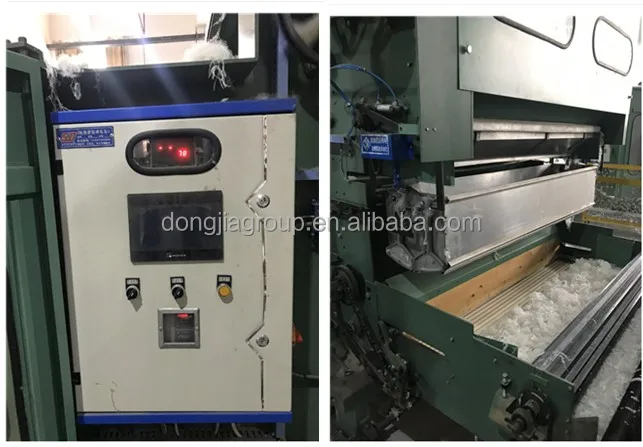

Automatic feeder
The machine adopts electronic secondary weighing and is equipped with automatic leveling system control. Self-leveling is to compare the actual weight of each bucket with the weight set by the process by the computer. The increased or decreased weight is calculated by the computer to extend or reduce the feeding time. The raw materials fed in unit time are basically equal.
The machine adopts electronic secondary weighing and is equipped with automatic leveling system control. Self-leveling is to compare the actual weight of each bucket with the weight set by the process by the computer. The increased or decreased weight is calculated by the computer to extend or reduce the feeding time. The raw materials fed in unit time are basically equal.

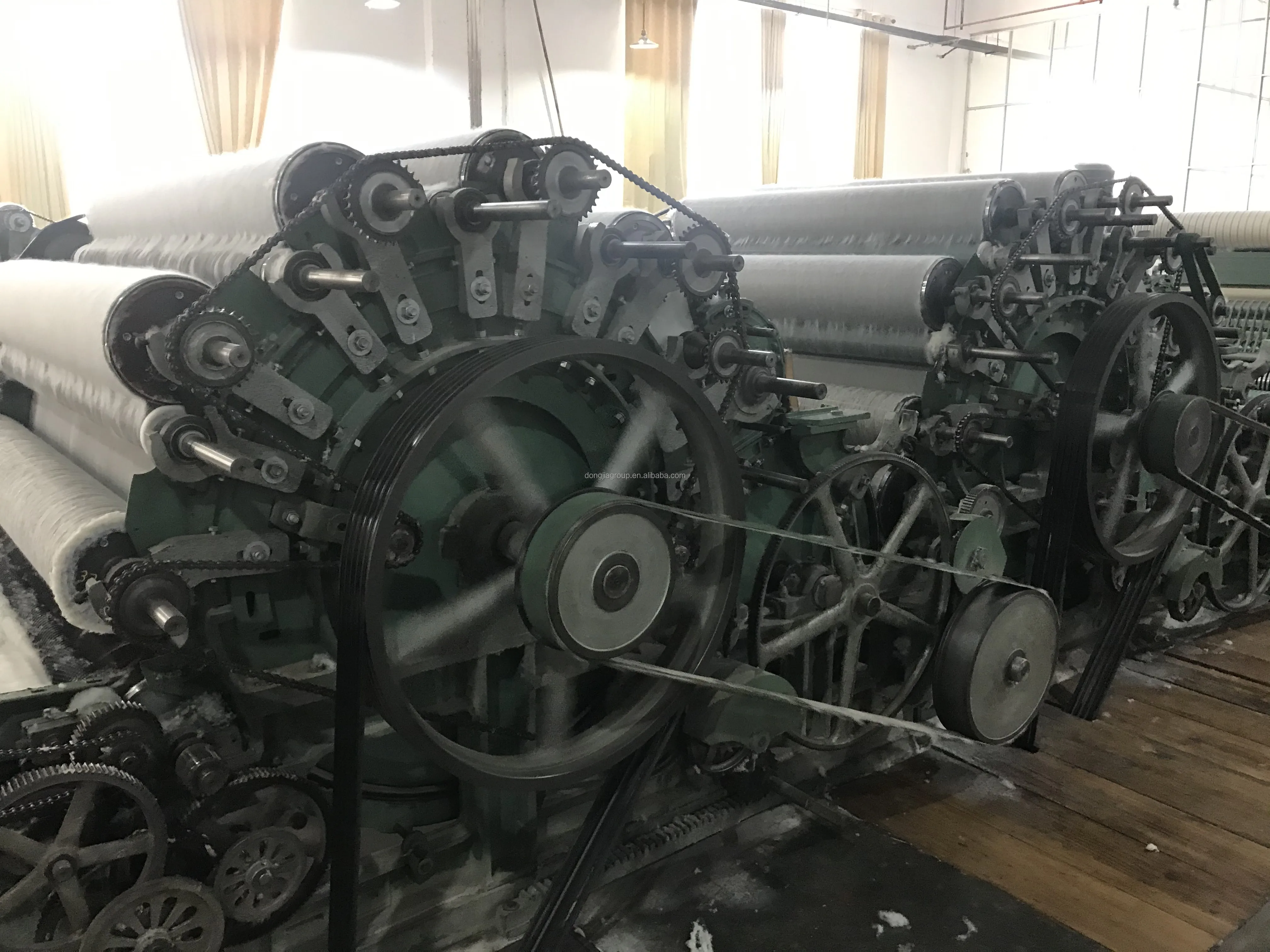

Carding machine
Carding machine is composed of the main mechanical parts such as Cylinder, Working roller, Stripping roller, etc.. The initial
carding part adopts roller carding, total 3 carding points. The main carding part adopts flats carding. After being carded, these
lumpy fibers will be opened, blended, and carded into webs of single fiber and straight forward arrangement, and then will be
coiled into can through trumpet.
Carding machine is composed of the main mechanical parts such as Cylinder, Working roller, Stripping roller, etc.. The initial
carding part adopts roller carding, total 3 carding points. The main carding part adopts flats carding. After being carded, these
lumpy fibers will be opened, blended, and carded into webs of single fiber and straight forward arrangement, and then will be
coiled into can through trumpet.
Cross netting
1550MM roller
High-precision production structure
Company Profile
Qingdao Dongjia Textile Machinery Group Co., Ltd.
Qingdao Dongjia Textile Machinery Group Co., Ltd was first established in 1952, and have possessed the total asset of 430 million Yuan, employing 164 workers, with an area of about 52,323 square meters, with self-supported import and export authority. The corporation possesses the complete process flow of machinery manufacturing technology and advanced equipments such as laser processing units, etc.. It is the domestic professional manufacturer of textile carding machinery. It mainly produces cotton spinning blowing-carding machinery, wool spinning, semi-worsted carding machinery, man-made fiber carding and non-woven cloth complete production line, special fiber carding and blending machinery, air-jet looms total 5 categories and near 100 specifications. The output and the sales volume of leading products--carding machines take the first place in the domestic market, and the foreign sales accounted for 30% . The company’s Technical Center is identified as “the National Enterprise Technical Center”, and the Research & Development Center of Combined Cashmere Carding Machinery in China Textile Machinery Industry.
Our company first exported FA204 Carding Machines to Bangladesh in 1996. With nearly 30 years’ overseas marketing, the products have been far exported to more than 30 countries and regions in Southeast Asia, South America, Africa, Central Asia and East Europe, etc., and we have set up technical service offices in Bangladesh, Uzbekistan, Indonesia, Mongolia and Russia to realize the attentive technical and after-sales services.
Our company first exported FA204 Carding Machines to Bangladesh in 1996. With nearly 30 years’ overseas marketing, the products have been far exported to more than 30 countries and regions in Southeast Asia, South America, Africa, Central Asia and East Europe, etc., and we have set up technical service offices in Bangladesh, Uzbekistan, Indonesia, Mongolia and Russia to realize the attentive technical and after-sales services.

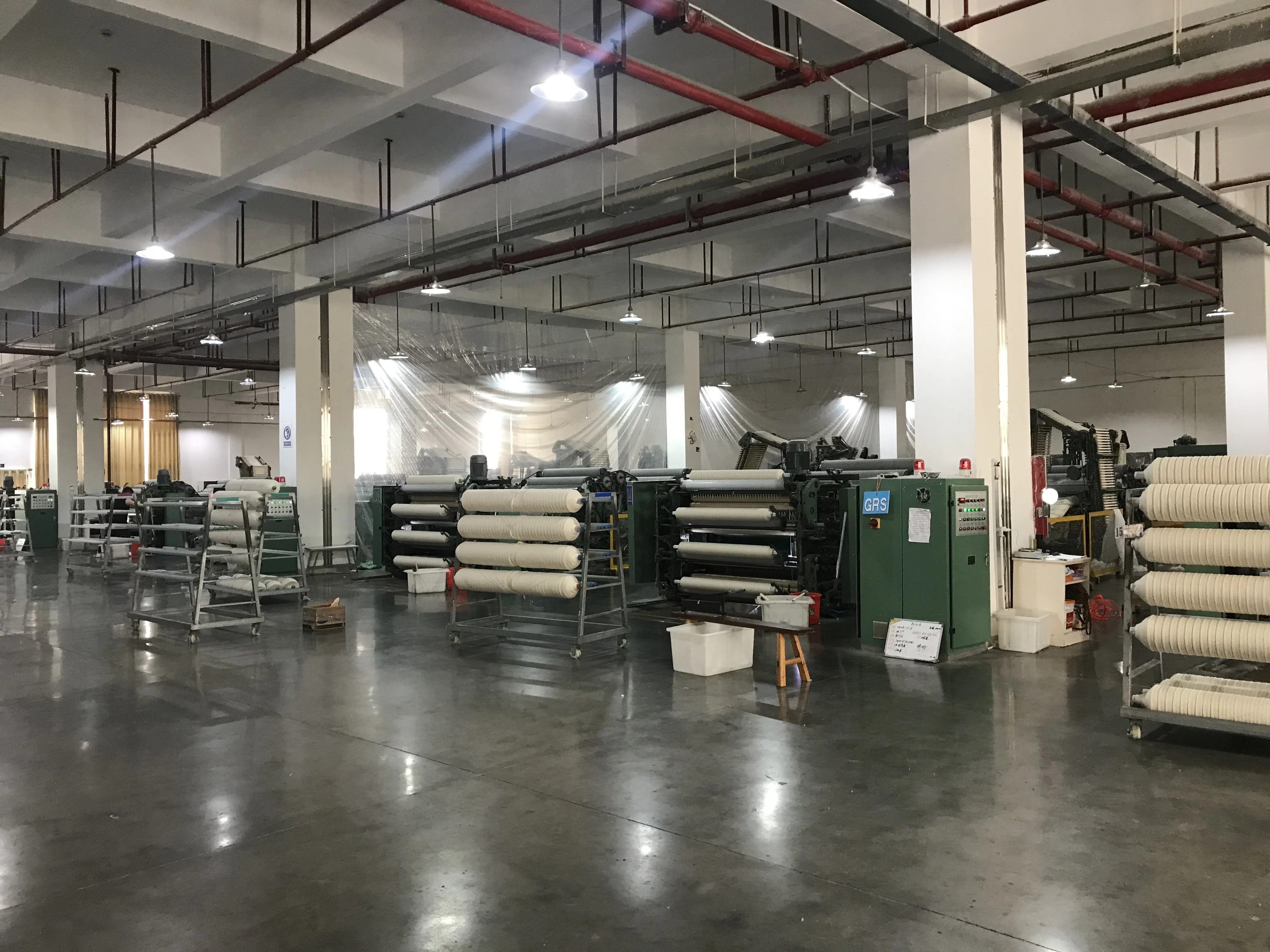

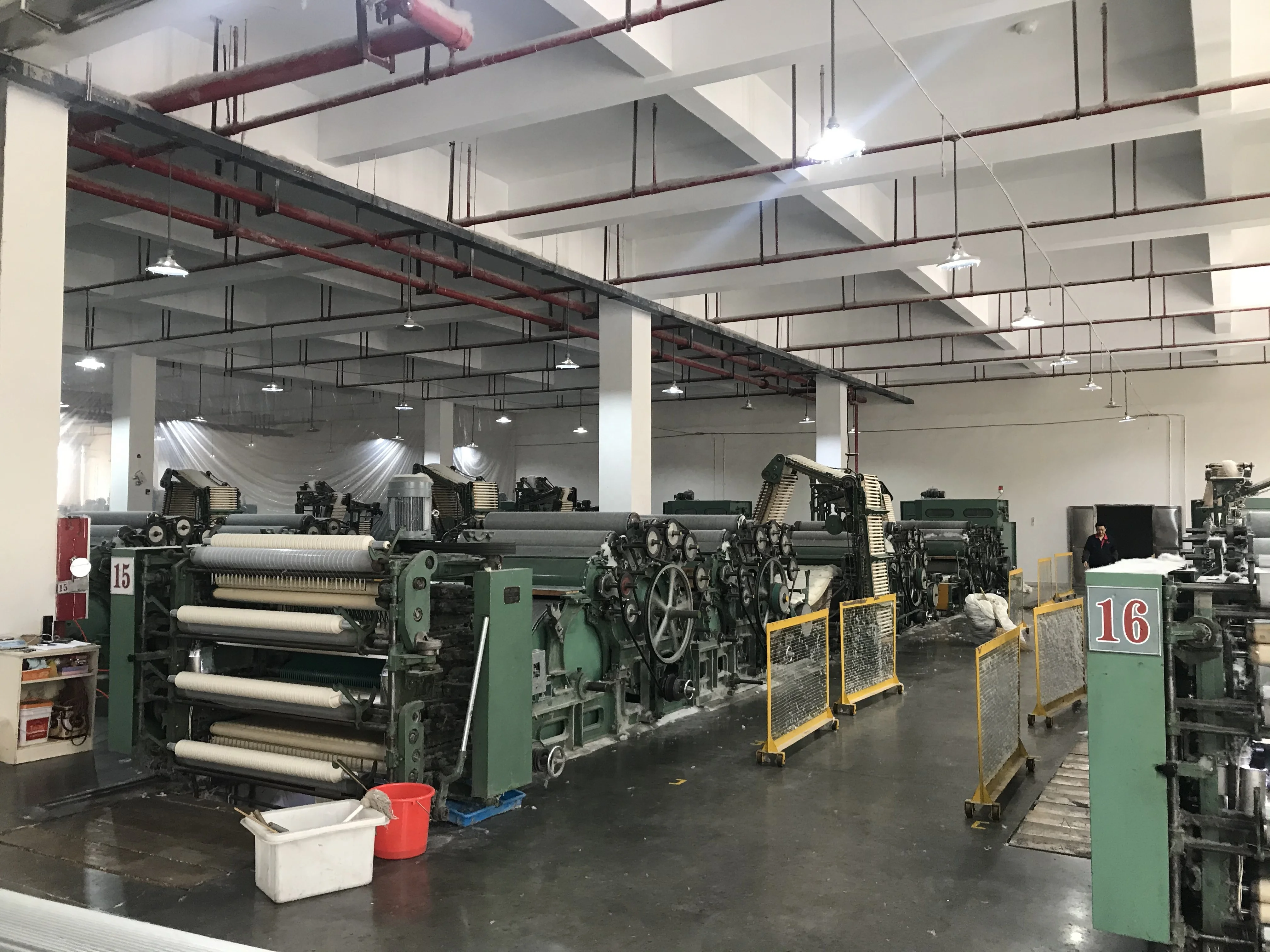

Production Line
