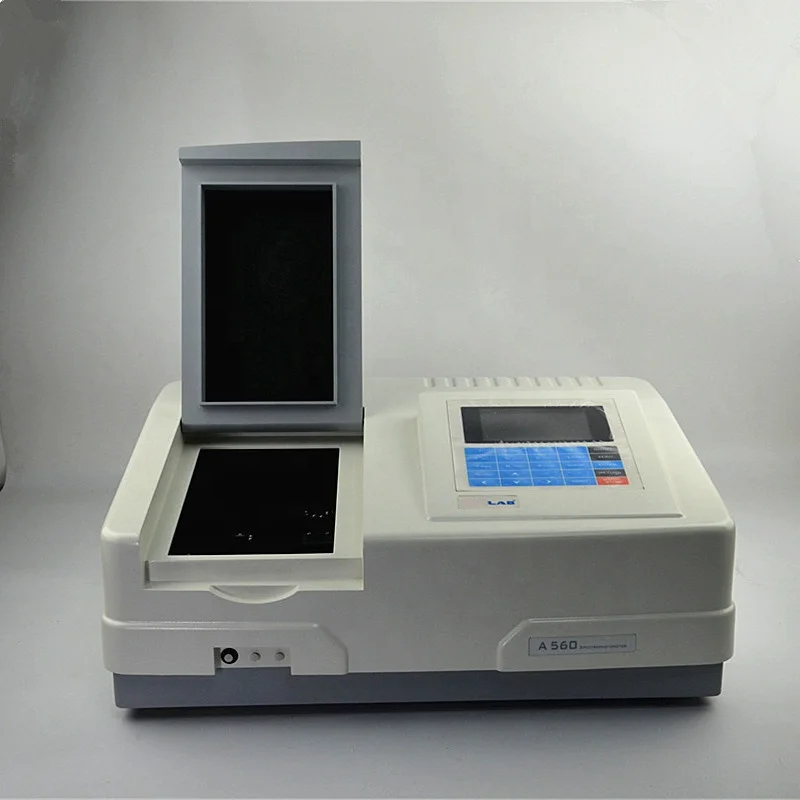

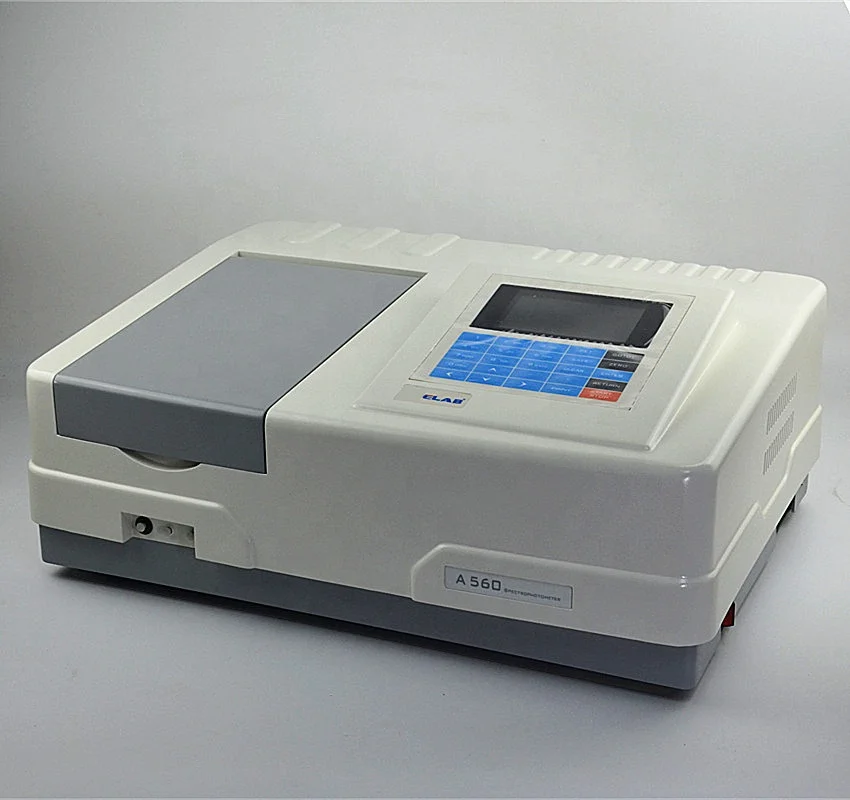

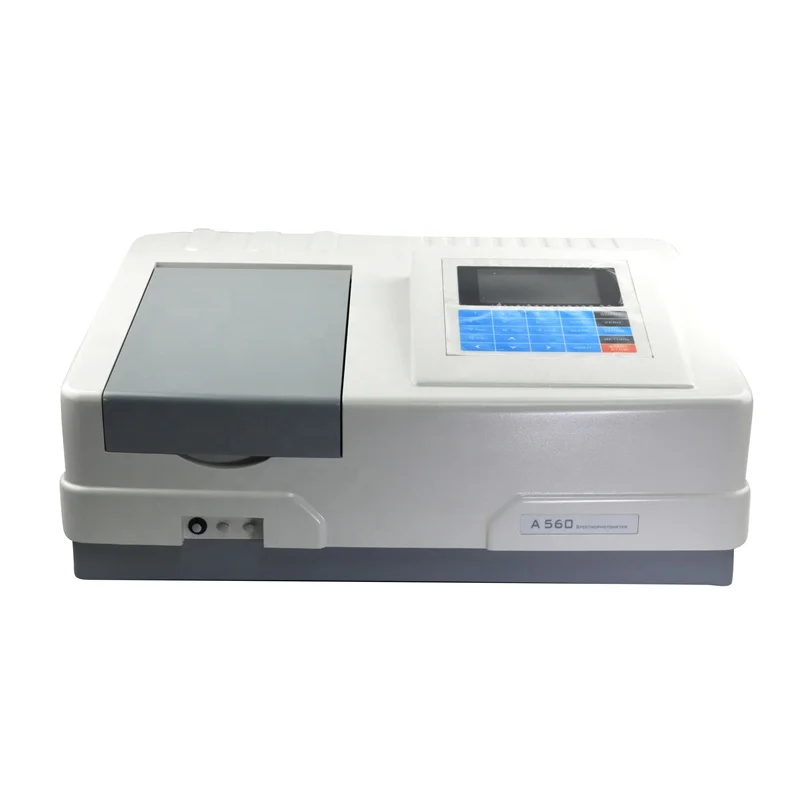

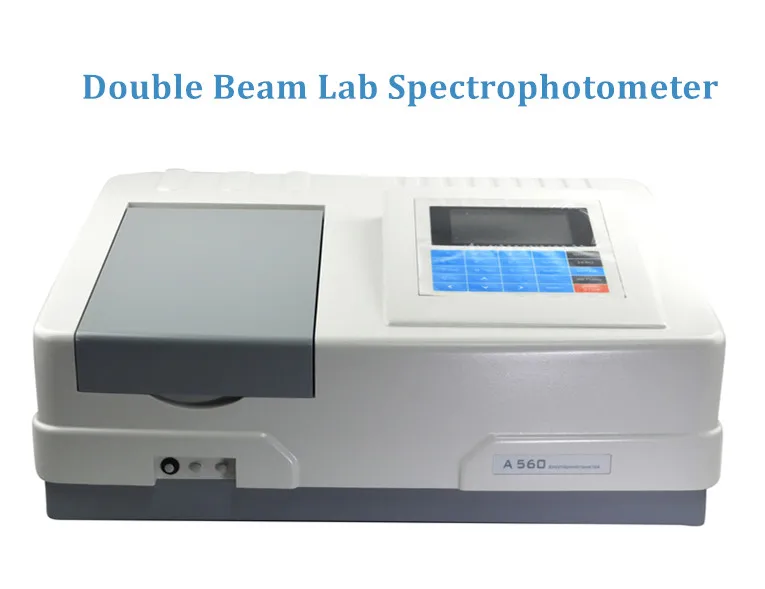

WESTTUNE A560 professional 1.8nm wavelength range 190 1100 uv vis double beam spectrophotometer for sell
- Category: >>>
- Supplier: Hangzhou West Tune Trading Co. Ltd.
Share on (1600780508253):
Product Overview
Description
Features
1. Large LCD screen(480*800) with 65 thousand true color and support U disk data saving
2. Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
3. Data output: Data can be exported to U disk (USB Output)
4. Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)
5. Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
6. Upgrade package can be downloaded from AOE web with S/N, support U disk one-key upgrade
7. Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
8. Pre-aligned design ensures the user can change lamps conveniently
9. With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off
protection
10. Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
11. With Si02 coating optical mirror, reducing the pollution from outside fully
2. Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
3. Data output: Data can be exported to U disk (USB Output)
4. Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)
5. Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
6. Upgrade package can be downloaded from AOE web with S/N, support U disk one-key upgrade
7. Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
8. Pre-aligned design ensures the user can change lamps conveniently
9. With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off
protection
10. Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
11. With Si02 coating optical mirror, reducing the pollution from outside fully
Specifications
Optical System | Double Beam, Grating 1200 lines/mm | ||||
Wavelength Range | 190-1100nm | ||||
Spectral Bandwidth | 1.8nm | ||||
Wavelength Accuracy | ± 0.3nm | ||||
Wavelength Repeatability | ≤ 0.2nm | ||||
Photometric Accuracy | ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.3% T (0-100% T) | ||||
Photometric Repeatability | 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤ 0.2% T (0-100% T) | ||||
Stray Light | ≤ 0.02 T @ 360nm; 220nm | ||||
Stability | ± 0.0003A / h @ 500nm | ||||
Baseline Flatness | ± 0.0005A | ||||
Noise | ± 0.0002Abs | ||||
Display | 65 thousand true color 7 inch TFT LCD(480 *800) | ||||
Photometric Mode | T, A, C, E | ||||
Photometric Range | 0-200% T,-0.301-3.0A | ||||
Detector | Silicon Photodiode | ||||
Light Source | Deuterium Lamp, Tungsten Lamp | ||||

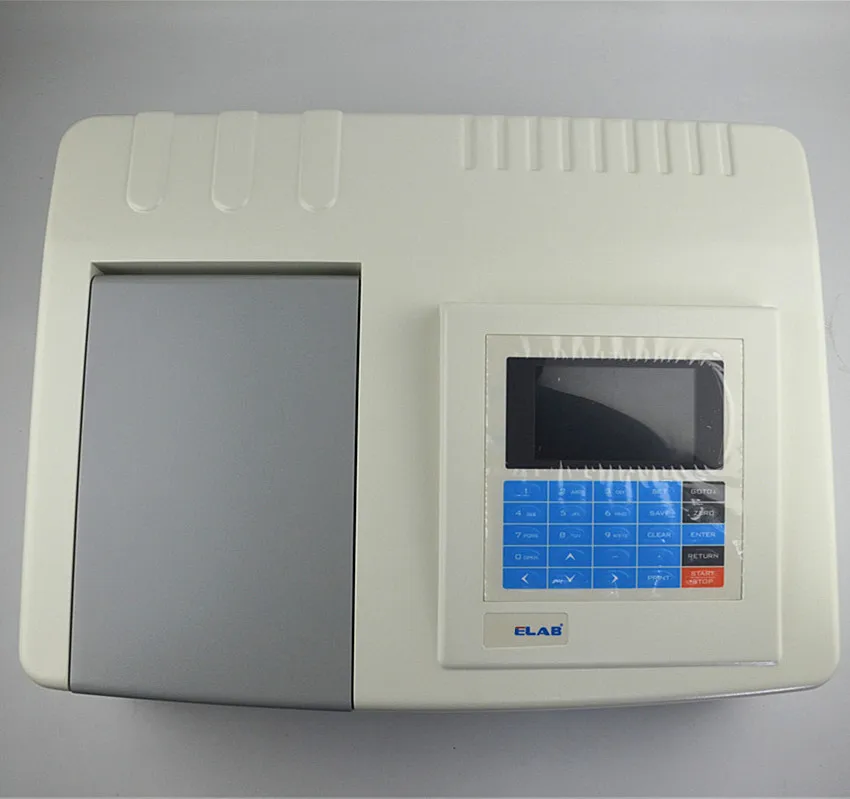

Input | Membrane Keypad | ||||
Output | USB2.0*2 Print and data output USB1.0 Connect PC | ||||

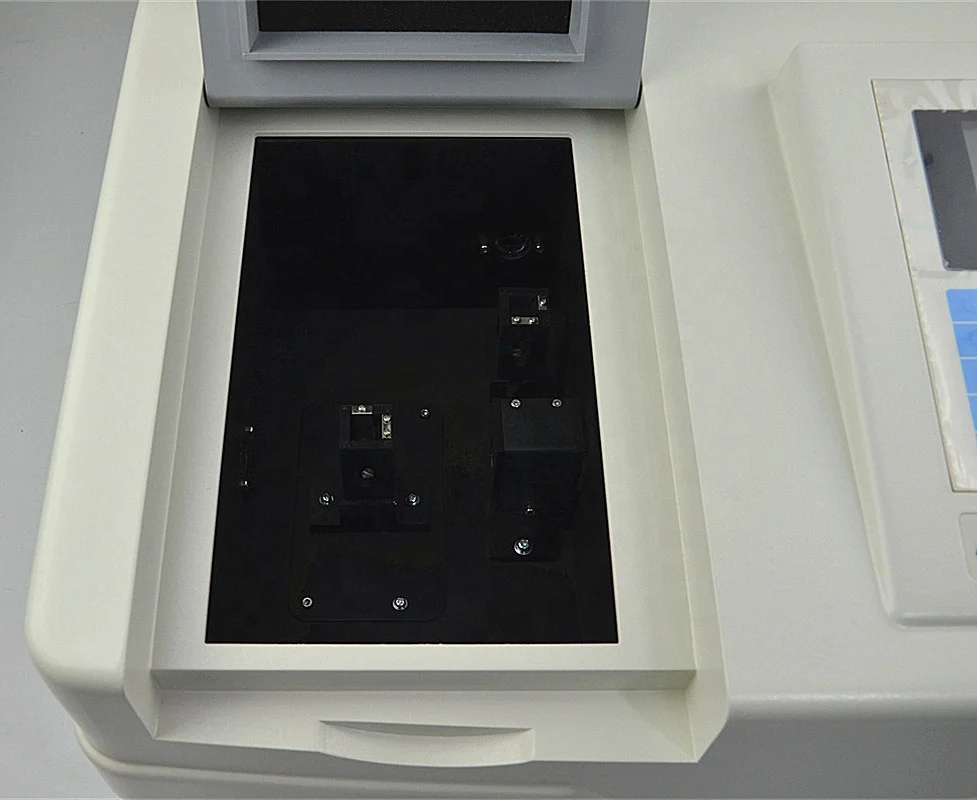

Compartment | Optional 8 Auto Cell holder, Solid Sample Holder, Micro Cell Holder, 10-100mm Cell Holder | ||||
