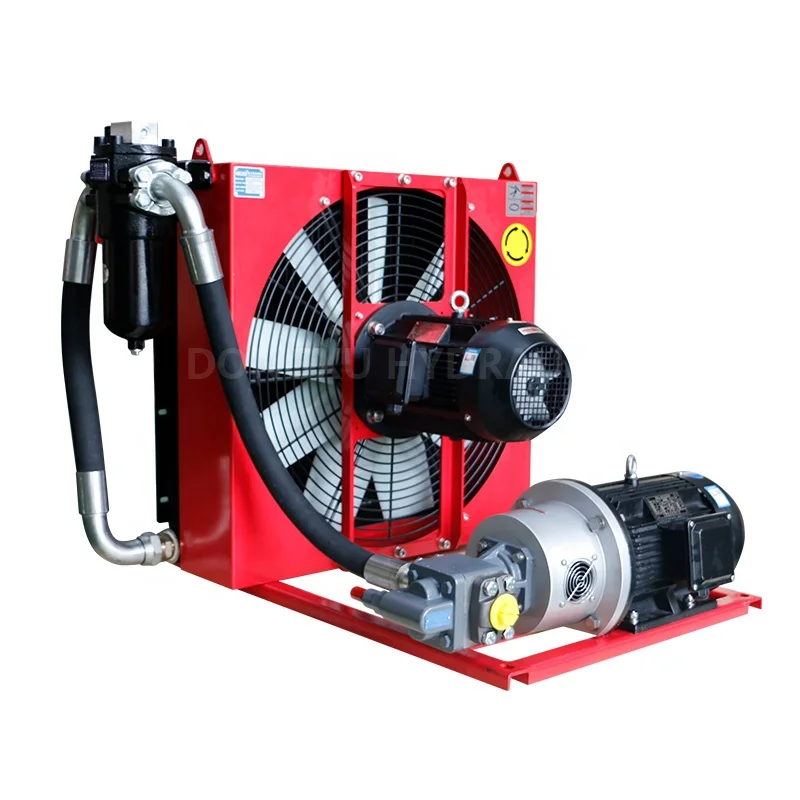

ODM Supplier DXDLA Efficient Independent Loop Hydraulic Oil Cooler for Automation Fluid Cooling System

Product Overview

Description

ODM Supplier

DXDLA Efficient Independent Loop Hydraulic Oil Cooler for

Automation Fluid Cooling System













 ---Features---

Through the vacuum brazing process, the cooler is driven by an all-in-one axial flow fan which can run for a long time to achieve a long-lasting cooling effect.

1. An Independent loop cooling circle can avoid the impact of oil return from the system, which will damage the radiator.


2. The oil pump and motor separately control the temperature controller.


3. It will turn off the motor to save energy when the oil does not need cooling.


4. The circulating pump adopts a gear oil pump with a strong self-priming ability and can be matched with a high-performance filter.

 Quality Assurance, Easy Installation, One Year Warranty

Description Of Model Label
DXDL-A	8	A3	5	M	C	X	O	O	O
Cooler Type: Independent circulation high efficiency motor drive series	Plate Size:3/4/5/6/7/8/9/10/ 11/12/13/14/15	Voltage: A3=AC380V(Standard) A4=AC440V A5=AC660V	Frequency: 5=50Hz(Standard) 6=60Hz	Oil Pump Type: M=General gear pump(Standard) W=Low Noise Gear Pump	Oil Hole Direction: C=Side in side out(Standard) S=Up in up out	Wind Direction: X=Suction(Standard) C=Blowing	Temp. Controller: O=Without controller(Standard) T=Temp. Switches--Action Temp.: T50=50℃,T60=60℃,T70=70℃ C=Temp. Transmitter-- C1=Compact,C2=Digital	Oil Filter: O=Without(Standard) L1=Filtering precision20μm L2=Filtering precision30μm L3=Filtering precision40μm L4=Filtering precision50μm	Heatsink Protection: O=Without protection(Standard) S=Anti-Stone net
