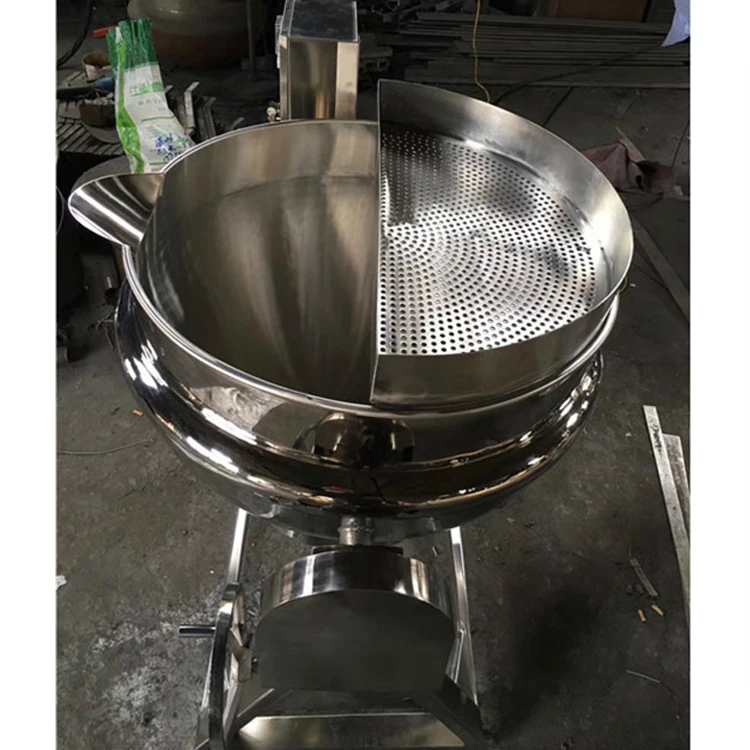

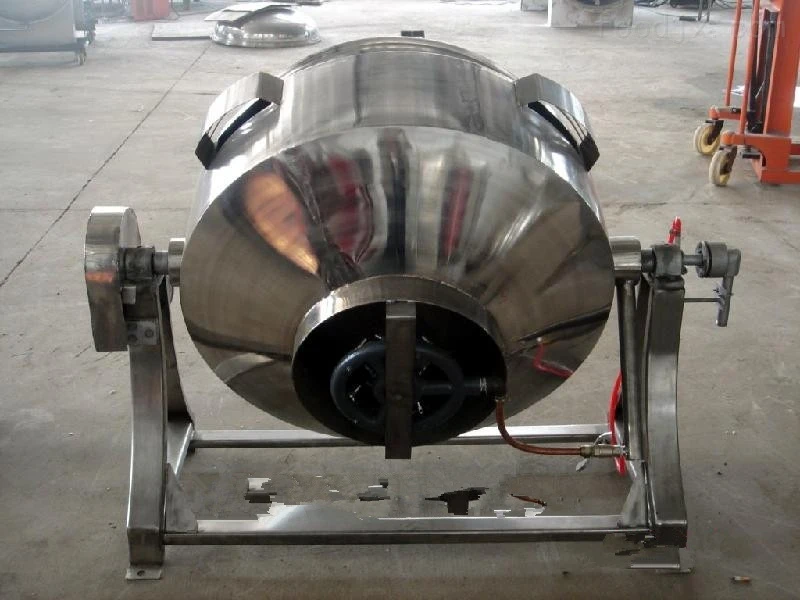

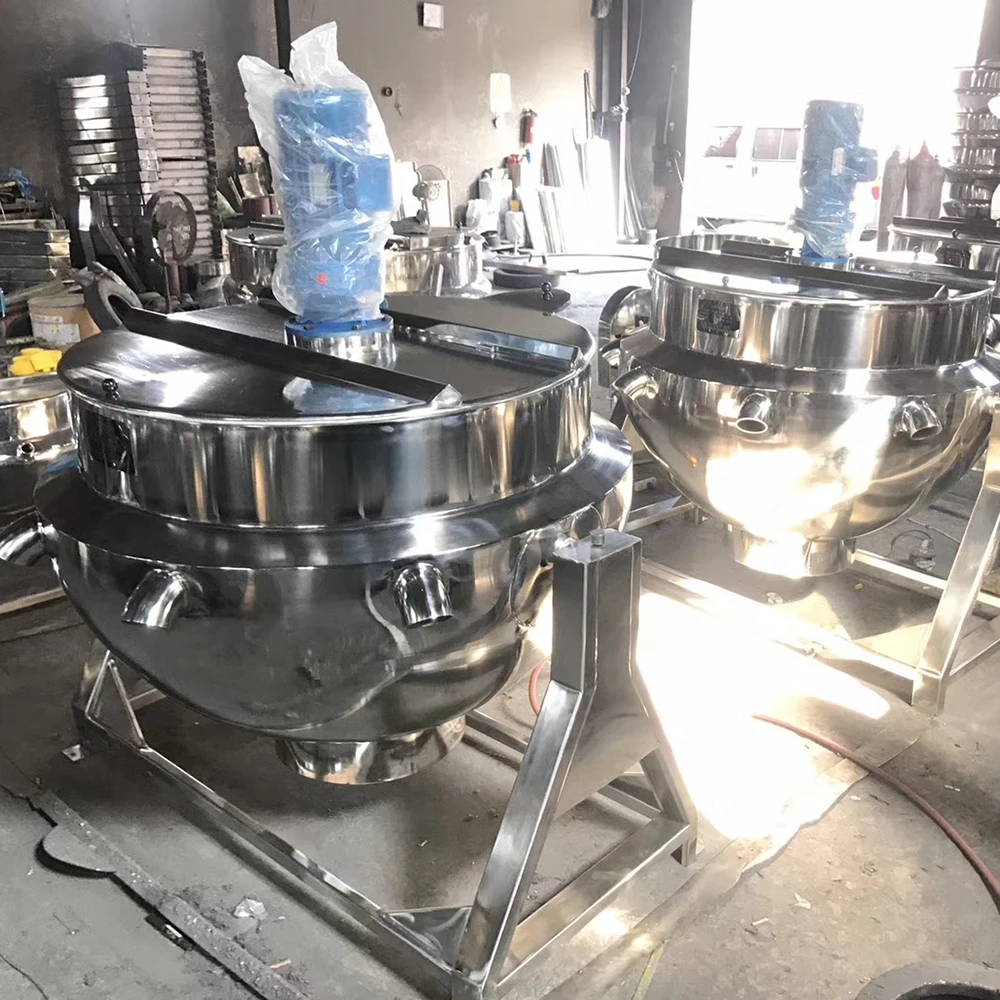

Stainless steel gas heating cooking boiler paste steam jacketed kettle 100L 200L 300L
- Category: >>>
- Supplier: Wenzhou Kinding Machinery Co. Ltd.
Share on (1600780573208):
Product Overview
Description
Products Description
Stainless steel jacket kettle is widely used in pharmaceutical milk, wine, candy cakes, beverages, candied fruit, cannefood processing, can also be used in large restaurant cooking or dining room to boil soup, stew, congee, etc., Is a food processing to improve quality, shorten time, improve the working conditions of good equipment.
Feature

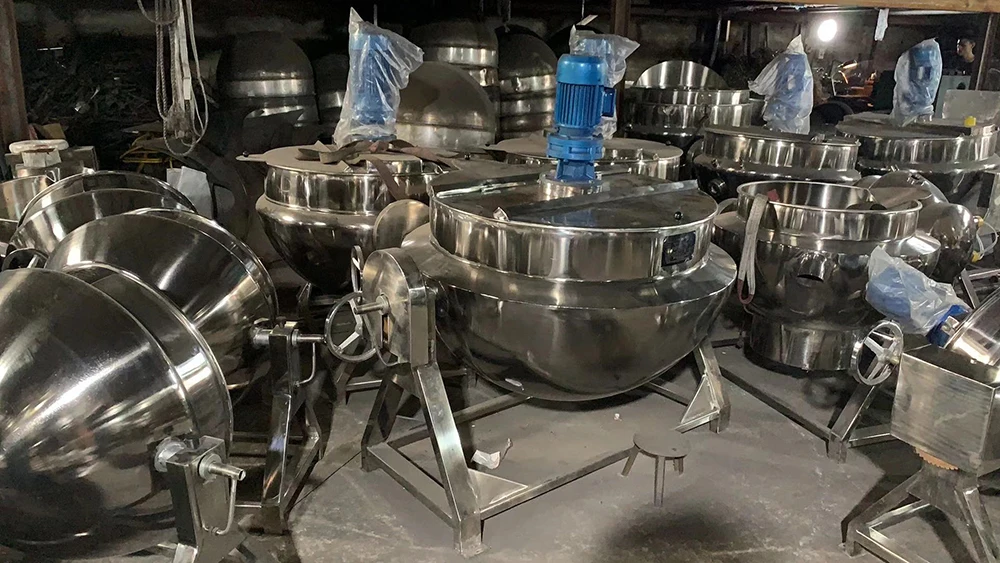

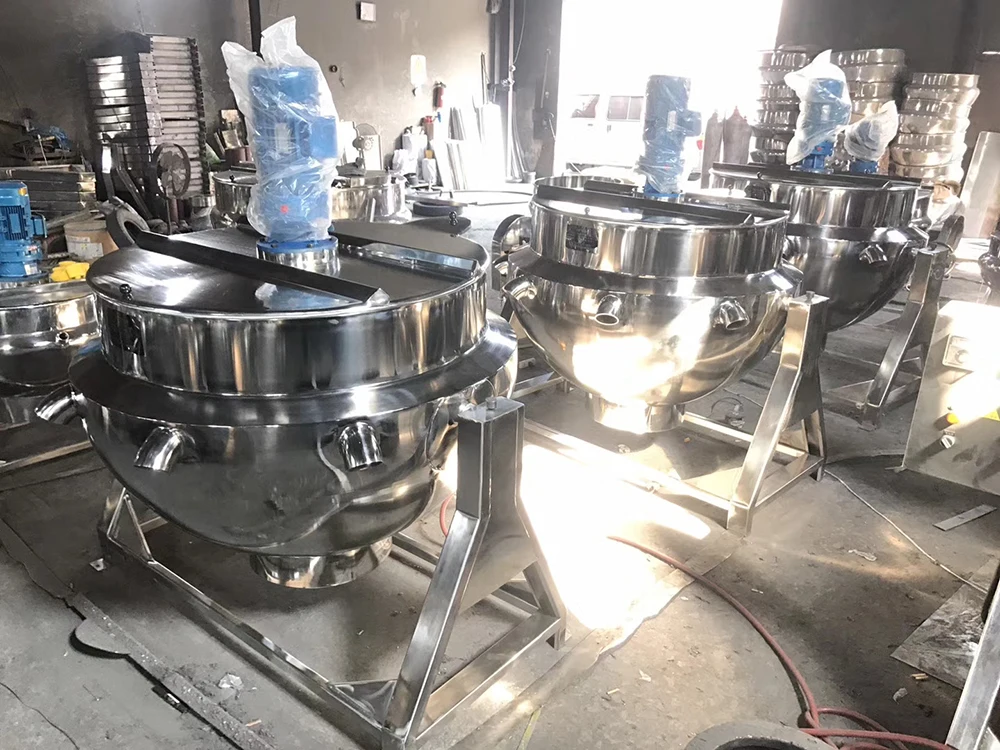

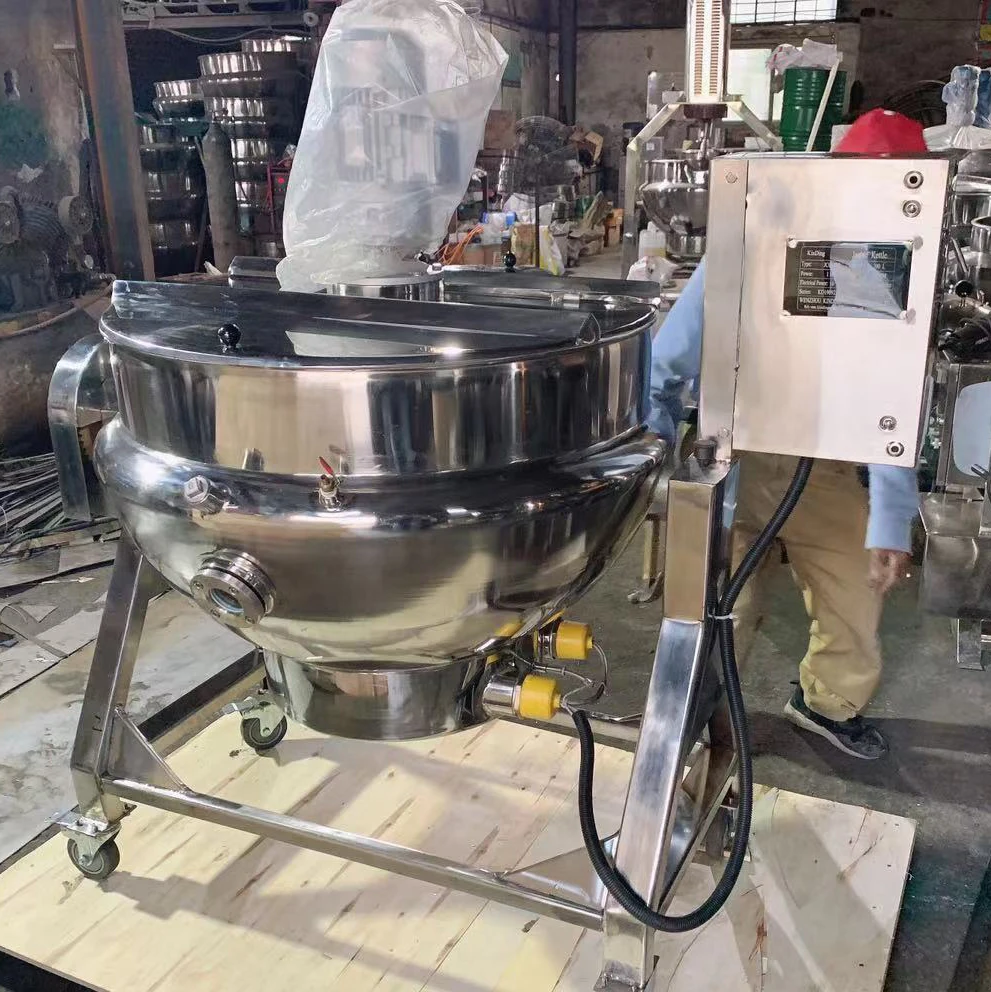

Jacket kettle is mainly composed of pot body and tilting angle of frame or hang on. Pot body is composed of inner and outer spherical pot body double structure form, the intermediate sandwich ventilation with steam heating or electric heating.

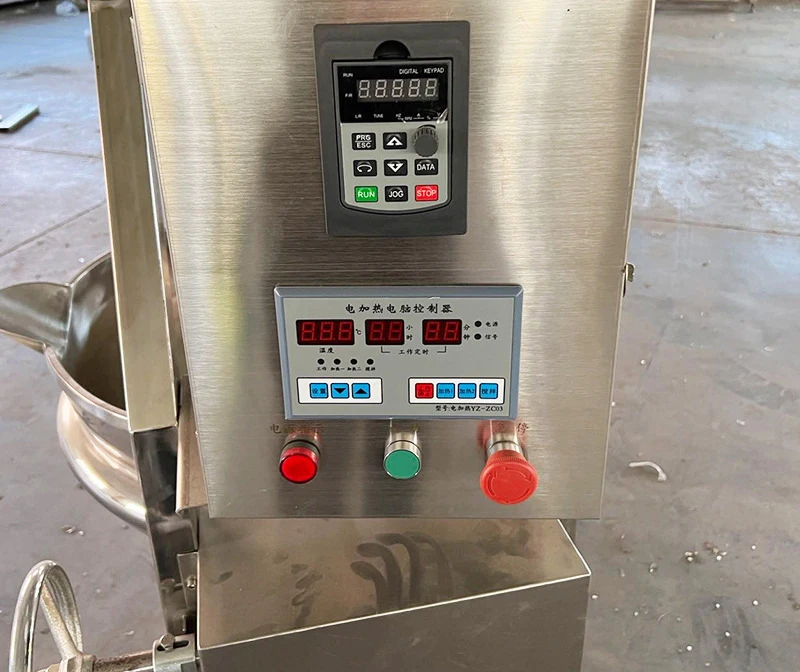

Have large heating area, high thermal efficiency, uniform heating, short liquid boiling time, heating temperature easy to control, etc., Jacket kettle is equipped with a pressure gauge and relief valve, electric cabinet.
Equipment is beautiful, easy installation, convenient operation, safe and reliable.
Have large heating area, high thermal efficiency, uniform heating, short liquid boiling time, heating temperature easy to control, etc., Jacket kettle is equipped with a pressure gauge and relief valve, electric cabinet.
Equipment is beautiful, easy installation, convenient operation, safe and reliable.
Volume | 50L | 100L | 200L | 300L | 400L | 500L | 600L | 800L | 1000L | ||||||||
Caliber (mm) | ∅600 | ∅700 | ∅800 | ∅900 | ∅1000 | ∅1100 | ∅1200 | ∅1300 | ∅1400 | ||||||||
Depth of pot (mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 | ||||||||
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 | ||||||||
Electric power (kw) | 9 | 9 | 15 | 18 | 18 | 24 | 24 | 27 | 30 | ||||||||
Heat transfer oil QTY.(L) | 30 | 36 | 45 | 60 | 70 | 80 | 100 | 200 | 250 | ||||||||
Working pressure | ≤0.09Mpa (can be adapted according to customer requirement) | ||||||||||||||||

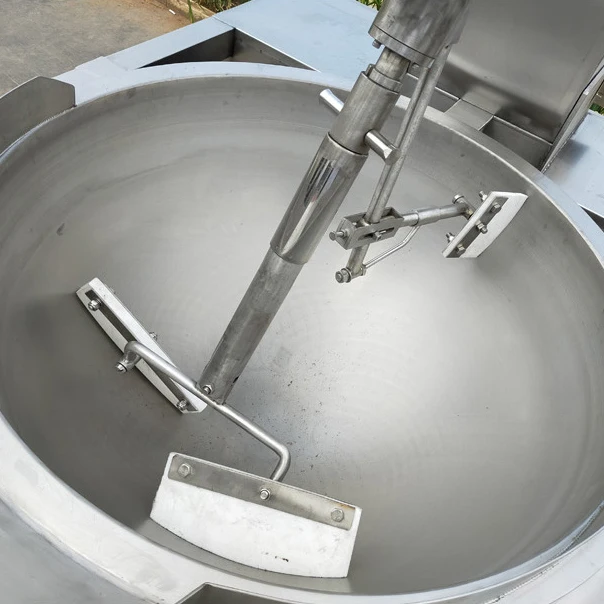

Mixing speed | 36r/min (can be adapted according to customer requirement) | ||||||||||||||||
Mixing power (kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | ||||||||
Our Company
Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
Package and Shipping
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Mobile/Whatsapp: +86 15058983705 . Skype: hyq5871 . QQ: 1783023369.
