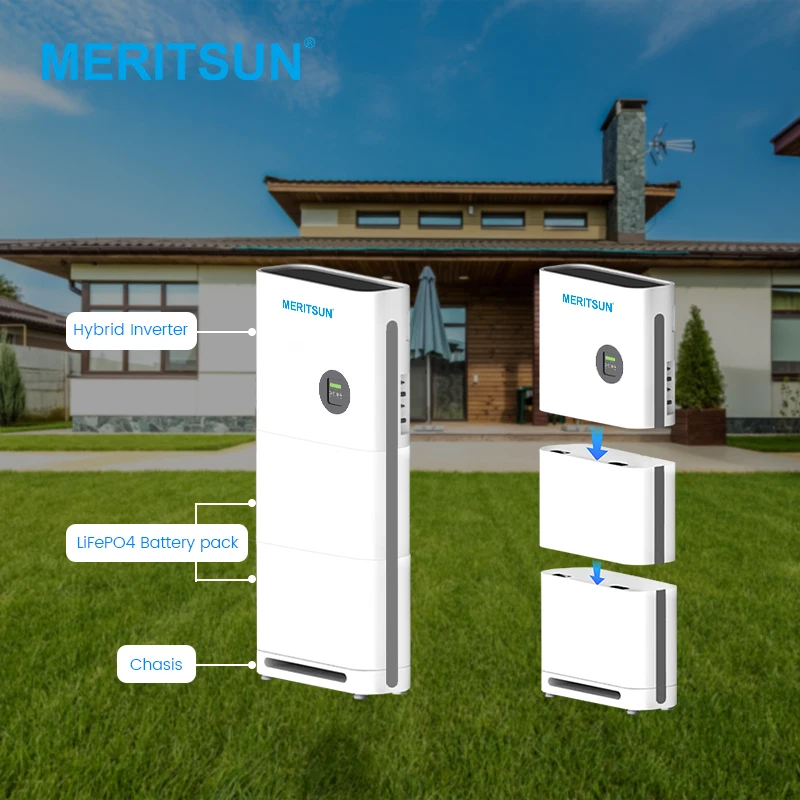

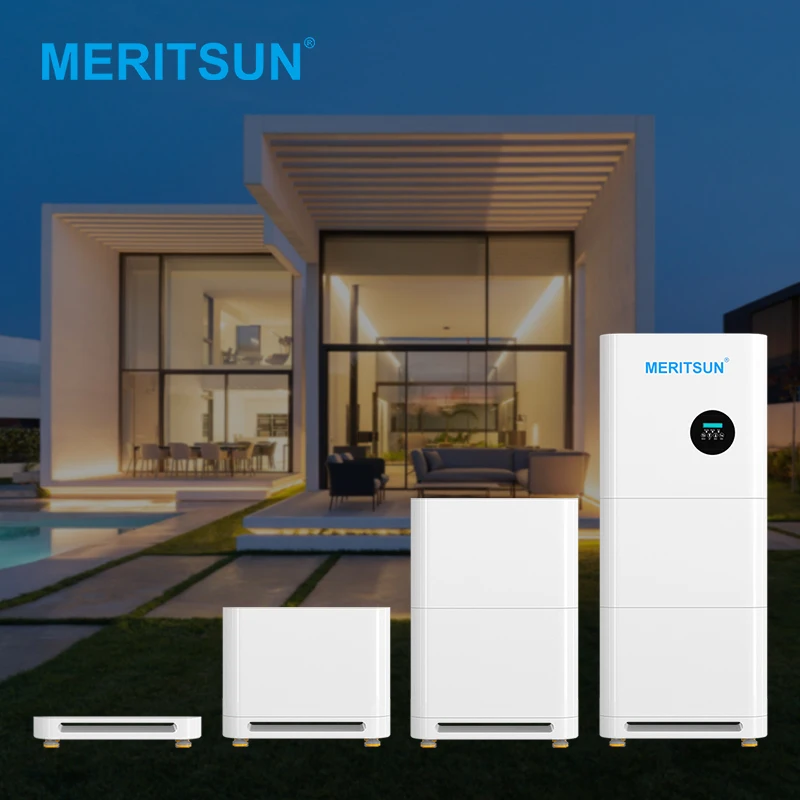

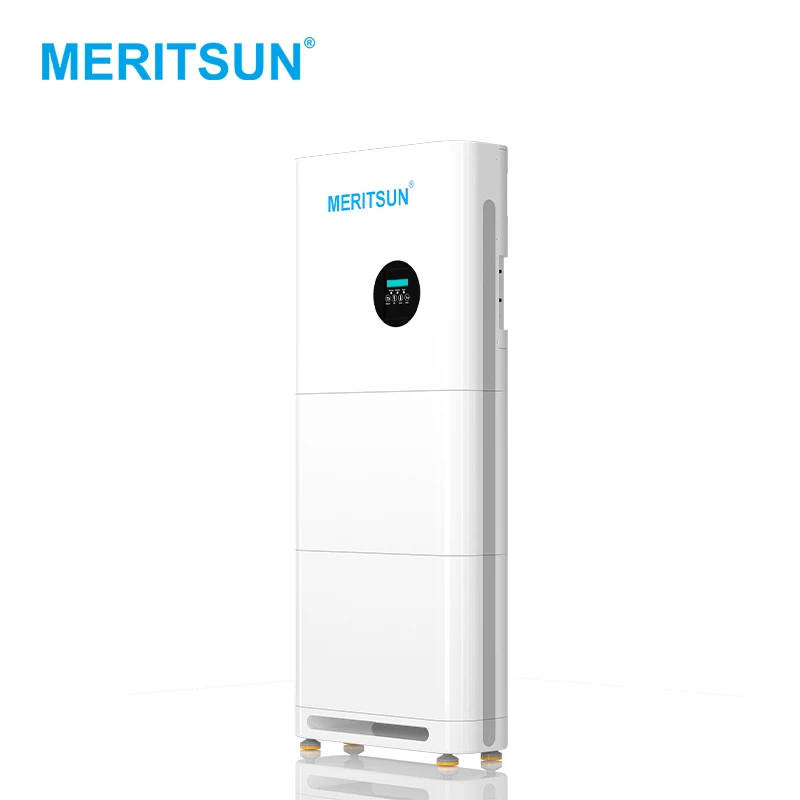

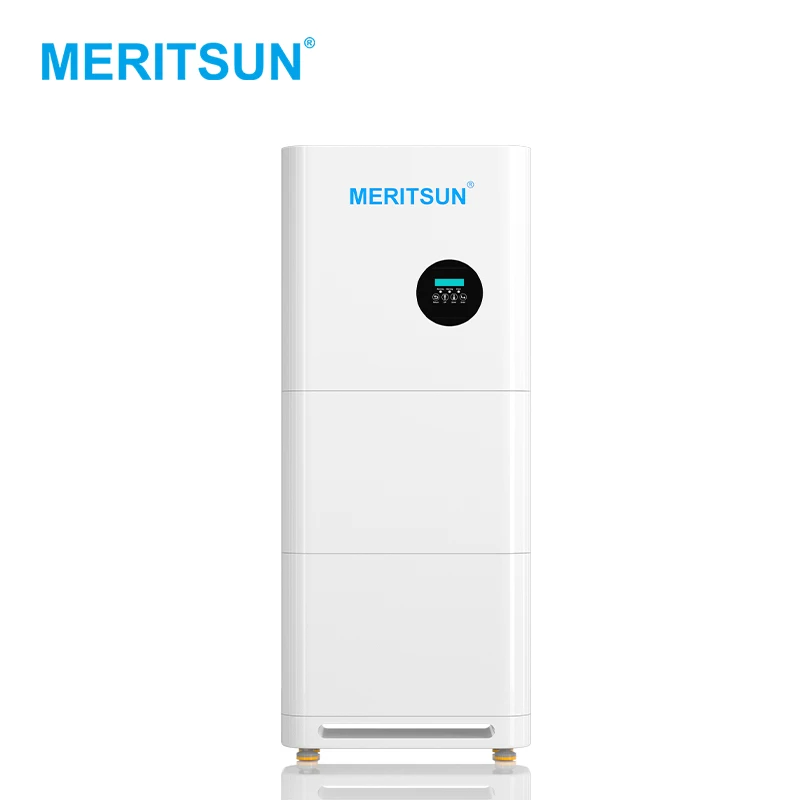

MeritSun Solar Energy System EU Power Plus All In One Power Lithium Battery
- Category: >>>
- Supplier: Guangzhou Meritech Power Co. Ltd.
Share on (1600780604657):
Product Overview
Description
Product Detail
Product Parameter
Battery Specifications | ||||
Model NO. | LFP100-48/51.2 | LFP200-48/51.2 | ||
Nominal Parameters | ||||
Voltage | 48V/51.2V | 48V/51.2V | ||
Capacity | 100Ah | 200Ah | ||
Energy | 4.8/5.12KWh | 9.6/10.24KWH | ||
Dimensions(L*W*H) | 470*700*260mm | 470*700*260mm*2 | ||
Design life time(25℃) | 20years | 20years | ||
Life cycles(80% DOD,25℃） | 8000 Cycles | 8000 Cycles | ||
Storage tiome/temperature | 5 moths @ 25℃;3 moths @ 35℃;1 moths @ 45℃ | |||
Operation temperature | -20℃ to 60℃ @ 60±25 Relative Humidity | |||
Storage temperature | 0℃ to 45℃ @ 60±25 Relative Humidity | |||
Lithium battery standard | IEC62619,UN38.3,ROHS,CE- EMC,UL 1642,MSDS | |||
Enclosure protection rating | IP52 | |||
Electrical Parameters | ||||
Operation voltage | 48Vdc/51.2Vdc | |||
Max. charging voltage | 54Vdc/57.6Vdc | |||
Cut-off discharge voltage | 40.5Vdc/43.2Vdc | |||
Max. charge and discharging current | 100A | |||
For More Information On The Product, Please Contact Us Now!
(click on the online customer service on the right).
Products Description
Why Choose Us
FAQ
Q1: What’s the life of meritsun wall mounted battery?
A: 95% DOD more than 8000 cycles
Q2: Can the battery be connect in parallel?
A: Yes,support in parallel for more than 16pcs
Q3: Can the wall mounted battery work with my hybrid inverter?
A: Yes, the wall mounted battery suitable for all off grid and hybrid inverter
Q4: What’s the warranty of wall mounted battery?
A: 12 years,we support extended warranty services
Q5: What is the battery output power?
A: 95% DOD more than 8000 cycles
Q2: Can the battery be connect in parallel?
A: Yes,support in parallel for more than 16pcs
Q3: Can the wall mounted battery work with my hybrid inverter?
A: Yes, the wall mounted battery suitable for all off grid and hybrid inverter
Q4: What’s the warranty of wall mounted battery?
A: 12 years,we support extended warranty services
Q5: What is the battery output power?
A: 150A
Q6: Does the wall mounted battery including inverter?
A: No, is battery only, so it is more flexible to work with different brand of inverter preferred by customer.
Q7: Does the wall mounted battery with communication function?
A: Yes, meritsun wall mounted battery with RS232&485 communication with PC and smart LCD for monitoring.
