ELP USB Camera Module Autofocus 48MP Industrial Board Camera 8000x6000 High Definition Camera for Altimeter, Machine Vision
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600780641340):
Product Overview
Description

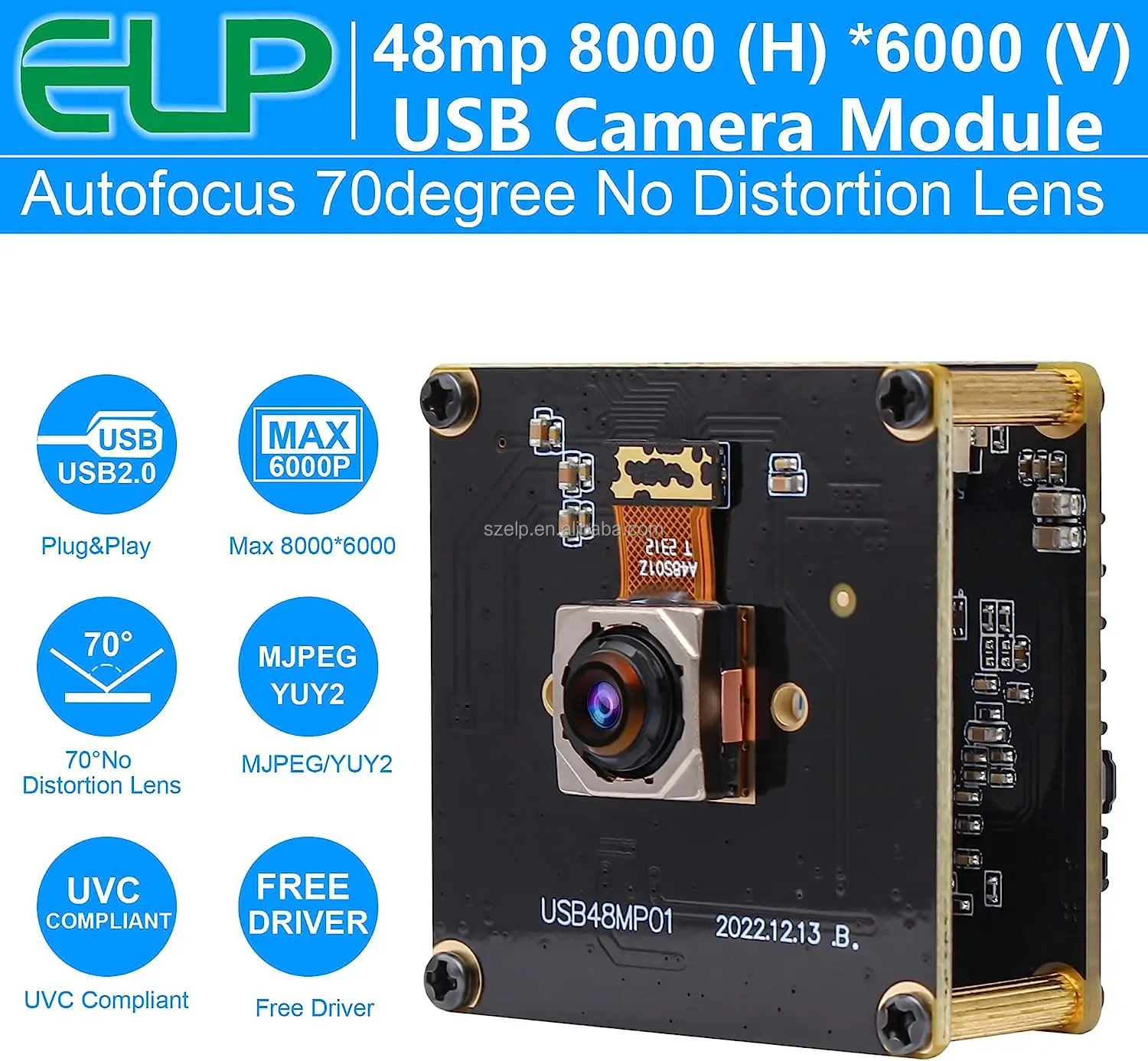

ELP USB Camera Module Autofocus 48MP Industrial Board Camera 8000x6000 High Definition Camera for Altimeter, Machine Vision
General Description:

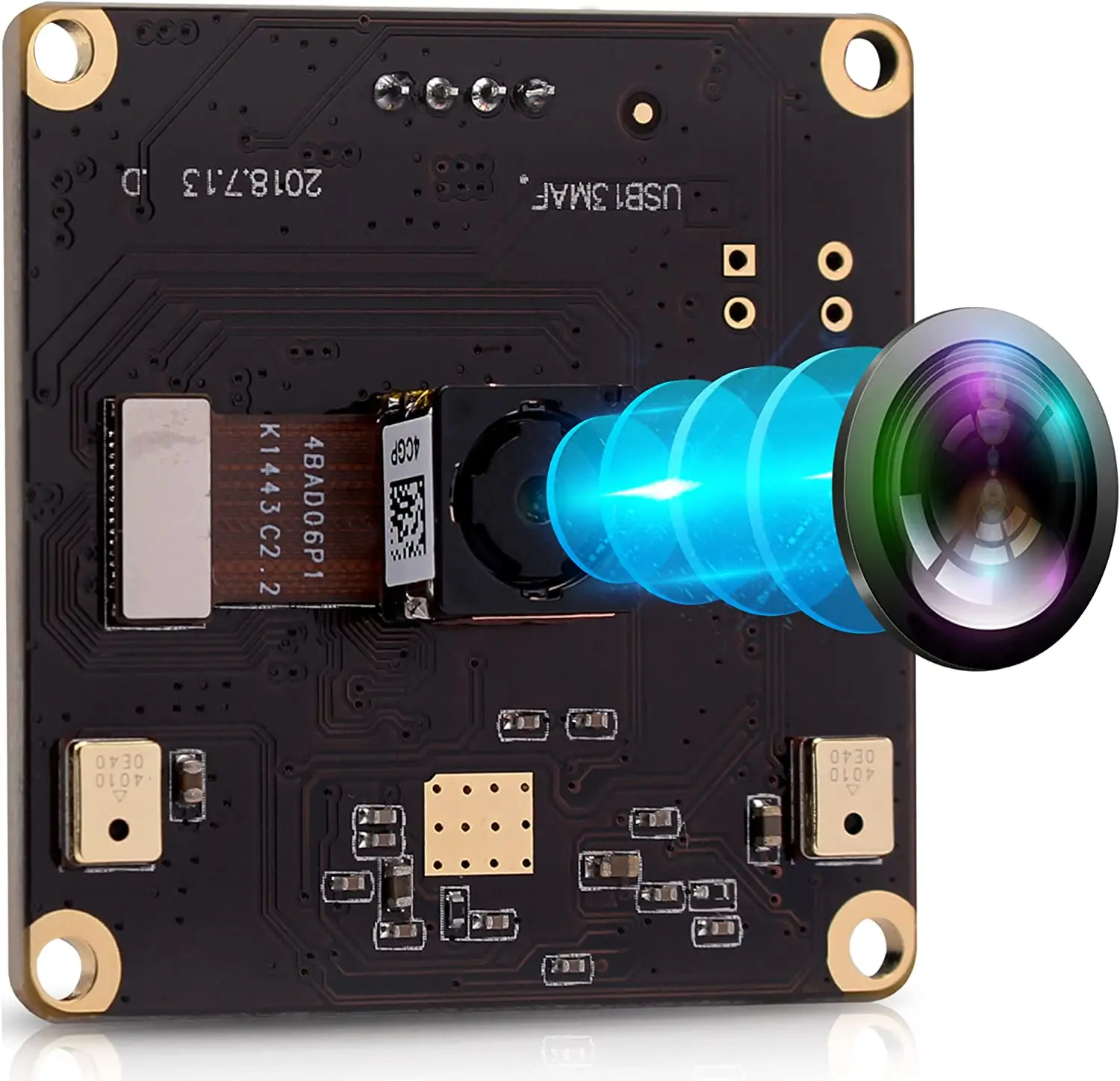

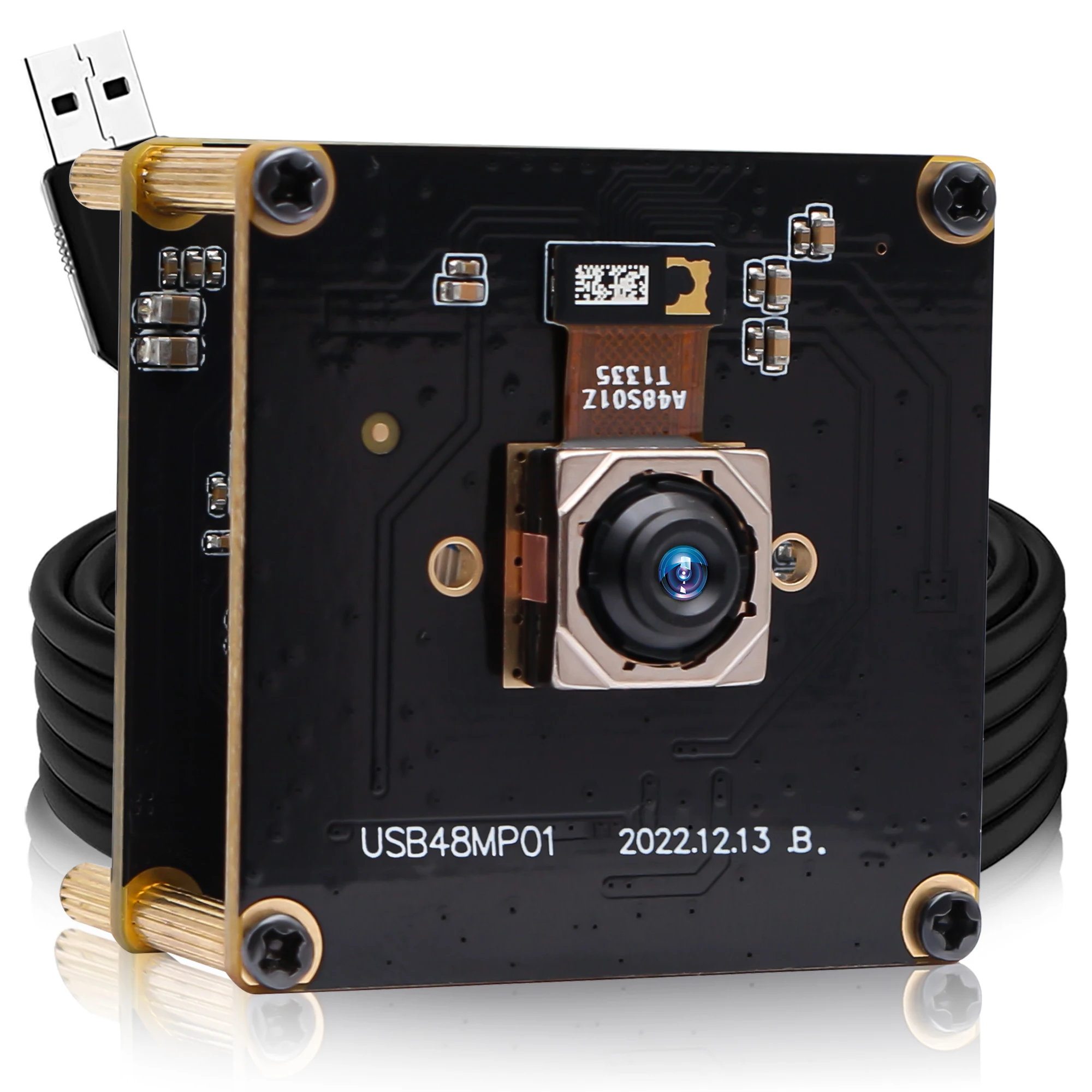

This 48MP High Resolution Autofocus USB Camera is based on Big1/2” 48MP S5KGM1ST03-FG9 image sensor, Autofocus, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast Auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.Ultra 8000*6000 resolution meets application where High resolution images and video with autofocus capabilities are required
Features:
-High Quality Imaging: This small camera module adopts 48MP sensor for sharp image and accurate color reproduction, still picture resolution: 8000 x 6000 Max.
-Fast Autofocus: 200mS, Shoot objects in close and Far distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
-Super Image reality, real color reproduction, without interpolation.
-Frame Rates: MJPEG 15fps@4000x3000; 30fps@3840X2160 /1080P/720P
-Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
-Applications: This small 38mmx38 Mini camera board is highly recommended for Video conference, Live Stream, Security & Surveillance, Medical Imaging, Industrial Inspection, Reseach & Development, Education & Training
Specification:
Model | ELP-USB48MP01-AF70 |
Sensor | S5KGM1ST04-FG9 |
Max. Resolution | 8000 (H) *6000 (V) |
Lens Size | 1/2 inch (4:3) |
Compression Format | MJPEG / YUY2 (YUYV) |
Resolution & Frame Rate | 8000x6000 @ 3fps MJPEG / 4000x3000 @ 12fps MJPEG |
Surface Mount Technology | SMT |
Focus Speed | Fast About 200ms |
Central Definition | 1000LW/PH (Center) |
S/N Ratio | 36dB |
Dynamic Range | 82dB |
Sensitivity | 1.4V/lux-sec@550nm |
Min illumination | 0.3lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port Type | USB2.0 High Speed |
AEC | Support |
AWB | Support |

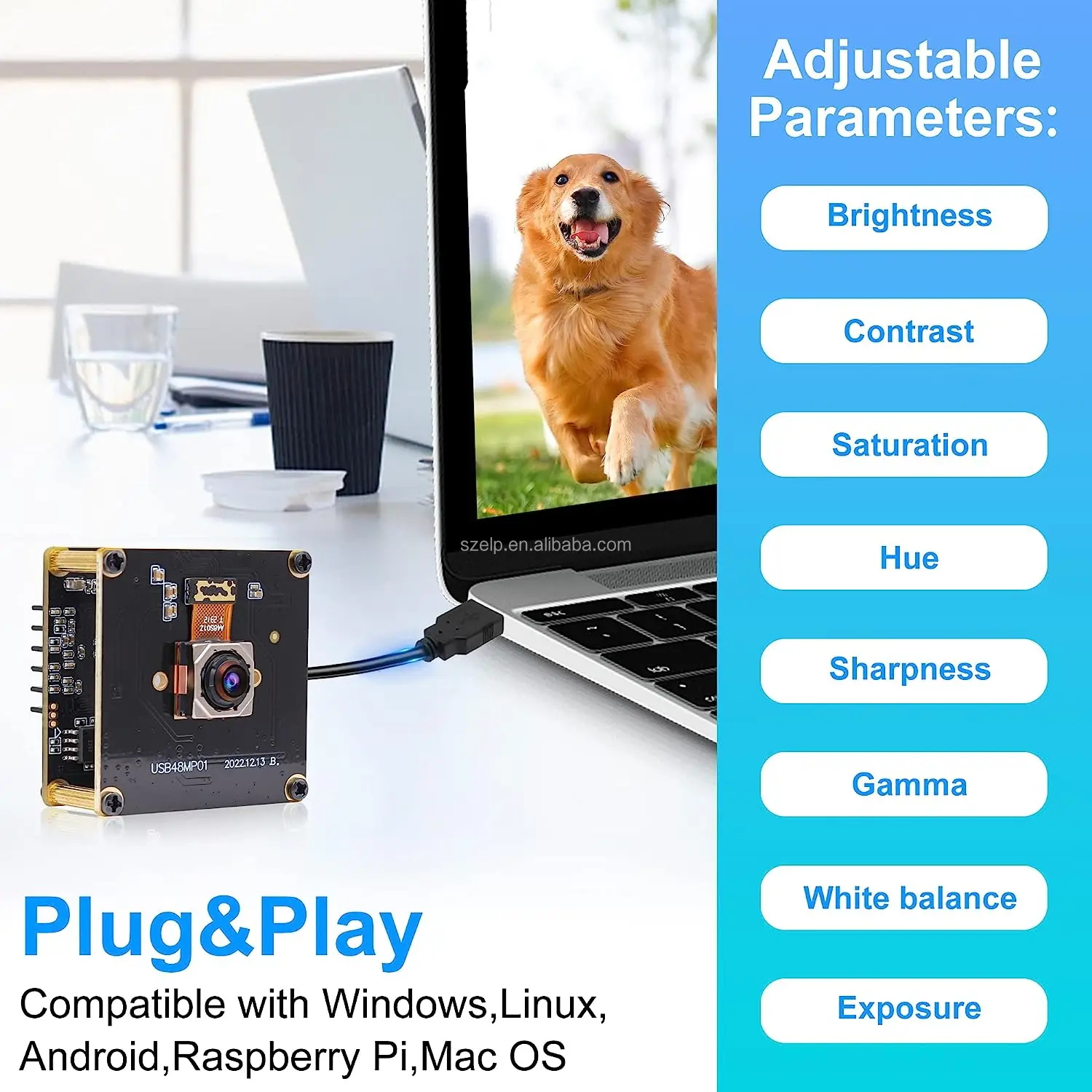

Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
White balance, Exposure | |
Lens Parameter | Size 1/2” |
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 550mA- 610mA |

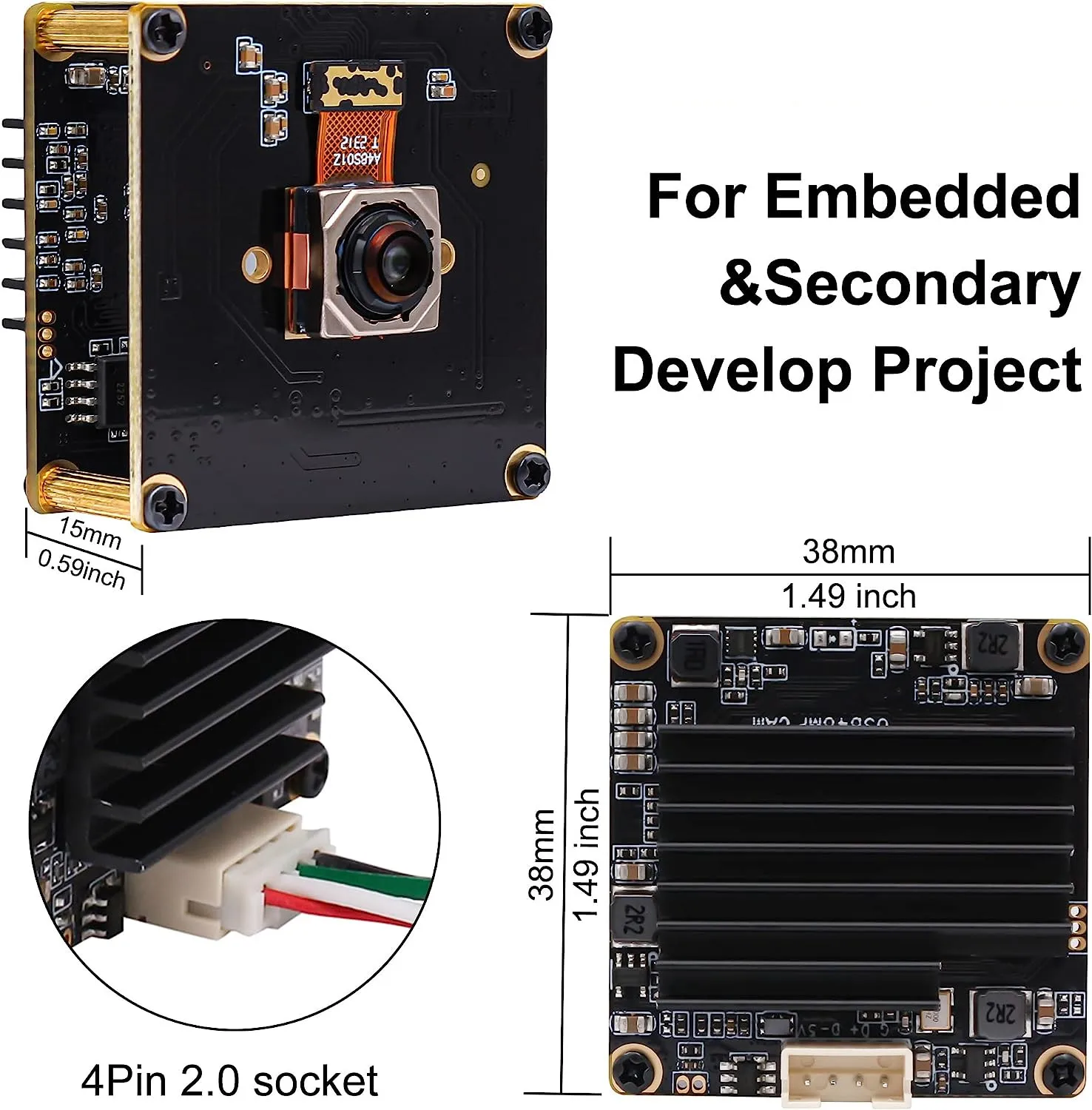

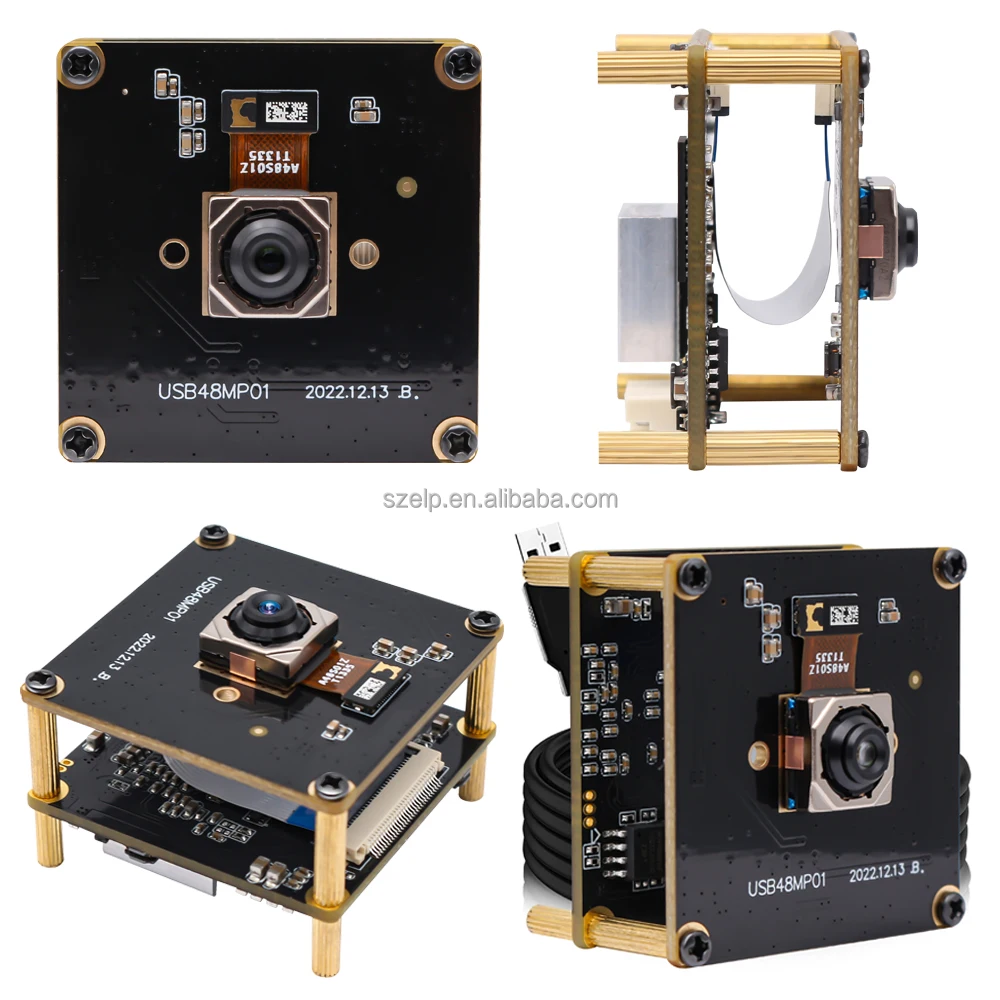

Board Size | Double-Sided PCB, 38mm × 38mm |
Storage Temperature | -20°C to 80°C |
Working Temperature | 0°C to 70°C |
USB Cable | Standard 1m / optional 2m,3m... |
Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. |

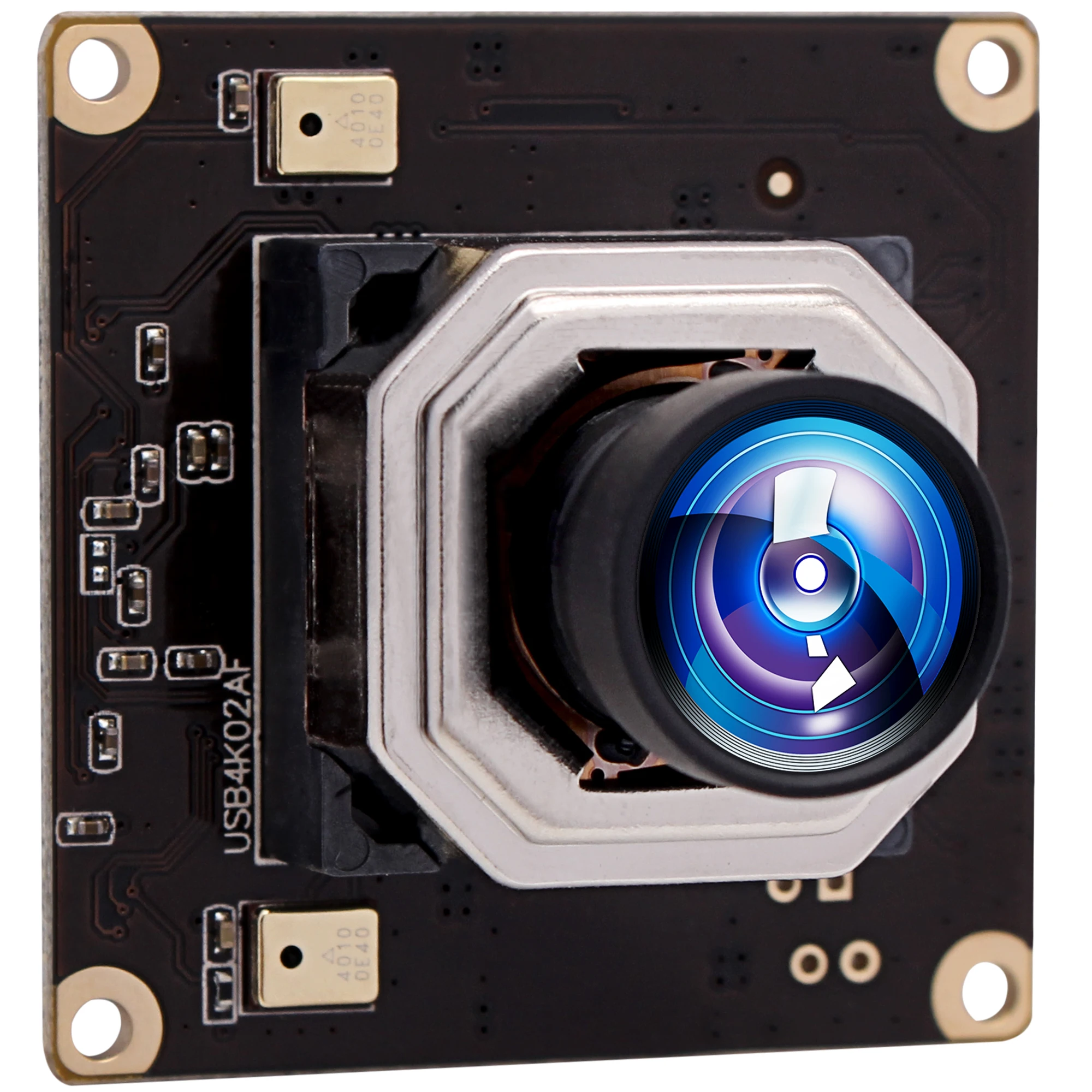

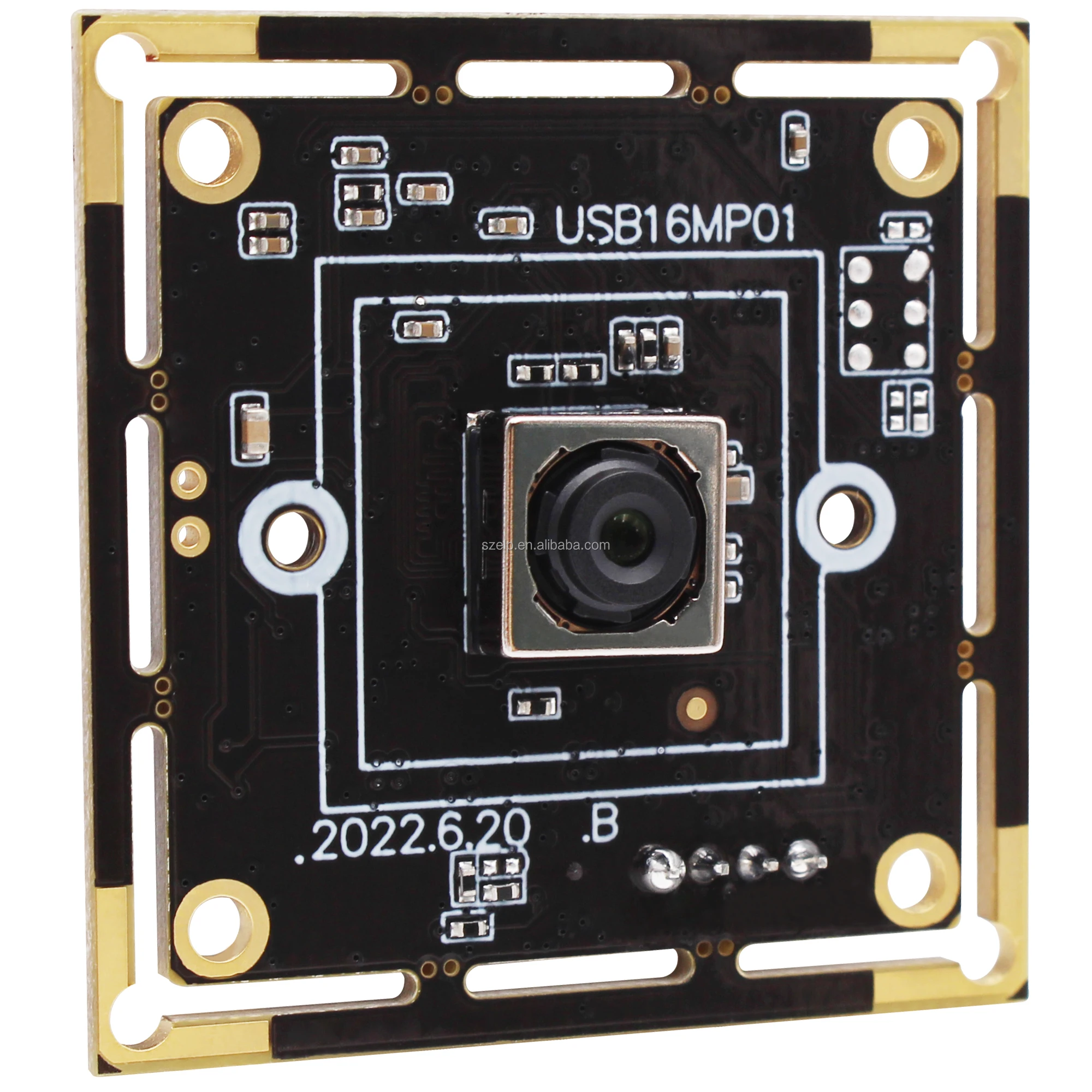

HD Auto Focus Camera
Pictures | | | | |
Model No. | ||||
Max. Resolution | 48MP 8000X6000 | 16MP 4656X3496 | 4K 3840X2160 | 13MP 3840X2880 |
Image Sensor | 1/2" S5KGM1ST03-FG9 | 1/2.8" Sony IMX298 | 1/2.8" Sony IMX415 | 1/3" Sony IMX214 |
Lens | 70° M8 Lens | 68° M7 Lens | V100 M12 Lens | 75° M6 Lens |
Sample picture from This camera:
Pictures:
Applications
1. Video Conferencing: With the rise of remote work and online meetings,a 48MP autofocus USB camera module can be used to provide high-quality video forvideo conferencing applications.
2. Live Streaming: Content creators and streamers can use a 48MP autofocus USB camera module to capture high-resolution video with autofocus capabilities,providing high-quality footage for their audience.
3. Security and Surveillance: A 48MP autofocus USB camera module can be used in security and surveillance applications,providing high-resolution images and videos with autofocus capabilities for better analysis and identification.
4. Medical Imaging: In the medical field,a 48MP autofocus USB camera module can be used for imaging applications, such as telemedicine and remote diagnosis.
5. Industrial Inspection: A 48MP autofocus USB camera module can be used in industrial inspection applications, providing high-resolution images withautofocus capabilities for quality control and analysis.
6. Research and Development : A 48MP autofocus USB camera module can be used in scientific research applications, such as microscopy and spectroscopy,to capture high-resolution images and videos with autofocus capabilities forbetter analysis and documentation.
7. Education and Training: A 48MP autofocus USB camera module can be used in education and training applications,providing high-quality videos with autofocus capabilities for better demonstrations and lectures.
Overall,a 48MP autofocus USB camera module can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
