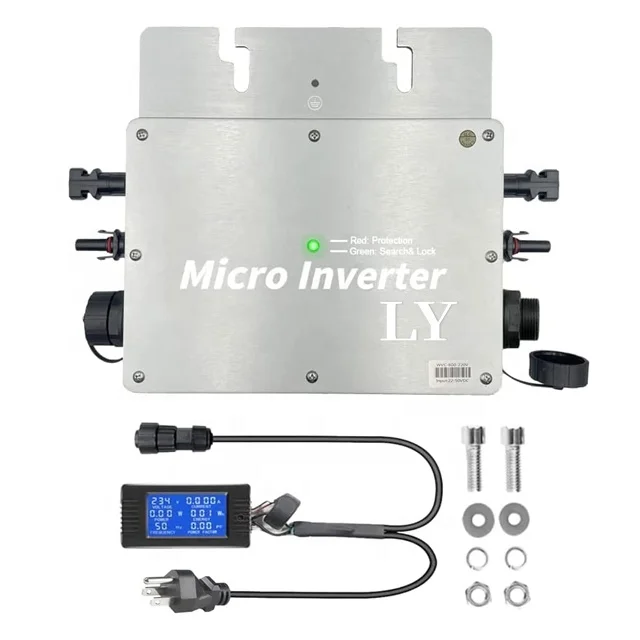

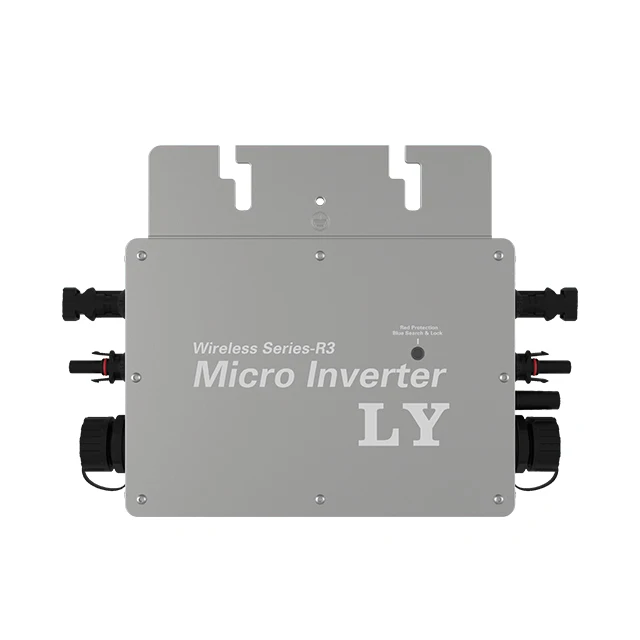

panel waterproof ip65 on grid tie inverter micro 600W 700W 800W Photovoltaic micro inverter solar
- Category: >>>
- Supplier: Dongguan Linyue Electric Technology Co. Ltd.
Share on (1600780704732):
Product Overview
Description
Products Description
Modell | LY-600 | LY-700 | LY-800 | ||

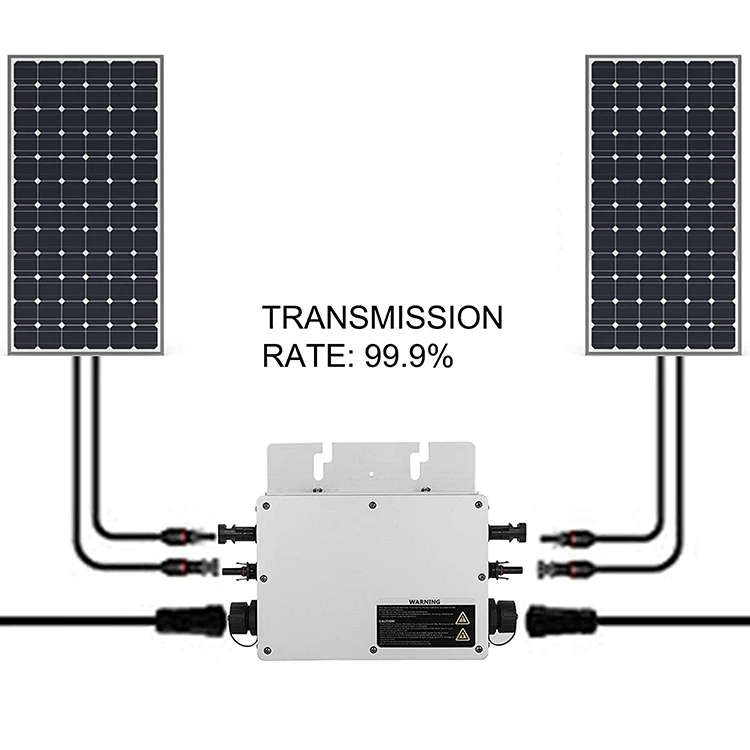

Recommend PV | MAX 2*375W | MAX 2*435W | MAX 2*500W | ||
PV opencircuitvoltage range | 30-60 VOC | ||||
Min /Max start voltage | 20~60V | ||||
Peakpower tracking voltage | 20~60V | ||||
Maximum DC short current | 2*14 | 2*16 | 2*18 | ||
Maximum Input Current | 2*16 | 2*18 | 2*20 | ||
Power | 600W | 700W | 800W | ||
Output current | @120V 5A | @120V 5.9A | @120V 6.6A | ||
@230V 2.6A | @230V 3.1A | @230V .35A | |||
AC Voltage/Frequency Range | @120V 85-160VAC 48-51Hz/58-61Hz | ||||
@230V 180-280VAC 48-51Hz/58-61Hz | |||||
Loss of power at night | <0.5W | ||||
Total current harmonics | <5% | ||||
Power factor | >95% | ||||
Static MPPT efficiency | 99.50% | ||||
Max output efficiency | 95% | ||||
Number of branch connections | @120V 6 PCS | @120V 6 PCS | @120V 6 PCS | ||
@230V 12PCS | @240V 12PCS | @230V 12PCS | |||
Working Temperature | -20°C to +50°C | ||||

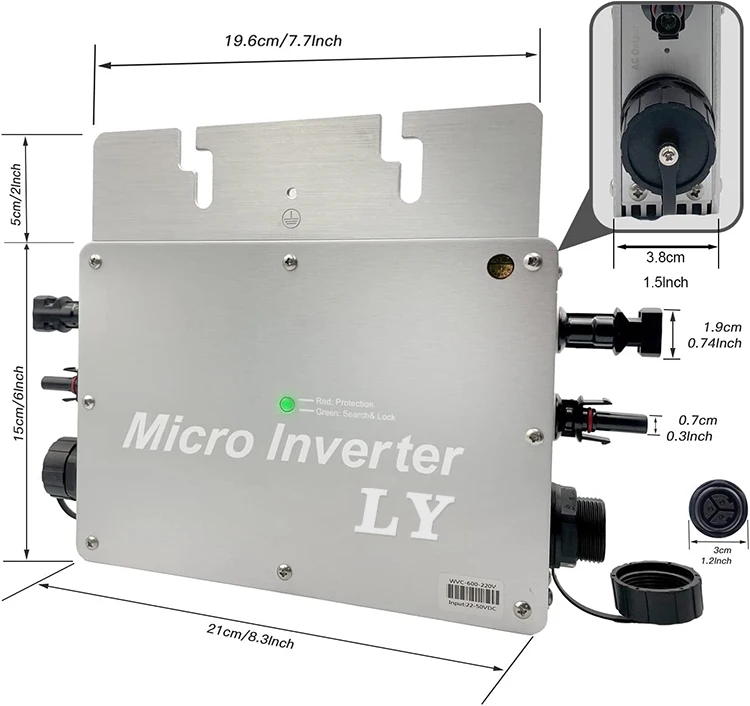

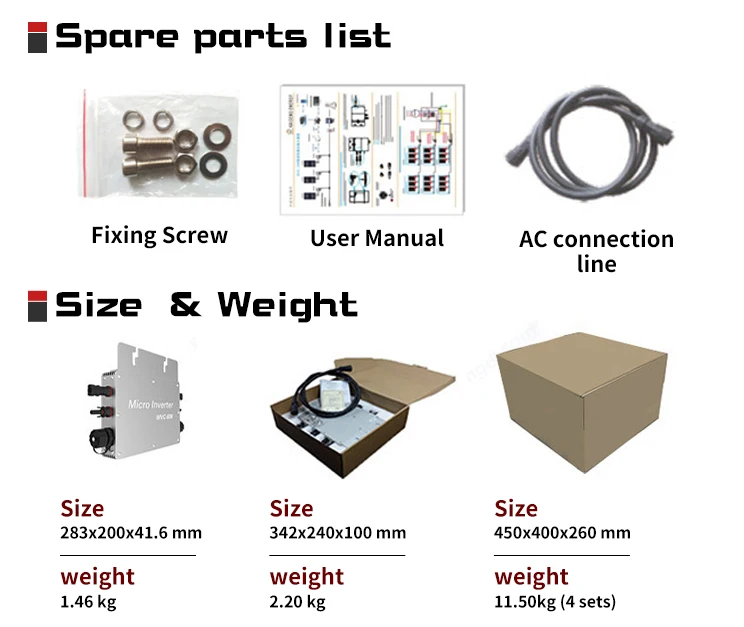

Size(L×W×H) | 283mm×200mm×41.6mm | ||||
Weight | 1.46KG | ||||
Protection grade | Ip65(IP67 Customizable) | ||||
Communication mode | Wi-Fi | ||||
Power transmission mode | Reverse transmission,Load priority | ||||
Monitoring system | APP | ||||
Electromagnetic Detection | EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012 | ||||
Power Grid standard | EN50549-1,EN 50549-2,NBR 16149:2013,UL1741 | ||||
Power grid detection | IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116,IEEE 1547 | ||||
Certificate | CE/IEC/DVE/EMC/CSA | ||||
