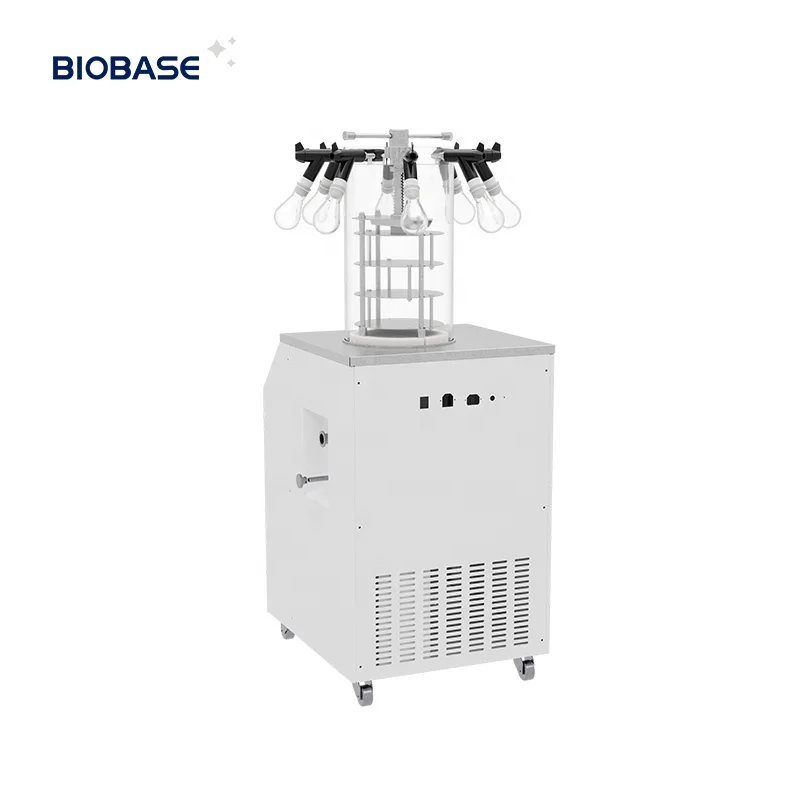

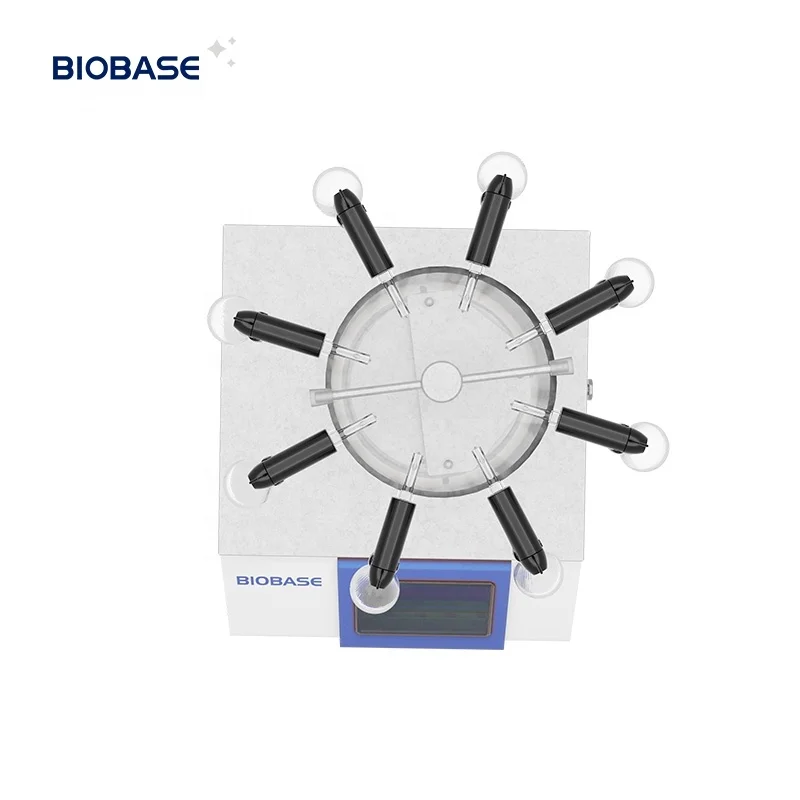

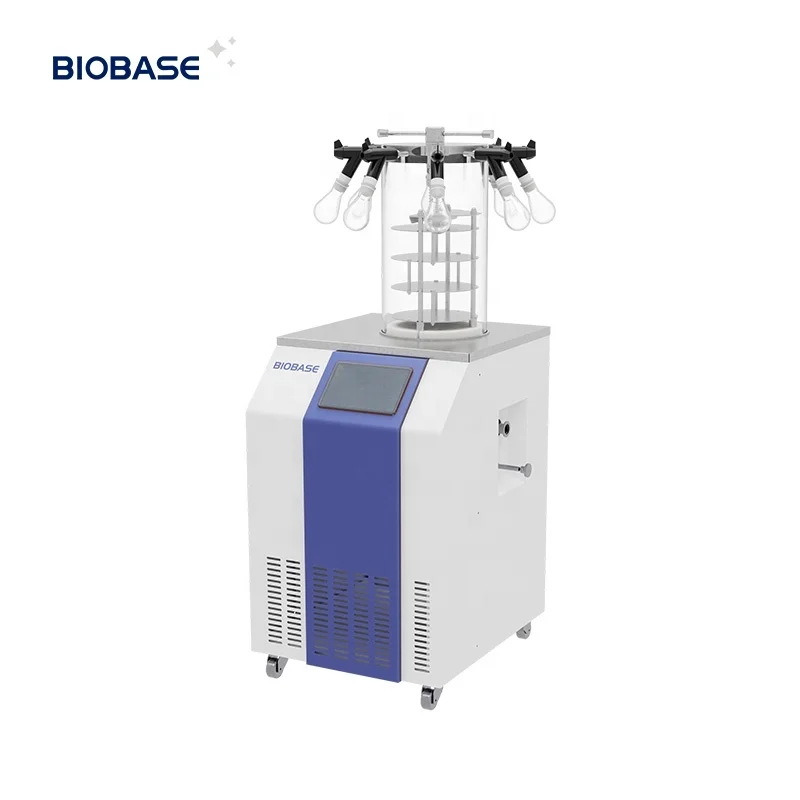

BIOBASE Freeze Dryer BK FD12PT Stoppering chamber air dryer Freeze Dryer for Lab
- Category: >>>
- Supplier: Biobase Biolin Co. Ltd.
Share on (1600781138017):
Product Overview
Description
Product Description

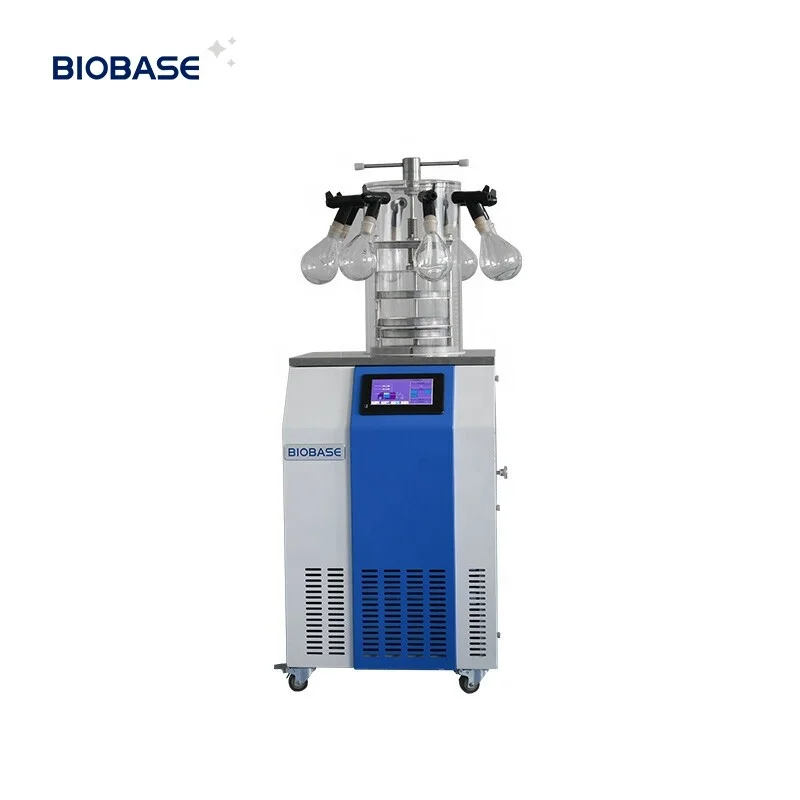

Vertical Freeze Dryer
Application:
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Product Parameters
Model | BK-FD12S(-60/-80) | BK-FD12P(-60/-80) | BK-FD12T(-60/-80) | BK-FD12PT(-60/-80) | |||||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||||
Tray | 4 pcs | 3 pcs | |||||||||
Height Between Trays | 50mm | 68mm | |||||||||
Cold Trap Temperature | ≤-56℃/-80℃ | ||||||||||
Cold Trap Capacity | 9.5L | ||||||||||
Cold Trap Size (Dr*H) | Φ215*260mm | ||||||||||
Vacuum Degree | <10 Pa | ||||||||||
Water Capture Capacity | 4kg/24h | ||||||||||
Tray Size (D*H) | Φ200*20mm | ||||||||||
Freeze Drying Time | 24h | ||||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||||
Drying Chamber Size (D*H) | Φ260*310mm | Φ260*450mm | Φ260*450mm | ||||||||
Can Load Vials Qty | Φ22mm | 260 | 195 | ||||||||
Φ16mm | 480 | 360 | |||||||||
Φ12mm | 920 | 690 | |||||||||
Refrigerant | R600a+R290+R23 | ||||||||||
Cooling System | Air cooling | ||||||||||
Consumption | -56℃: 0.9kW,-80℃: 1.5kW | ||||||||||
Power Supply | AC220V,50Hz,60Hz (single phase); 110V/220V,60Hz (single phase, only for -56℃) | ||||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT) | ||||||||||
Optional Function & Accessory | Tray heating (for all models), Cold trap defrosting (for all models), Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), Import vacuum pump | ||||||||||
External Size (W*D*H) | 460*620*920/1370mm | ||||||||||
Package Size (W*D*H)mm/ Gross Weight | Main Body | 1000*700*570/90kg | 1000*700*570/90kg | ||||||||
Drying Chamber | 300*300*350/12kg | 350*350*570/12kg | |||||||||
Vacuum Pump | 590*380*220/22kg | 590*380*220/22kg | |||||||||

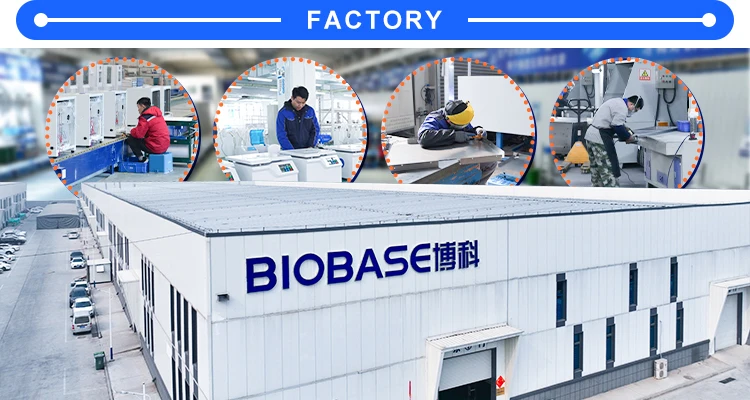

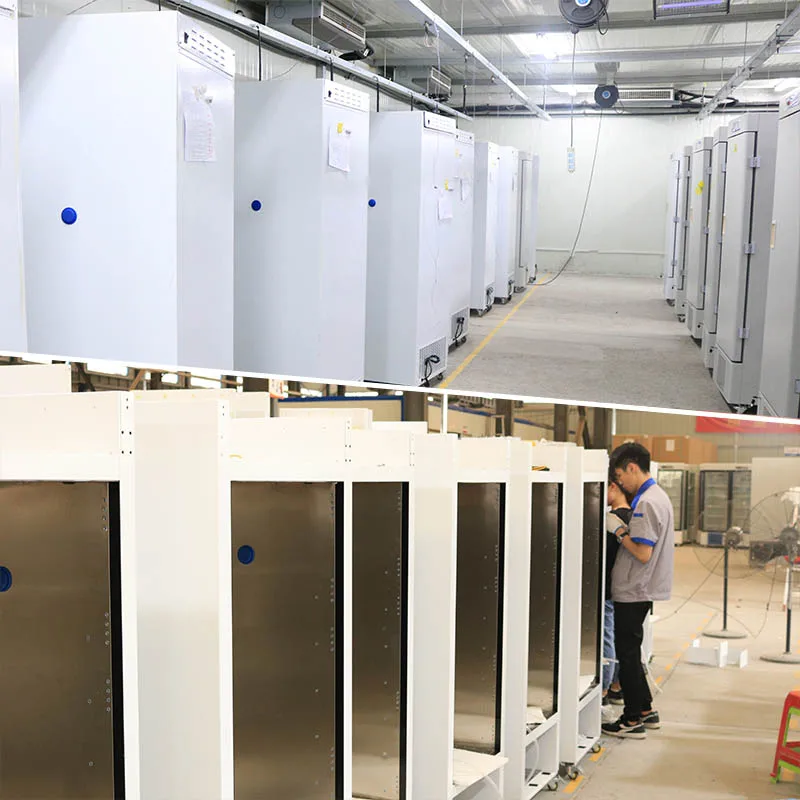

Company &Factory
BIOBASE is a professional manufacturer of laboratory equipments for more than 20 years. Our main products are Biosafety Cabinet(Class I/II/III), Laminar Flow Cabinet, PCR Laboratory Equipments, Fume Hood, Biochemistry Analyzer, Reagent, Autoclave and Incubator ect.
Company Type: Manufacturer—BIOBASE Group • Profile: Founded in 1999 and been through high and stable development for 18 years.
Main Products: BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
International Market: North America South America Europe, Africa Southeast Asia Middle East •Factory & Staff : 2000 employees.
Company Type: Manufacturer—BIOBASE Group • Profile: Founded in 1999 and been through high and stable development for 18 years.
Main Products: BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
International Market: North America South America Europe, Africa Southeast Asia Middle East •Factory & Staff : 2000 employees.
You may also like
Blood bank refrigerator series products are applied to places needing storage at constant temperature, such as hospitals, epidemic prevention stations, blood banks, scientific research institutions, colleges and universities,genetic engineering, etc. The storing temperature in the body can be regulated by the temperature button on the control panel. The application is convenient and the performance is reliable.
Name | Blood Bank Refrigerator |
Model | BBR-4V626 |
Capacity | 626L |
Temp.Range | 4 ±2℃ |
Control System | Microprocessor control |
Display | LED display |

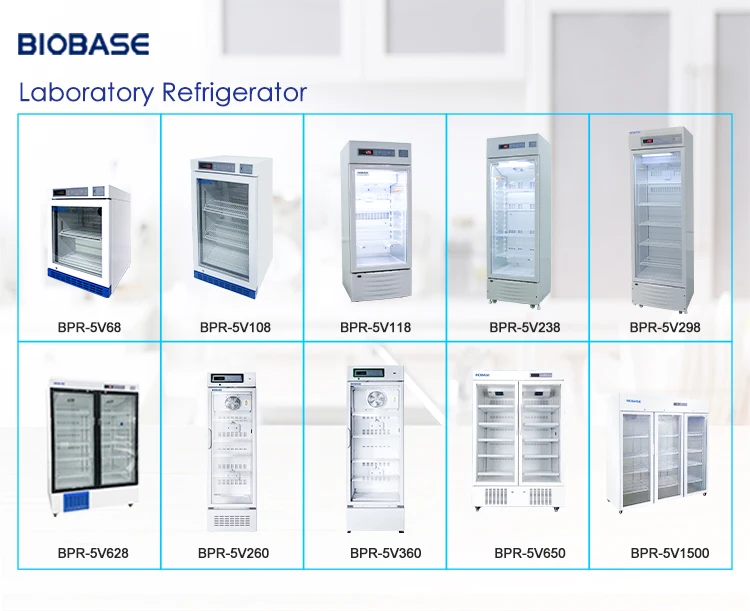

Laboratory Refrigerator is specialized refrigerating equipment for cold storage of biological products and so forth. It is suitable for hospital, sanitation and antiepidemic station and clinics.
Model | BPR-5V260 | BPR-5V360 | |||
Capacity | 260L | 360L | |||
Temp. Range | 2℃～8℃ | ||||
Temp. Accuracy | 0.1℃ | ||||
Control System | Microprocessor Control , Large Screen LED Display | ||||
-25℃ Freezer
This refrigerator can be widely used in hospitals, clinics, laboratories, scientific research institutions, etc. And it is mainly used for the storage of RNA vaccines.
This refrigerator can be widely used in hospitals, clinics, laboratories, scientific research institutions, etc. And it is mainly used for the storage of RNA vaccines.
Model | BDF-25V268 | BDF-25V328 | BDF-25V270 | BDF-25V350 | |||||
Capacity | 268L | 328L | 270L | 350L | |||||
Type | Vertical | ||||||||
Temp. Range | -10℃~-25℃ | ||||||||
Temp. Accuracy | 0.1℃ | ||||||||
Control System | Microprocessor Control & LED Display | ||||||||
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Widely used in biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
One-Stop Shopping
After-Sales Service & Customer Feedback
1. For our products, we provide 1 year warranty. During this period, any demaged part that not caused by human activities, but because of the poor quality, can be free changed.
2. With more than 100 experienced after sales engineers, we can provide 24h/7 days online guidance.
3. Any after-sales question please contact me at any time.
2. With more than 100 experienced after sales engineers, we can provide 24h/7 days online guidance.
3. Any after-sales question please contact me at any time.

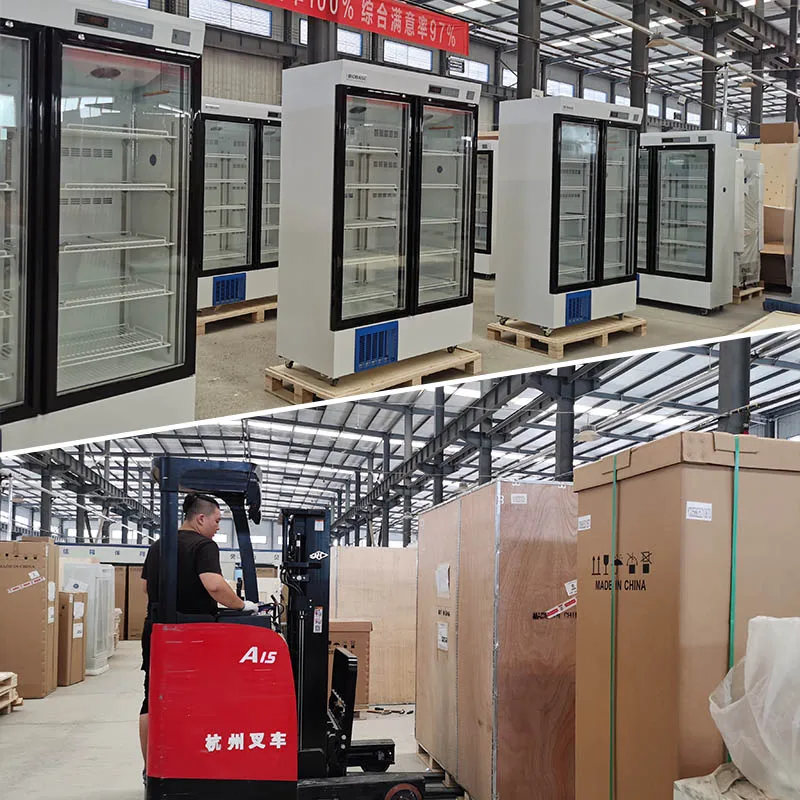

Packing and Delivery

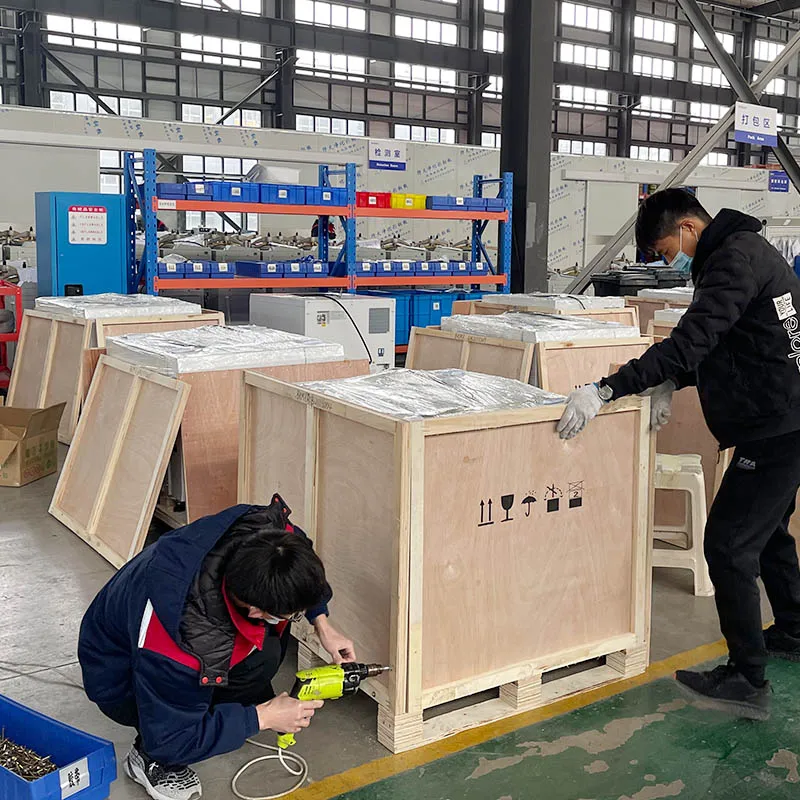

Packing Details : Standard wooden package or as demand.
