Ruggedized Vandal proof Waterproof Industrial Marine keyboard Stainless steel with backlit panel with trackball mouse
- Category: >>>
- Supplier: Shenzhen Baoshengda Technology Co. Ltd.
Share on (1600781363326):
Product Overview
Description
Product name: | Metal Keyboard |
Item No: | BSD-MP-CZ-B94 |
Size: | 392.0mm x 135.0mm (front panel) |
Place of origin: | Guangdong, China |
Material: | Stainless Steel |
Key Travel: | 1.5~2.0mm |
Interface: | USB/PS..... |
OEM/ODM order: | 1 Set |
Packing: | Carton packing for each 1 Set Keypad (or custom-made) |
Usage: | University, shopping mall, bank, railway station, kiosk, ticket vending machine, gas station, ATM，public telephone and all other information terminal equipment. |
Product Introduction

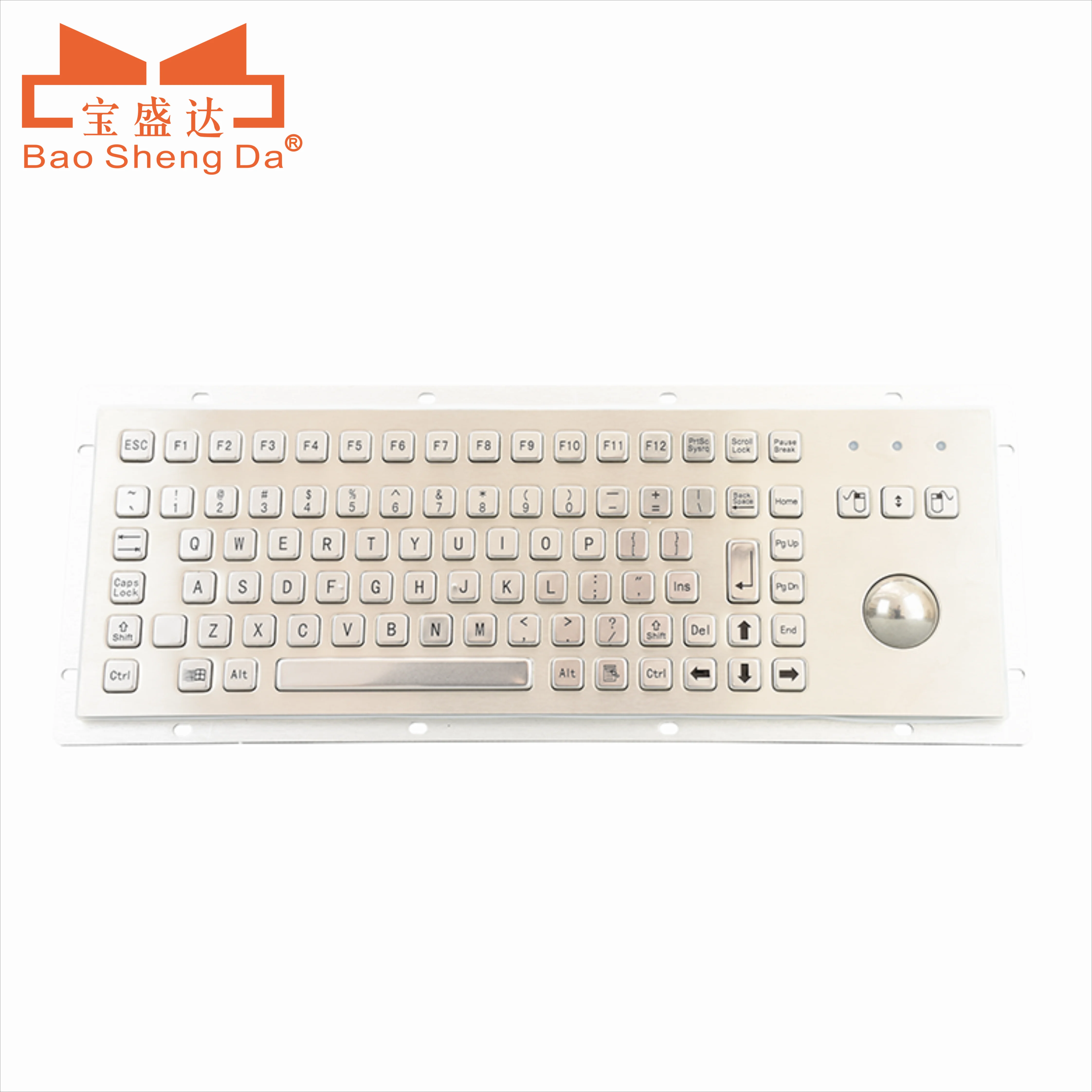

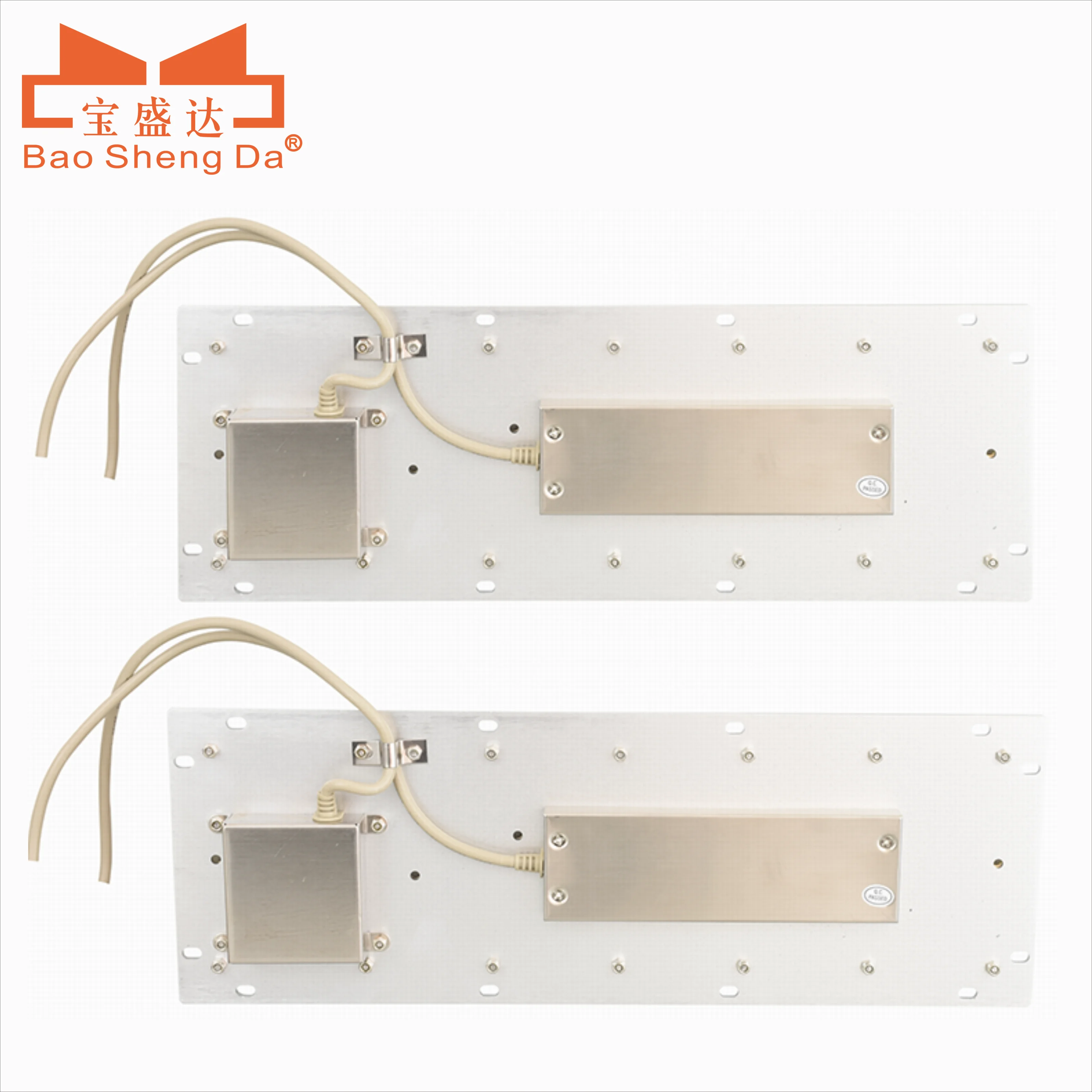

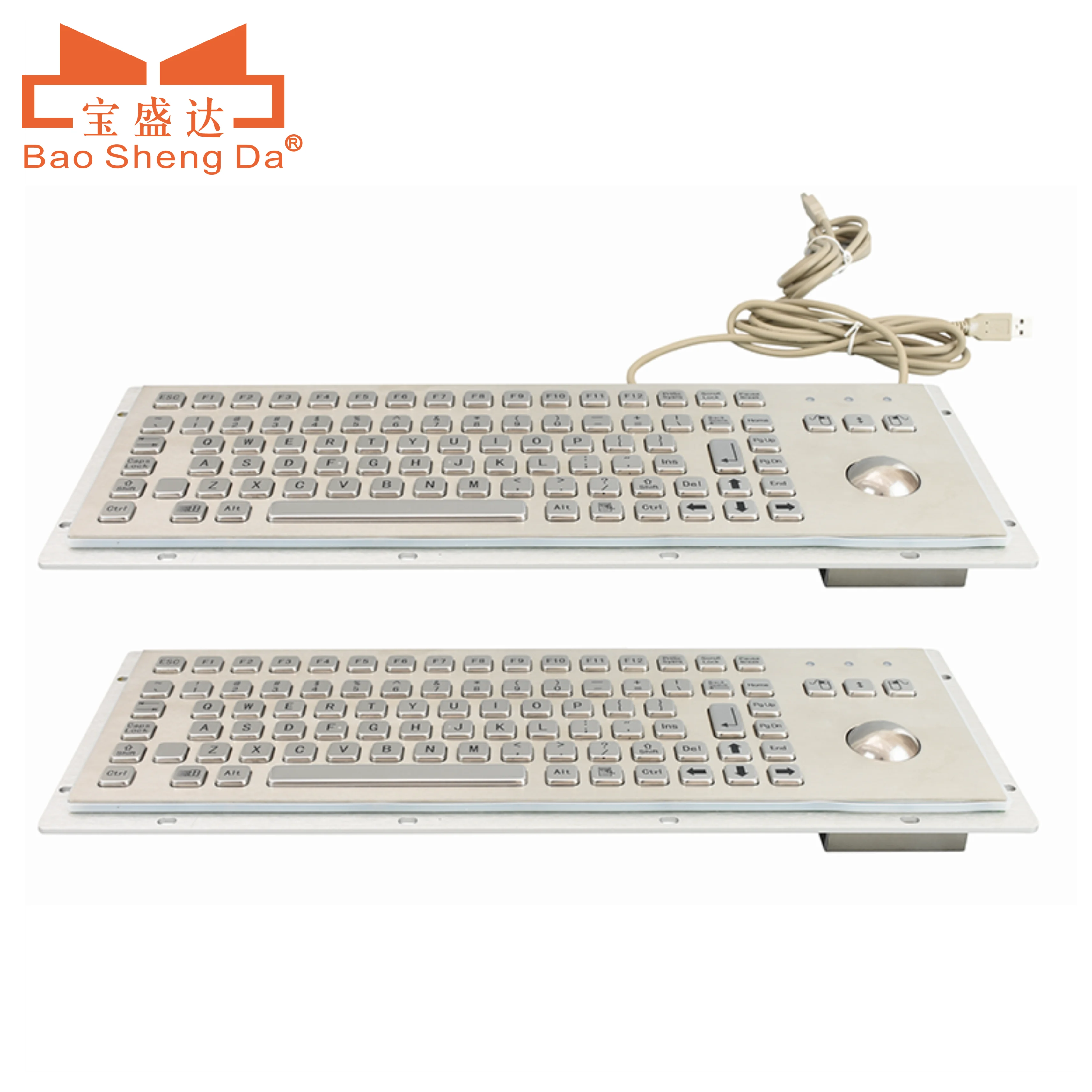

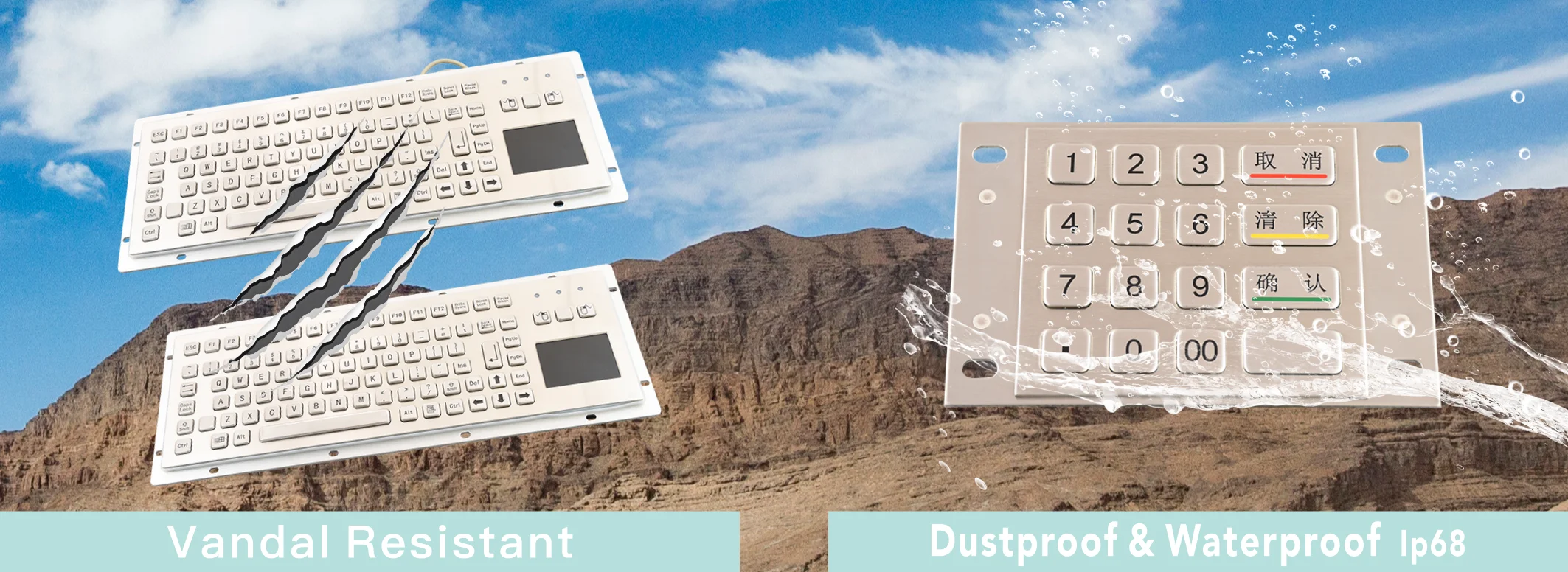

This product is stainless steel industrial keyboard, which is waterproof, dust-proof, with ENIG PCB control board built-in, IP68 stainless steel track ball or touch board, comfortable, silent and accurate to type, silicone rubber keypad design and 2.0mm key stroke. There are installation holes on back board. Sealing rubber rings are used to prevent keyboard and cabinet from water. It is embedded to install.
Features
The research, development, design and production of this product is completely independent, including all electronic modules inside. This product is made of stainless steel. Design, function, service life and IP grade are highly required to meet the highest requirements of users. Stainless steel key can prevent intentional damage, dust, water, resist corrosion, which is especially applicable to the use in extreme climate. This product has silicon rubber to seal up, in order to prevent dust and water. Key inside is designed with a combination of silicon rubber and metal dome, a stroke of 1.5-2.0mm. Users can have a comfortable and accurate typing.
Application

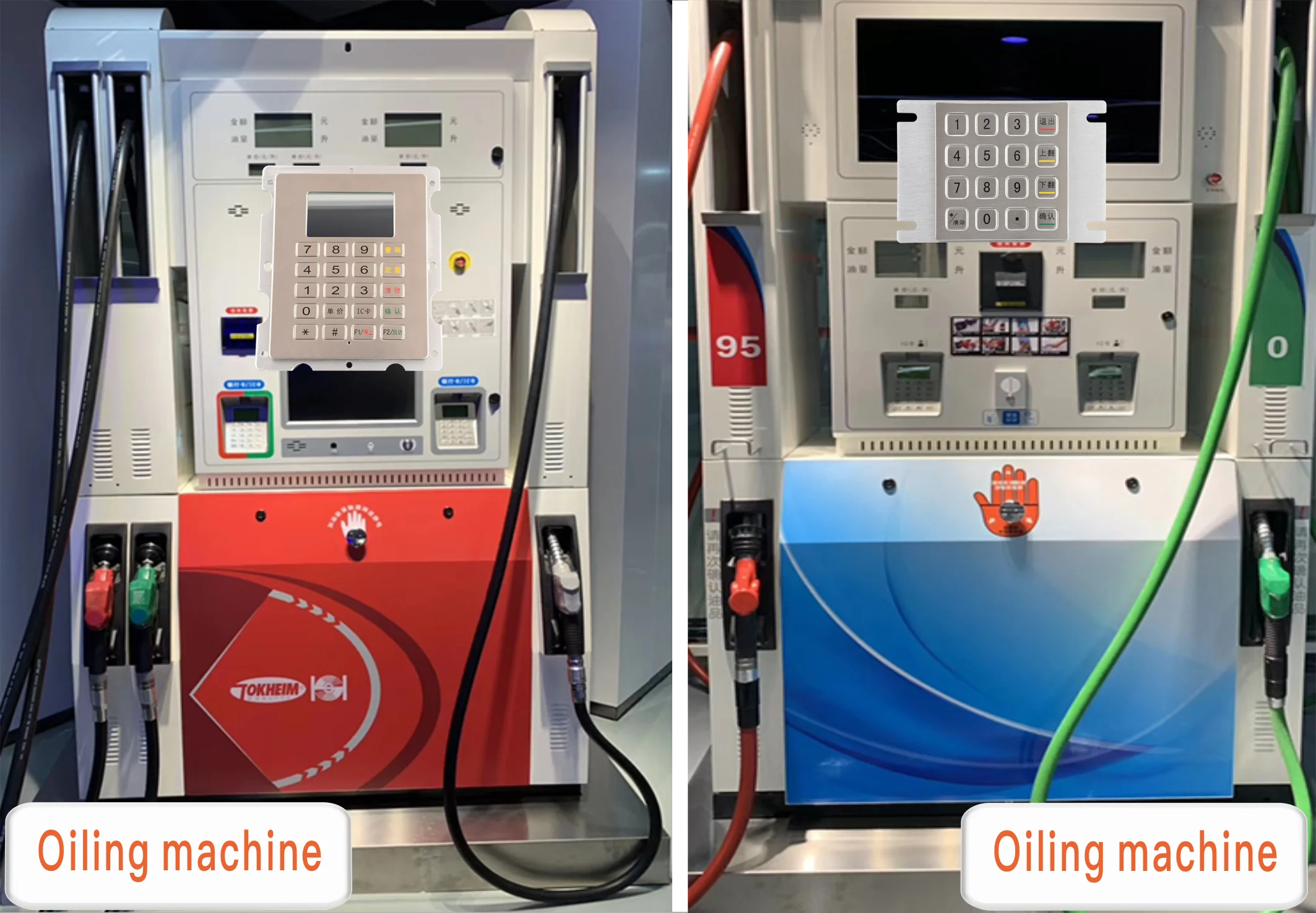

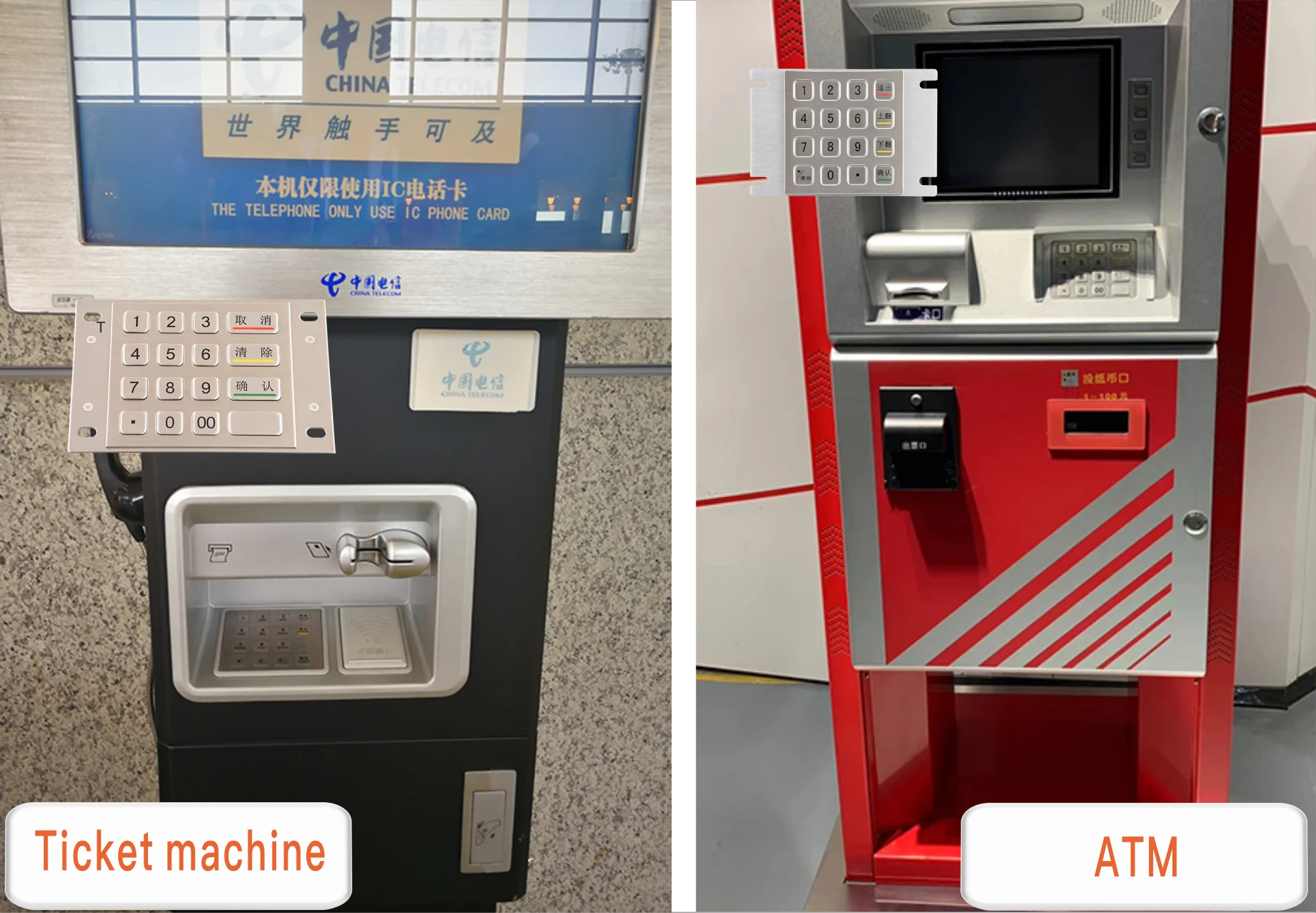

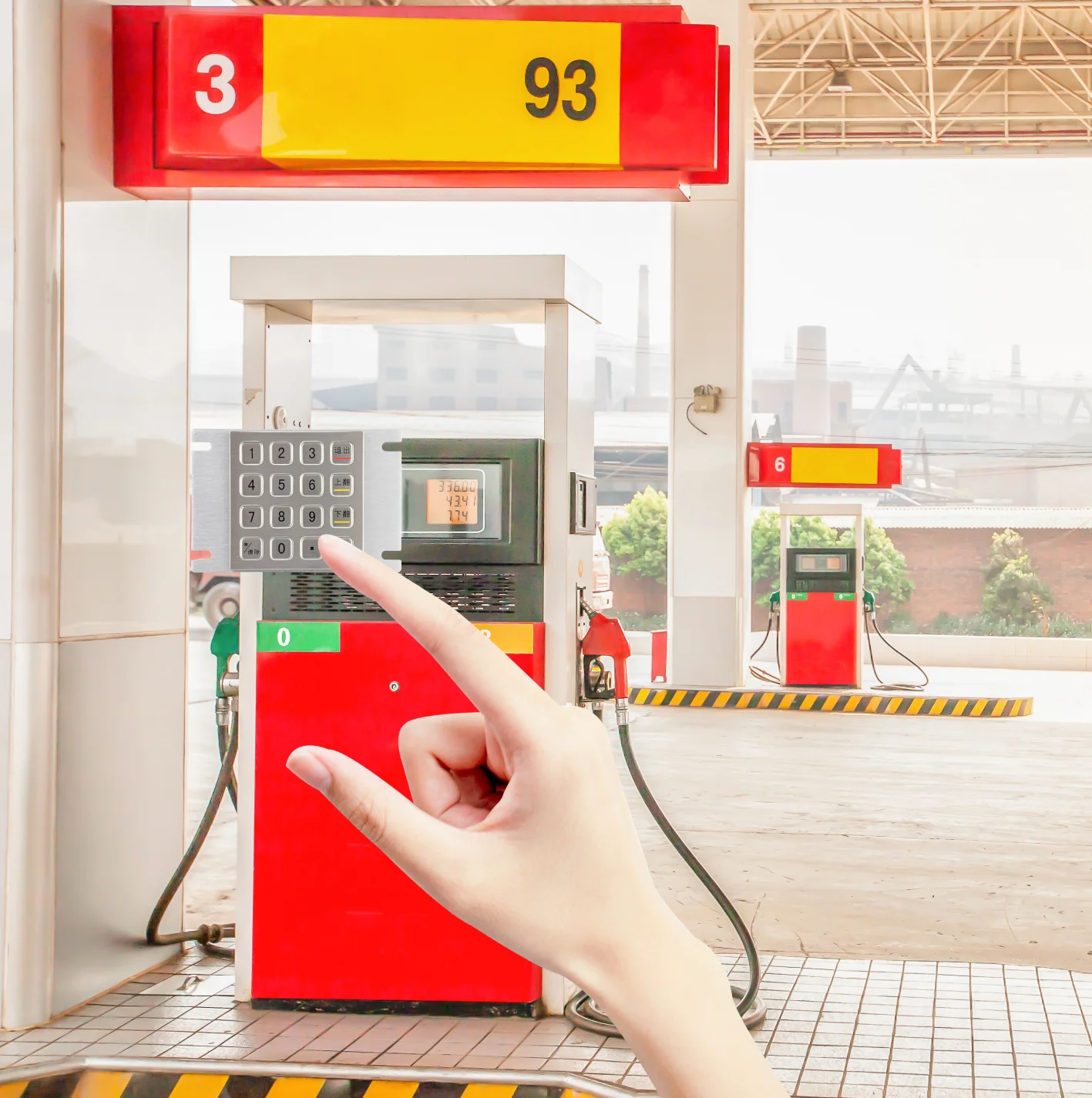

This product can be used in university, shopping mall, bank, railway station, kiosk, ticket vending machine, gas station, ATM, public telephone and all other information terminal equipment.
Mechanical data.
keys: Stainless Steel keys, durable and robust polymer keys.
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available,
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x68.0mm for space bar,
Key travel: 1.50~2.0mm
Actuation Force:
1.80 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ),
2.5 N+/-0.10N for key 14.0mm x 28.0mm (pressure point)
Switch life: >5000000 of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel,
Back Plate：1.5mm thickness super quality brushed stainless steel

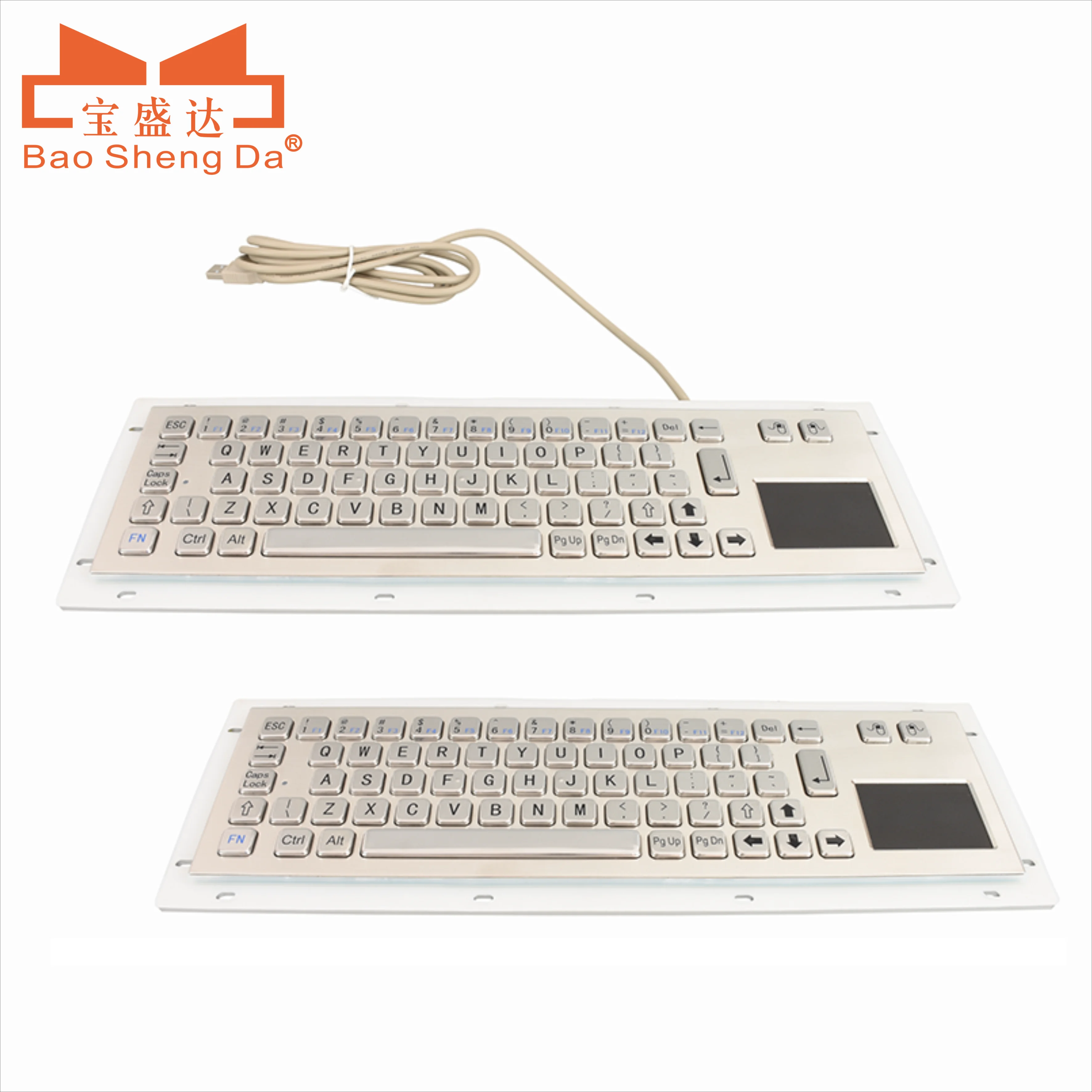

Touchpad: sealed and ruggedized tough touchpad.
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating (active mode): 17 mA
Electronic data.
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available,
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Current Rating: appr. 30mA
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available,
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Environmental suitability.
Operating temperature: -40℃ to +80 ℃
Storage temperature: -45℃ to +90℃
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days,
Storage temperature: -45℃ to +90℃
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days,
IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6
Reliability
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65
Vandal resistant IK09
Key Lifespan >5 million actuation.
MTBF >20000H
MTTR <30min
Protection Level: IP65
Vandal resistant IK09
Key Lifespan >5 million actuation.
MTBF >20000H
MTTR <30min
Keypad dome life tester
Salt spray tester
High & low temperature tester
Circuit function tester
Light transmittance tester
Projector
Q:l don't have sample or STP drawing ,how can I custom a silicon Keypad?
A: You can send a enclosure & PCB to us, then our engineer can design the drawing for you.
Q:l don't know the silicon hardness shore and actuation force of the keypad should be?
Q: Could you make Plastic cap + Silicon button?
Q: What's terms of payment for custom a new item?
Q: Where is your factory, can I visit?
A: We located in Shenzhen, China. And welcome to visit any time.
A: You can send a enclosure & PCB to us, then our engineer can design the drawing for you.
Q:l don't know the silicon hardness shore and actuation force of the keypad should be?
A:ln normal, the hardness of keypad & button is 50-60A, and the actuation force is 200 +- 50
Q: Could you make Plastic cap + Silicon button?
A: Yes,we made this model a lot, we have a brother factory can supply the plastic item for us
Q: What's terms of payment for custom a new item?
A: The mold cost should pay 100% in advanceThe bulk order we can accept 50% deposit，50% before shippingAnd pay through Alibaba assurance order ,T/T
Q: Where is your factory, can I visit?
A: We located in Shenzhen, China. And welcome to visit any time.
According to different product, several inner boxes put into a standard carton box.
Packaging can be customized: foam box, carton size, etc.
Each carton with the weight is not more than 30kg.
Packaging: Generally, 10~20 products are packed in a plastic bag. The product packaging shall avoid inserting shell, and shall be protected with foam and put into a small box. According to different sizes of products, the small box shall be uniformly packed into a standard carton.
The packaging box can be customized your company Logo as you need.
Shipping: By Air, by Sea, Express UPS、FedEx、DHL, etc.
