backlight light box led strip light bar smt vision solder paste machine
- Category: >>>
- Supplier: Shenzhen Eton Automation Equipment Co. Limited
Share on (1600781444583):
Product Overview
Description

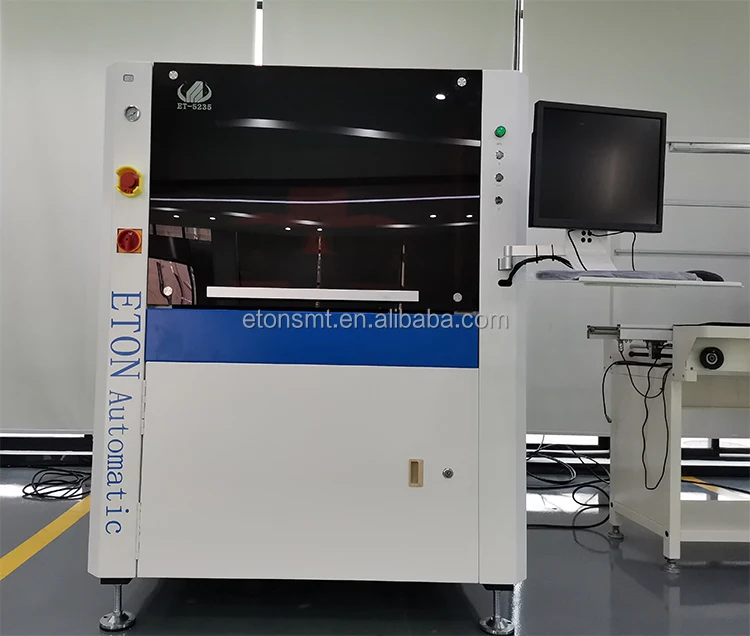

low cost auto stencil printer machine for mcpcb
Product Description

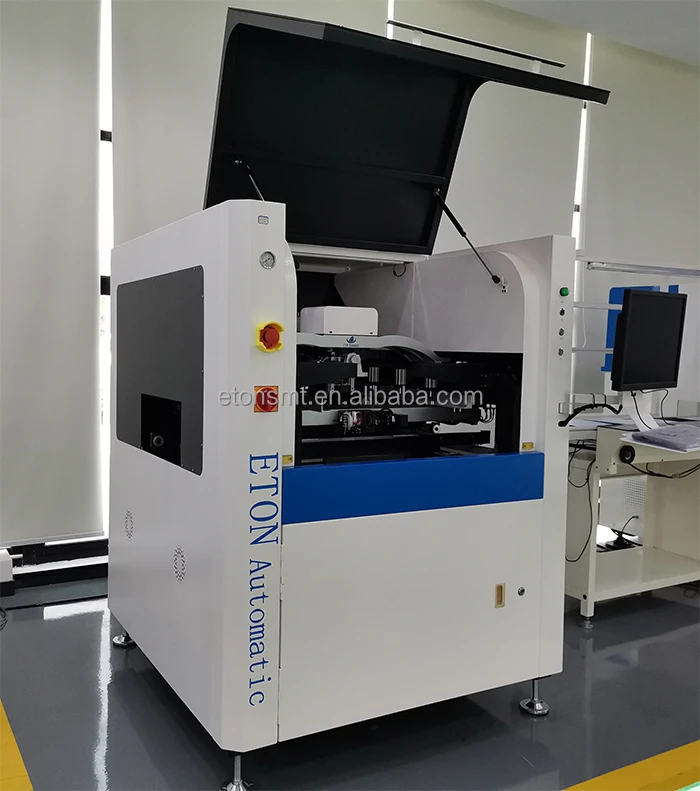

ETON automatic solder paste printing machine adopts flexible side clamps and segmented supports to effectively clamp the pcb to ensure a fully balanced contact between the pcb and the steel mesh. The system is more stable and easy to operate. This product is suitable for solder paste and red glue printing on circuit boards, and is an indispensable equipment in the production process of SMT automated production line.
Stencil positioning system
Arch bridge-shaped suspension hanging direct-connect scraper;
The size of steel mesh is universal, with good and wide applicability;
Segmented fixed steel mesh frame
The size of steel mesh is universal, with good and wide applicability;
Segmented fixed steel mesh frame

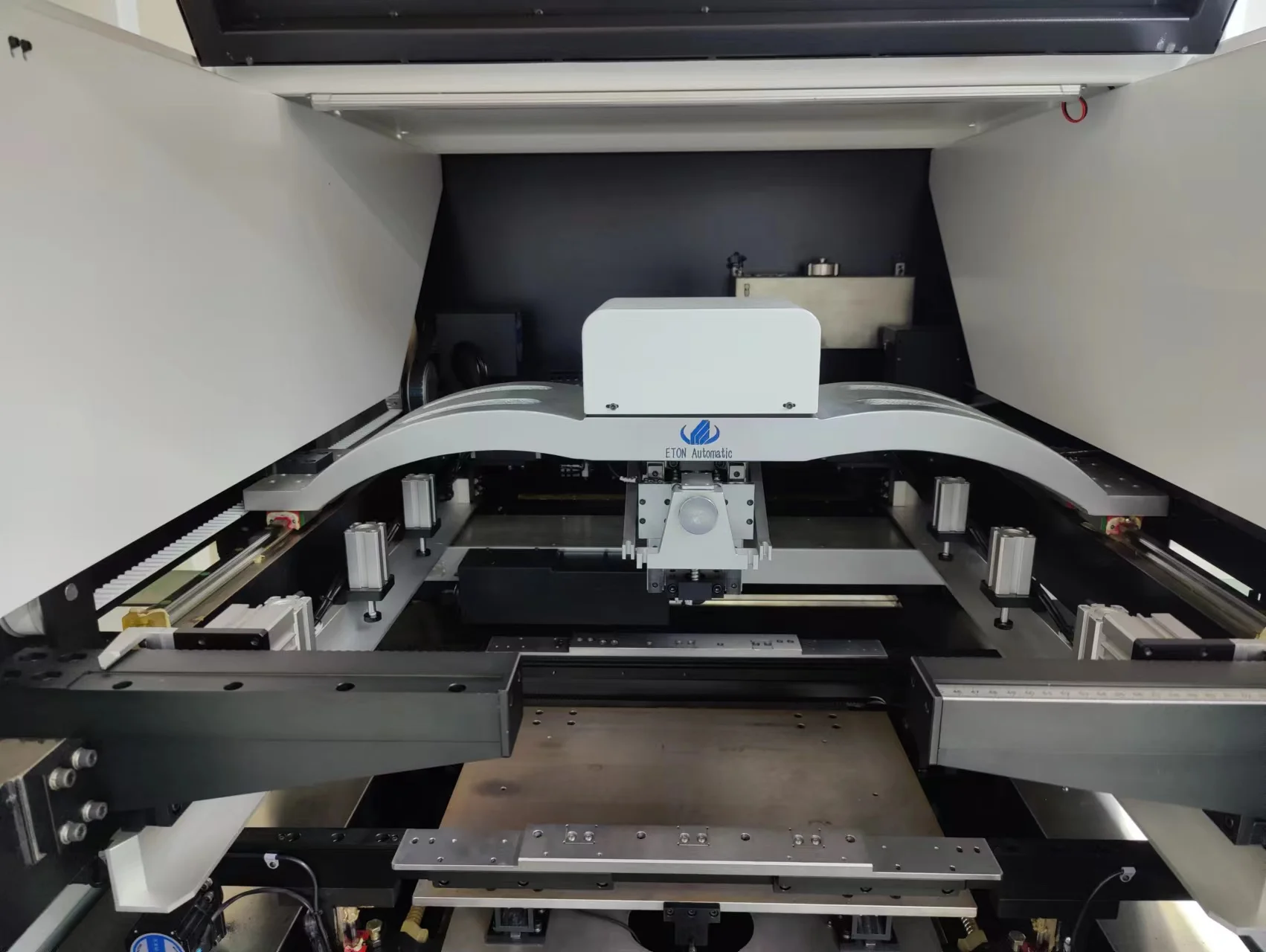

Scraper system
Slide rail type scraper system, improve operation stability and prolong lifetime;
The fully closed-loo[ scraper pressure feedback device monitors the scraper pressure at all times, making the printing more full
The fully closed-loo[ scraper pressure feedback device monitors the scraper pressure at all times, making the printing more full

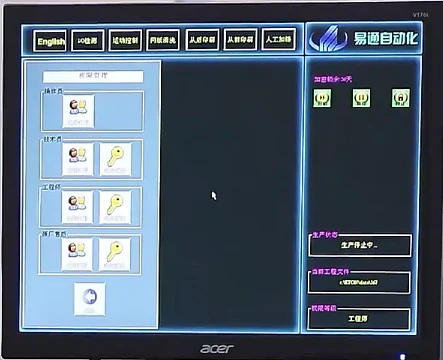

Operation interface
With good human-machine dialogue function
One-key switch between Chinese and English, with operation log, fault record analysis and diagnosis and other functions
One-key switch between Chinese and English, with operation log, fault record analysis and diagnosis and other functions
Specification
Model | ET5235 |
Dimension(MM) | 1240(L)* 1450(W)* 1650(H) |
Mass/weight | 700KG |
Screen frames | Max:737mm Min:470mm, thickness: 25-40mm |
Board Dimension | Max:520*350mm Min:50*50mm |
Squeegee pressure | 0-10kg/cm2 |
Squeegee speed | 6-300mm/sec |
Squeegee angle | 55° (standard) |
Repeat position accuracy | ±0.01mm |
Printing accuracy | ±0.025mm |
Cycle time | ≤9s(excluding printing and clean) |
Power input | AC:220±10%, 50/60HZ, 3KW |
FPCB transport over plate height | 10mm |

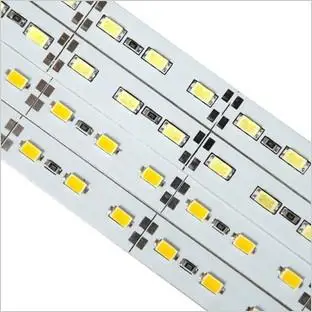

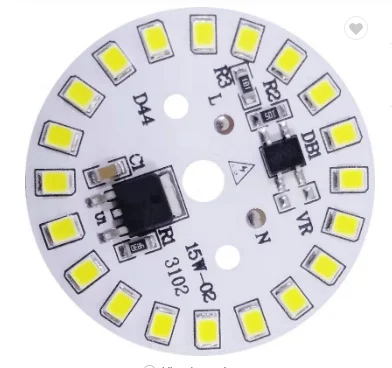

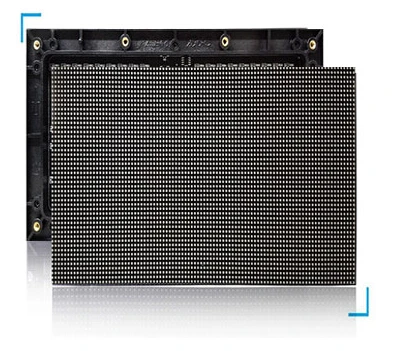

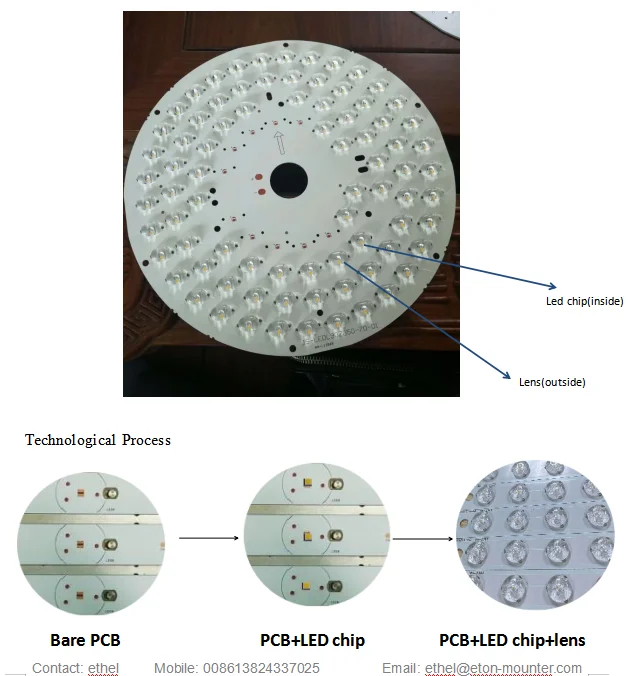

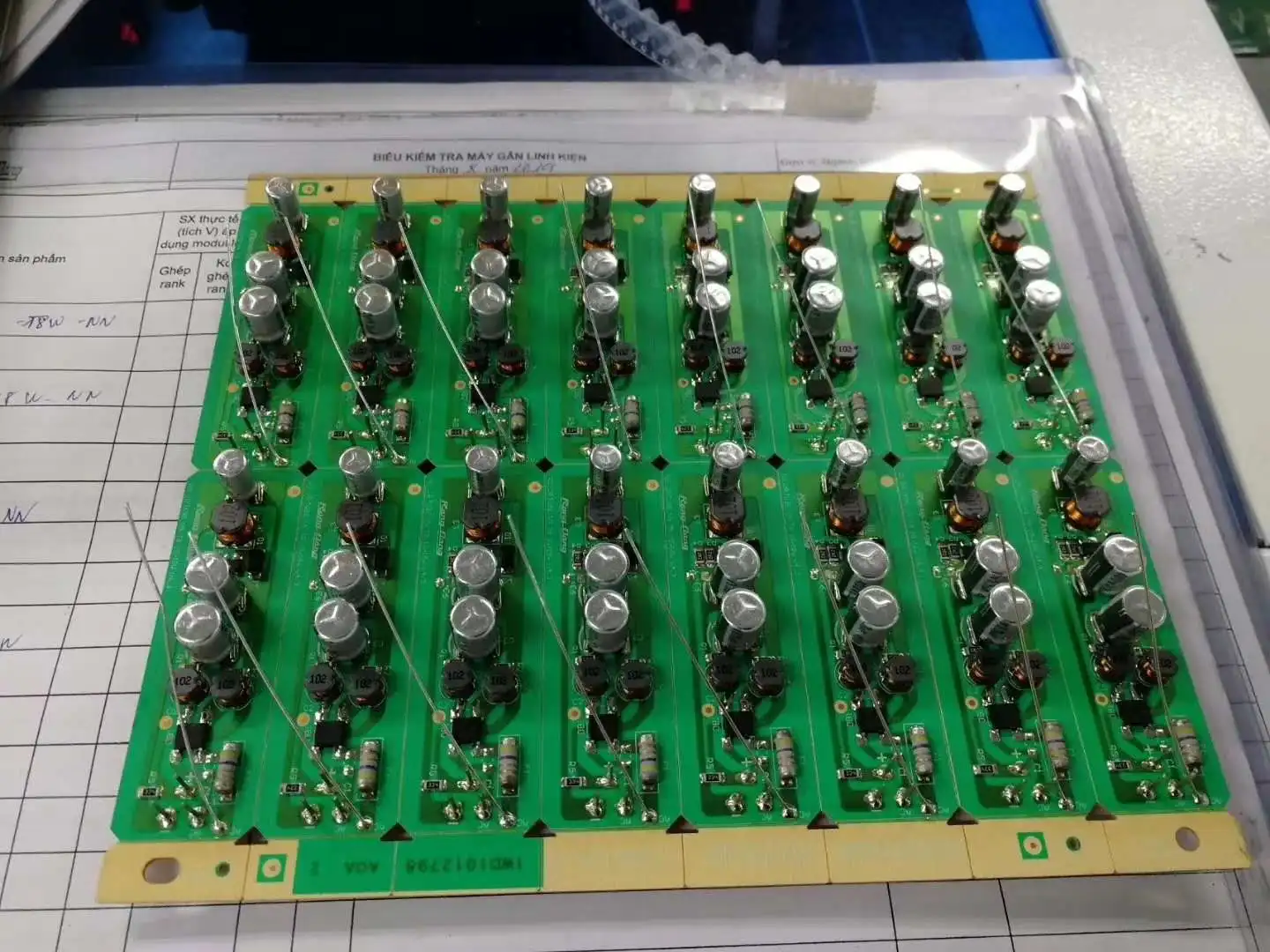

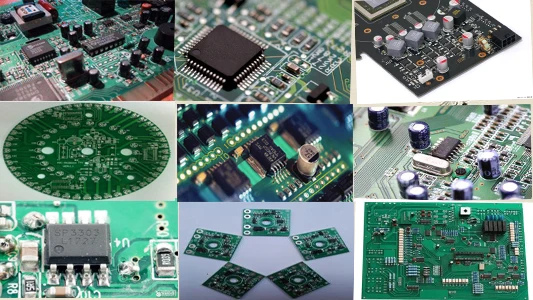

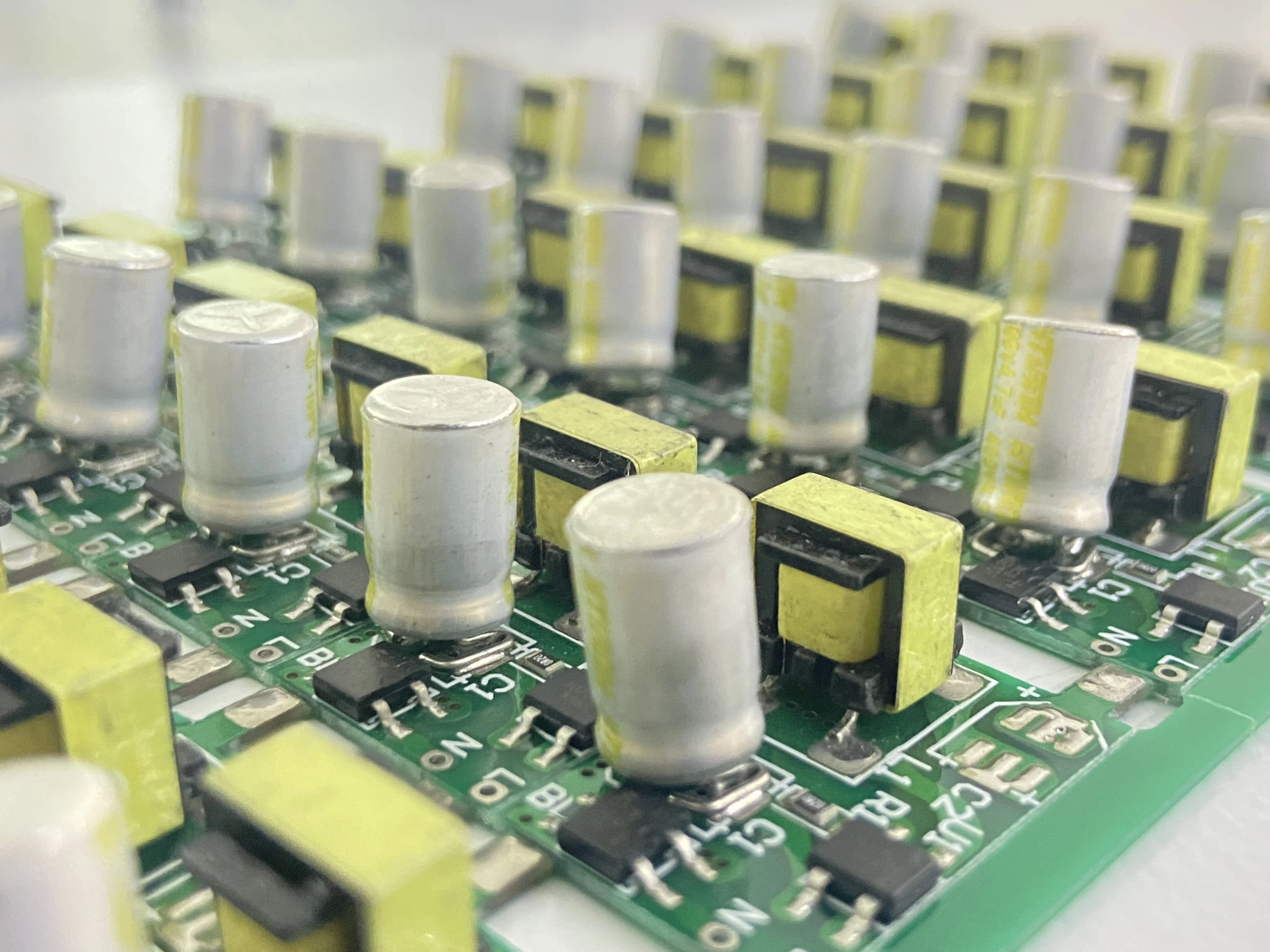

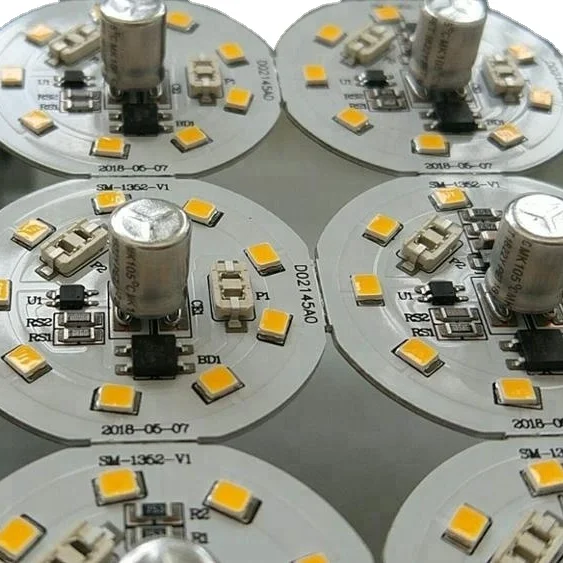

Machine application

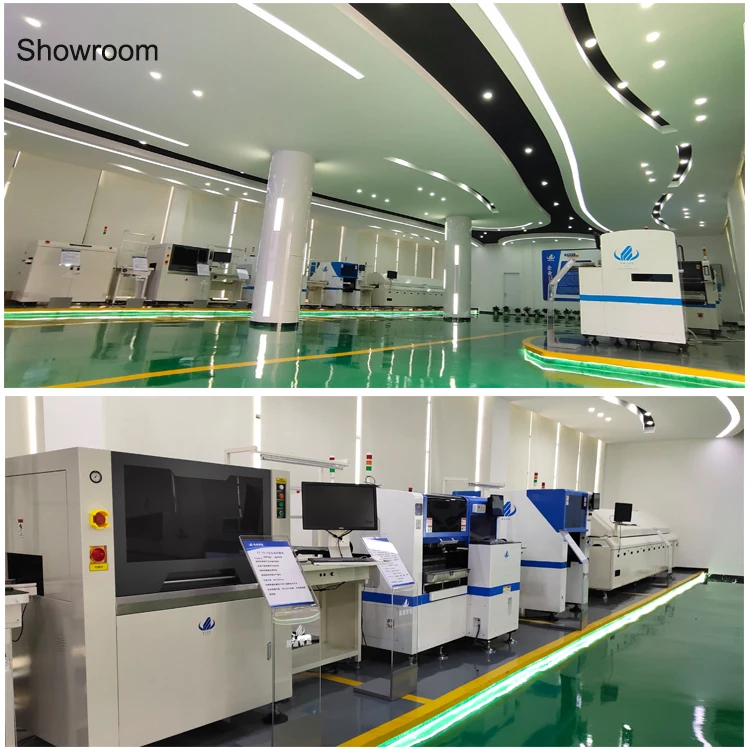

Company Profile
TOP BRAND OF SMT MACHINES IN CHINA

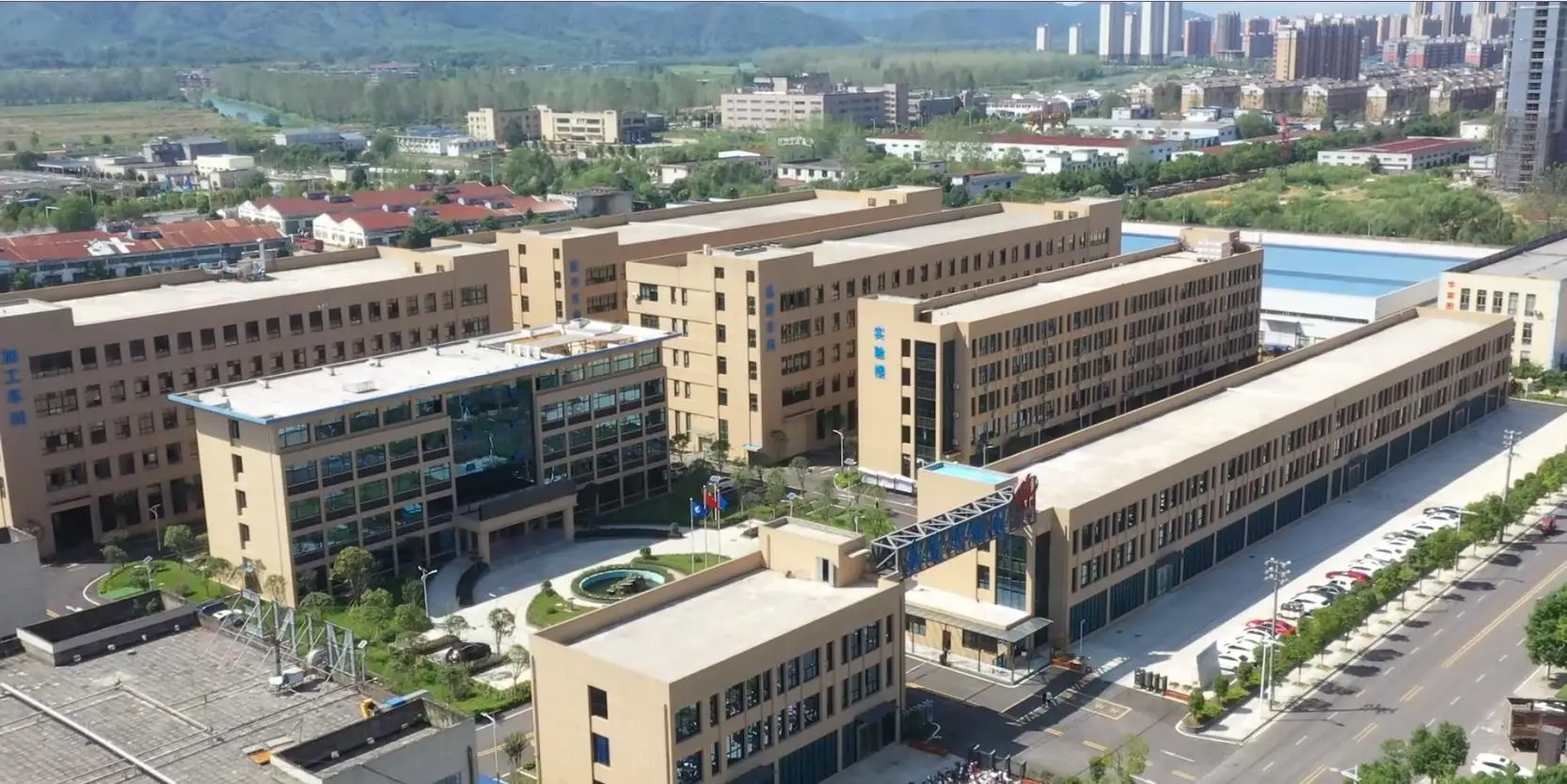

Rich experience - over 10 years. 52000 SQM Industry Park-Strong strength

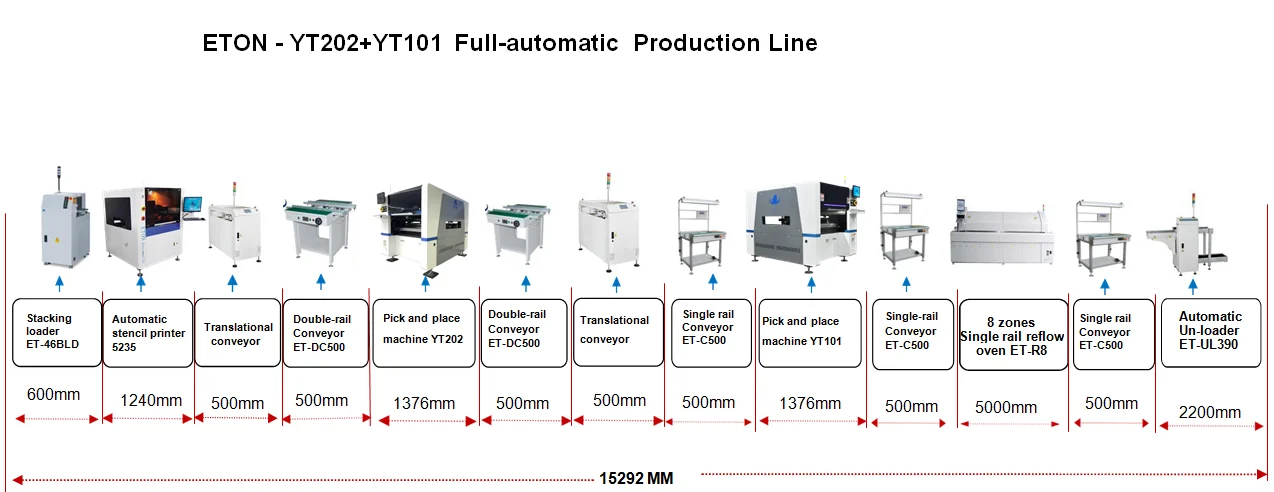

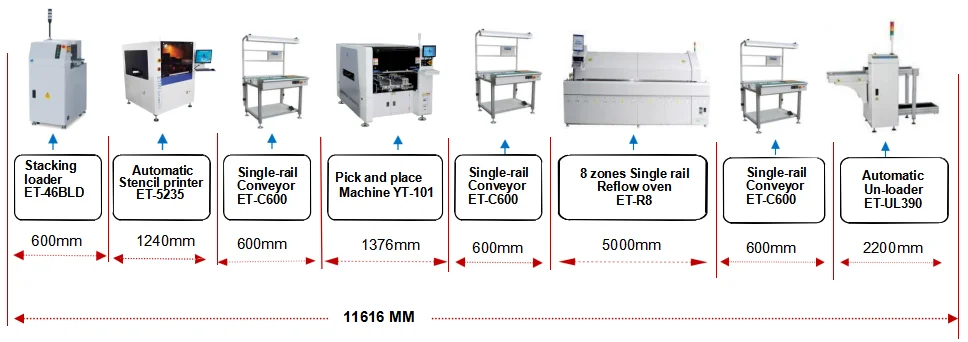

Full SMT line solution expert
Local installation&training-no service worry.
50 professional R&D man- Core technology
Update software whole life time for free
Rich experience - over 10 years. 52000 SQM Industry Park-Strong strength
Full SMT line solution expert
Local installation&training-no service worry.
50 professional R&D man- Core technology
Update software whole life time for free
Packing & Delivery
FAQ
1. Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before deliveryor 50% deposit in advance and the rest before shipment.
4. Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
5. Q: What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust
6. The products you are advertising are in stock?
A: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before deliveryor 50% deposit in advance and the rest before shipment.
4. Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
5. Q: What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust
6. The products you are advertising are in stock?
A: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
