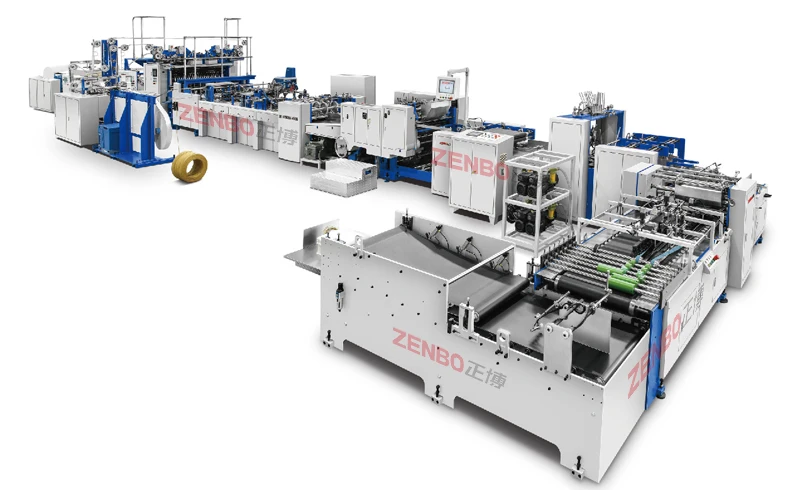

eco friendly paper bag making machine to customize bags
- Category: >>>
- Supplier: Zhejiang Zenbo Intelligent Machinery Co. Ltd.
Share on (1600781940986):
Product Overview
Description
Product Description

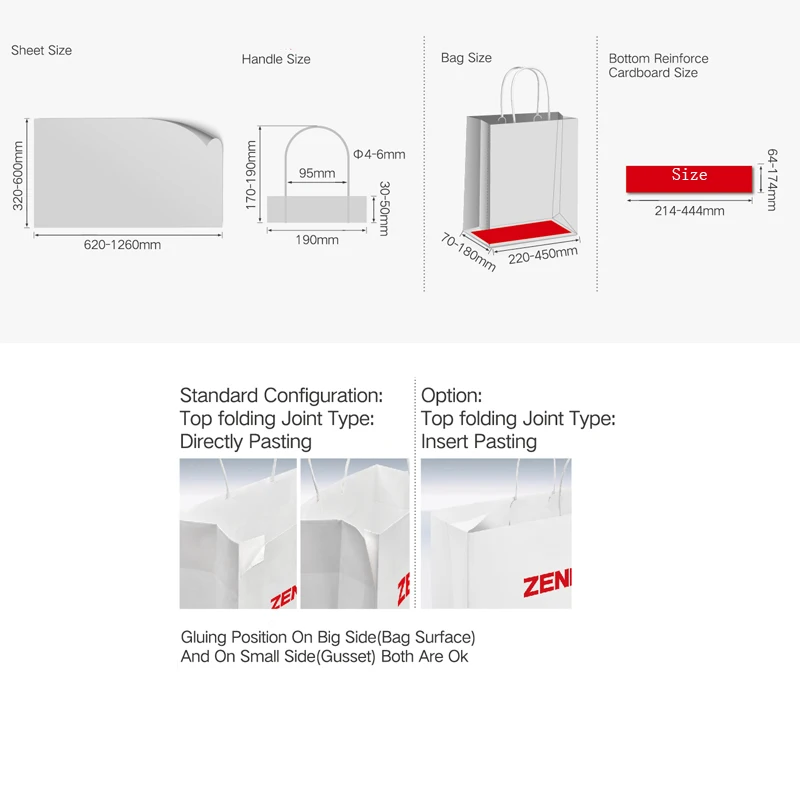

| Main Technical |  |  |  |
| Paper Roll Width | 620-1260mm | 620-1260mm | 620-1260mm |
| Slitting Length | 320-600mm | 320-560mm | 320-600mm |
| Max Roll Diameter/weight | Φ1200mm/1200kg | Φ1200mm/1200kg | Φ1200mm/1200kg |
| Paper Core Diameter | Φ76mm | Φ76mm | Φ76mm |
| Max Sheet(LXW) | 1260*600mm | 1260*560mm | 1260*600mm |
| Min Sheet(LXW) | 620*320mm | 620*320mm | 620*320mm |
| Sheet Weight | 120-190g/m^2 | 120-190g/m^2 | 120-190g/m^2 |

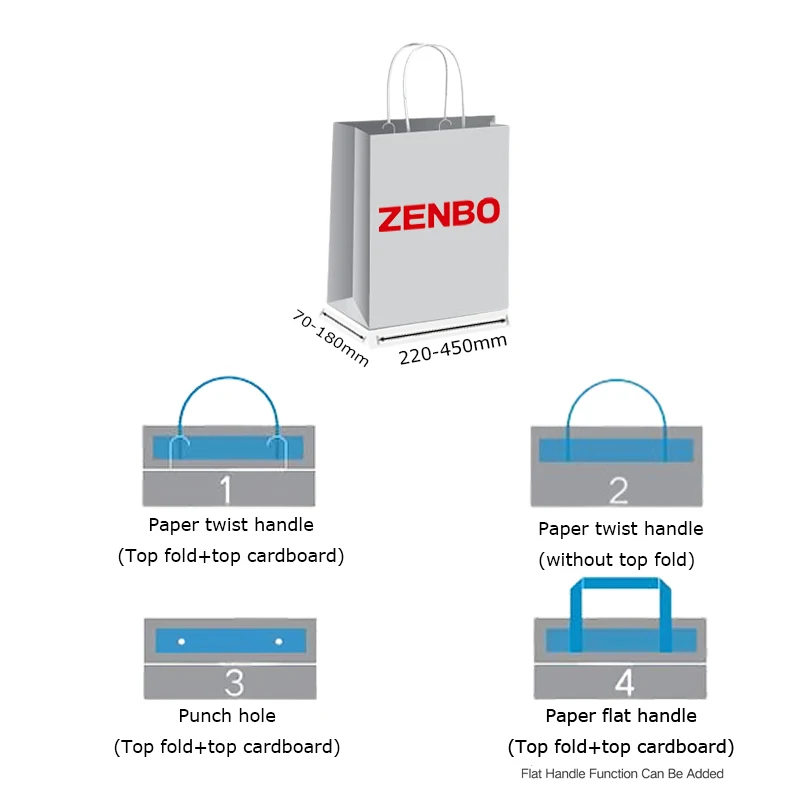

| Bag Width | 220-450mm | 220-450mm | 220-450mm |
| Bottom Width | 70-180mm | 70-180mm | 70-180mm |
| Bag Tube Length | 280-560mm | 320-560mm | 280-560mm |
| Top Folding Depth | 40-60mm | - | 40-60mm |
| Handle Patch Length | 190mm | 190mm | 190mm |
| Handle Patch Width | 30-50mm | 30-50mm | 30-50mm |
| Handle Patch Weight | 140-200g/m^2 | 140-200g/m^2 | 140-200g/m^2 |
| Handle Patch Roll Diameter | Φ1000mm | Φ1000mm | Φ1000mm |
| Handle Patch Roll Width | 60-100mm | 60-100mm | 60-100mm |
| Paper Rope Diameter | Φ4-6mm | Φ4-6mm | - |
| Handle Rope Height | 170-190mm | 170-190mm | - |
| Bottom Cardboard Weight | 250-400g/m^2 | 250-400g/m^2 | 250-400g/m^2 |
| Bottom Cardboard Width | 64-174mm | 64-174mm | 64-174mm |
| Bottom Cardboard length | 214-444mm | 214-444mm | 214-444mm |
| Speed | 40-70bags/min | ||
| Total/Production Power | 67/40KW | ||
| Voltage | 380V | ||
| Total Weight | 29T | ||
| Machine Size(LXWXH) | 27500*7500*2950mm | ||
| Glue Type | Water Base Glue And Hot-melt Glue | ||
Company Information

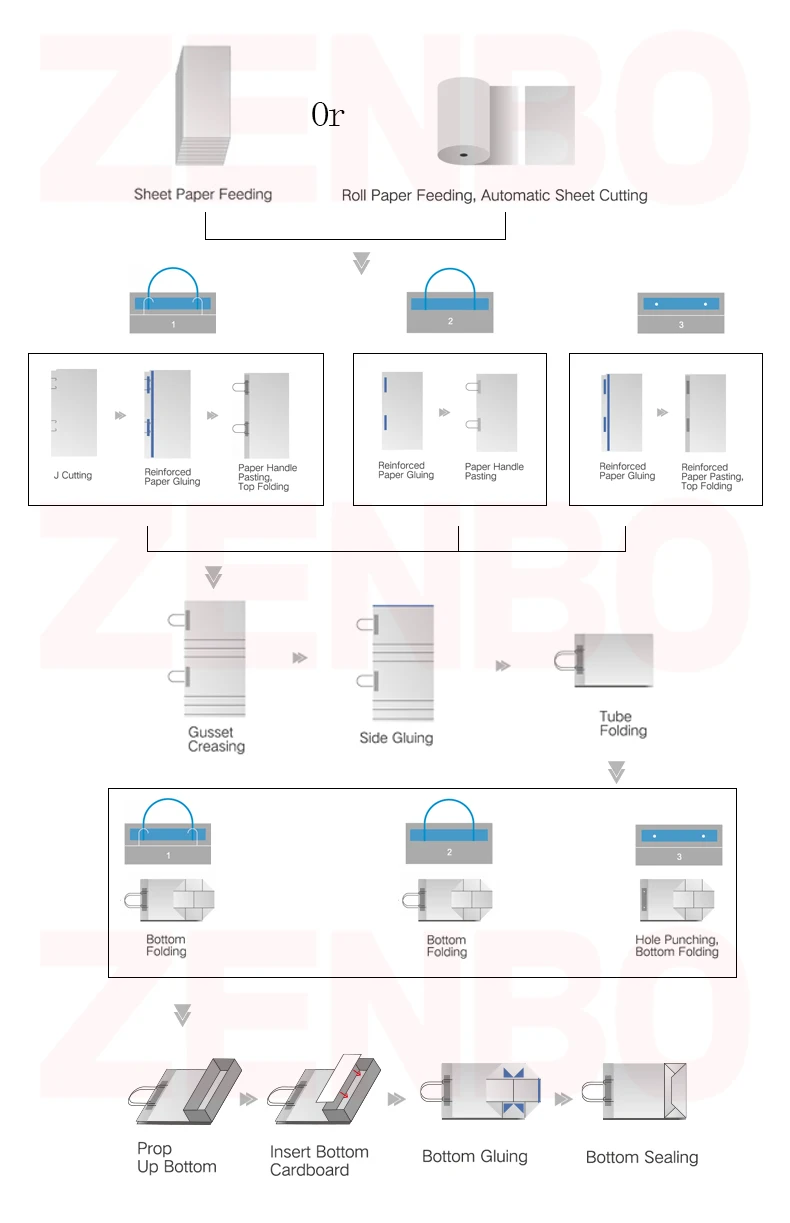

Production Process
