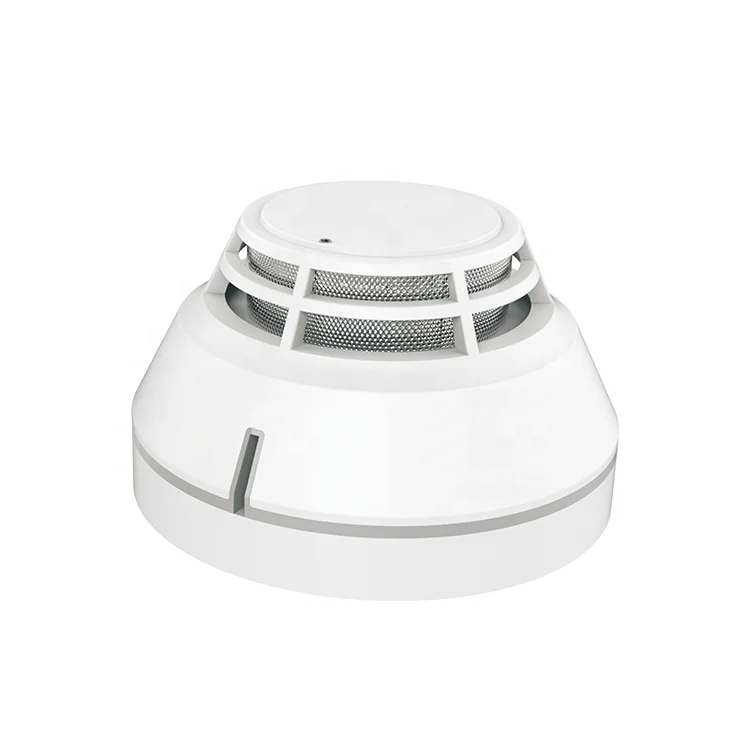

LPCB Certified Conventional Optical Smoke Detector for fire alarm system
LPCB Certified Conventional Optical Smoke Detector for fire alarm system
LPCB Certified Conventional Optical Smoke Detector for fire alarm system
LPCB Certified Conventional Optical Smoke Detector for fire alarm system
LPCB Certified Conventional Optical Smoke Detector for fire alarm system

LPCB Certified Conventional Optical Smoke Detector for fire alarm system

Share on (1600781958489):


Price:$5.00 - $7.00

Quantity:


Product Overview

Description



Products Description


Executive Standard
EN54-7
Operating Voltage
DC24V ±20%
Operating current
During monitoring <50uA
Working indicator
During monitoring, the red indicator blinks once per 6 seconds.
In sensor failure alarm, the red indicator blinks twice per 6 seconds
In fire alarm mode, the red indicator remains on
Weigh
about 120g
External dimensions
Diameter: 100mm, height: 58mm (with the base)
Wiring method

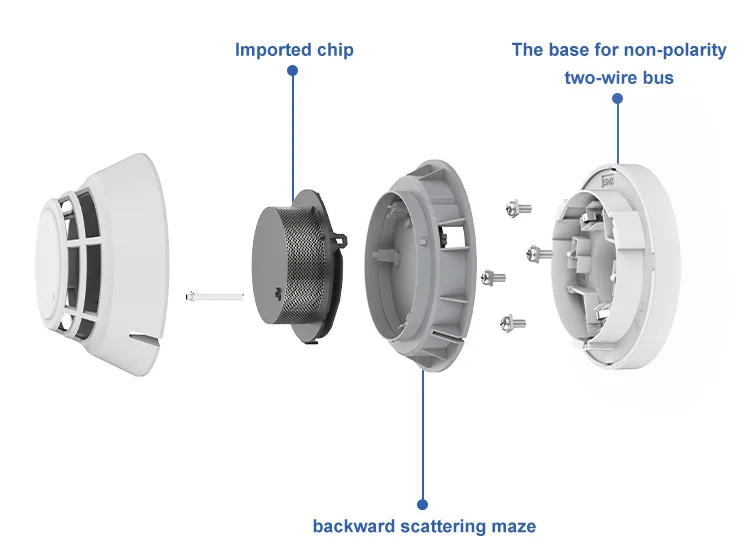

Non-polarity two-bus system
Operating environment
Indoor, temperature: －10℃～+55℃; relative humidity: ≤95% (40℃±
2℃, without condensation)
Matched host machine

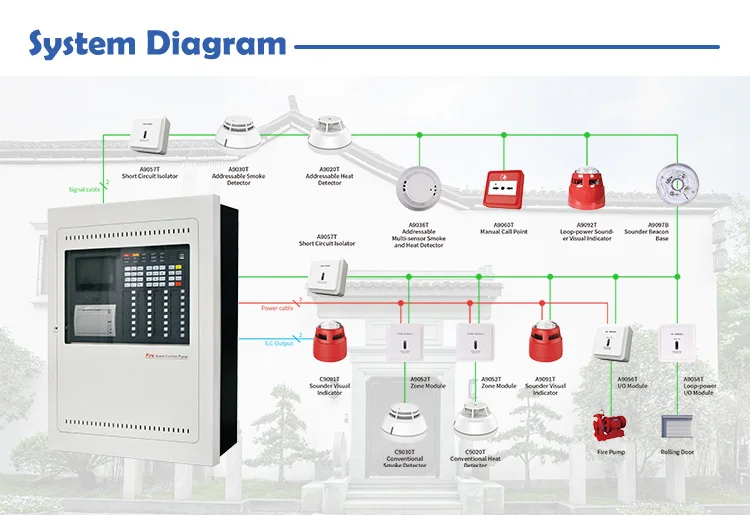

Addressable fire alarm system via the zone module
