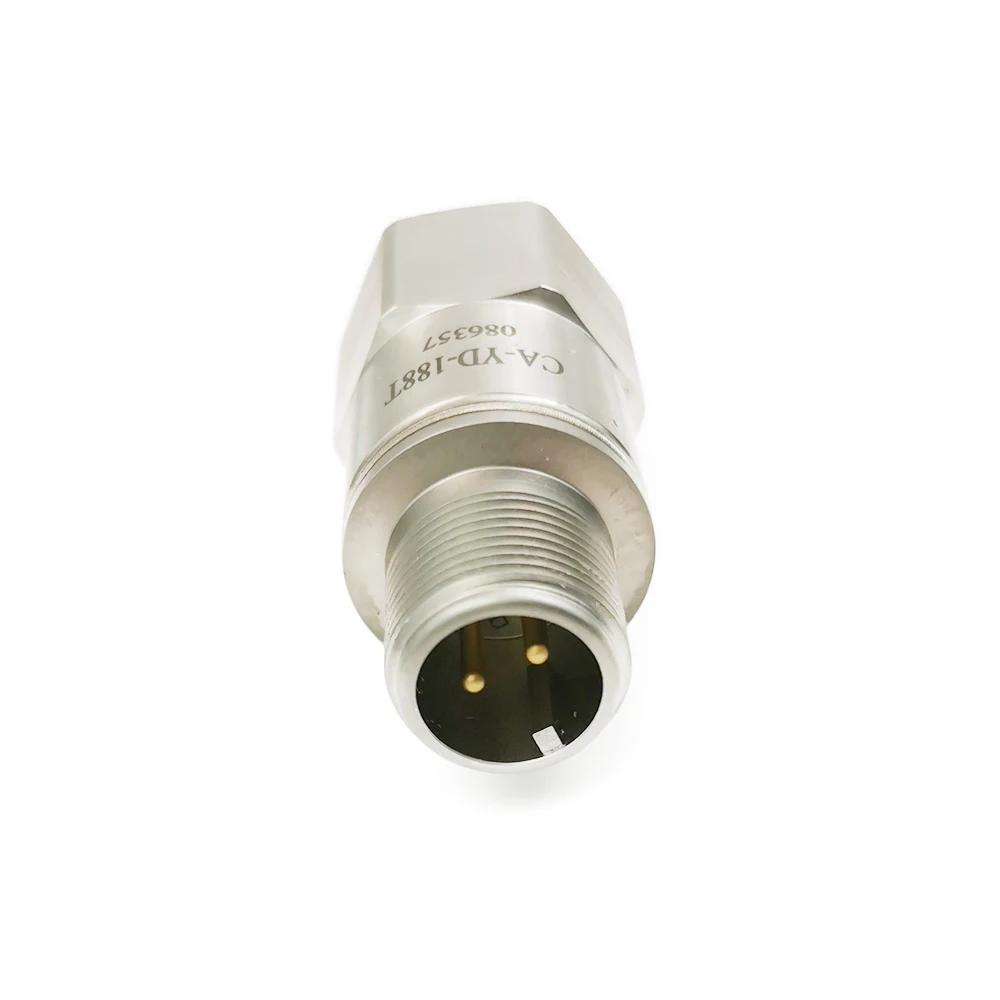

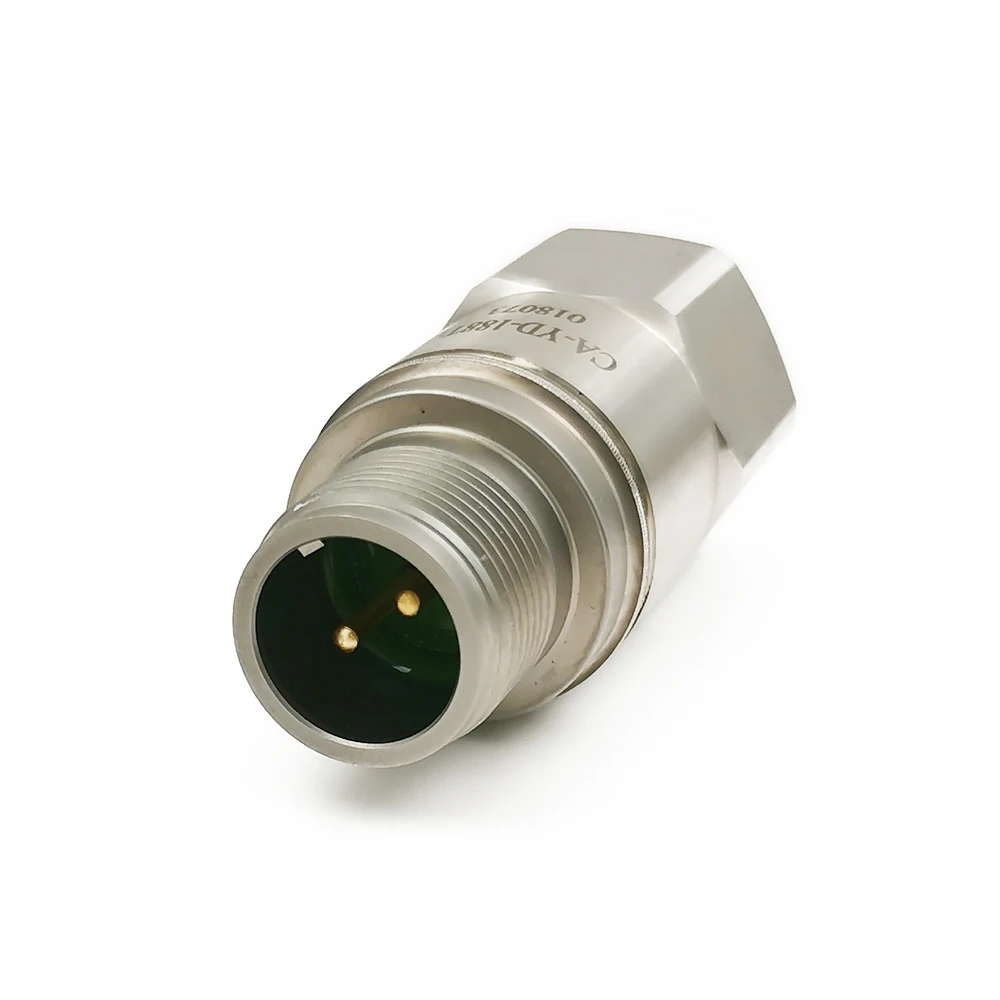

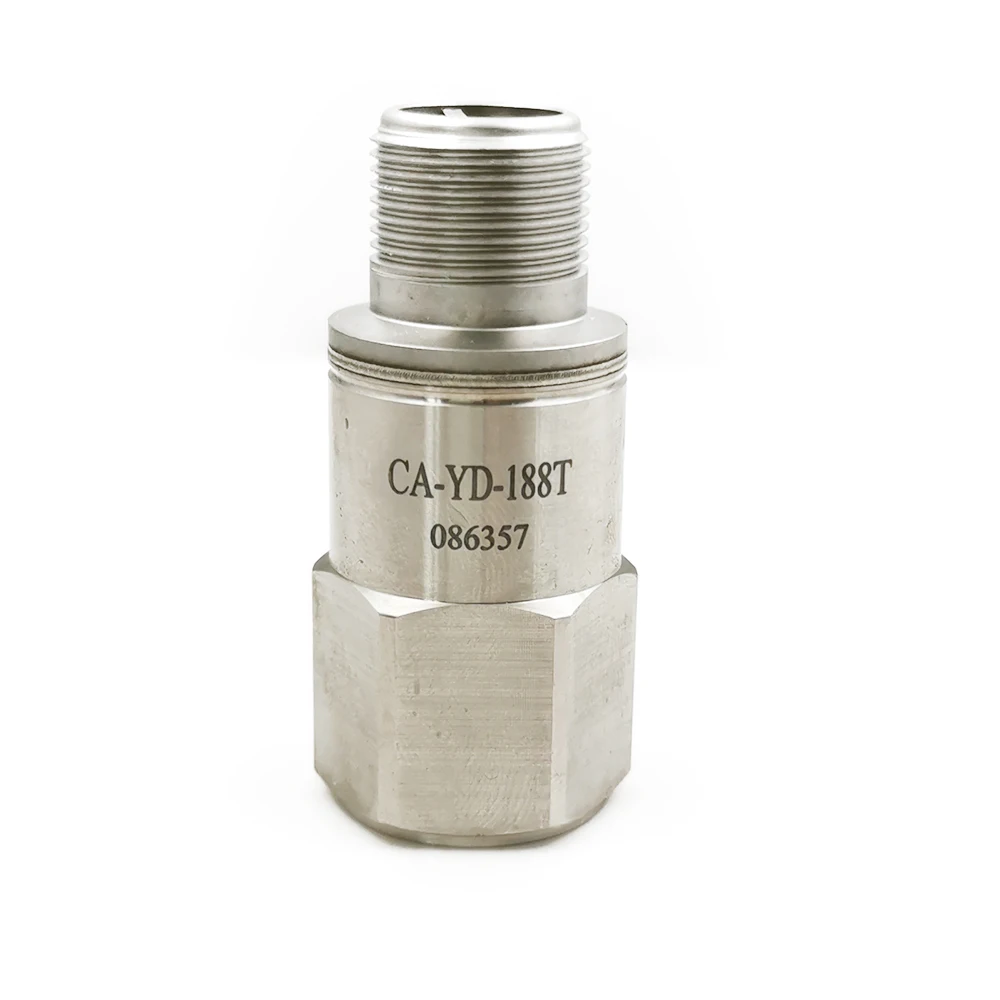

Industrial site monitoring two pin socket output IEPE cheap sensor China vibration transducer accelerometer transmitter sensor
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (1600782010646):
Product Overview
Description
We are a factory located in China.
Above price are negotiable.
If you need other sensors, please send us your inquiry.
Features:
Built-in IEPE, low noise, strong resistance of disturbance
Isolated, Floating, industrial site monitoring
2-pin MIL-C-5015 two-pin socket output
Specifications:
Sensitivity(20±5℃) | 500 mV/g |
Measurement Range(pk) | ±10 g |
Max Transverse Sensitivity | <5% |
Frequency Response(±10%) | 0.6~5,000 Hz |
(±3dB) | 0.1~10,000 Hz |
Amplitude linearity | ≤1% |
Operating Temp. Range | -40~+120 ℃ |
Temperature Response | See Graph |
Shock Limit(pk) | 2000 g |
Noise(rms) | |
Output Impedance | |
Operating Voltage(Constant current source) | 18~28 VDC |
Operating Current | 2~10 mA |
DC Bias Voltage | 12±2 VDC |
Case Isolation | ≥108 Ω |
Mounting | 1/4-28 |
Sensing Element | Piezoelectric Ceramics |
Sensing Geometry | Shear |
Case Material | 304 Stainless steel |
Sealing | IP65 |
Weight | ~90 g |
Output | Top 5/8-24 2-pin Socket |
Accessories |
|
Certificate | Calibration parameters |

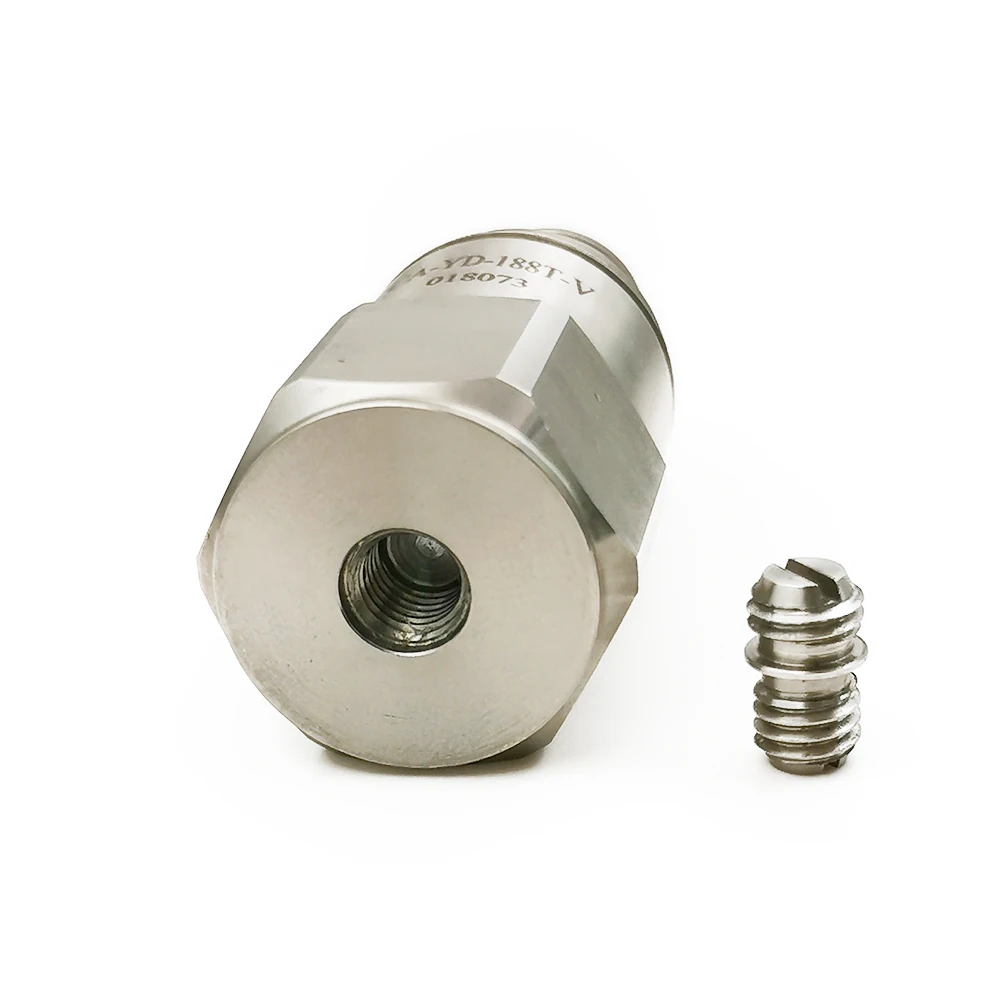

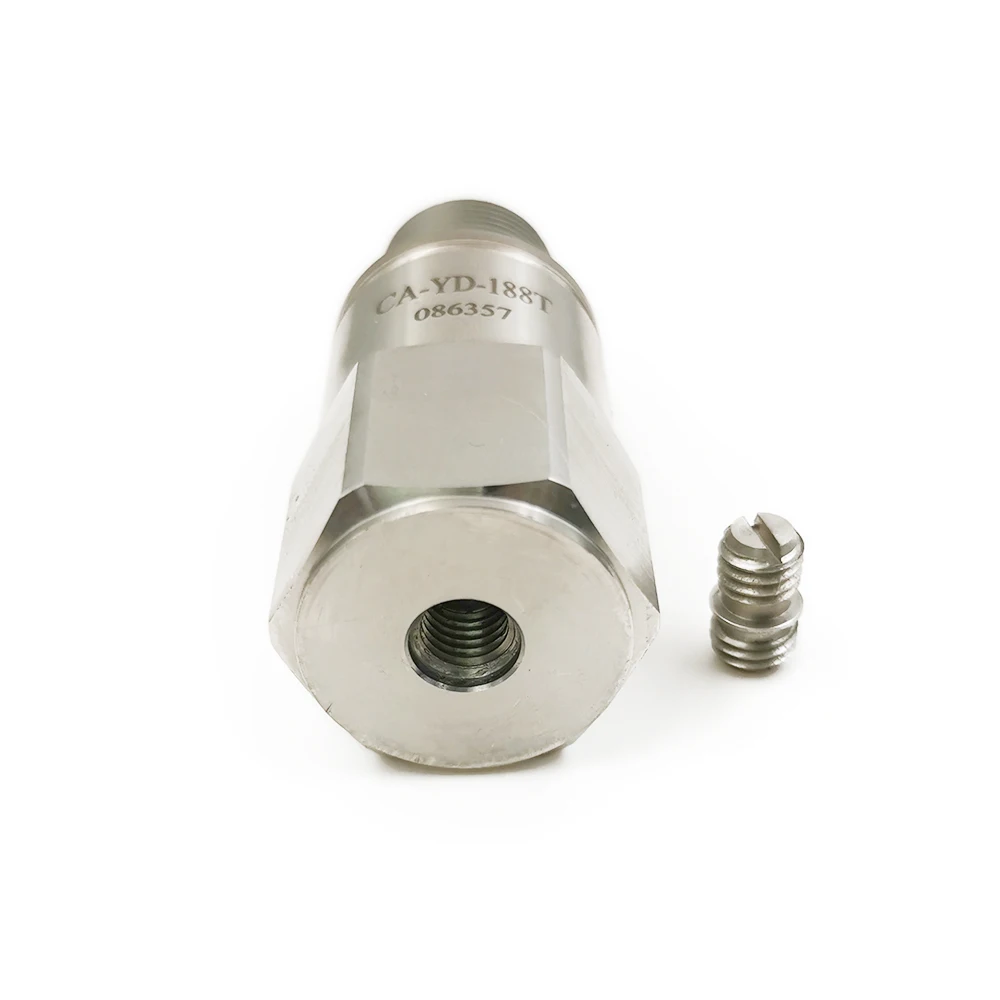

1/4-28 Stud | one |
3106A(5015)Plug, Cable(RVVP) | one (3m),one end free |
