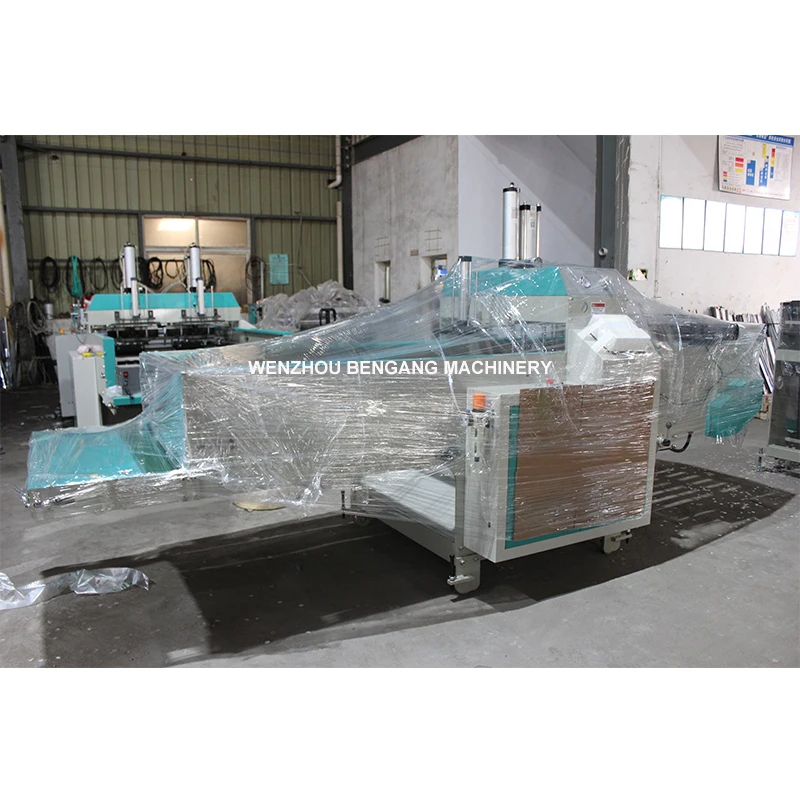

BG470*2 Biodegradable Bag Sealing Machine Type and Plastic LDPE HDPE Material T shirt shopping plastic bag making machine price
- Category: >>>
- Supplier: Wenzhou Bengang Machinery Co. Ltd.
Share on (1600782082829):
Product Overview
Description
Summery | ||||||
1.Machine adopt 12mm thickness steel Plate frame. 2.1.5KW EURA Brand inverter 3.Back material feeding part adopts 0.4KW EURA Brand 4.Front material feeding part adopts 2KW Servo motor 5.Double heating system to make sure the heating and cutting effective 6.Back material feeding part adopt cylinder type material lift system which with material storage. | ||||||
Parameters | ||||||
LTC470 double T-shit bag heating cutting plastic bag making machine | LTC8-260 | LTC8-300 | ||||
Bags size | W:within 430mm L:320~650mm | W:140~260mm L:100~400mm | W:200~300mm L:100~400mm | |||

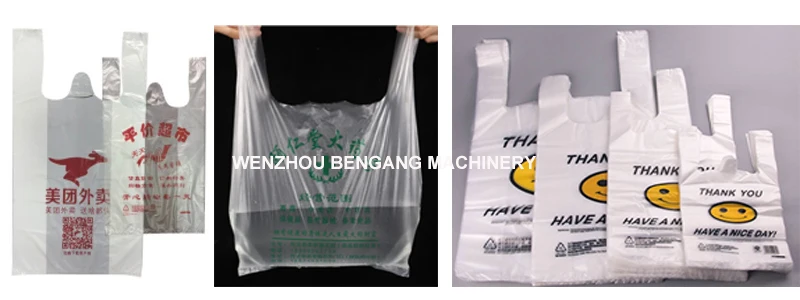

Bag type | T-Shit type bag*2 PCs | Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag | Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag | |||
Filling Volume | 30 – 1900g depending on type of products | 30-2000g depending on type of products | 100-2500g depending on type of products | |||
Capacity | 80-230 bags/min single channel, 160-460pcs/min double channels | 25-60 bags/min for different material and different bag | 25-60 bags/min for different material and different bag | |||
Weight & power supply | 1900kgs 380v 50HZ 3P 16kw | |||||
Compress air requirement | 0.6-1m³/min supply by user | |||||
Seal&cut thinkness | 0.008-0.03mm | |||||
Length error | ±1mm | |||||
overall size | 7500*1650*1900mm | |||||

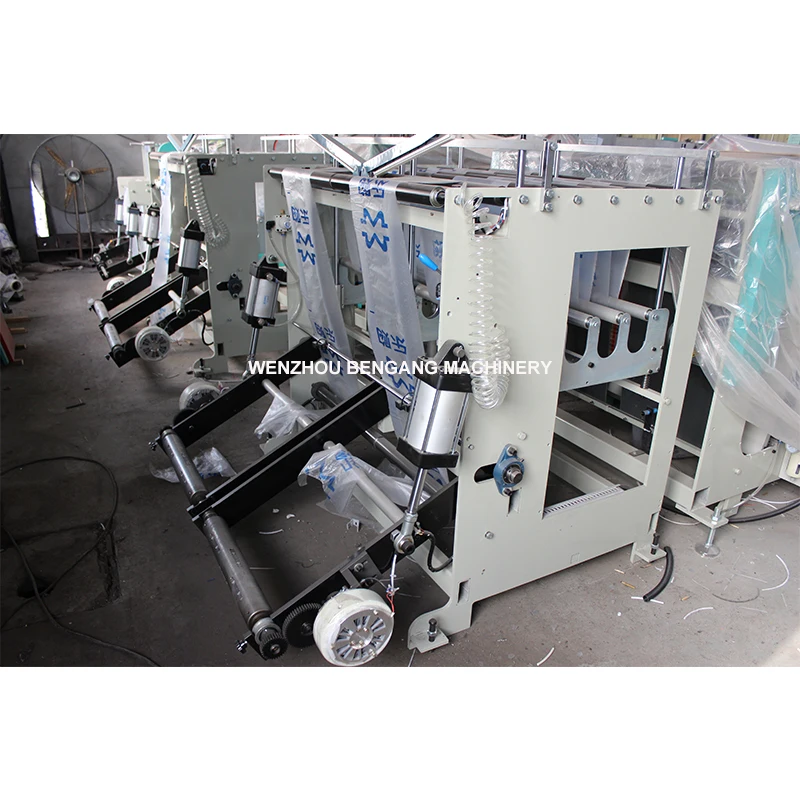

Film roll loading frame system
BG500 adopt HDPE，LHPE,PLA,PE double layers film roll.

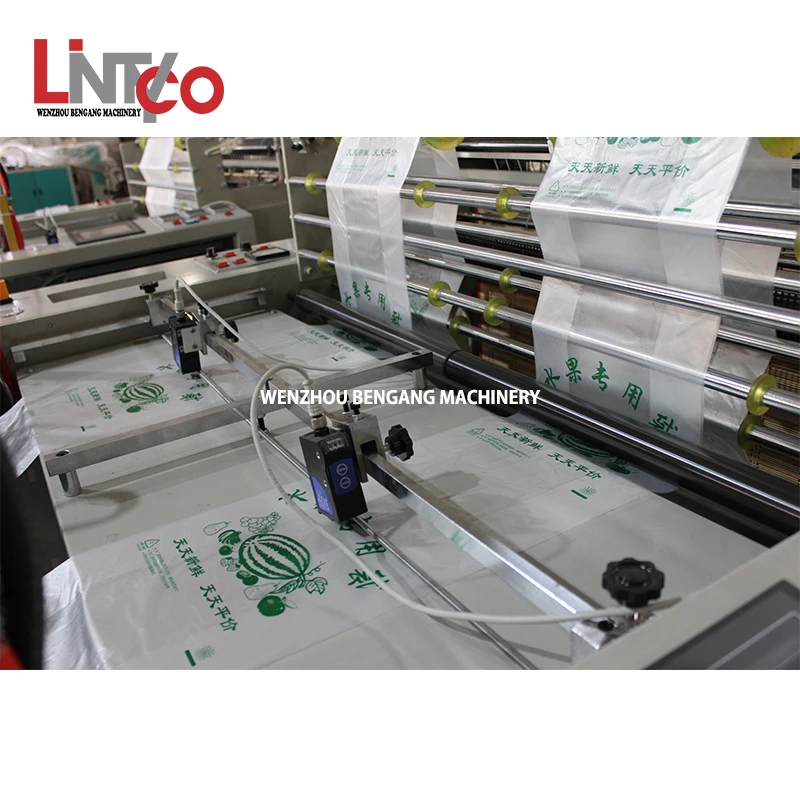

Sensor location system
Sensor locate the bag logo/front photo to make sure the T-shirt sealing cutting in right position.

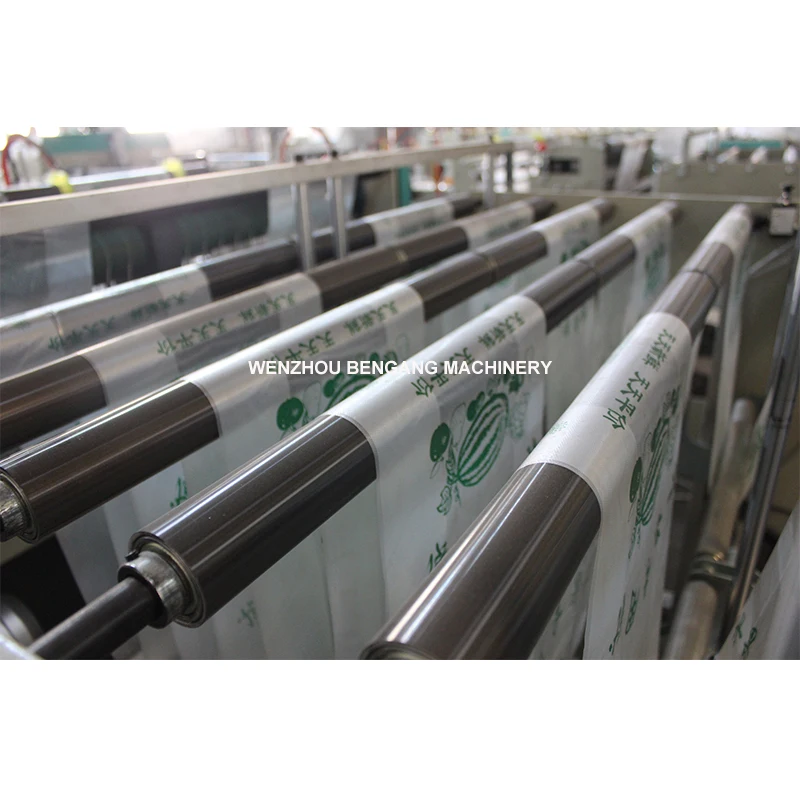

Film organizing rack
These bearings is to or organize film and tight the film for sealing in right position and cutting in right position.

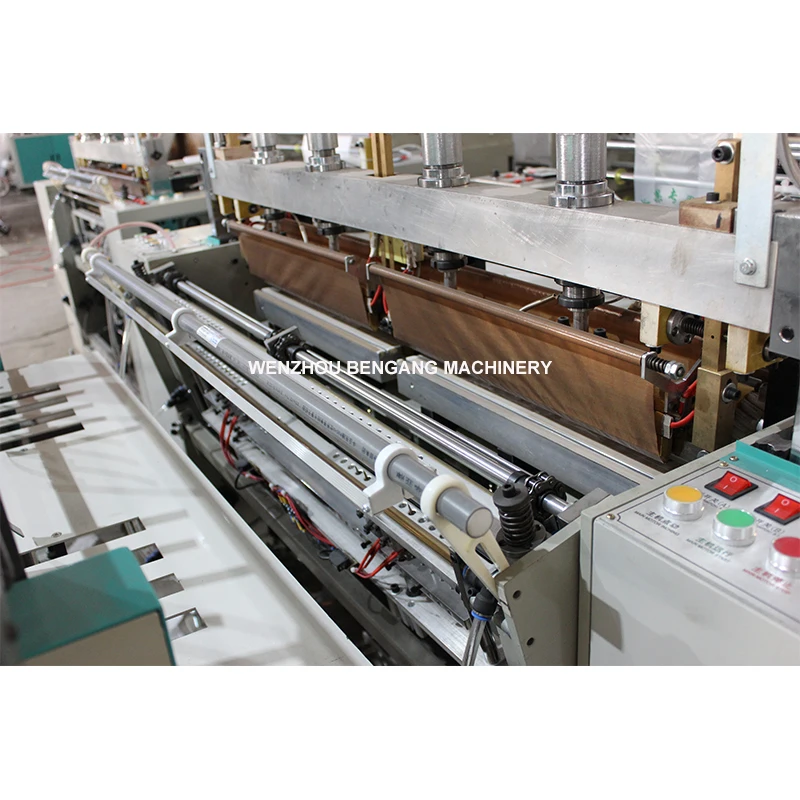

Heat sealing system
Double heat sealing system.

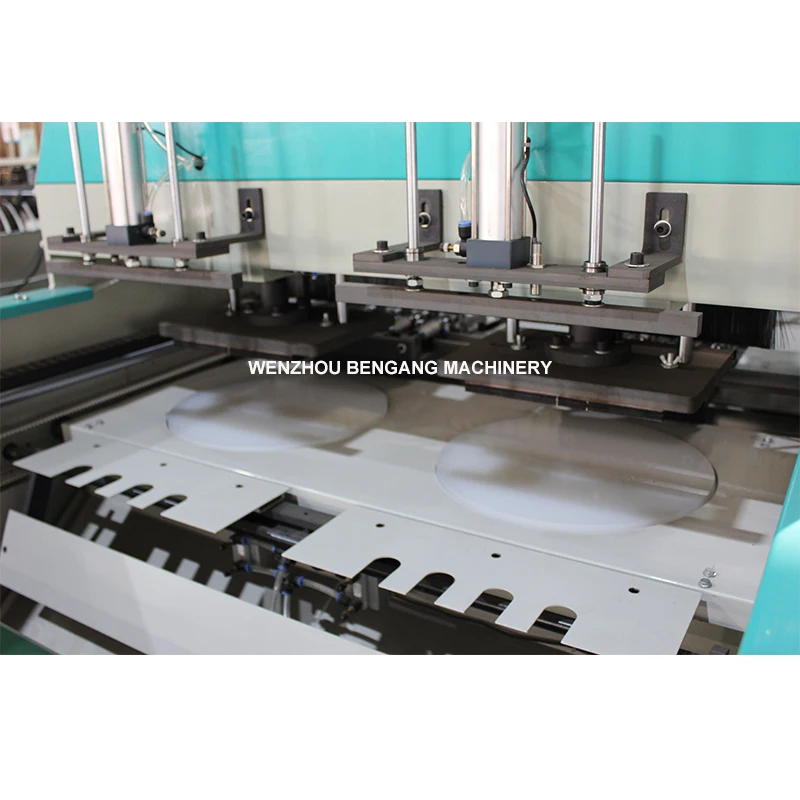

T-shirt cutting system
Double T-shirt cutter

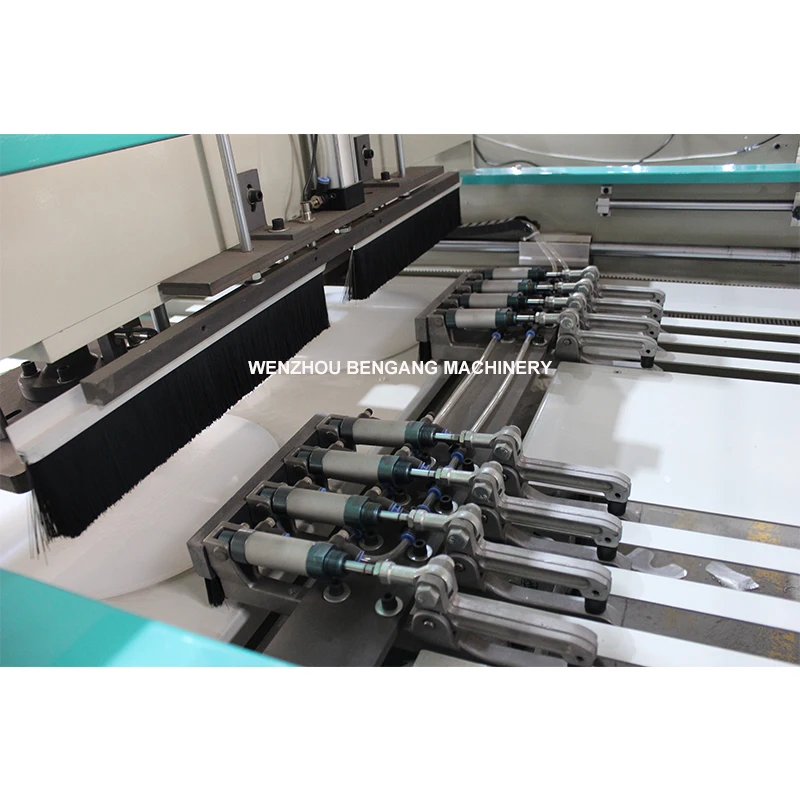

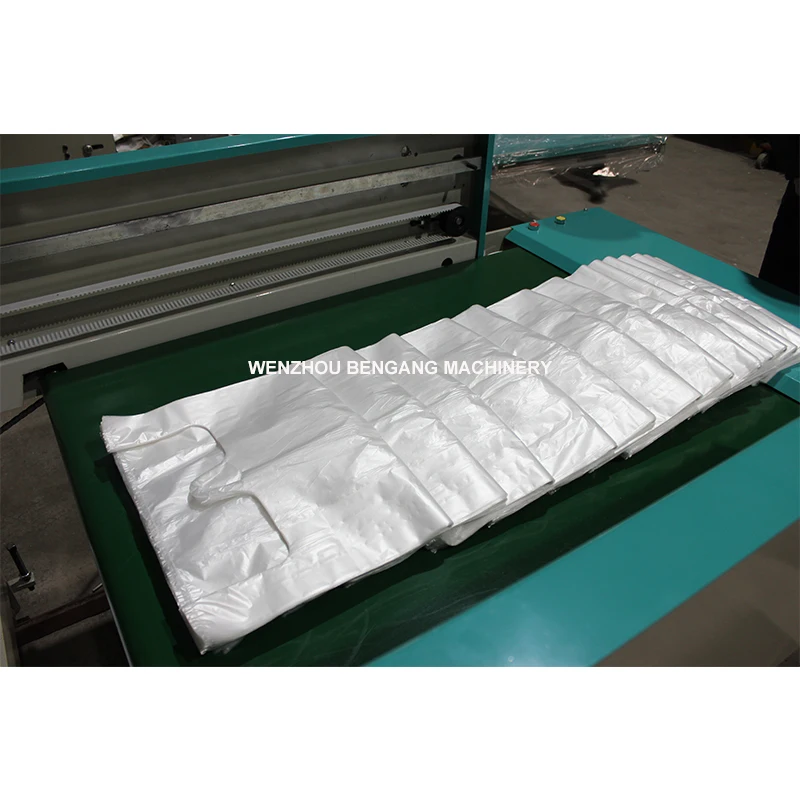

Finished bag catcher
After T-shirt cutting, the catcher will catch the finished bag to magazine. It will be an orderly matrix of bags.

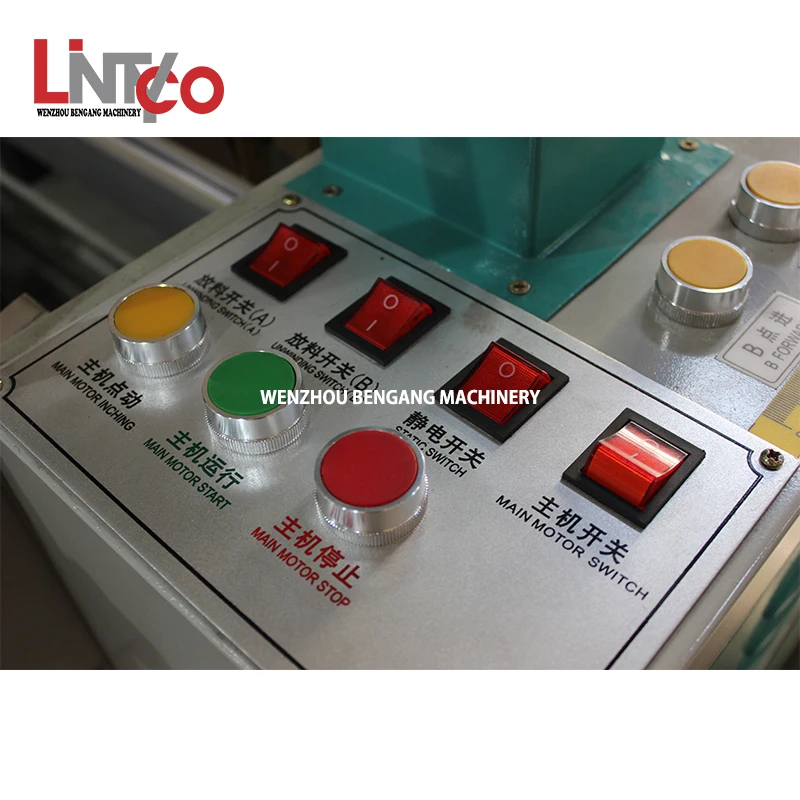

Control panel
Easy operate with easy maintain.
