Custom Outdoor Neon Signage Led Neon Sign Waterproof IP67 Horizontally Bending LED Strip Lights Neon Flex 5m 50 meters RGB Strip
- Category: >>>
- Supplier: Shenzhen Lumimore Lighting Co. Ltd.
Share on (1600782380063):
Product Overview
Description
Specification
The Lumiopal LED neon strip features dotfree lighting, longer lifespan and High efficacy, high CRI, it is designed to provide
consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants,
shops, offices and homes.
Features:
1.Side view / Horizontal bending
2.Silicone extrusion 12*18mm Flat
3.IP67 UV resistant
4.Dimmable with suitable control system 0-10V/PWM/TRIAC
consistent linear lighting for a wide variety of applications for cove lighting and indirect lighting in hotels, restaurants,
shops, offices and homes.
Features:
1.Side view / Horizontal bending
2.Silicone extrusion 12*18mm Flat
3.IP67 UV resistant
4.Dimmable with suitable control system 0-10V/PWM/TRIAC
Electrical technical data
Nominal input voltage | 24V DC | Voltage range | 23-25V DC |
LED types | 2835 SMD | Product dimension | L5000*W12*H18mm |
LED QTY/m | 140pcs | PCB dimension | 10mm x 3oz (1/2oz) |
IP rating (optional) | IP67 | Cut points | 50mm |
Beam angle | 120° | Material of coating | Extruded Square |
Bend radius | R<60mm | Customized ength/reel | 0.1 to 20meters |
Dimming function | PWM/ 0-10V/ DALI | Standard length/reel | 5meters |
Connection | 22 x 0.5MM2 / 20AWG wire / DC connector | Installation | 3M VHB 5952adhesive tape |
Light technical data
Part number | SE1218F |
Power consumption/m | 10 W/m |
Color/CCT | 1800~5700K |
Lumen outputLm | 300-450LM |
Luminous Efficacy Lm/w | 30-45Lm/w |
MAXRUN in series | 5meter (2.1A) |
Binning tolerance | SDCM<3(RF) |
TlCI | 90 |
CRI (White) | Ra+92;R9+68 |
TM30 | Rf=92 Rg=101 |
Product Description

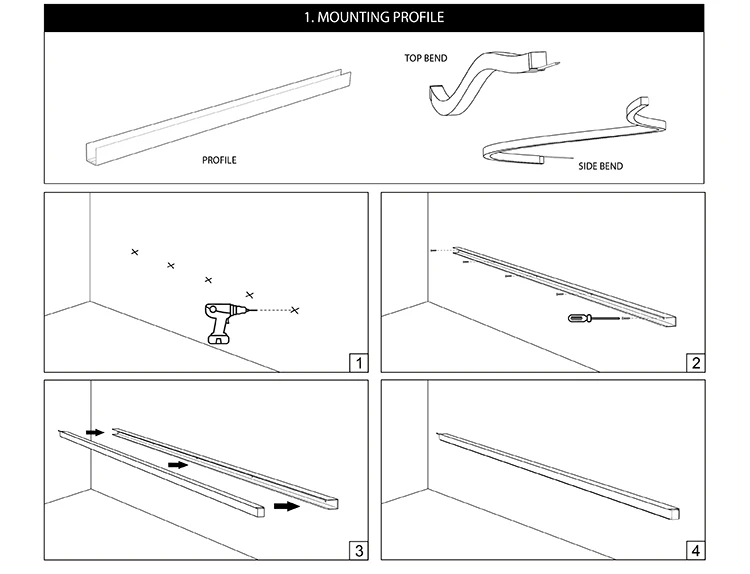

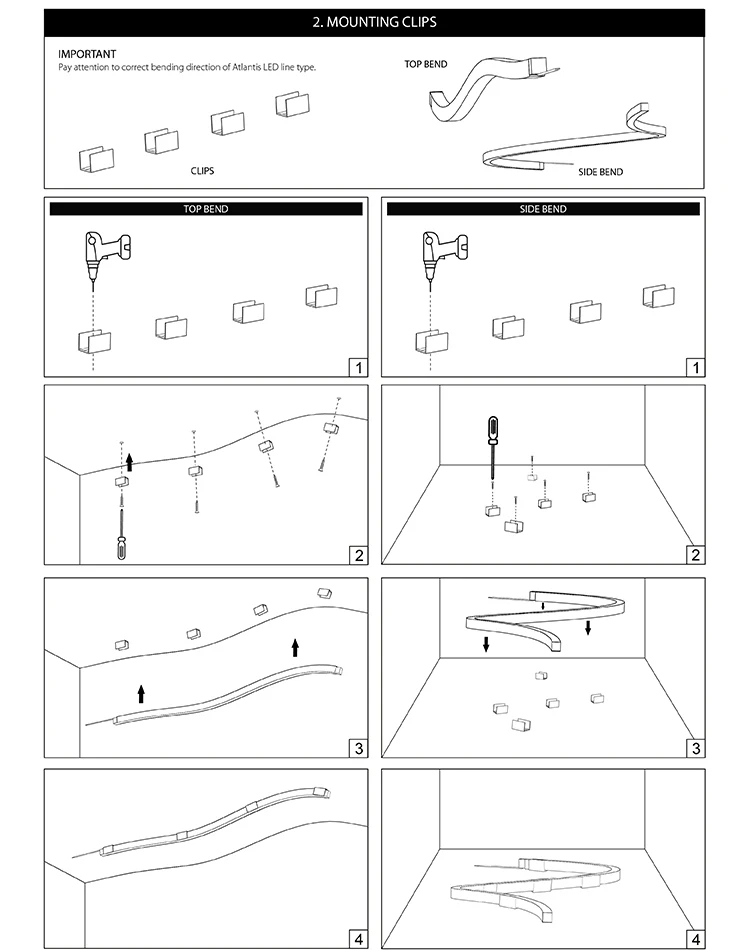

Installation

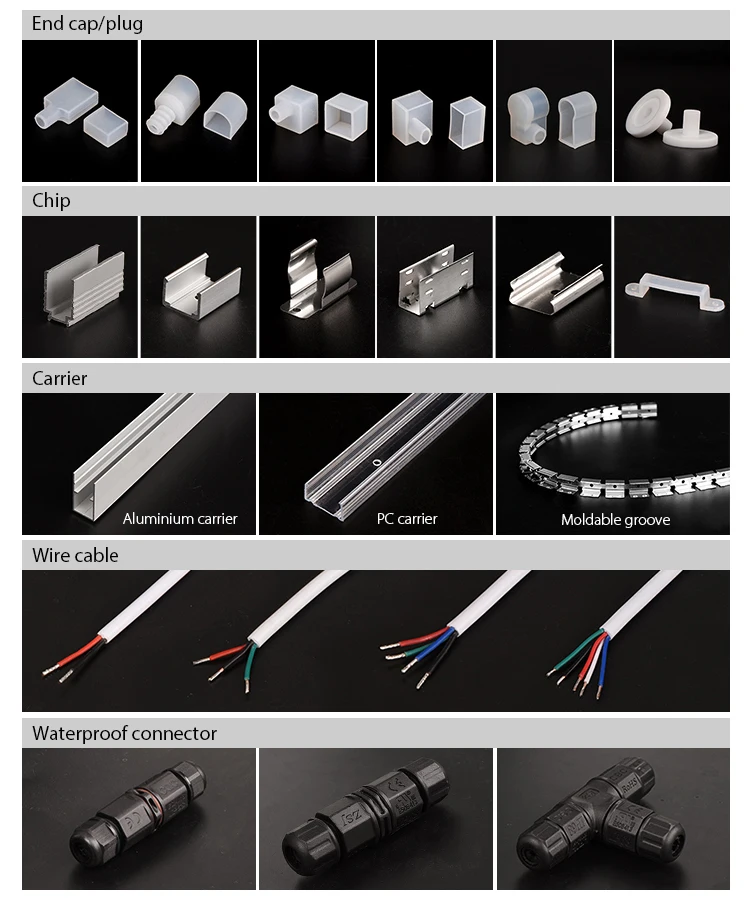

Accessories
Company Introduction
Shenzhen Lumimore Lighting Co., Ltd.
Lumimore Lighting was founded in 2013 and has been a beacon of innovation in the lighting industry for 11 years. Standing behind the brands wholesaler, lighting designers, contractors, and etc. Specializing in SMD/COB LED strip light and Neon flex solutions, our commitment to quality and cutting-edge technology sets us apart.
Key Highlights:
Factory Size: 2000+ square meters
Certifications: CE, ROHS, CB, UL, UKCA, ISO9001...
Global Presence: Serving North America, Europe, Australia, New Zealand, the Middle East, and etc. Integrated Manufacturing: We seamlessly integrate manufacturing and trading, offering customized solutions and professional services.
At Lumimore Lighting, we don't just illuminate spaces; we light up possibilities. With a focus on quality, innovation, and customer satisfaction, we continue to be a trusted partner in the world of lighting solutions.
Discover brilliance with Lumimore Lighting，deliver the valuable light.
Key Highlights:
Factory Size: 2000+ square meters
Certifications: CE, ROHS, CB, UL, UKCA, ISO9001...
Global Presence: Serving North America, Europe, Australia, New Zealand, the Middle East, and etc. Integrated Manufacturing: We seamlessly integrate manufacturing and trading, offering customized solutions and professional services.
At Lumimore Lighting, we don't just illuminate spaces; we light up possibilities. With a focus on quality, innovation, and customer satisfaction, we continue to be a trusted partner in the world of lighting solutions.
Discover brilliance with Lumimore Lighting，deliver the valuable light.
Factory Strength
Exhibition
Shipping & Payment

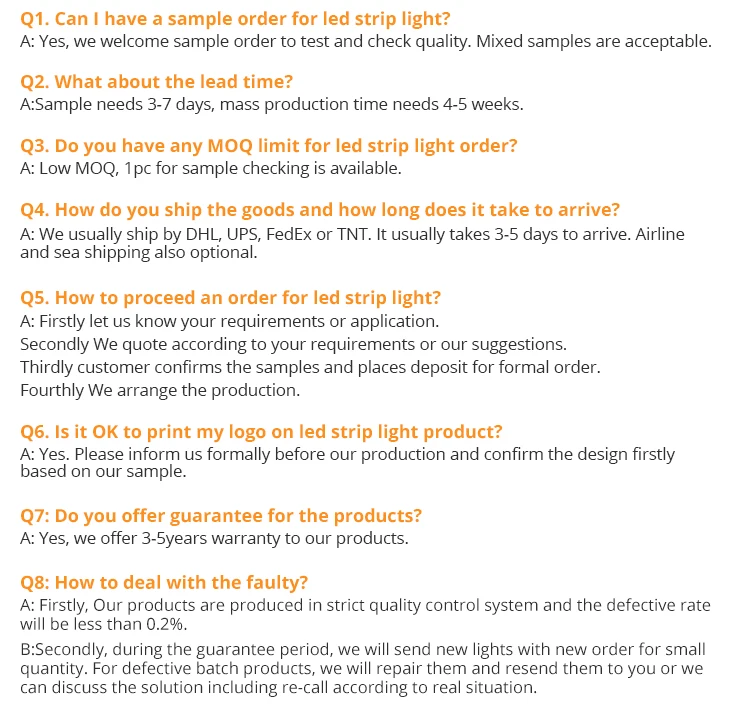

FAQ
