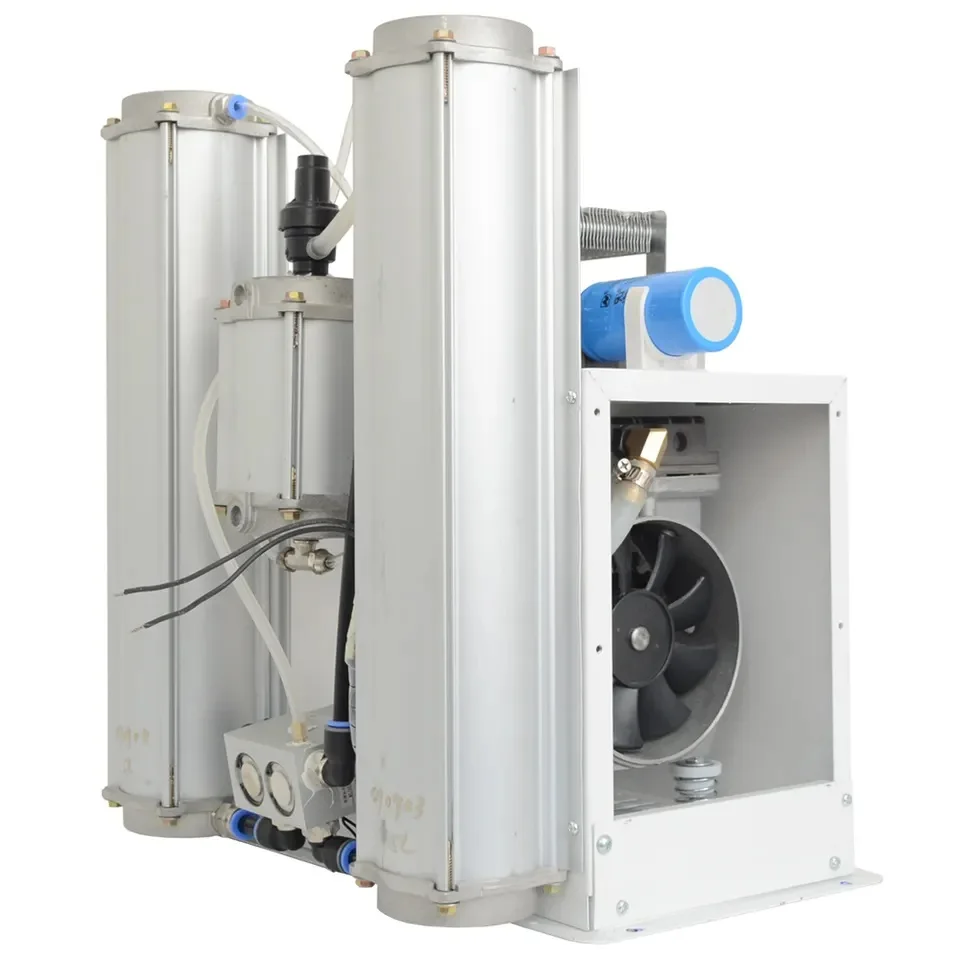

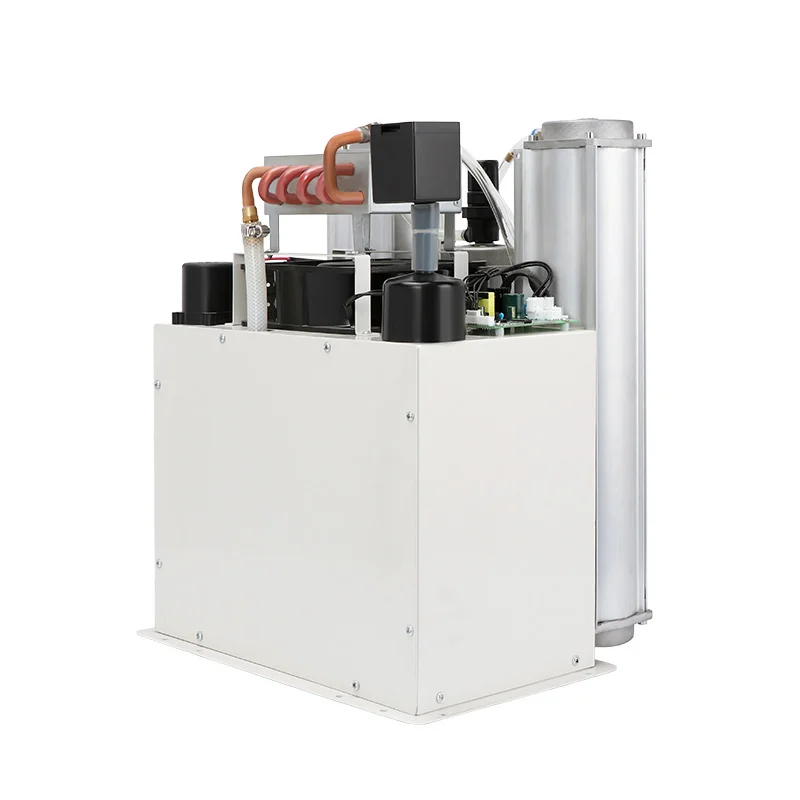

3L 5L 10Liter O2 generator oxygen concentrator module 10lpm sieve beds 10l sieve bed module
PSA oxygen generator is uses the advanced physical oxygen production principle, through the molecular sieve pressure adsorption action, at room temperature under certain pressure directly separates the oxygen nitrogen in the air, obtains the high purity oxygen, and the sustainable oxygen supply.
Technical features: The use of pressure sensing control mode, according to the molecular sieve of the best operating pressure value set to switch control points, can detect abnormal pressure, there is a fault alarm function.
Specification:
Item | Unit |
OX3L |
OX5L |
OX8L |
OX10L | ||
Oxygen output | LPM | 3 | 5 | 8 | 10 | ||
Oxygen concentration | % | 93%±3% | |||||
Sould level |
| less than 50db | |||||
Power | W | ≤280 | ≤400W | ≤400W | ≤550W | ||
Pressure(inlet) | Mpa | 0.18-0.2 | 0.2 | ||||
Pressure(outlet) | Mpa | 0.06-0.08 | |||||
Temperature | ℃ | indoor temperature | |||||
Relative humidity | % | ≤85% | |||||
Dimension | cm | L35*H19*W32 | L36*W36*H42 | ||||
Weight | kg | 17 | 20 | 23 | 25 |
